Engine Controls Schematics

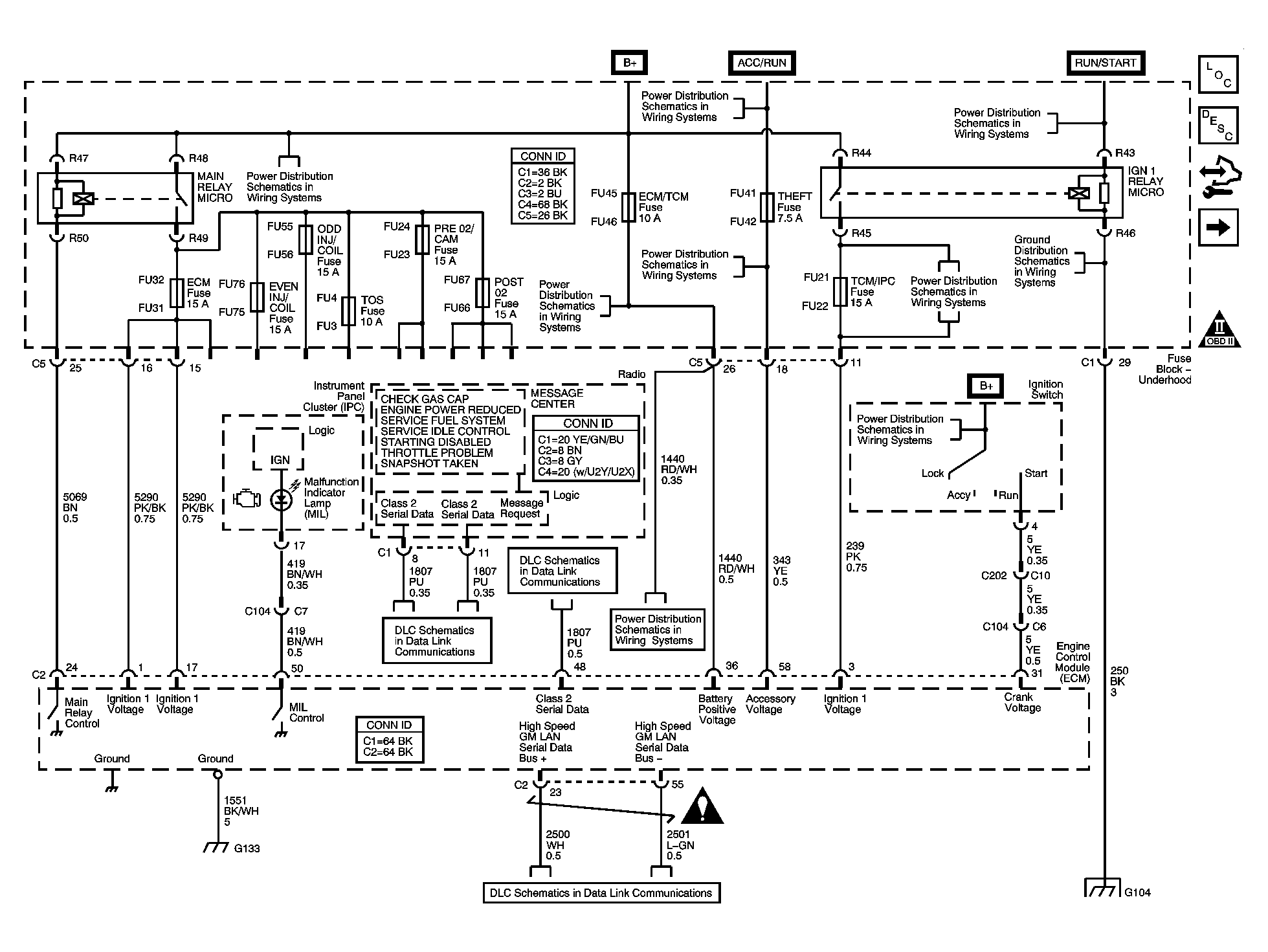

Fig 1: Schematic - Module Power, Ground, Serial Data, and MIL

Courtesy of GENERAL MOTORS CORP.

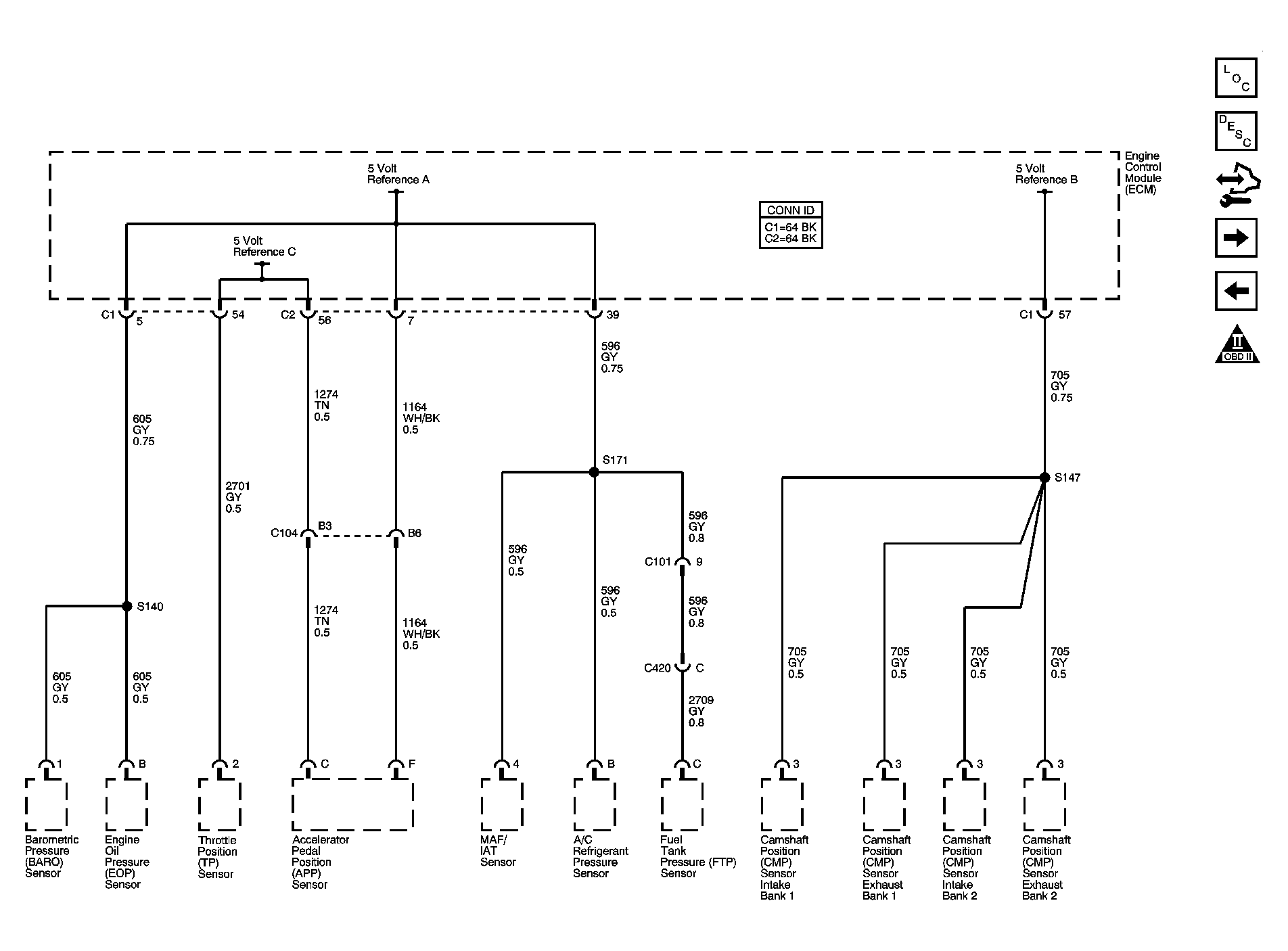

Fig 2: Schematic - Engine Data Sensors - 5-Volt Reference

Courtesy of GENERAL MOTORS CORP.

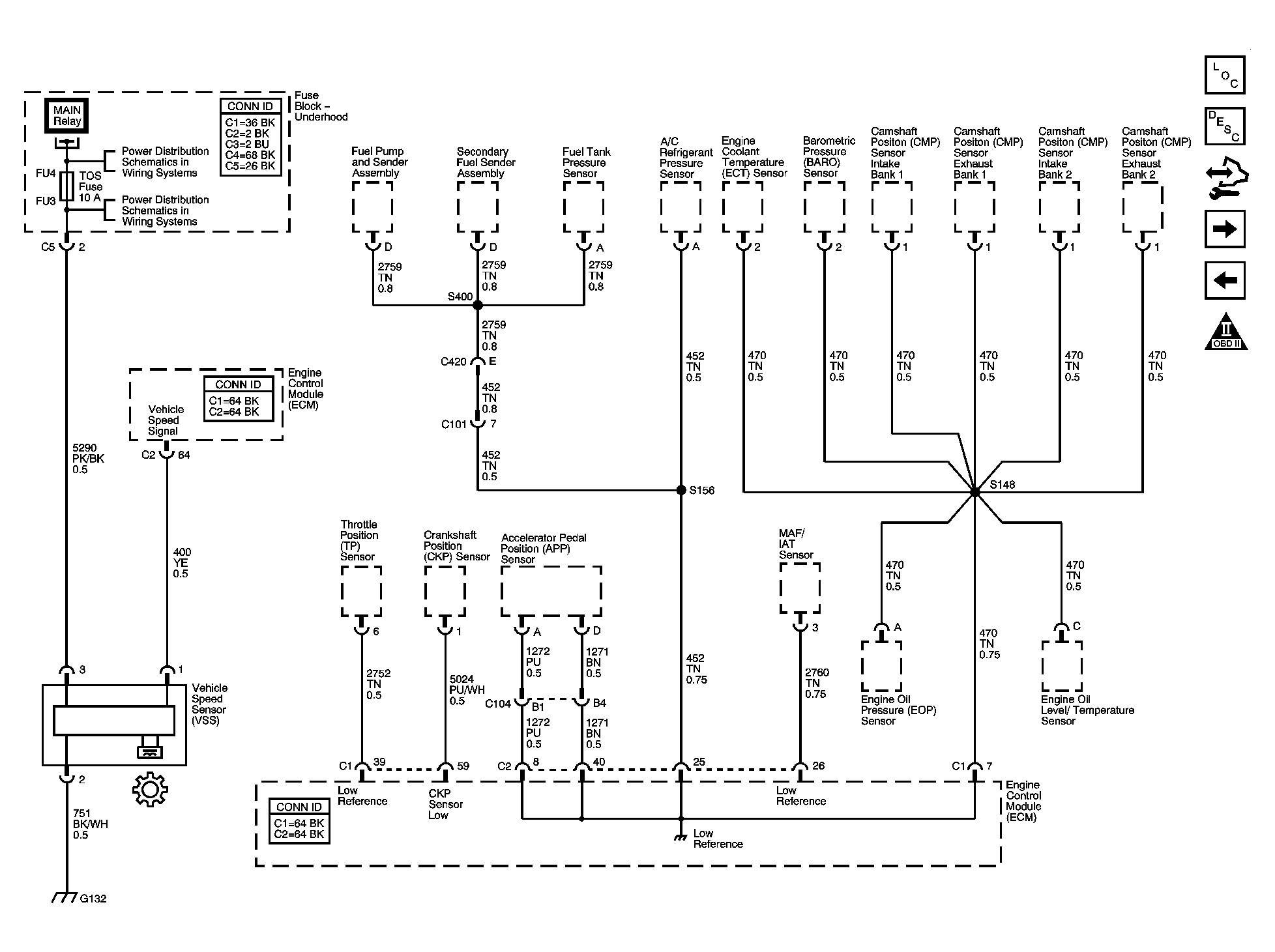

Fig 3: Schematic - Engine Data Sensors - Low Reference

Courtesy of GENERAL MOTORS CORP.

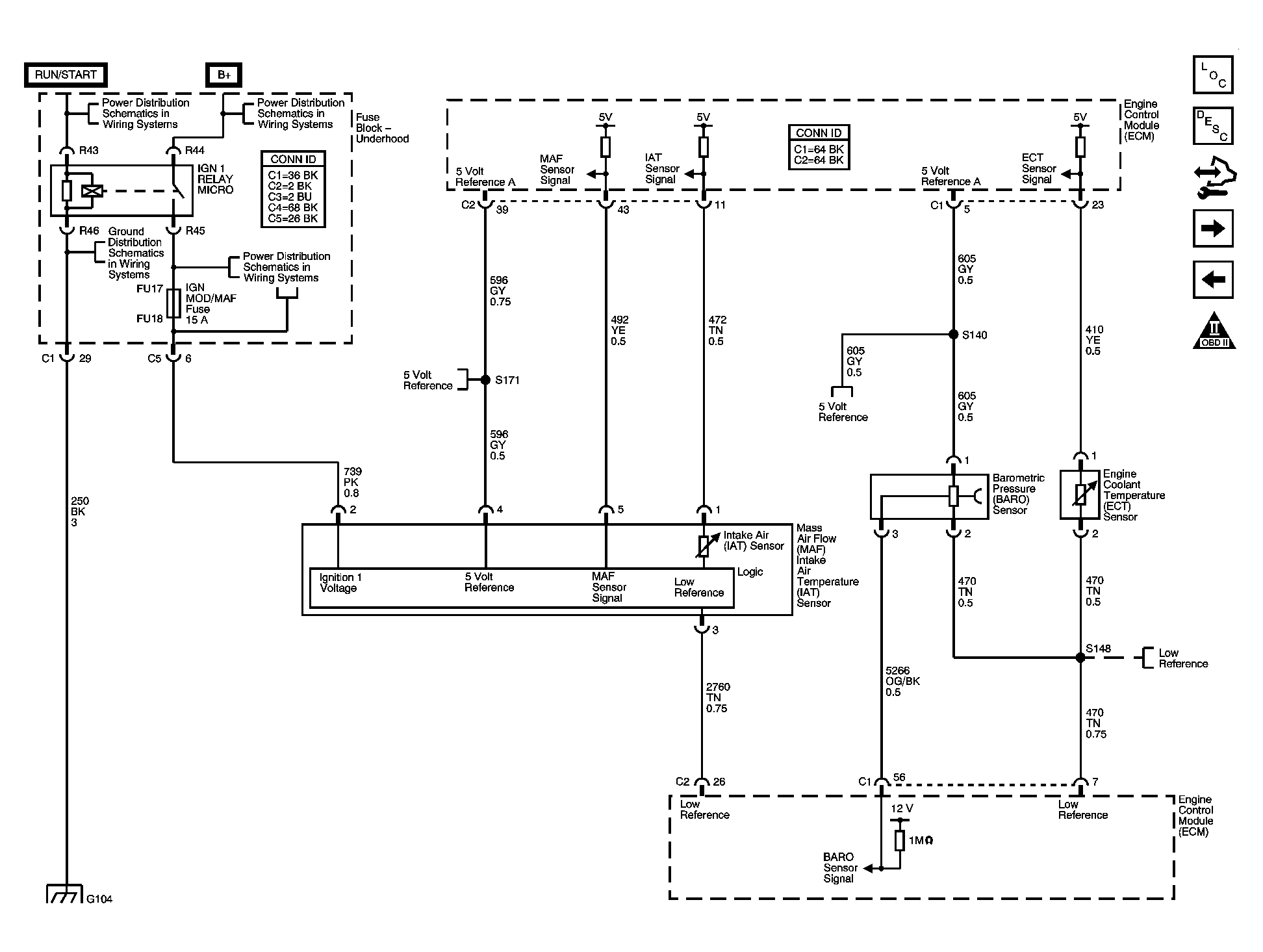

Fig 4: Schematic - Engine Data Sensors - Pressure, Temperature, and MAF

Courtesy of GENERAL MOTORS CORP.

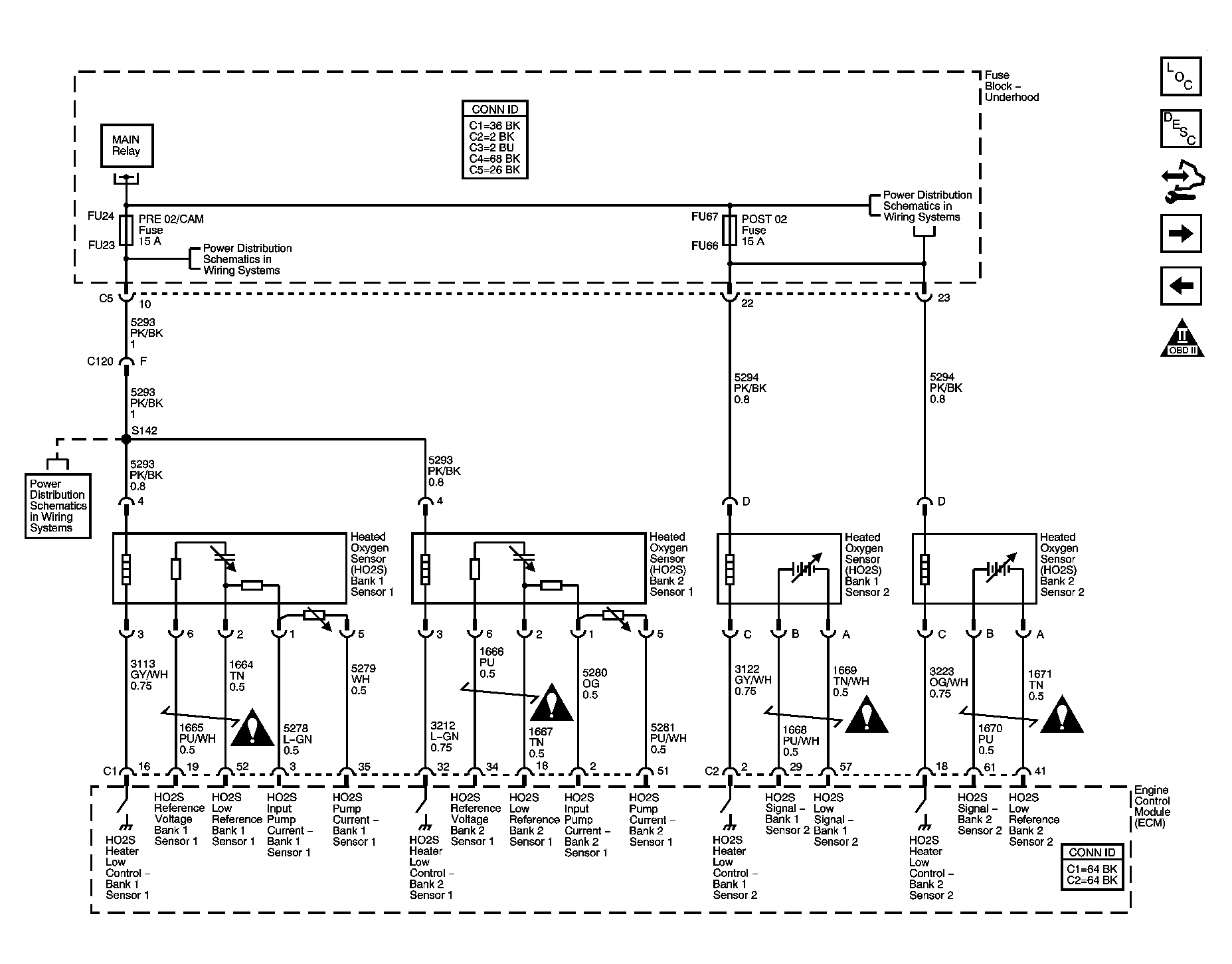

Fig 5: Schematic - Engine Data Sensors - Oxygen Sensors

Courtesy of GENERAL MOTORS CORP.

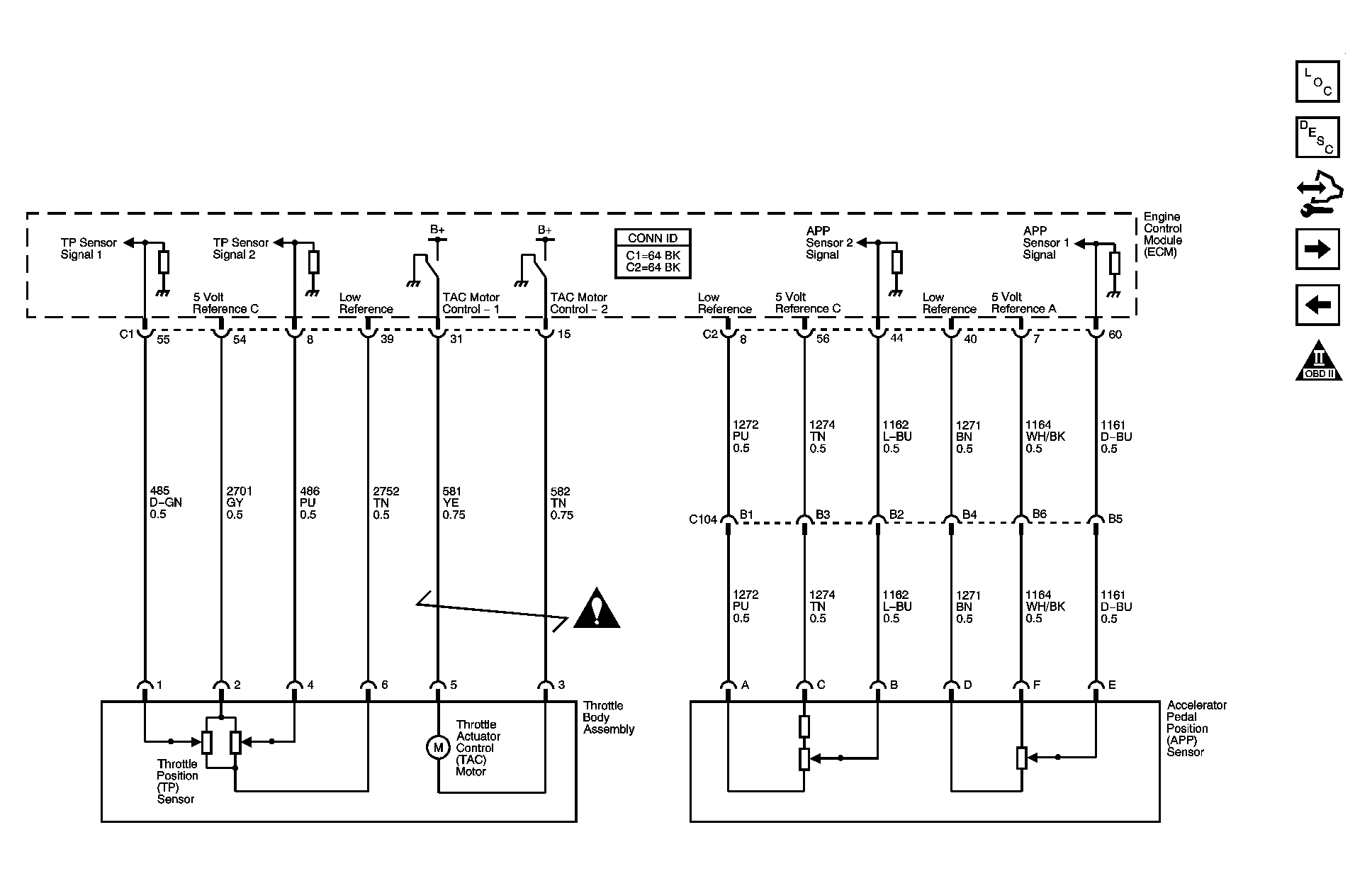

Fig 6: Schematic - Engine Data Sensors - Throttle Actuator Controls

Courtesy of GENERAL MOTORS CORP.

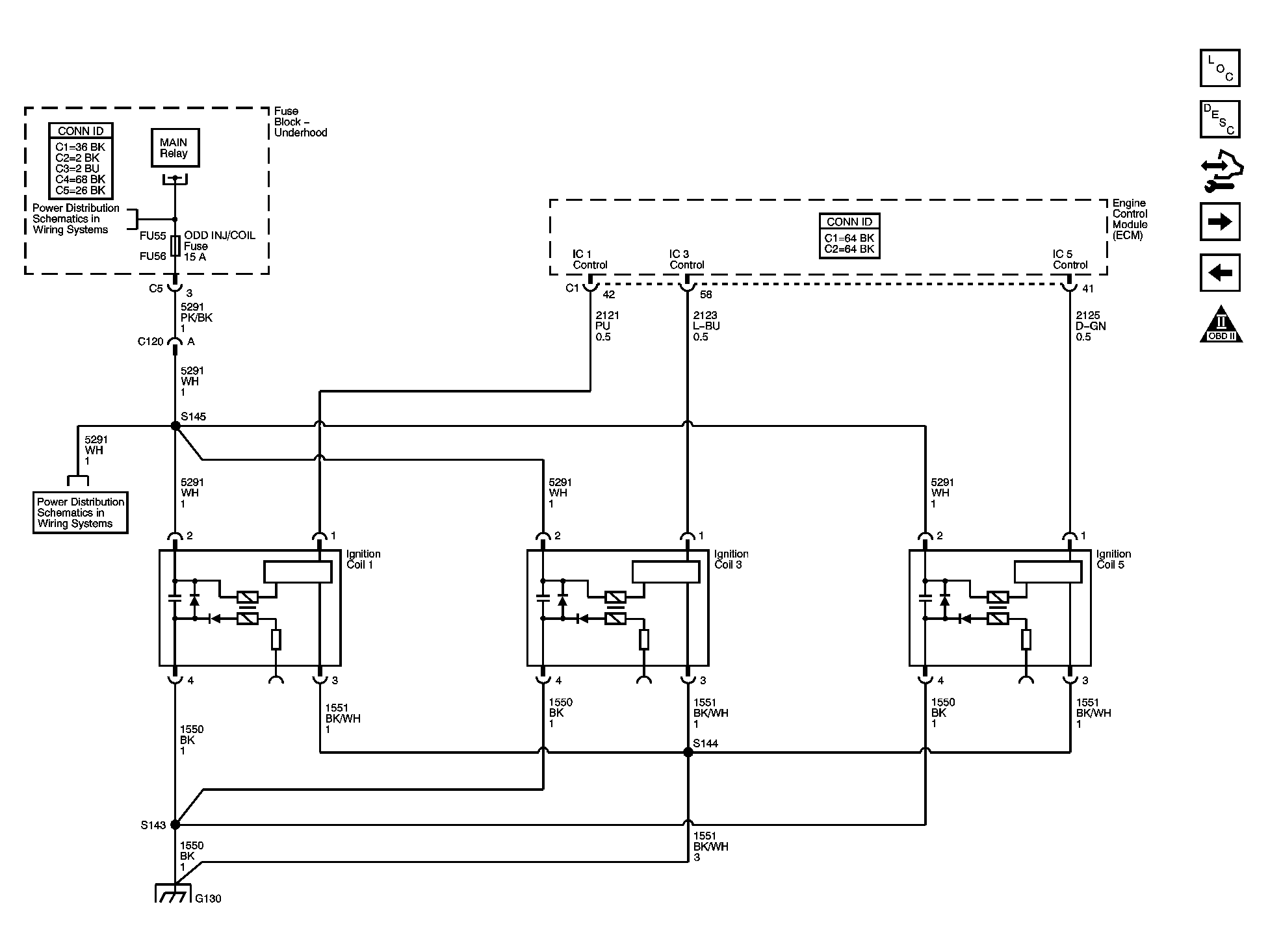

Fig 7: Schematic - Ignition Controls - Bank 1 Ignition Coils

Courtesy of GENERAL MOTORS CORP.

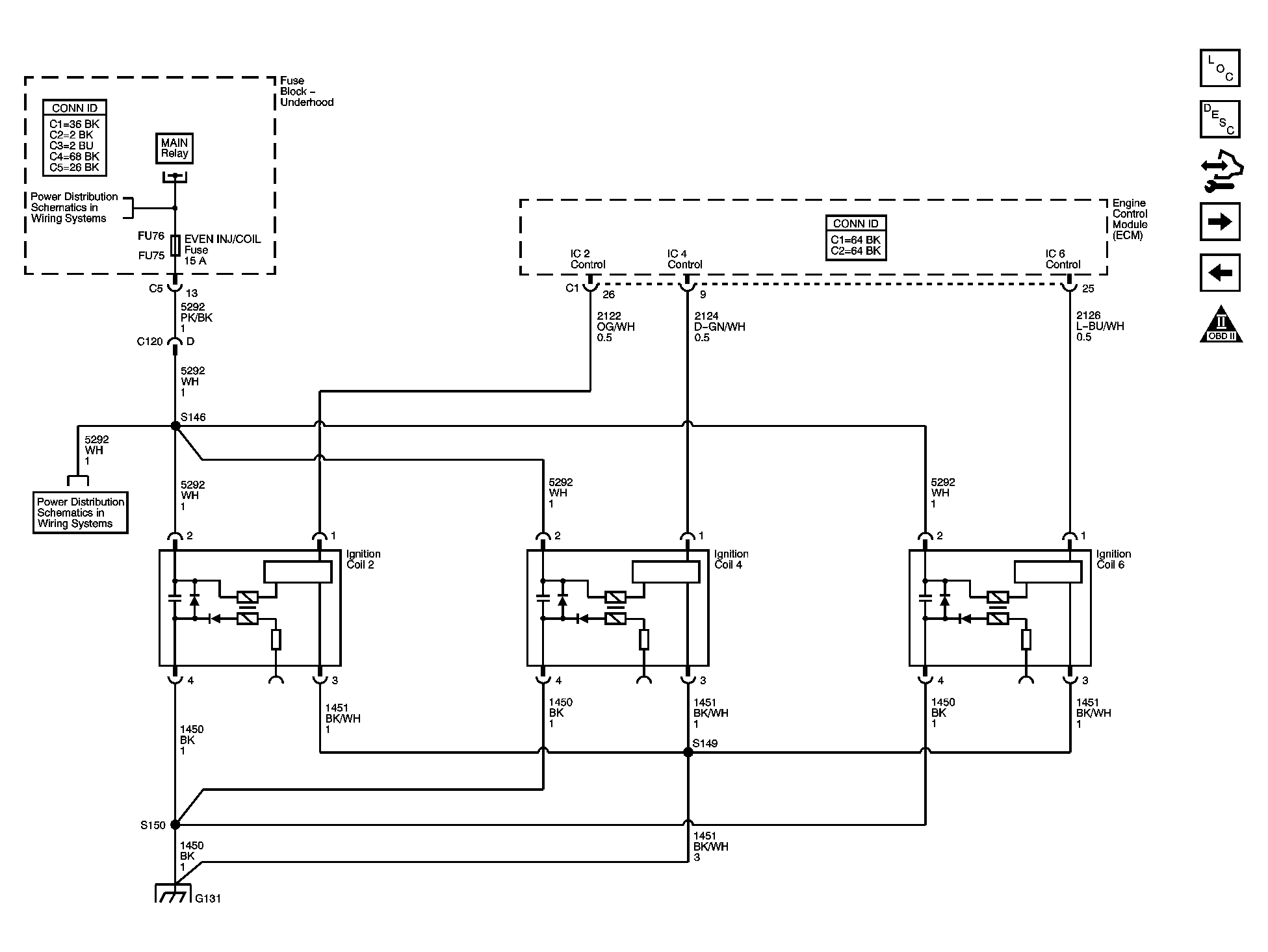

Fig 8: Schematic - Ignition Controls - Bank 2 Ignition Coils

Courtesy of GENERAL MOTORS CORP.

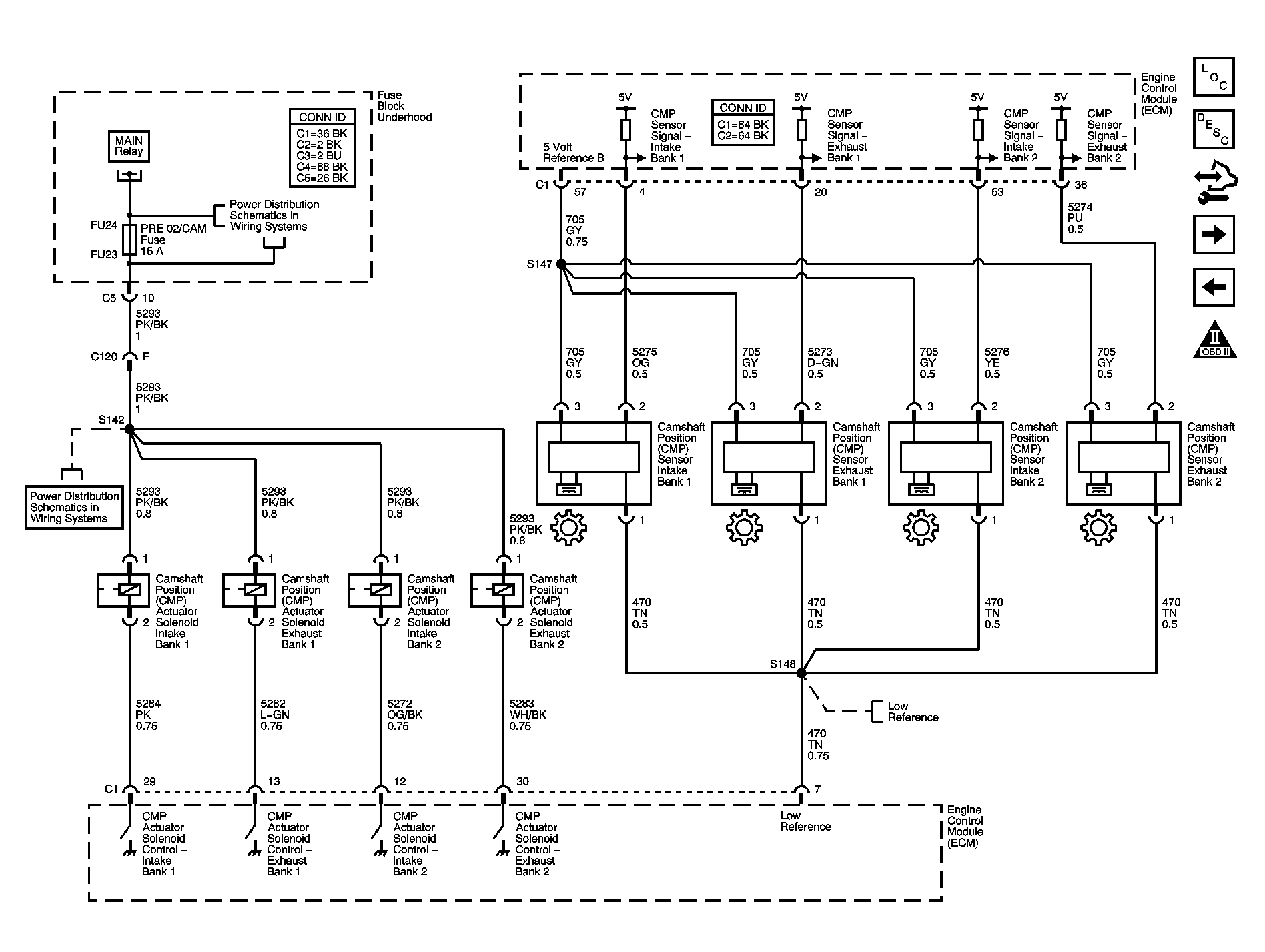

Fig 9: Schematic - Ignition Controls - CMP Sensors and Solenoids

Courtesy of GENERAL MOTORS CORP.

Fig 10: Schematic - Ignition Controls - CKP and Knock Sensors

Courtesy of GENERAL MOTORS CORP.

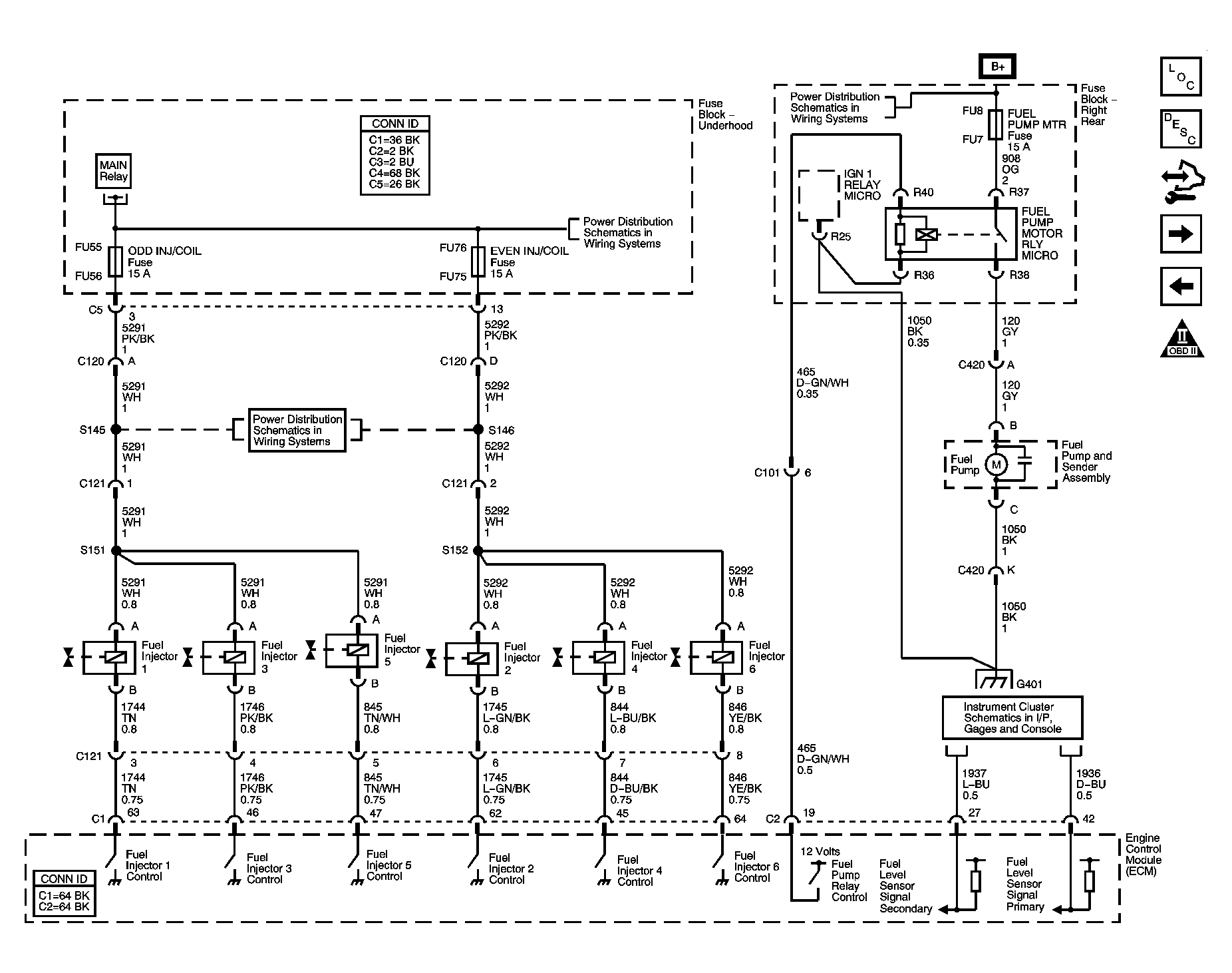

Fig 11: Schematic - Fuel Controls - Fuel Pump and Injectors

Courtesy of GENERAL MOTORS CORP.

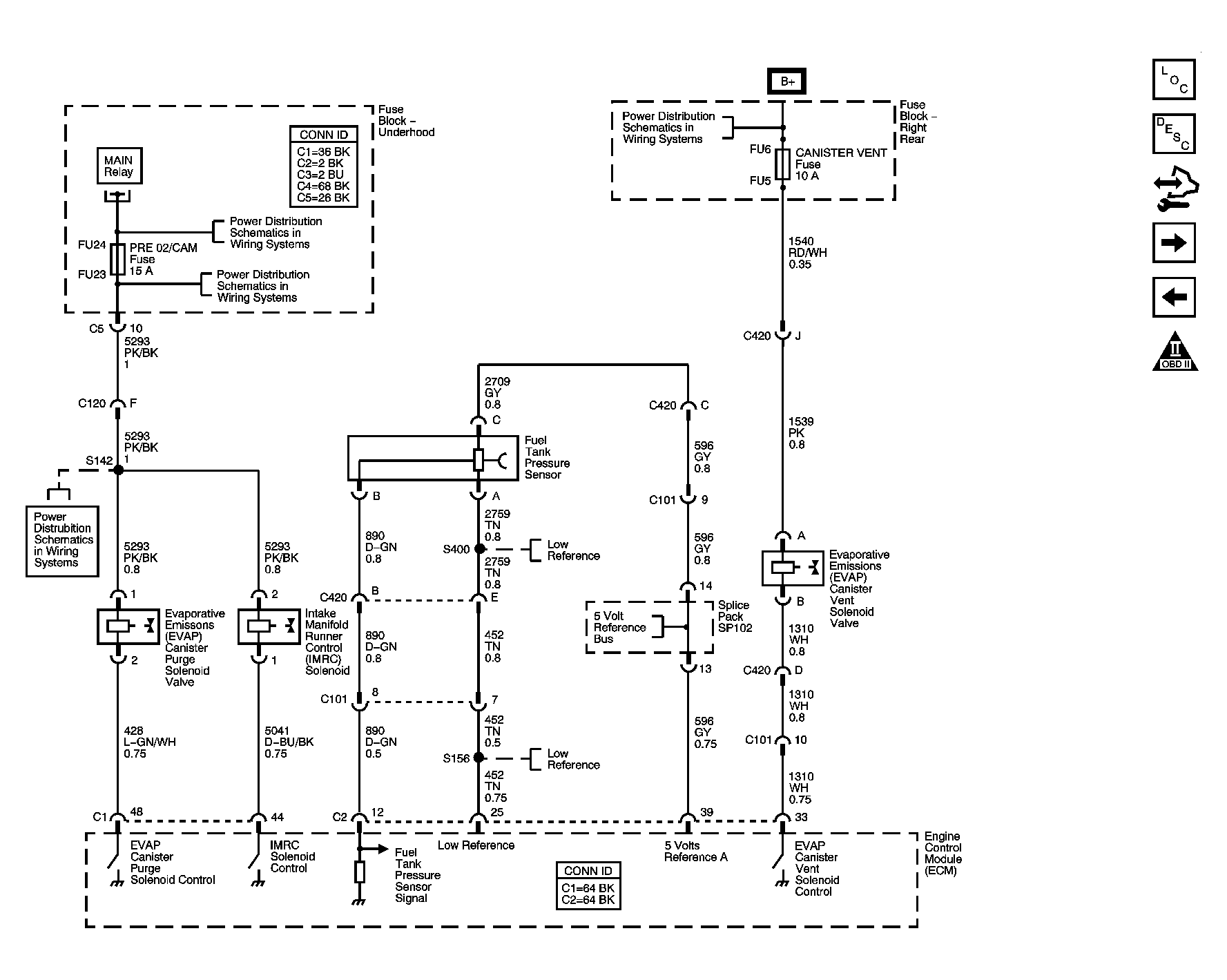

Fig 12: Schematic - Fuel Controls - EVAP Controls and IMRC Solenoid

Courtesy of GENERAL MOTORS CORP.

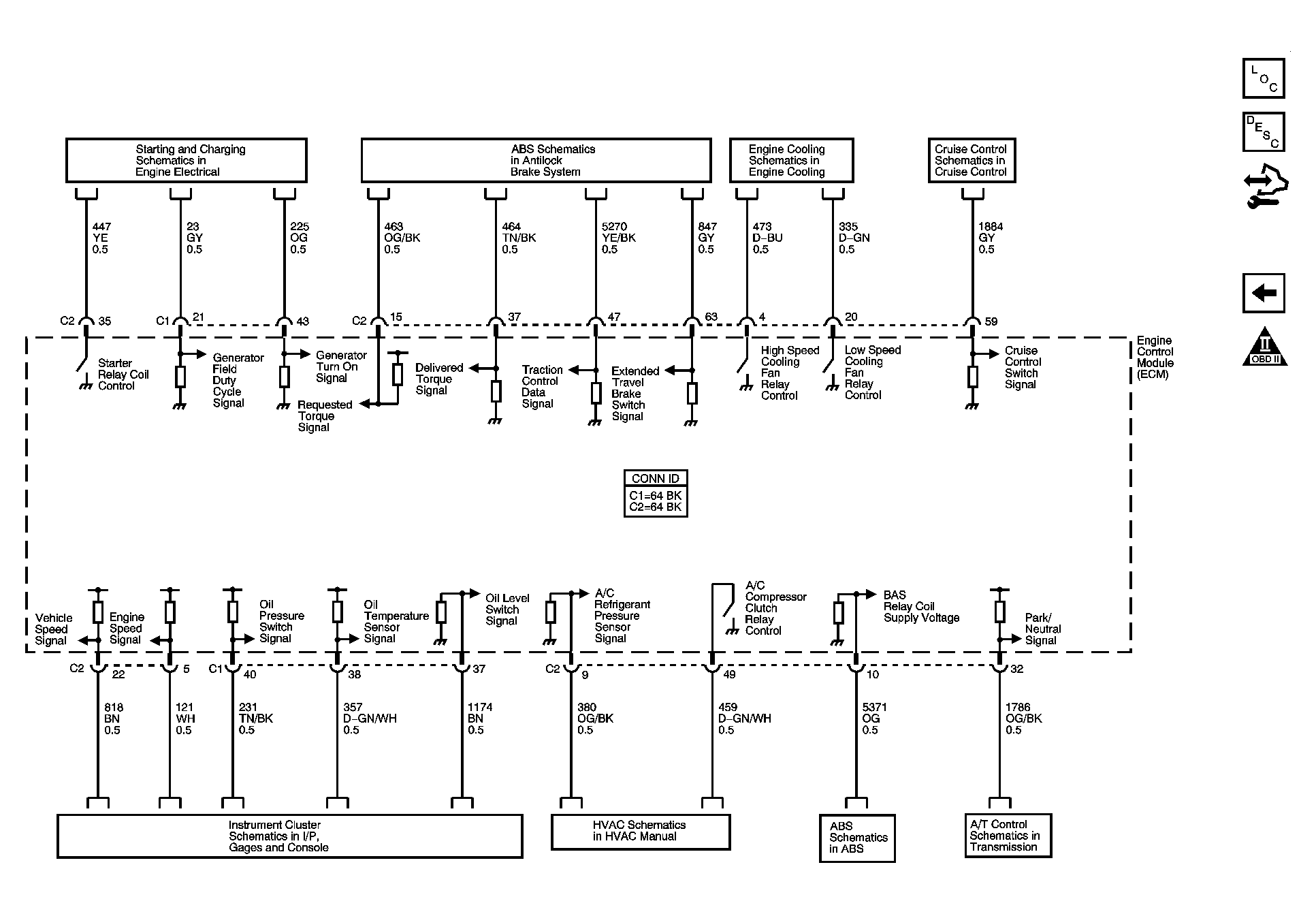

Fig 13: Schematic - Controlled/Monitored Subsystem References

Courtesy of GENERAL MOTORS CORP.
