Component Location Graphics
Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.

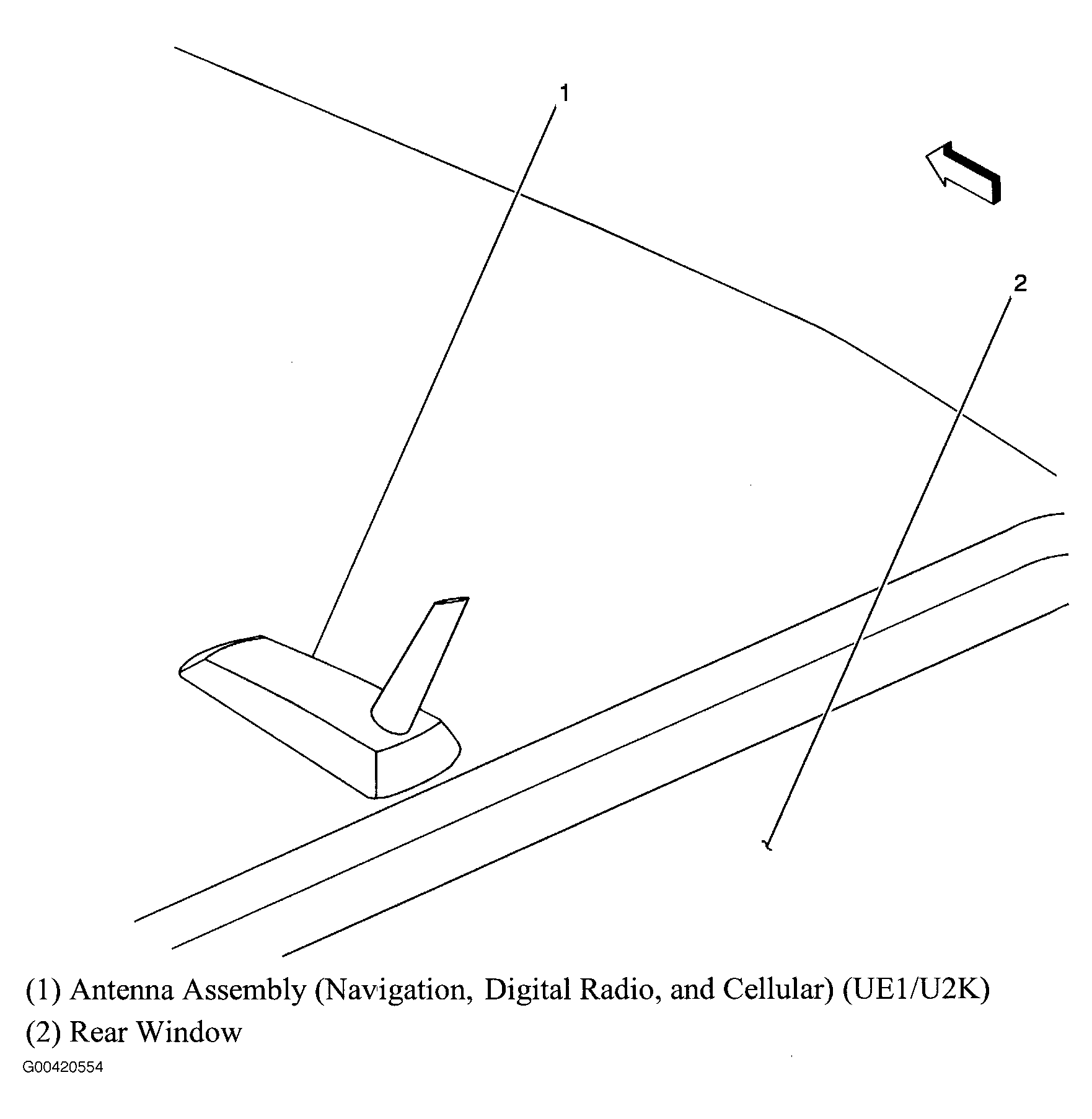

Fig 1: Cellular Communications Components
Courtesy of GENERAL MOTORS CORP.

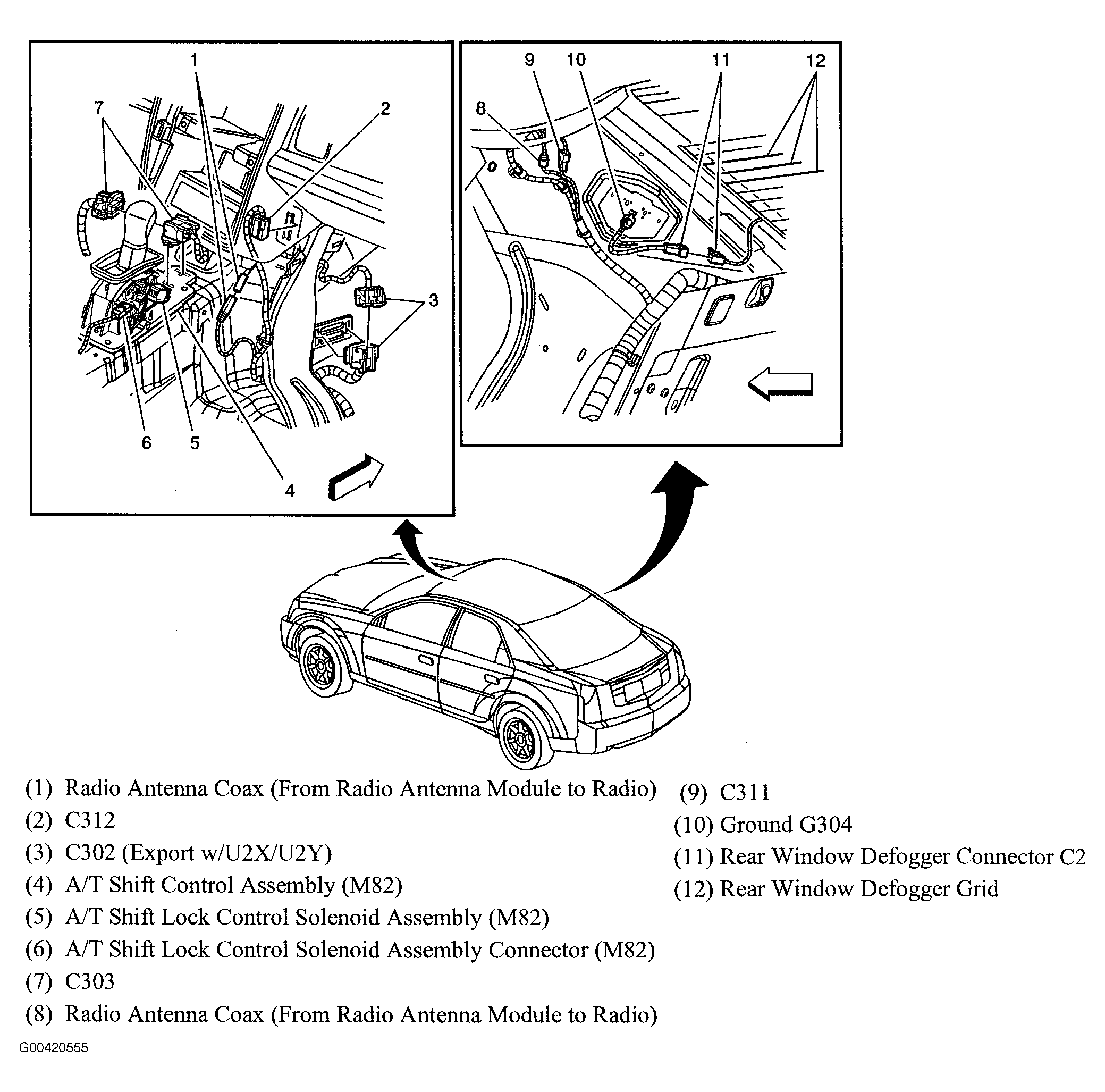

Fig 2: Rear Window Glass
Courtesy of GENERAL MOTORS CORP.
Fig 3: Cruise Control Components
Courtesy of GENERAL MOTORS CORP.
Fig 4: Audio Components
Courtesy of GENERAL MOTORS CORP.
Fig 5: Digital Radio Components
Courtesy of GENERAL MOTORS CORP.
Fig 6: Center Console & Right "C" Pillar
Courtesy of GENERAL MOTORS CORP.
Fig 7: Theft Deterrent Component Views
Courtesy of GENERAL MOTORS CORP.
Fig 8: Seat Belt Component Views
Courtesy of GENERAL MOTORS CORP.
Fig 9: SIR Components
Courtesy of GENERAL MOTORS CORP.
Fig 10: Steering Wheel
Courtesy of GENERAL MOTORS CORP.
Fig 11: SIR Sensors
Courtesy of GENERAL MOTORS CORP.
Fig 12: Manual Transmission Components (5 Speed)
Courtesy of GENERAL MOTORS CORP.
Fig 13: Manual Transmission Components (6 Speed)
Courtesy of GENERAL MOTORS CORP.
Fig 14: Automatic Transmission Shift Lock Control
Courtesy of GENERAL MOTORS CORP.
Fig 15: Automatic Transmission Electronic Controls
Courtesy of GENERAL MOTORS CORP.
Fig 16: Heated Oxygen (HO2S) Sensors (6.0L)
Courtesy of GENERAL MOTORS CORP.
Fig 17: Right Side Of Engine (2.8L/3.6L)
Courtesy of GENERAL MOTORS CORP.
Fig 18: Left Side Of Engine (2.8L/3.6L)
Courtesy of GENERAL MOTORS CORP.
Fig 19: Front Of Engine (2.8L/3.6L)
Courtesy of GENERAL MOTORS CORP.
Fig 20: Top Of Engine (2.8L/3.6L)
Courtesy of GENERAL MOTORS CORP.
Fig 21: Heated Oxygen (HO2S) Sensors (2.8L/3.6L)
Courtesy of GENERAL MOTORS CORP.
Fig 22: Battery & Fuse Blocks
Courtesy of GENERAL MOTORS CORP.
Fig 23: Starter & Generator (2.8L/3.6L)
Courtesy of GENERAL MOTORS CORP.
Fig 24: Starter & Generator (6.0L)
Courtesy of GENERAL MOTORS CORP.
Fig 25: Cooling Fans
Courtesy of GENERAL MOTORS CORP.
Fig 26: Coolant Surge Tank Components
Courtesy of GENERAL MOTORS CORP.
Fig 27: Steering Wheel Components
Courtesy of GENERAL MOTORS CORP.
Fig 28: Steering Column Components (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 29: Steering Column Components (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 30: Variable Effort Steering Components
Courtesy of GENERAL MOTORS CORP.
Fig 31: Tire Pressure Sensor
Courtesy of GENERAL MOTORS CORP.
Fig 32: Parking Brake Components
Courtesy of GENERAL MOTORS CORP.
Fig 33: Brake Master Cylinder Components
Courtesy of GENERAL MOTORS CORP.
Fig 34: ABS Components
Courtesy of GENERAL MOTORS CORP.
Fig 35: Under Center Console
Courtesy of GENERAL MOTORS CORP.
Fig 36: HVAC Module Components
Courtesy of GENERAL MOTORS CORP.
Fig 37: HVAC Components
Courtesy of GENERAL MOTORS CORP.
Fig 38: Left Rear Fuse Block
Courtesy of GENERAL MOTORS CORP.
Fig 39: Right Rear Fuse Block
Courtesy of GENERAL MOTORS CORP.
Fig 40: Underhood Fuse Block
Courtesy of GENERAL MOTORS CORP.
Fig 41: Passenger Compartment Grounds
Courtesy of GENERAL MOTORS CORP.
Fig 42: Rear Compartment Grounds
Courtesy of GENERAL MOTORS CORP.
Fig 43: Ignition Switch
Courtesy of GENERAL MOTORS CORP.
Fig 44: Vehicle Overview (Grounds)
Courtesy of GENERAL MOTORS CORP.
Fig 45: Engine Grounds (2.8L/3.6L)
Courtesy of GENERAL MOTORS CORP.

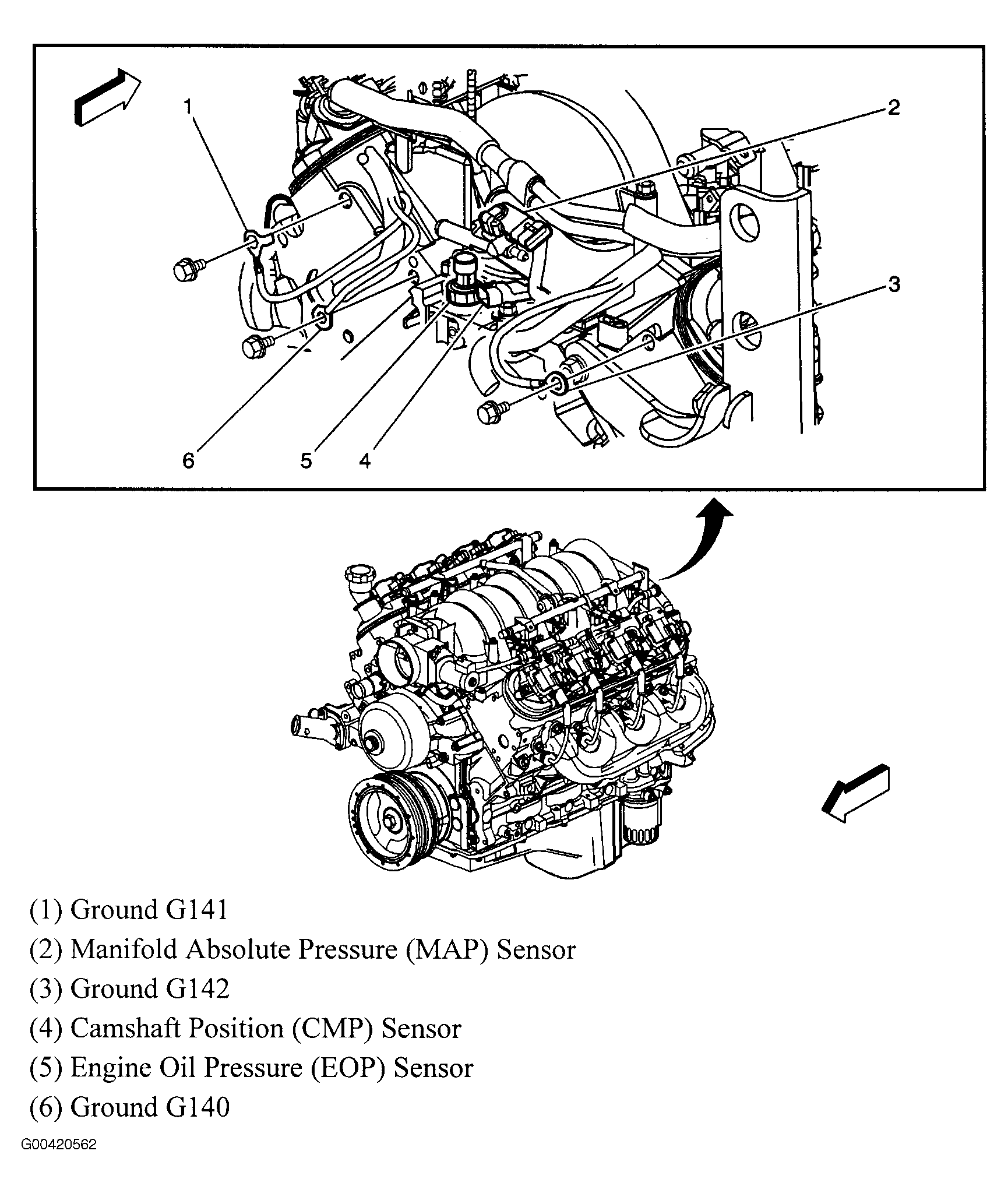

Fig 46: Engine Grounds (6.0L)
Courtesy of GENERAL MOTORS CORP.
Fig 47: Passenger Compartment Grounds
Courtesy of GENERAL MOTORS CORP.
Fig 48: EVAP Canister Vent Solenoid
Courtesy of GENERAL MOTORS CORP.
Fig 49: Fuel Tank Components
Courtesy of GENERAL MOTORS CORP.
Fig 50: Left Front Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 51: Right Front Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 52: Lower Left Side Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 53: Dash Harness
Courtesy of GENERAL MOTORS CORP.
Fig 54: Left Kick Panel
Courtesy of GENERAL MOTORS CORP.
Fig 55: Right Kick Panel
Courtesy of GENERAL MOTORS CORP.
Fig 56: Body Harness
Courtesy of GENERAL MOTORS CORP.
Fig 57: Body Harness
Courtesy of GENERAL MOTORS CORP.
Fig 58: Headliner Harness
Courtesy of GENERAL MOTORS CORP.
Fig 59: Passenger Compartment Floor
Courtesy of GENERAL MOTORS CORP.
Fig 60: Rear Package Shelf
Courtesy of GENERAL MOTORS CORP.
Fig 61: Below Rear Package Shelf
Courtesy of GENERAL MOTORS CORP.
Fig 62: Right Side Of Trunk
Courtesy of GENERAL MOTORS CORP.
Fig 63: Trunk Area
Courtesy of GENERAL MOTORS CORP.
Fig 64: Under Rear Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 65: Negative Battery Cable (6.0L)
Courtesy of GENERAL MOTORS CORP.
Fig 66: Right Front Side Transmission
Courtesy of GENERAL MOTORS CORP.
Fig 67: Front Passenger Seat (Driver Similar)
Courtesy of GENERAL MOTORS CORP.
Fig 68: Windshield Washer System Components
Courtesy of GENERAL MOTORS CORP.

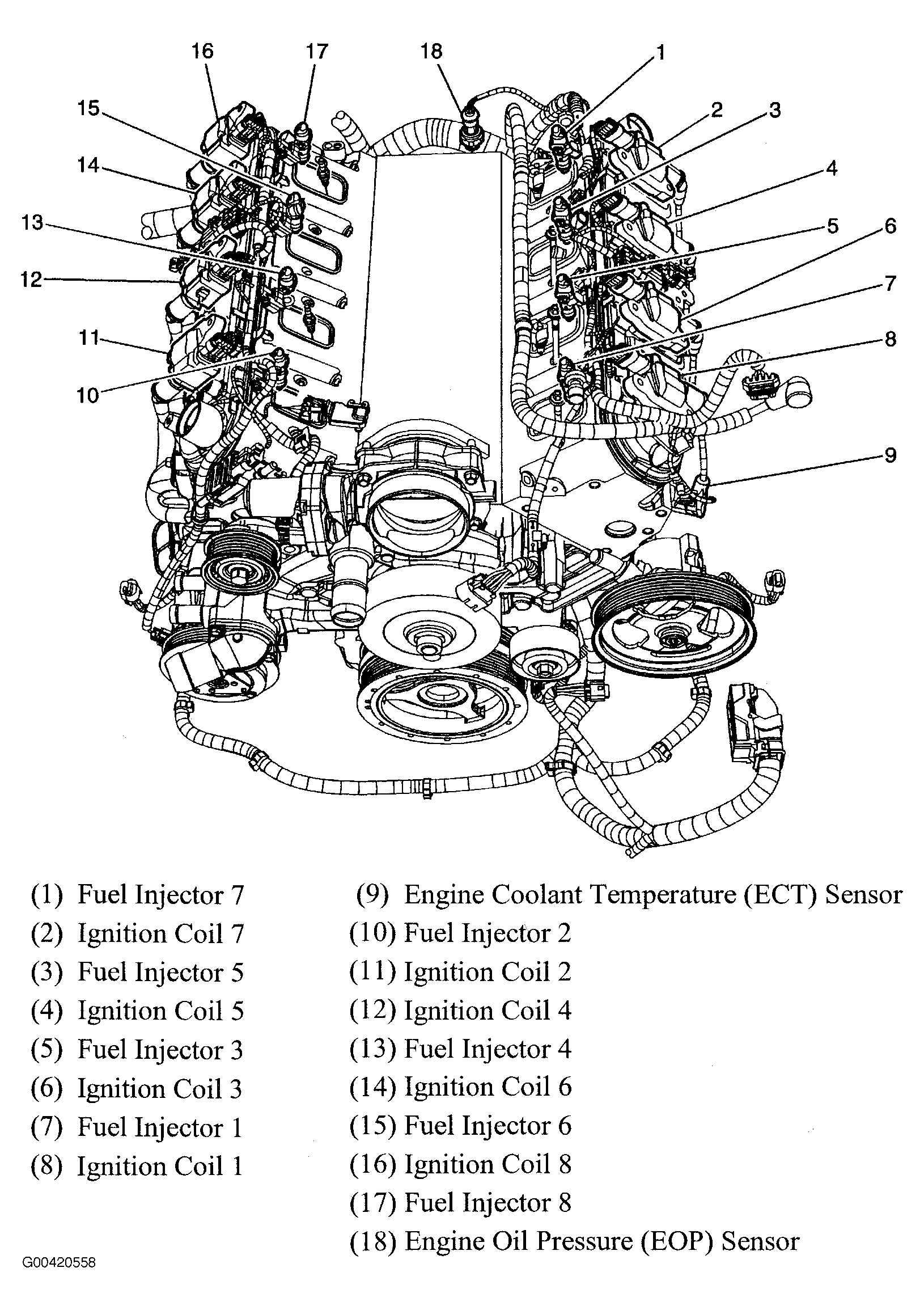

Fig 69: Engine Components (6.0L)
Courtesy of GENERAL MOTORS CORP.
Fig 70: Engine Components (6.0L)
Courtesy of GENERAL MOTORS CORP.
Fig 71: MAF & IAT Sensors (6.0L)
Courtesy of GENERAL MOTORS CORP.
Fig 72: Left Side Of Engine Compartment (6.0L)
Courtesy of GENERAL MOTORS CORP.
Fig 73: Lower Left Side Of Engine (2.8L/3.6L)
Courtesy of GENERAL MOTORS CORP.
Fig 74: Lower Right Side Of Engine (6.0L)
Courtesy of GENERAL MOTORS CORP.
