Installation Procedure

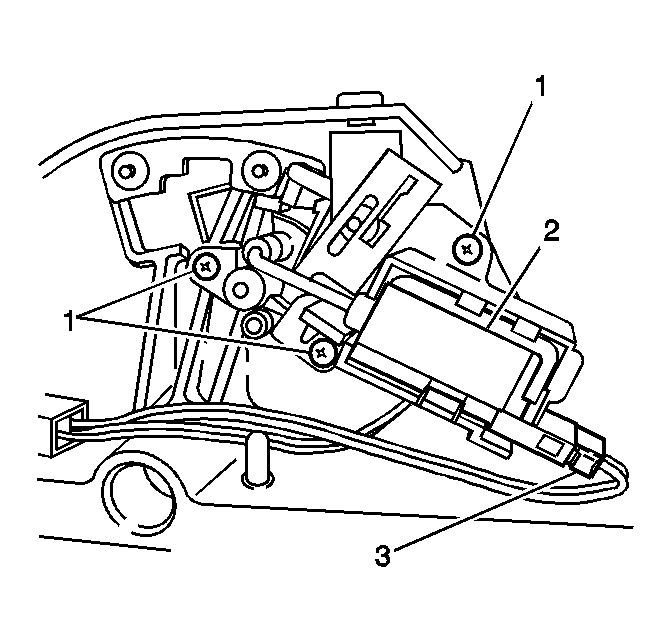

    Fig 1: Removing Three Shift Lock Actuator Attaching Screws
    GM801326Courtesy of GENERAL MOTORS CORP.
  1. Install the shift lock actuator (2) to the shift control assembly.
  2. Install the three shift lock actuator attaching screws (1).

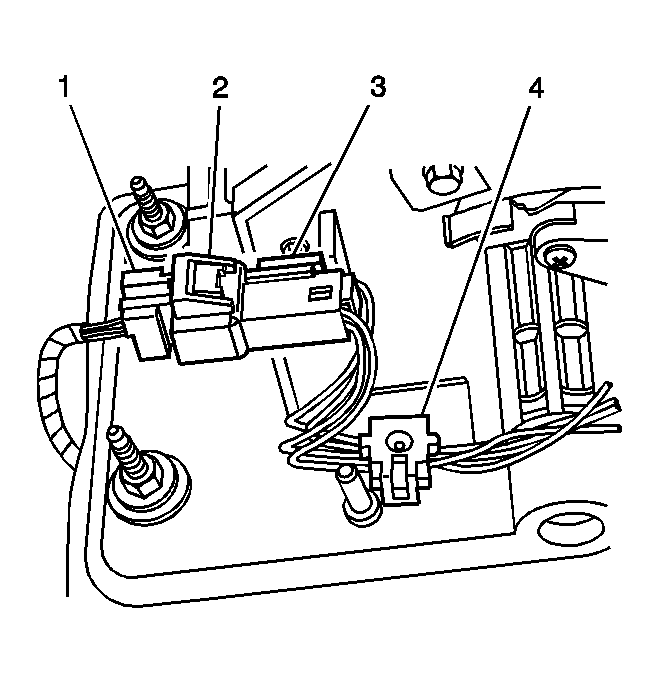

    3. Fig 2: Disconnecting Wiring Harness Connector
    GM834512Courtesy of GENERAL MOTORS CORP.
  3. Slide the pigtail connector (2) onto the retainer (3).
  4. Connect the wiring harness connector (1) to the shift lock control pigtail connector (2).
  5. Install the pigtail harness into the wire retainer (4).
  6. Install the center console assembly. Refer to Console Replacement - Front Floor in Instrument Panel, Gages and Console.
  7. Install the shift control boot. Refer to Floor Shift Control Boot Replacement .
