Component Locations
>>
Electrical Component Locator
>>
Component Location Graphics
Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table to proper figure references.

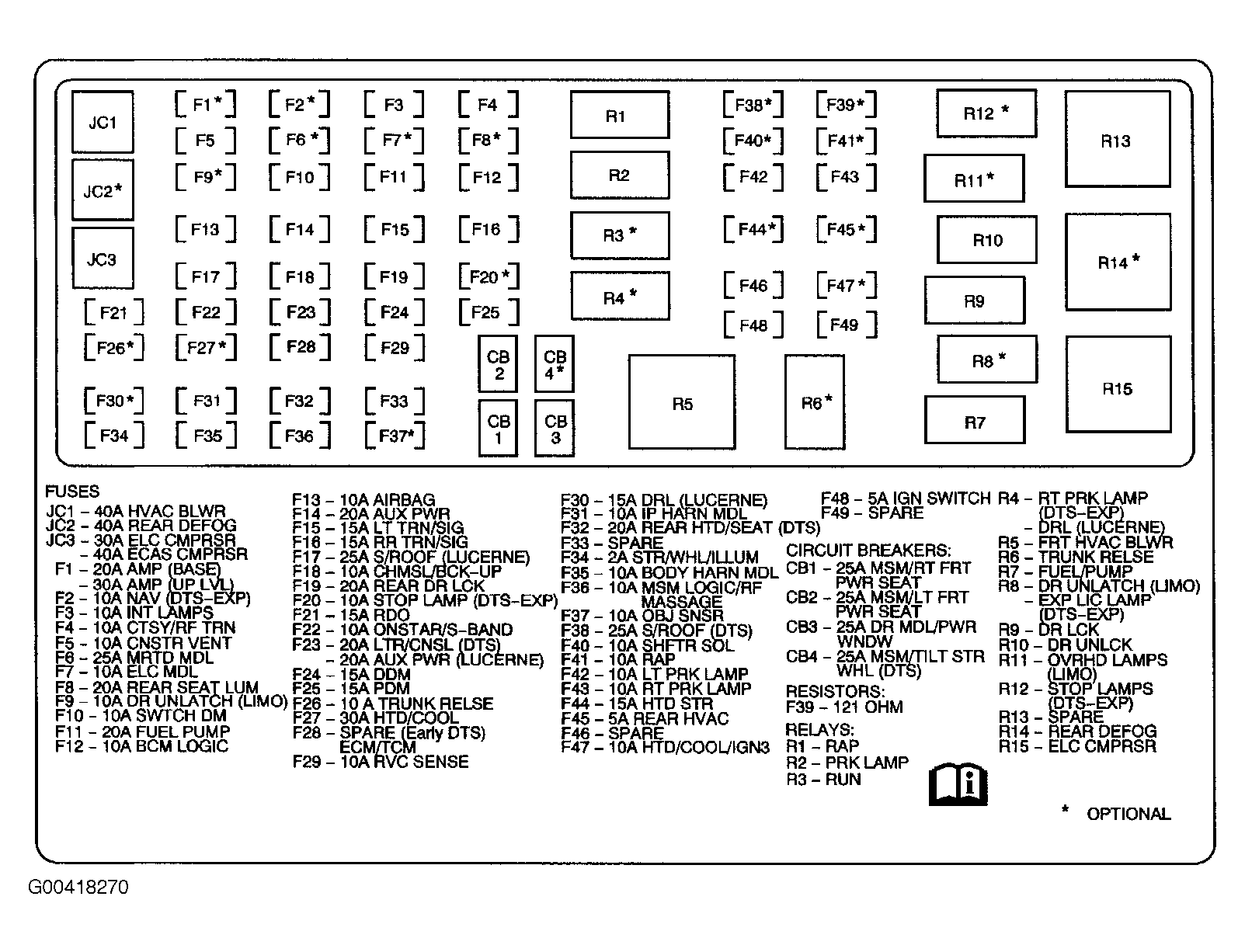

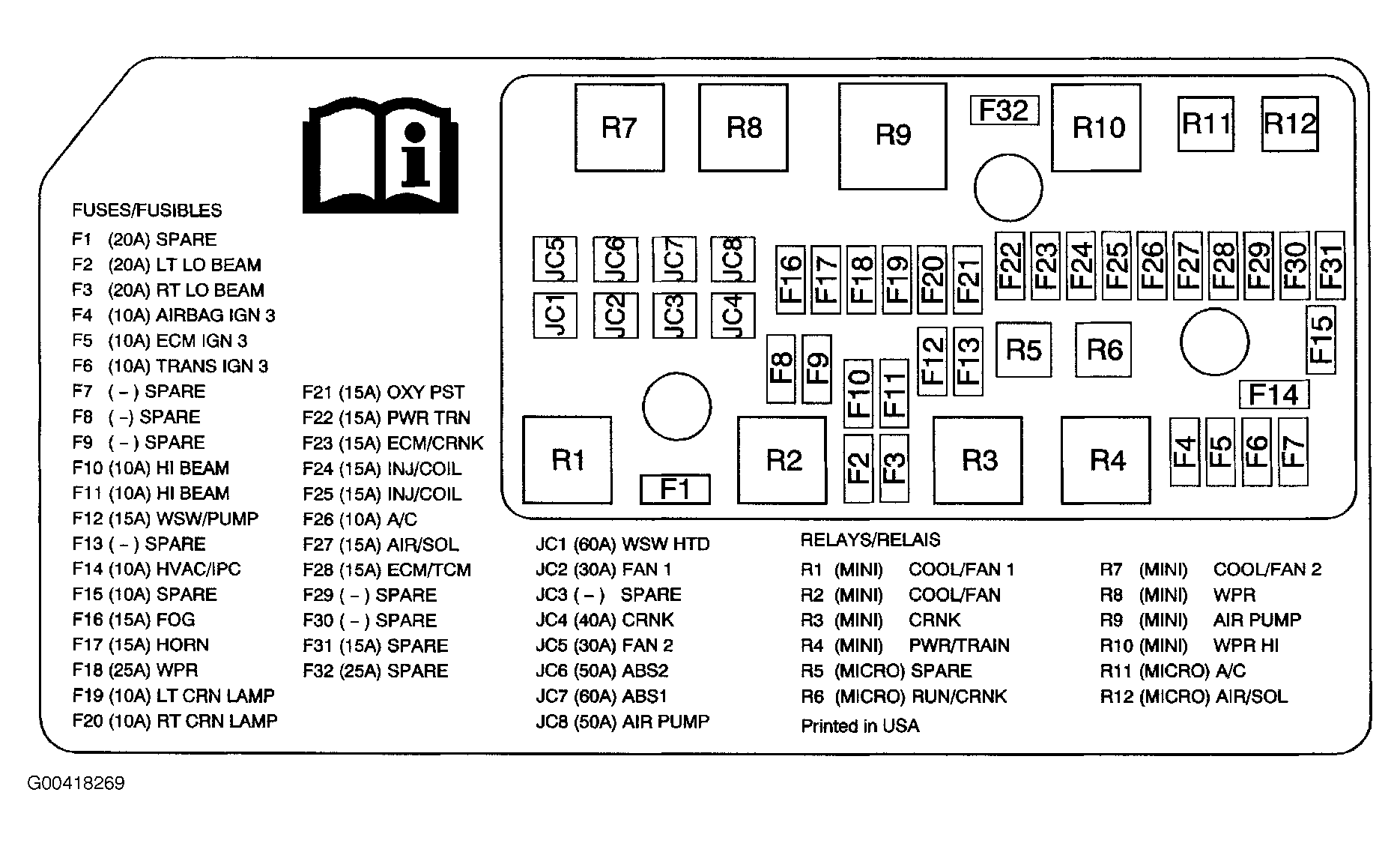

Fig 1: Underhood Fuse Block
Courtesy of GENERAL MOTORS CORP.
Fig 2: Rear Fuse Block
Courtesy of GENERAL MOTORS CORP.

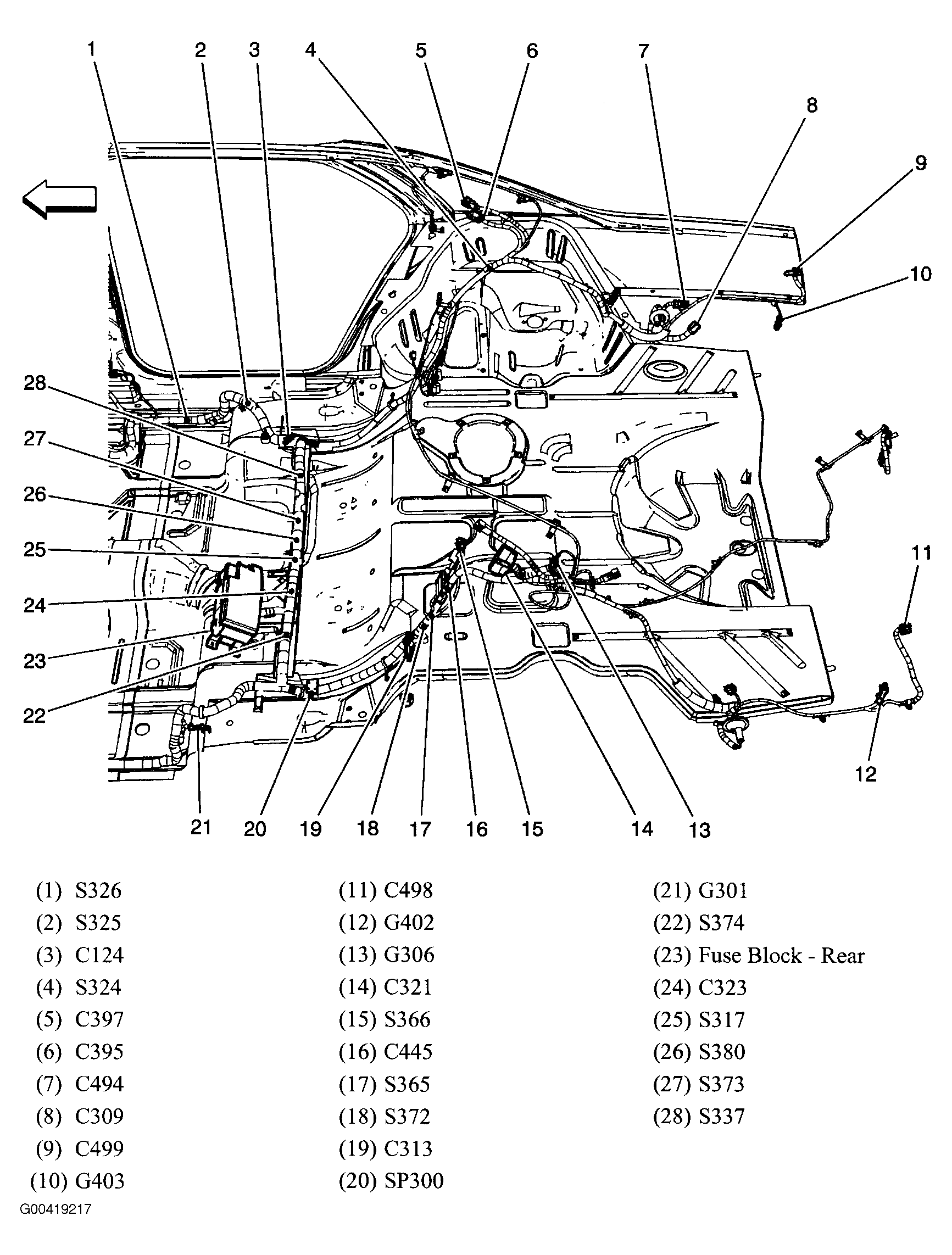

Fig 3: Rear Axle Area
Courtesy of GENERAL MOTORS CORP.
Fig 4: Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 5: Lower Left Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 6: Rear Axle Area
Courtesy of GENERAL MOTORS CORP.
Fig 7: Automatic Transmission
Courtesy of GENERAL MOTORS CORP.

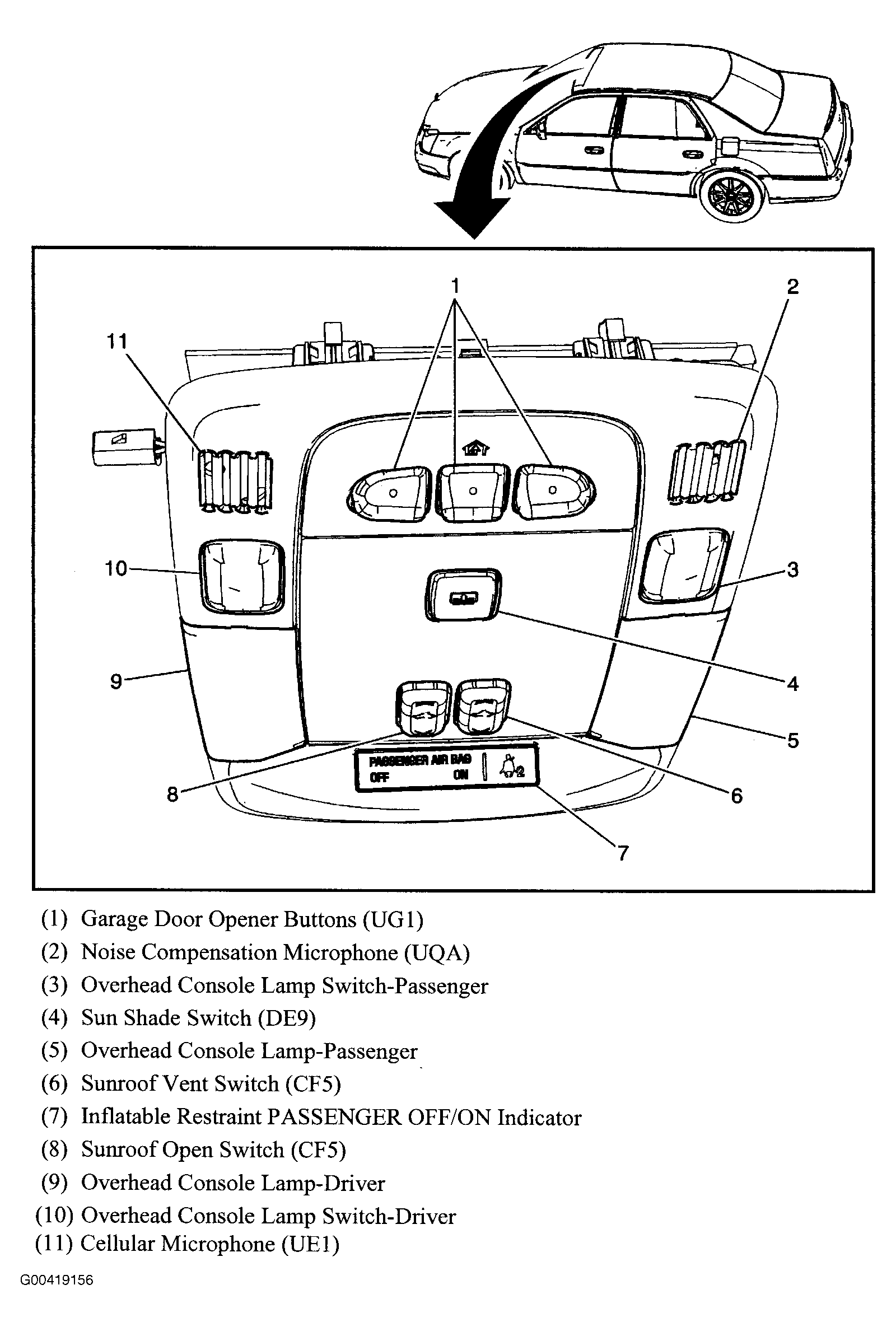

Fig 8: Overhead Console
Courtesy of GENERAL MOTORS CORP.
Fig 9: Center Rear Of Luggage Compartment Lid
Courtesy of GENERAL MOTORS CORP.
Fig 10: Front Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 11: Behind Rear Seat
Courtesy of GENERAL MOTORS CORP.
Fig 12: Trunk & "C" Pillars
Courtesy of GENERAL MOTORS CORP.
Fig 13: Behind Right Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 14: Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 15: Under Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.

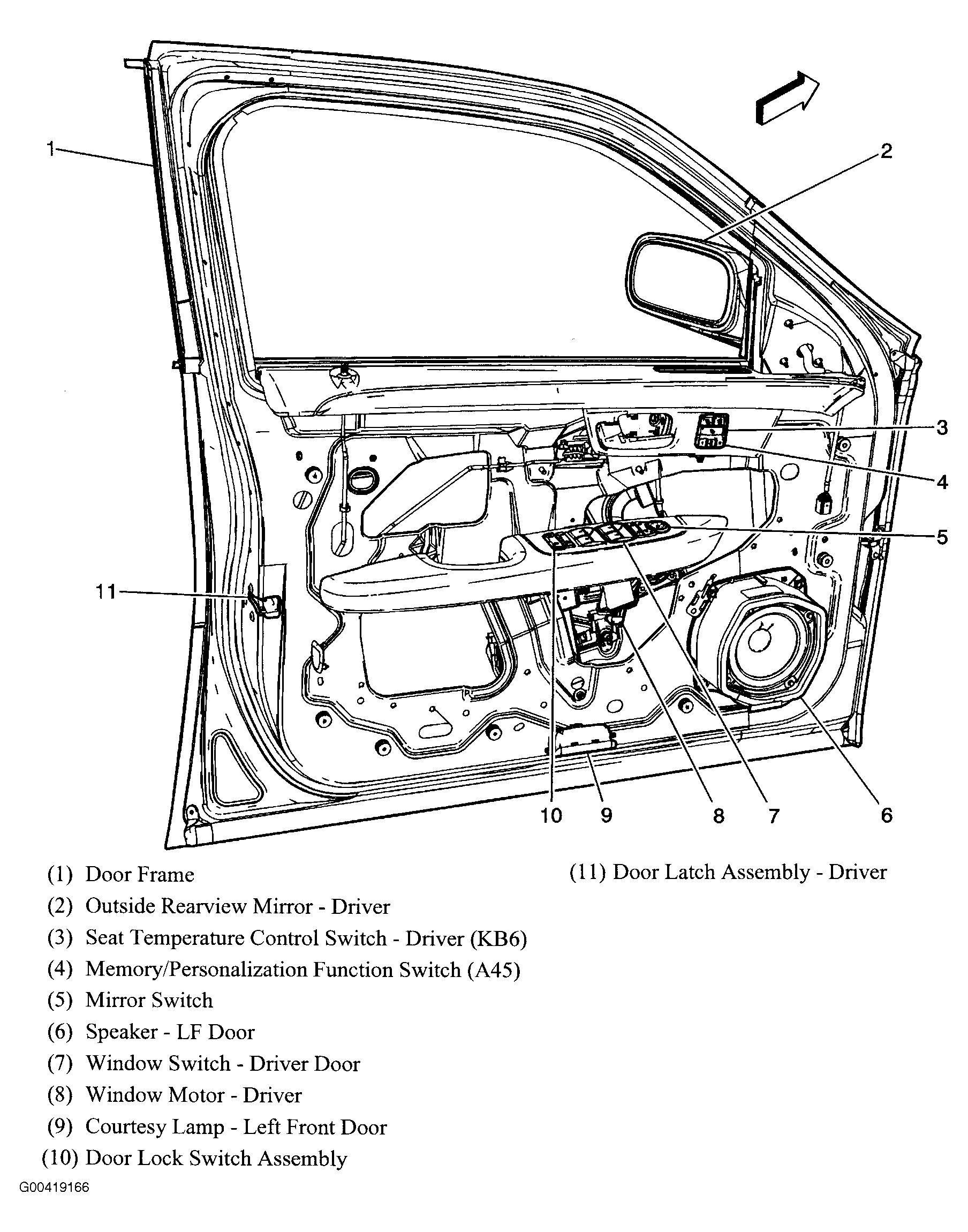

Fig 16: Driver's Door
Courtesy of GENERAL MOTORS CORP.

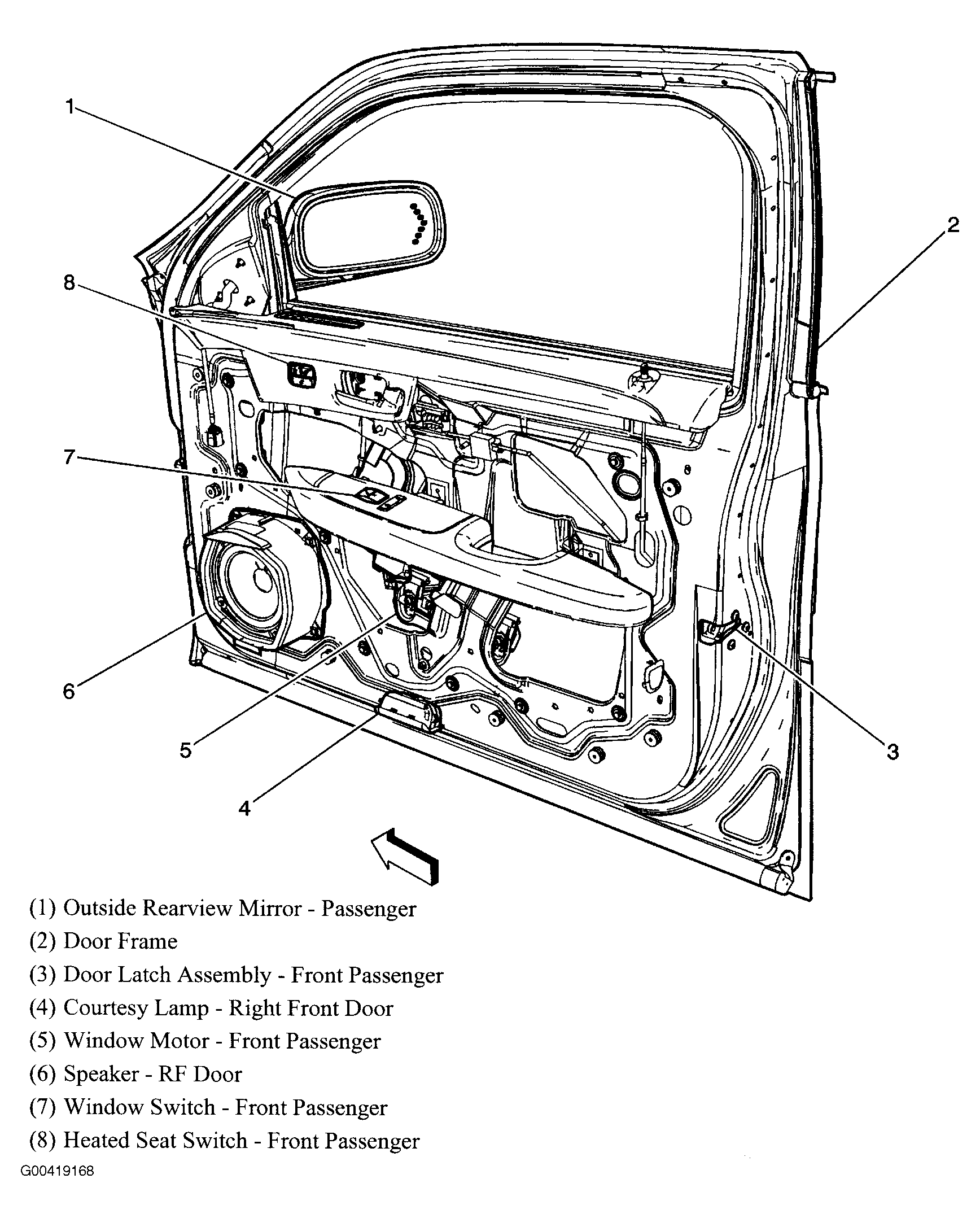

Fig 17: Front Passenger's Door
Courtesy of GENERAL MOTORS CORP.
Fig 18: Left Rear Door
Courtesy of GENERAL MOTORS CORP.
Fig 19: Right Rear Door
Courtesy of GENERAL MOTORS CORP.
Fig 20: Right Side Of Trunk
Courtesy of GENERAL MOTORS CORP.
Fig 21: Left Front Corner Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 22: Rear Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 23: Top Right Front Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 24: Top Rear Of Engine
Courtesy of GENERAL MOTORS CORP.

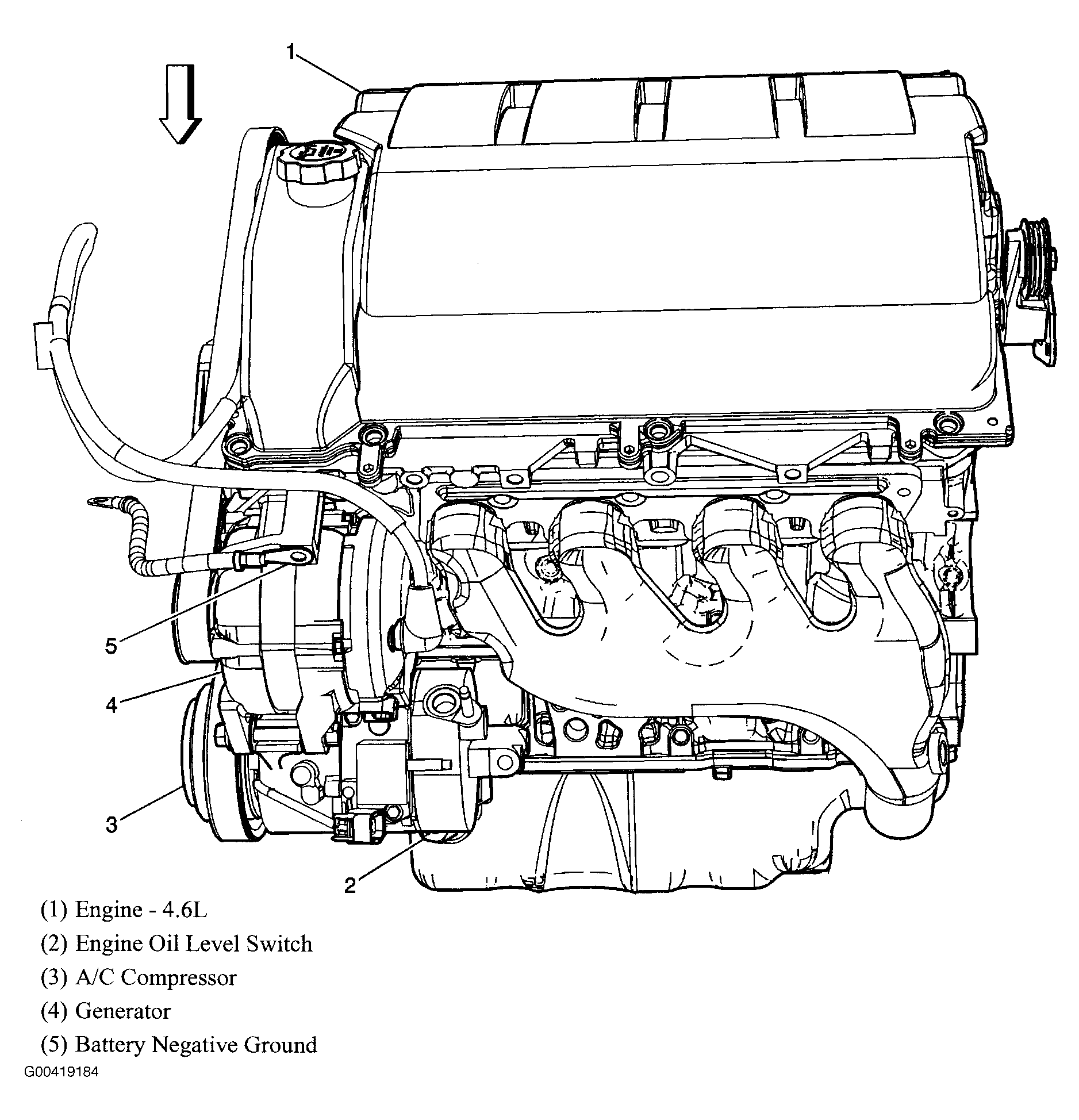

Fig 25: Left Side Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 26: Top Of Engine (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 27: Top Of Engine (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 28: Left Side Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 29: Left Side Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 30: Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 31: Rear Of Vehicle, At/Near Fuel Tank
Courtesy of GENERAL MOTORS CORP.
Fig 32: Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 33: Left Side Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 34: Steering Column
Courtesy of GENERAL MOTORS CORP.
Fig 35: Under Rear Seat
Courtesy of GENERAL MOTORS CORP.
Fig 36: Behind Rear Seat
Courtesy of GENERAL MOTORS CORP.
Fig 37: Front Windshield
Courtesy of GENERAL MOTORS CORP.
Fig 38: Rear Of Vehicle
Courtesy of GENERAL MOTORS CORP.

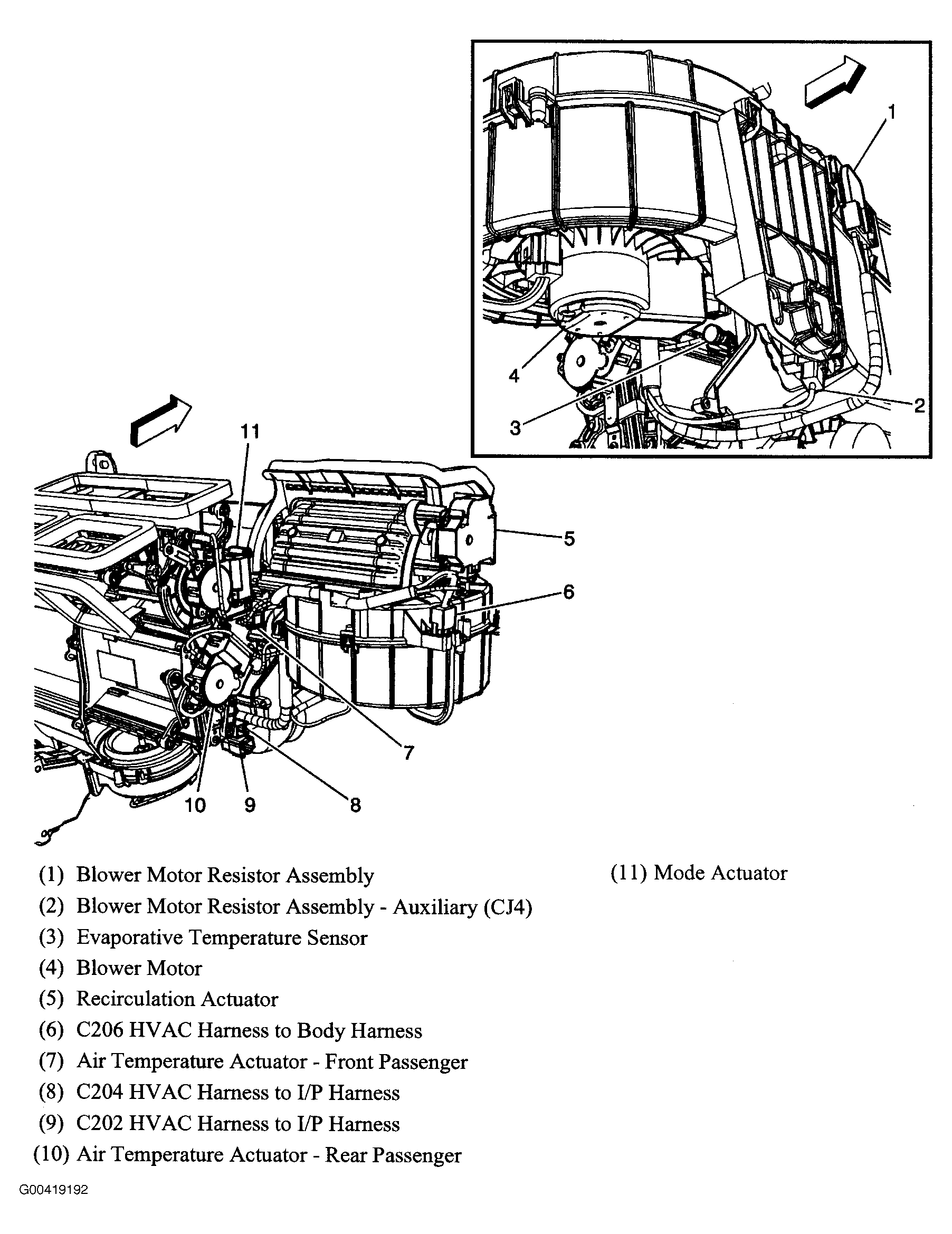

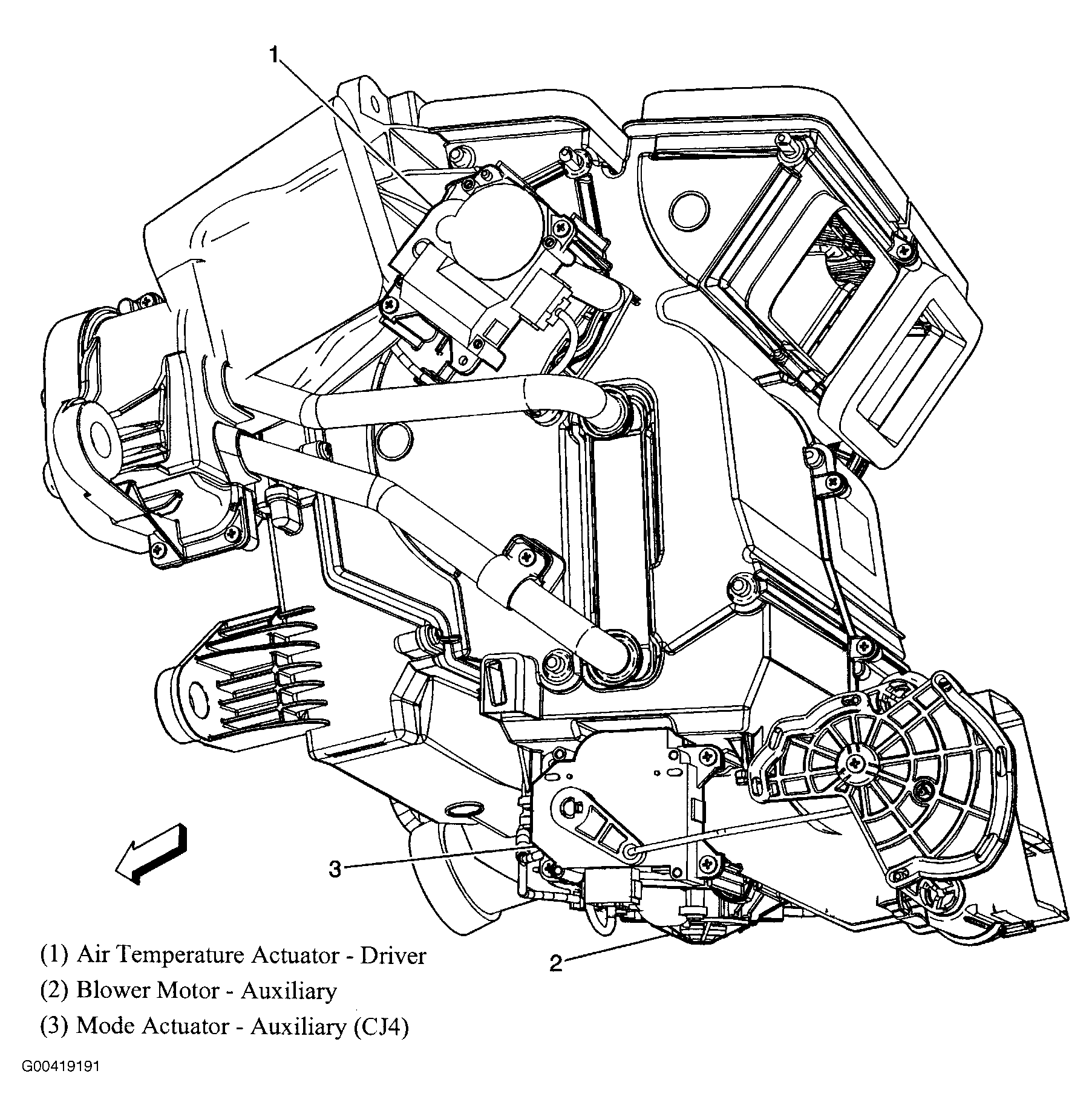

Fig 39: Left Side Of HVAC Module
Courtesy of GENERAL MOTORS CORP.
Fig 40: Right Side Of HVAC Module
Courtesy of GENERAL MOTORS CORP.
Fig 41: Front Floor Console
Courtesy of GENERAL MOTORS CORP.
Fig 42: Right Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 43: Behind Rear Seat
Courtesy of GENERAL MOTORS CORP.
Fig 44: Left Rear Of Passenger Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 45: Front Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 46: Roof
Courtesy of GENERAL MOTORS CORP.
Fig 47: Left Side Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 48: Front Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 49: Left Side Of Front Passenger Area
Courtesy of GENERAL MOTORS CORP.
Fig 50: Right Side Of Rear Passenger Area
Courtesy of GENERAL MOTORS CORP.

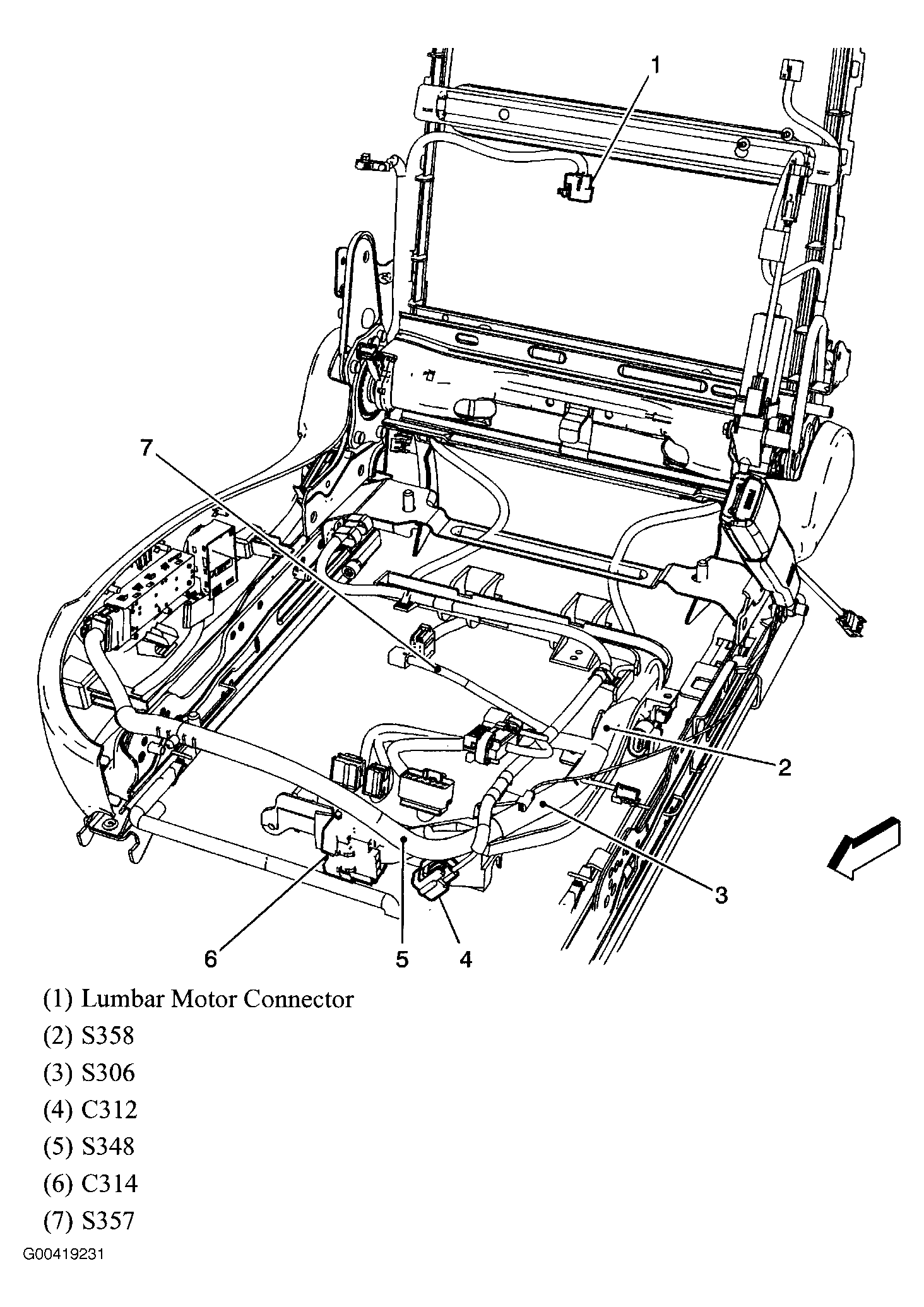

Fig 51: Driver's Seat
Courtesy of GENERAL MOTORS CORP.
Fig 52: Front Passenger's Seat
Courtesy of GENERAL MOTORS CORP.

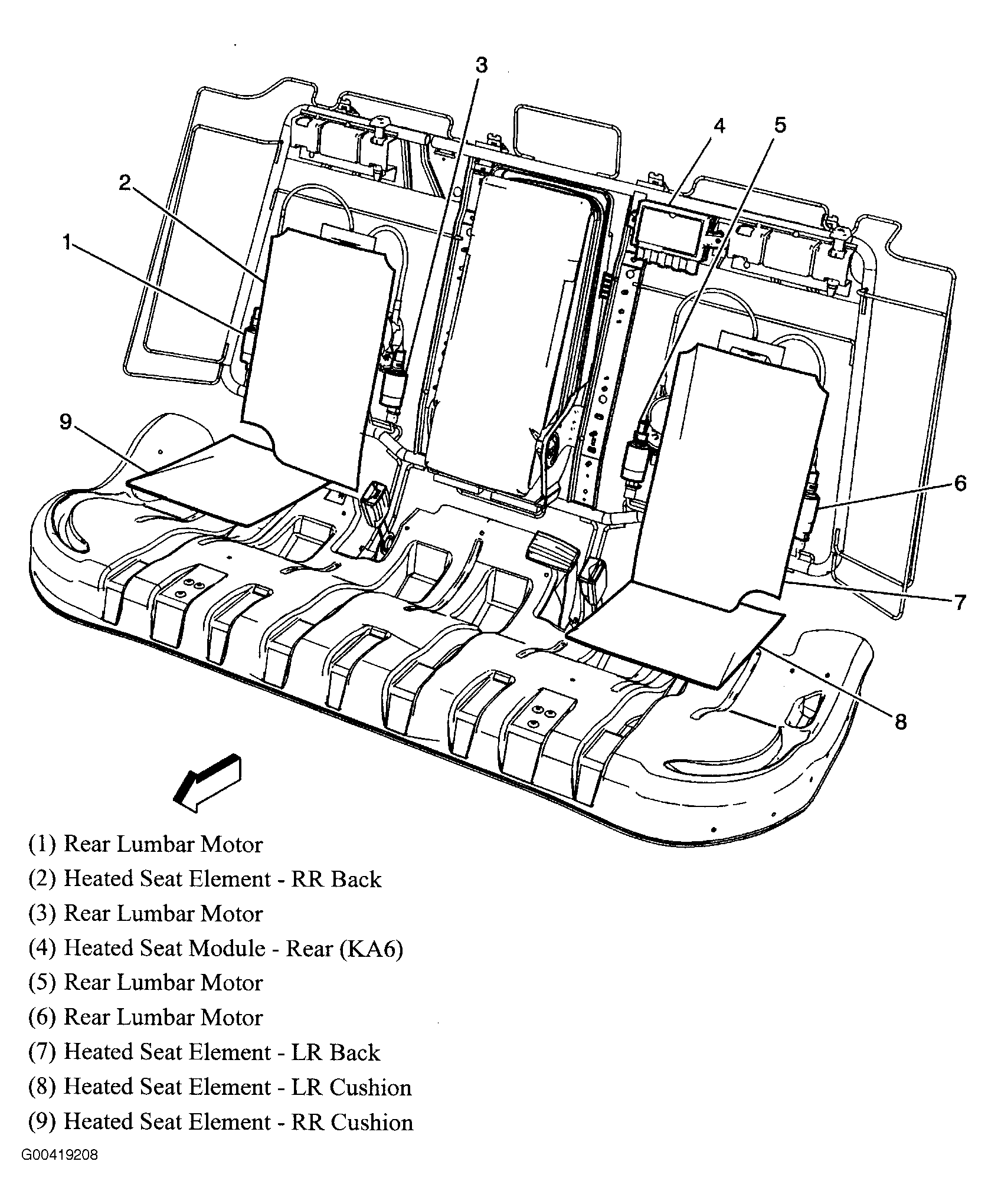

Fig 53: Rear Seat
Courtesy of GENERAL MOTORS CORP.
Fig 54: Left Side Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 55: Upper Center Of Windshield
Courtesy of GENERAL MOTORS CORP.
Fig 56: Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 57: Right Rear Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 58: Right Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 59: Lower Left Side Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 60: Right Side Of Front Passenger Area
Courtesy of GENERAL MOTORS CORP.
Fig 61: Rear Passenger Area & Luggage Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 62: Front Fascia
Courtesy of GENERAL MOTORS CORP.
Fig 63: Left Side Of Engine (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 64: Left Side Of Engine (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 65: Right Side Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 66: Top Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 67: Vehicle Overview
Courtesy of GENERAL MOTORS CORP.
Fig 68: Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 69: Rear Of Dash
Courtesy of GENERAL MOTORS CORP.

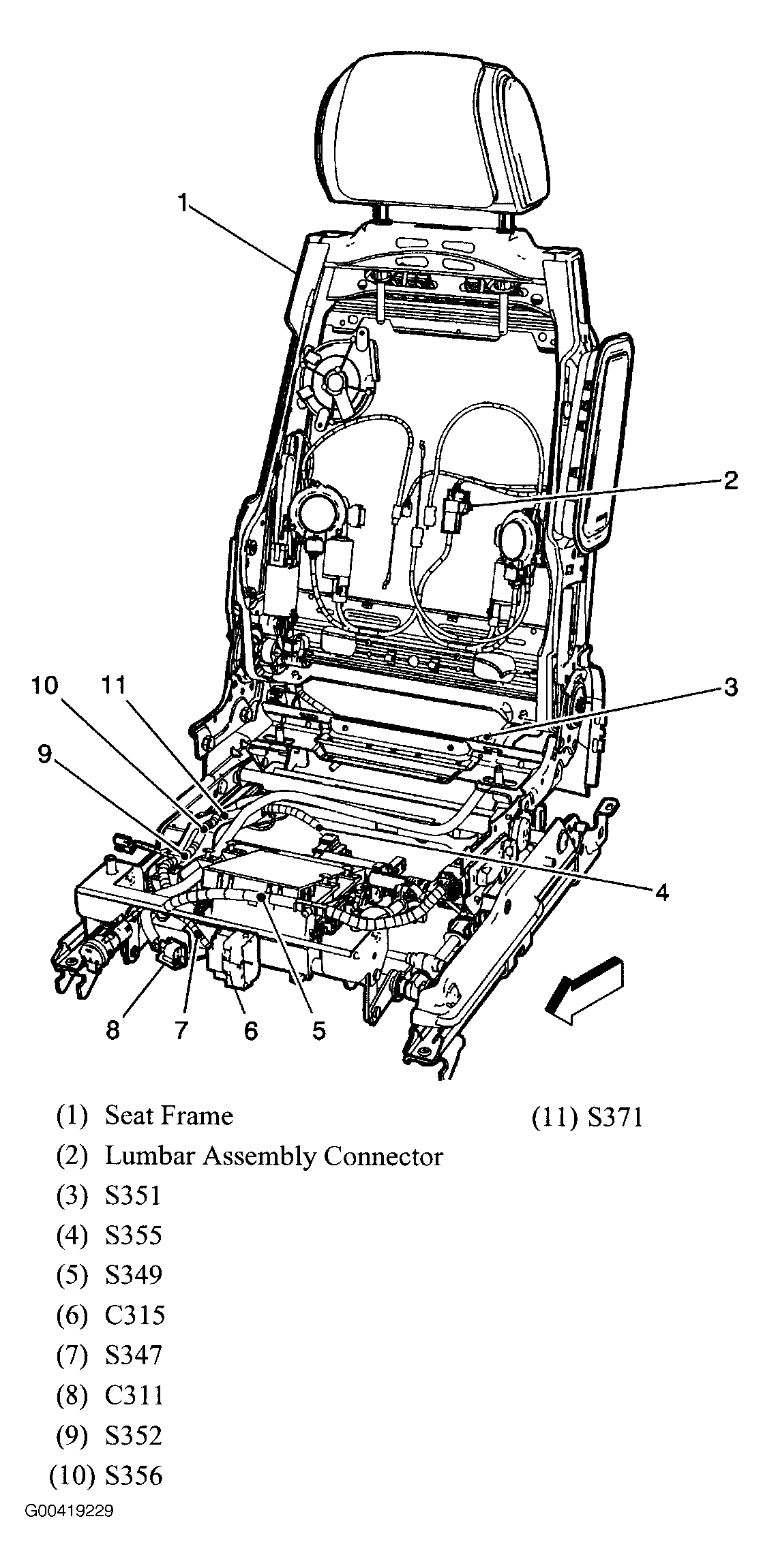

Fig 70: Driver's Seat
Courtesy of GENERAL MOTORS CORP.
Fig 71: Front Passenger's Seat
Courtesy of GENERAL MOTORS CORP.
Fig 72: Center Floor Console
Courtesy of GENERAL MOTORS CORP.

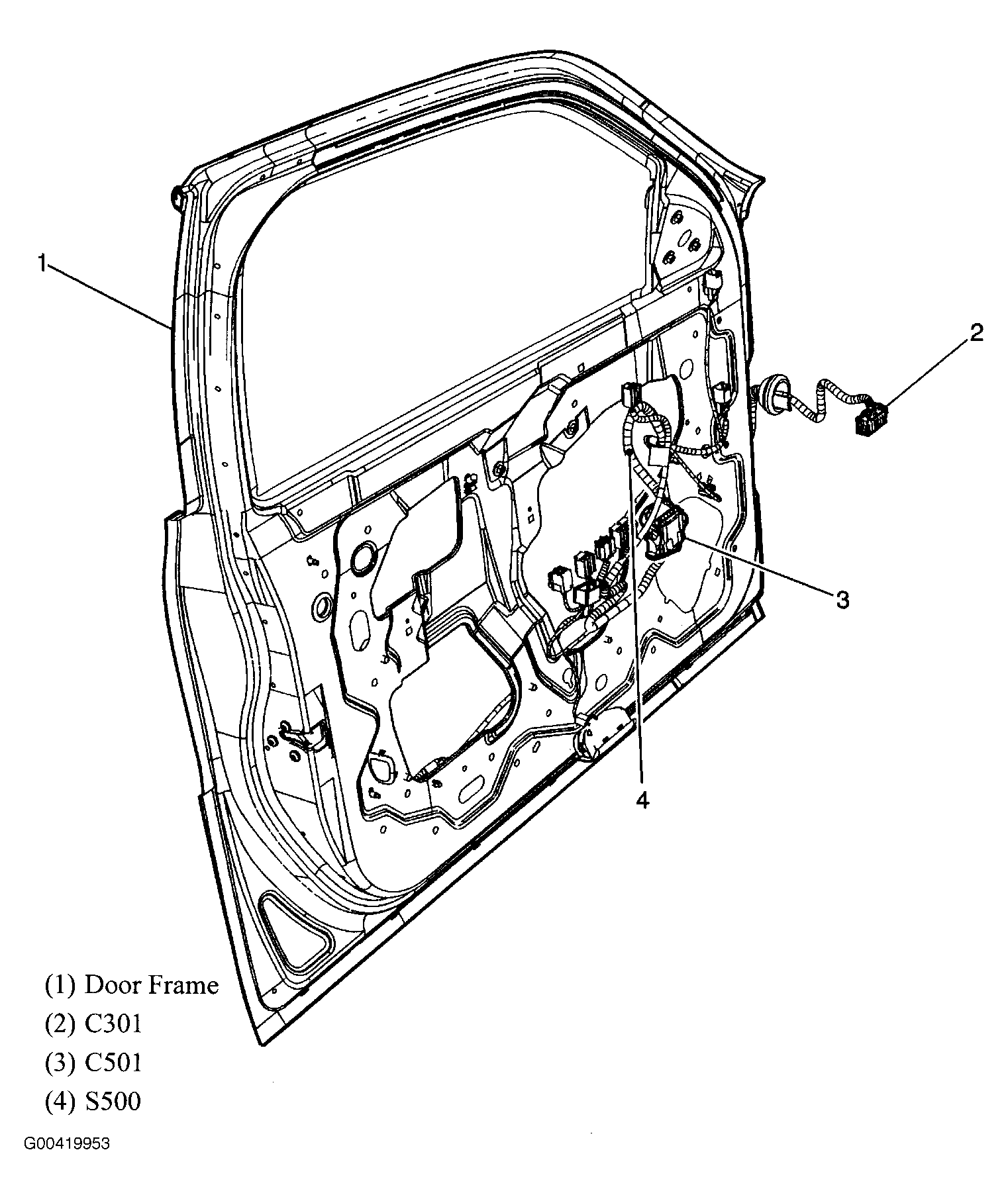

Fig 73: Driver's Door
Courtesy of GENERAL MOTORS CORP.
Fig 74: Front Passenger's Door
Courtesy of GENERAL MOTORS CORP.
Fig 75: Left Rear Door
Courtesy of GENERAL MOTORS CORP.
Fig 76: Right Rear Door
Courtesy of GENERAL MOTORS CORP.
Fig 77: Roof (W/Sunroof)
Courtesy of GENERAL MOTORS CORP.
Fig 78: Roof (W/O Sunroof)
Courtesy of GENERAL MOTORS CORP.
Fig 79: Behind Rear Seats
Courtesy of GENERAL MOTORS CORP.
