Power Outlet Component Views

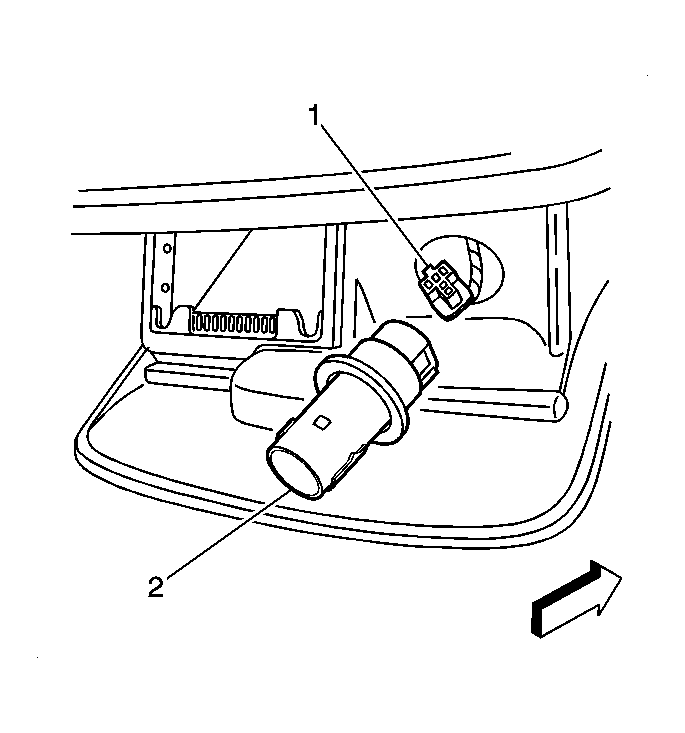

Fig 1: Auxiliary Outlet (w/o DT4)
GM1580911Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Auxiliary Outlet
2 Auxiliary Outlet Housing
Fig 2: Cigar Lighter (w/ DT4)
GM1580911Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Auxiliary Outlet
2 Auxiliary Outlet Housing

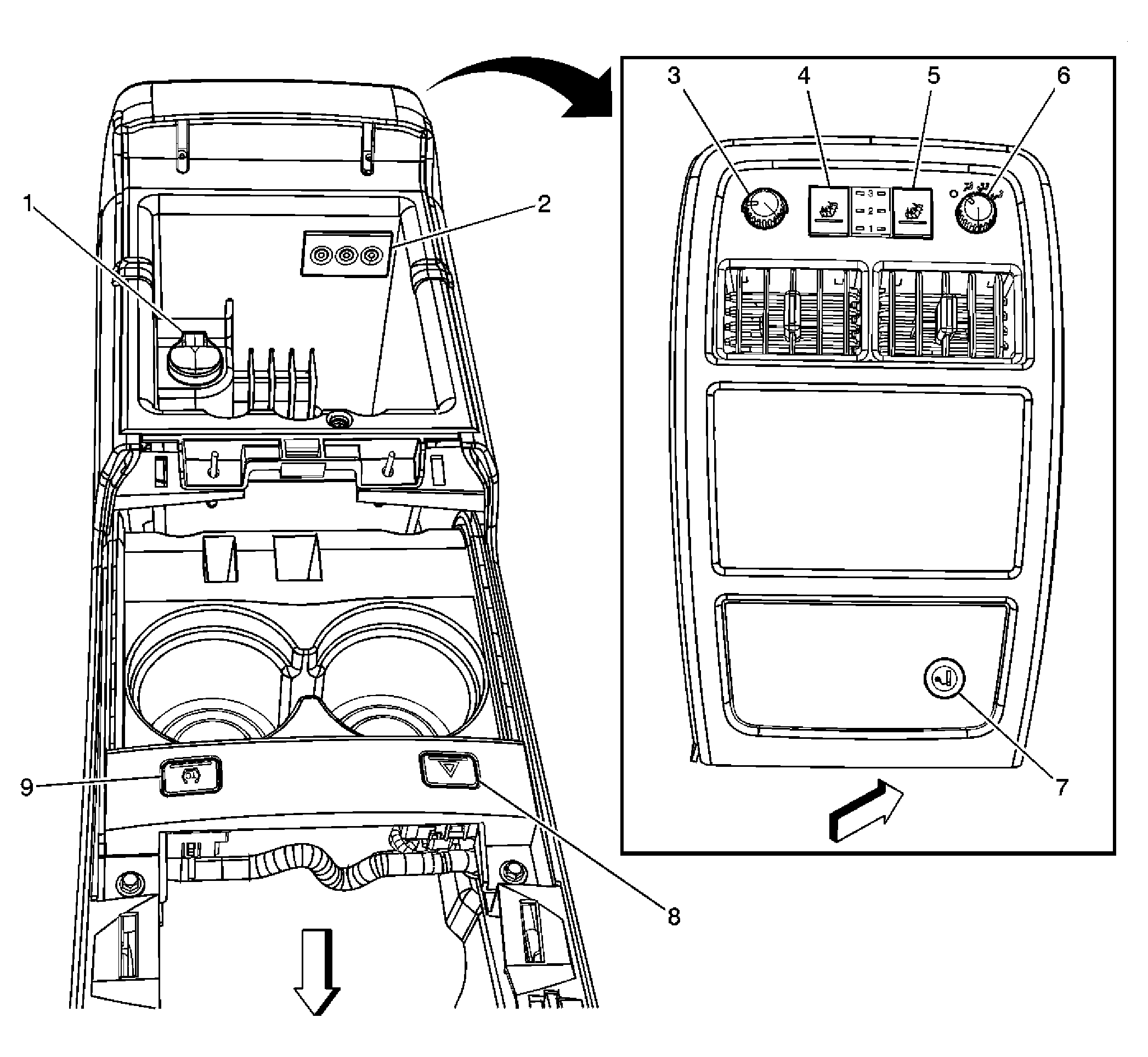

Fig 3: Console Component View
GM1488593Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Auxiliary Power Outlet - Console
2 Auxiliary Audio/Video Control (UY5)
3 HVAC Control Module - Rear Auxiliary (KA6)
4 LR Heated Seat Switch - Part of the Rear Auxiliary Module
5 RR Heated Seat Switch - Part of the Rear Auxiliary Module
6 Mode Select Switch - Auxiliary (KA6)
7 Auxiliary Power Outlet - Rear
8 Hazard Switch
9 Traction Control Switch
