Electrical Component Locator
>>
Component Location Graphics
Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.

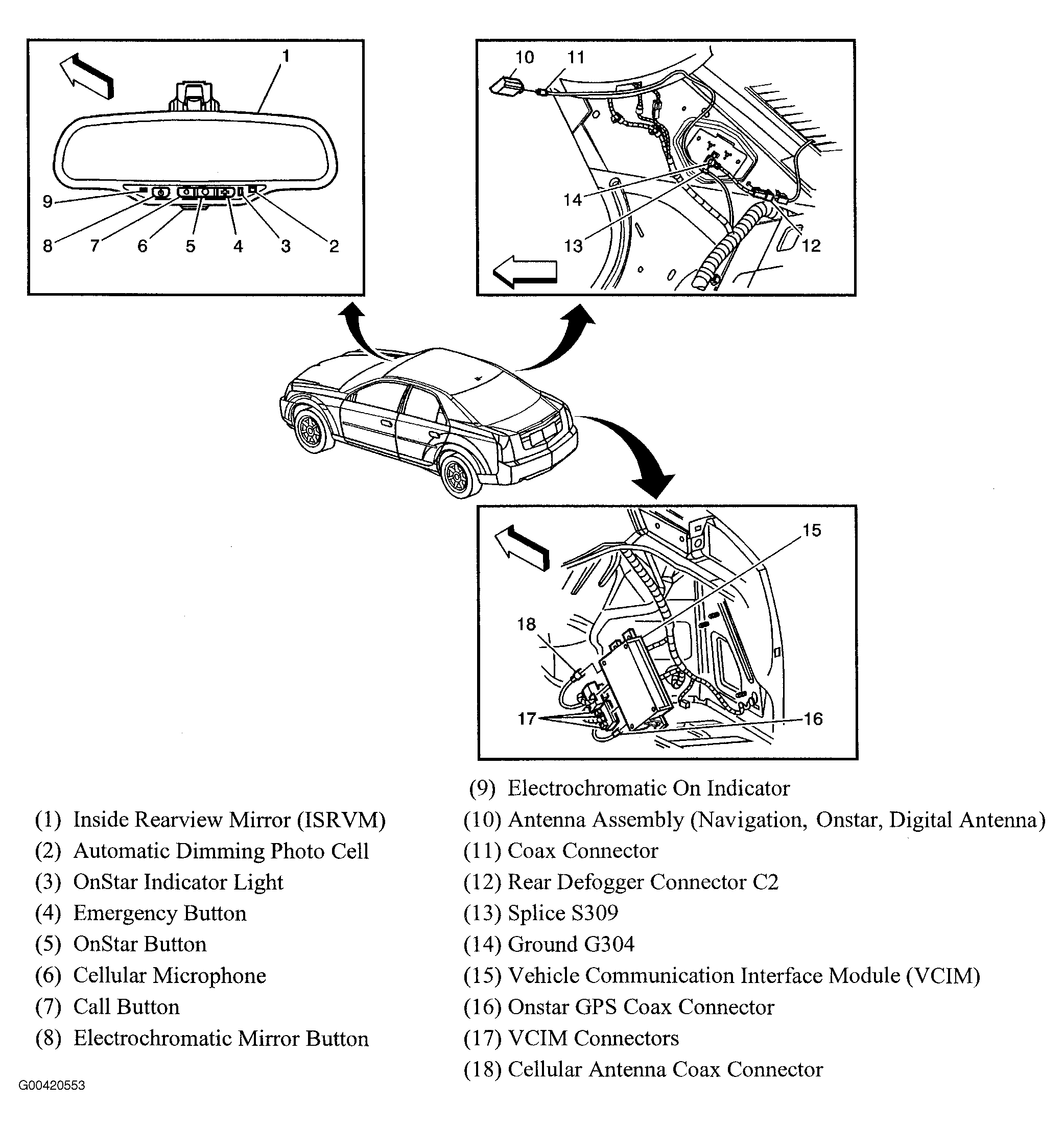

Fig 1: Cellular Communications Components
Courtesy of GENERAL MOTORS CORP.
Fig 2: Audio Components
Courtesy of GENERAL MOTORS CORP.
Fig 3: Theft Deterrent Component Views
Courtesy of GENERAL MOTORS CORP.
Fig 4: Seat Belt Component Views
Courtesy of GENERAL MOTORS CORP.

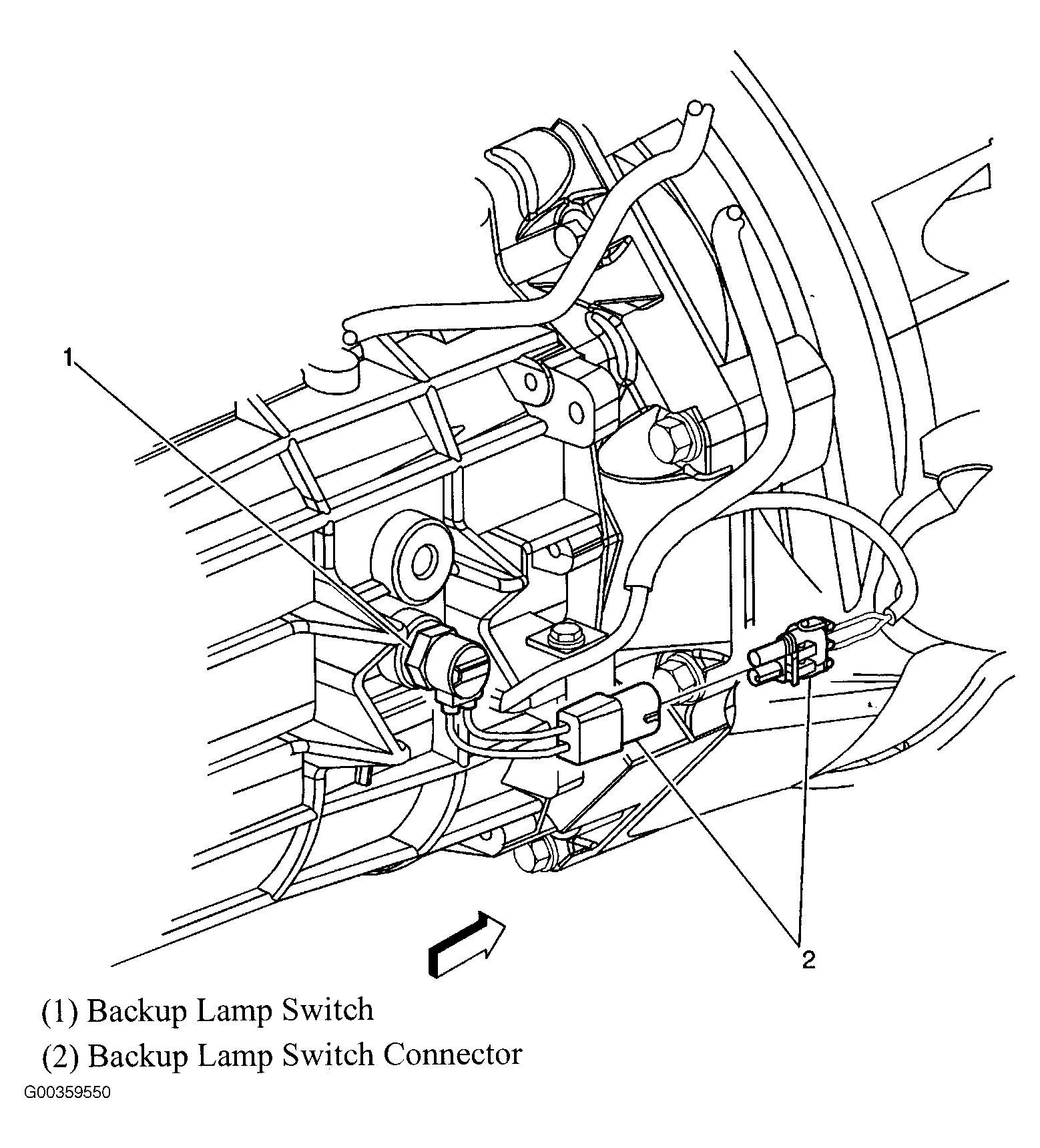

Fig 5: Manual Transmission Components (6 Speed)
Courtesy of GENERAL MOTORS CORP.
Fig 6: Automatic Transmission Electronic Controls
Courtesy of GENERAL MOTORS CORP.
Fig 7: Heated Oxygen (HO2S) Sensors (6.0L)
Courtesy of GENERAL MOTORS CORP.
Fig 8: Right Side Of Engine (2.8L/3.6L)
Courtesy of GENERAL MOTORS CORP.
Fig 9: Left Side Of Engine (2.8L/3.6L)
Courtesy of GENERAL MOTORS CORP.
Fig 10: Front Of Engine (2.8L/3.6L)
Courtesy of GENERAL MOTORS CORP.
Fig 11: Top Of Engine (2.8L/3.6L)
Courtesy of GENERAL MOTORS CORP.
Fig 12: Heated Oxygen (HO2S) Sensors (2.8L/3.6L)
Courtesy of GENERAL MOTORS CORP.
Fig 13: Battery & Fuse Blocks
Courtesy of GENERAL MOTORS CORP.

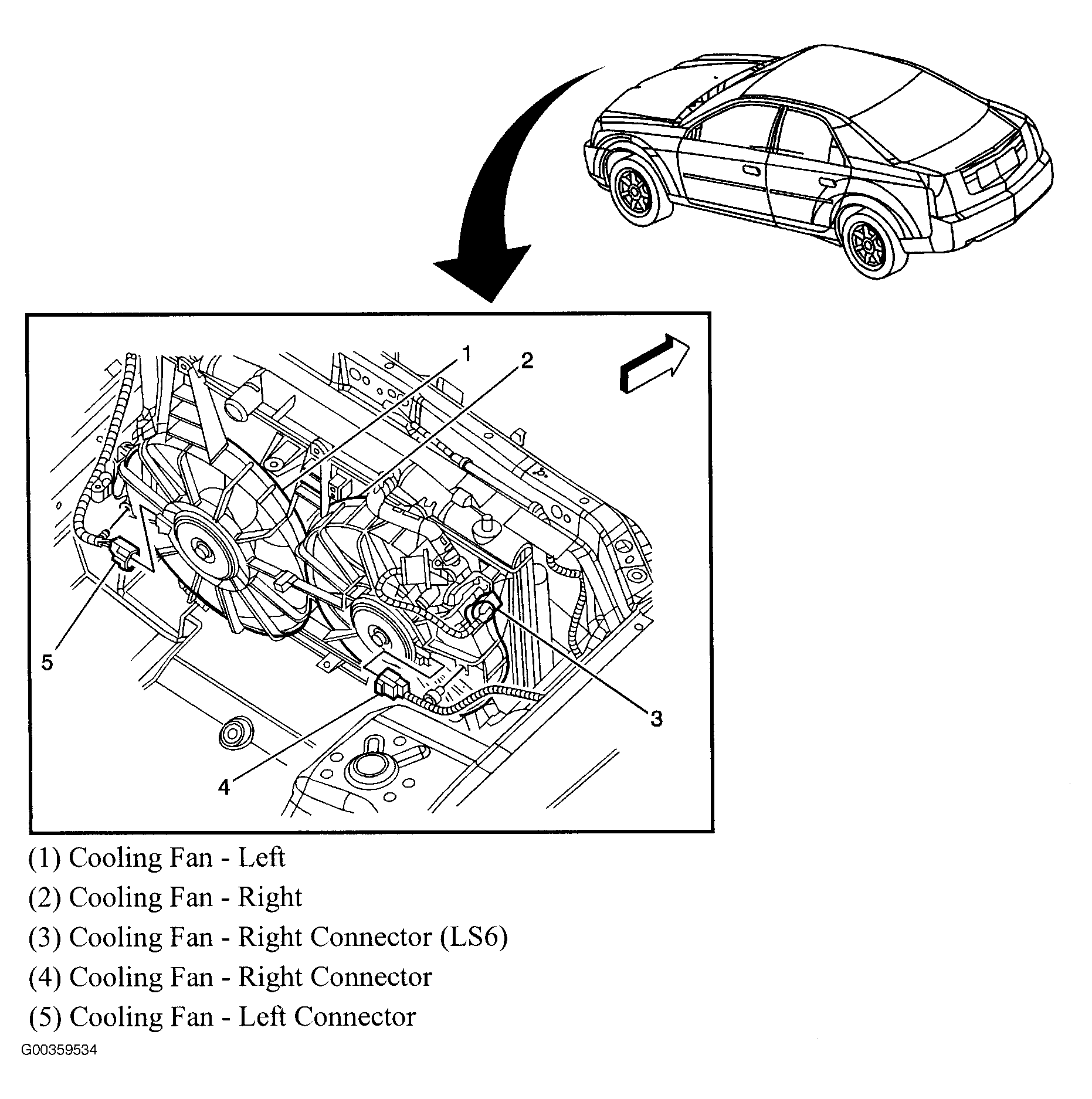

Fig 14: Cooling Fans
Courtesy of GENERAL MOTORS CORP.
Fig 15: Steering Column Components (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 16: Steering Column Components (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 17: Variable Effort Steering Components
Courtesy of GENERAL MOTORS CORP.
Fig 18: Tire Pressure Sensor
Courtesy of GENERAL MOTORS CORP.
Fig 19: Parking Brake Components
Courtesy of GENERAL MOTORS CORP.
Fig 20: Brake Master Cylinder Components
Courtesy of GENERAL MOTORS CORP.
Fig 21: Under Center Console
Courtesy of GENERAL MOTORS CORP.
Fig 22: HVAC Module Components
Courtesy of GENERAL MOTORS CORP.

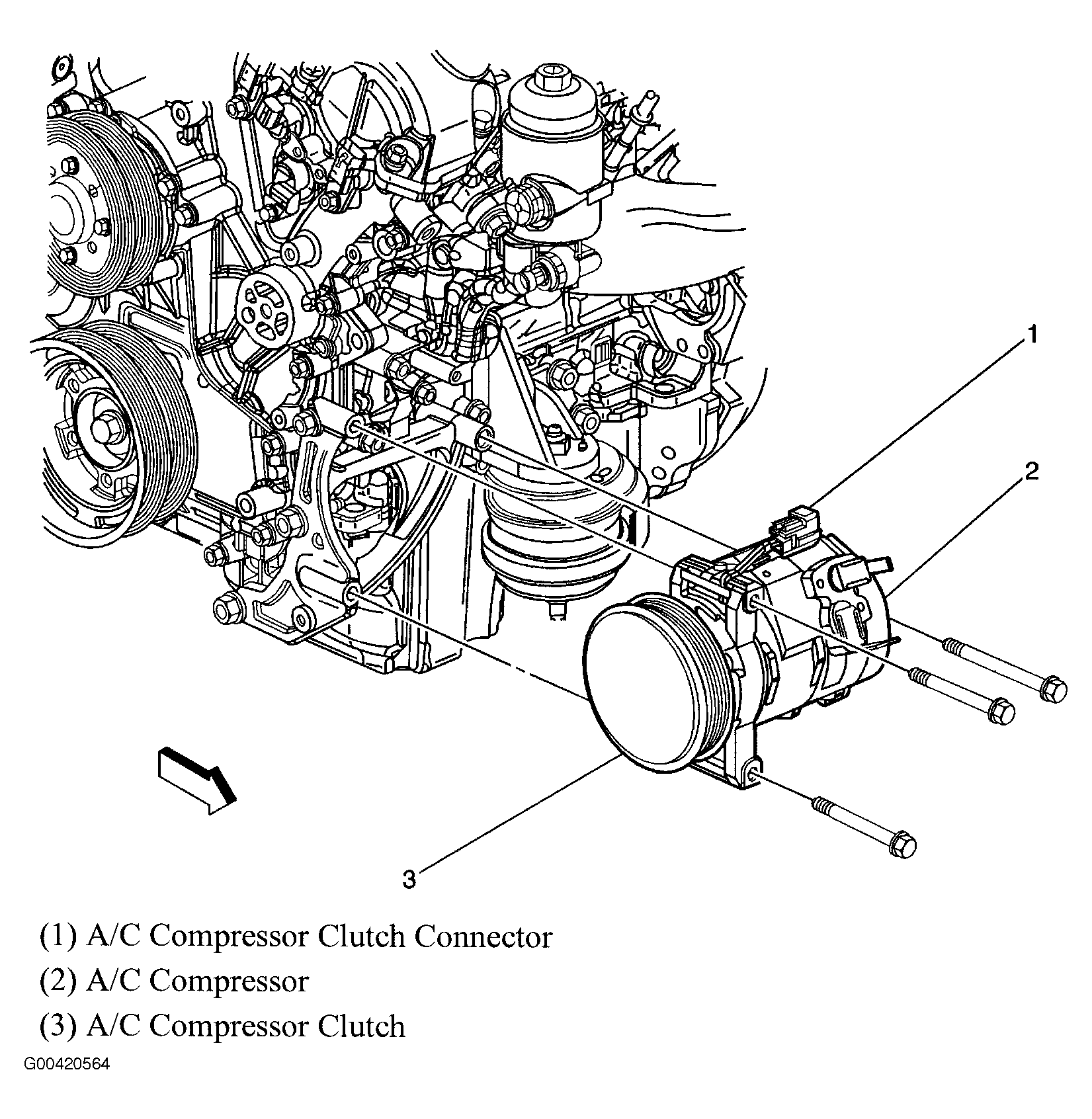

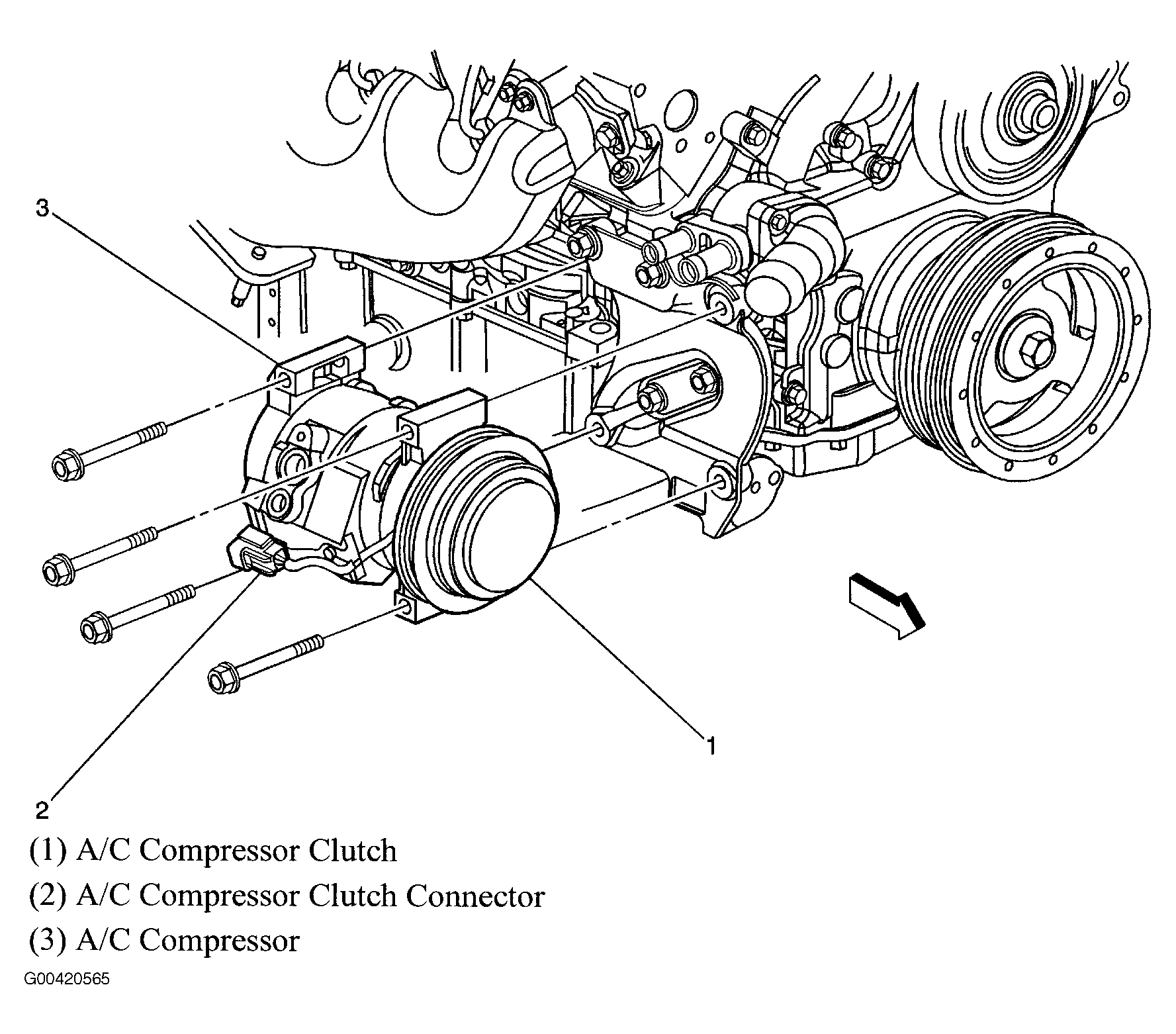

Fig 23: HVAC Components
Courtesy of GENERAL MOTORS CORP.

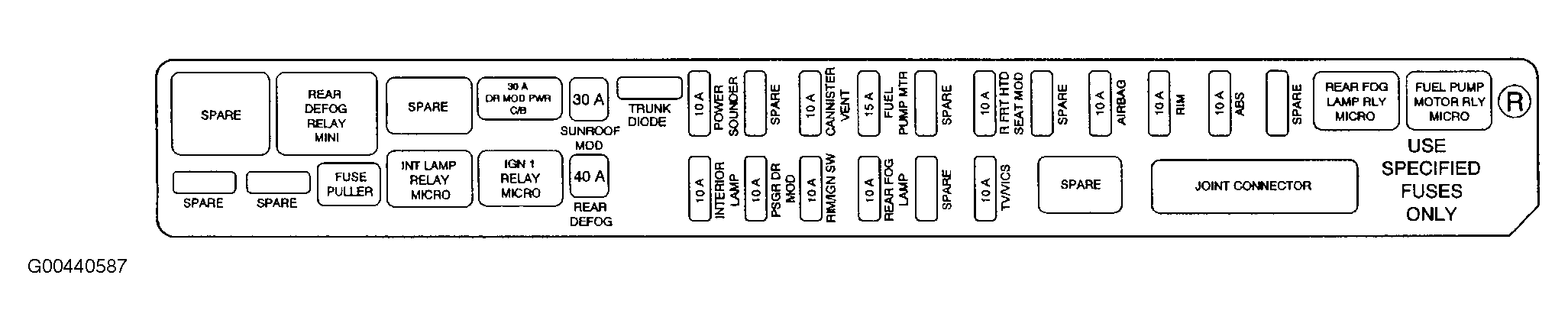

Fig 24: Left Rear Fuse Block
Courtesy of GENERAL MOTORS CORP.

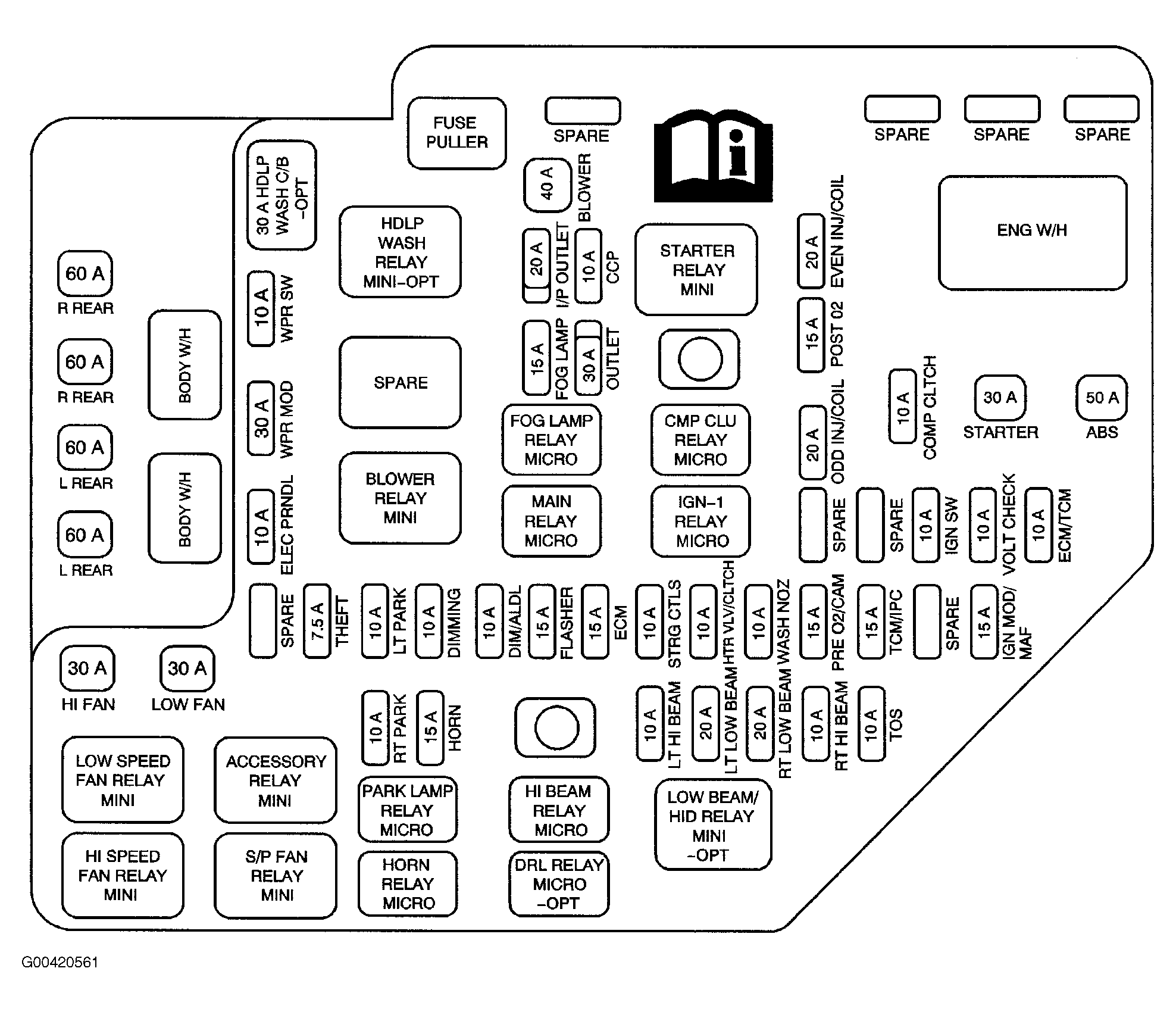

Fig 25: Underhood Fuse Block
Courtesy of GENERAL MOTORS CORP.
Fig 26: Passenger Compartment Grounds
Courtesy of GENERAL MOTORS CORP.
Fig 27: Rear Compartment Grounds
Courtesy of GENERAL MOTORS CORP.
Fig 28: Ignition Switch
Courtesy of GENERAL MOTORS CORP.

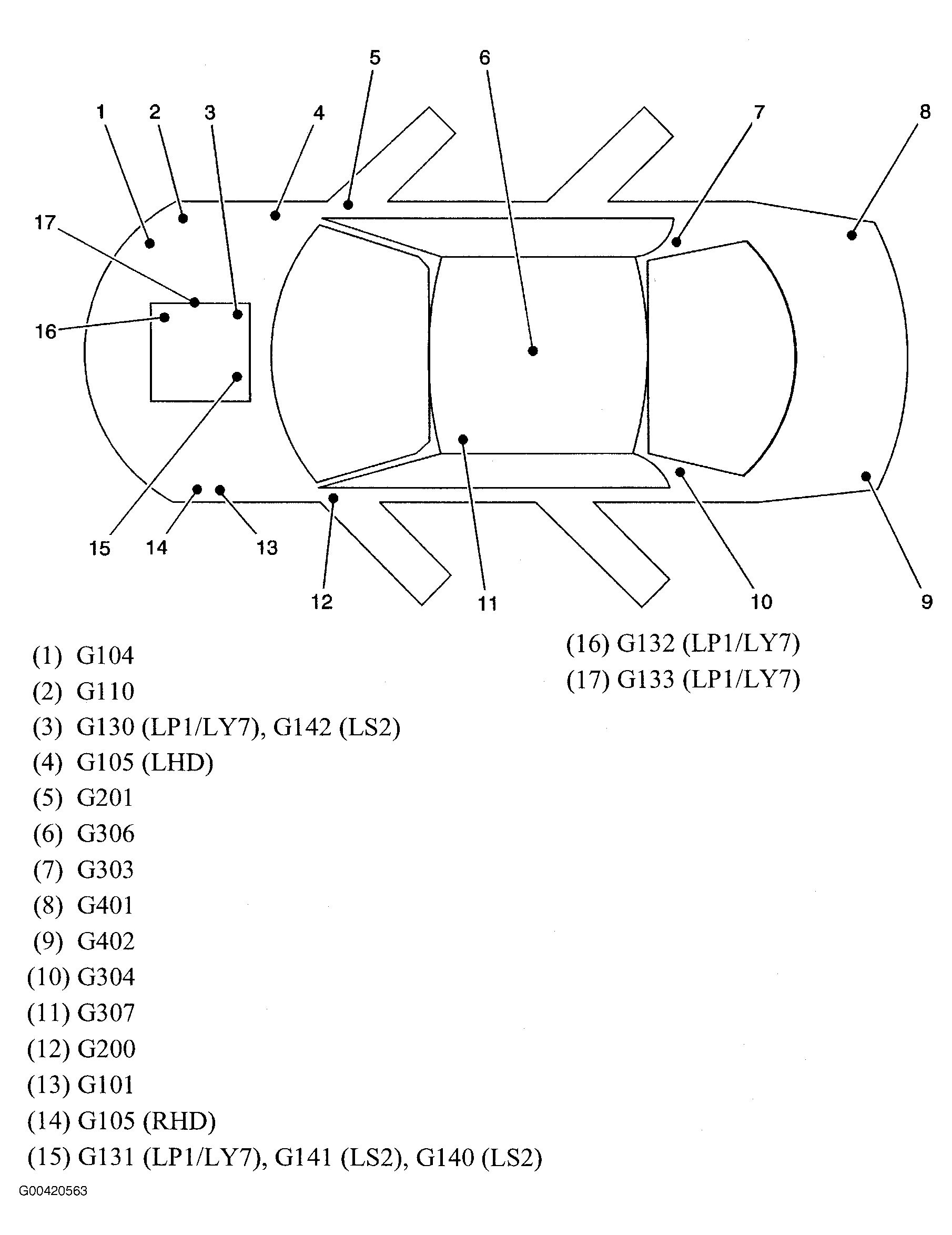

Fig 29: Vehicle Overview (Grounds)
Courtesy of GENERAL MOTORS CORP.
Fig 30: Engine Grounds (2.8L/3.6L)
Courtesy of GENERAL MOTORS CORP.
Fig 31: Passenger Compartment Grounds
Courtesy of GENERAL MOTORS CORP.
Fig 32: EVAP Canister Vent Solenoid
Courtesy of GENERAL MOTORS CORP.
Fig 33: Lower Left Side Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 34: Dash Harness
Courtesy of GENERAL MOTORS CORP.
Fig 35: Left Kick Panel
Courtesy of GENERAL MOTORS CORP.
Fig 36: Right Kick Panel
Courtesy of GENERAL MOTORS CORP.
Fig 37: Body Harness
Courtesy of GENERAL MOTORS CORP.
Fig 38: Body Harness
Courtesy of GENERAL MOTORS CORP.
Fig 39: Trunk Area
Courtesy of GENERAL MOTORS CORP.

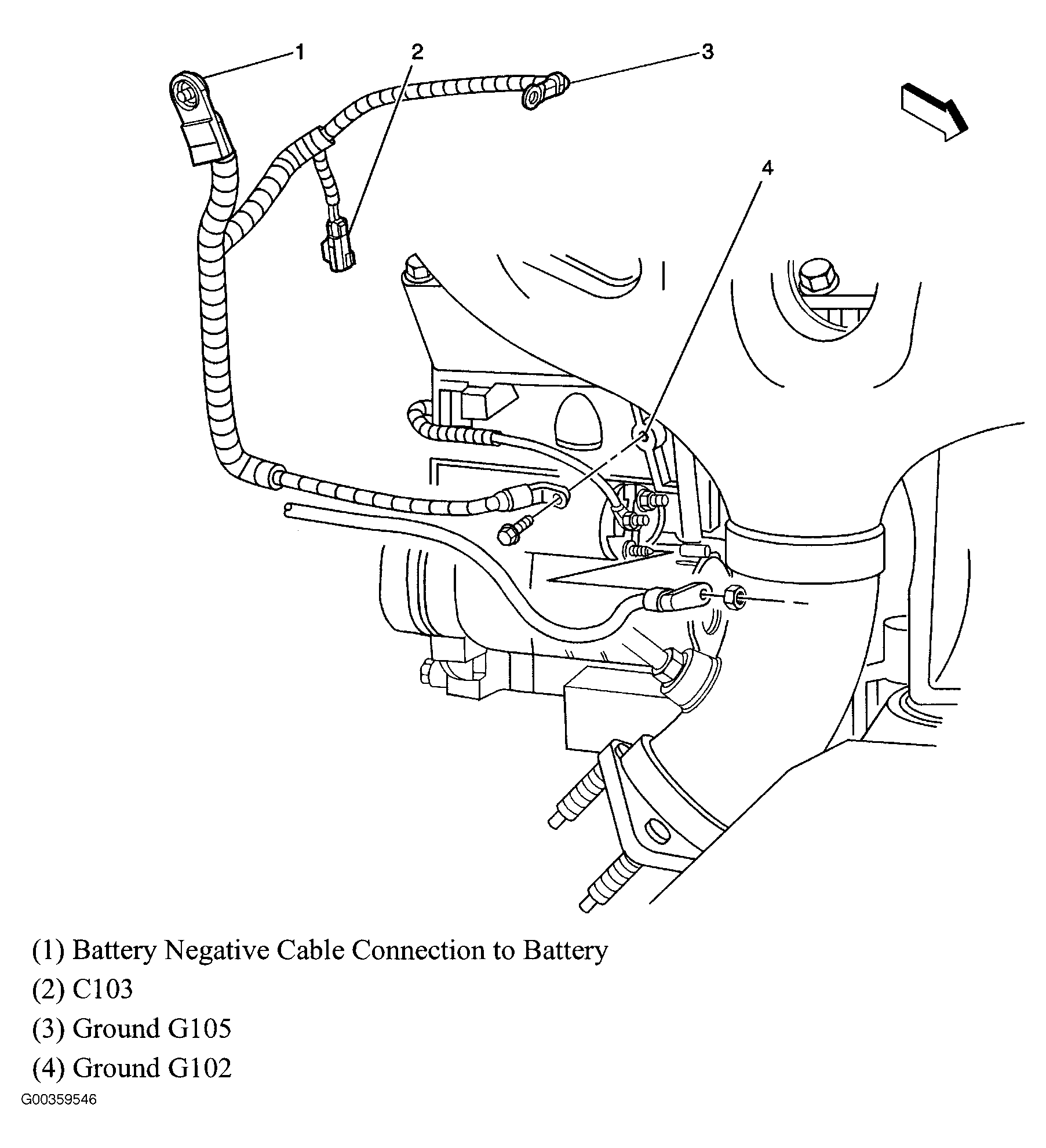

Fig 40: Negative Battery Cable (6.0L)
Courtesy of GENERAL MOTORS CORP.
Fig 41: Right Front Side Of Transmission
Courtesy of GENERAL MOTORS CORP.

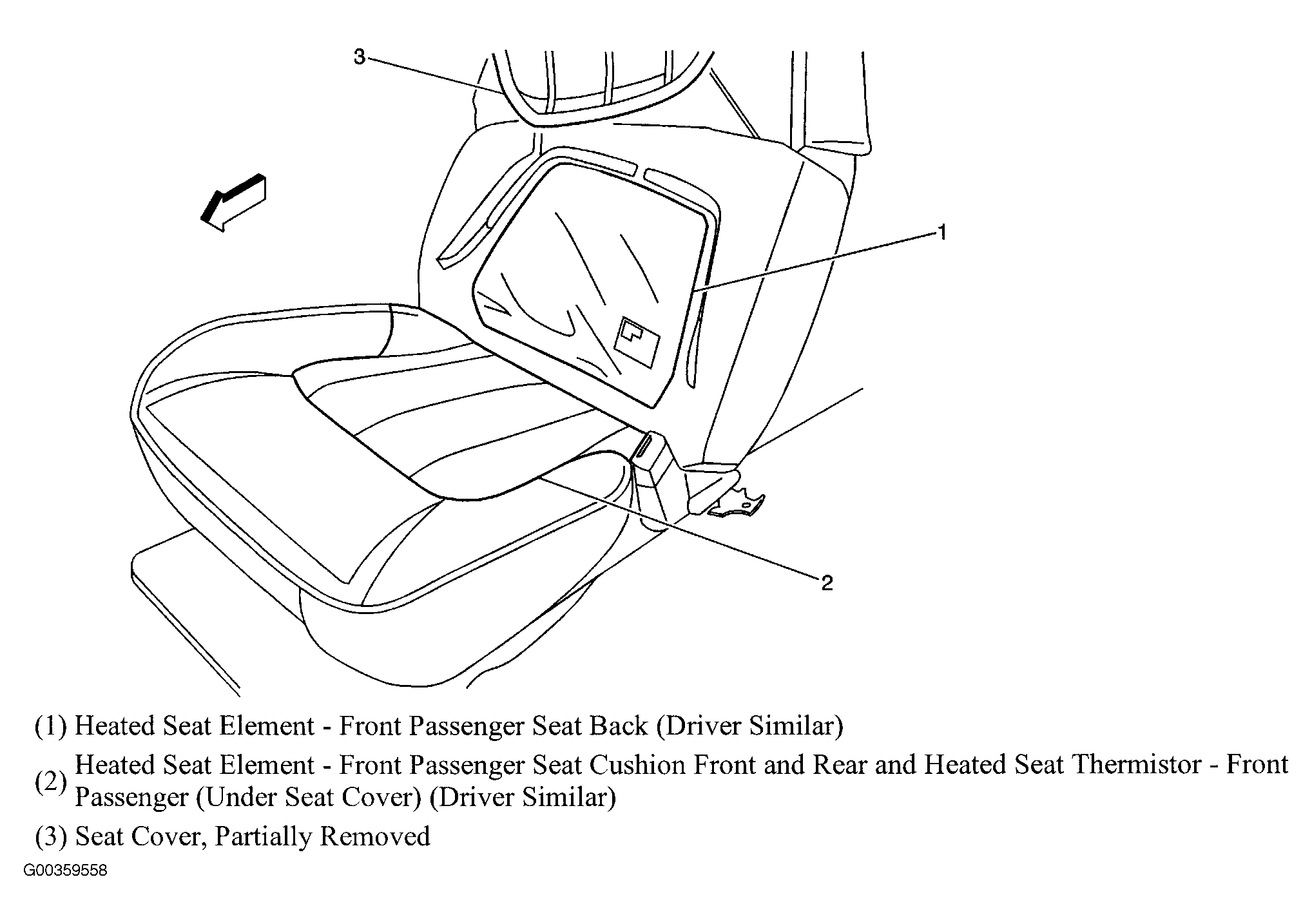

Fig 42: Front Passenger Seat (Driver Similiar)
Courtesy of GENERAL MOTORS CORP.

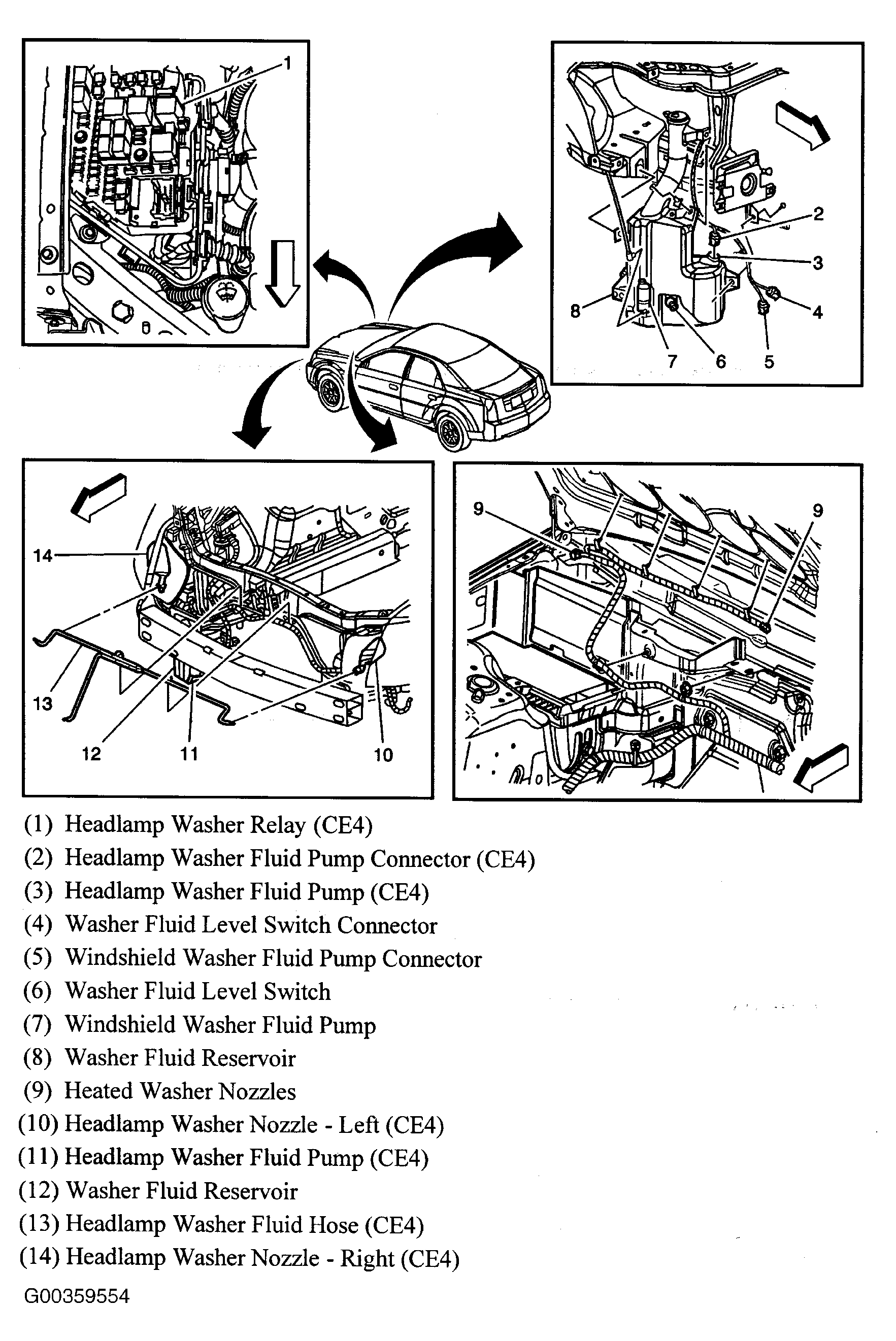

Fig 43: Windshield Washer System Components
Courtesy of GENERAL MOTORS CORP.

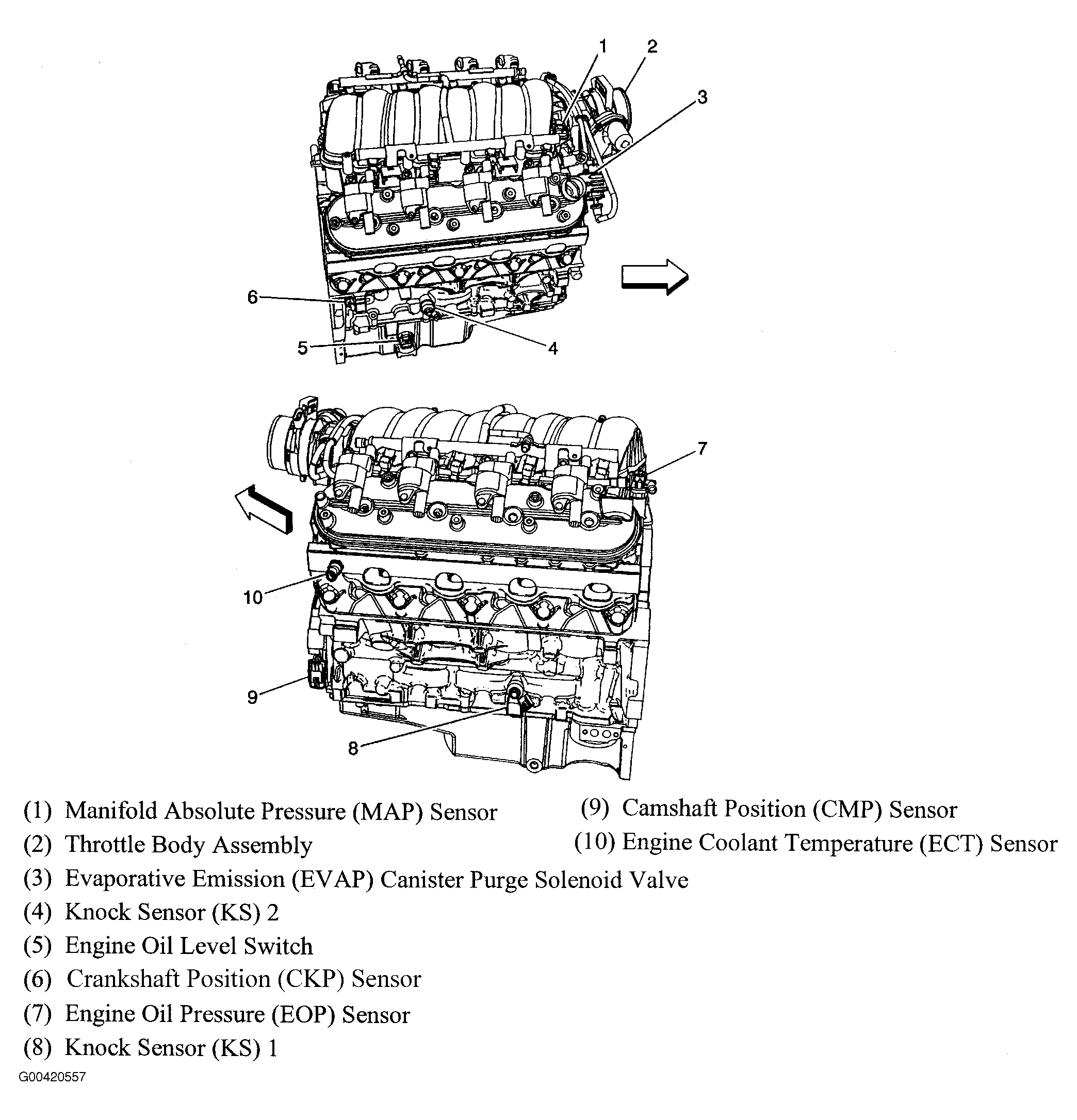

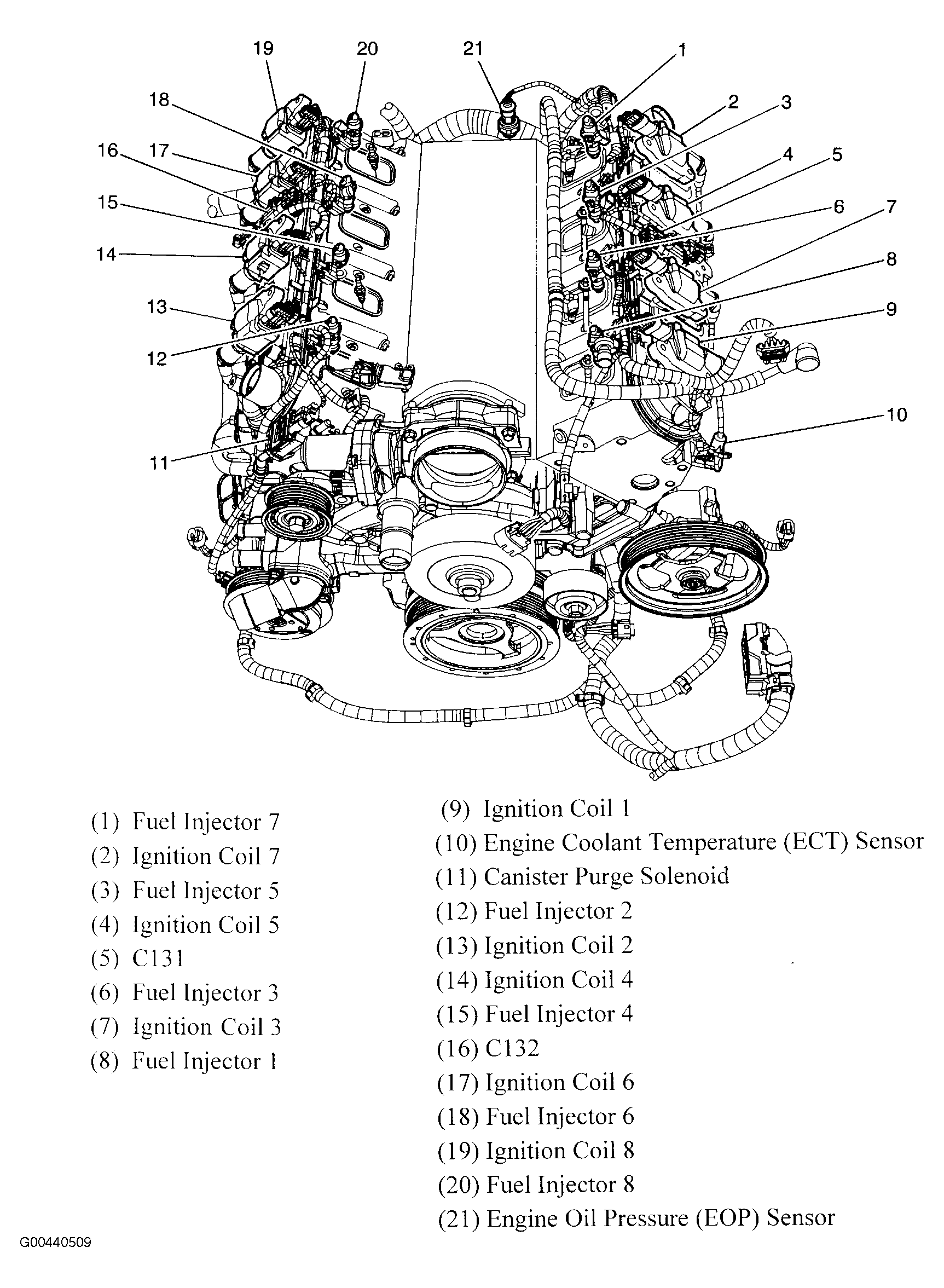

Fig 44: Engine Components (6.0L)
Courtesy of GENERAL MOTORS CORP.

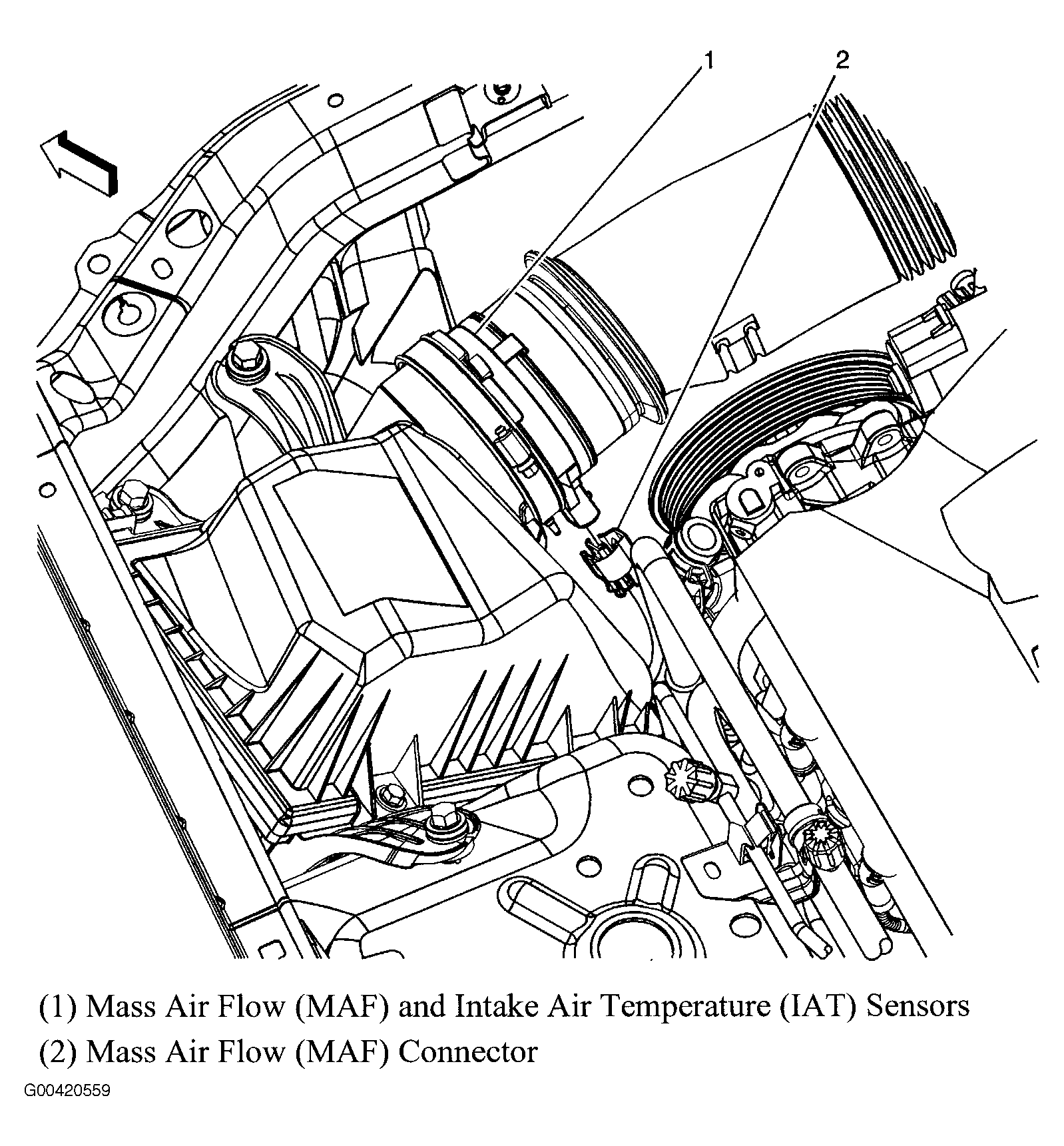

Fig 45: MAF & IAT Sensors (6.0L)
Courtesy of GENERAL MOTORS CORP.
Fig 46: Left Side Of Engine Compartment (6.0L)
Courtesy of GENERAL MOTORS CORP.
Fig 47: Lower Left Side Of Engine (2.8L/3.6L)
Courtesy of GENERAL MOTORS CORP.
Fig 48: Lower Right Side Of Engine (6.0L)
Courtesy of GENERAL MOTORS CORP.

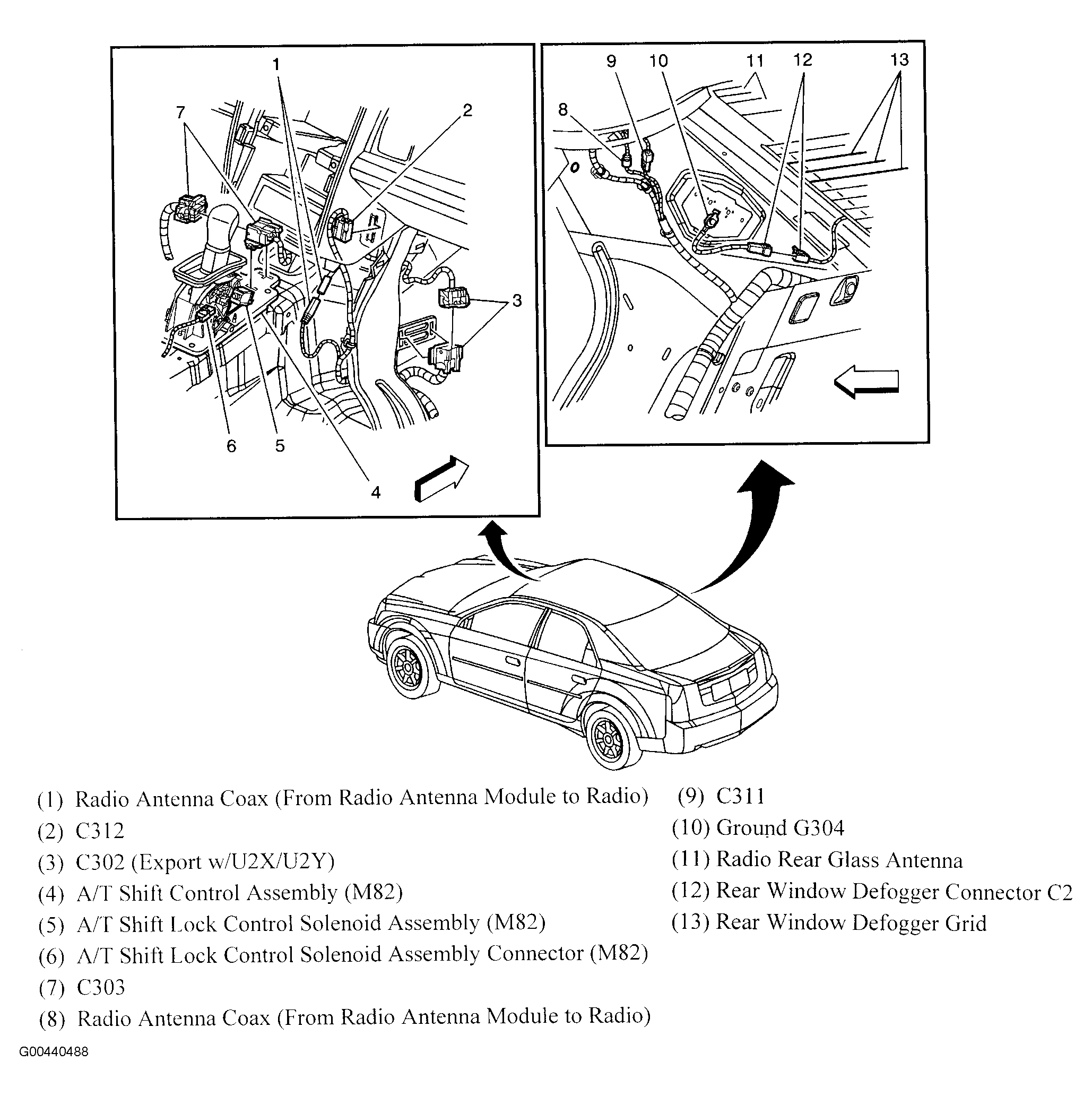

Fig 49: Radio Antenna Coax
Courtesy of GENERAL MOTORS CORP.

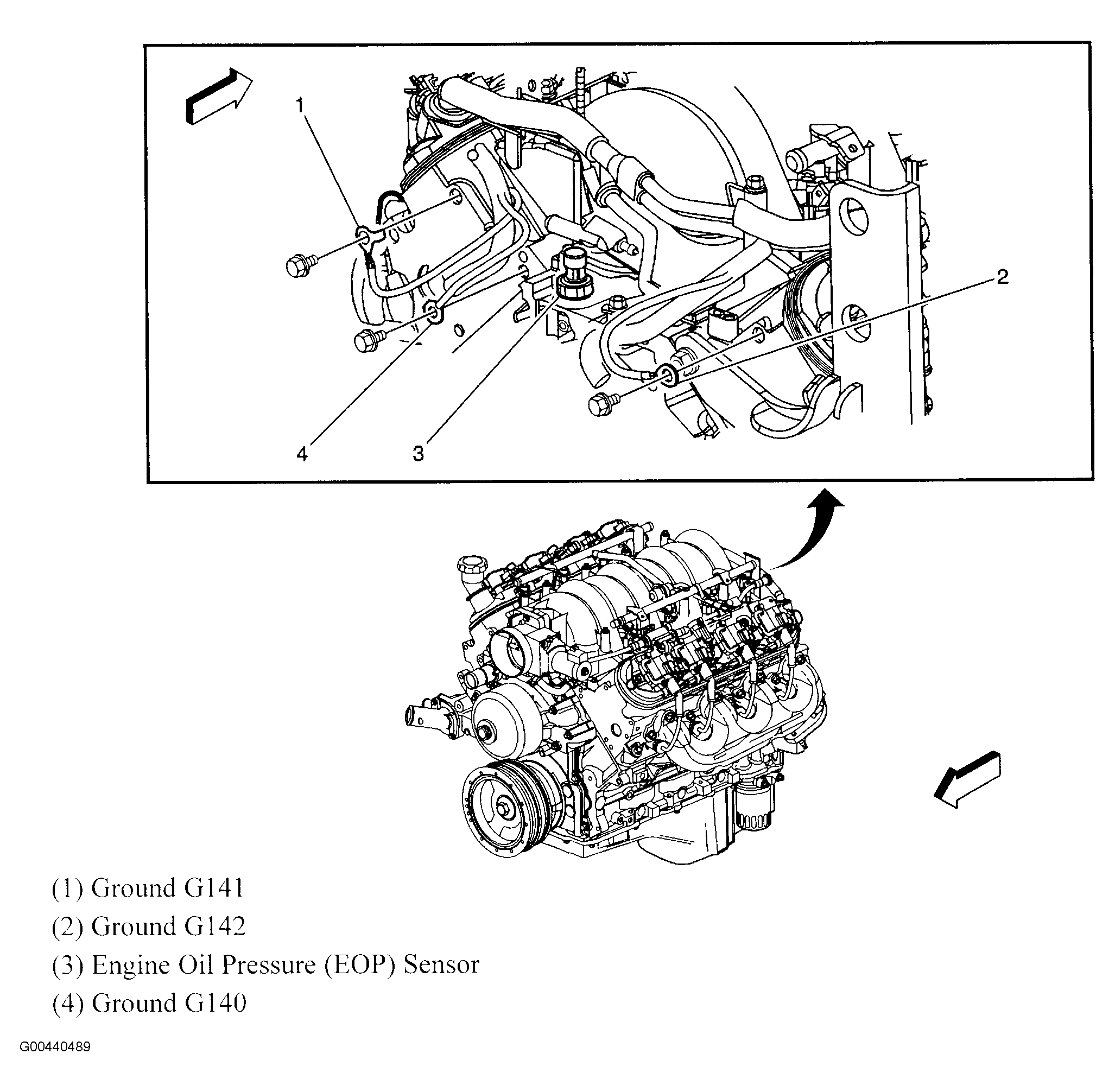

Fig 50: Engine Grounds (6.0L)
Courtesy of GENERAL MOTORS CORP.

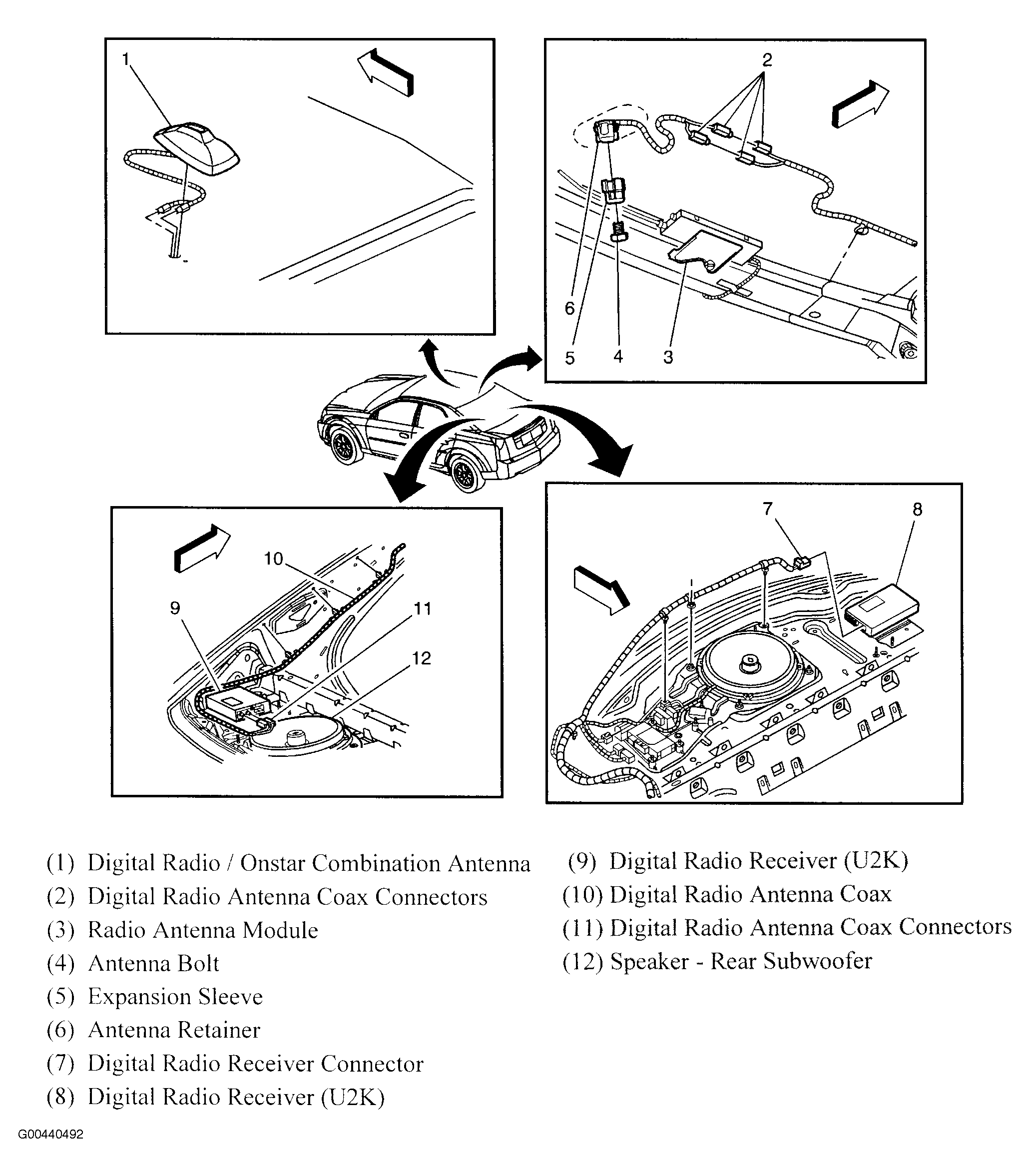

Fig 51: Digital Radio Subsystem Components
Courtesy of GENERAL MOTORS CORP.

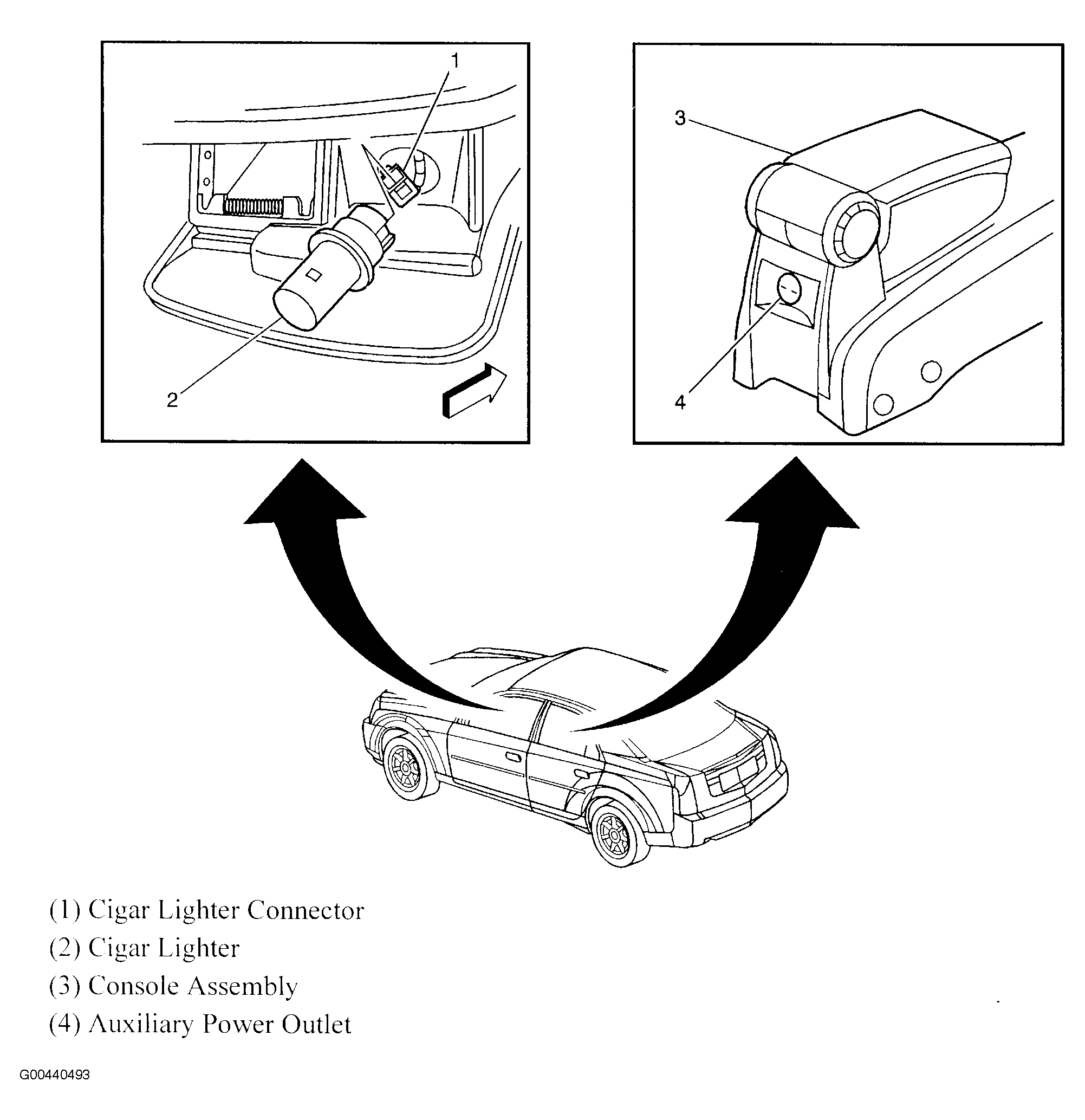

Fig 52: Auxiliary Power Outlet Components
Courtesy of GENERAL MOTORS CORP.

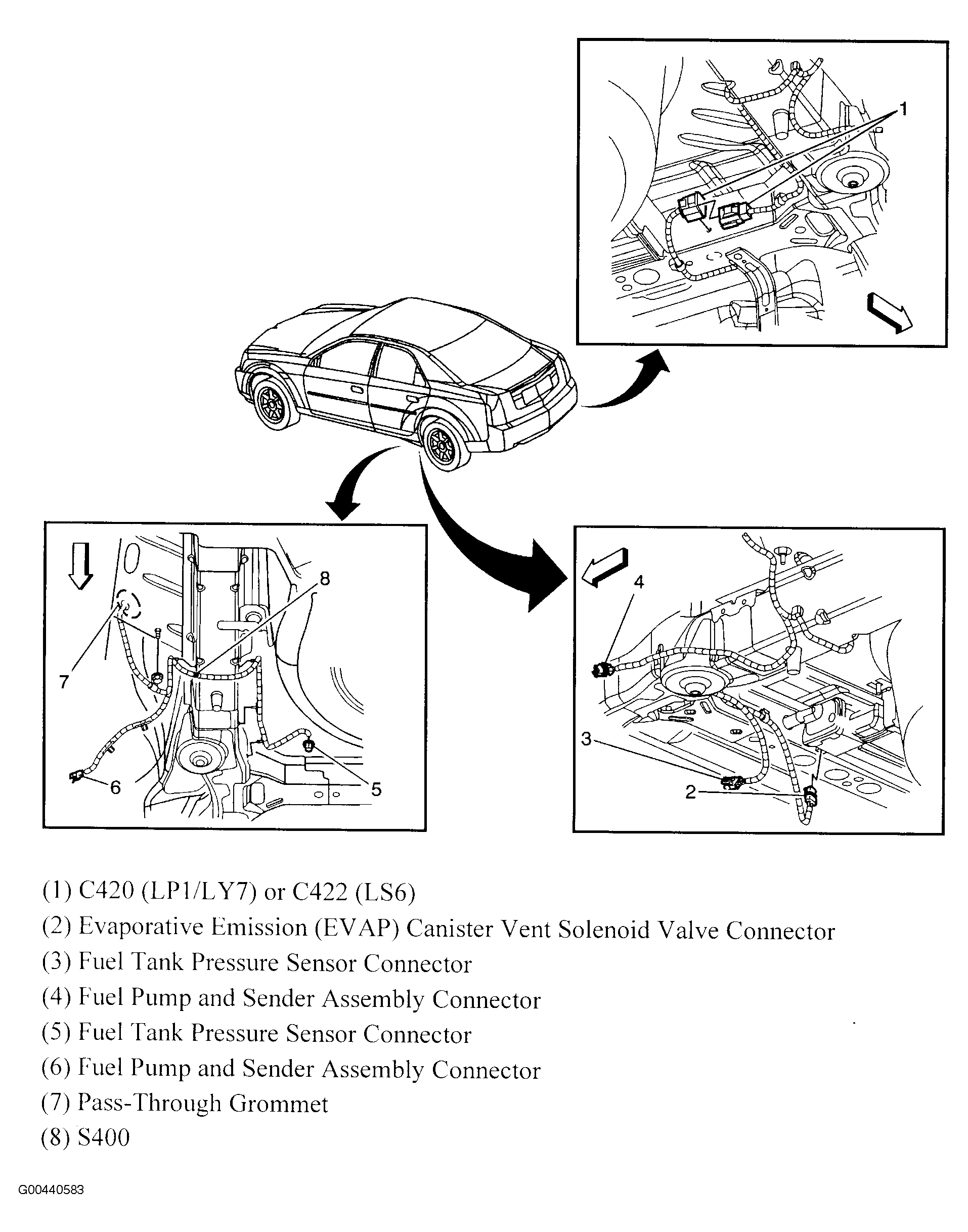

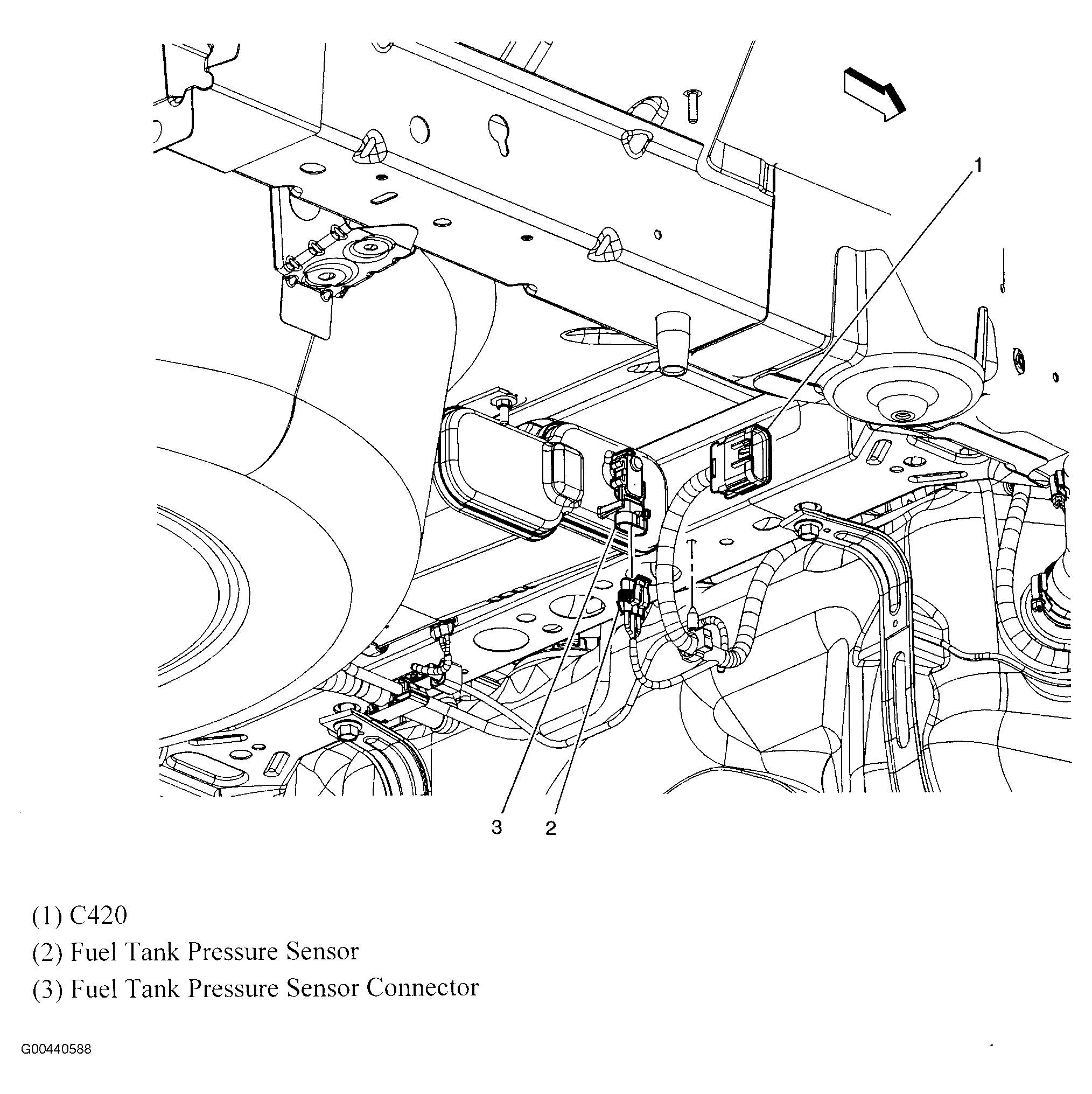

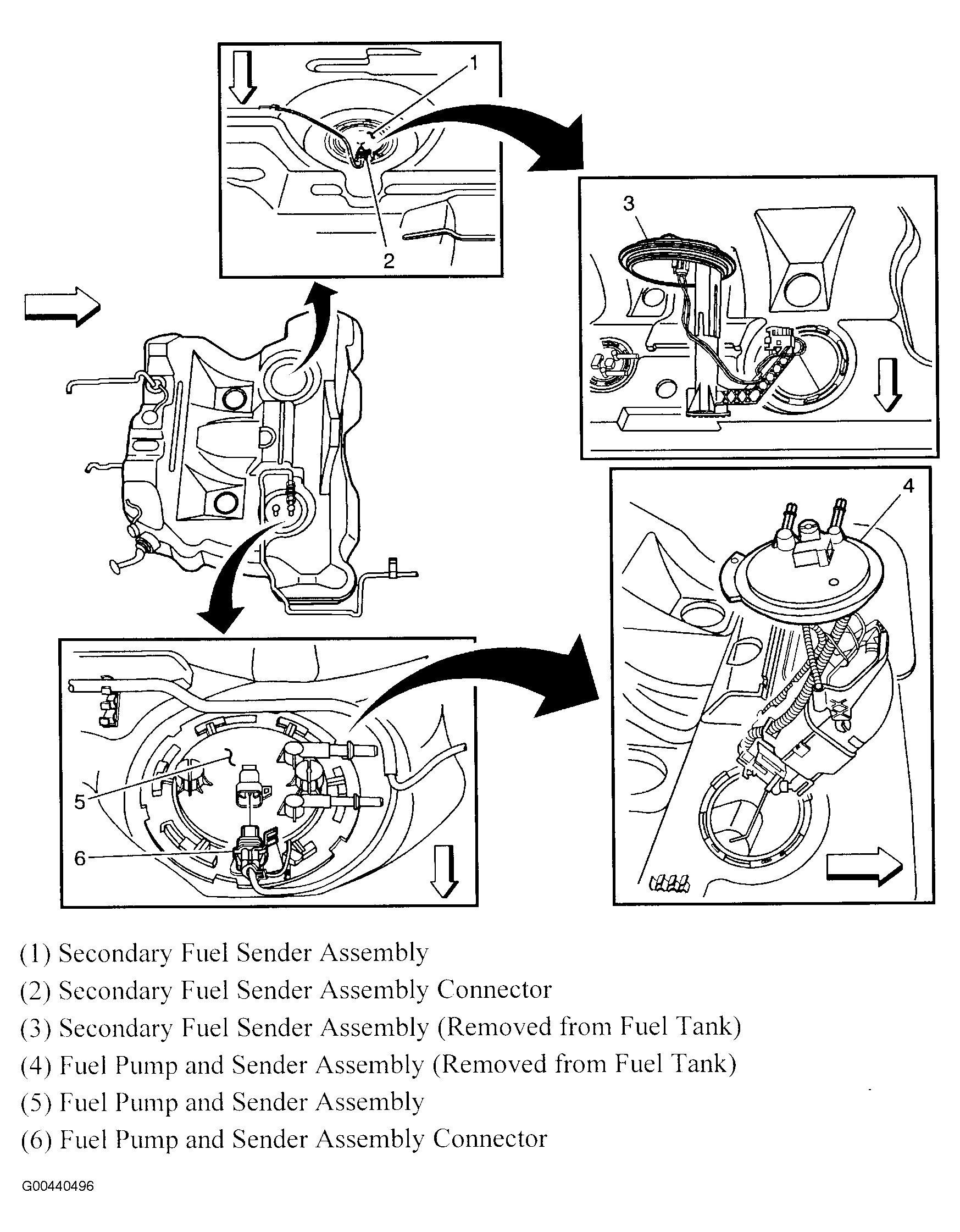

Fig 53: Fuel Tank Subsystem Components
Courtesy of GENERAL MOTORS CORP.

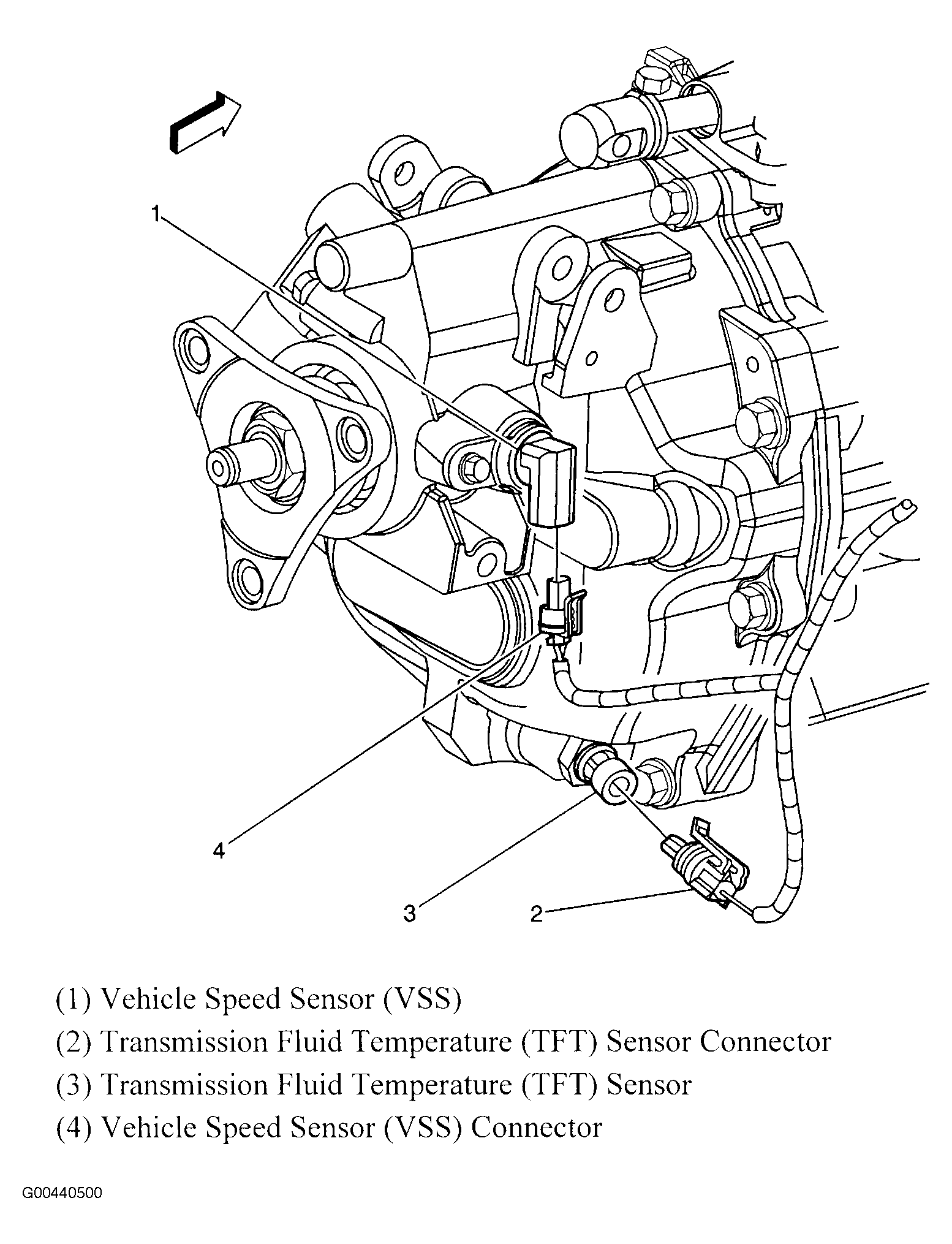

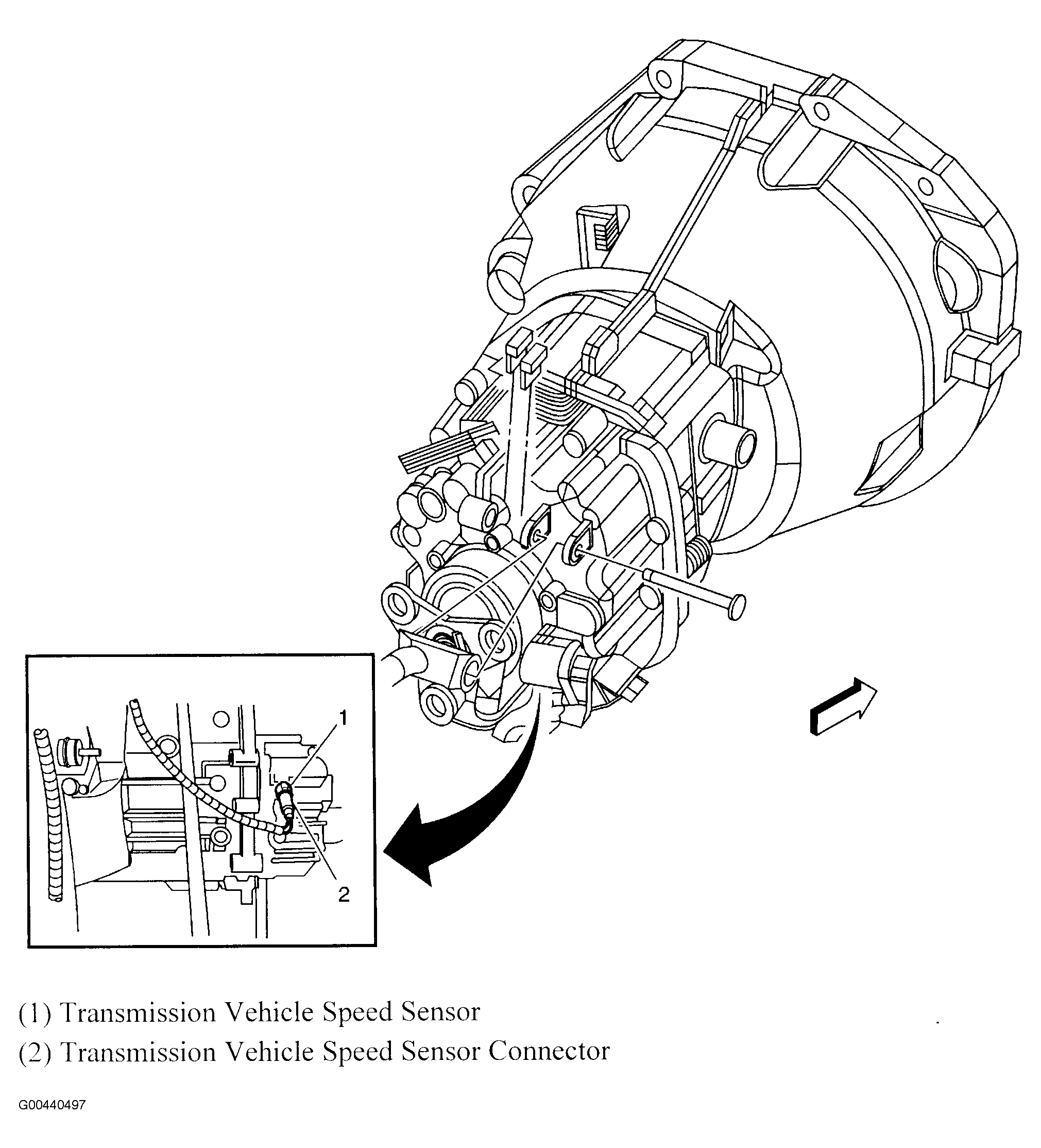

Fig 54: Vehicle Speed Sensor (Aisin)
Courtesy of GENERAL MOTORS CORP.
Fig 55: Right Rear Of Transmission
Courtesy of GENERAL MOTORS CORP.
Fig 56: Shift Lock Control Components
Courtesy of GENERAL MOTORS CORP.

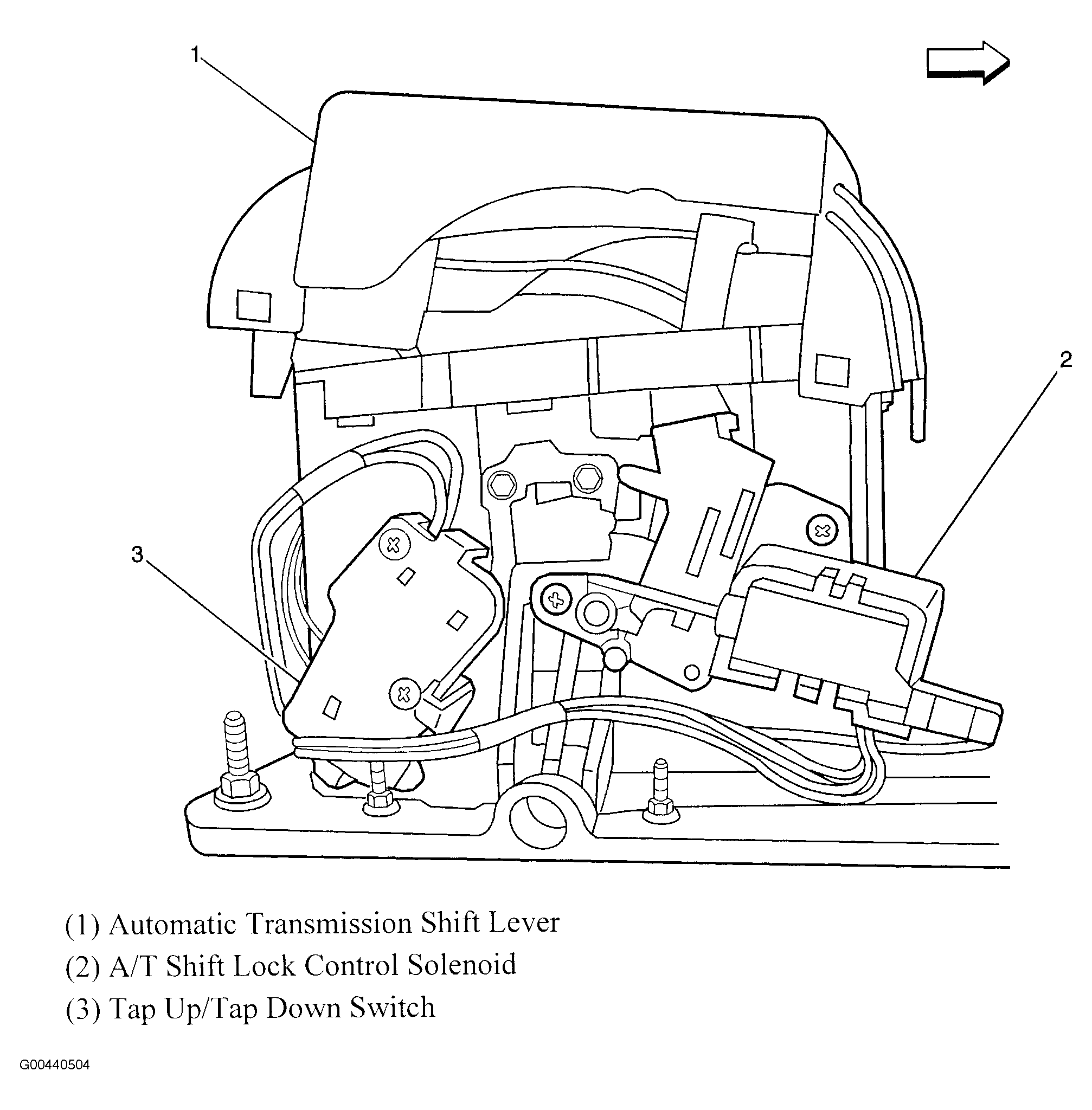

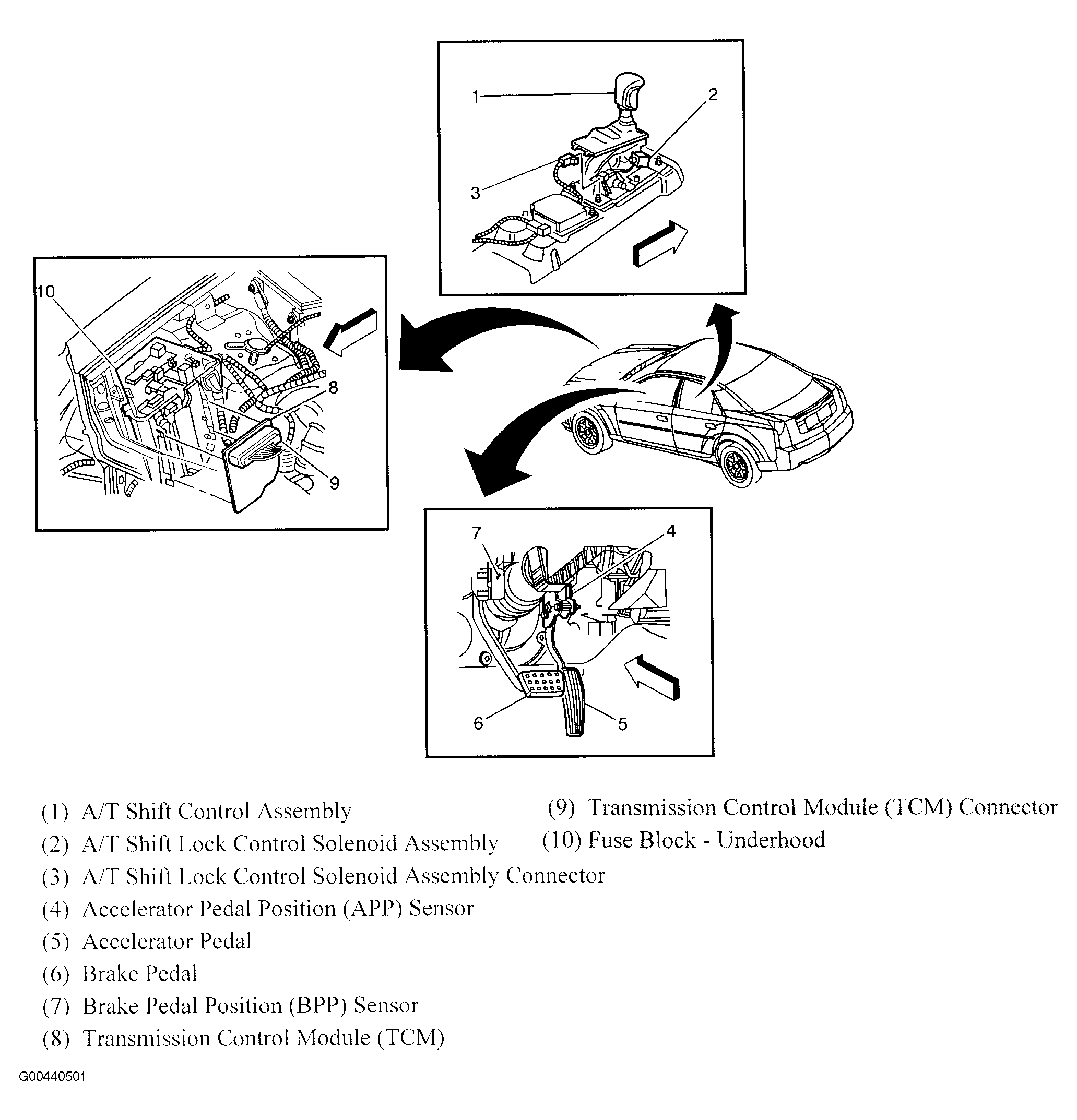

Fig 57: A/T Shift Lock Control Components
Courtesy of GENERAL MOTORS CORP.

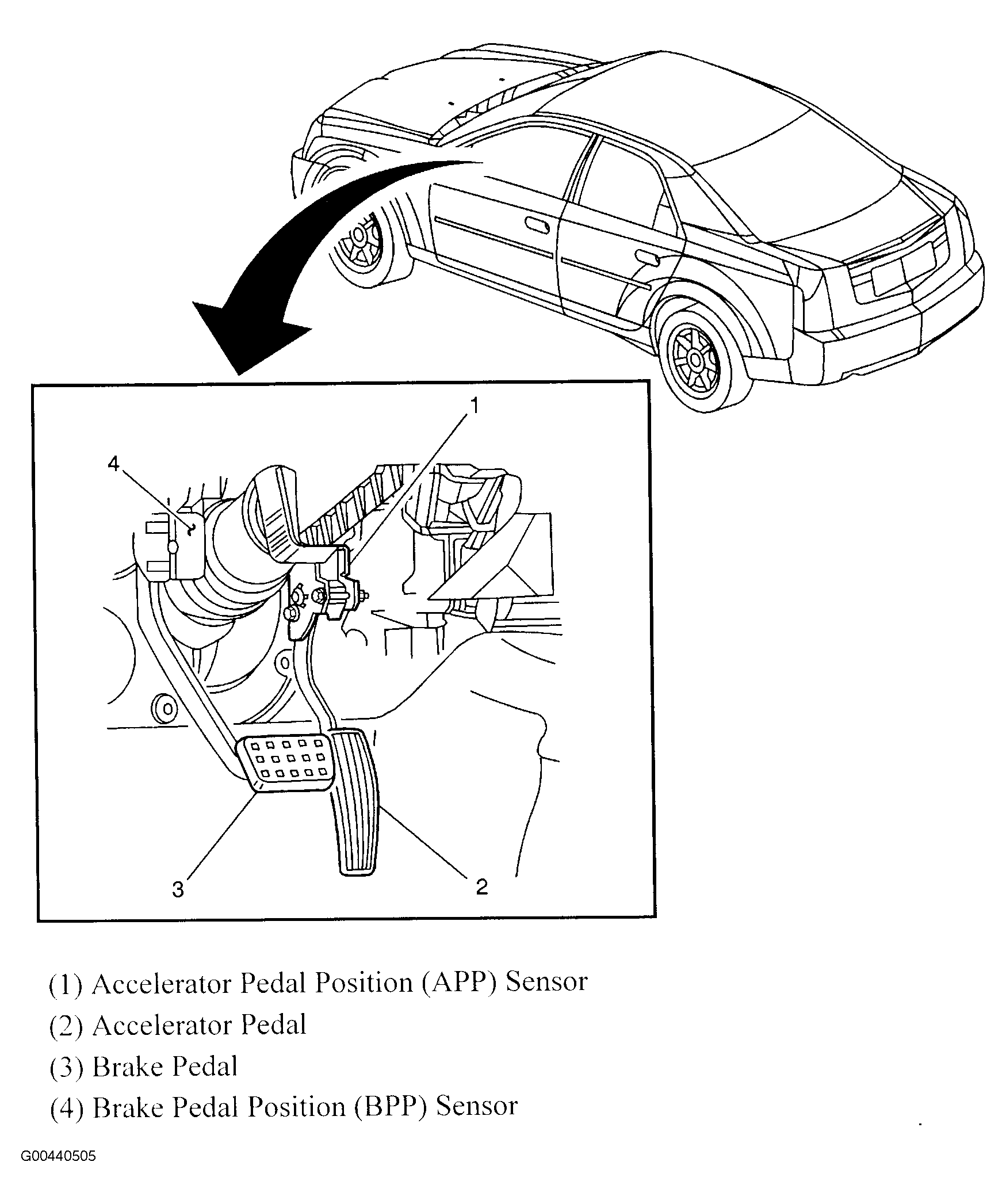

Fig 58: APP Sensor & Brake Pedal
Courtesy of GENERAL MOTORS CORP.

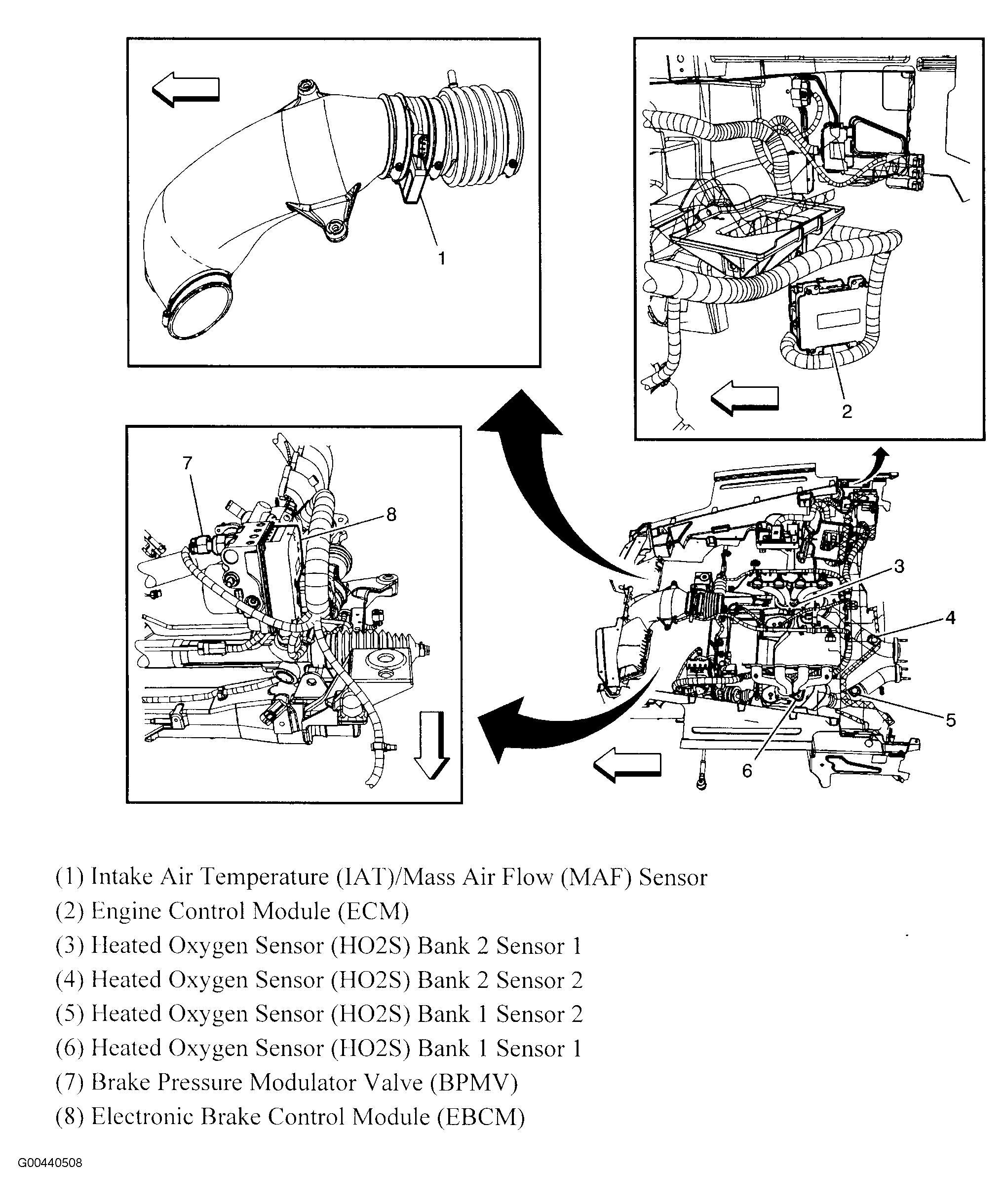

Fig 59: Engine Compartment Components (6.0L)
Courtesy of GENERAL MOTORS CORP.
Fig 60: Engine Components (6.0L)
Courtesy of GENERAL MOTORS CORP.
Fig 61: EVAP Canister Vent Solenoid Valve (6.0L)
Courtesy of GENERAL MOTORS CORP.

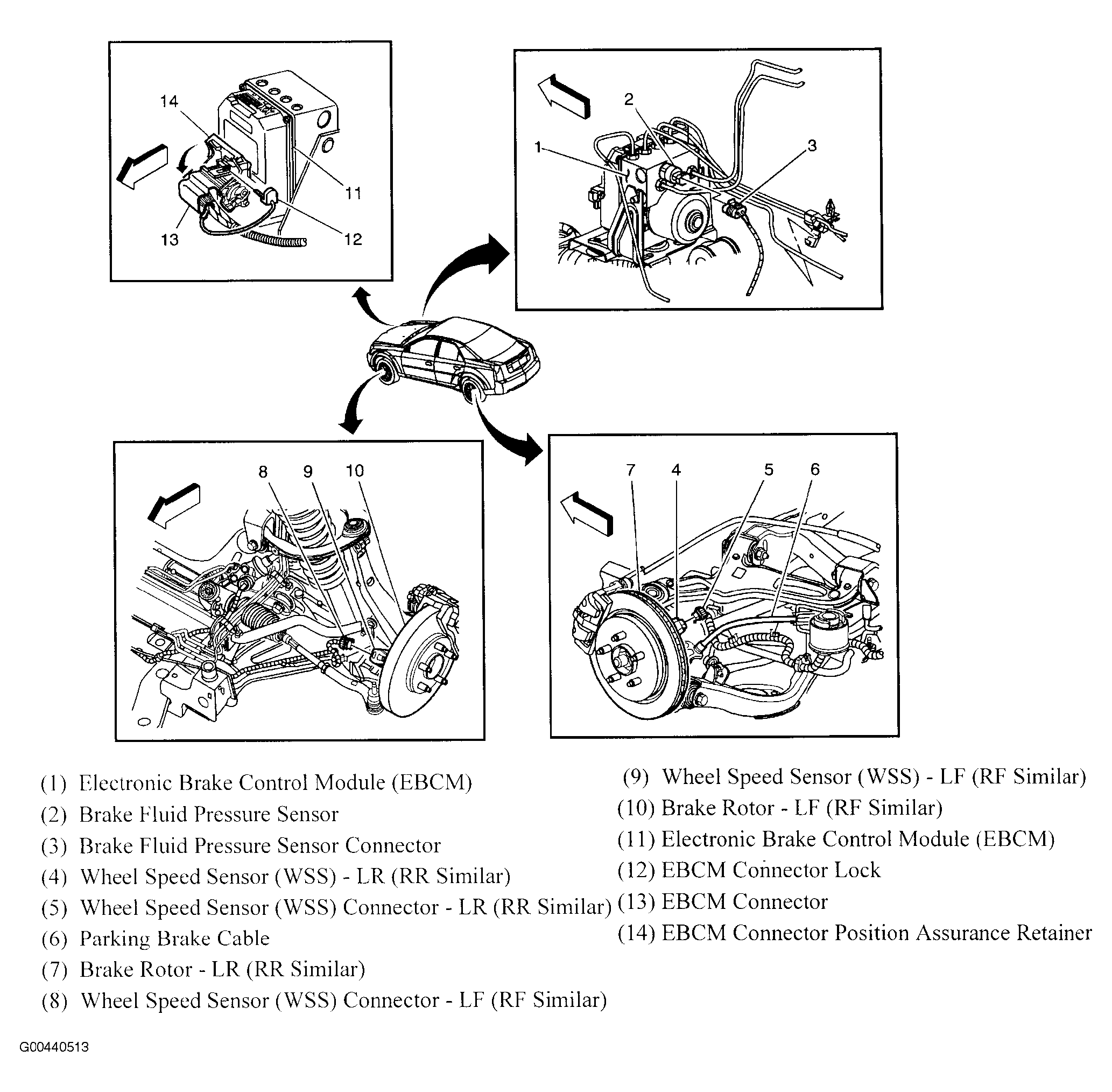

Fig 62: EBCM & Wheel Speed Sensors
Courtesy of GENERAL MOTORS CORP.

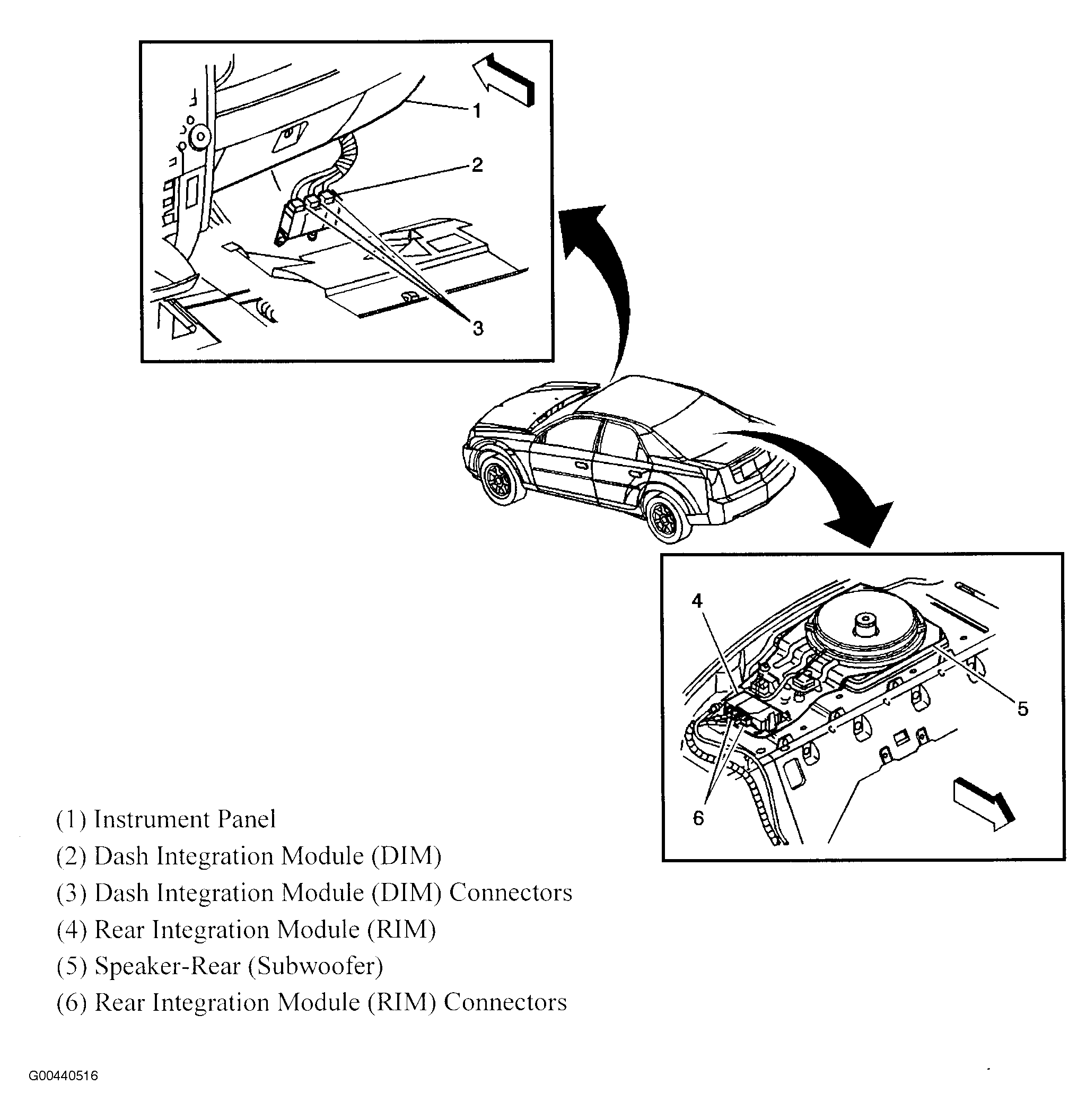

Fig 63: Body Control Subsystem
Courtesy of GENERAL MOTORS CORP.

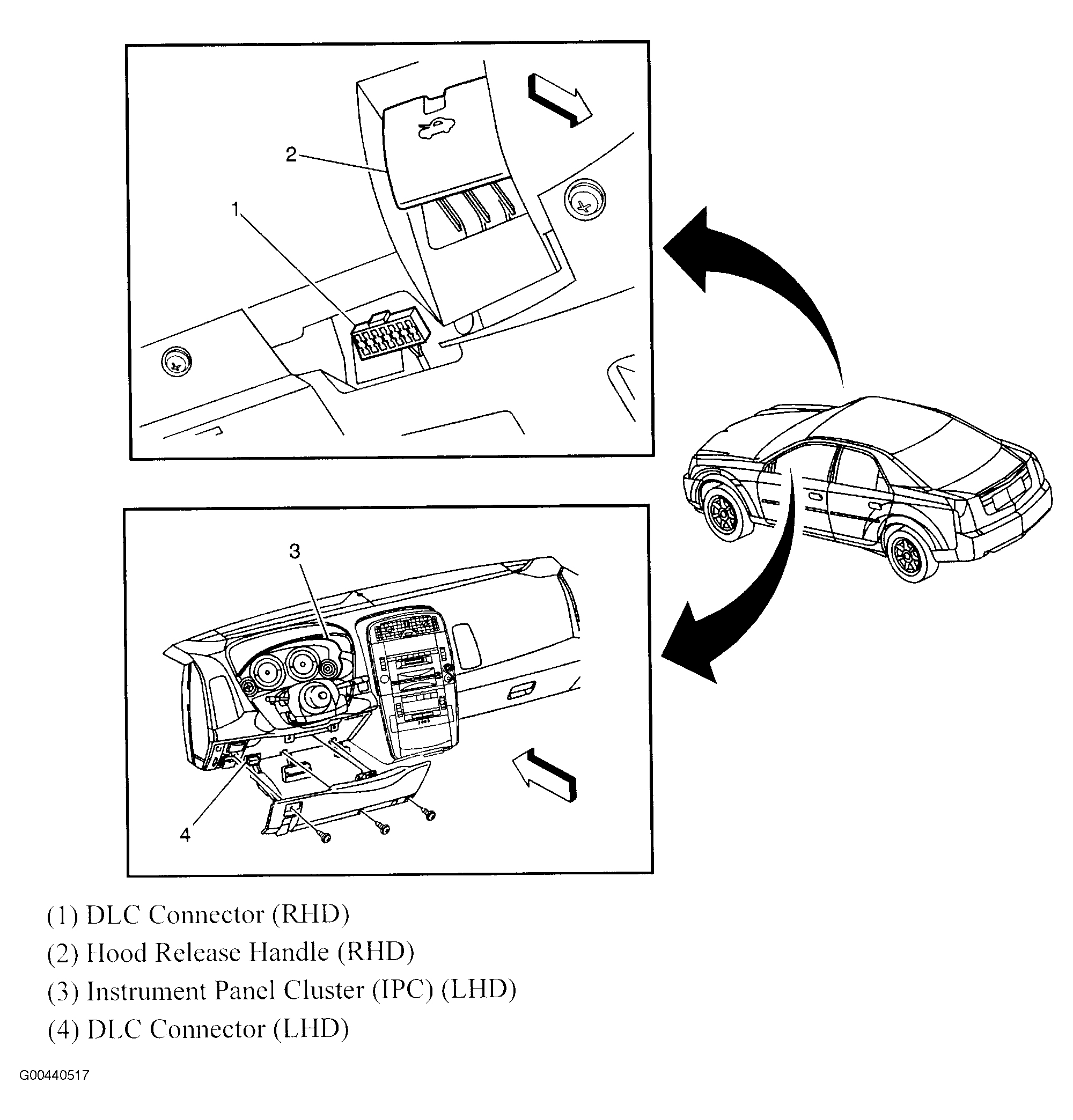

Fig 64: Data Link Communications Components
Courtesy of GENERAL MOTORS CORP.

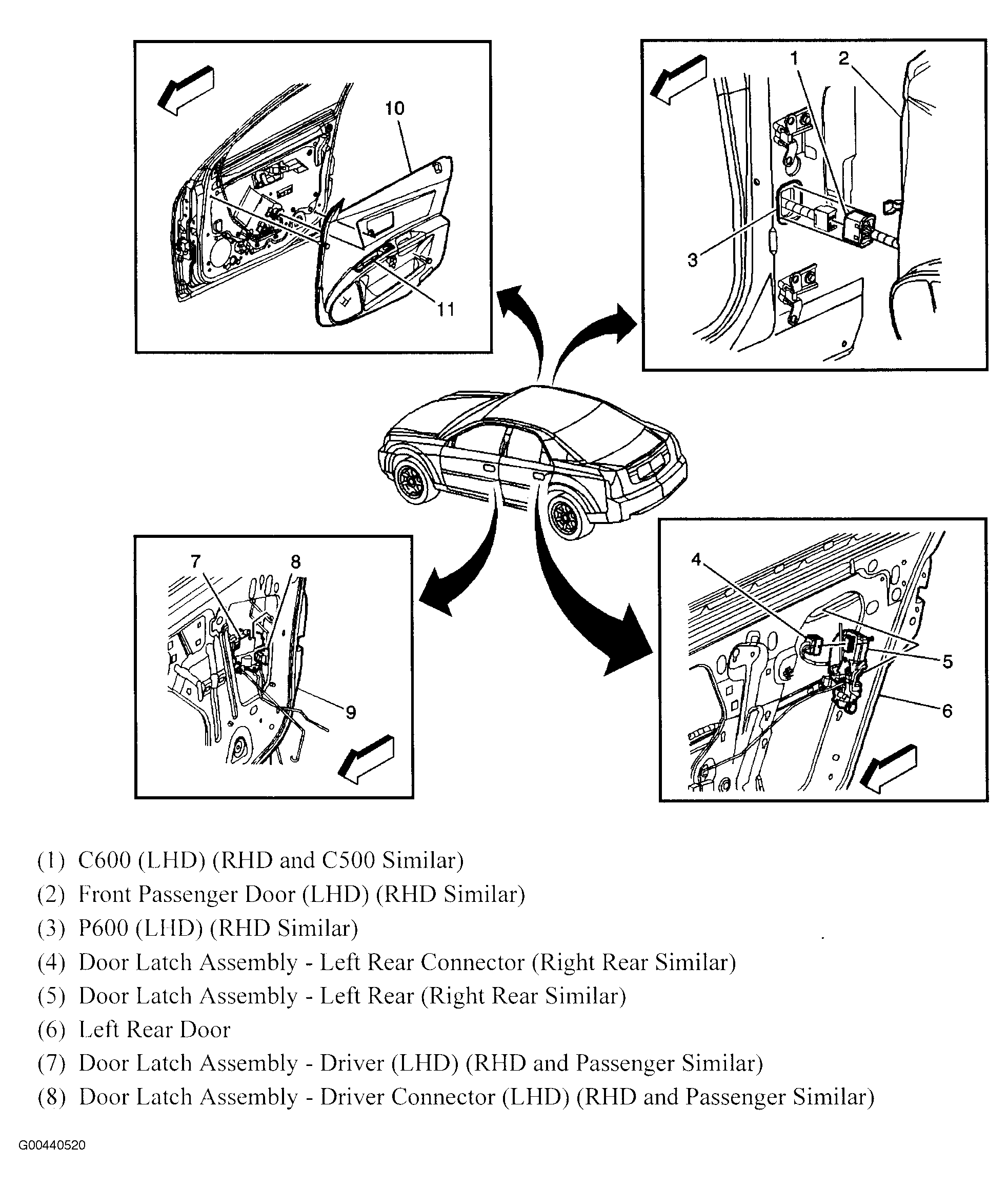

Fig 65: Door Lock Subsystem Components (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 66: Door Lock Subsystem Components (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 67: Door Control Module Components (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 68: Door Control Module Components (2 Of 2)
Courtesy of GENERAL MOTORS CORP.

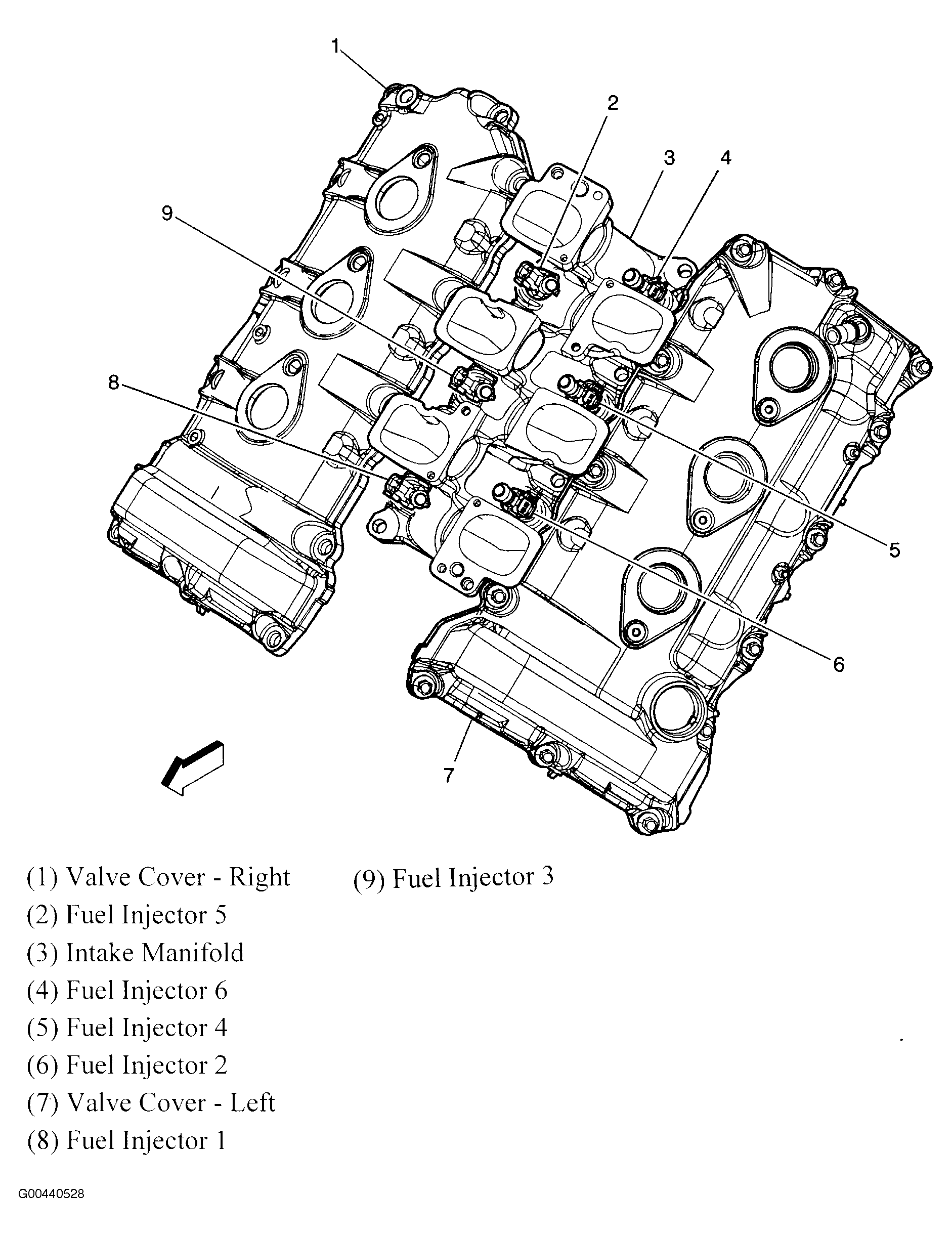

Fig 69: Fuel Injectors (2.8L/3.6L)
Courtesy of GENERAL MOTORS CORP.

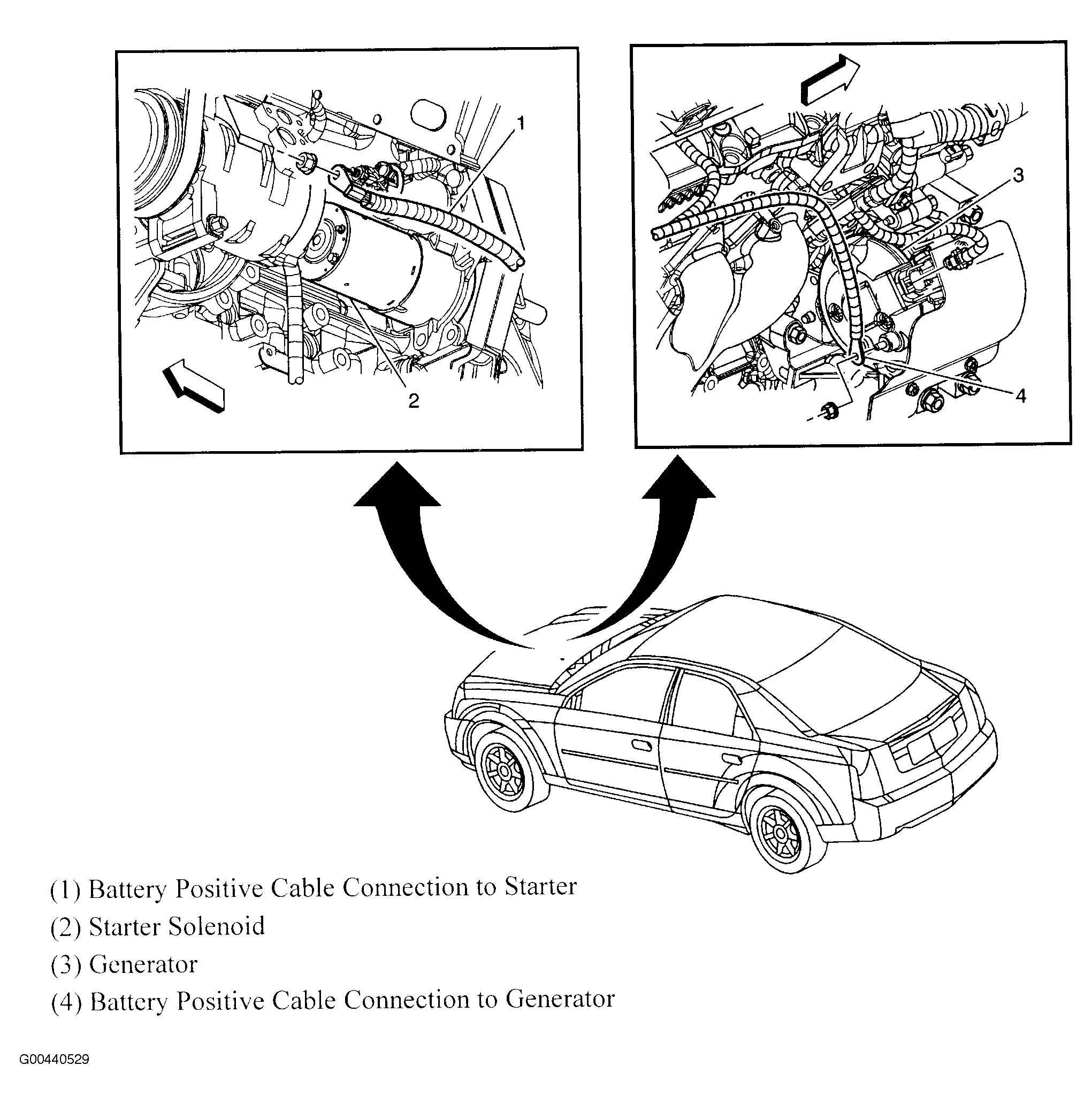

Fig 70: Starter & Generator (2.8L/3.6L)
Courtesy of GENERAL MOTORS CORP.

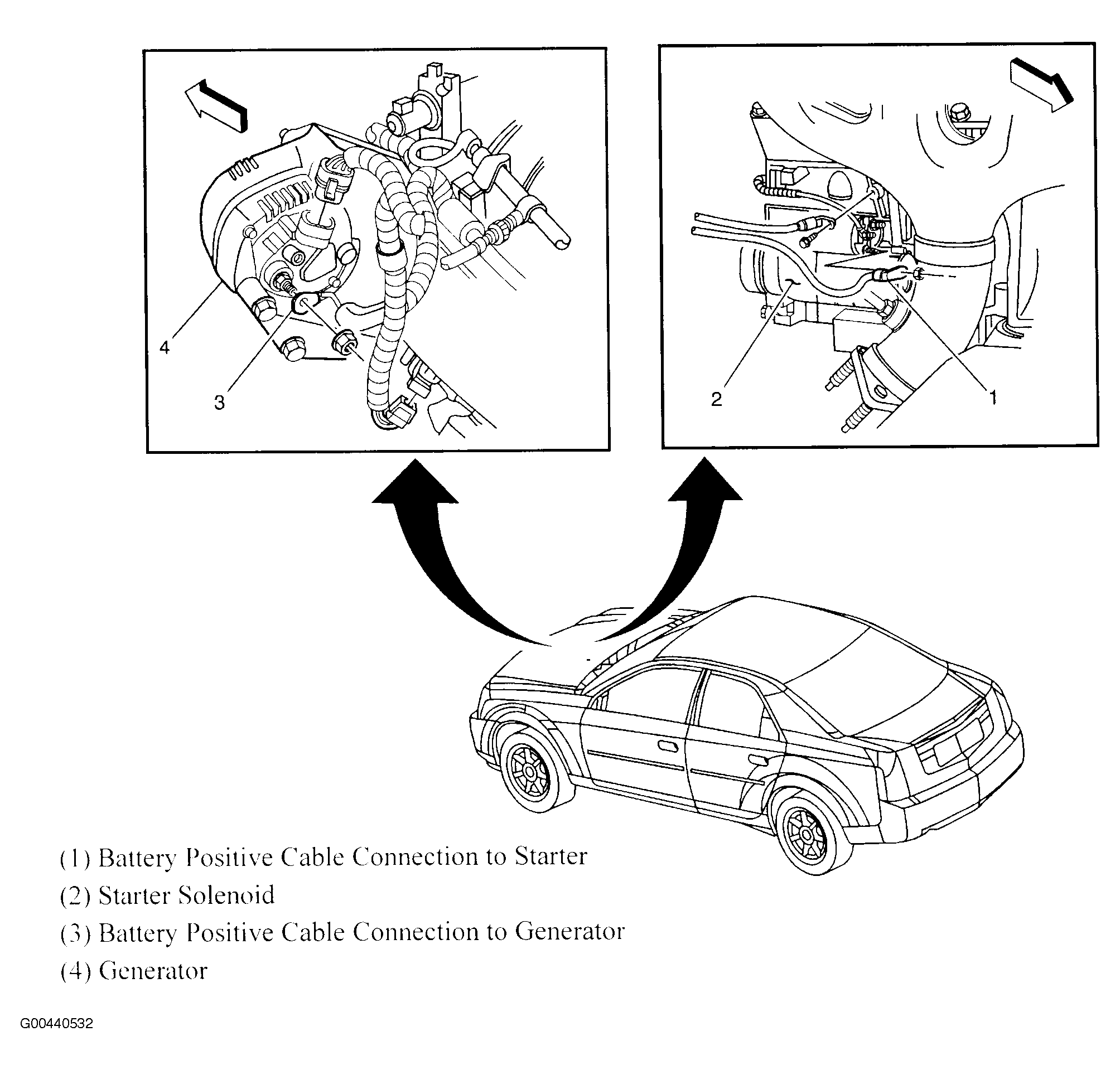

Fig 71: Starter & Generator (6.0L)
Courtesy of GENERAL MOTORS CORP.

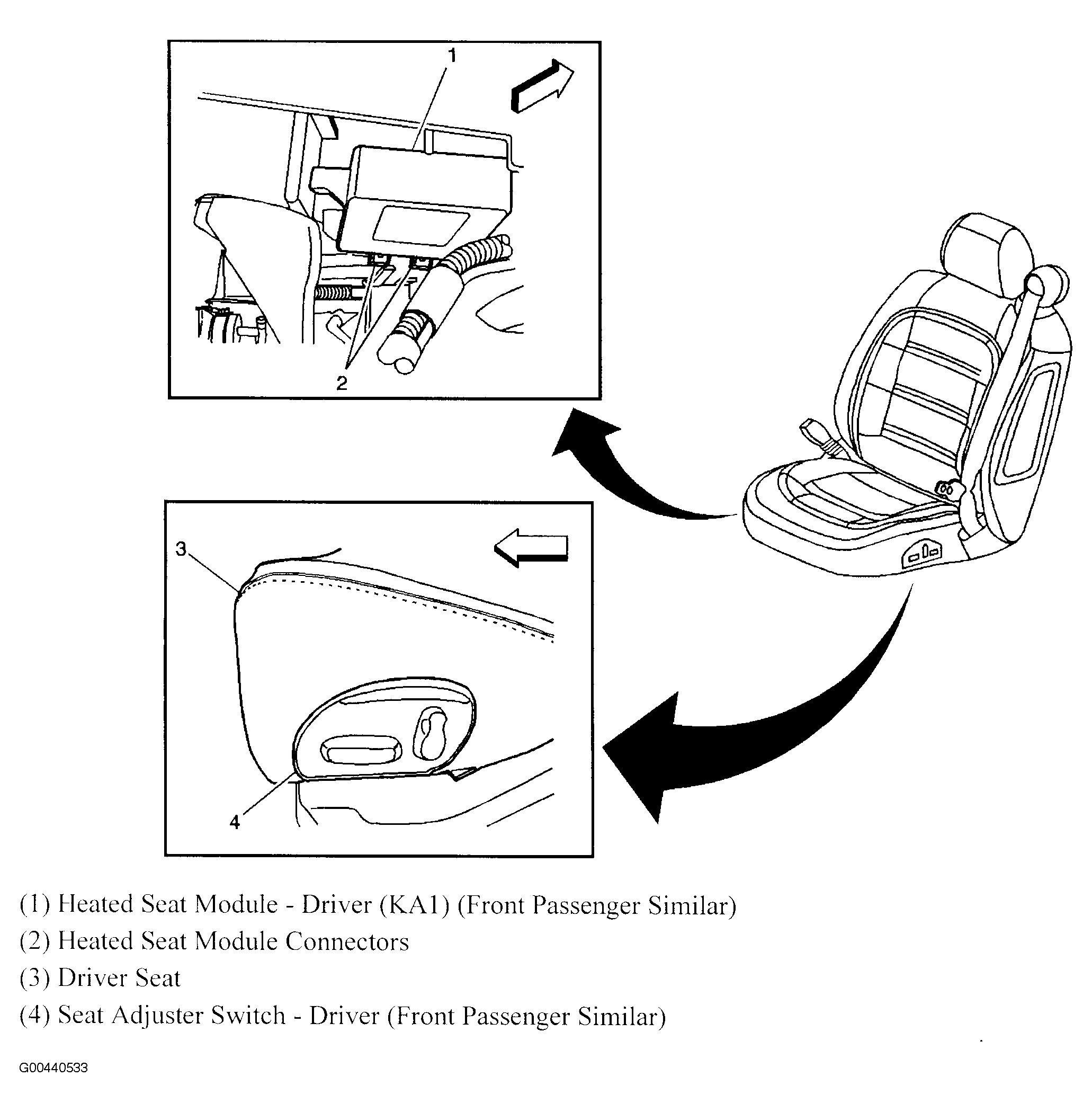

Fig 72: Heated Seat Module & Seat Switch
Courtesy of GENERAL MOTORS CORP.

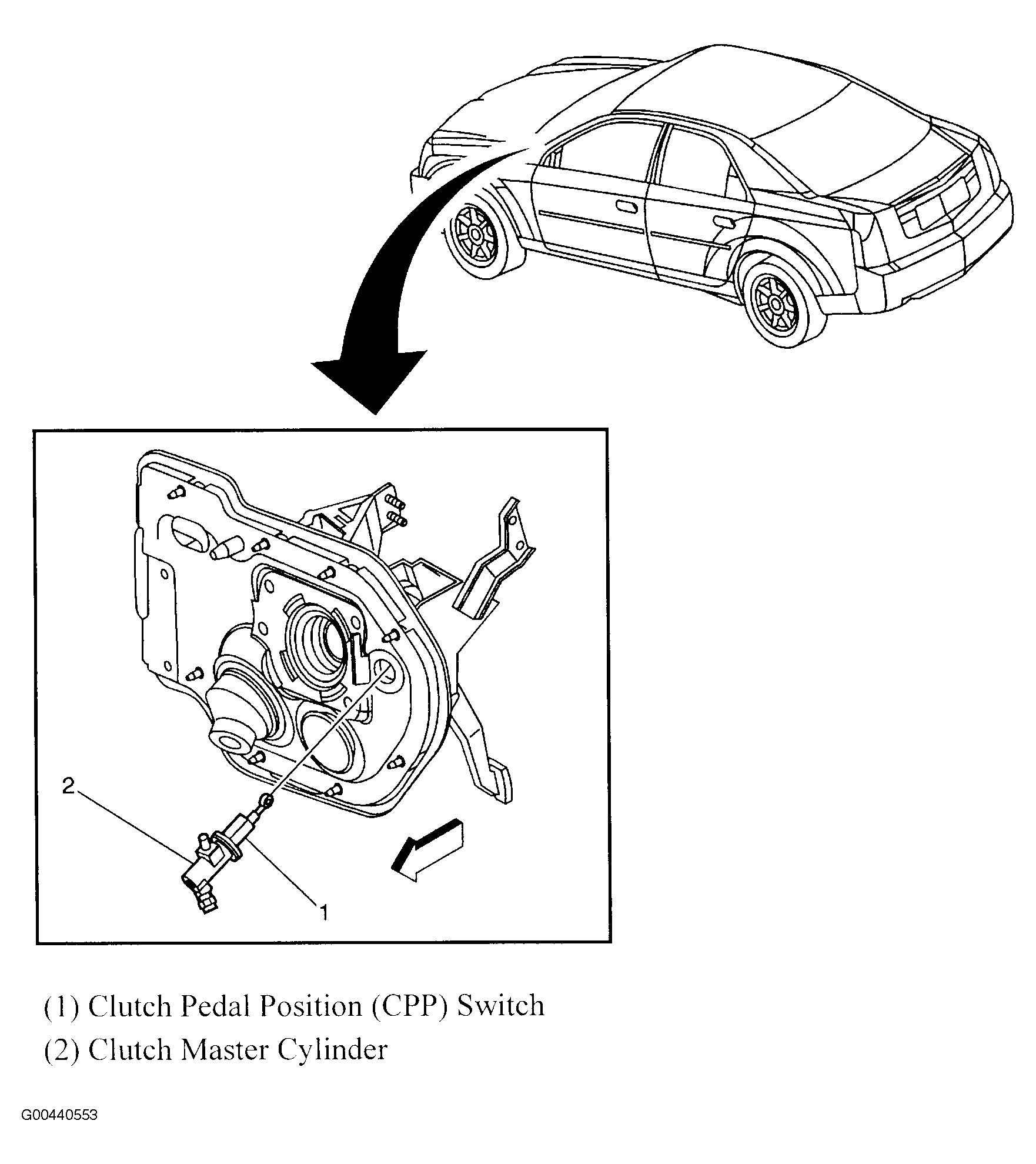

Fig 73: Clutch Pedal Position (CPP) Sensor
Courtesy of GENERAL MOTORS CORP.

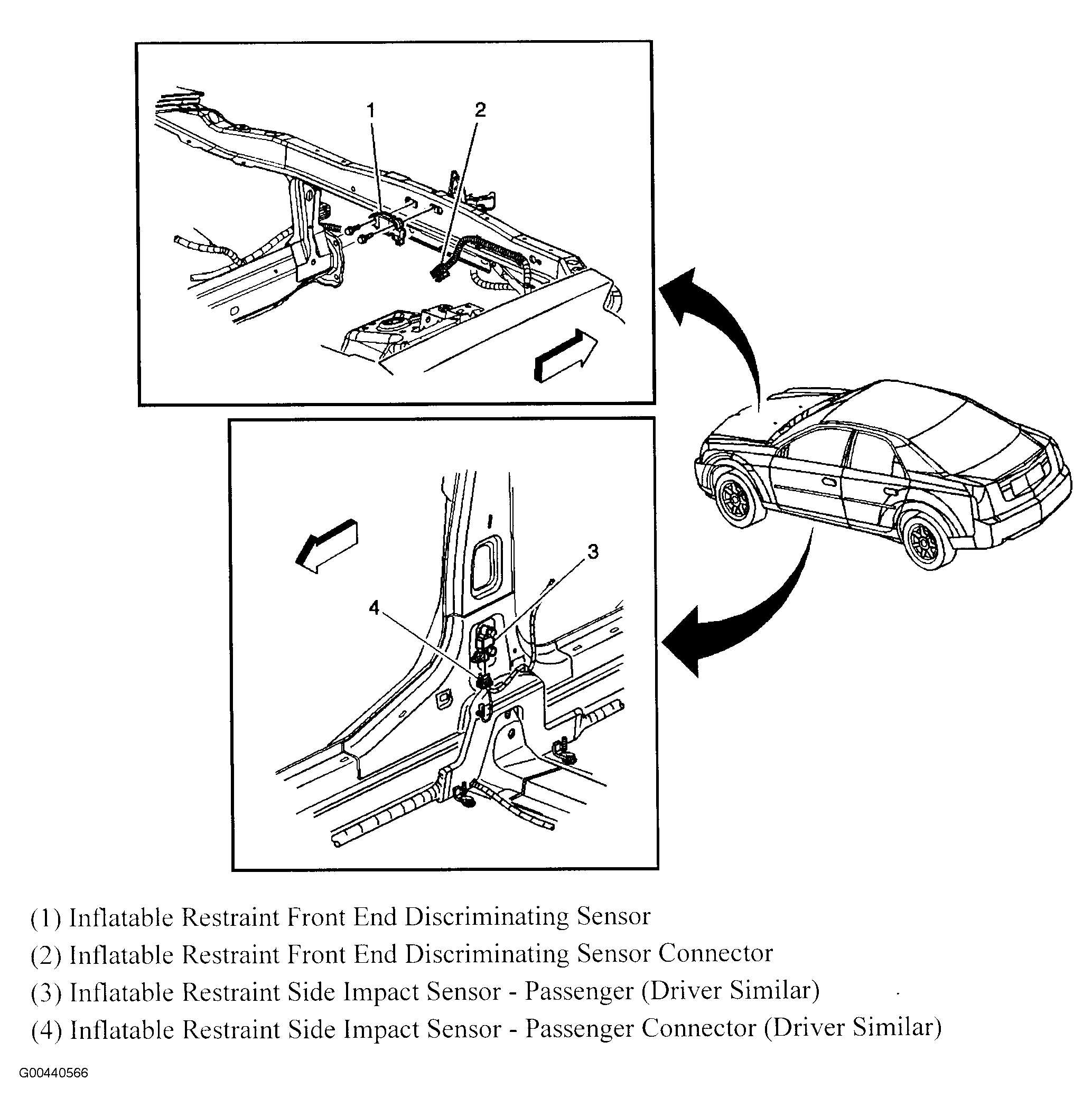

Fig 74: SIR Sensors
Courtesy of GENERAL MOTORS CORP.

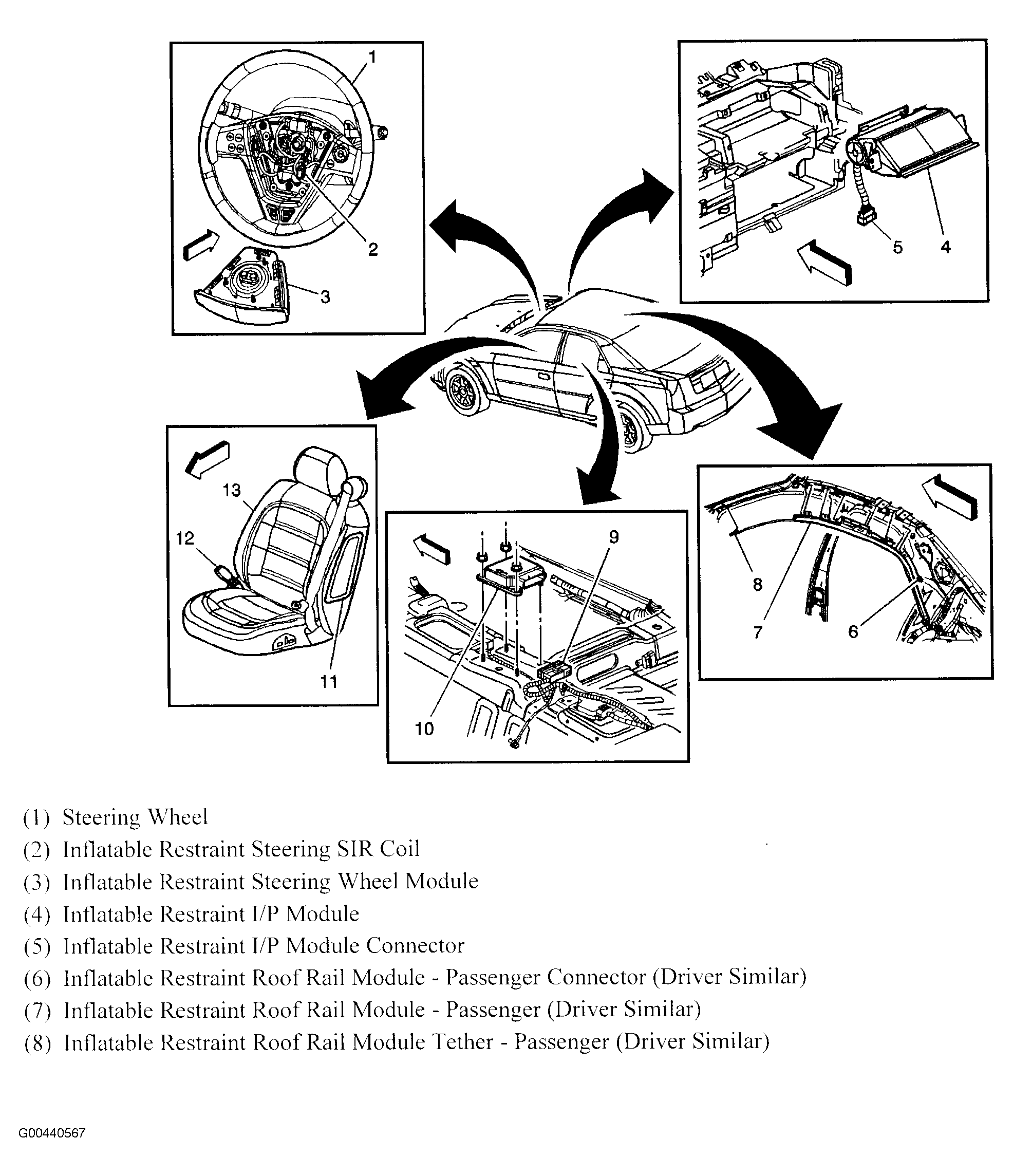

Fig 75: SIR Modules (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 76: SIR Modules (2 Of 2)
Courtesy of GENERAL MOTORS CORP.

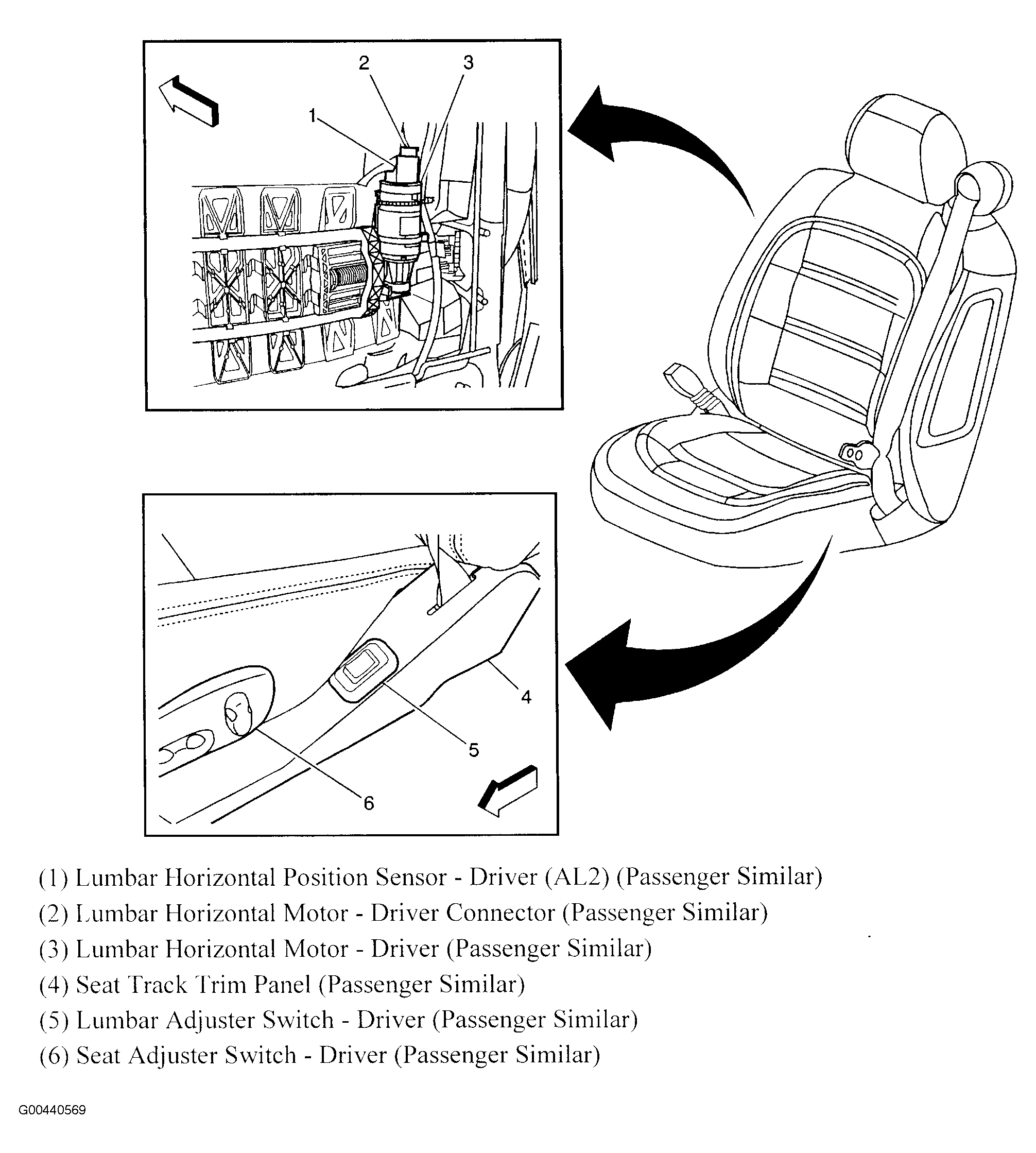

Fig 77: Power Lumbar Components
Courtesy of GENERAL MOTORS CORP.

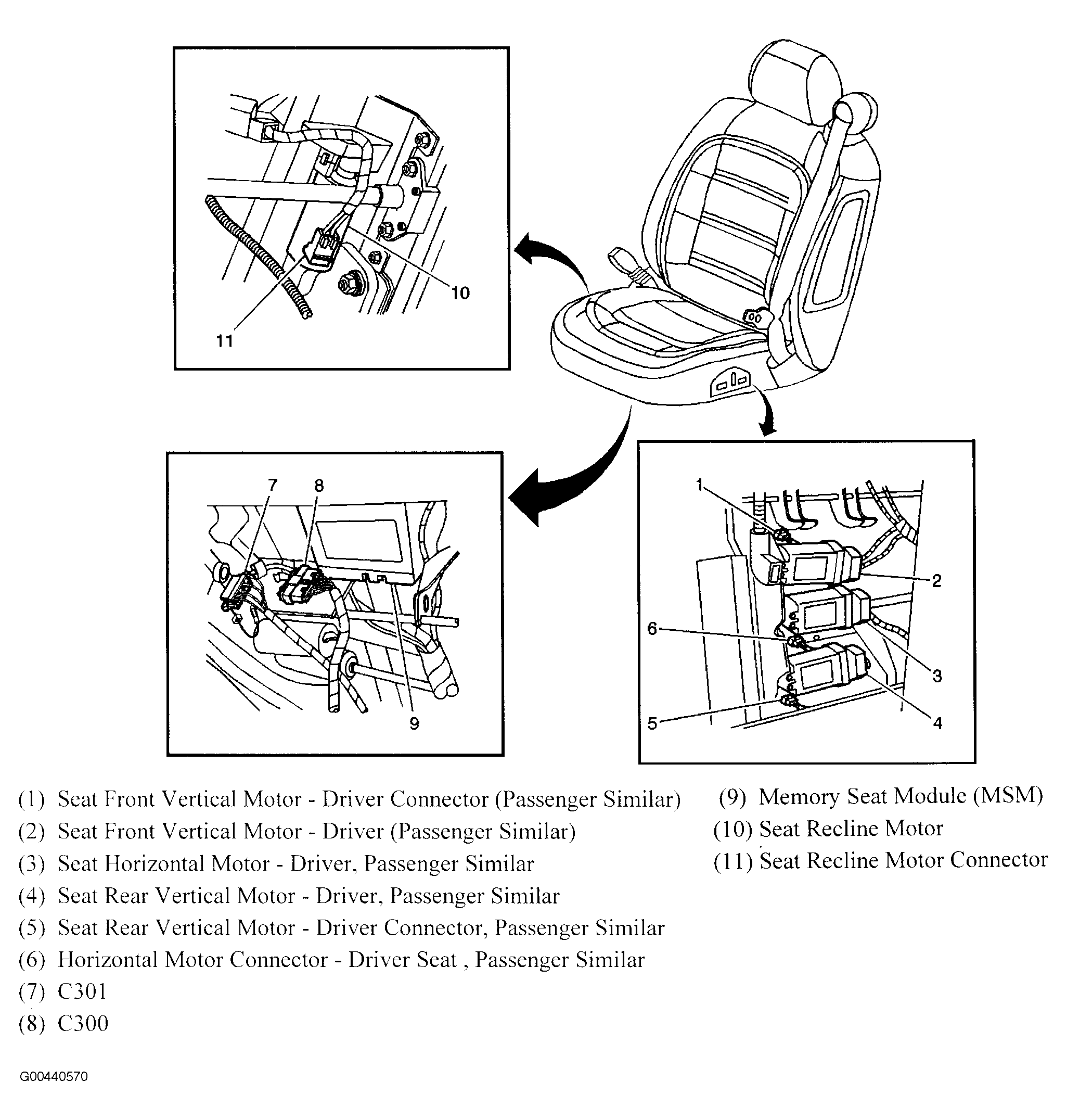

Fig 78: Seat Motors & MSM
Courtesy of GENERAL MOTORS CORP.

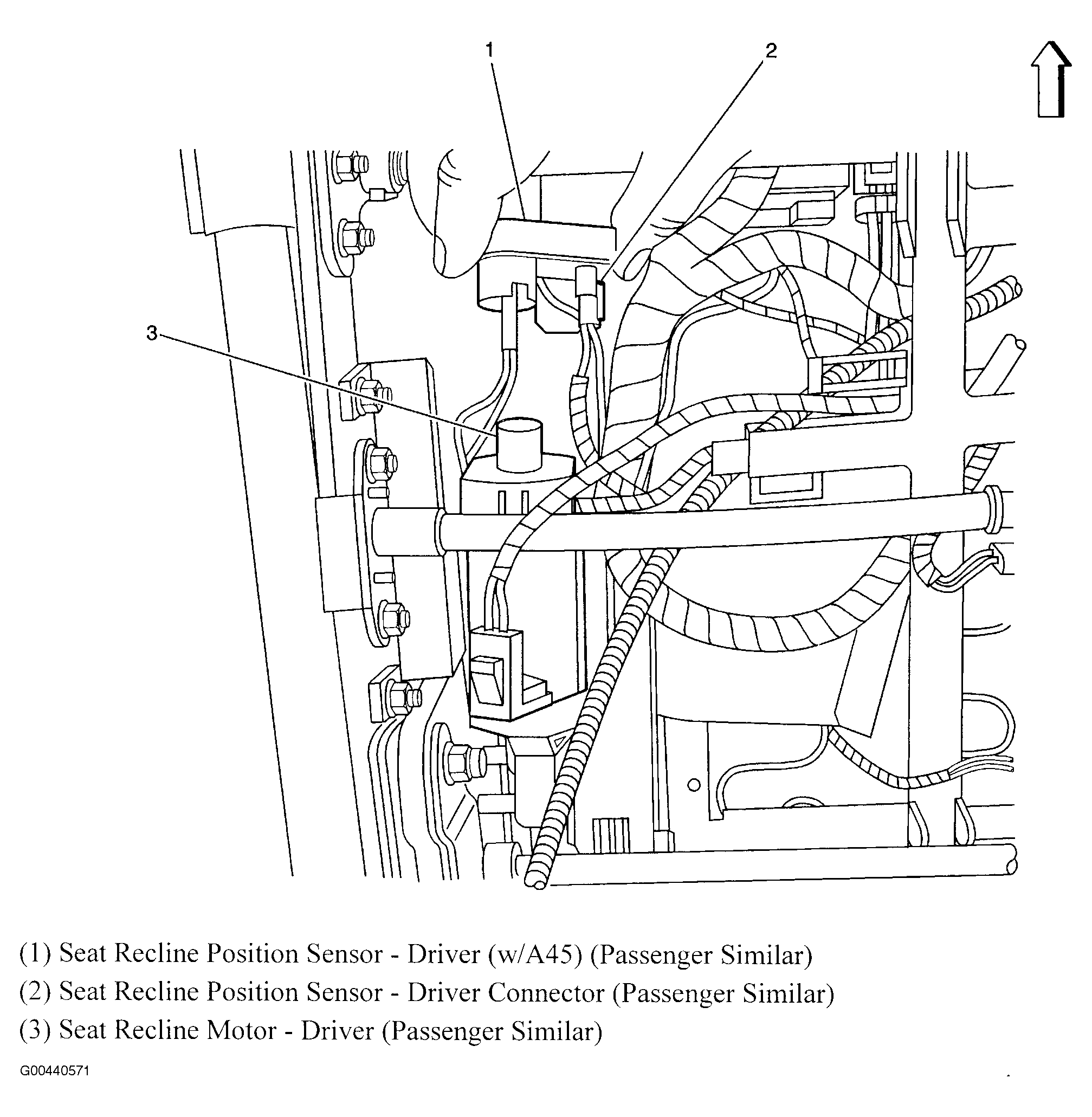

Fig 79: Seat Recline Motor & Sensor
Courtesy of GENERAL MOTORS CORP.

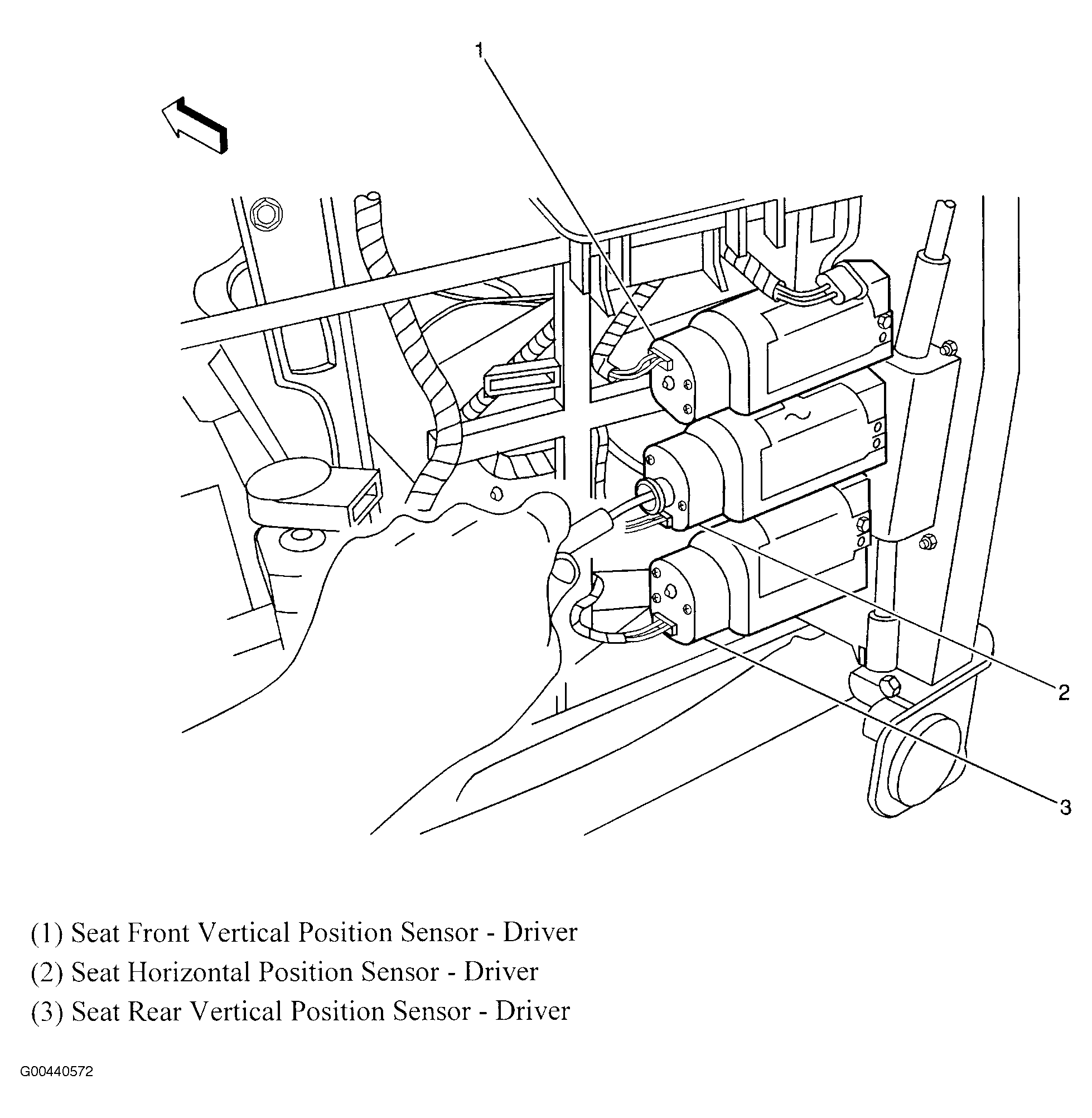

Fig 80: Power Seat Position Sensors
Courtesy of GENERAL MOTORS CORP.

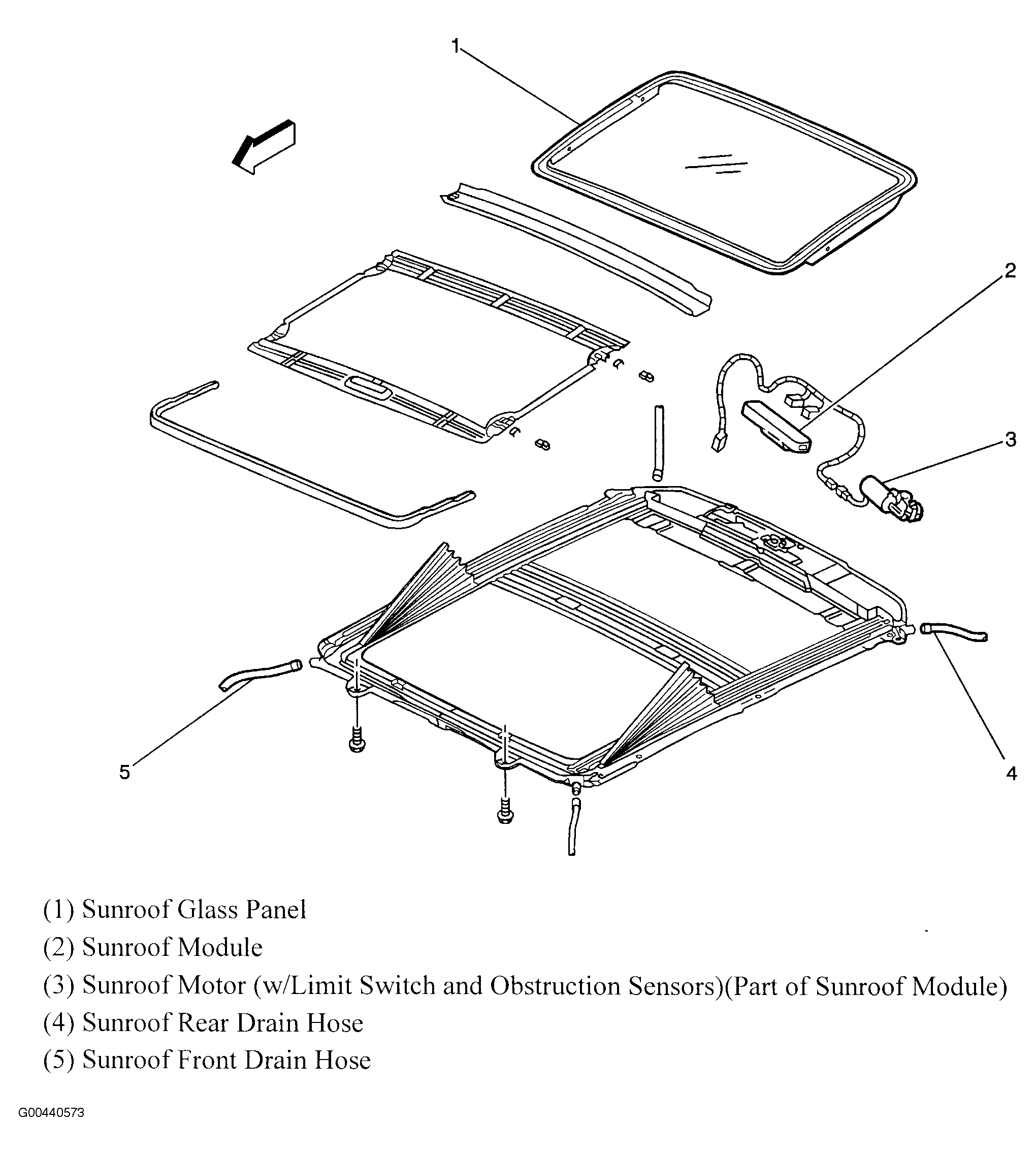

Fig 81: Power Sunroof Components
Courtesy of GENERAL MOTORS CORP.

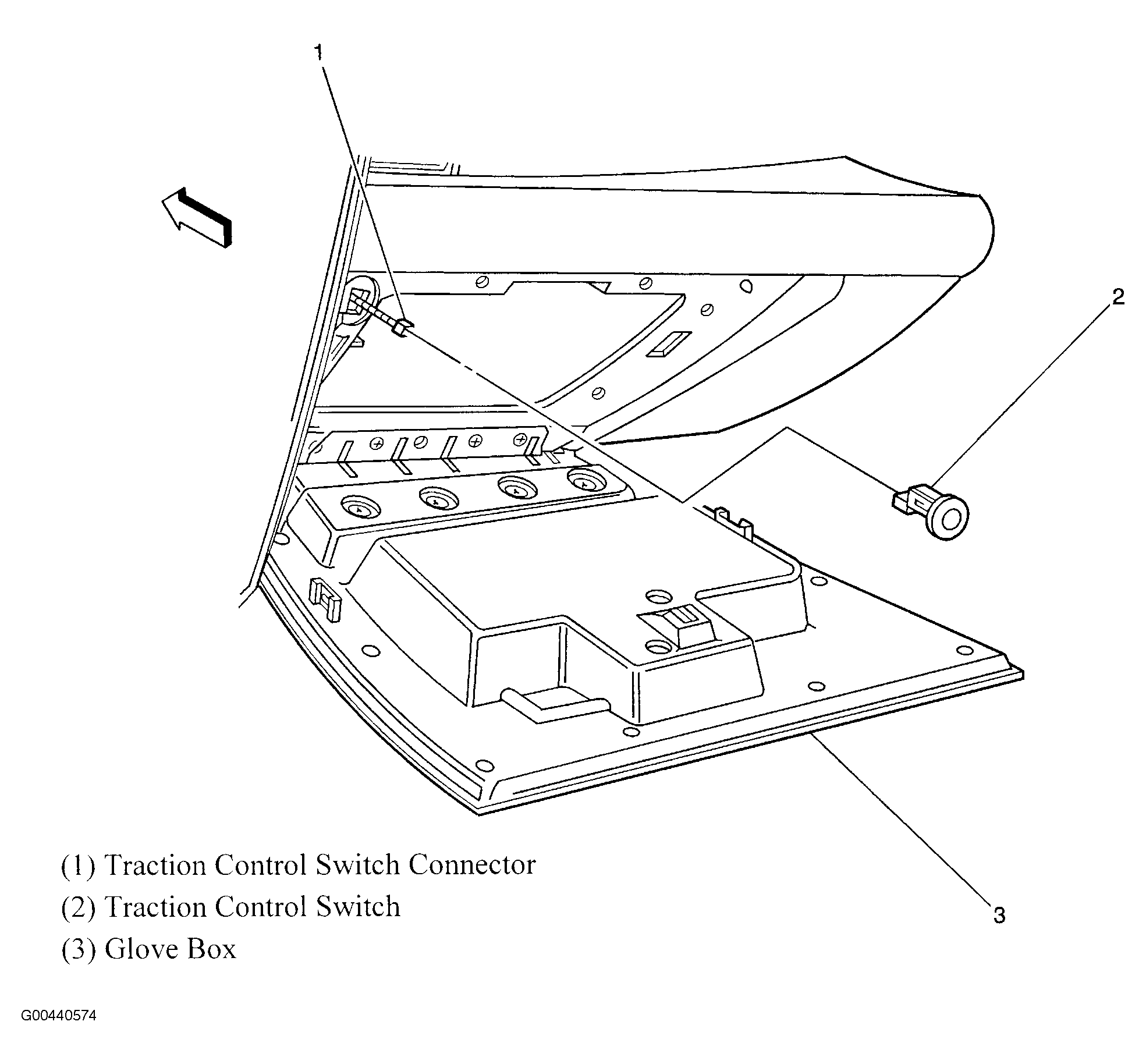

Fig 82: Traction Control Switch
Courtesy of GENERAL MOTORS CORP.

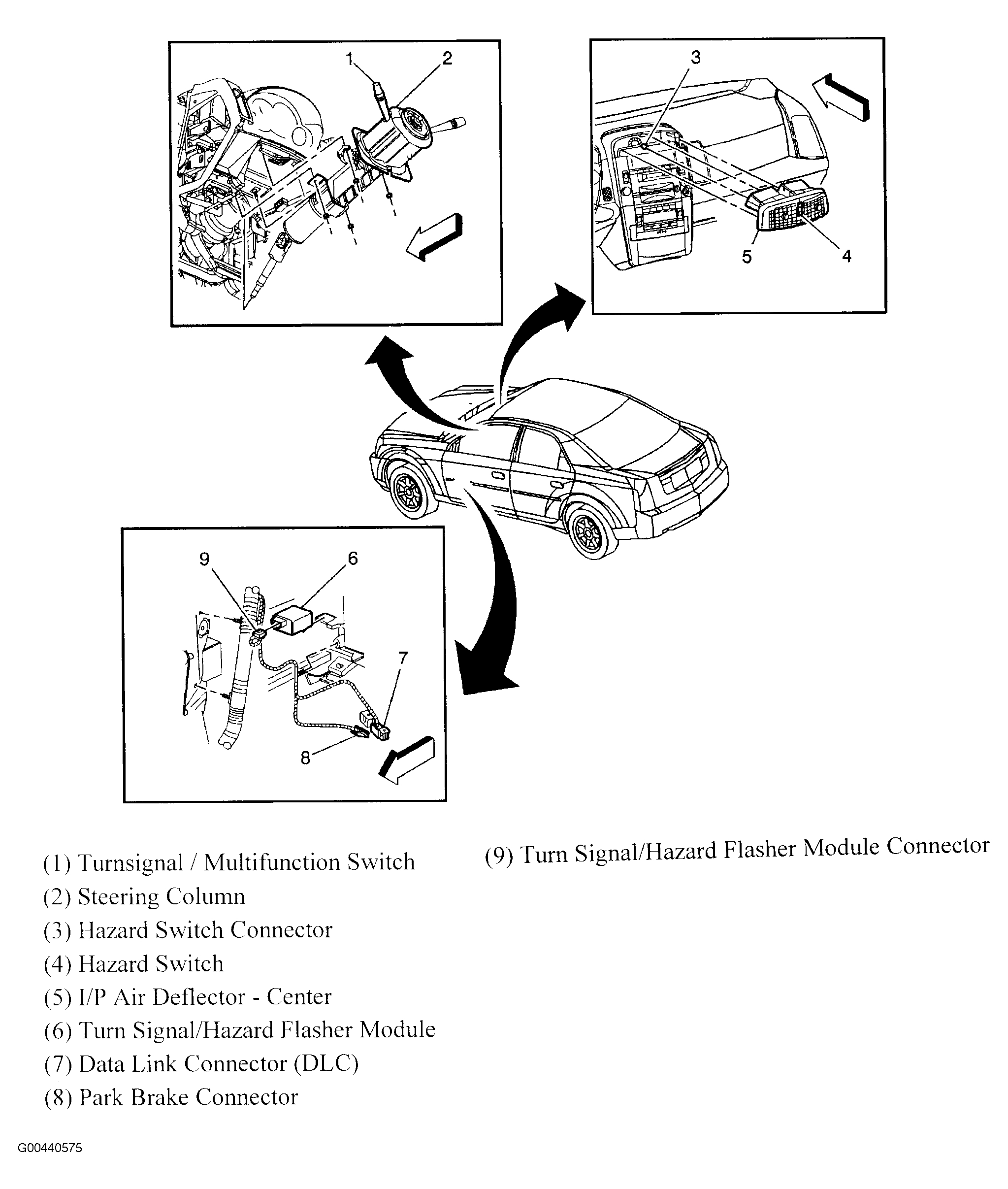

Fig 83: Lighting Switches & Modules
Courtesy of GENERAL MOTORS CORP.

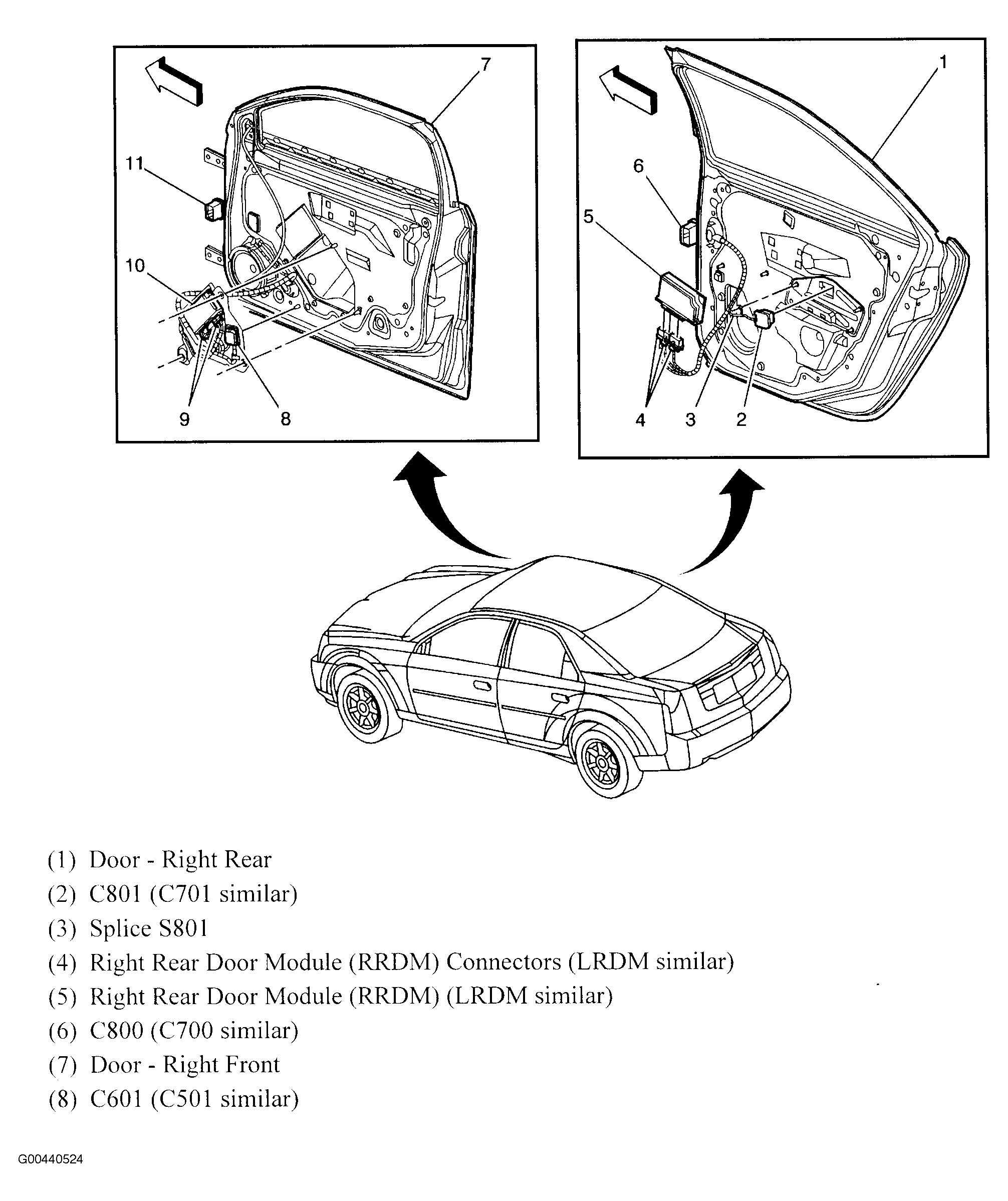

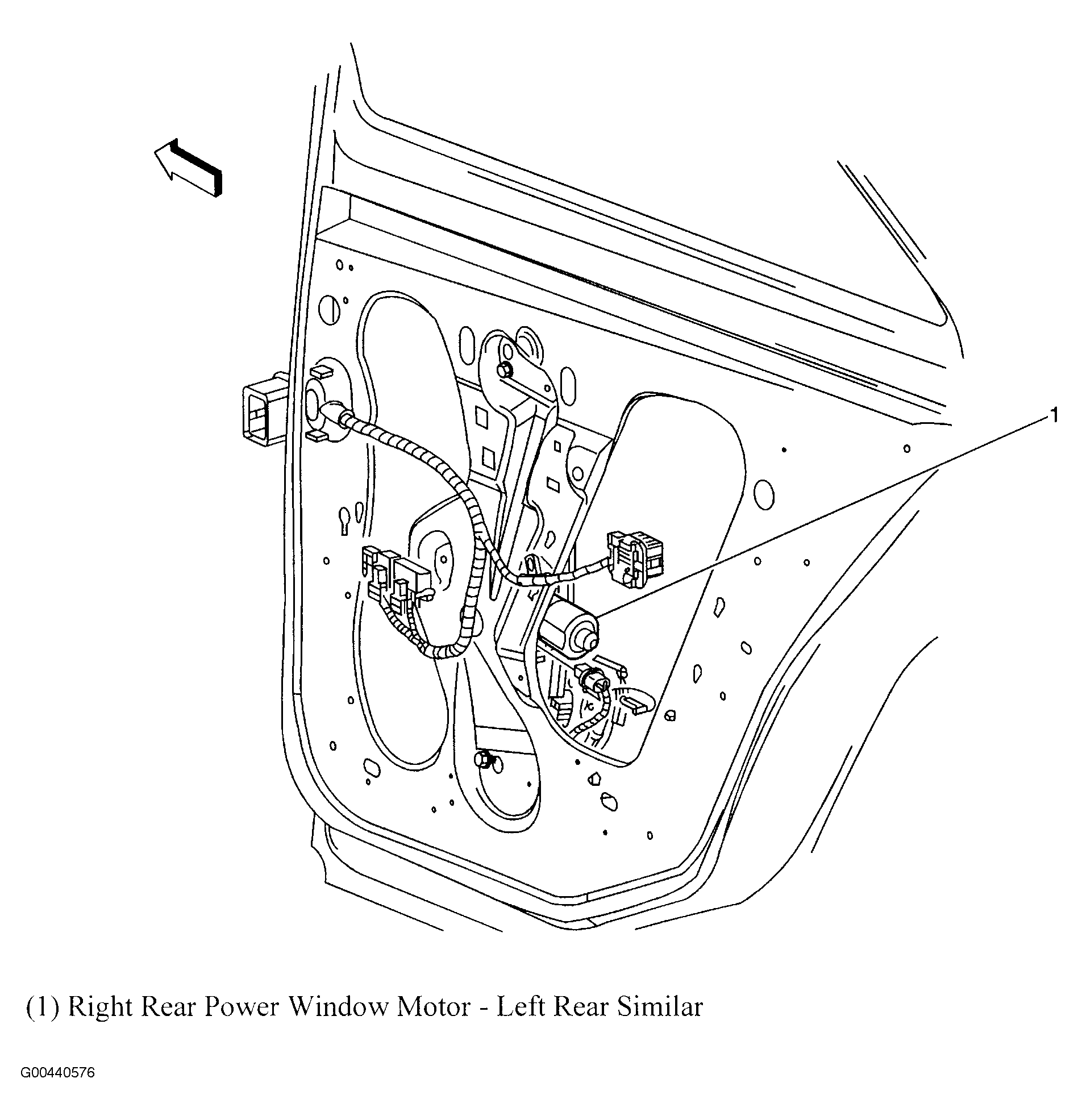

Fig 84: Right Rear Door (Left Rear Similar)
Courtesy of GENERAL MOTORS CORP.

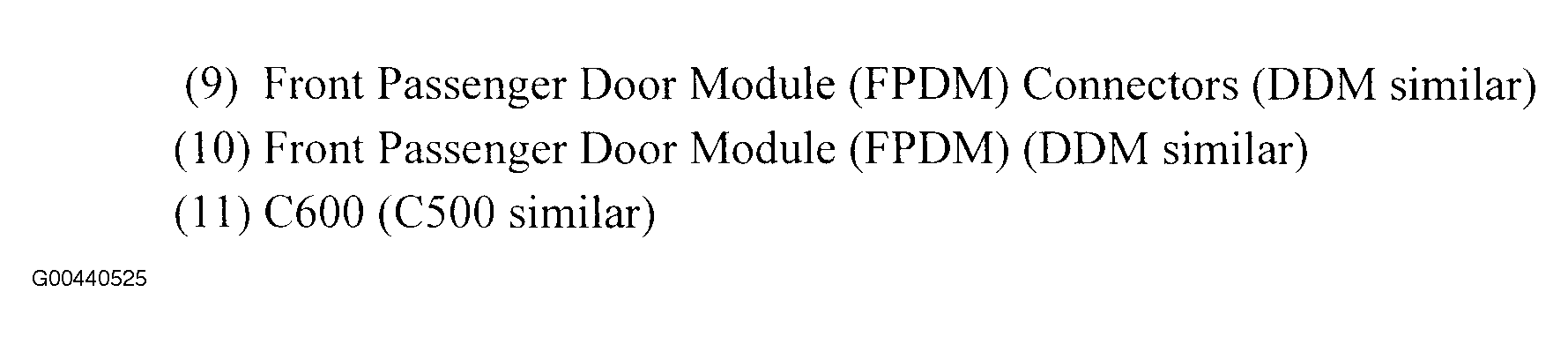

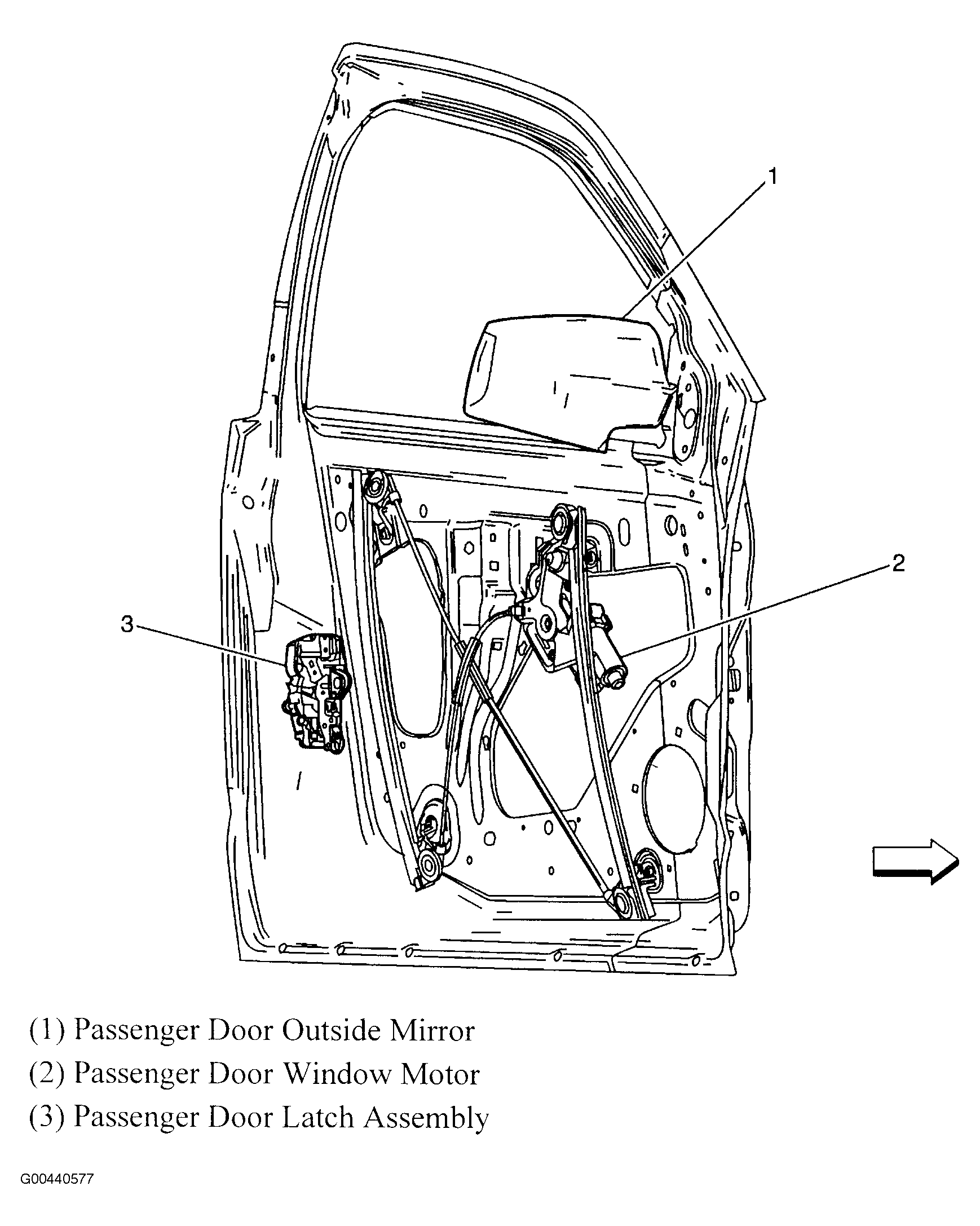

Fig 85: Passenger Front Door
Courtesy of GENERAL MOTORS CORP.

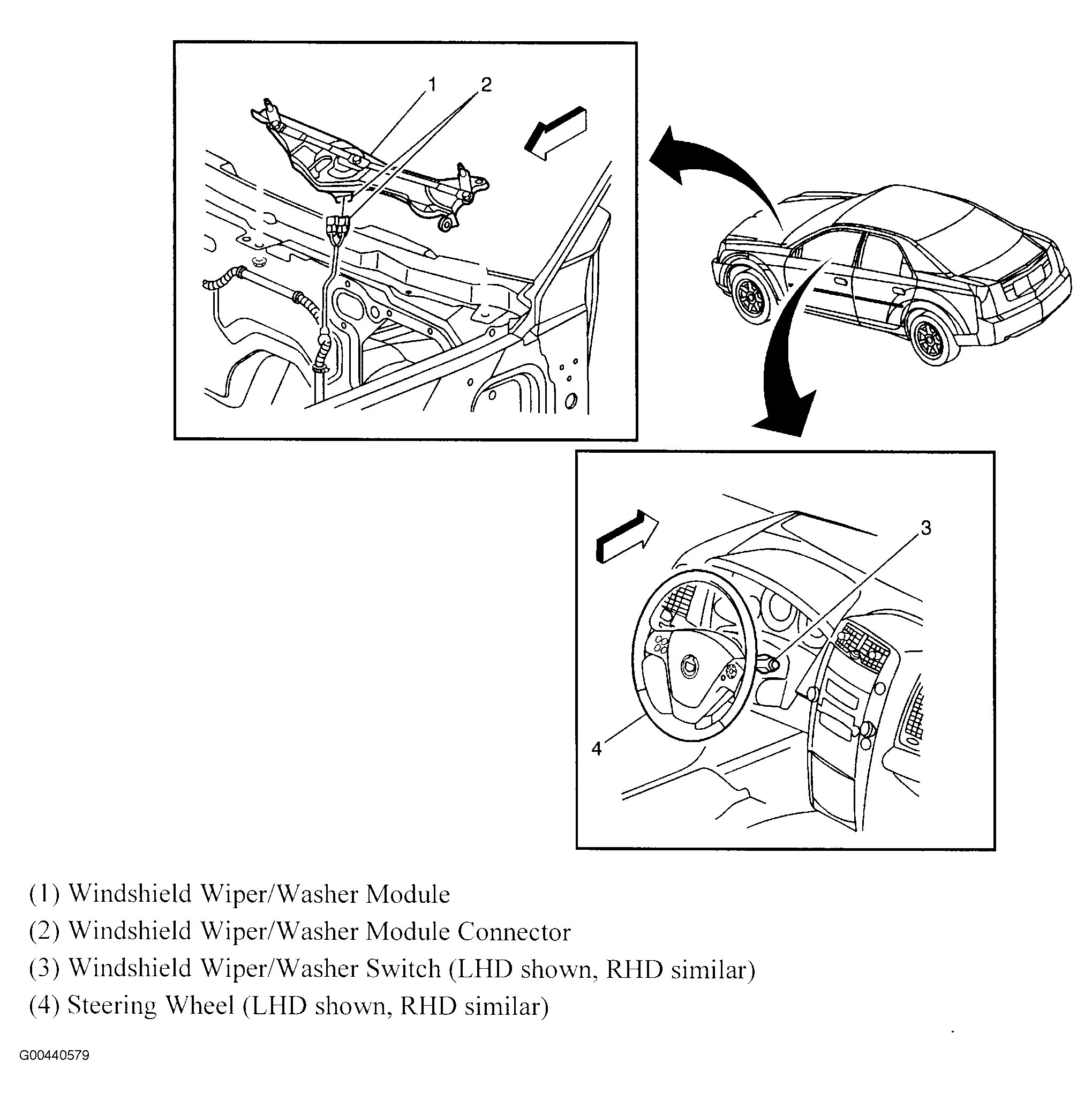

Fig 86: Windshield Wiper Subsystem Components
Courtesy of GENERAL MOTORS CORP.

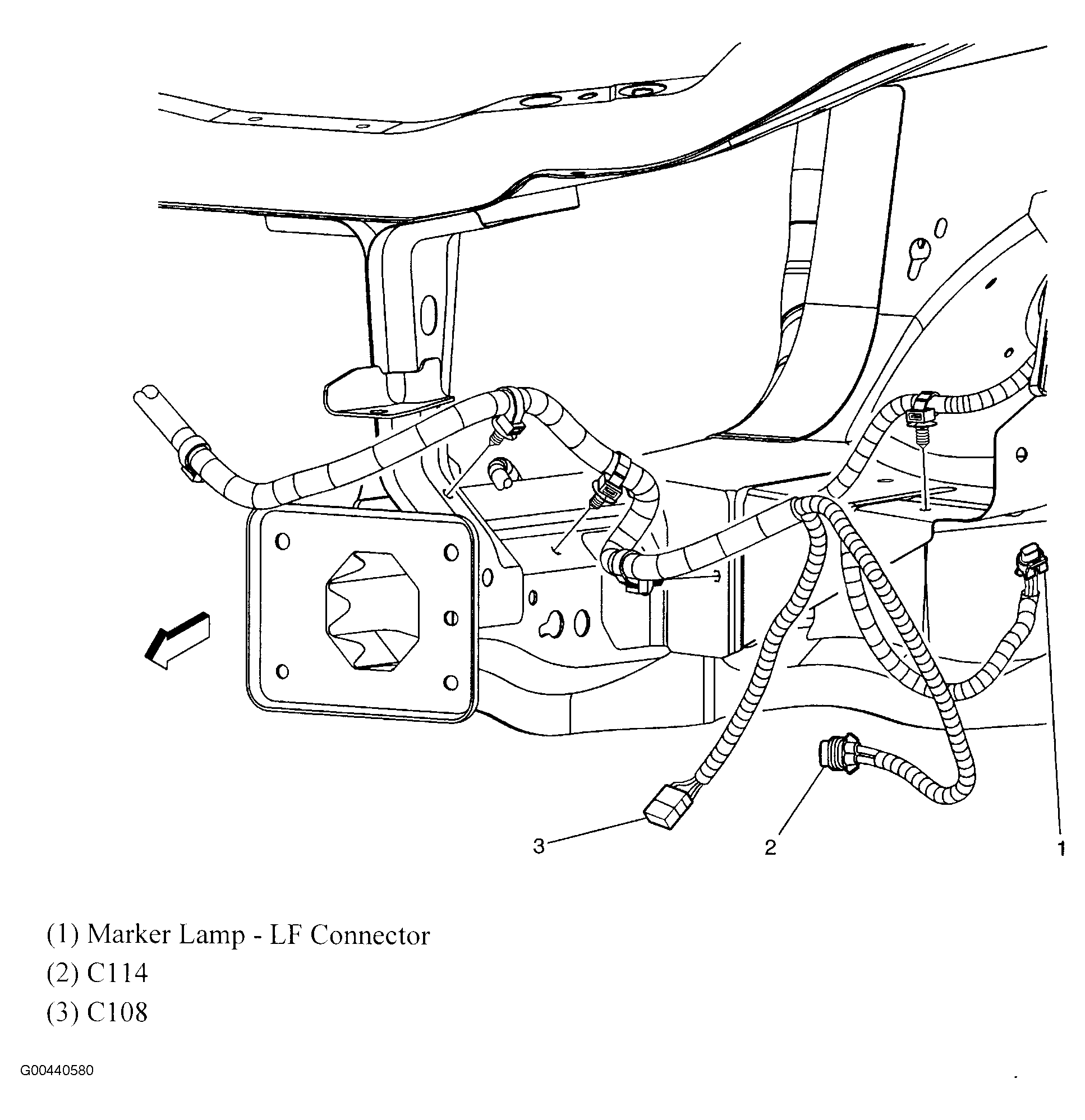

Fig 87: Left Front Of Vehicle
Courtesy of GENERAL MOTORS CORP.

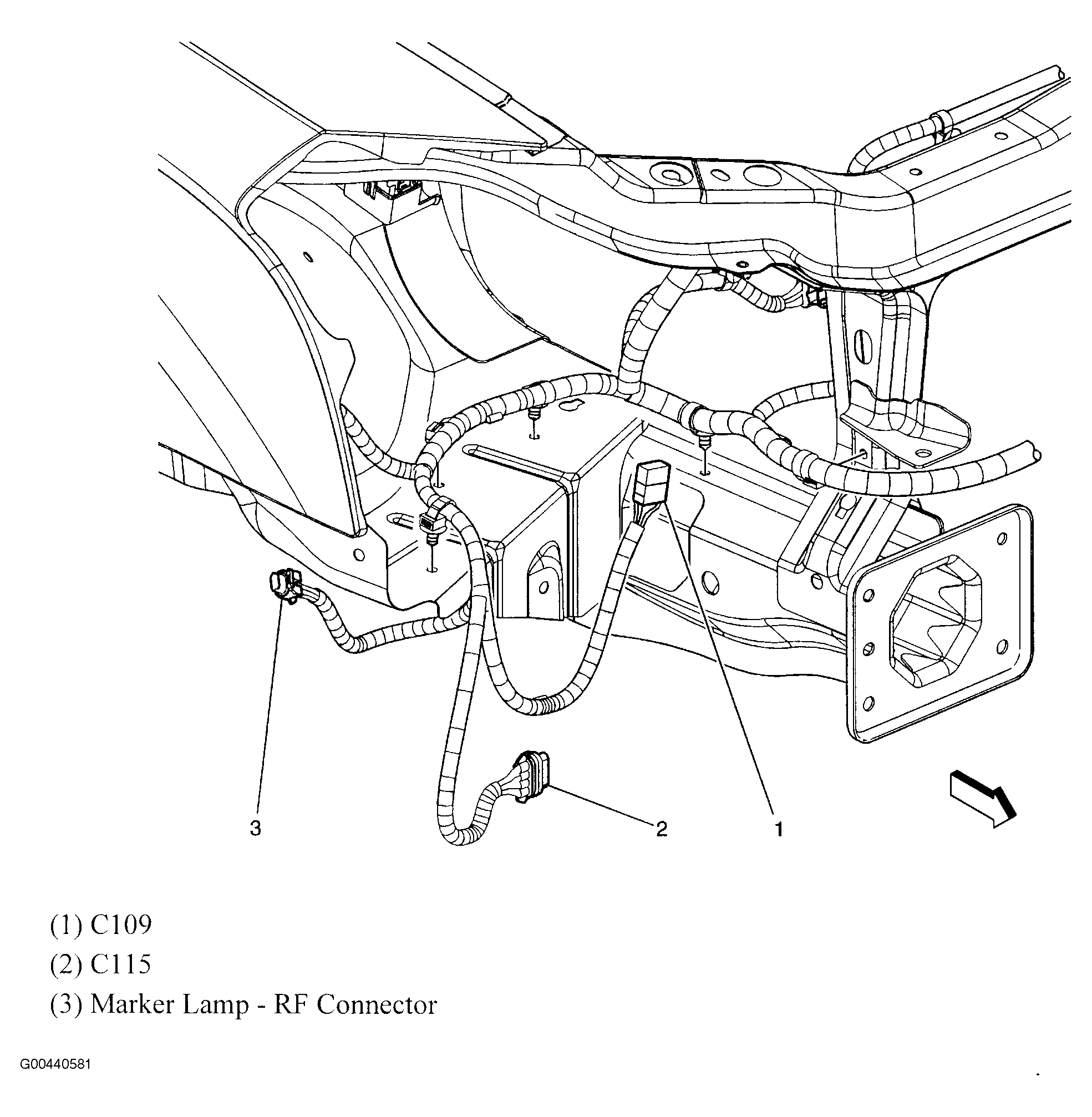

Fig 88: Right Front Of Vehicle
Courtesy of GENERAL MOTORS CORP.

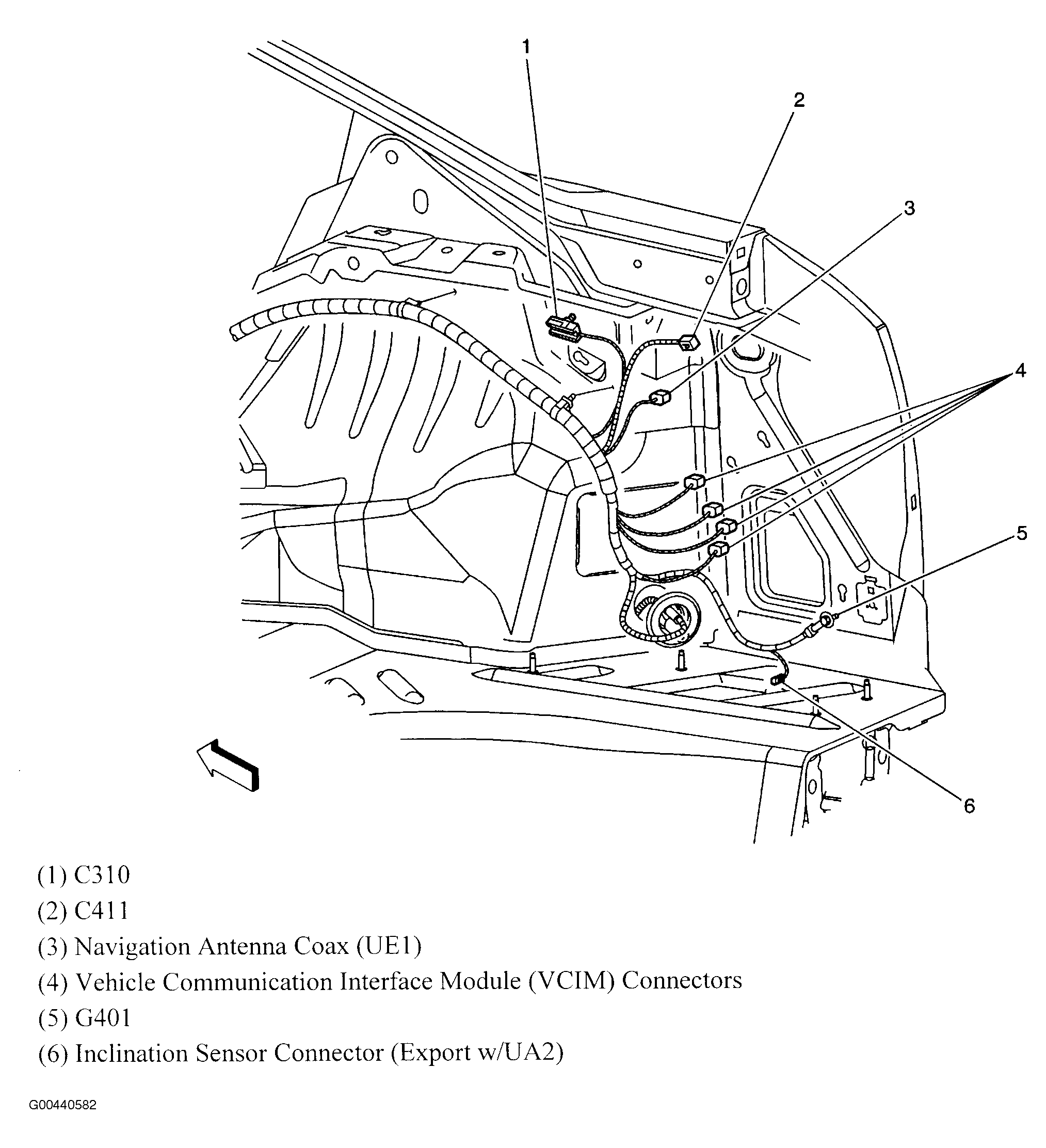

Fig 89: Right Side Of Rear Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 90: Rear Of Vehicle
Courtesy of GENERAL MOTORS CORP.

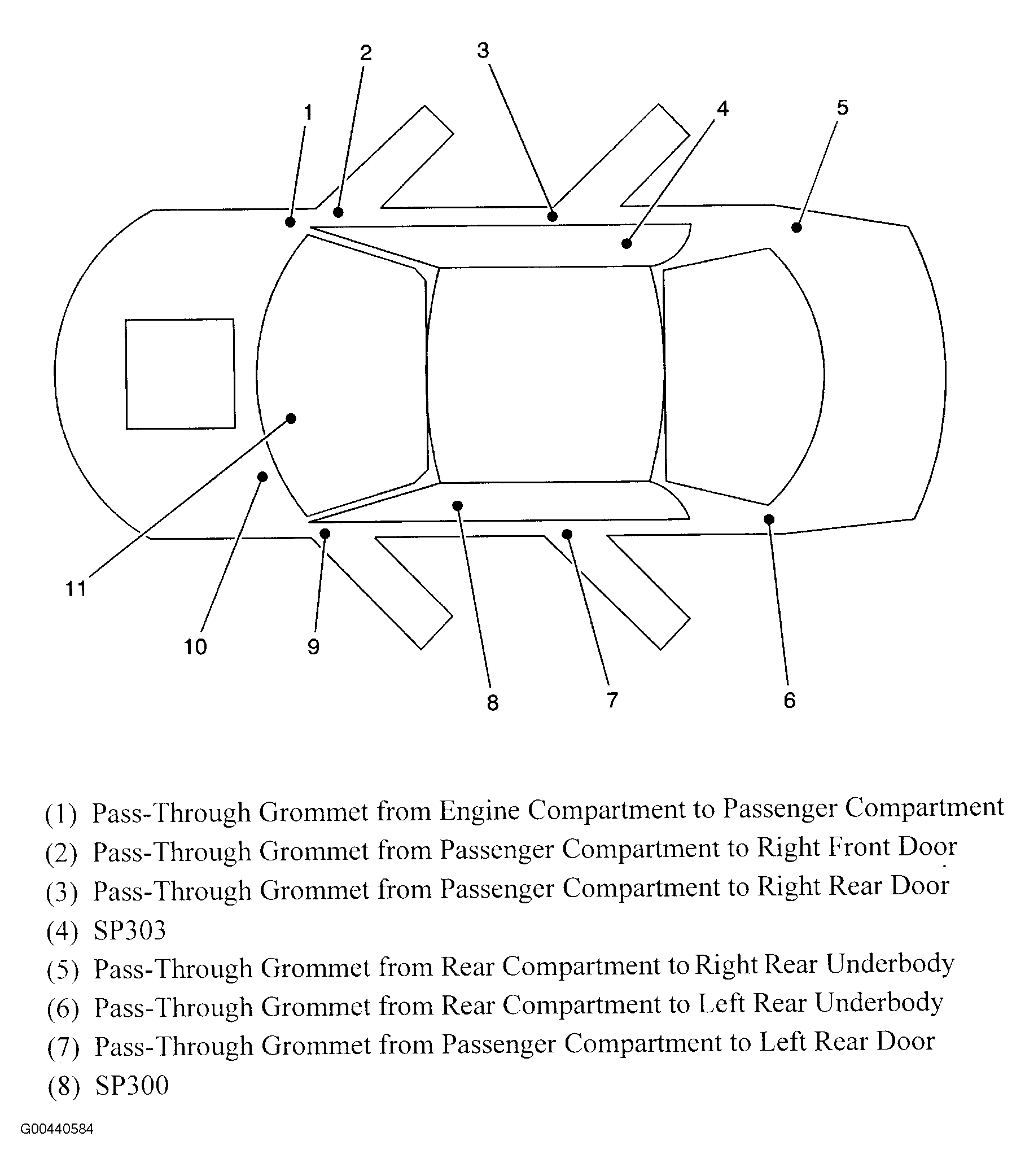

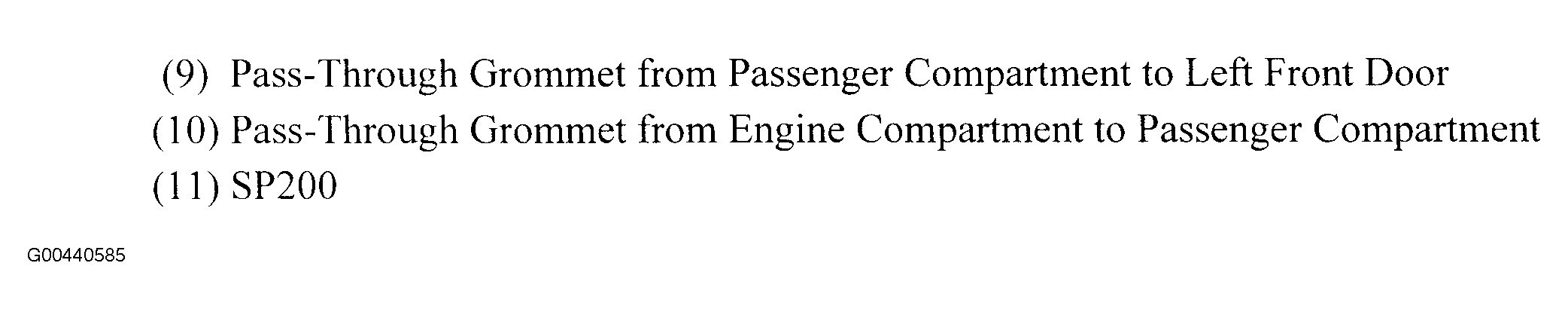

Fig 91: Splice Pack & Pass-Through Locations (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 92: Splice Pack & Pass-Through Locations (2 Of 2)
Courtesy of GENERAL MOTORS CORP.

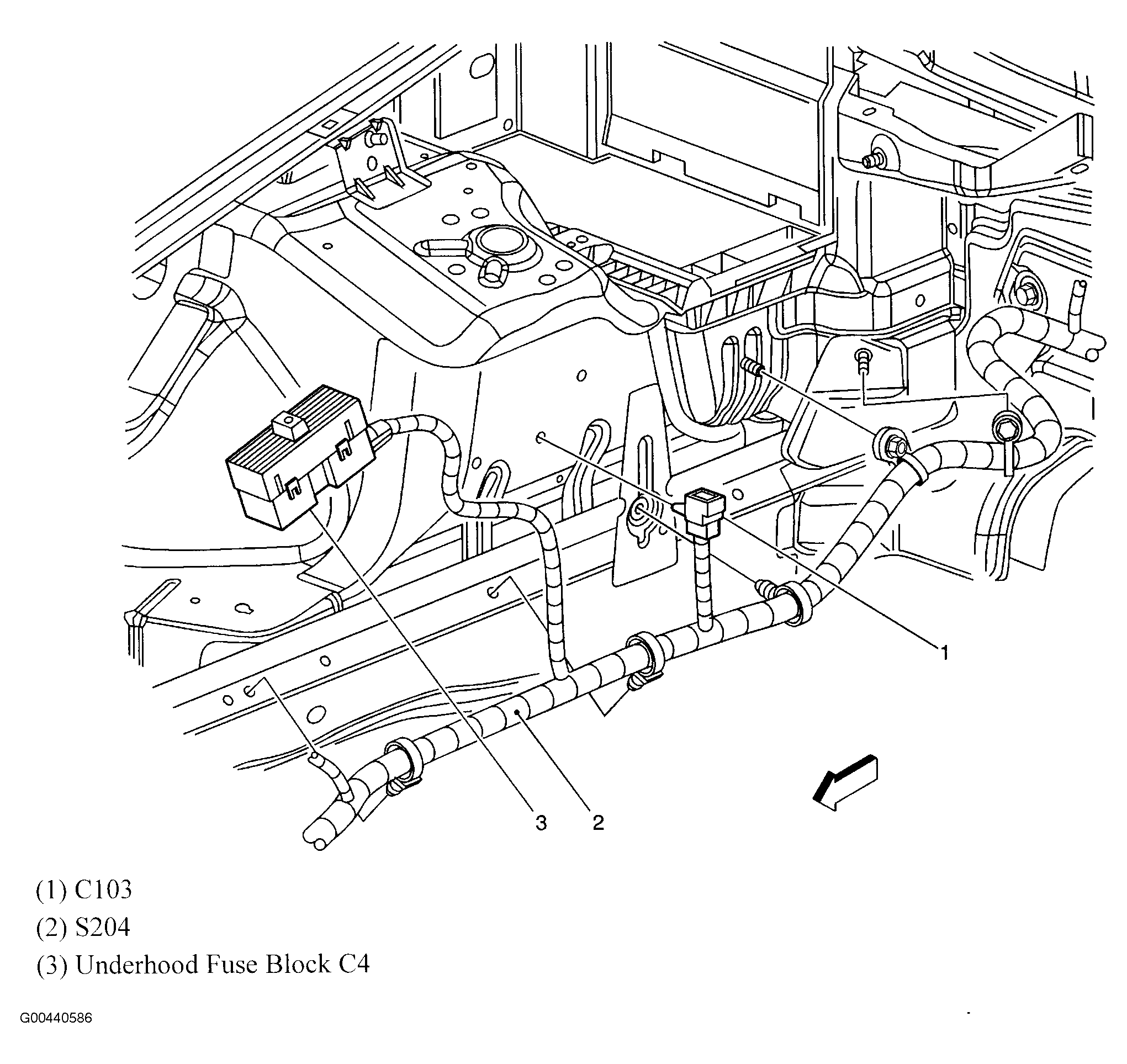

Fig 93: Lower Right Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 94: Right Rear Fuse Block
Courtesy of GENERAL MOTORS CORP.

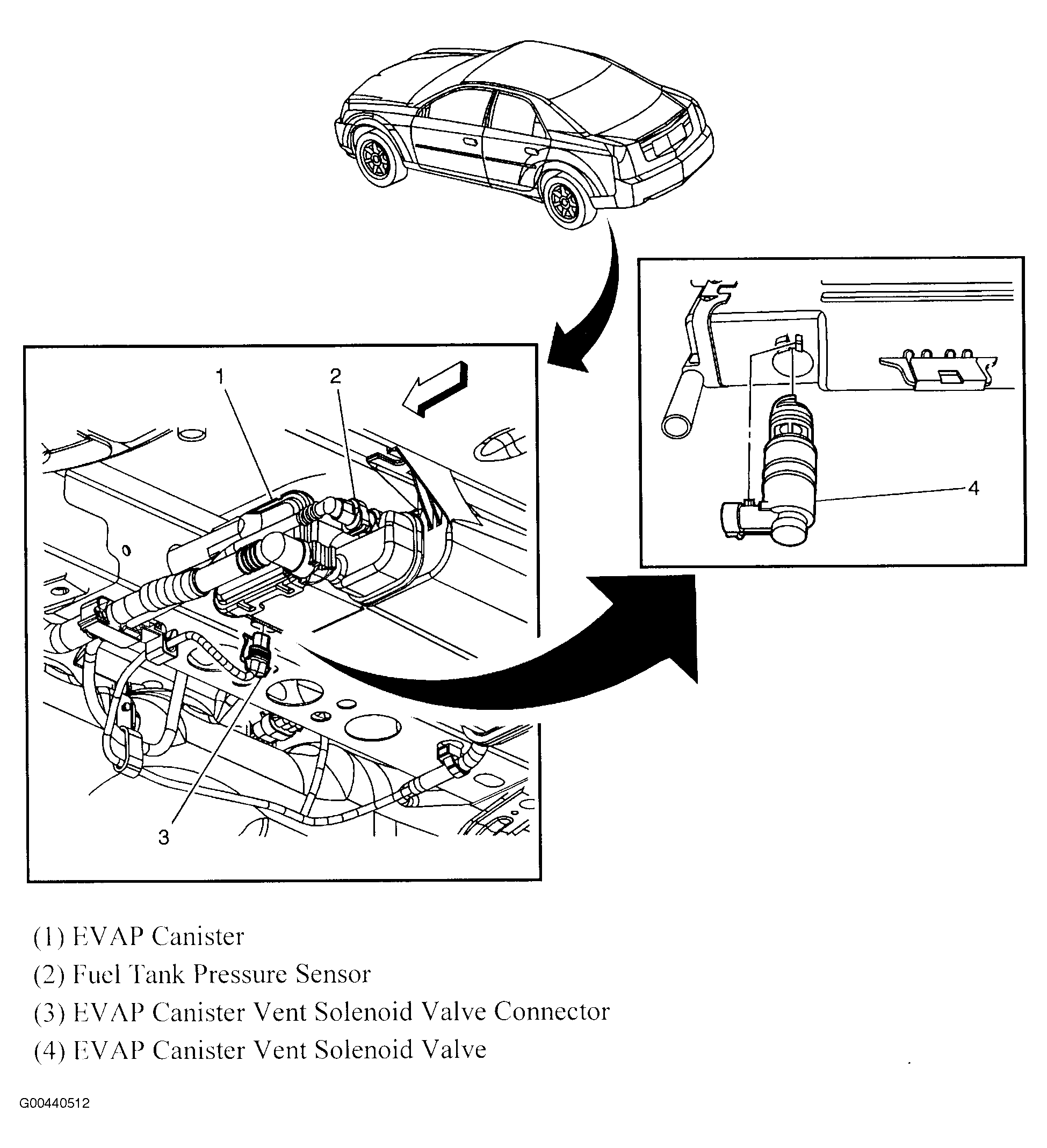

Fig 95: EVAP Canister Vent Solenoid Valve (2.8L/3.6L)
Courtesy of GENERAL MOTORS CORP.
