Cadillac
>>
2007
>>
DTS 4.6 9
>>
Repair and Diagnosis
>>
Electrical
>>
Component Locations
>>
Electrical Component Locator
>>
Component Location Graphics
Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table to proper figure references.

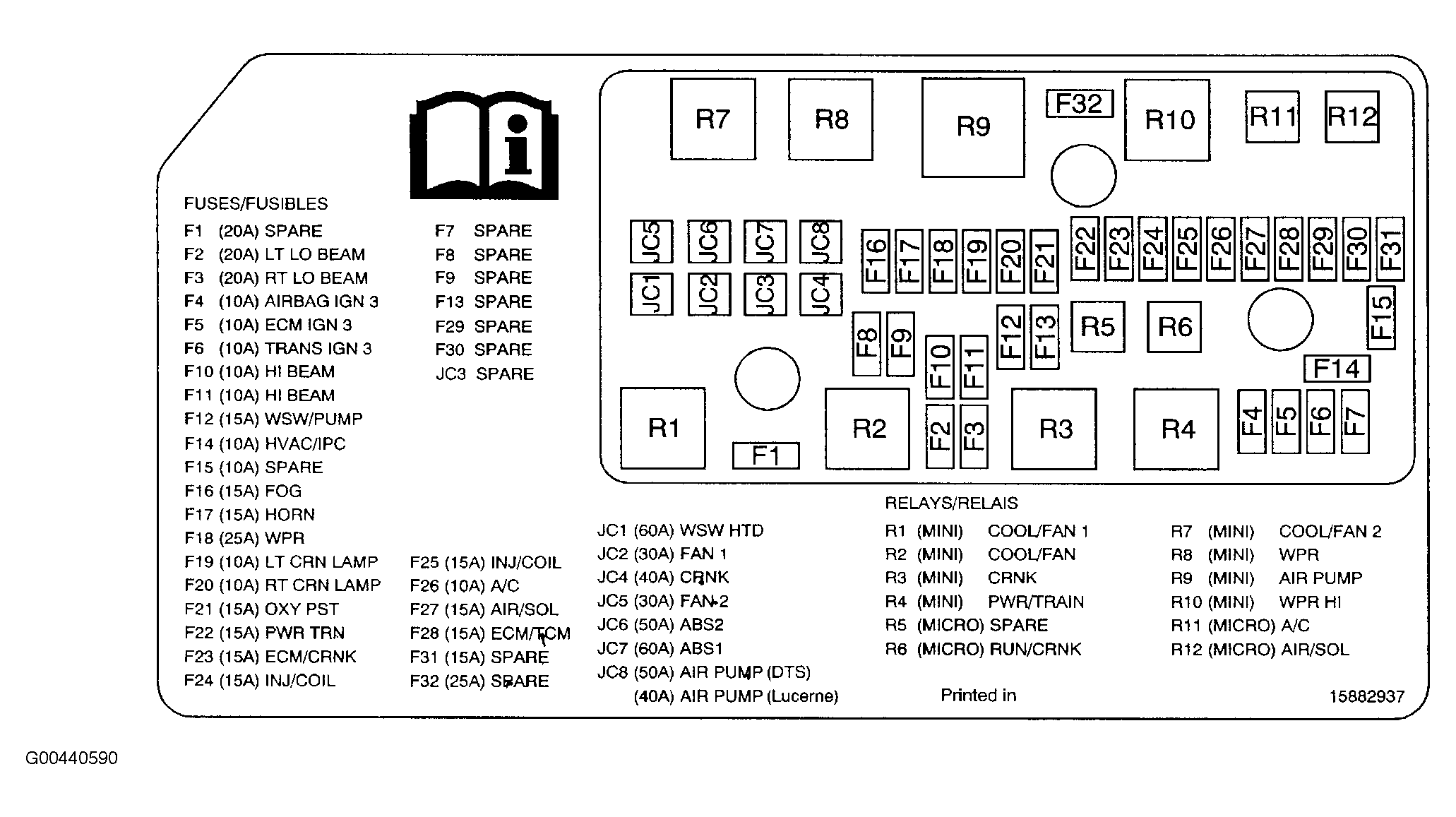

Fig 1: Underhood Fuse Block
Courtesy of GENERAL MOTORS CORP.
Fig 2: Rear Fuse Block
Courtesy of GENERAL MOTORS CORP.

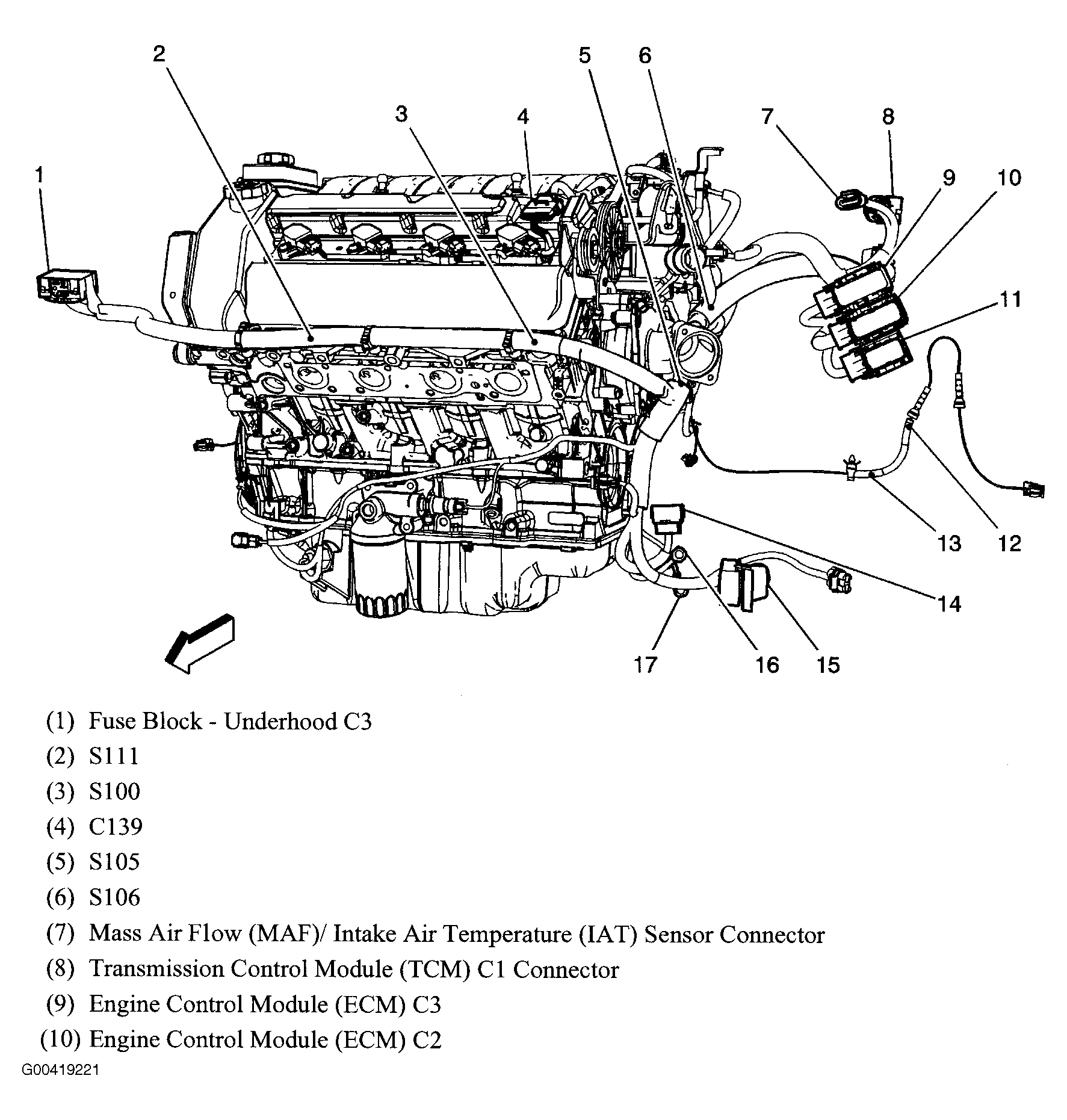

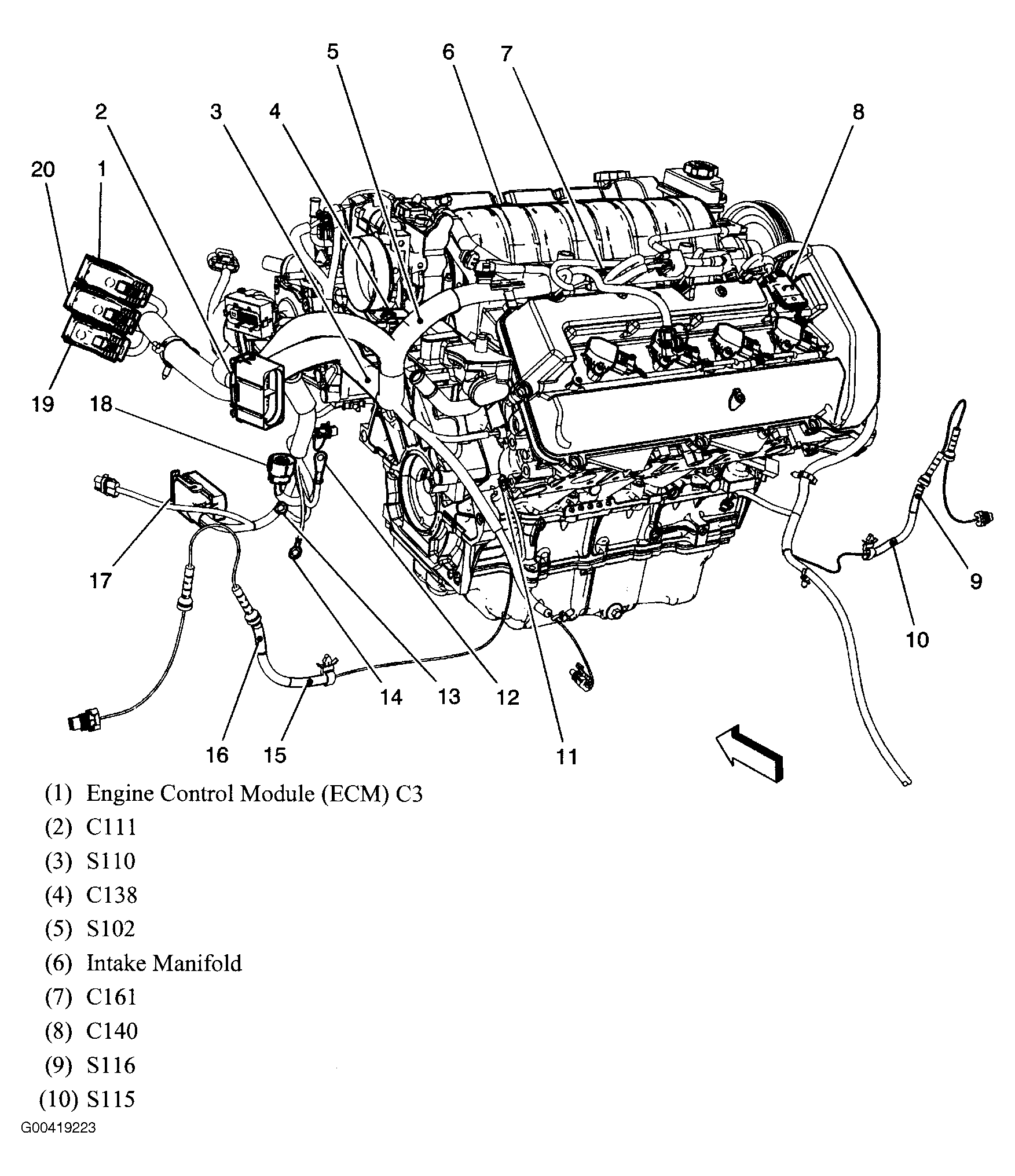

Fig 3: Engine Compartment
Courtesy of GENERAL MOTORS CORP.

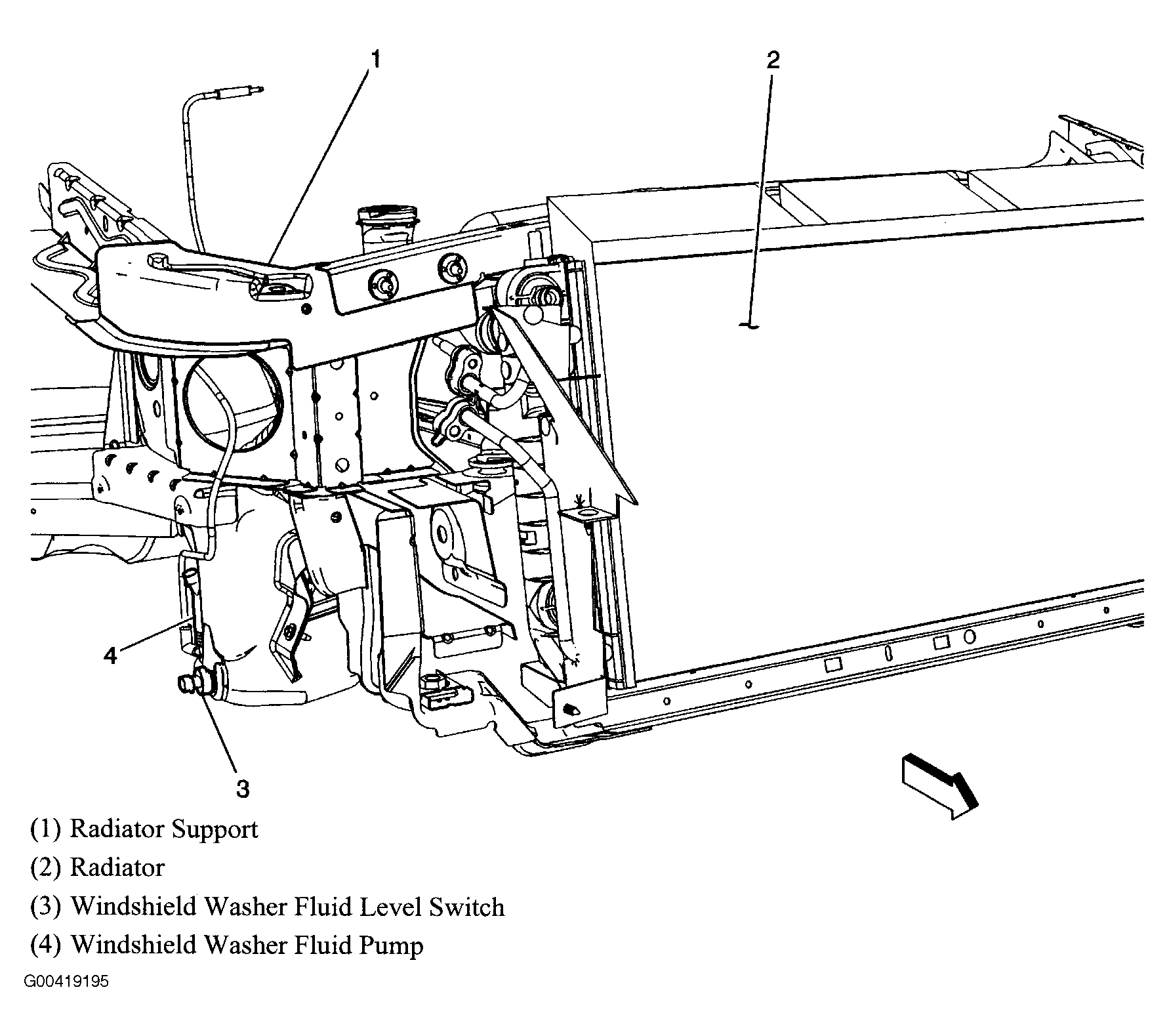

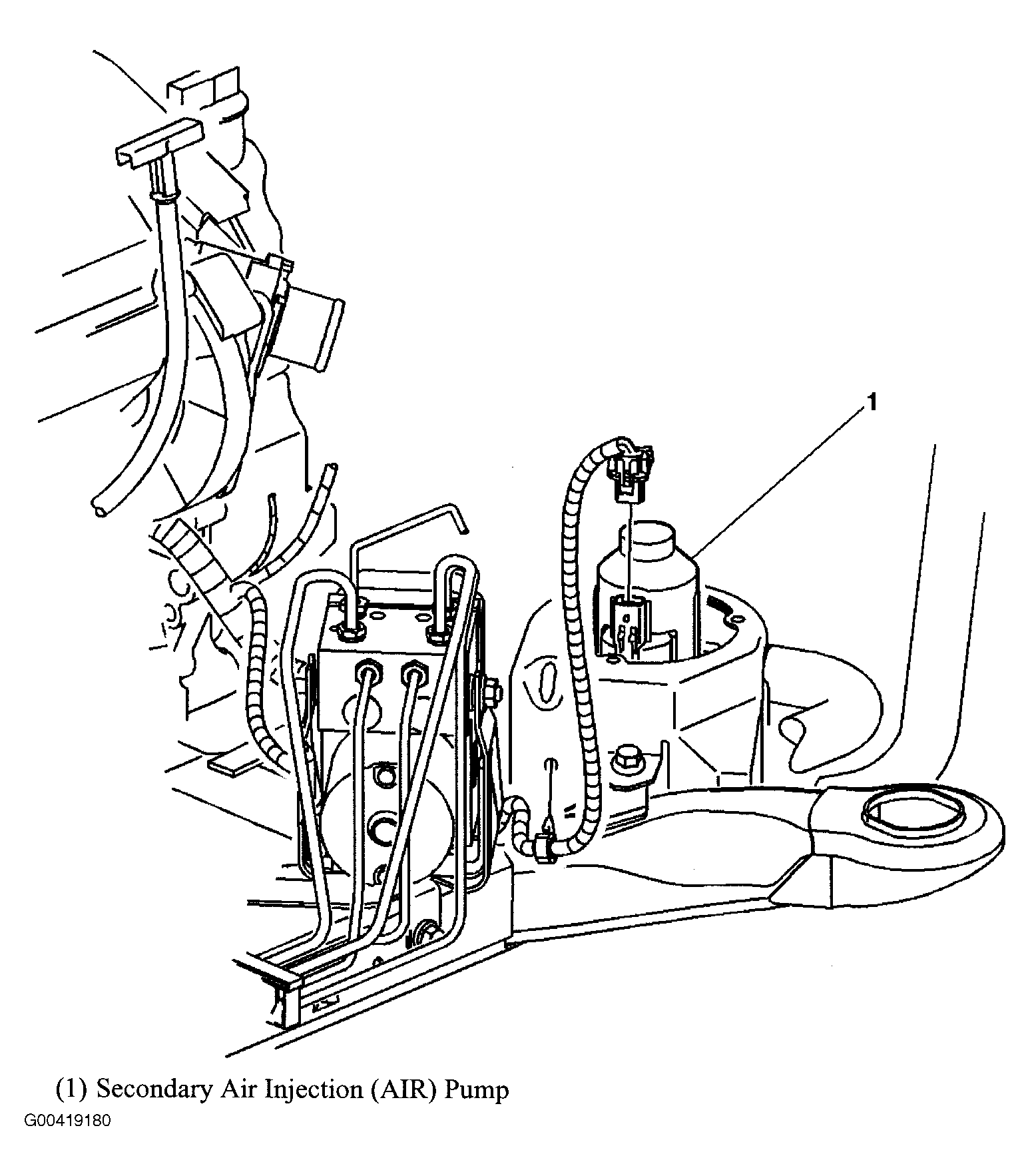

Fig 4: Lower Left Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

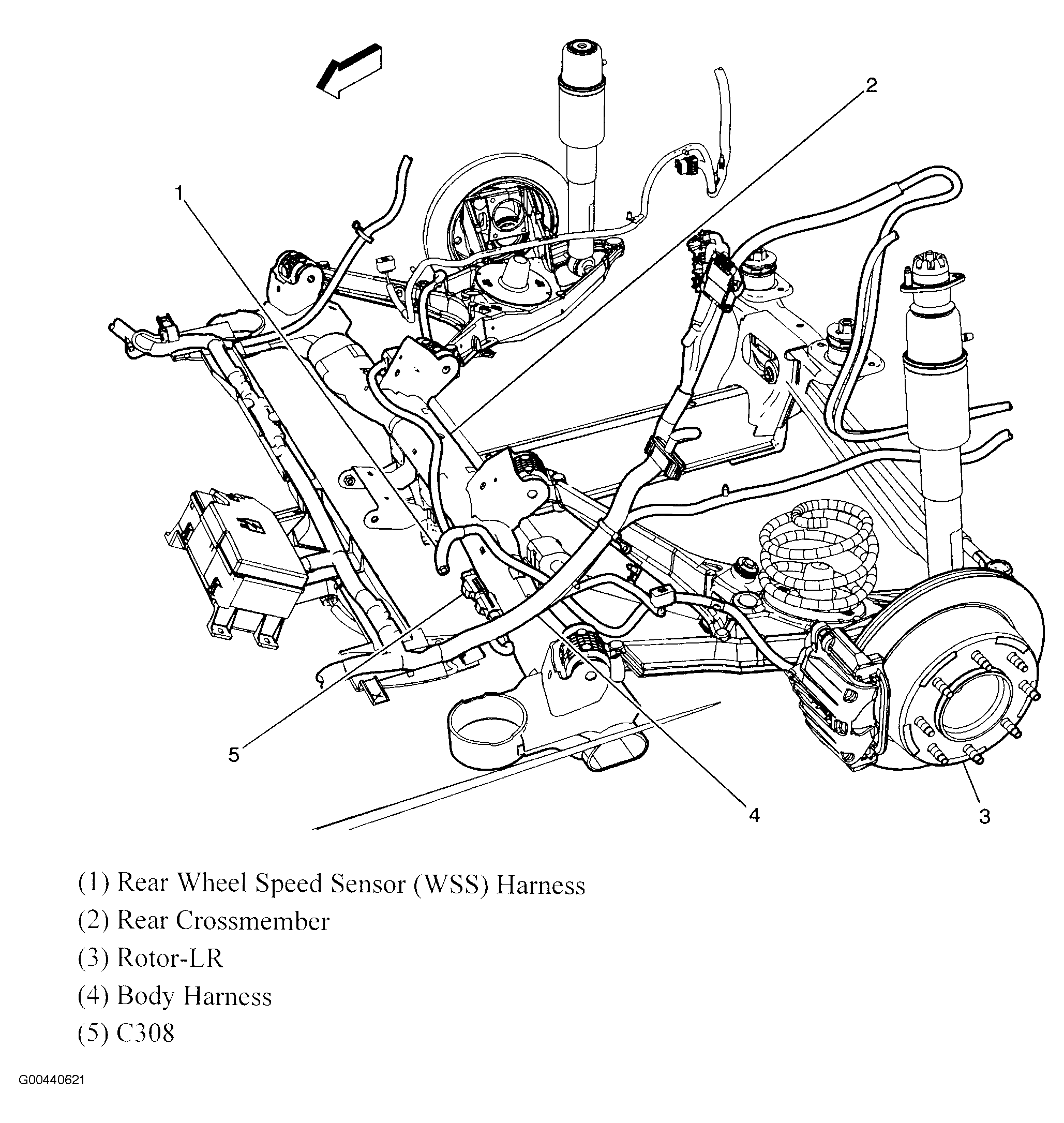

Fig 5: Rear Axle Area
Courtesy of GENERAL MOTORS CORP.

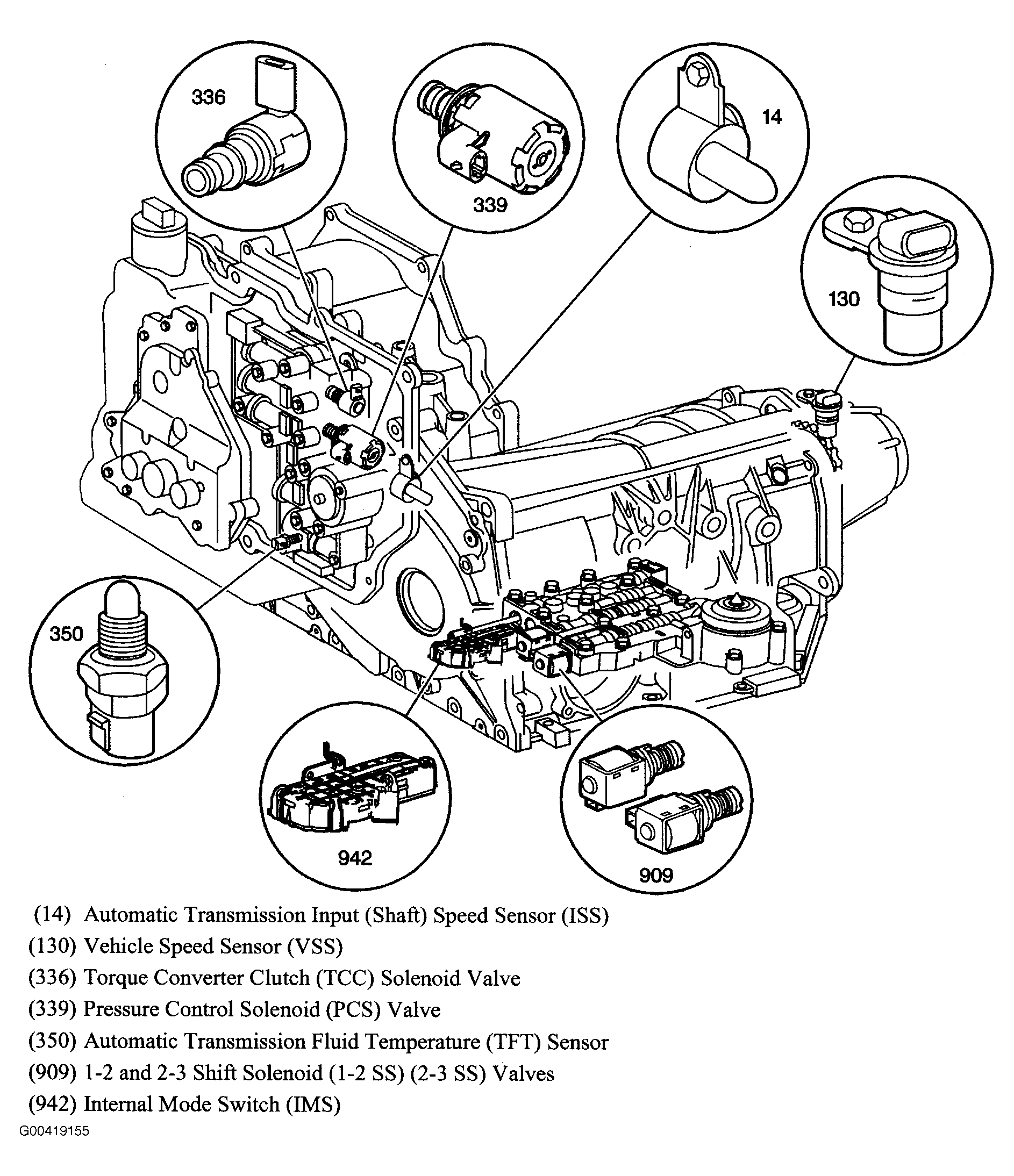

Fig 6: Automatic Transmission
Courtesy of GENERAL MOTORS CORP.

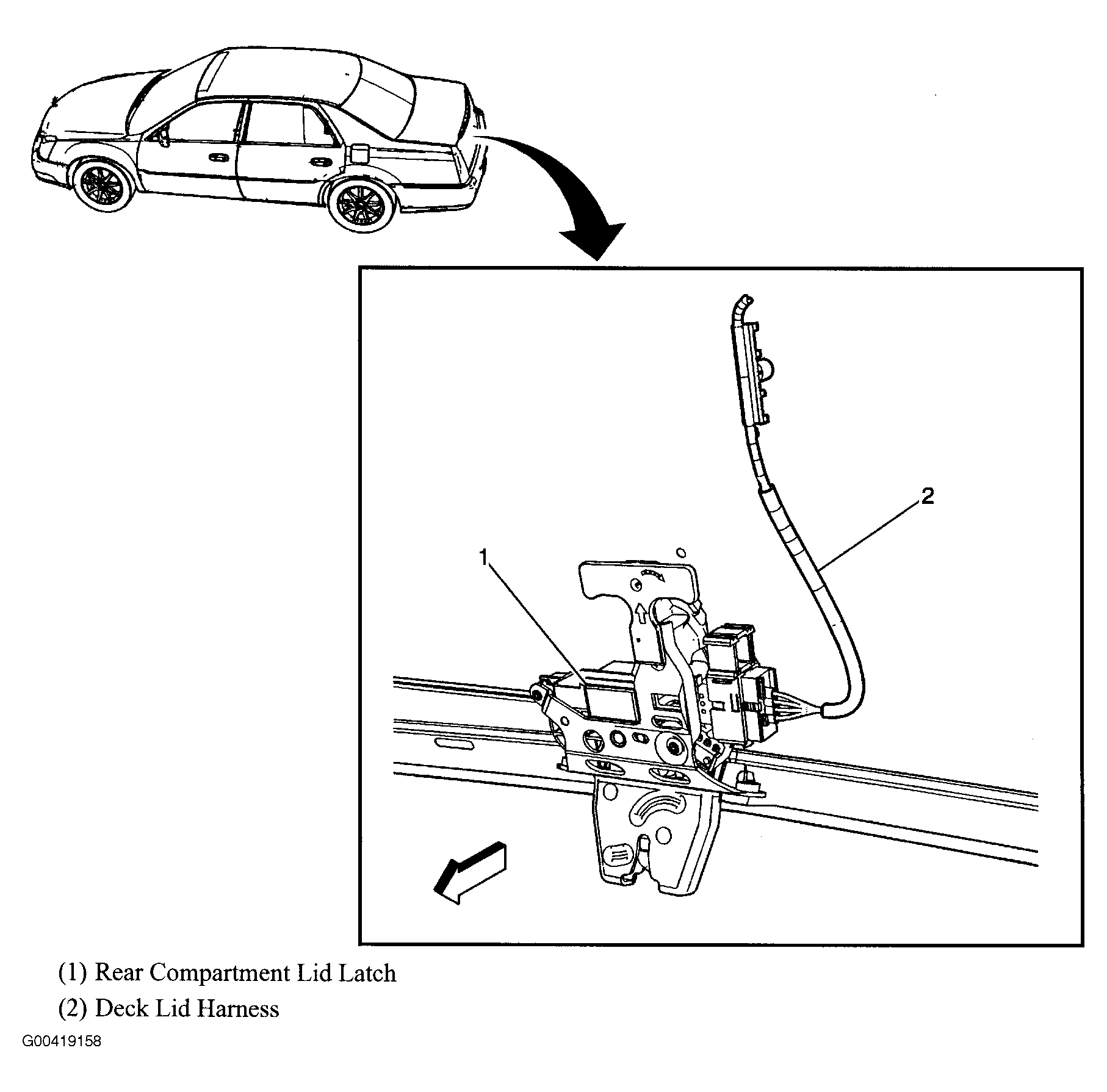

Fig 7: Center Rear Of Luggage Compartment Lid
Courtesy of GENERAL MOTORS CORP.
Fig 8: Trunk & "C" Pillars
Courtesy of GENERAL MOTORS CORP.
Fig 9: Behind Right Side Of Dash
Courtesy of GENERAL MOTORS CORP.

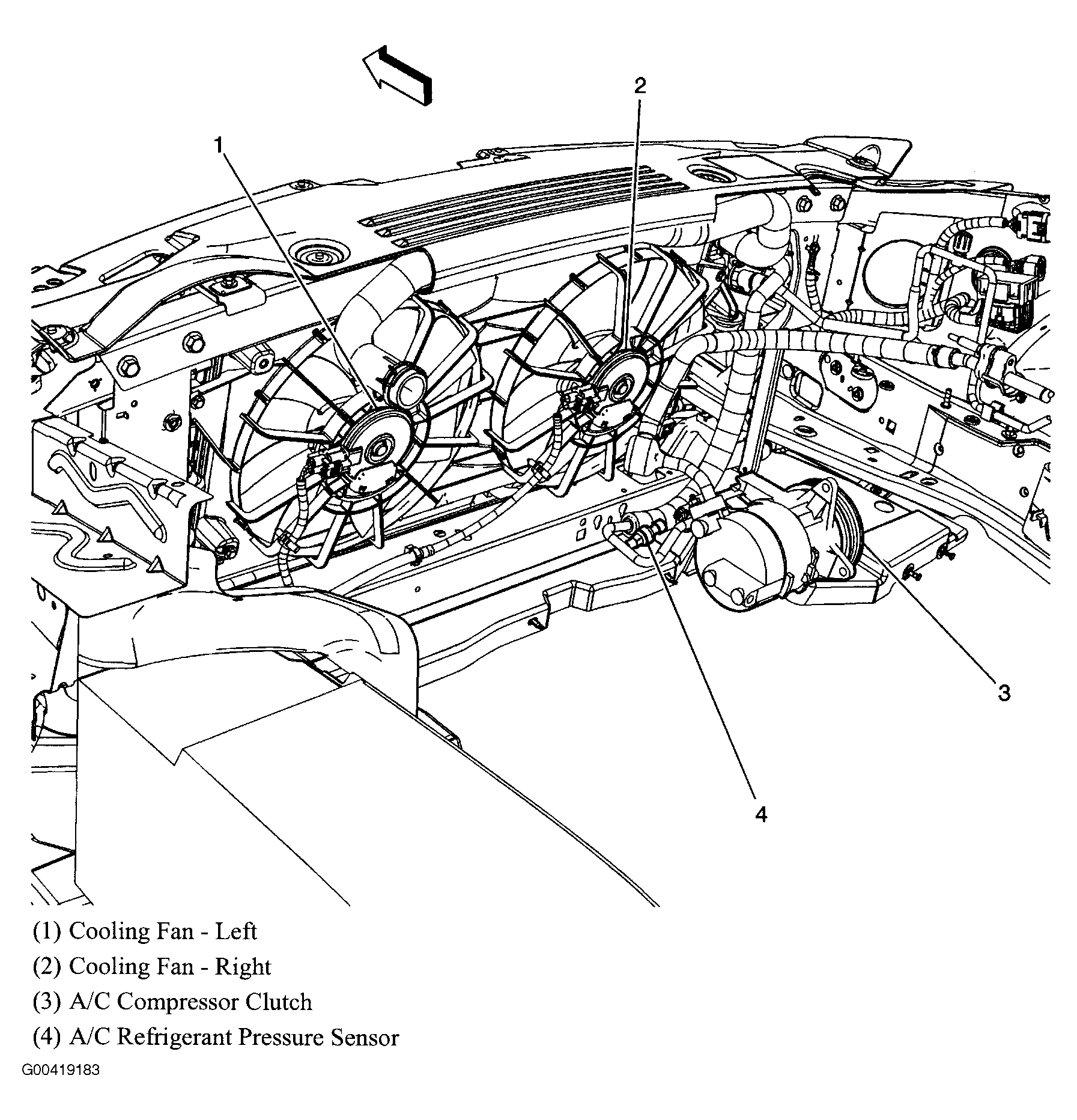

Fig 10: Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

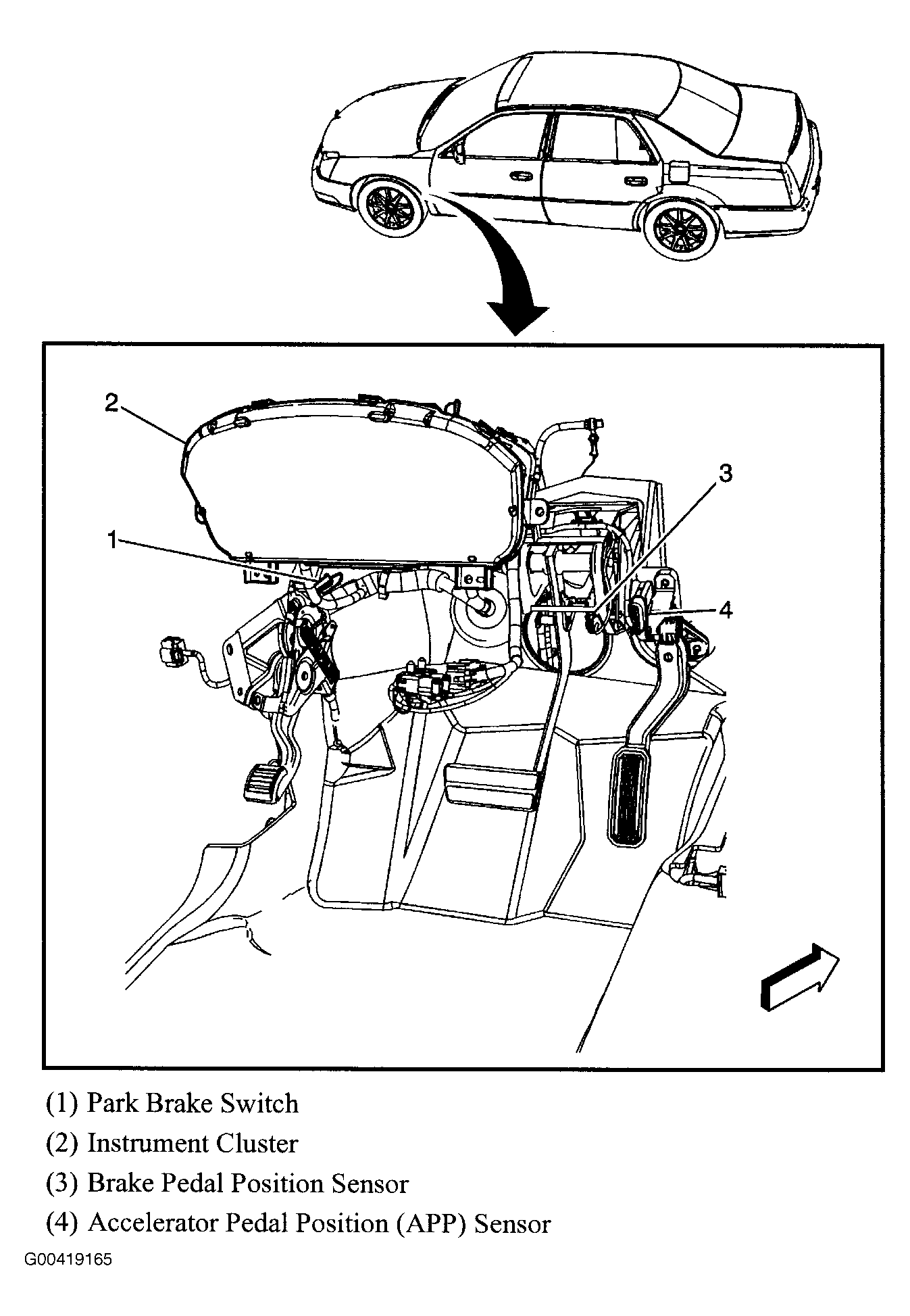

Fig 11: Under Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.

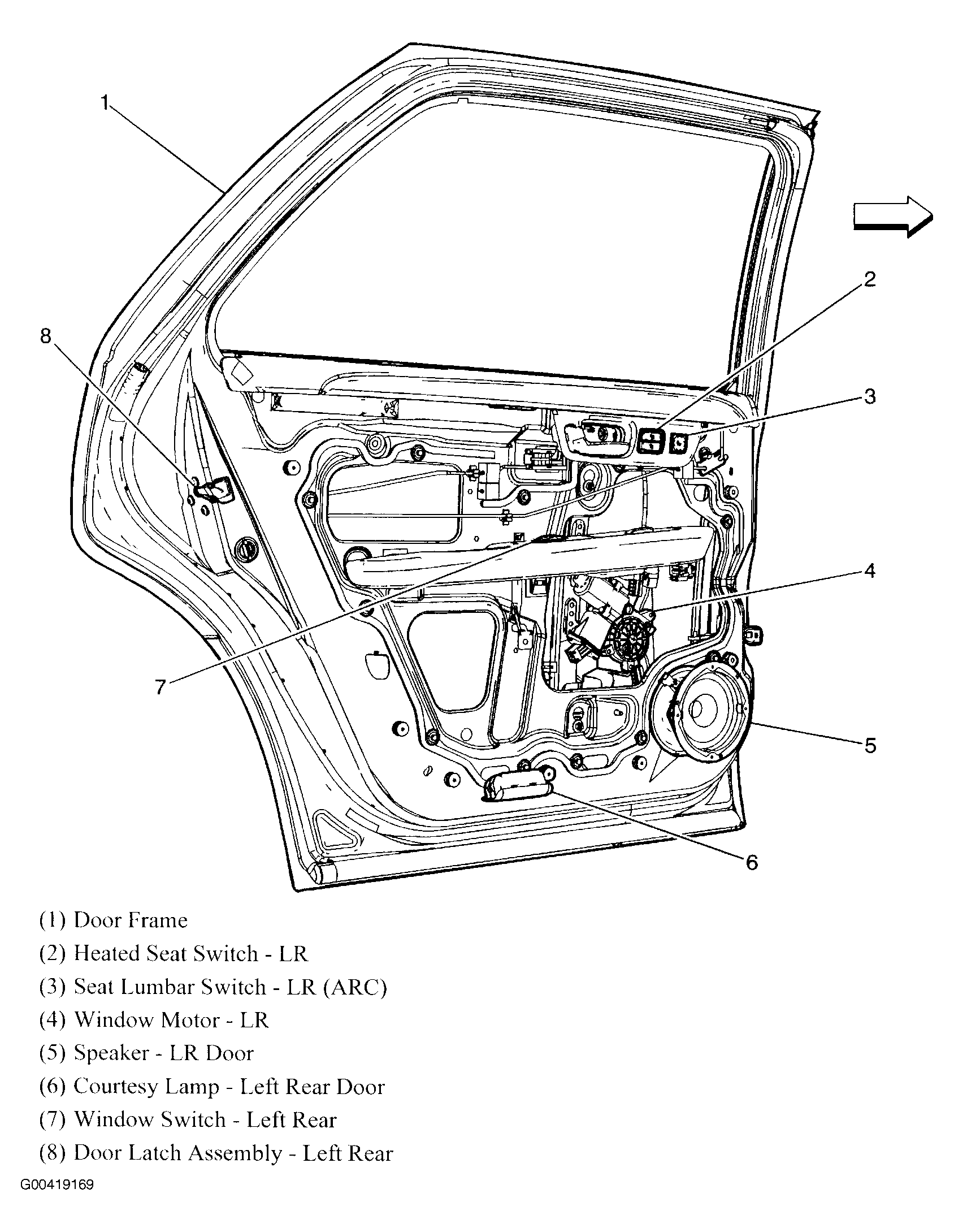

Fig 12: Left Rear Door
Courtesy of GENERAL MOTORS CORP.

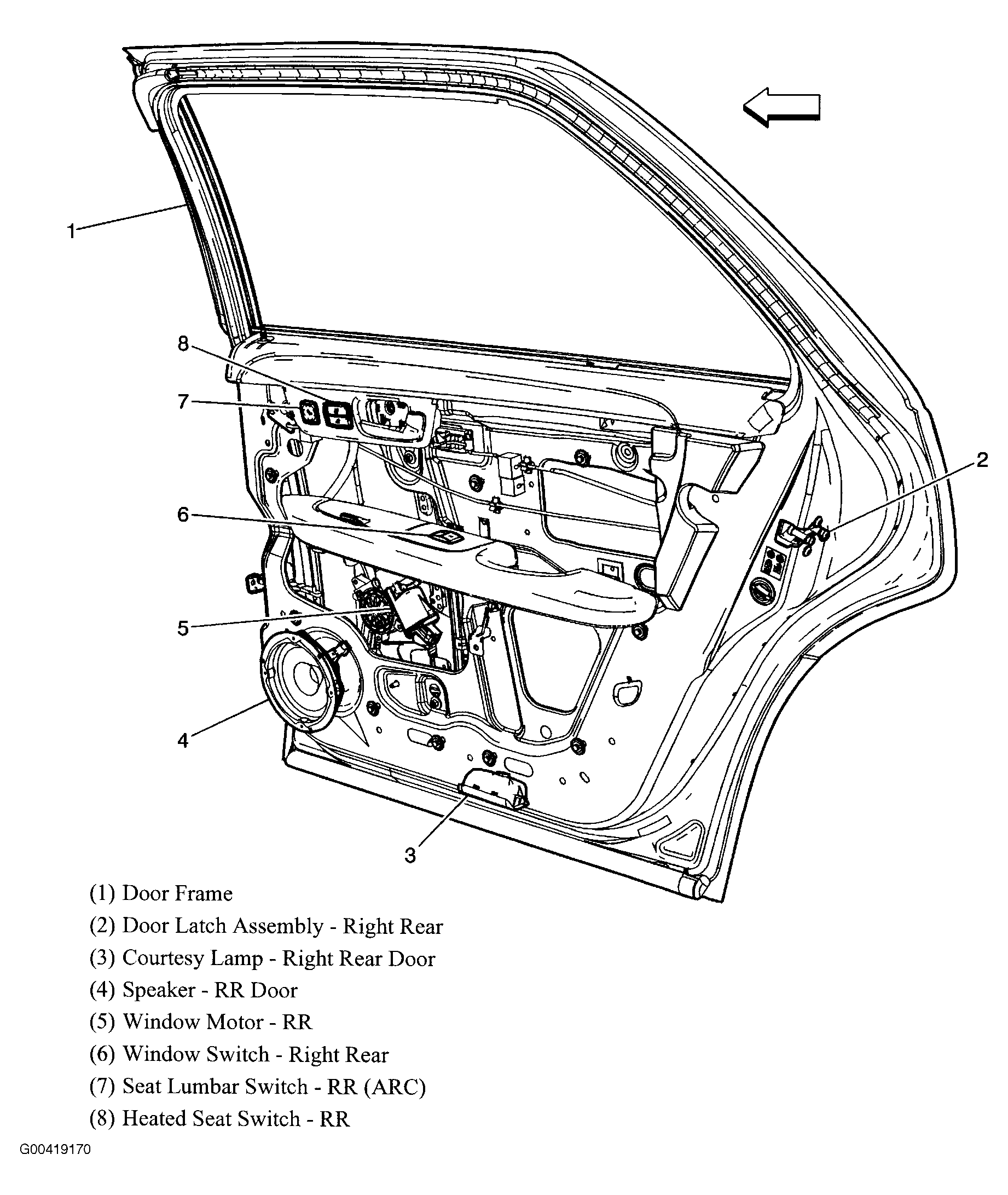

Fig 13: Right Rear Door
Courtesy of GENERAL MOTORS CORP.
Fig 14: Right Side Of Trunk
Courtesy of GENERAL MOTORS CORP.
Fig 15: Rear Of Engine
Courtesy of GENERAL MOTORS CORP.

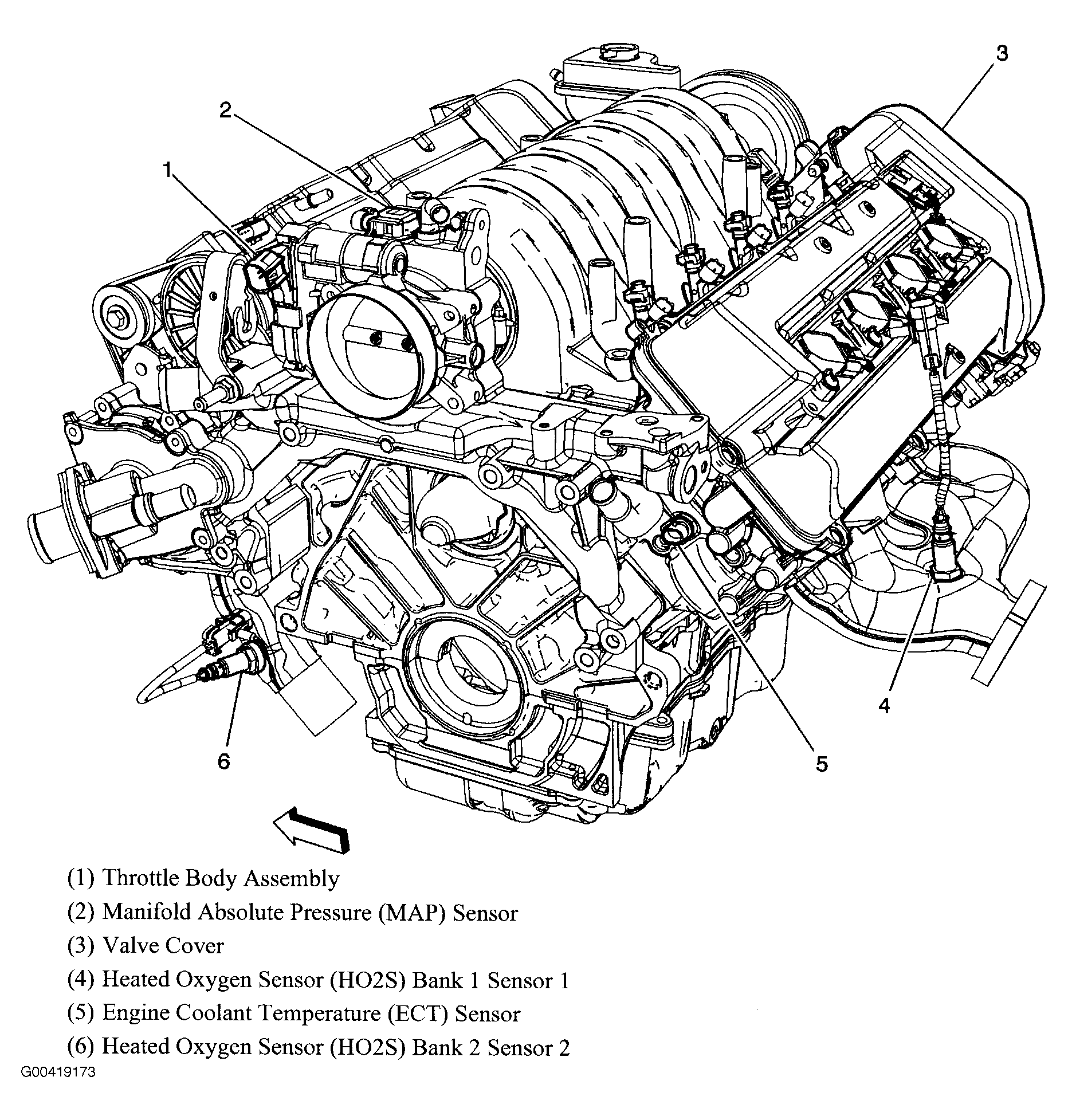

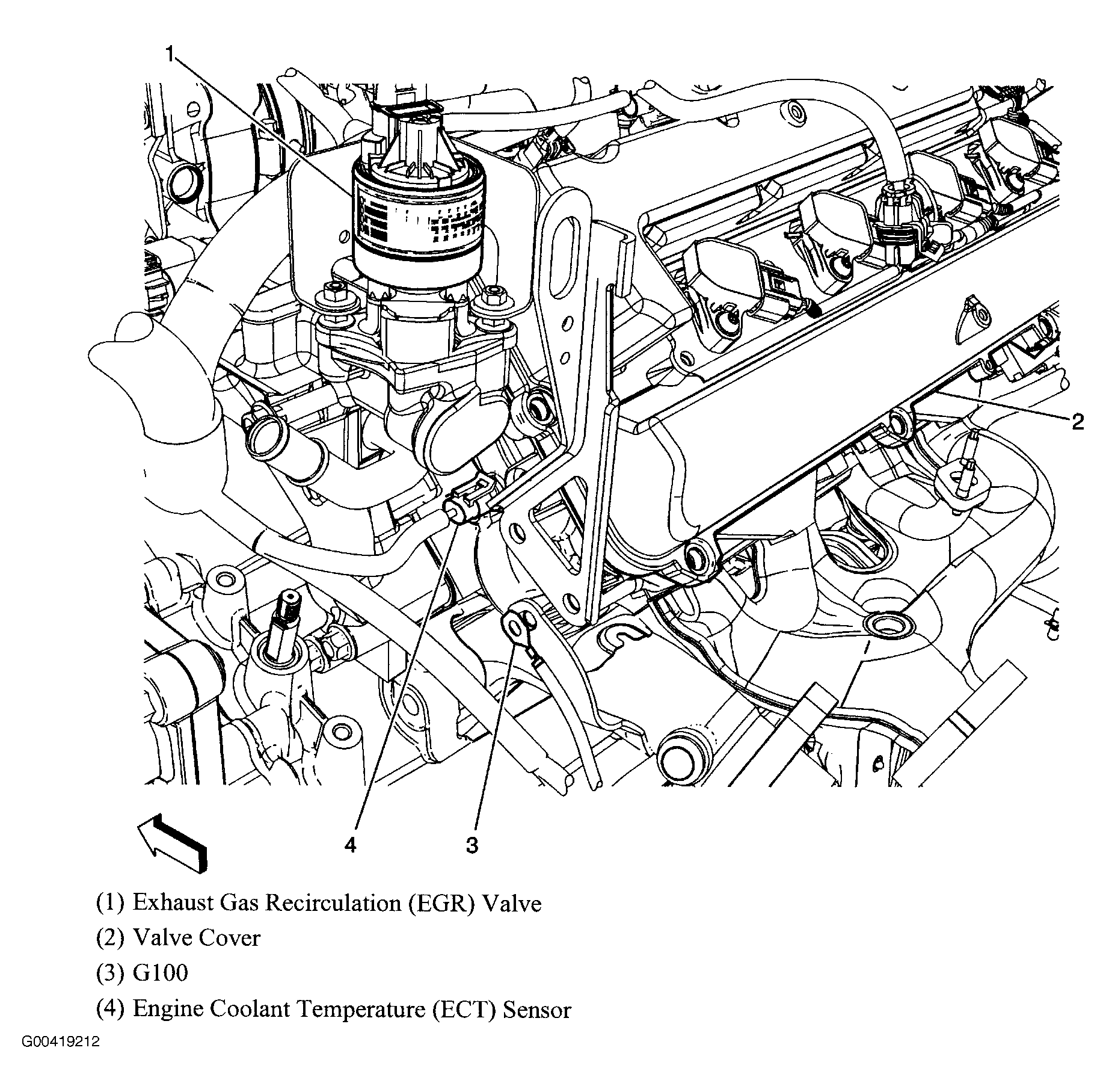

Fig 16: Top Right Front Of Engine
Courtesy of GENERAL MOTORS CORP.

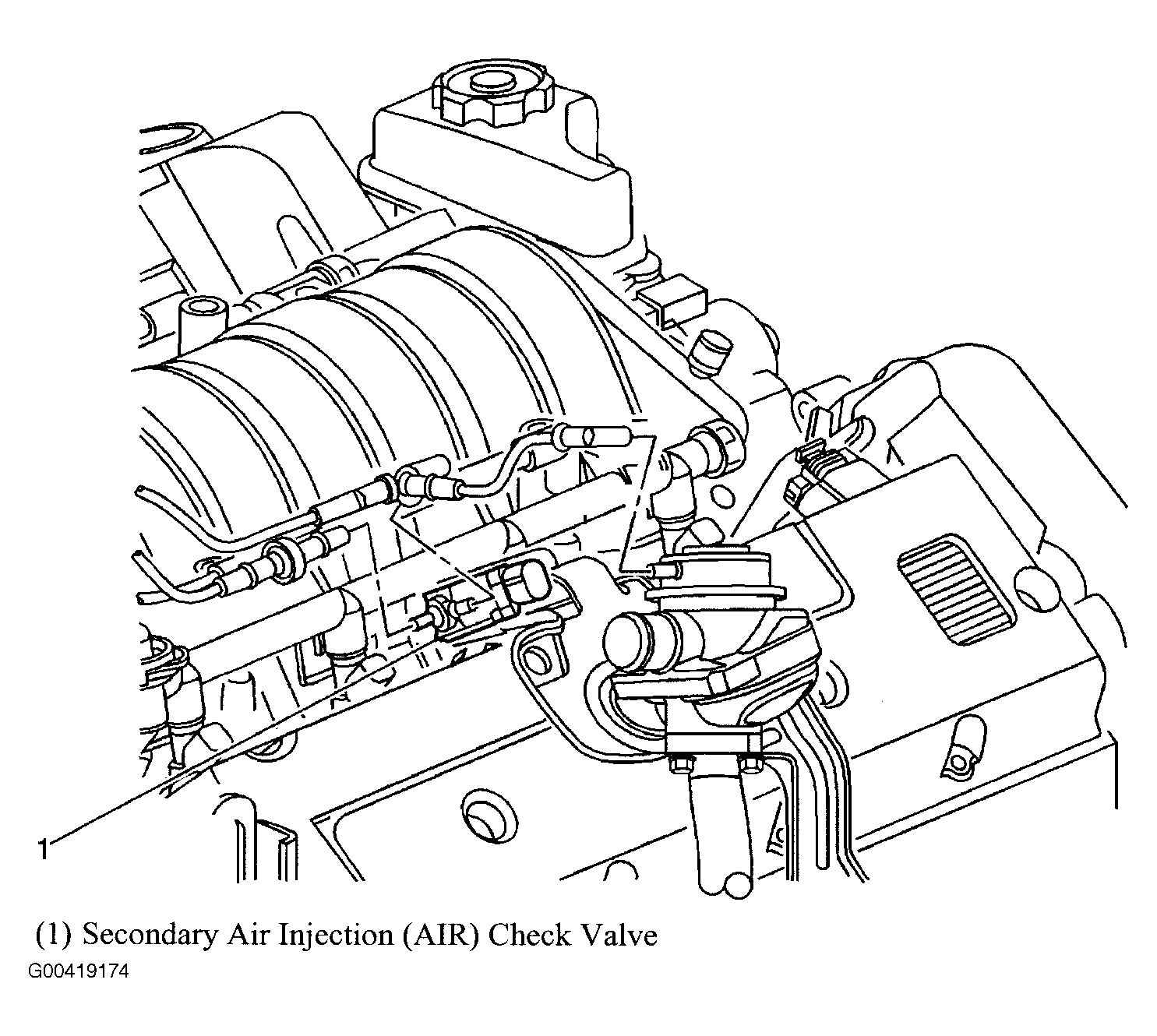

Fig 17: Top Rear Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 18: Left Side Of Engine
Courtesy of GENERAL MOTORS CORP.

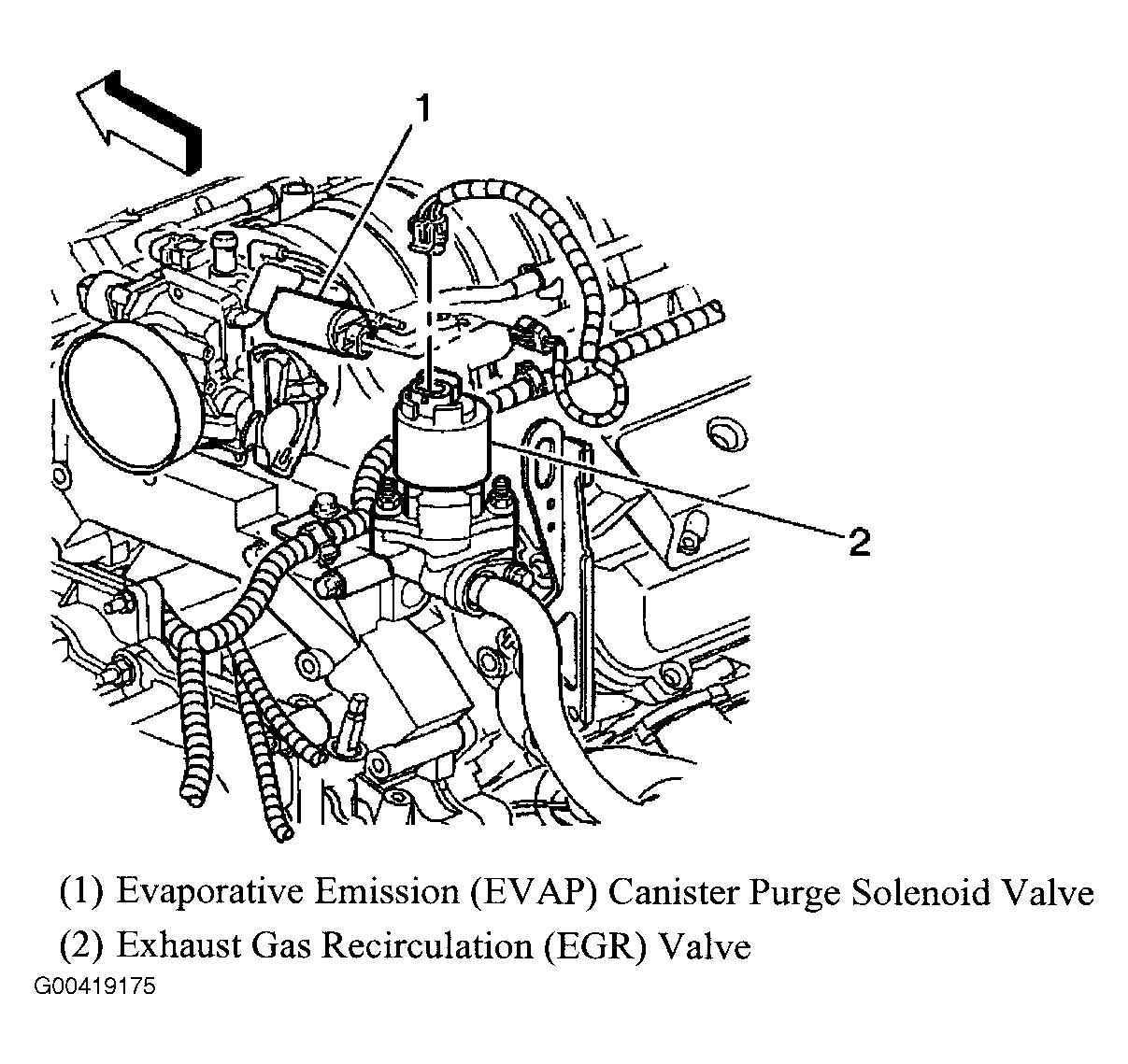

Fig 19: Top Of Engine (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 20: Top Of Engine (2 Of 2)
Courtesy of GENERAL MOTORS CORP.

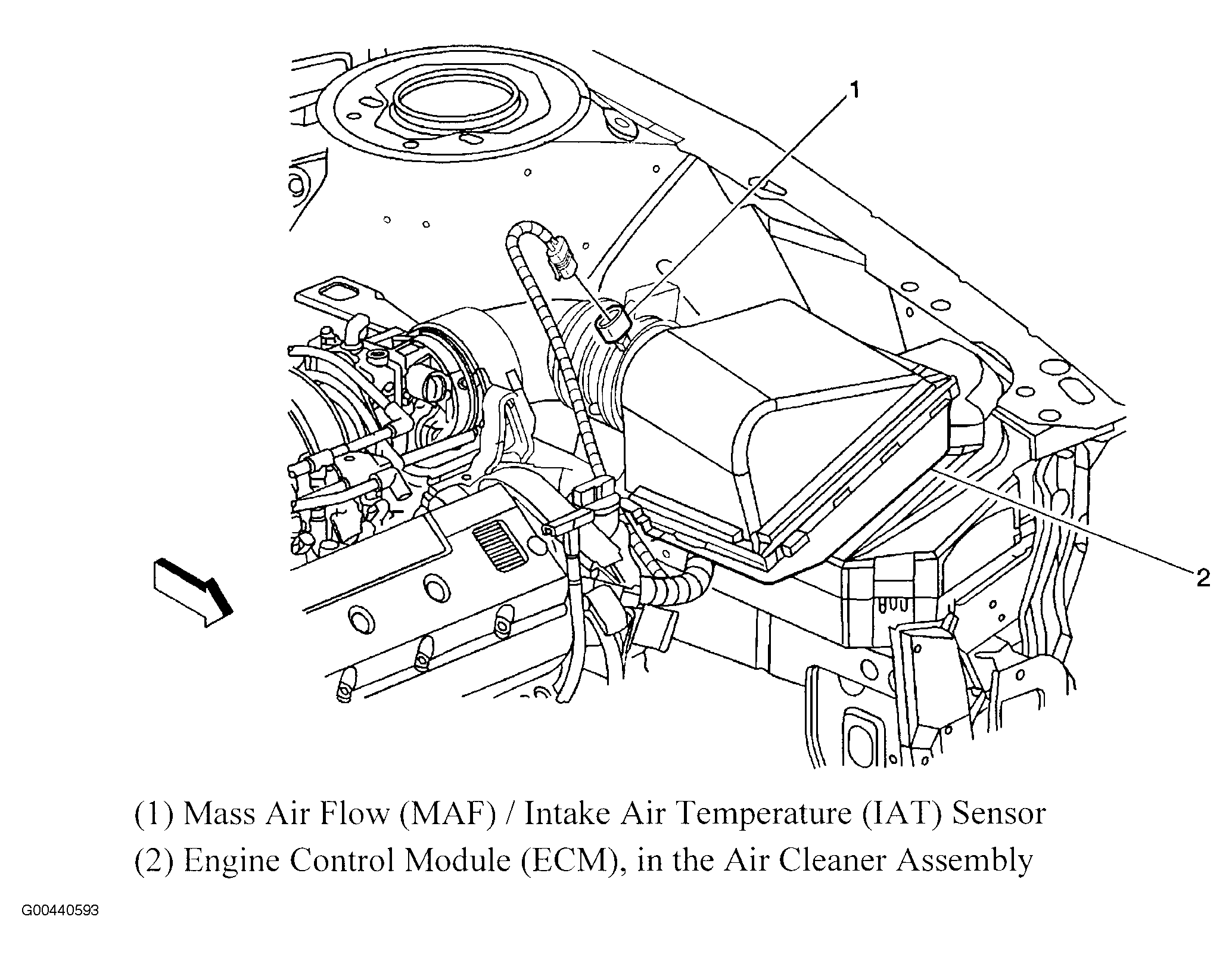

Fig 21: Left Side Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 22: Left Side Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

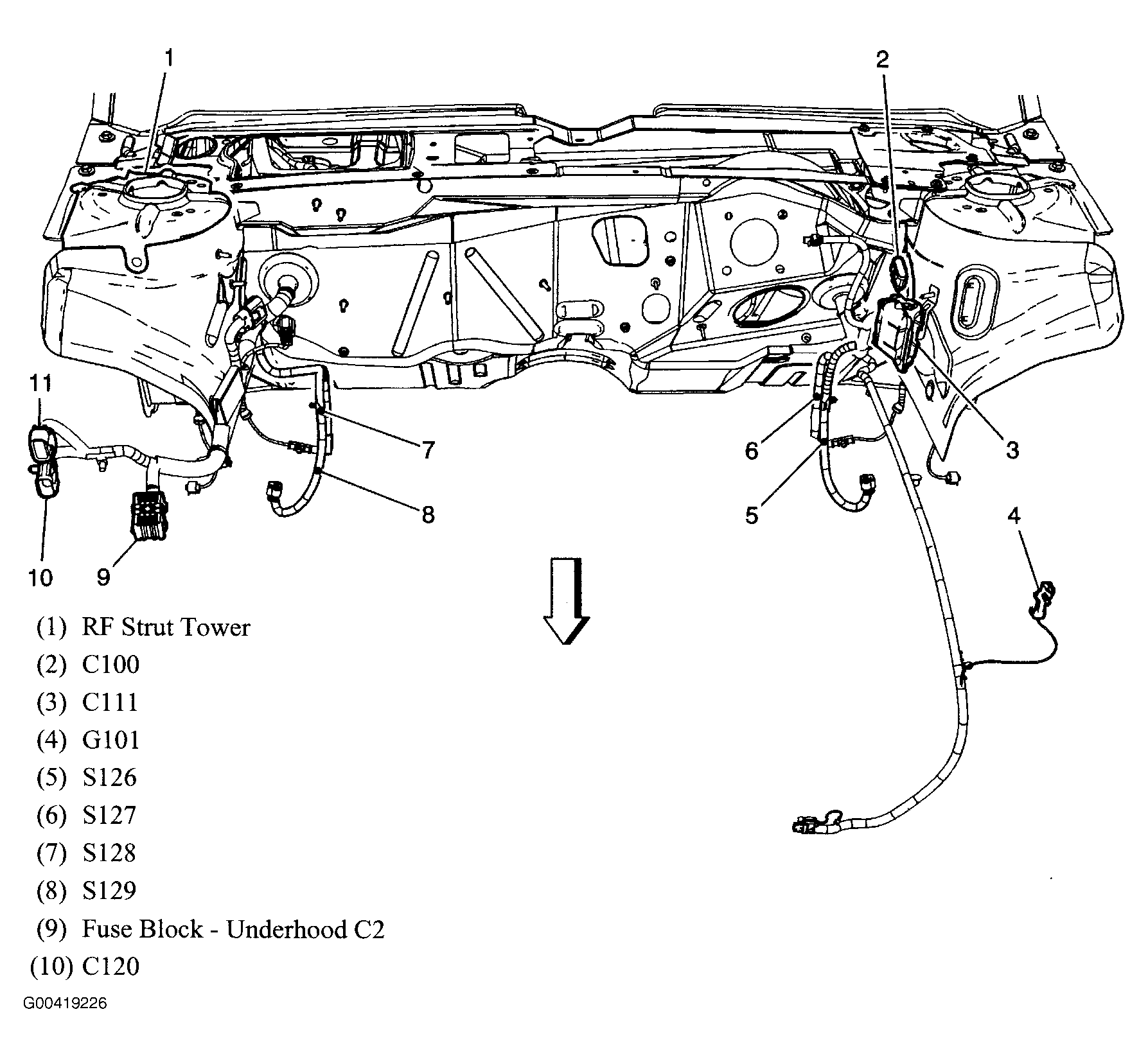

Fig 23: Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

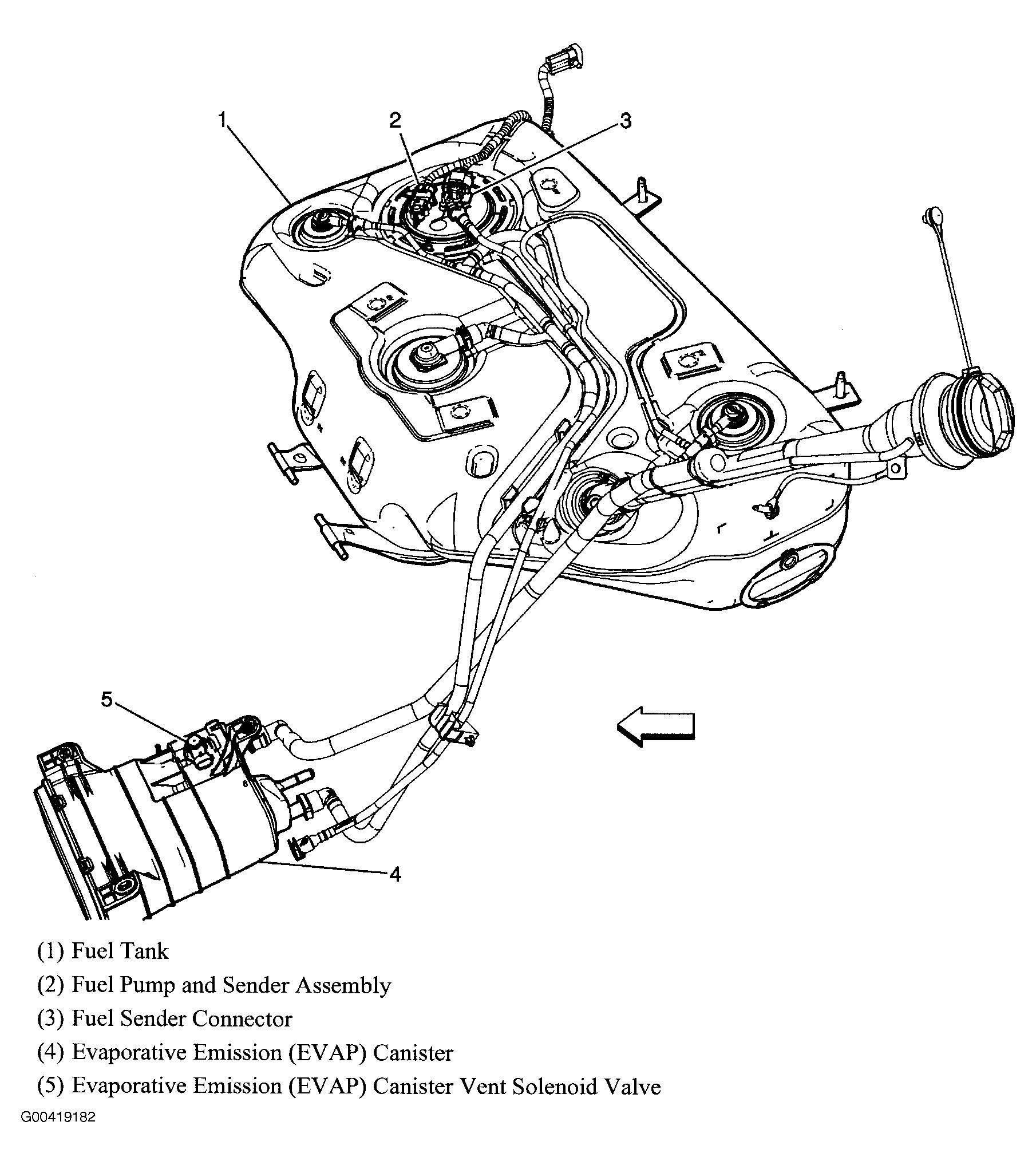

Fig 24: Rear Of Vehicle, At/Near Fuel Tank
Courtesy of GENERAL MOTORS CORP.
Fig 25: Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

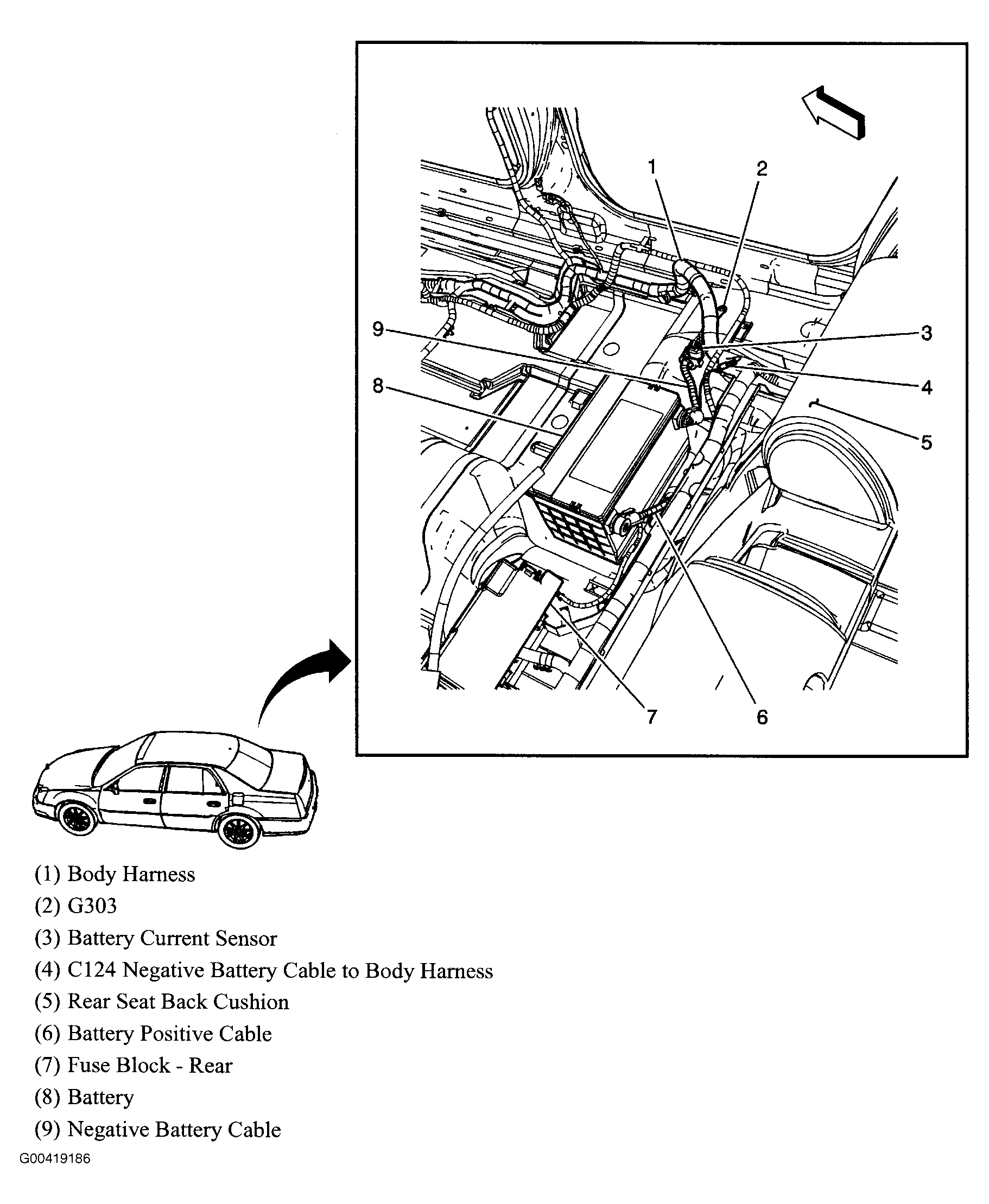

Fig 26: Under Rear Seat
Courtesy of GENERAL MOTORS CORP.
Fig 27: Behind Rear Seat
Courtesy of GENERAL MOTORS CORP.

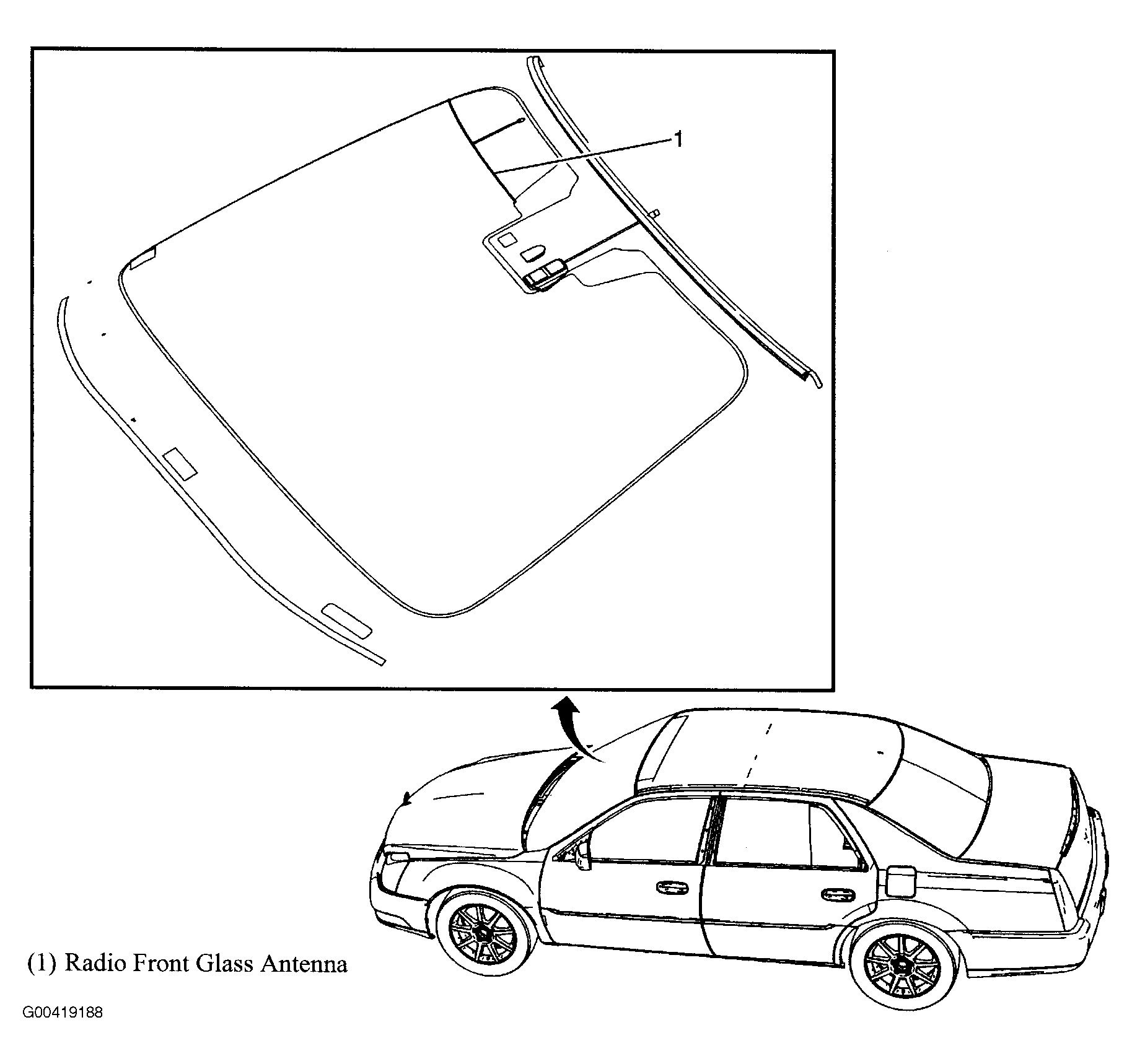

Fig 28: Front Windshield
Courtesy of GENERAL MOTORS CORP.

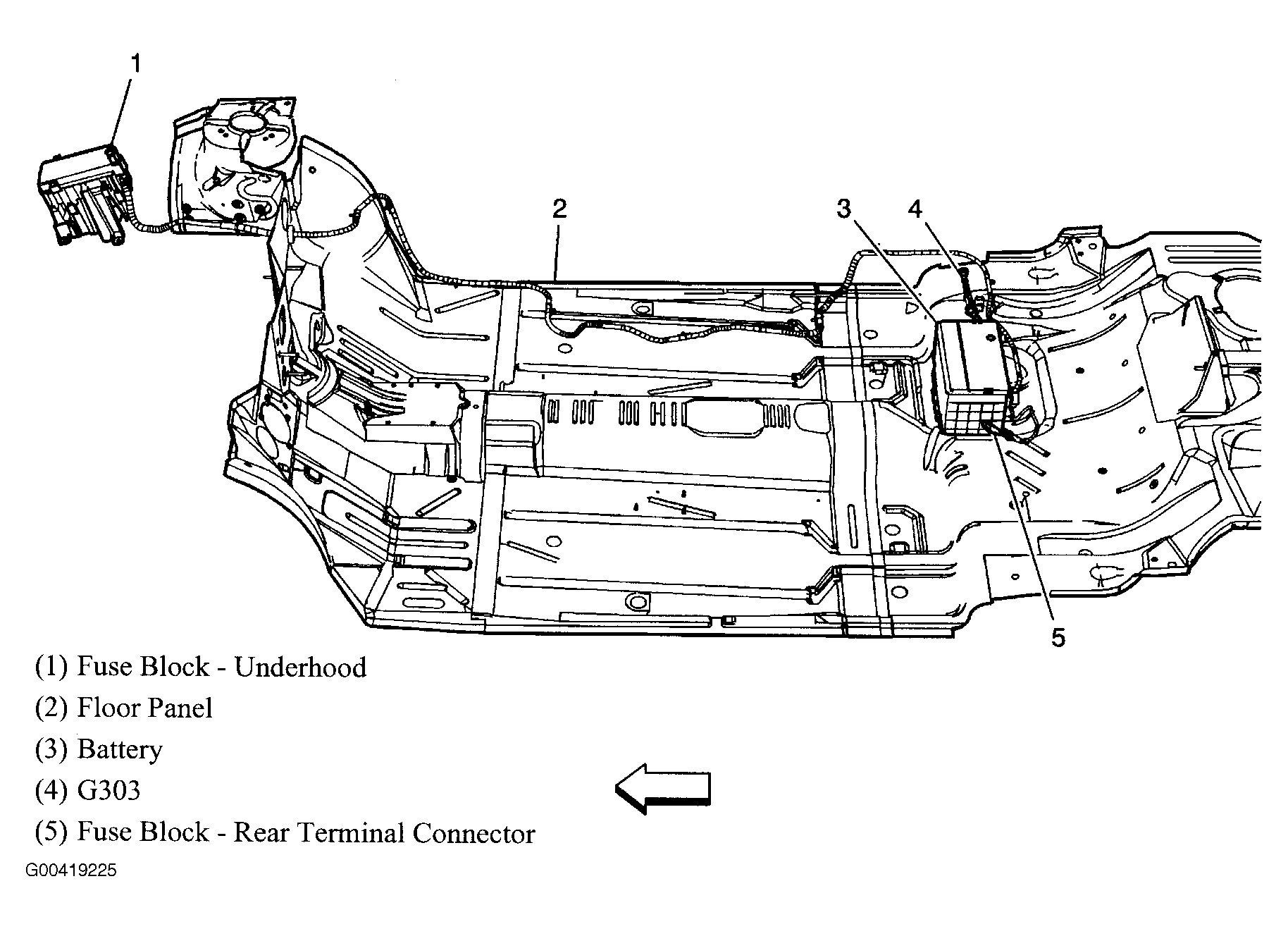

Fig 29: Rear Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 30: Front Floor Console
Courtesy of GENERAL MOTORS CORP.

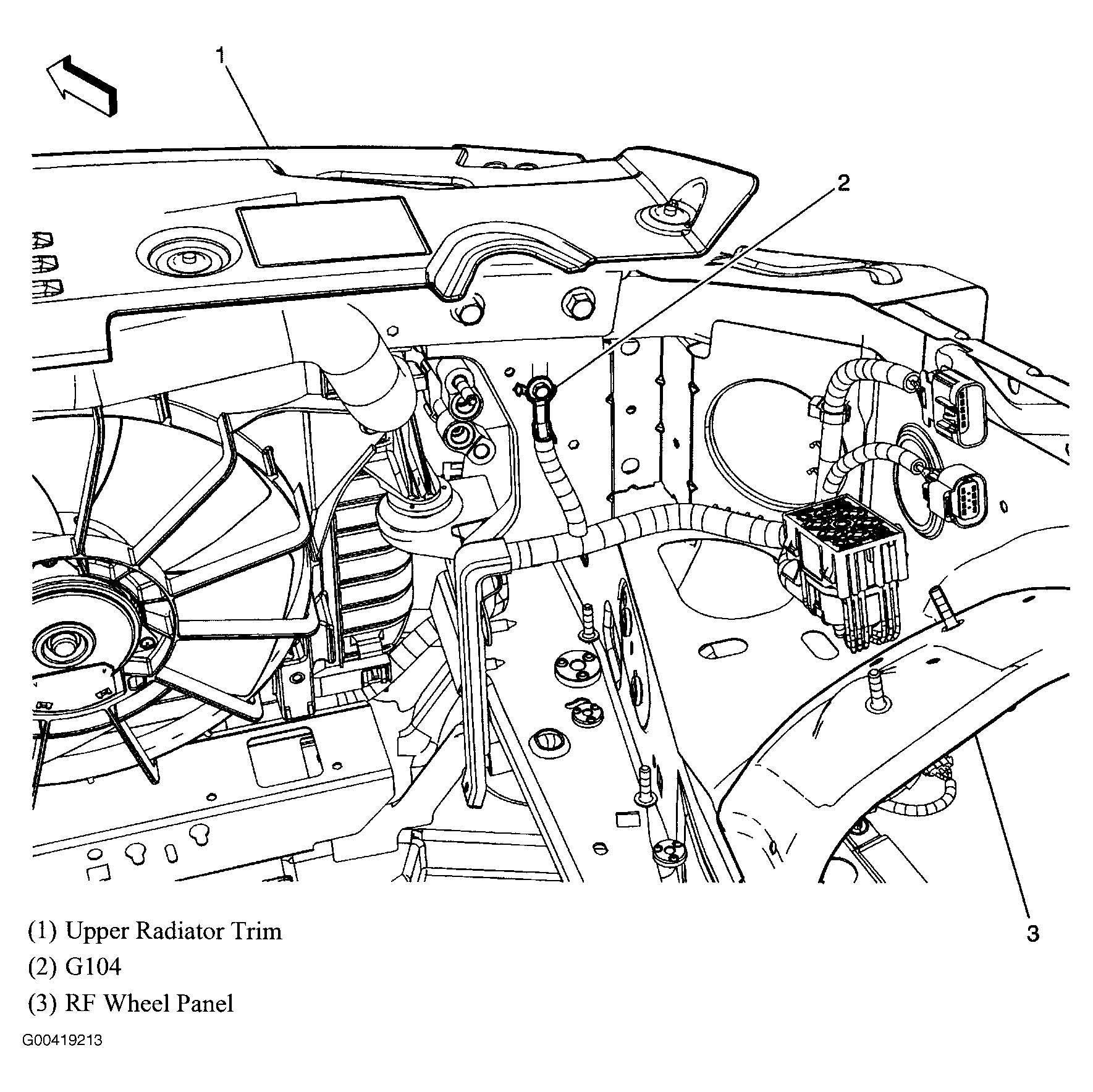

Fig 31: Right Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

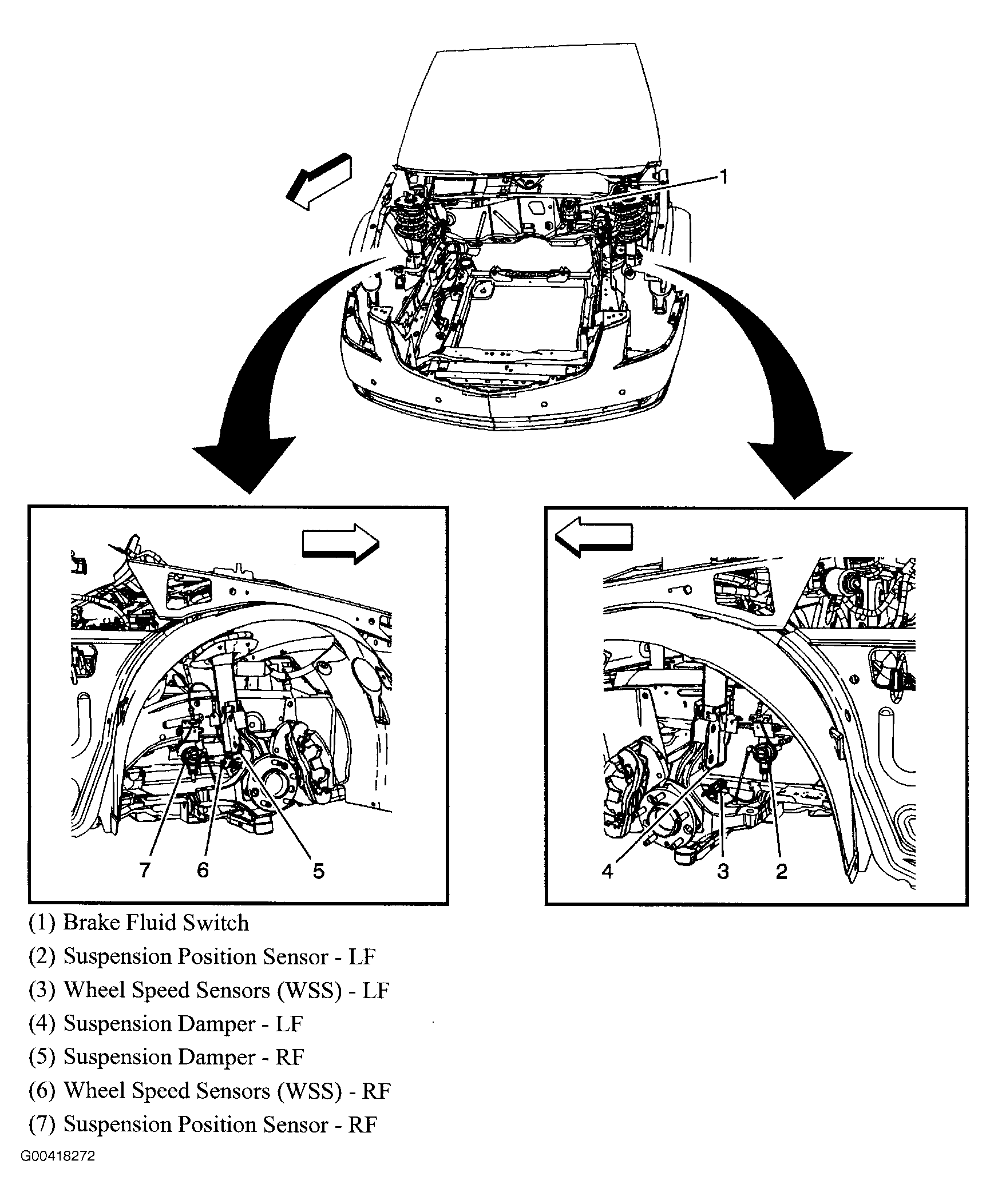

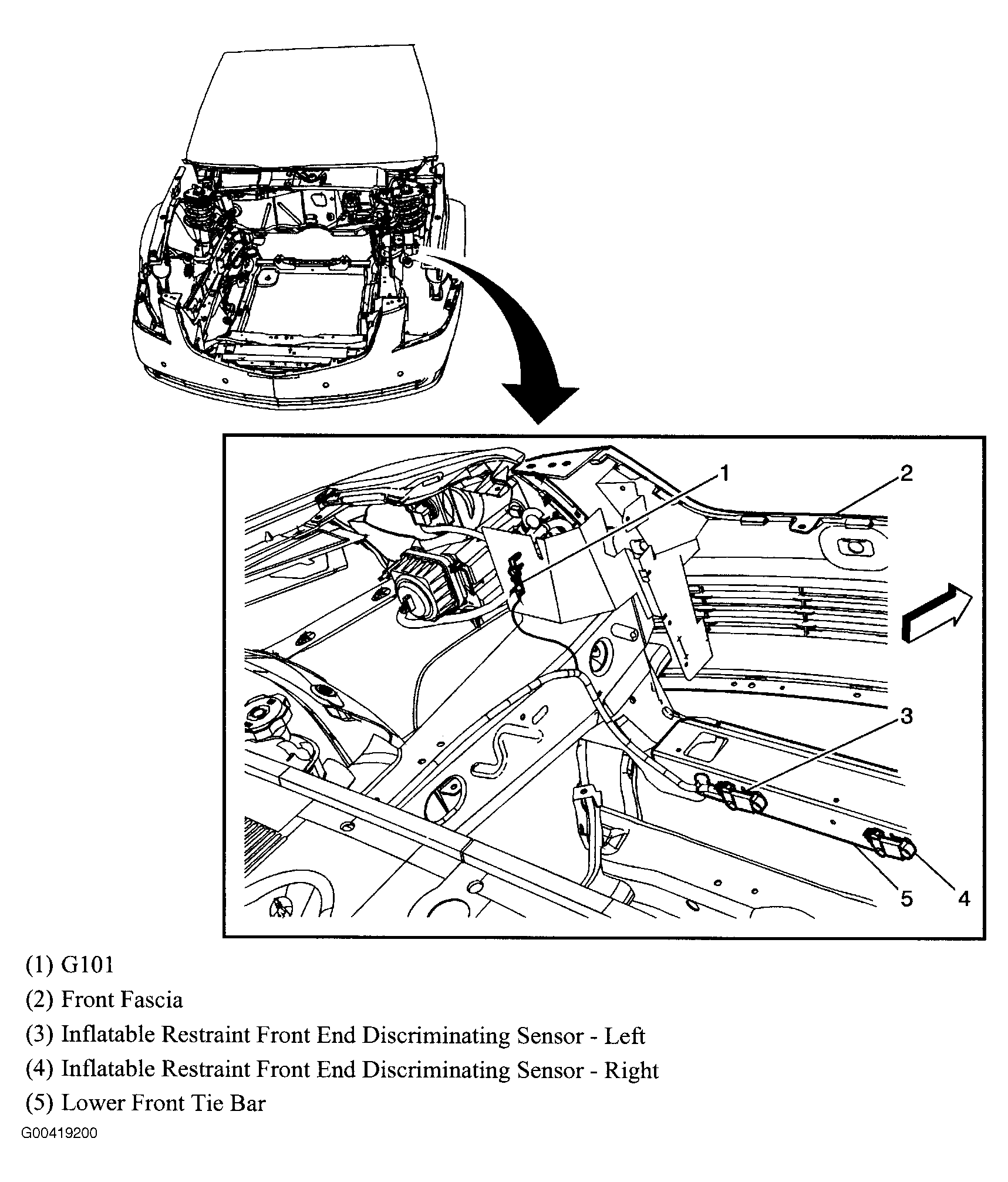

Fig 32: Front Of Vehicle
Courtesy of GENERAL MOTORS CORP.

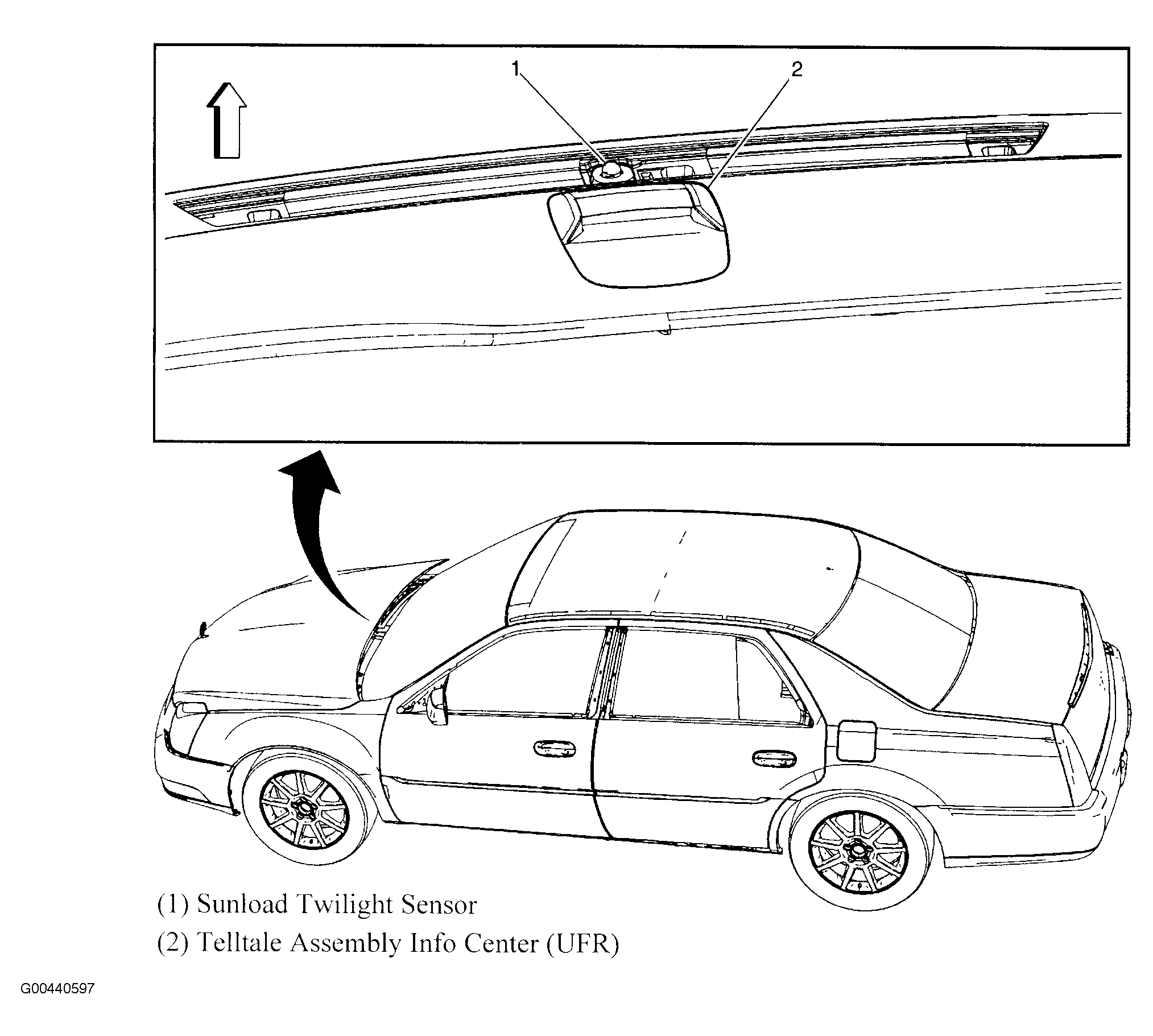

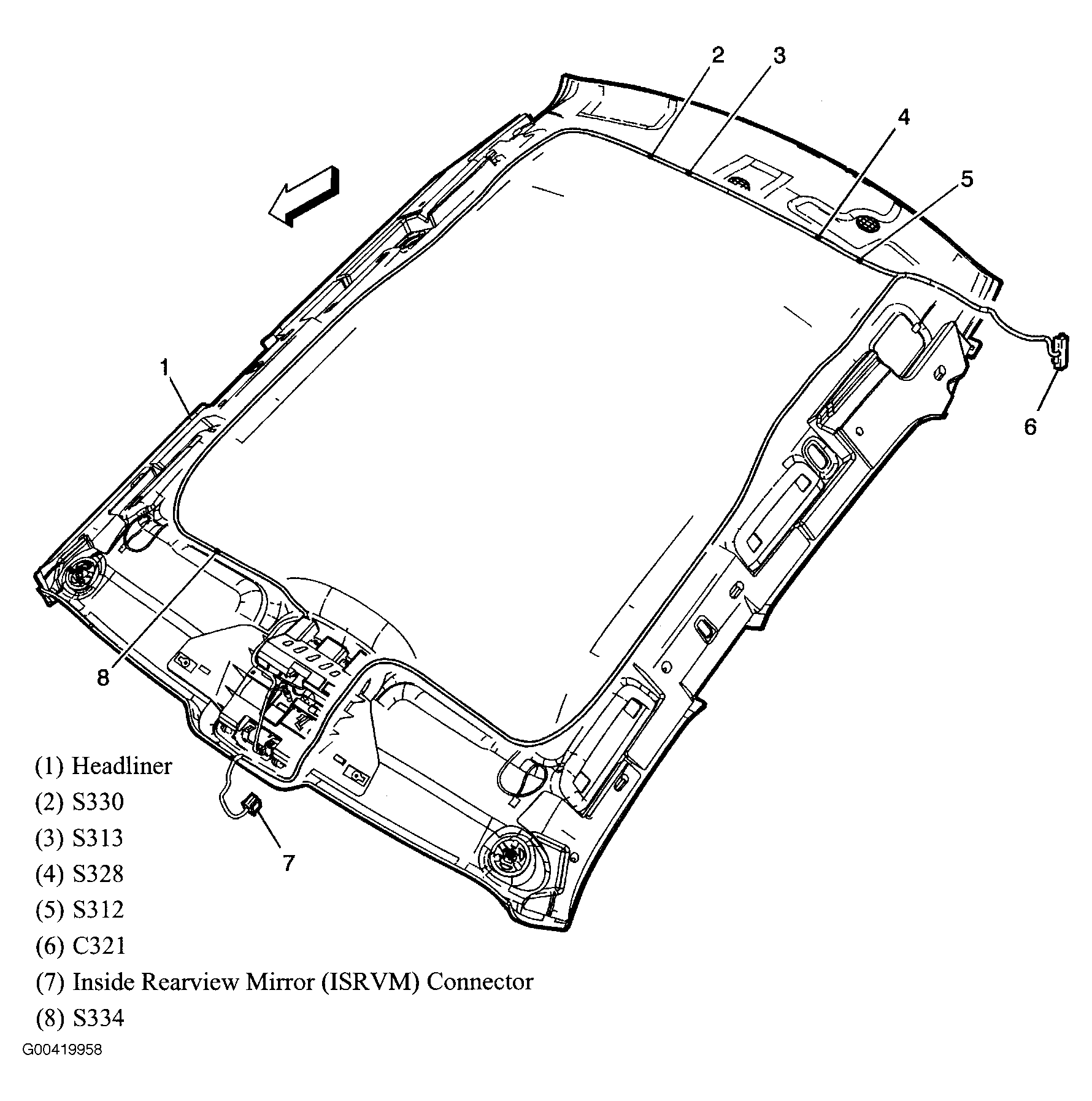

Fig 33: Roof
Courtesy of GENERAL MOTORS CORP.
Fig 34: Left Side Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 35: Front Of Dash
Courtesy of GENERAL MOTORS CORP.

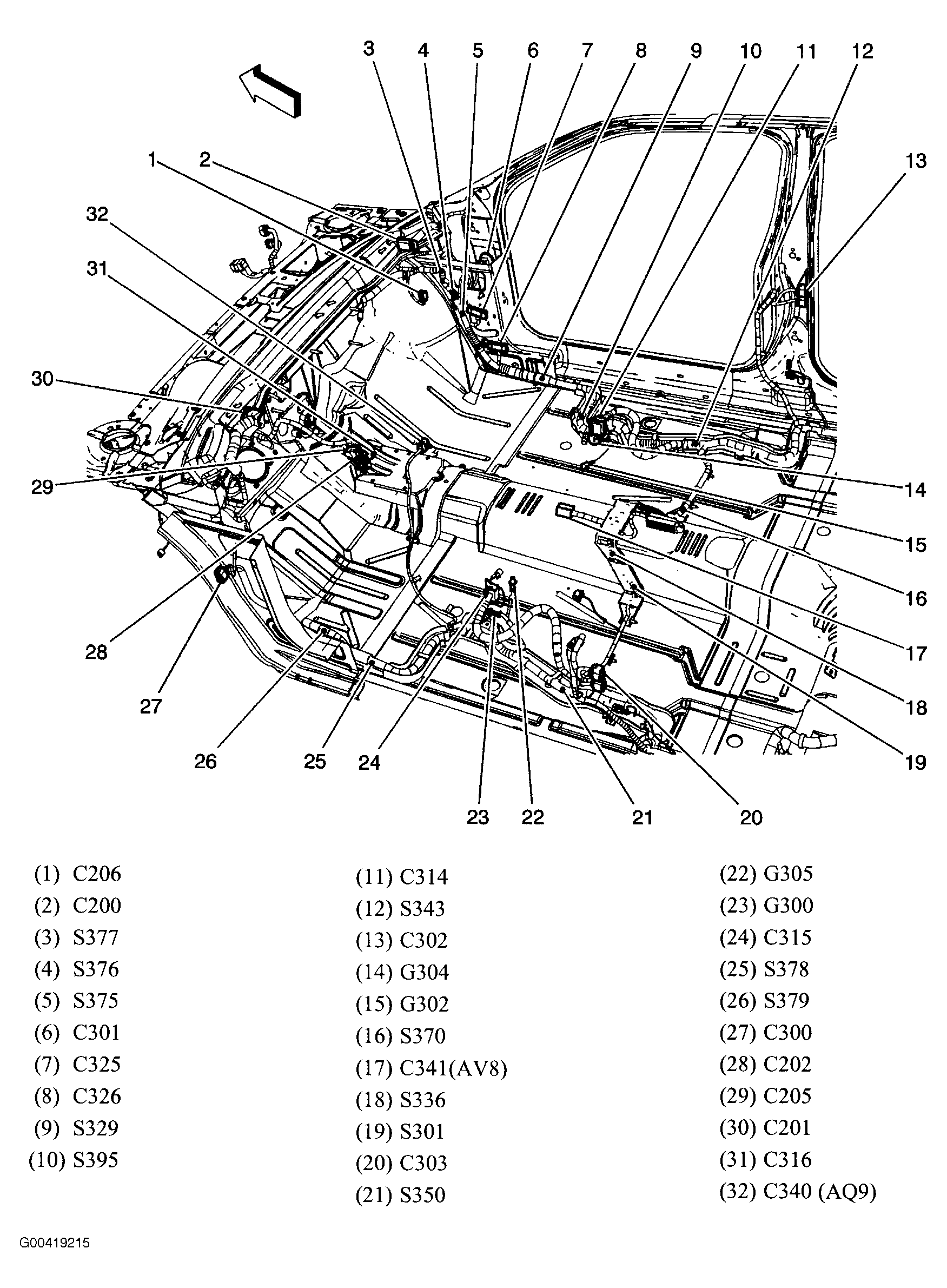

Fig 36: Left Side Of Front Passenger Area
Courtesy of GENERAL MOTORS CORP.
Fig 37: Right Side Of Rear Passenger Area
Courtesy of GENERAL MOTORS CORP.
Fig 38: Left Side Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

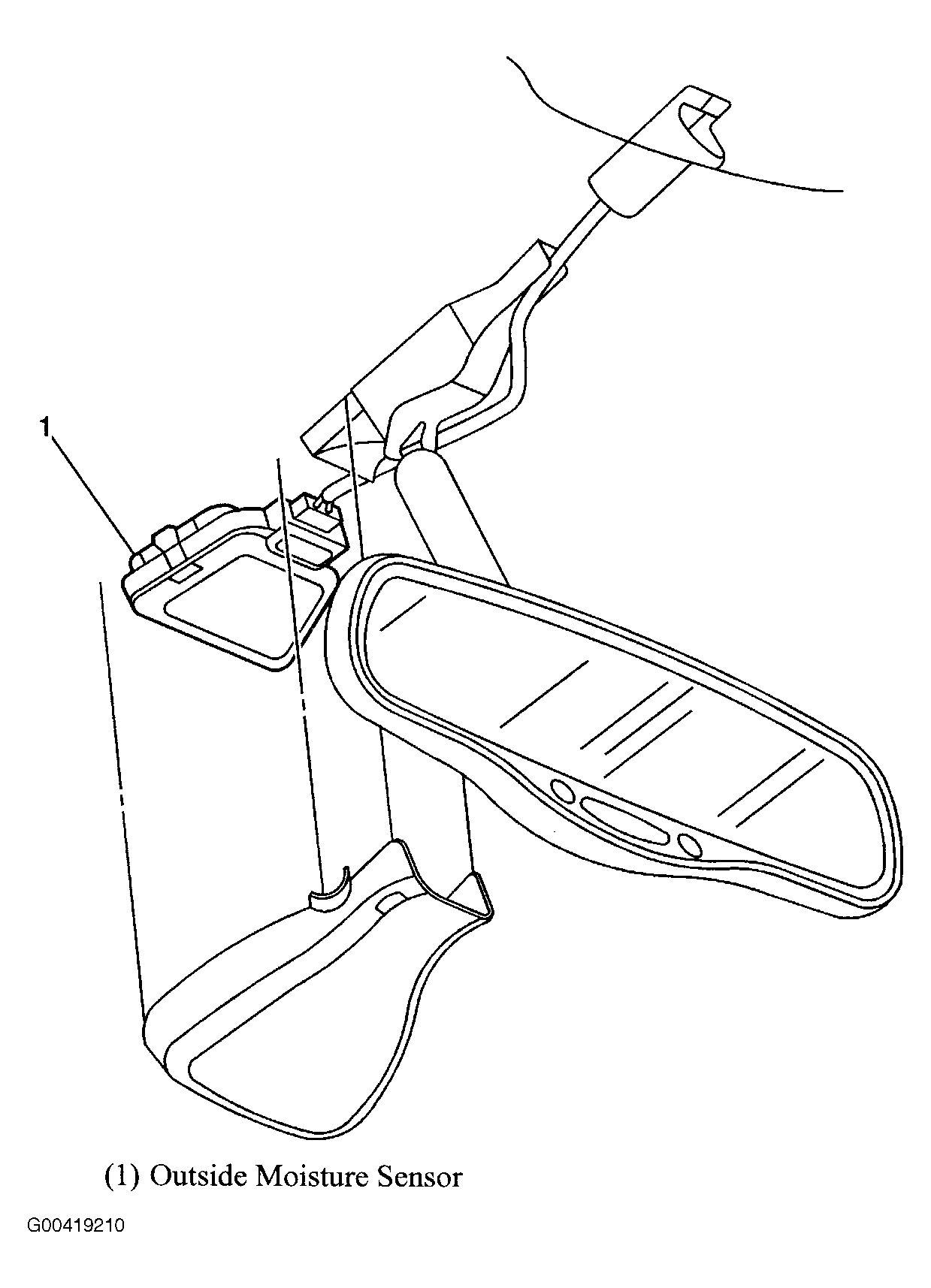

Fig 39: Upper Center Of Windshield
Courtesy of GENERAL MOTORS CORP.
Fig 40: Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

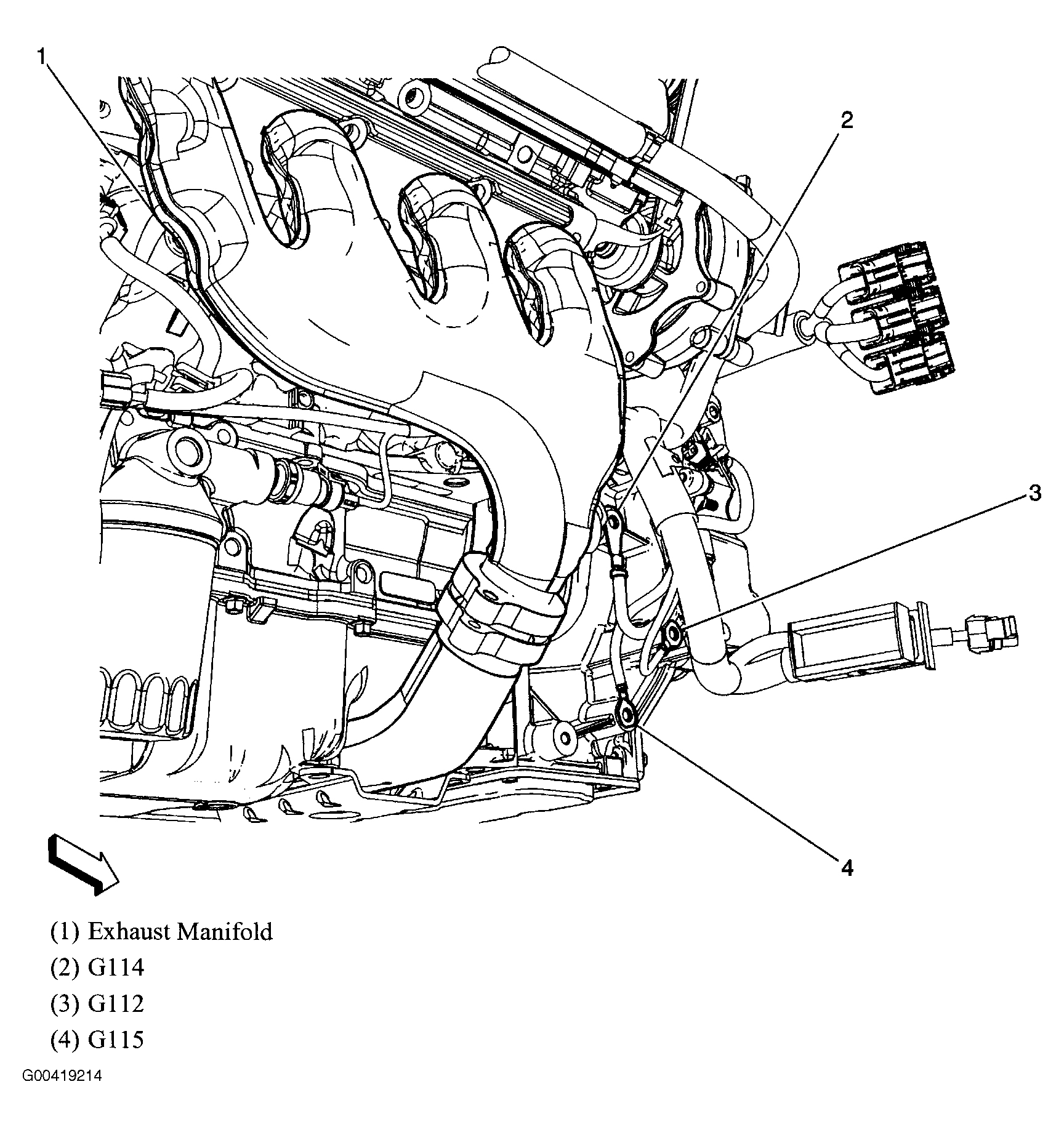

Fig 41: Right Rear Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 42: Right Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

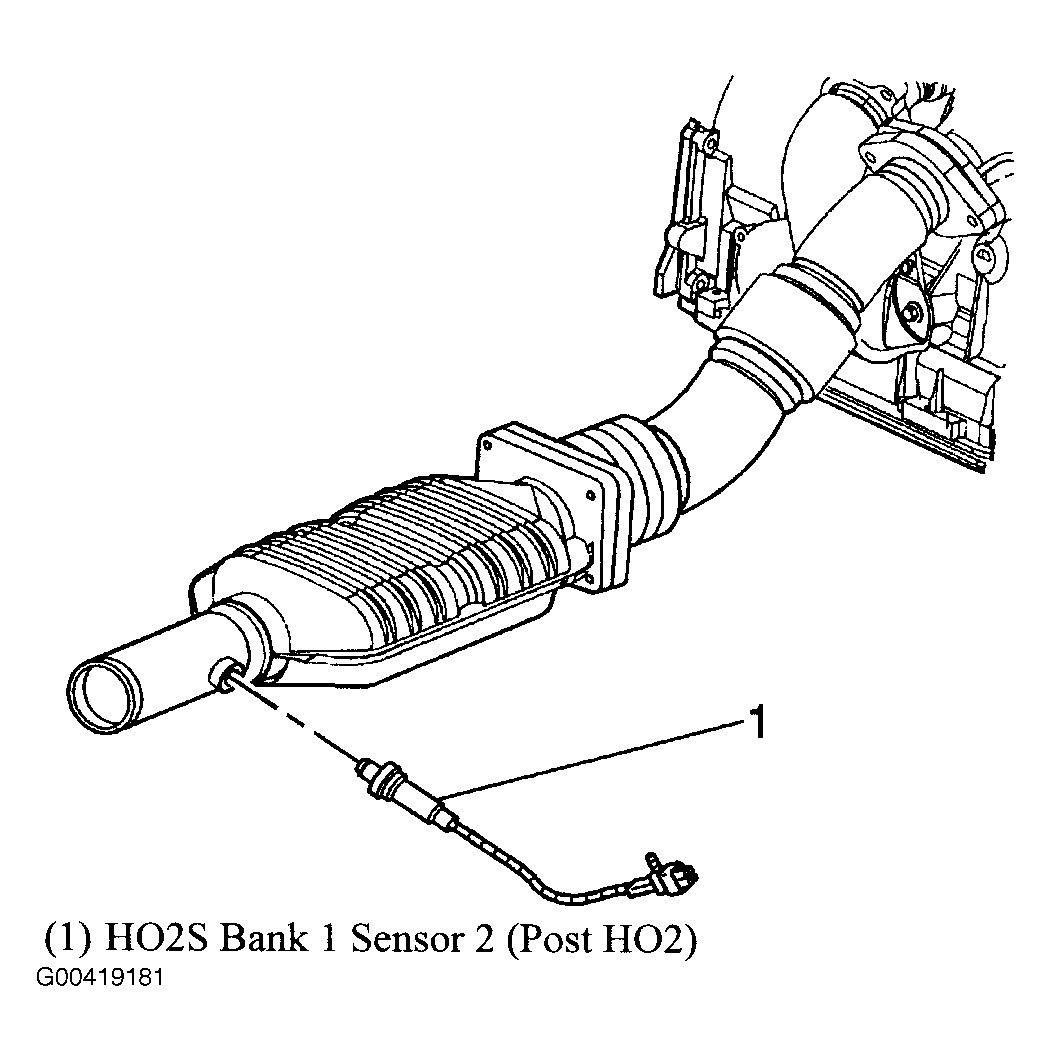

Fig 43: Lower Left Side Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 44: Right Side Of Front Passenger Area
Courtesy of GENERAL MOTORS CORP.

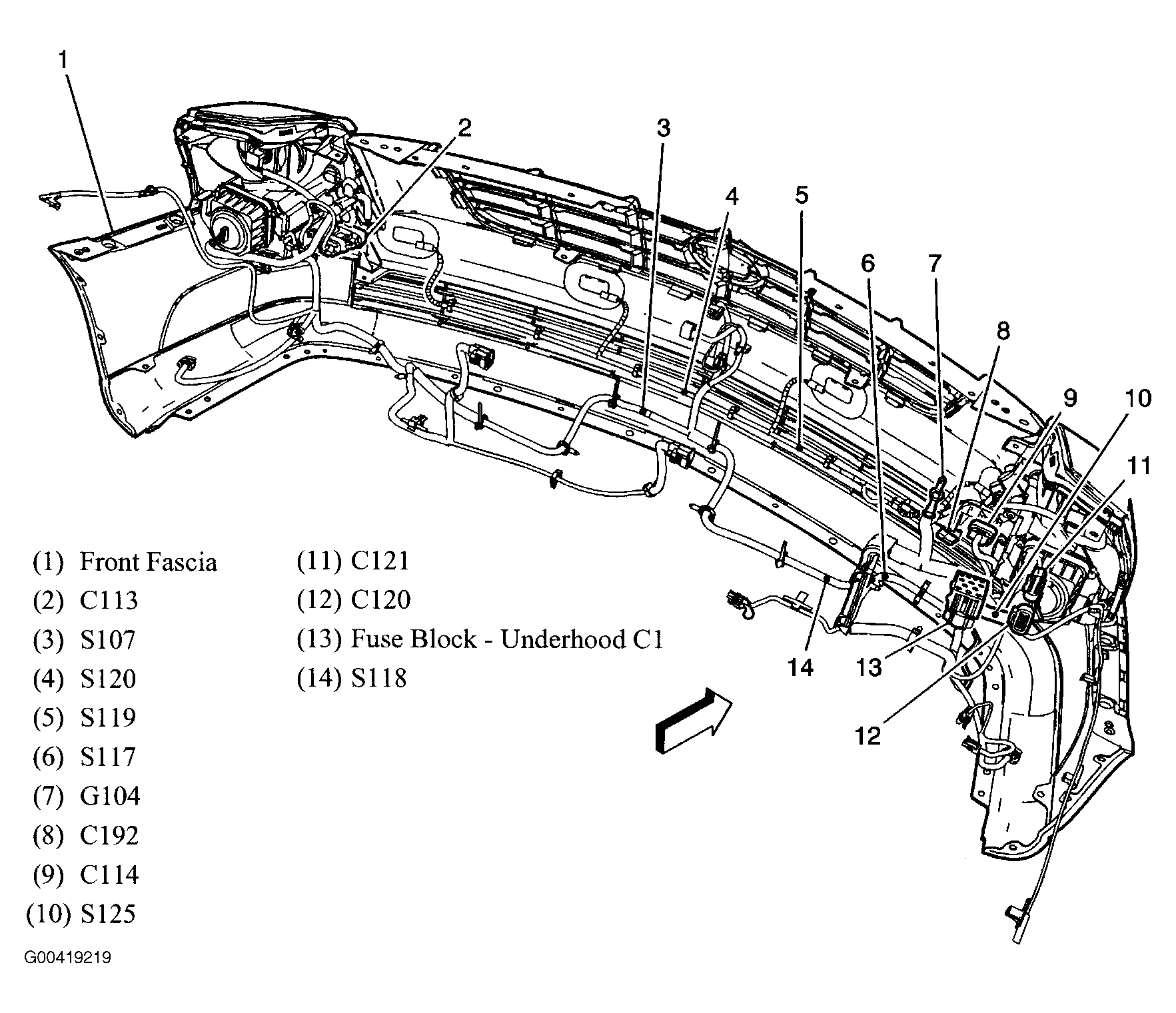

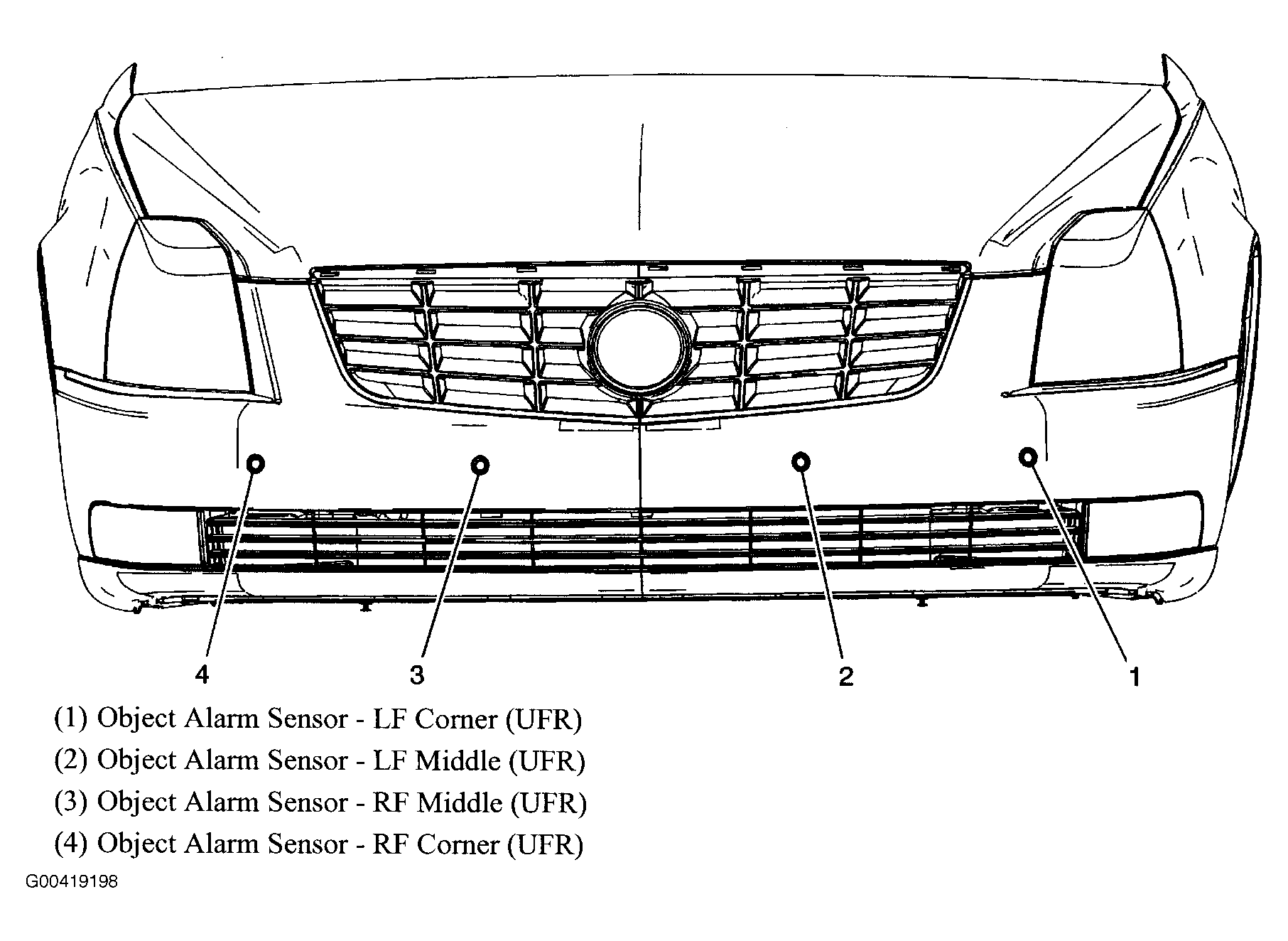

Fig 45: Front Fascia
Courtesy of GENERAL MOTORS CORP.
Fig 46: Left Side Of Engine (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 47: Left Side Of Engine (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 48: Right Side Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 49: Top Of Engine
Courtesy of GENERAL MOTORS CORP.

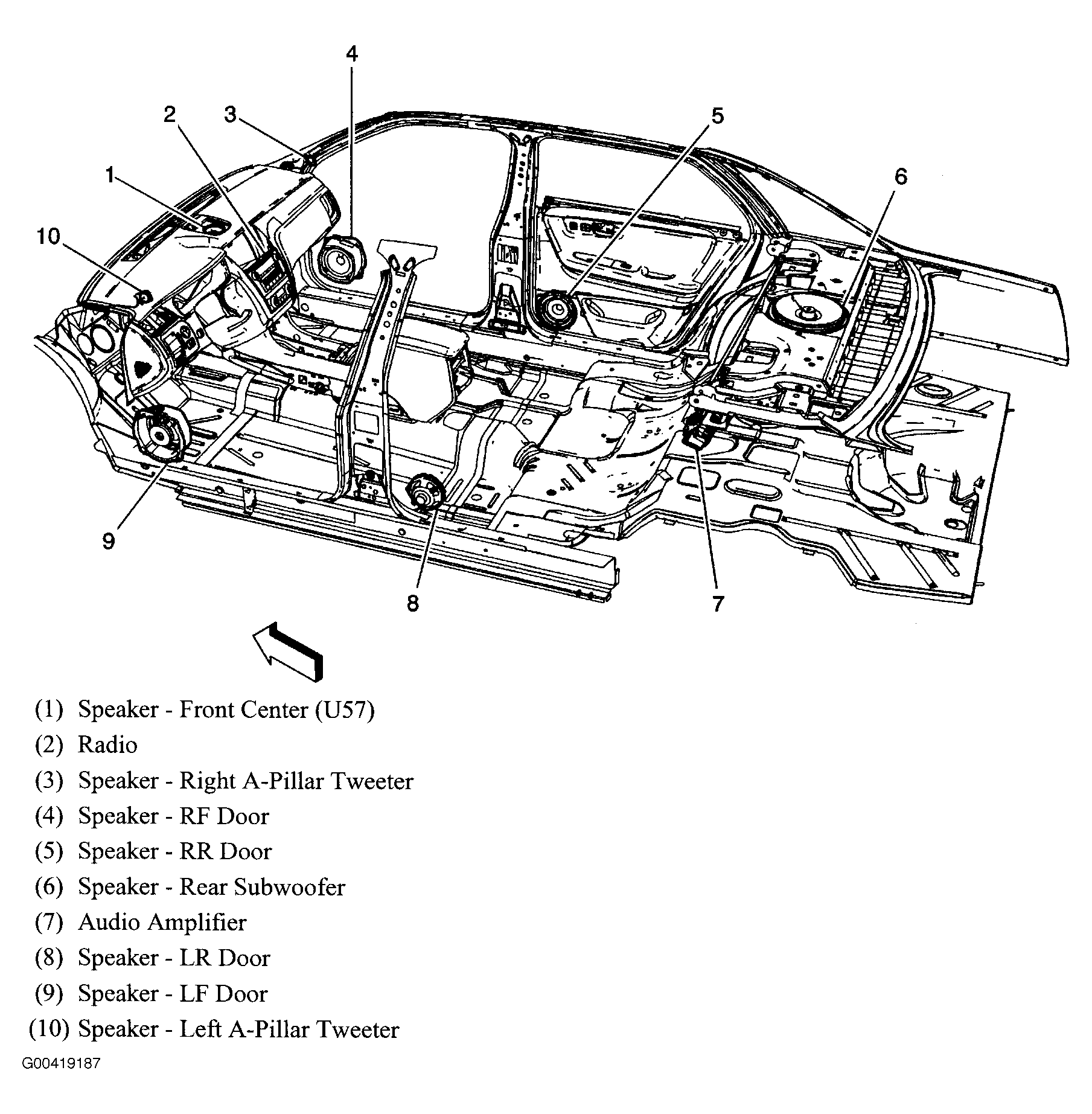

Fig 50: Vehicle Overview
Courtesy of GENERAL MOTORS CORP.
Fig 51: Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

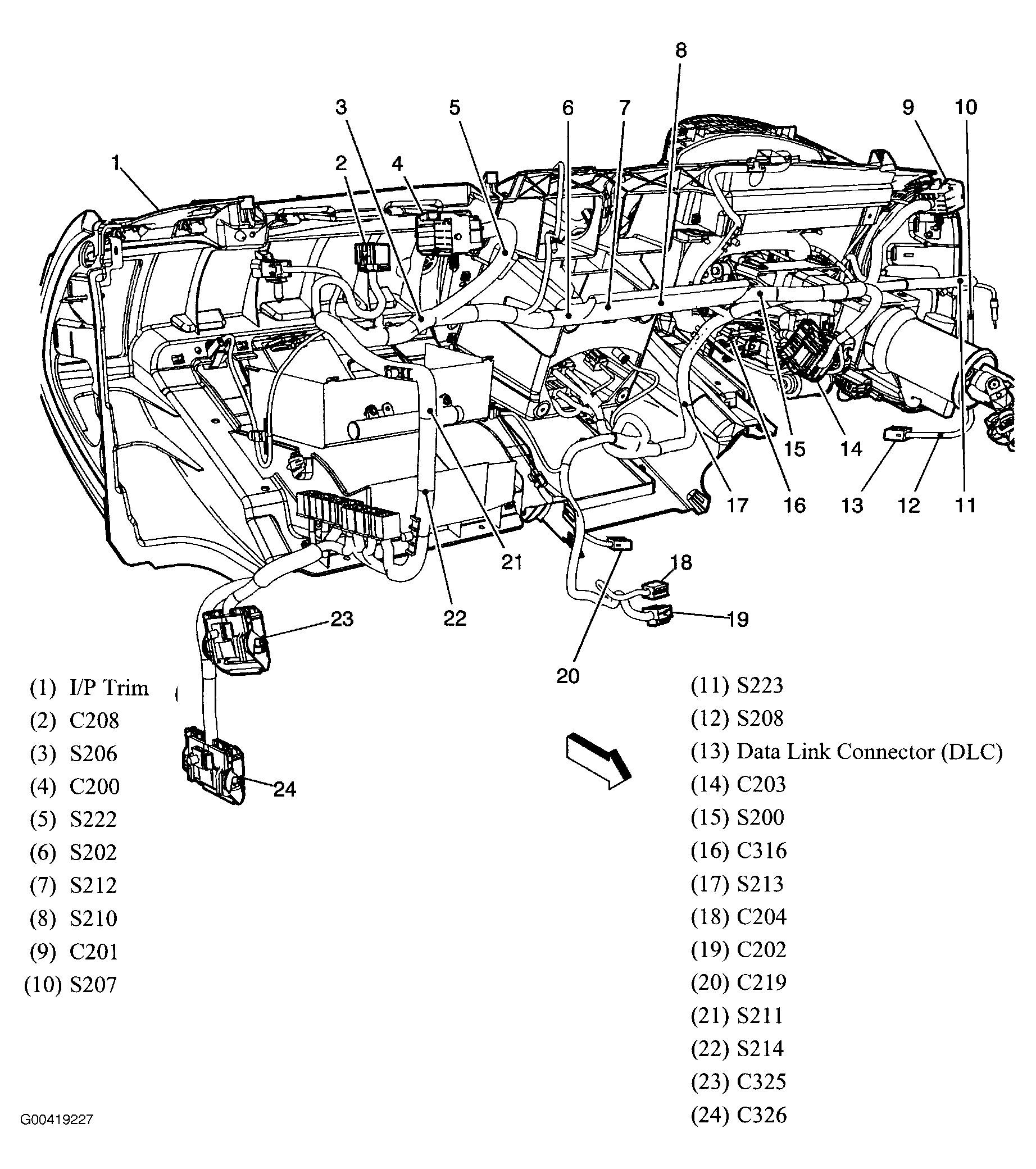

Fig 52: Rear Of Dash
Courtesy of GENERAL MOTORS CORP.

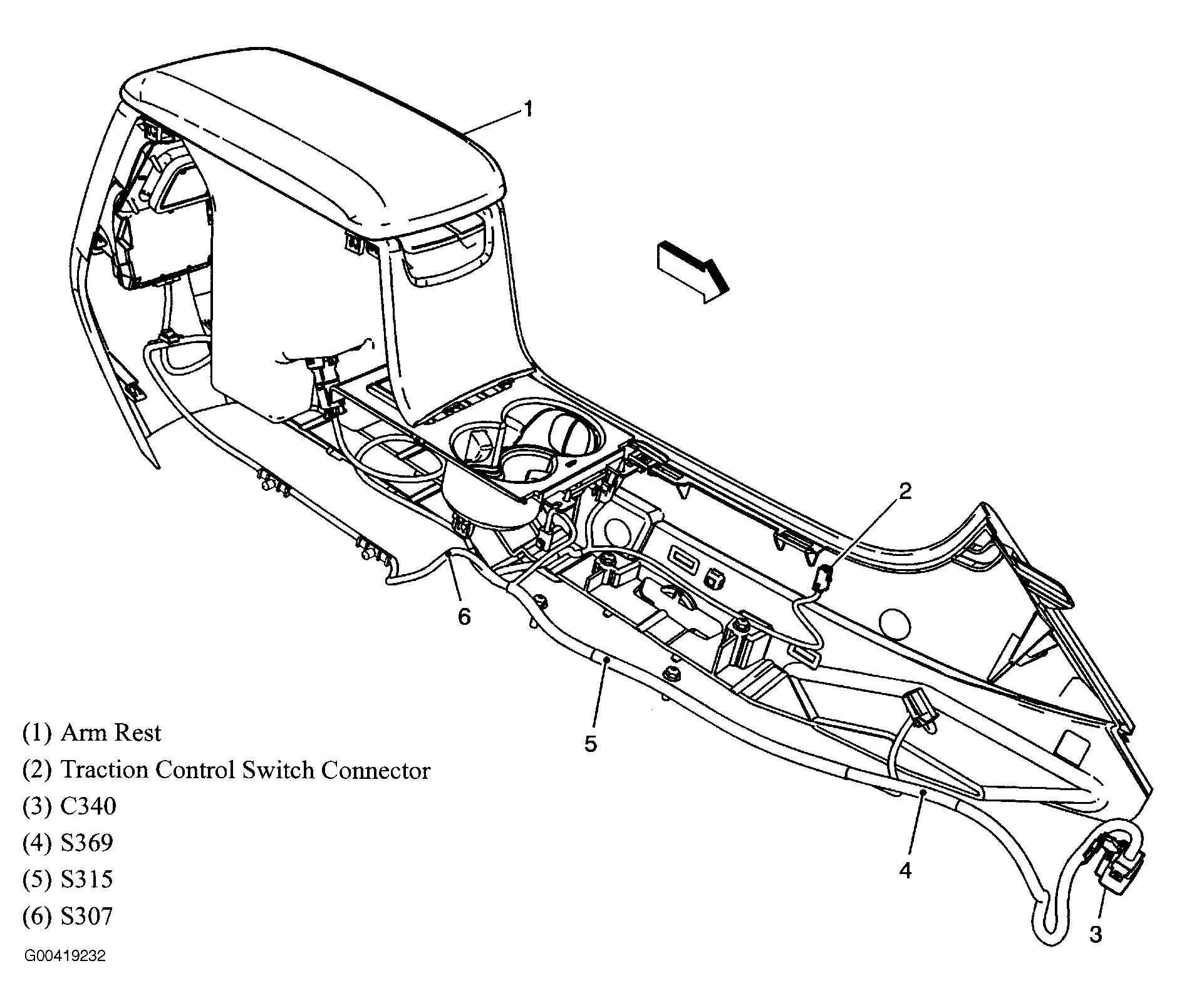

Fig 53: Center Floor Console
Courtesy of GENERAL MOTORS CORP.
Fig 54: Front Passenger's Door
Courtesy of GENERAL MOTORS CORP.

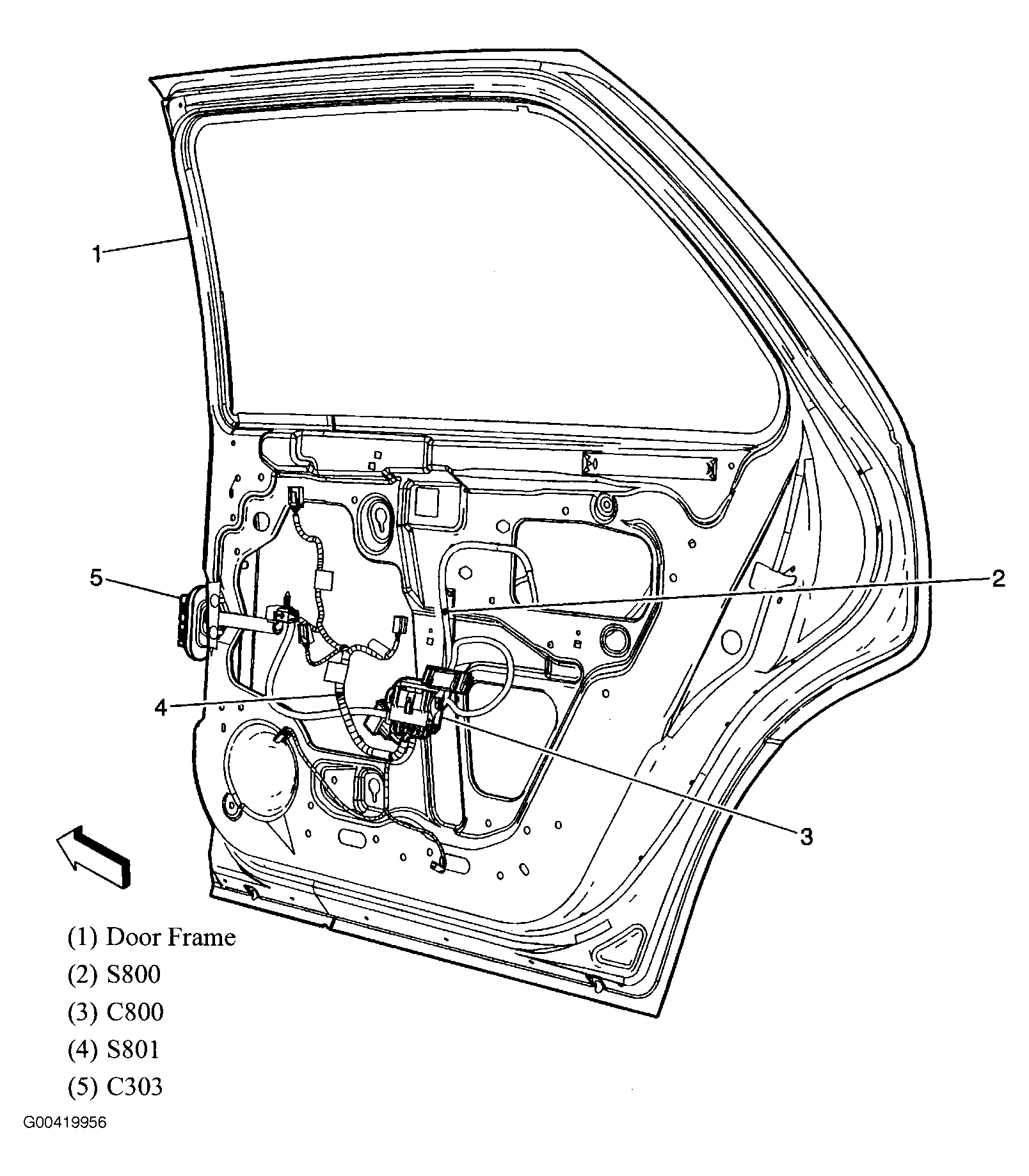

Fig 55: Left Rear Door
Courtesy of GENERAL MOTORS CORP.
Fig 56: Right Rear Door
Courtesy of GENERAL MOTORS CORP.

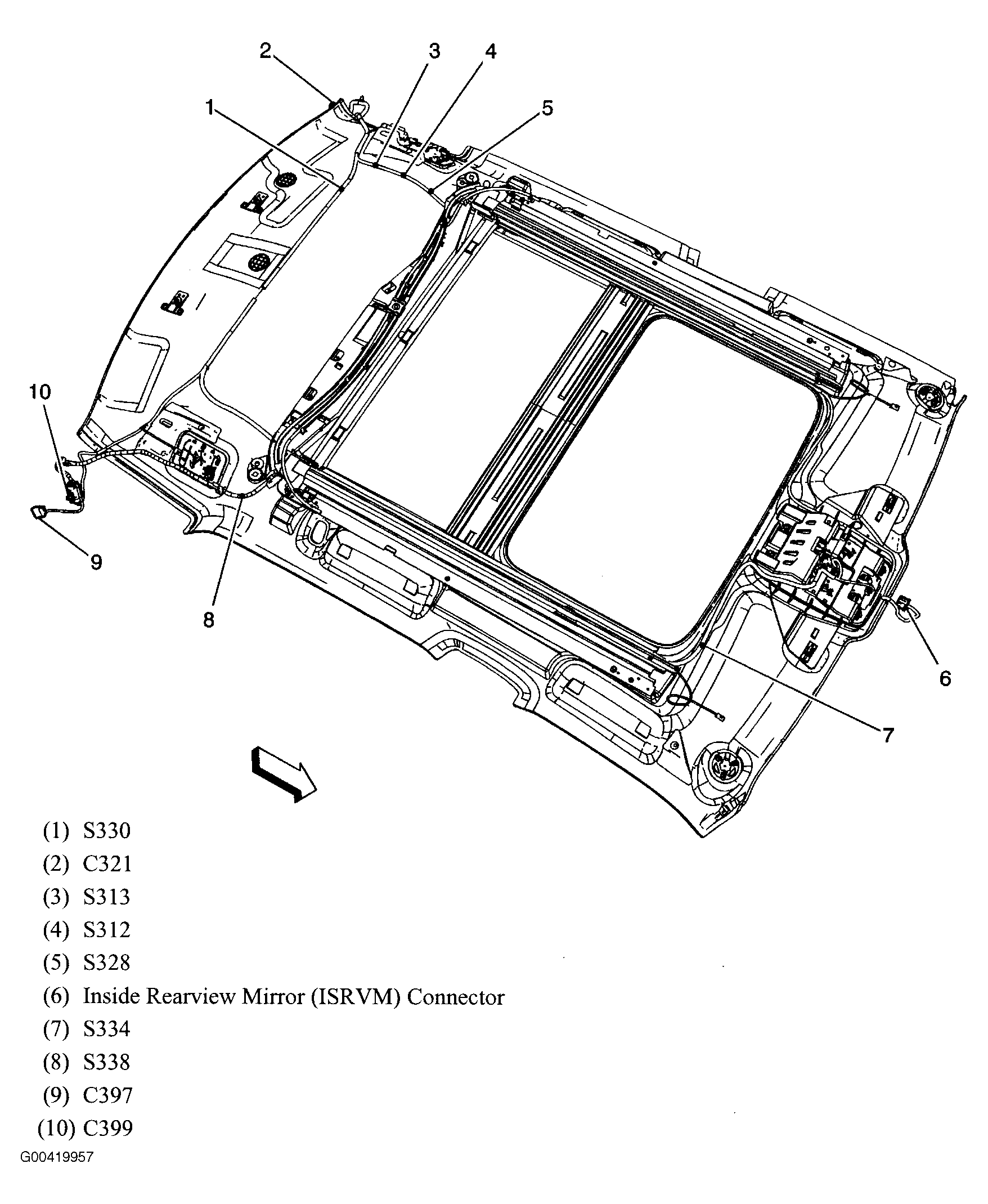

Fig 57: Roof (W/Sunroof)
Courtesy of GENERAL MOTORS CORP.
Fig 58: Roof (W/O Sunroof)
Courtesy of GENERAL MOTORS CORP.

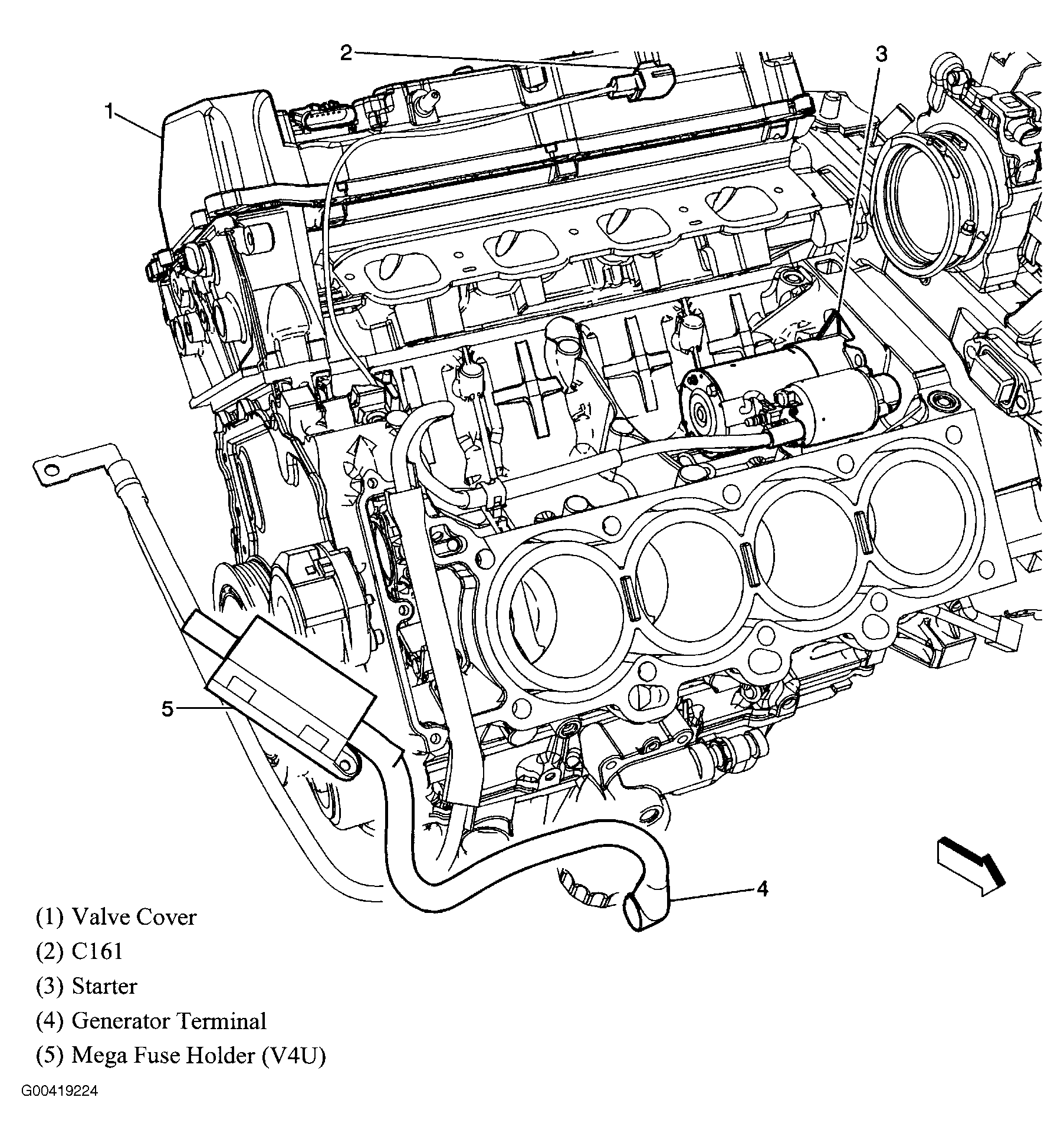

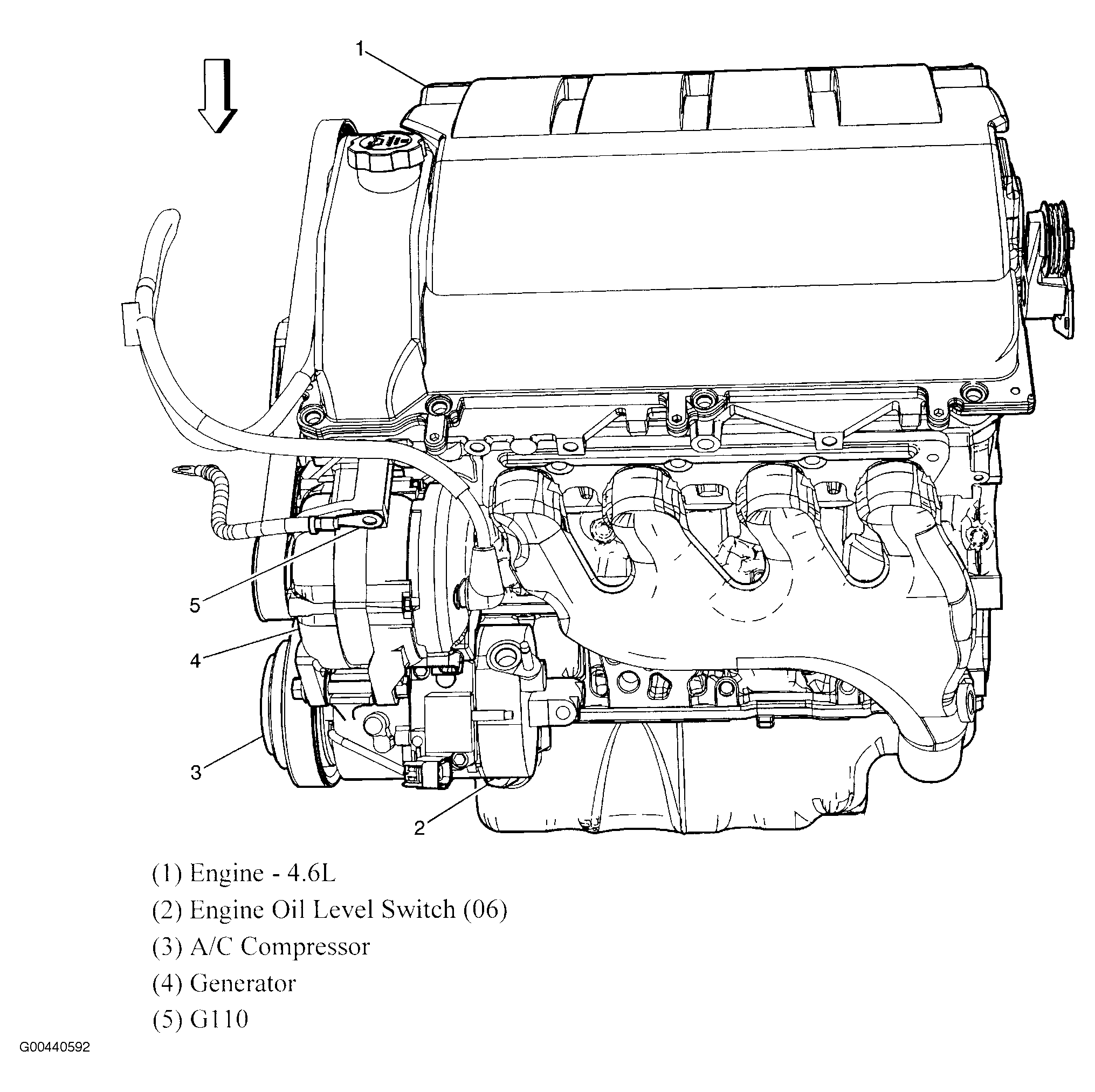

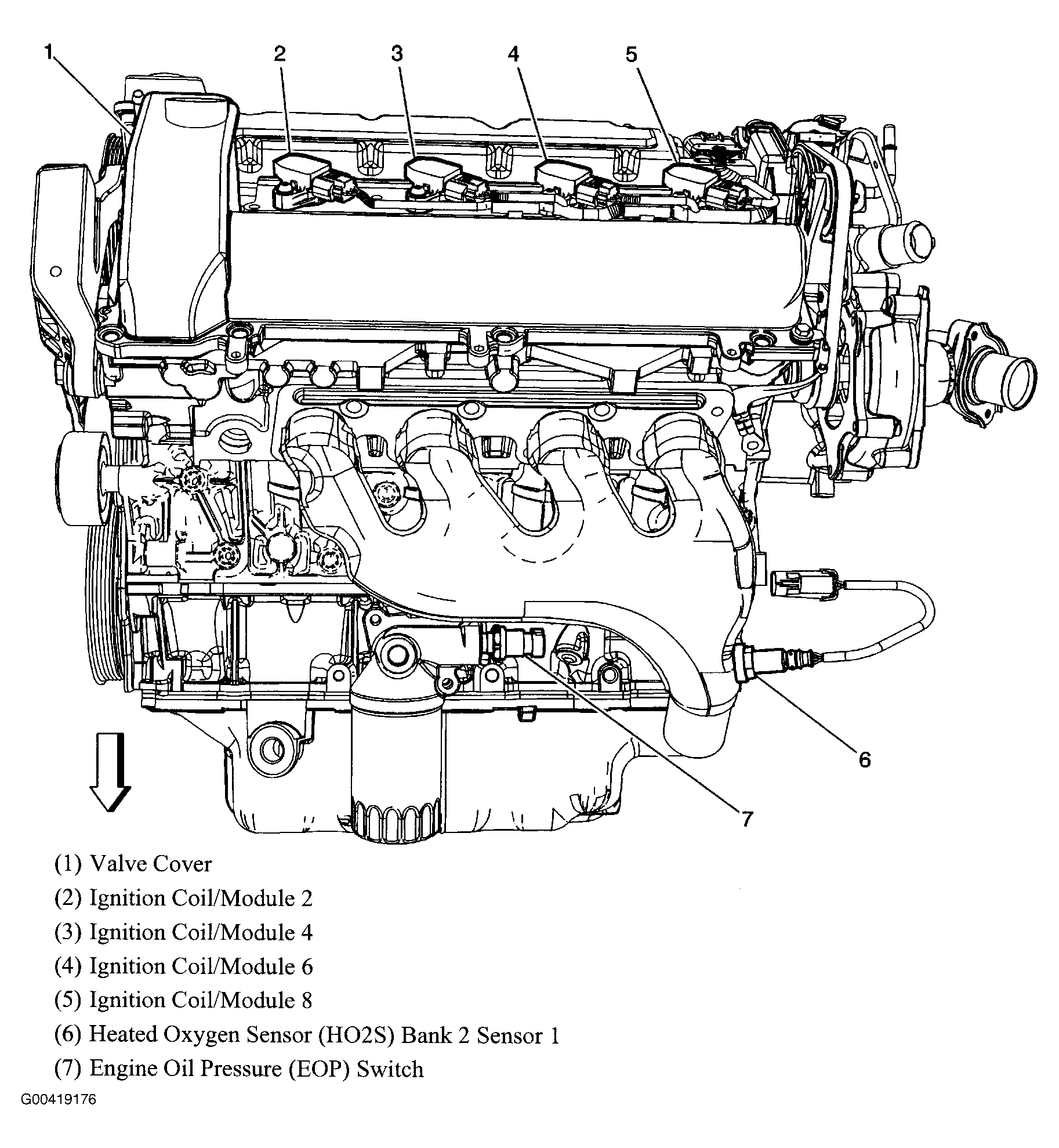

Fig 59: Left Side Of Engine (4.6L)
Courtesy of GENERAL MOTORS CORP.
Fig 60: Left Front Corner Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

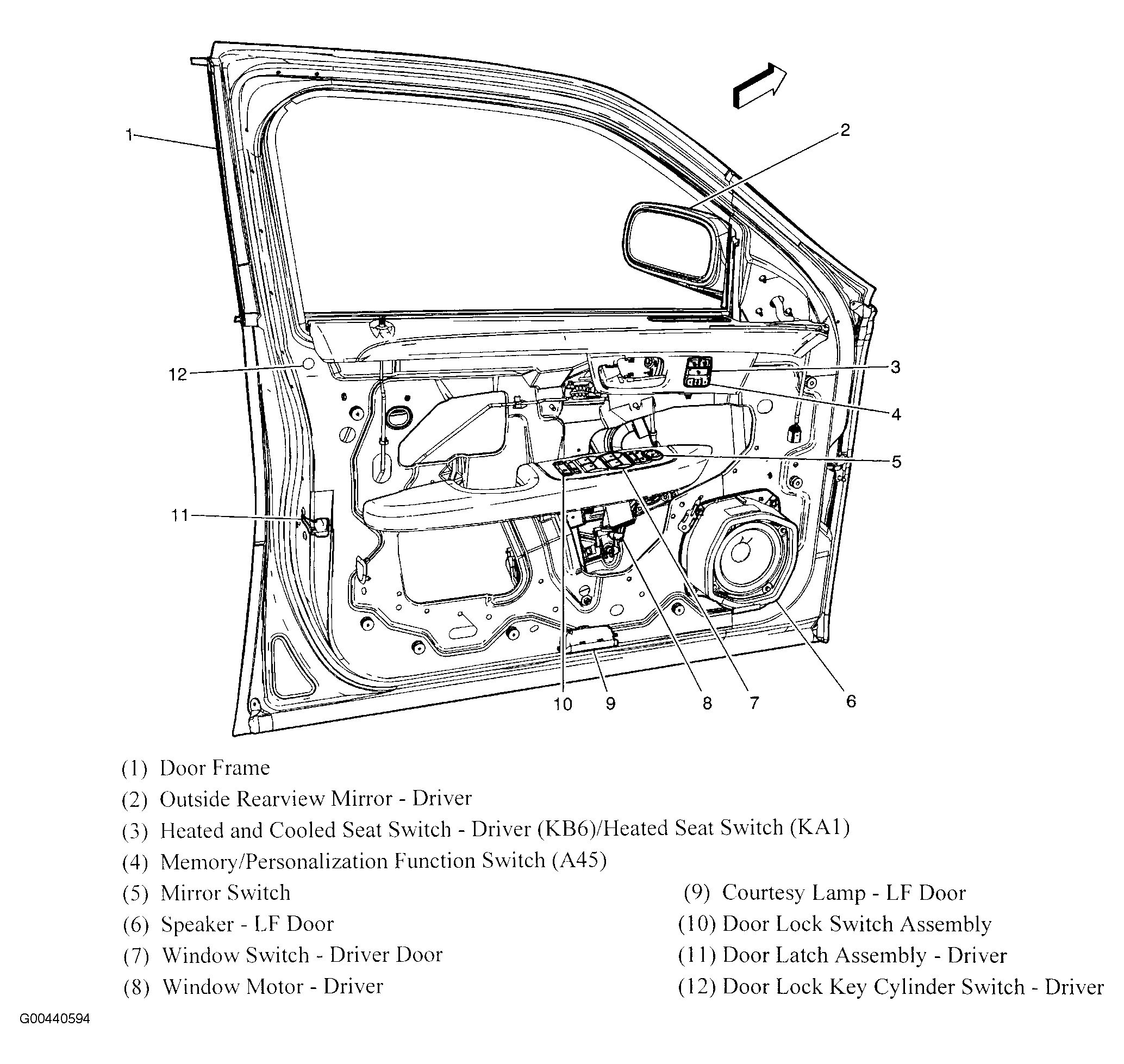

Fig 61: Driver Door Components
Courtesy of GENERAL MOTORS CORP.

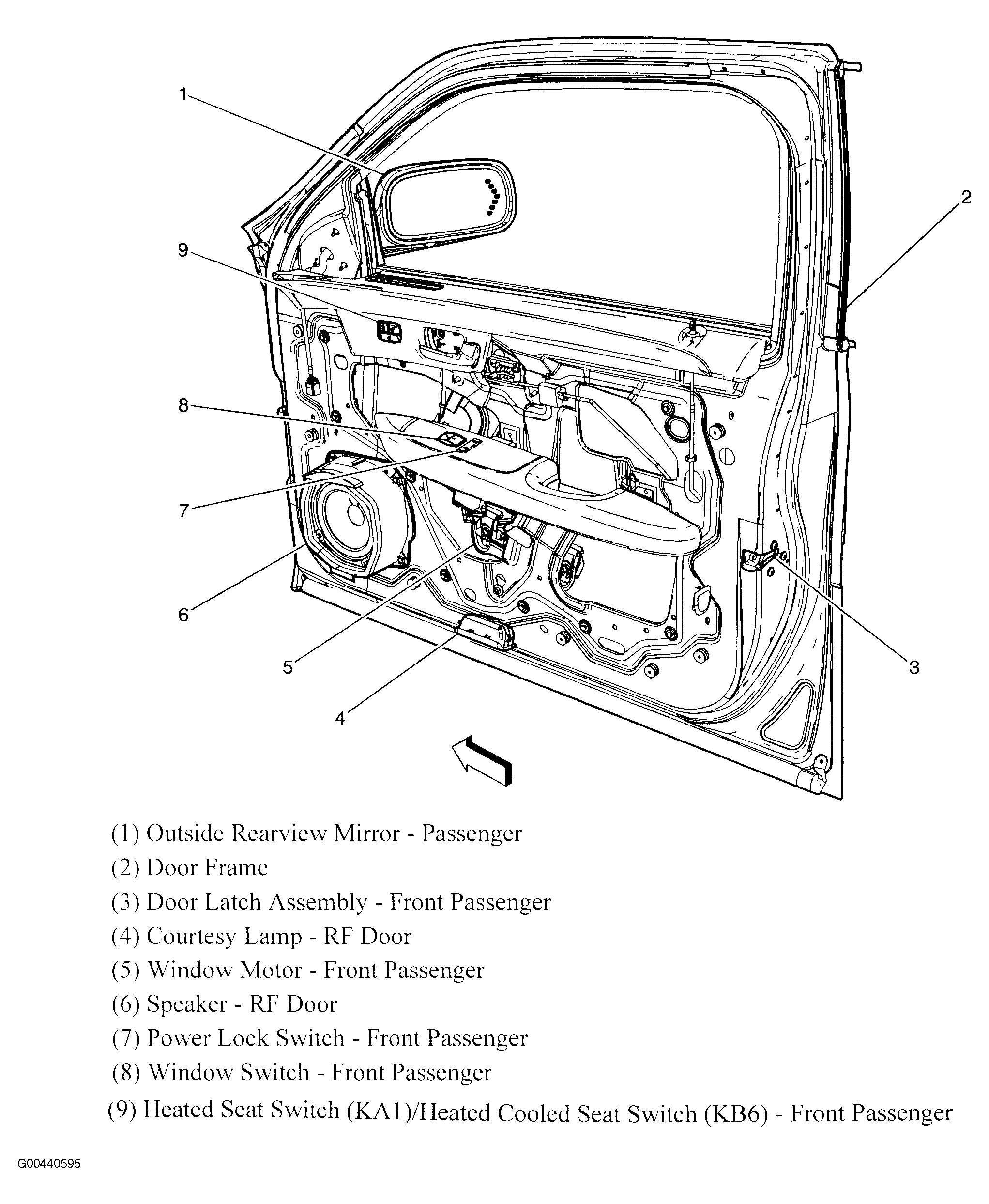

Fig 62: Passenger Door Components
Courtesy of GENERAL MOTORS CORP.
Fig 63: Steering Wheel Components
Courtesy of GENERAL MOTORS CORP.
Fig 64: Center Of Dash
Courtesy of GENERAL MOTORS CORP.

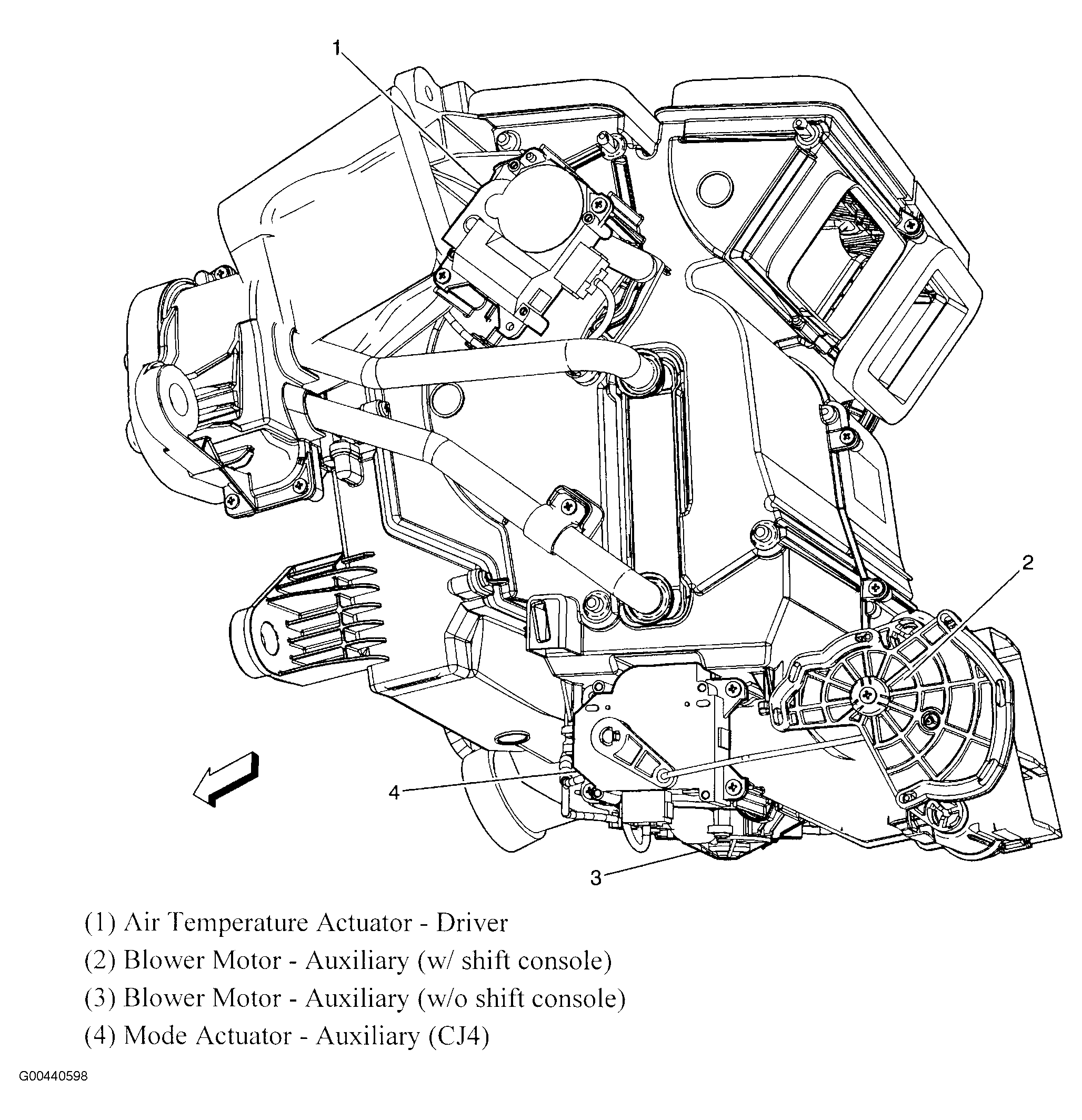

Fig 65: HVAC Module Components
Courtesy of GENERAL MOTORS CORP.
Fig 66: HVAC Module Components
Courtesy of GENERAL MOTORS CORP.
Fig 67: Dash Components
Courtesy of GENERAL MOTORS CORP.

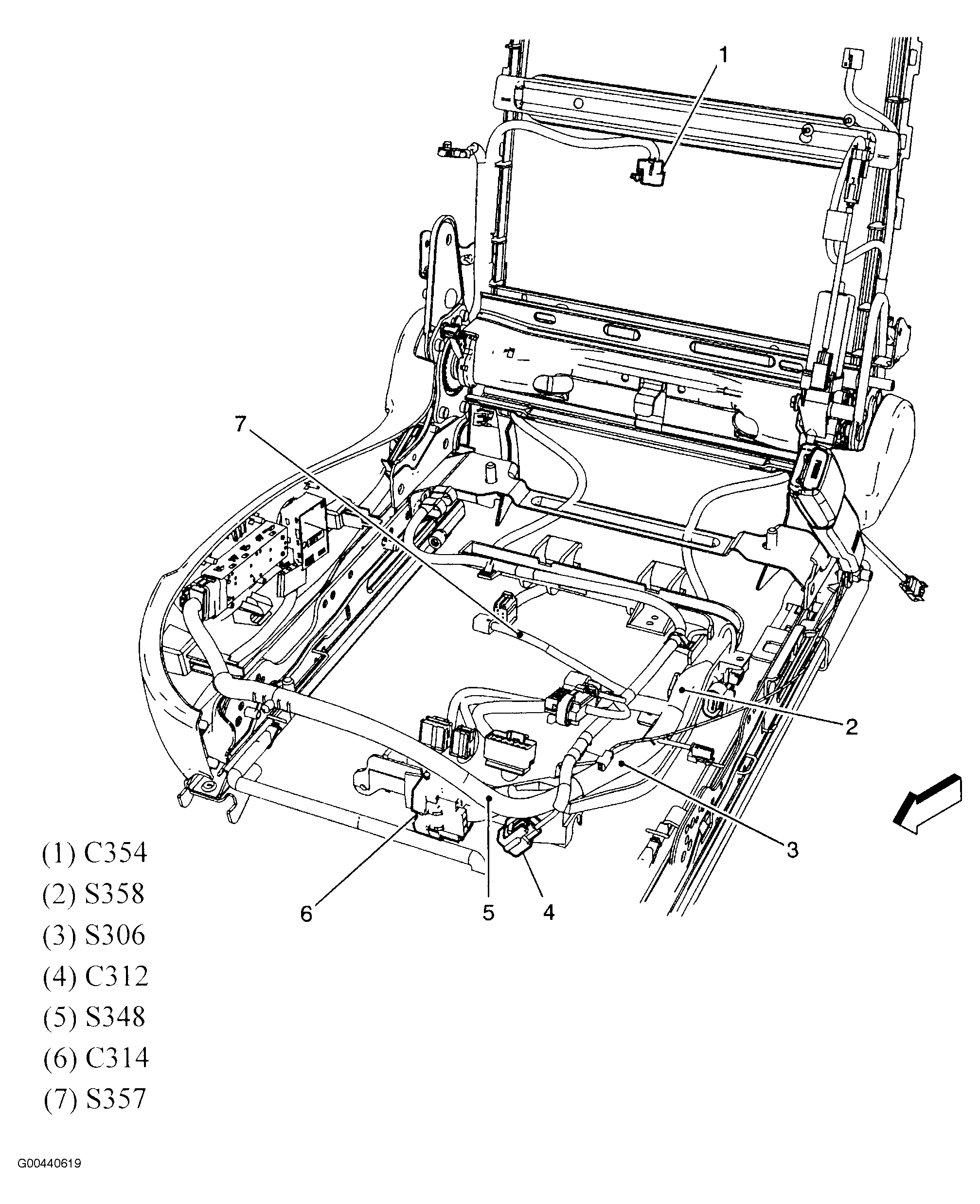

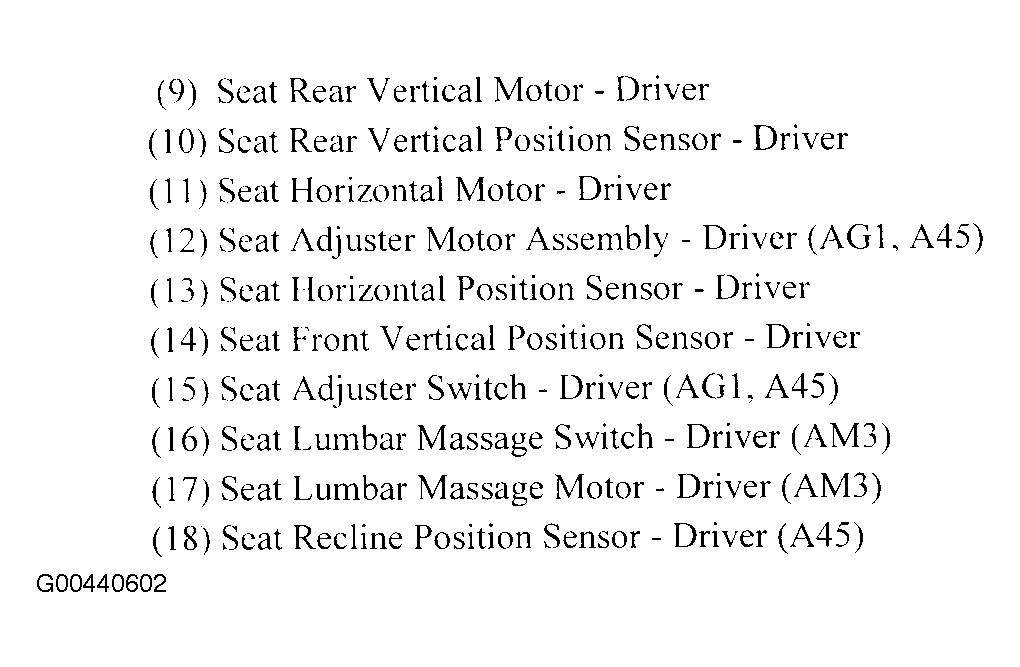

Fig 68: Driver Seat (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 69: Driver Seat (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 70: Passenger Seat (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 71: Passenger Seat (2 Of 2)
Courtesy of GENERAL MOTORS CORP.

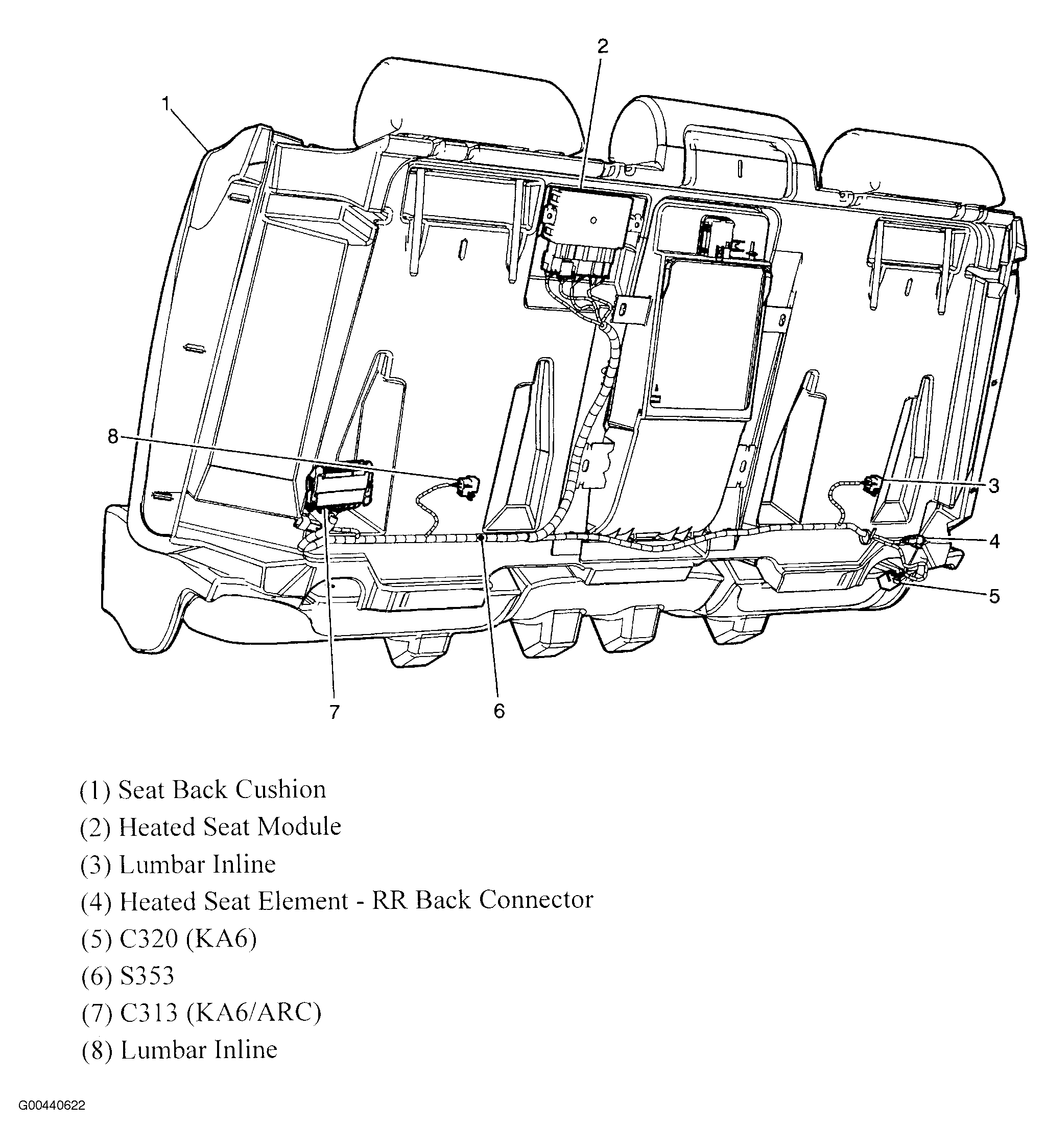

Fig 72: Rear Seat Components
Courtesy of GENERAL MOTORS CORP.
Fig 73: Behind Right Rear Seat
Courtesy of GENERAL MOTORS CORP.
Fig 74: Overhead Console
Courtesy of GENERAL MOTORS CORP.

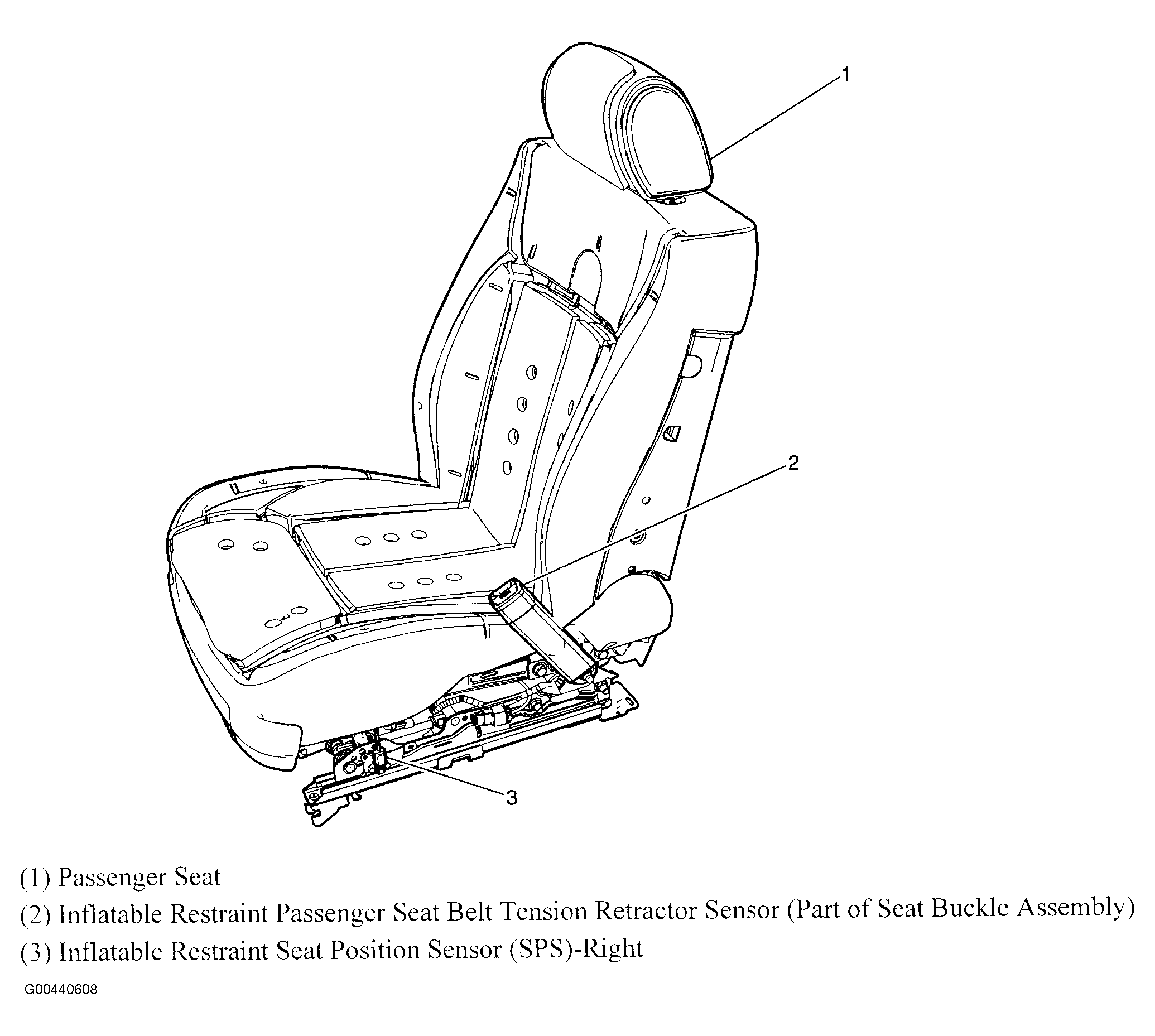

Fig 75: Passenger Seat
Courtesy of GENERAL MOTORS CORP.

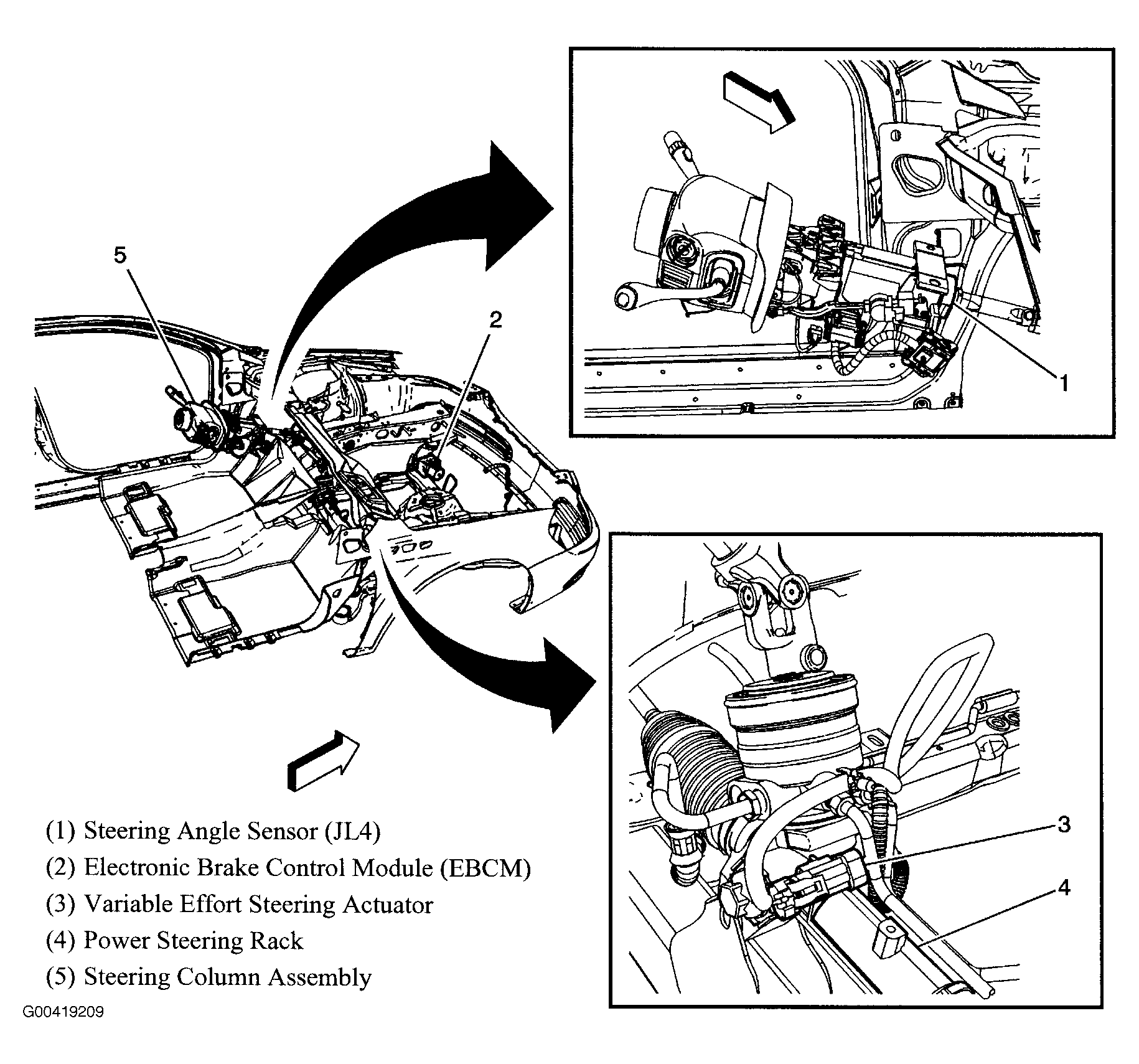

Fig 76: Steering Column Components
Courtesy of GENERAL MOTORS CORP.
Fig 77: Left Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 78: Rear Axle Area
Courtesy of GENERAL MOTORS CORP.
Fig 79: Right Rear Quaterpanel
Courtesy of GENERAL MOTORS CORP.

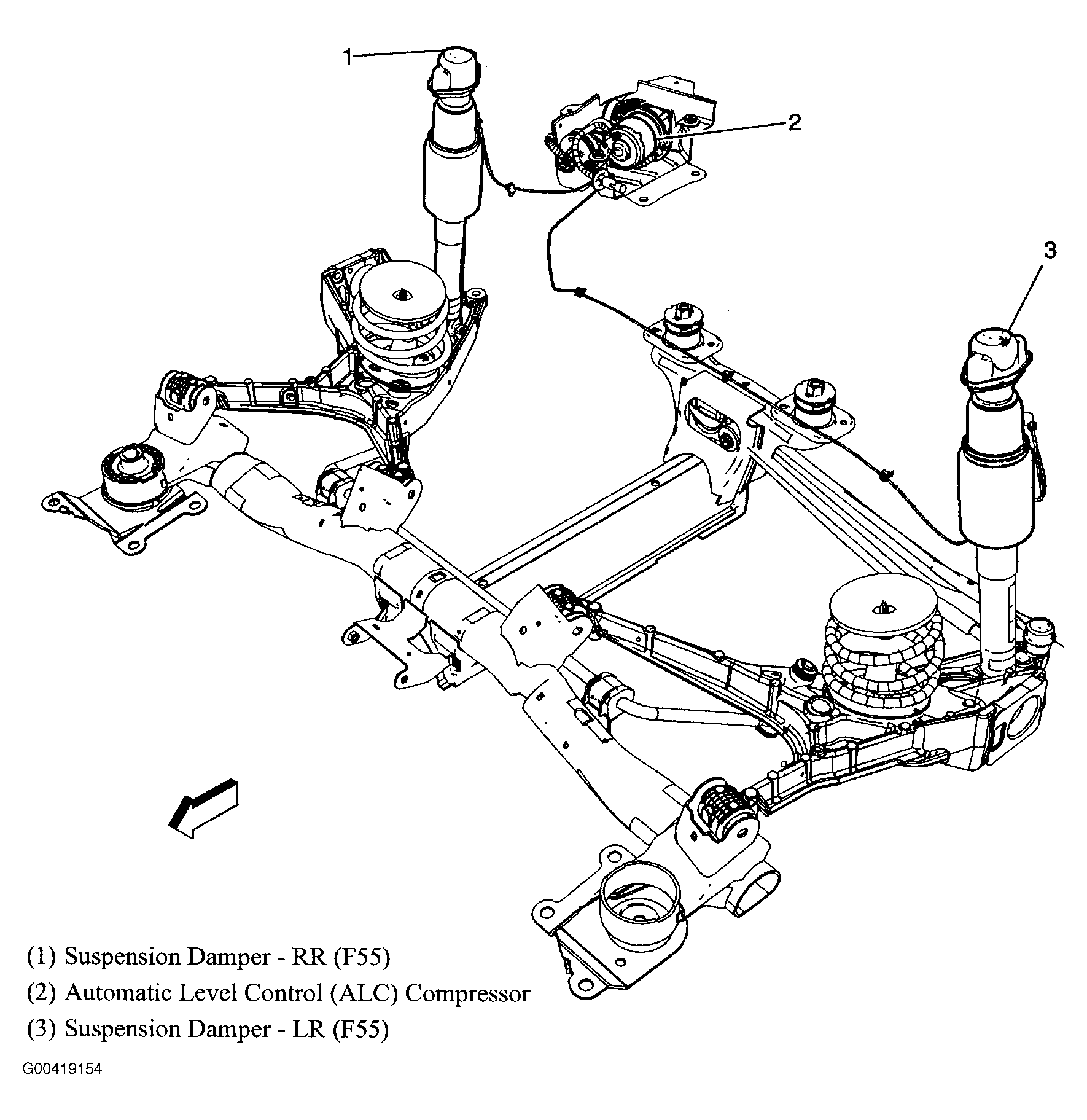

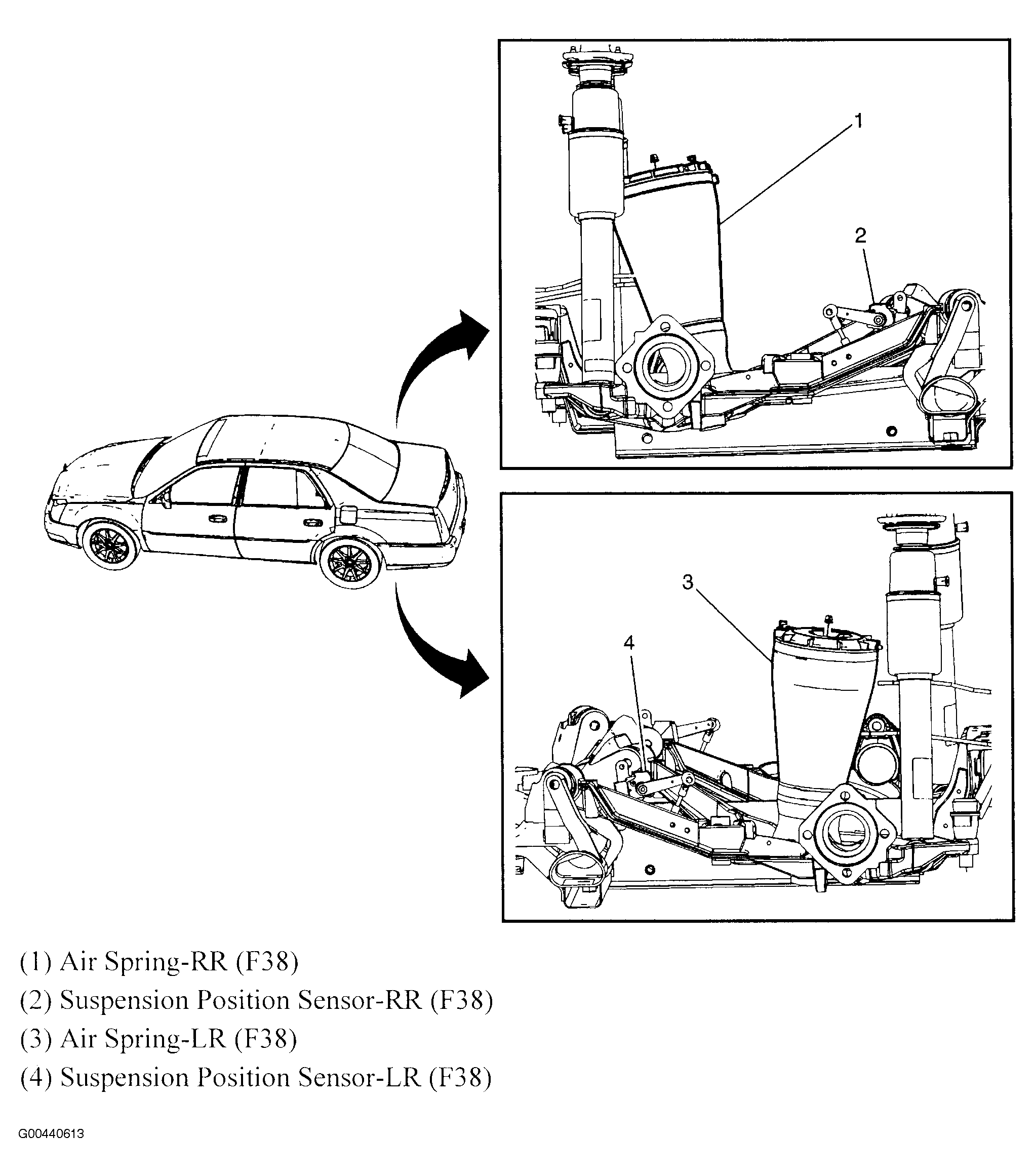

Fig 80: Rear Air Suspension Components
Courtesy of GENERAL MOTORS CORP.

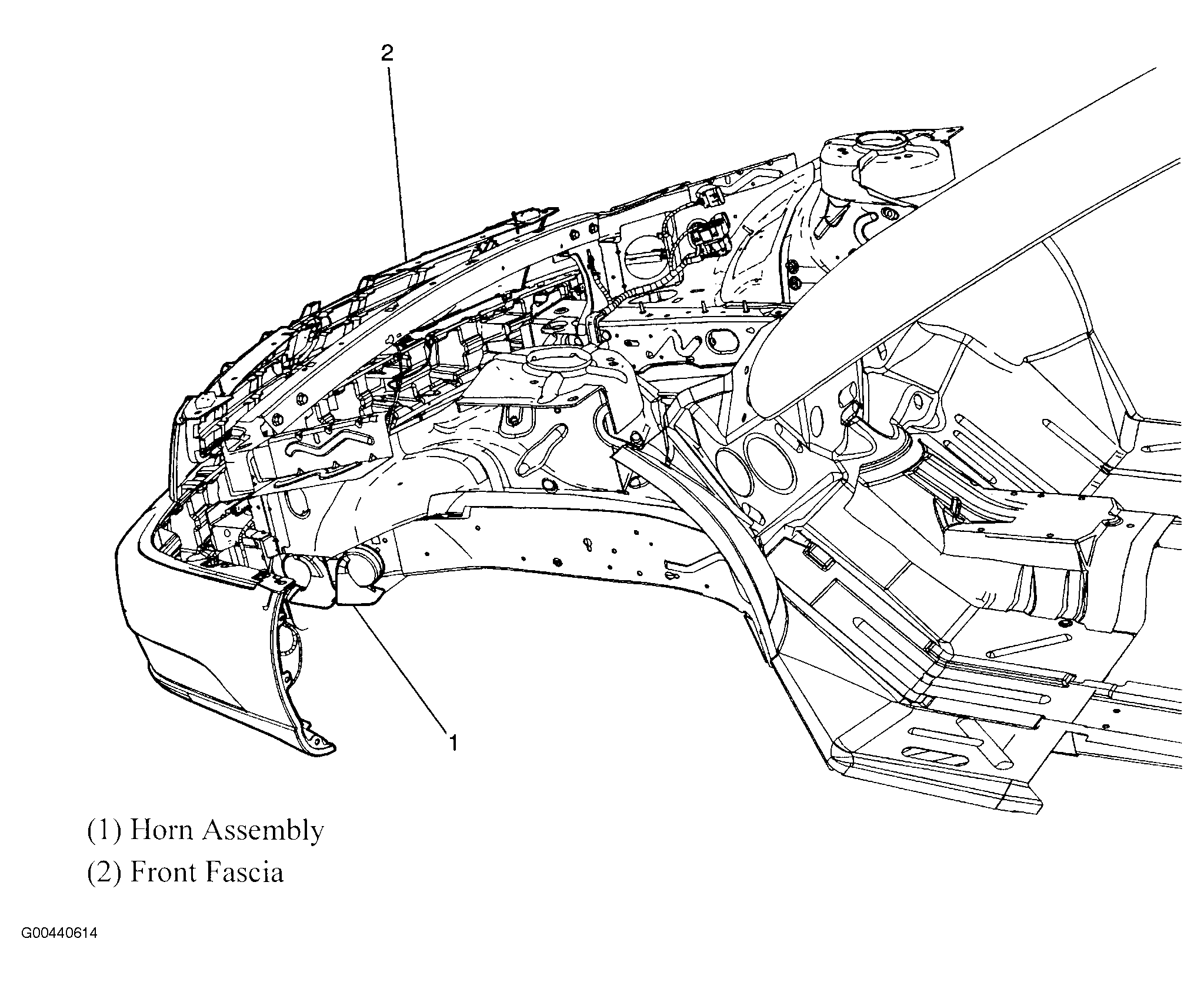

Fig 81: Behind Left Front Fascia
Courtesy of GENERAL MOTORS CORP.
Fig 82: Left Rear Area
Courtesy of GENERAL MOTORS CORP.

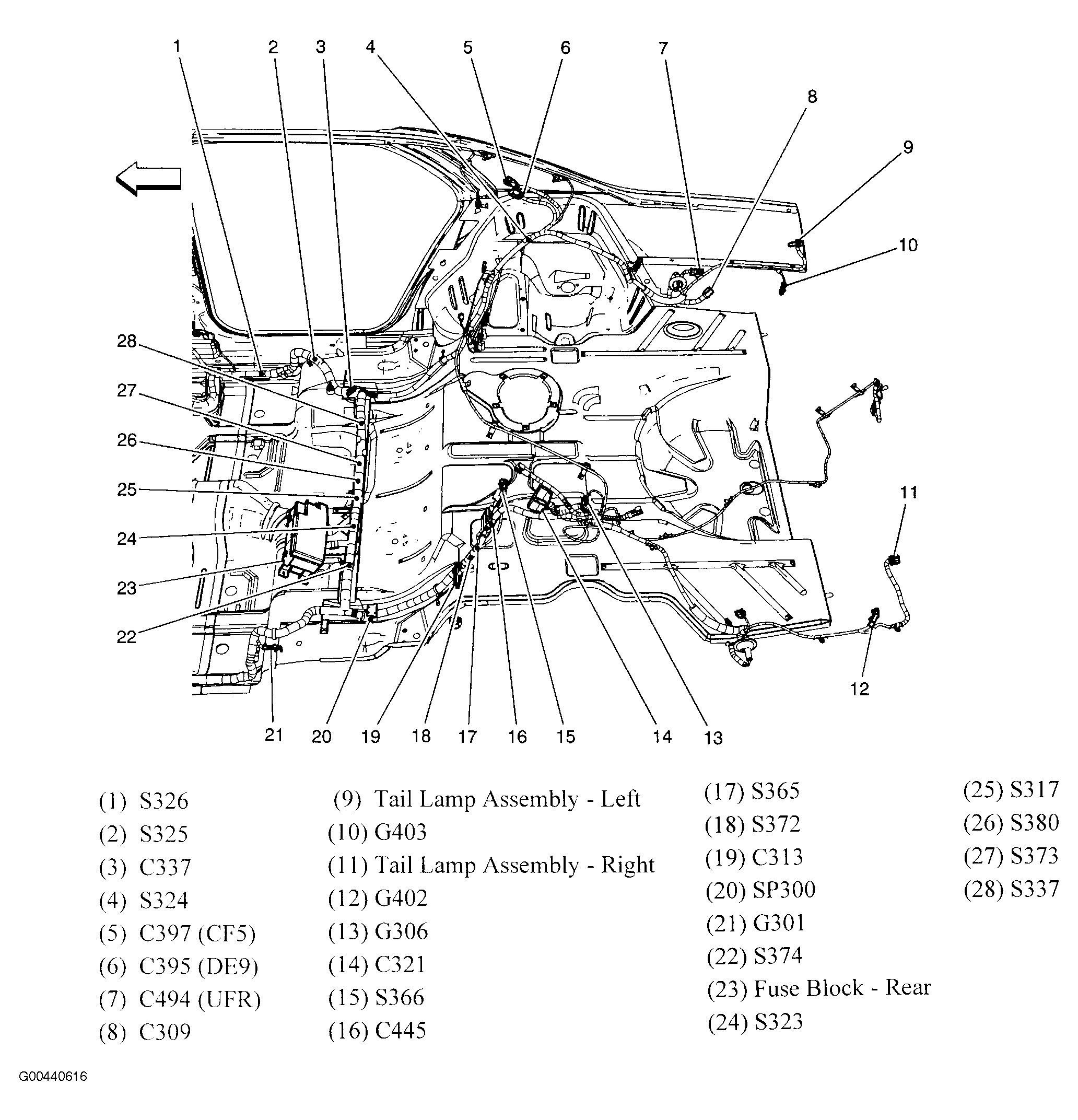

Fig 83: Rear Compartment
Courtesy of GENERAL MOTORS CORP.

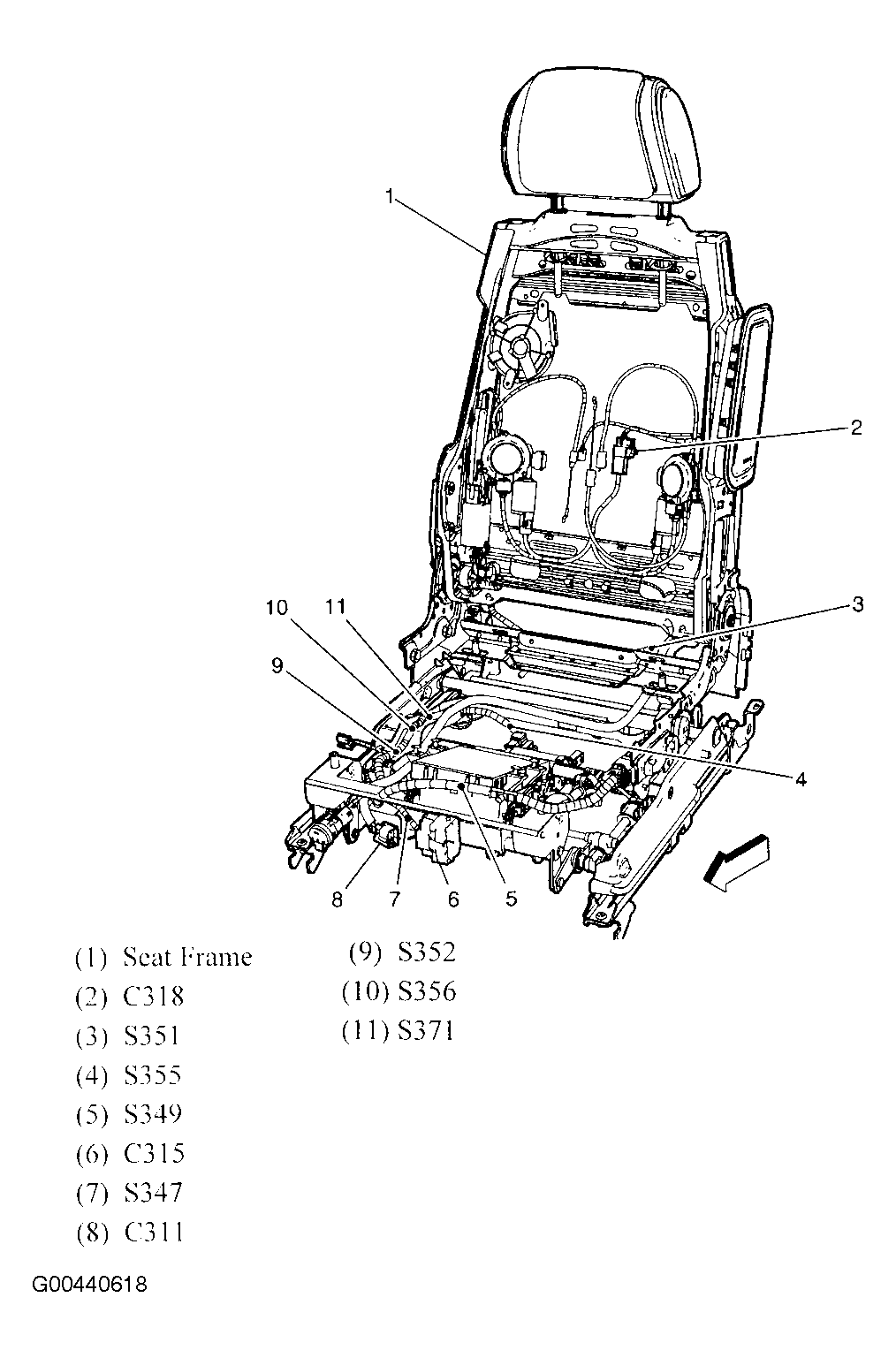

Fig 84: Drivers Seat Harness
Courtesy of GENERAL MOTORS CORP.
Fig 85: Passenger Seat Harness
Courtesy of GENERAL MOTORS CORP.

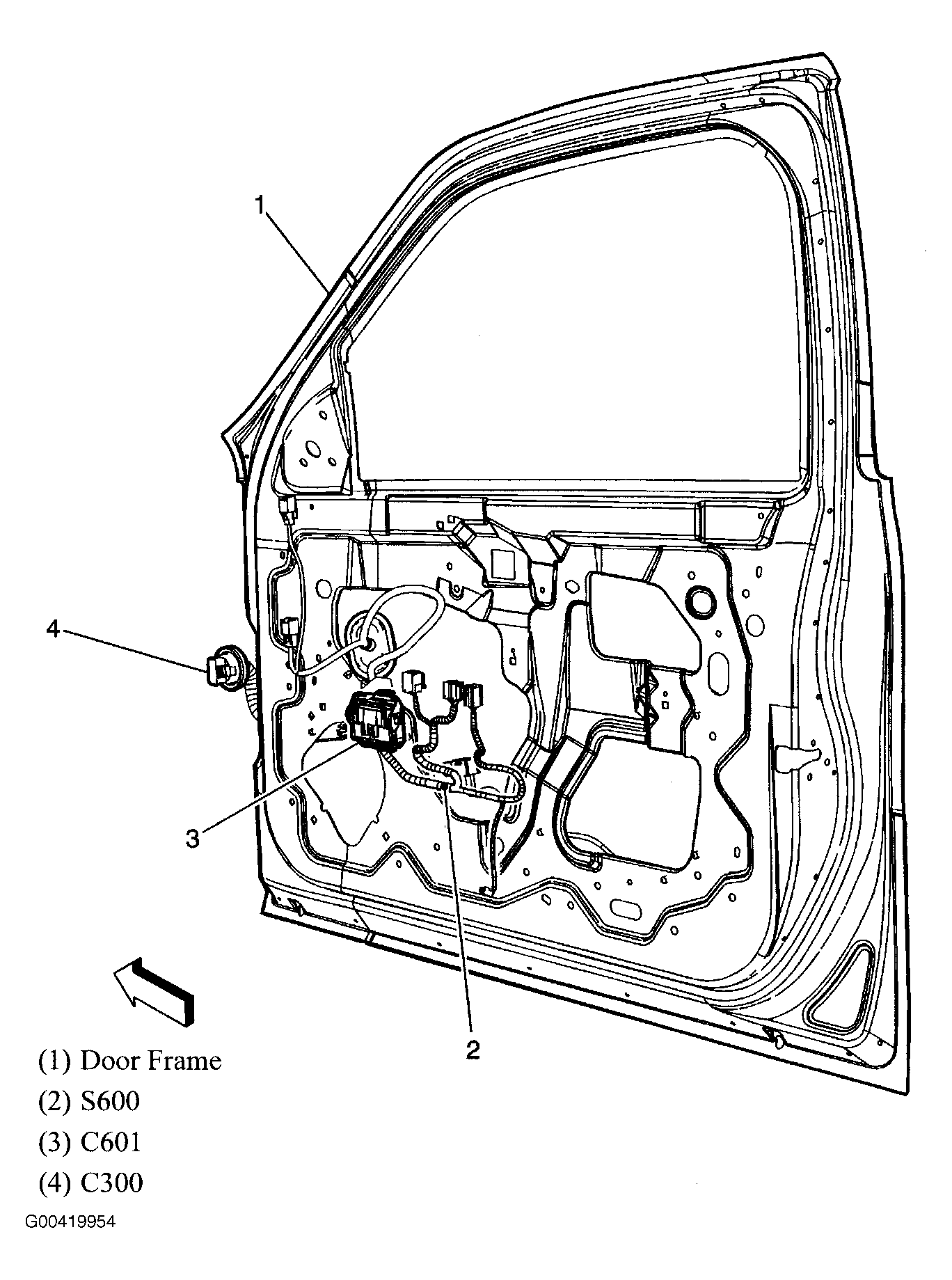

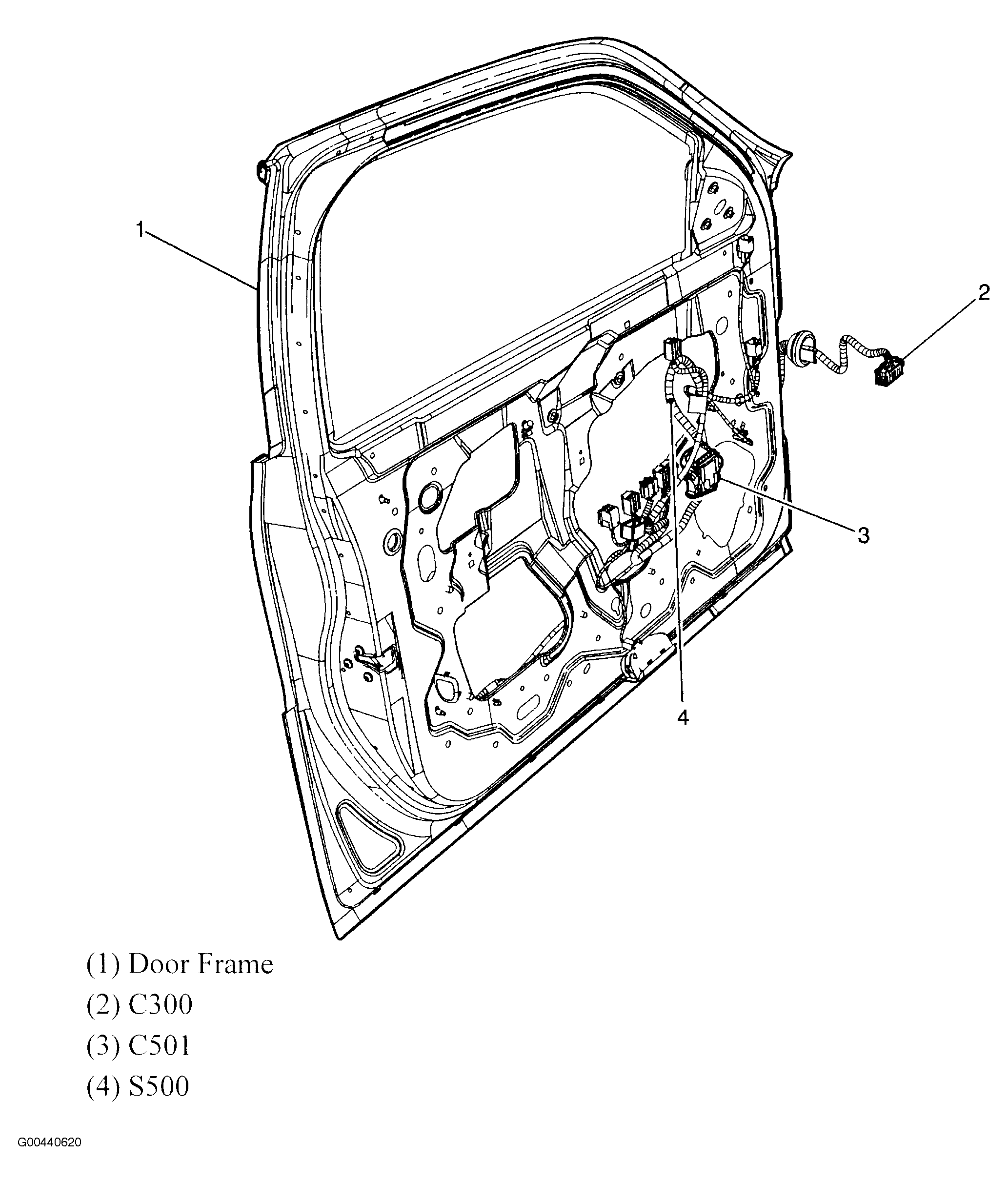

Fig 86: Driver Door Harness
Courtesy of GENERAL MOTORS CORP.
Fig 87: Left Side Of Rear Crossmember
Courtesy of GENERAL MOTORS CORP.
Fig 88: Rear Seat Harness
Courtesy of GENERAL MOTORS CORP.

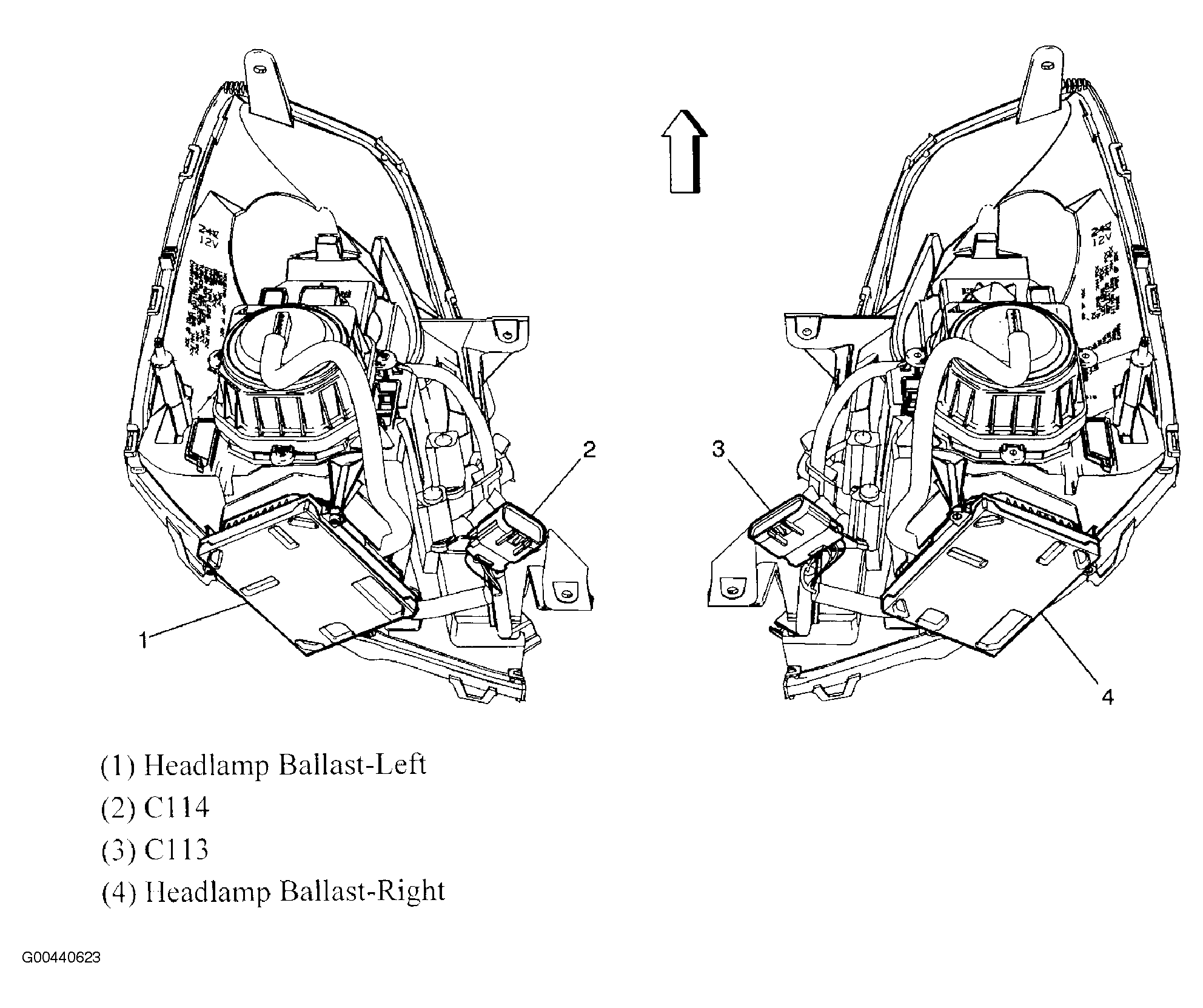

Fig 89: Headlamp Assemblies
Courtesy of GENERAL MOTORS CORP.
