Horn Component Views

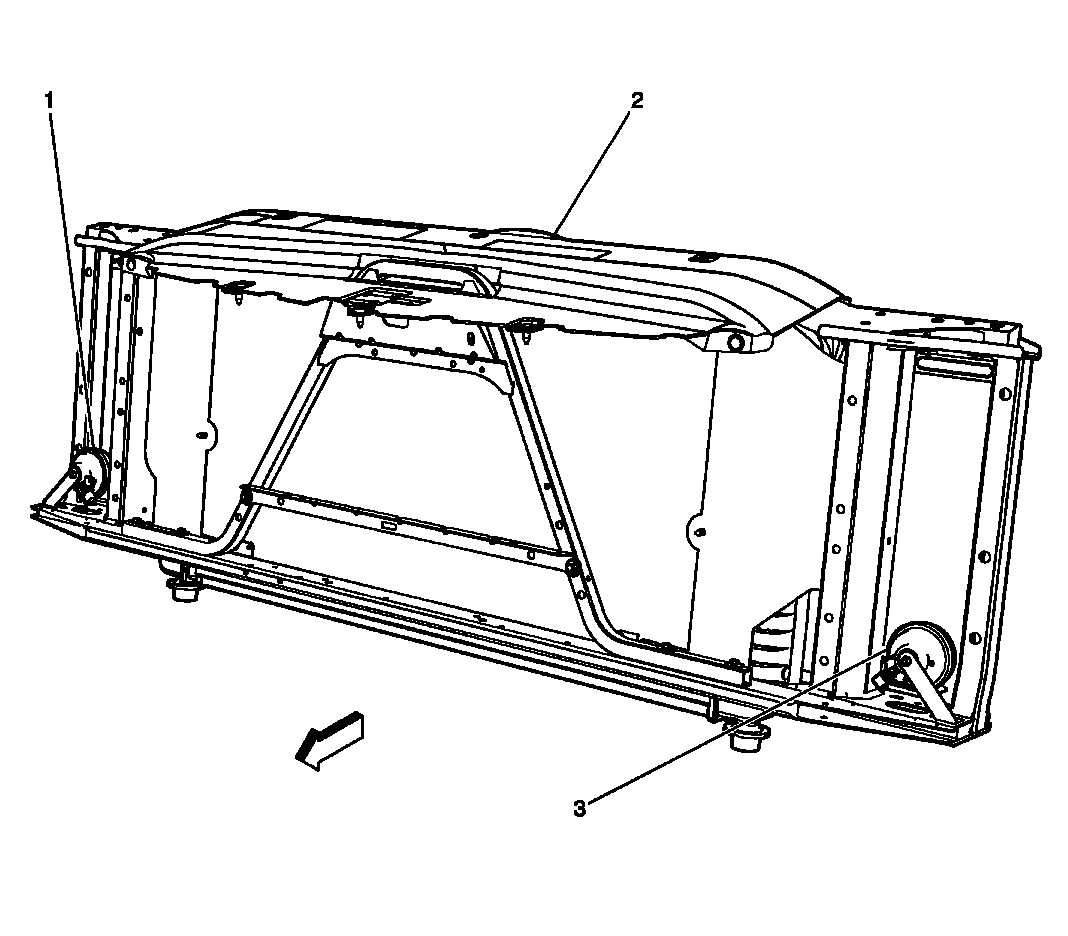

Fig 1: Horns
GM1750395Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Horn - Right
2 Radiator Core Support
3 Horn - Left
Fig 2: Steering Wheel Components
GM1739392Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Horn Switch
2 Heated Steering Wheel Control Module (KA9)
3 Steering Wheel Control Switch Assembly - Right (UK3)
4 Steering Wheel Control Switch Assembly - Left (K34/KA9)
5 Horn Switch
