Installation Procedure

    IMPORTANT: Use the proper battery size or damage to the transmitter may result.
  1. Install a GM P/N 90541381 battery type or equivalent.

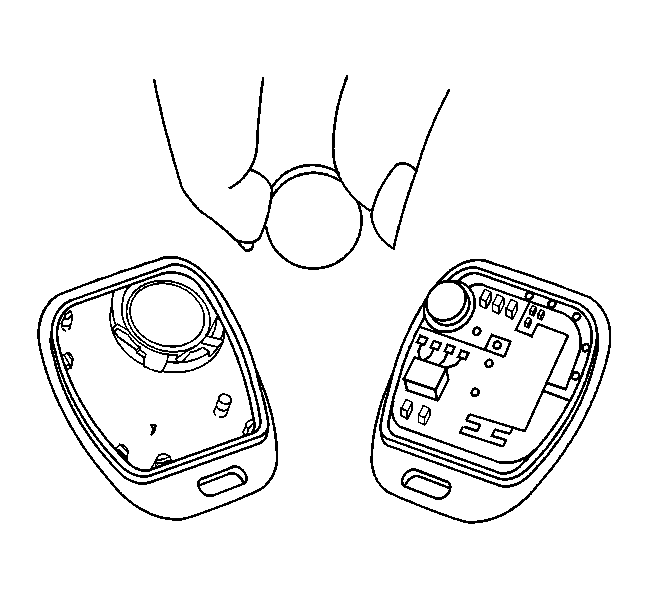

    2. Fig 1: View Of Transmitter Battery
    GM439247Courtesy of GENERAL MOTORS CORP.
  2. Install the transmitter rear cover.
  3. Test the transmitter operation.
