Mirror Component Views

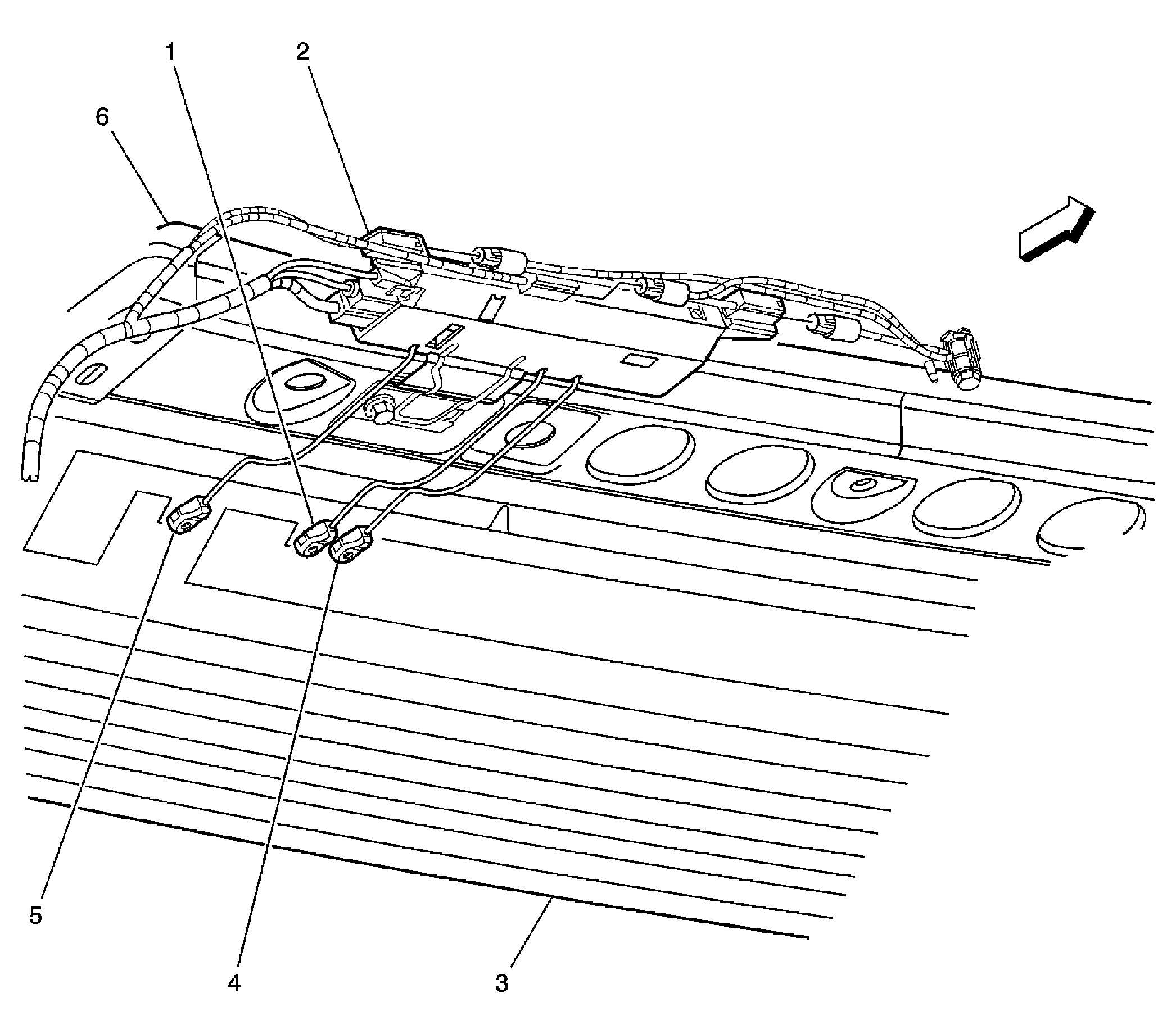

Fig 1: Top of Rear Window Component View (UE1/U2K)
GM1530613Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 VICS-FM3 Antenna
2 Radio Antenna Module
3 Rear Window Defogger Grid
4 AM/FM 1 Antenna
5 FM 2 Antenna
6 Roof Rail
Fig 2: Top of the Windshield Component Views
GM1488555Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Sunroof Switch (CF5)
2 Outside Moisture Sensor (CE1)
3 Intellabeam Sensor (TQ5)
4 Cellular Microphone (UE1)
5 OnStar® Button Assembly (UE1)
6 Inside Rearview Mirror (ISRVM)
