Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|

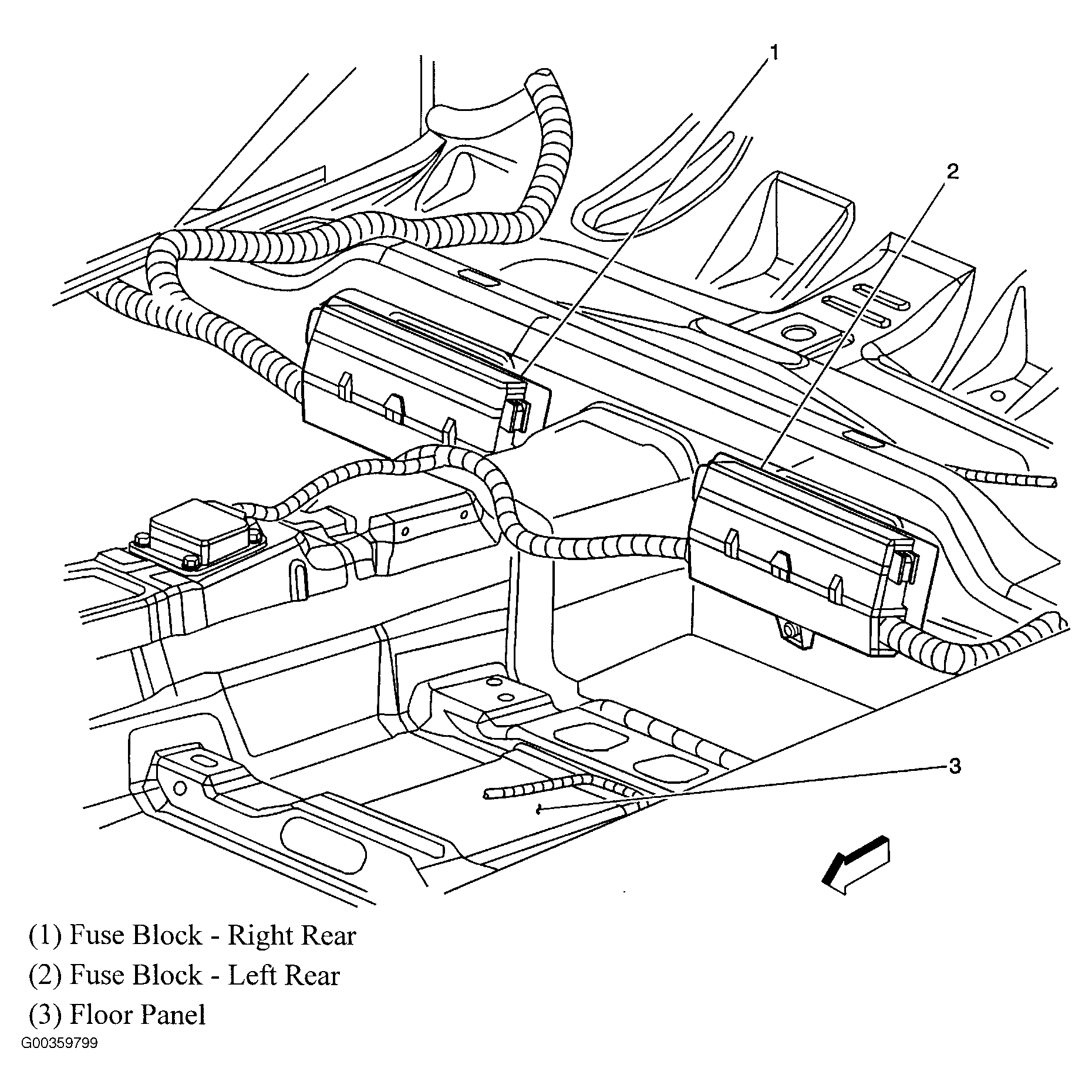

| Fuse Block - Left Rear | Under left side of rear seat. See Figure. |
| Fuse Block - Right Rear | Under right side of rear seat. See Figure. |

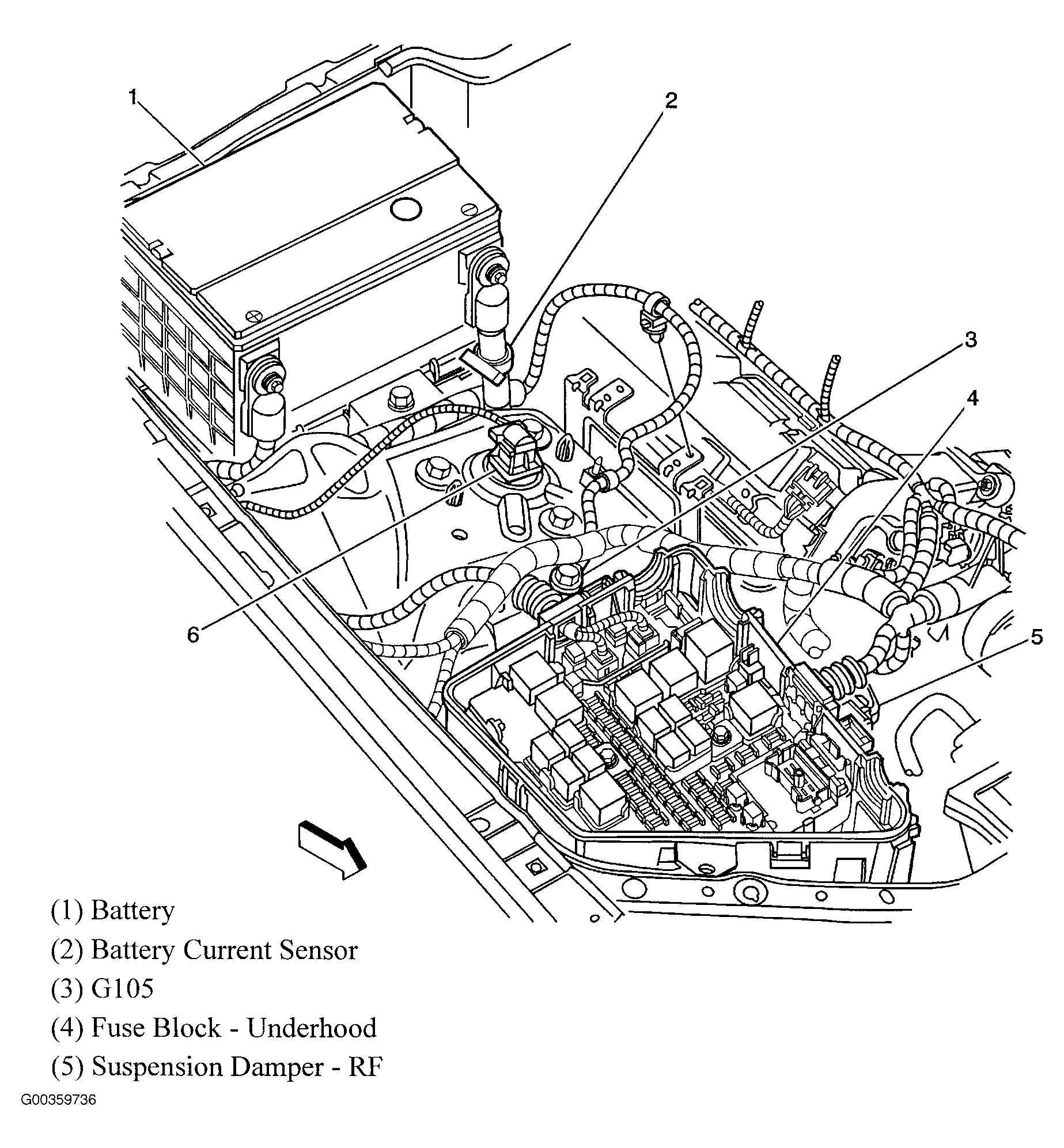

| Fuse Block - Underhood | Right front side of engine compartment. See Figure. |
| Fusible Link | In engine harness, near generator. |

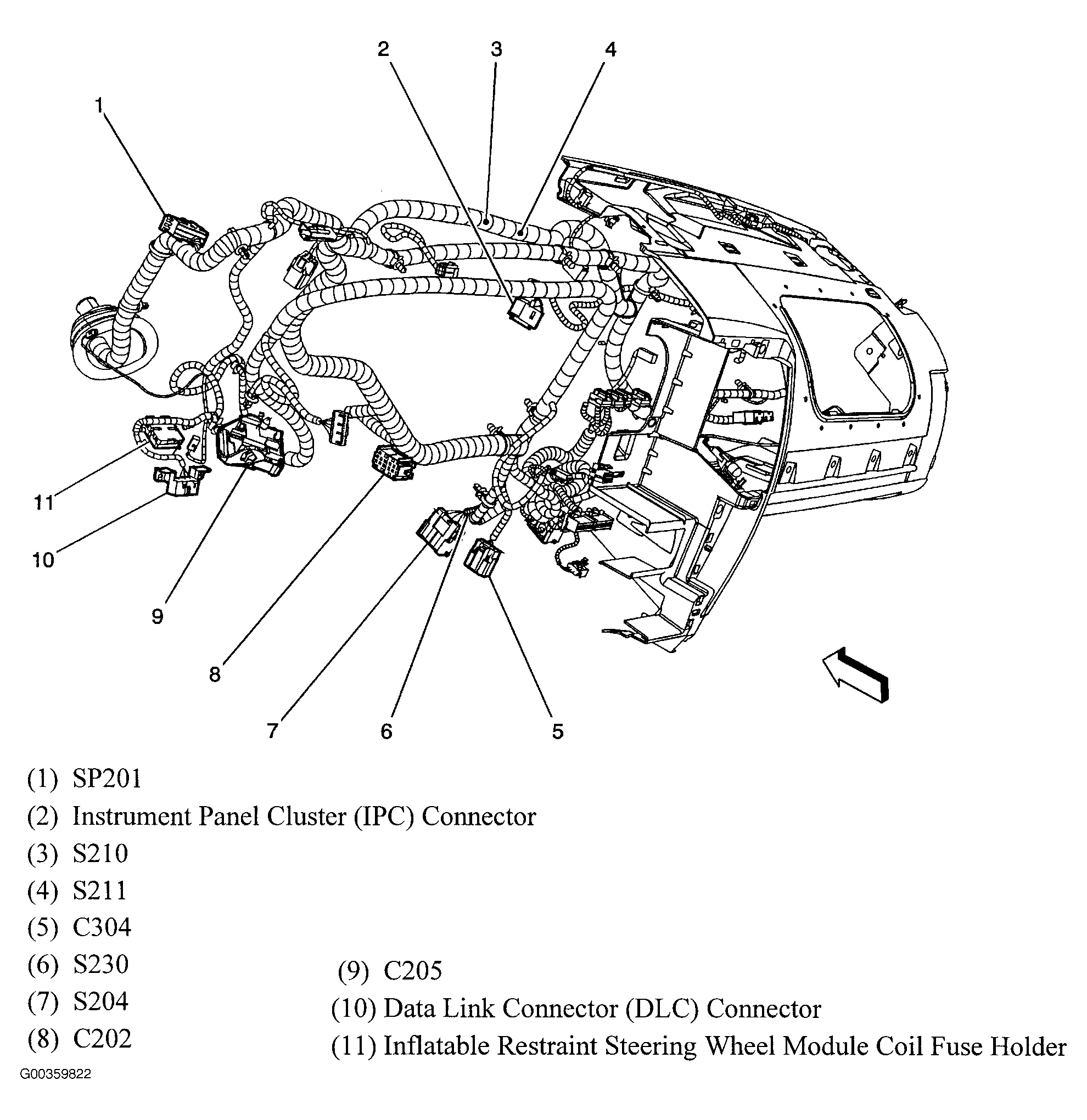

| Inflatable Restraint Steering Wheel Module Coil Fuse Holder | Near base of steering column. See Figure. |
