Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

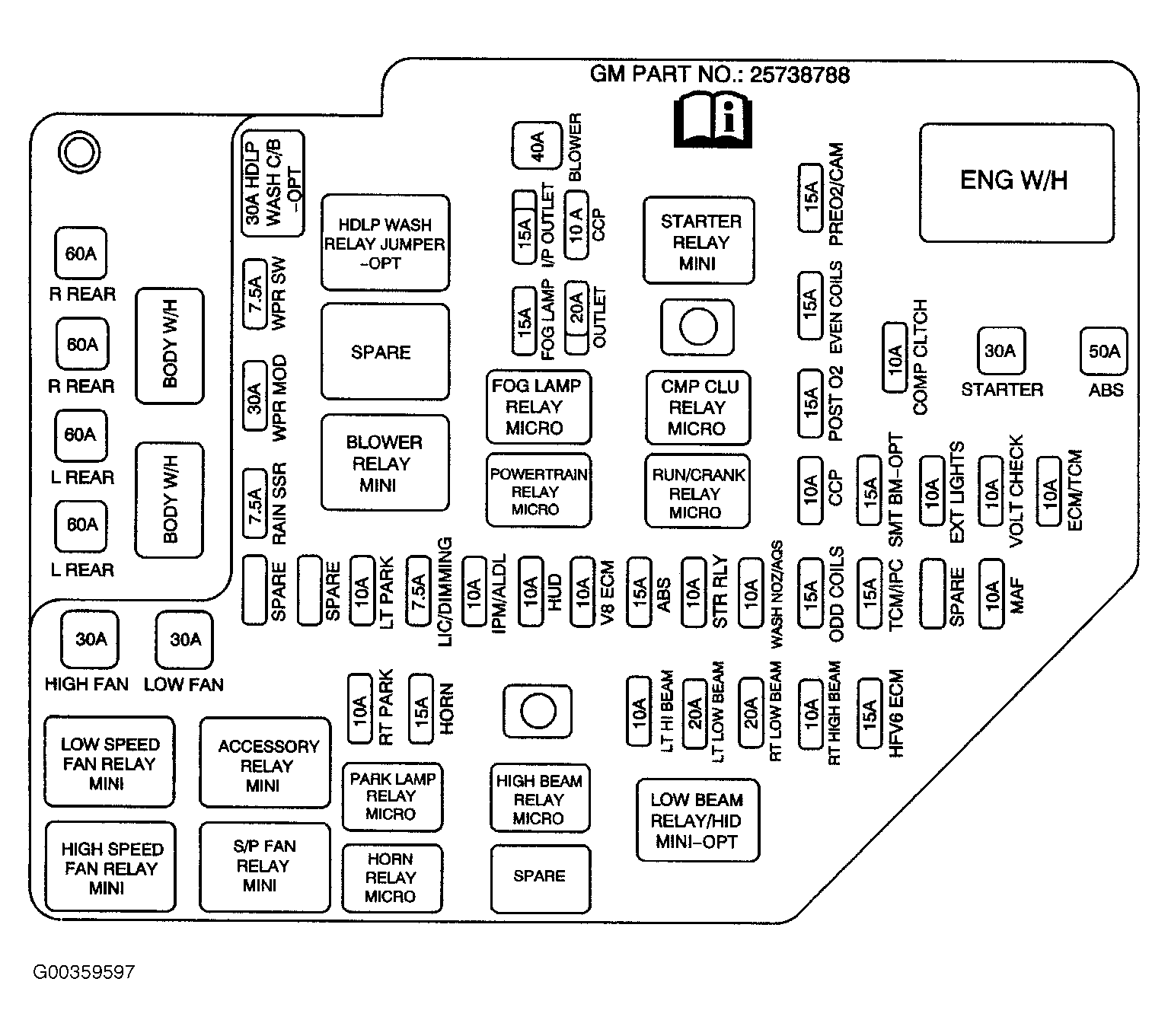

Fig 1: Underhood Fuse Block

G00359597

Courtesy of GENERAL MOTORS CORP.

Fig 2: Front Brake & Suspension Components

G00359694

Courtesy of GENERAL MOTORS CORP.

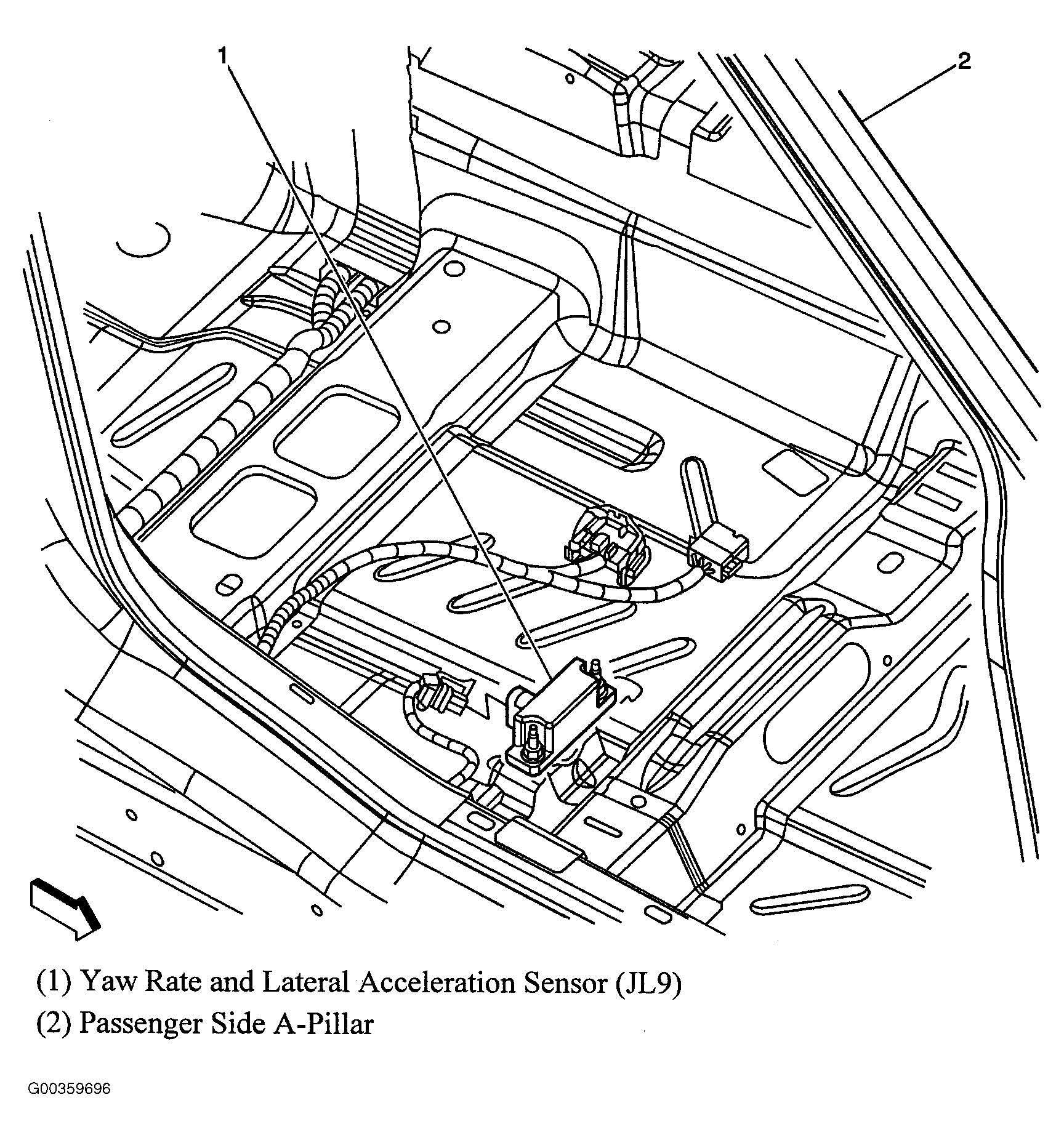

Fig 3: Under Passenger Seat

G00359696

Courtesy of GENERAL MOTORS CORP.

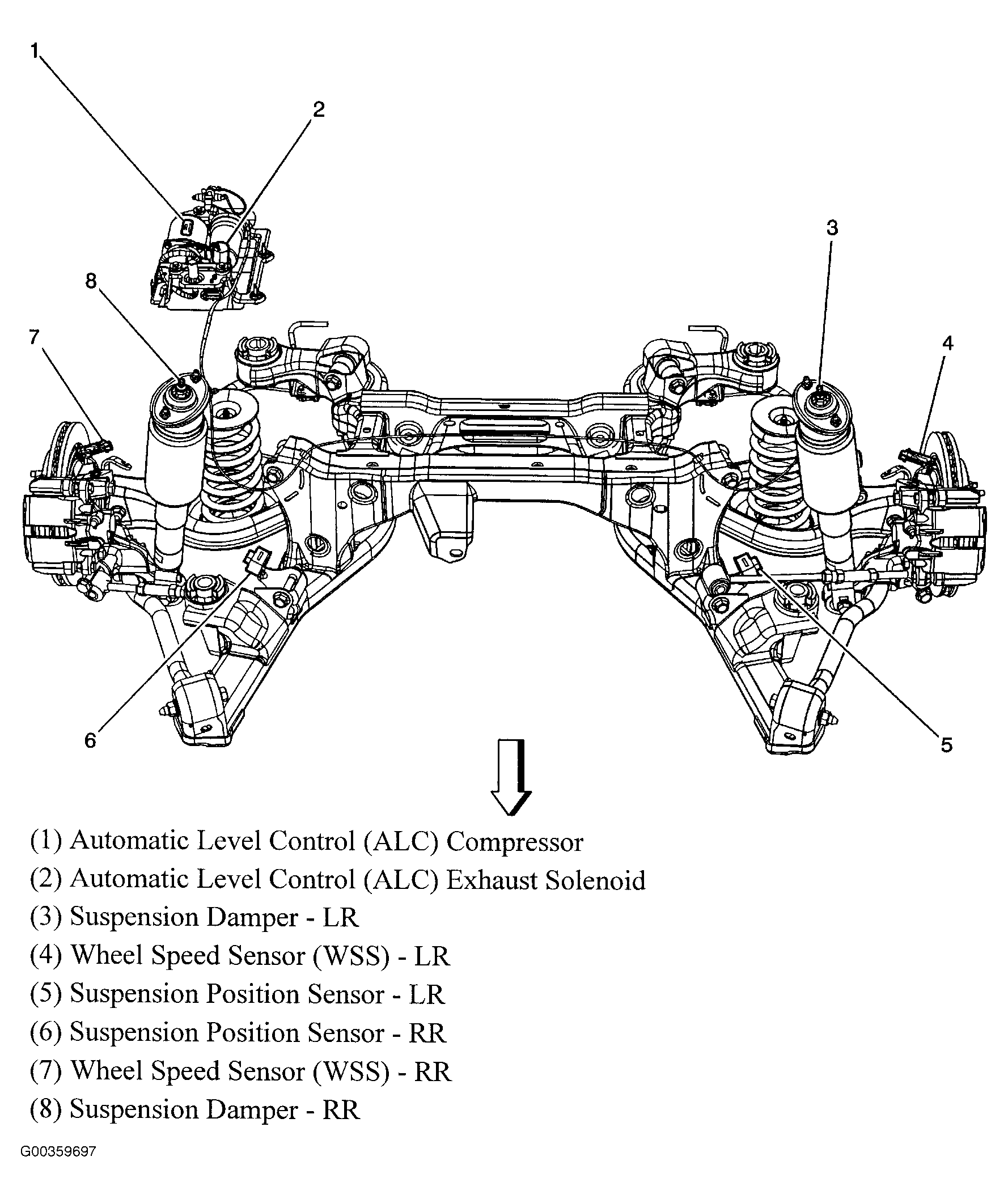

Fig 4: Rear Brakes & Suspension

G00359697

Courtesy of GENERAL MOTORS CORP.

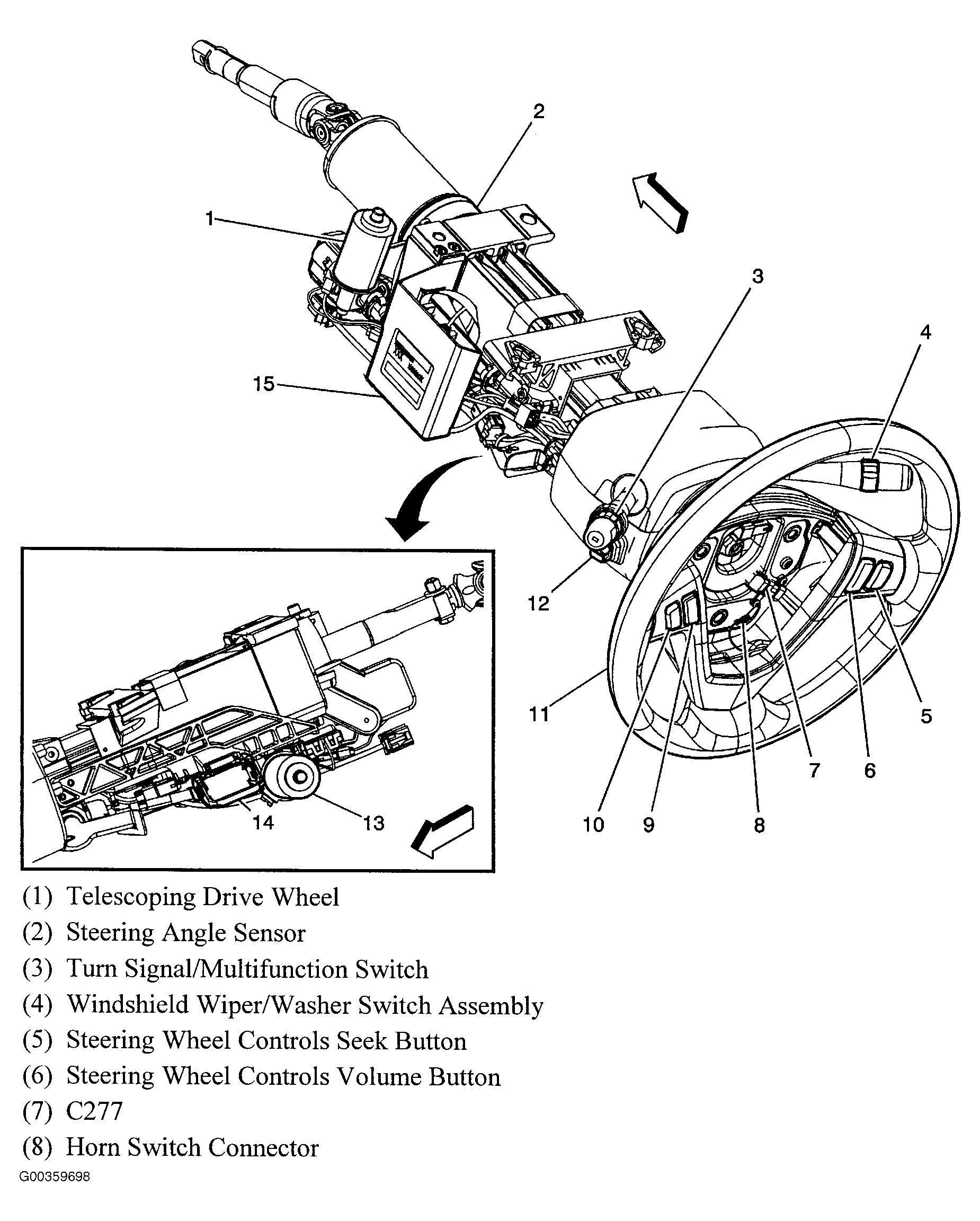

Fig 5: Steering Column & Wheel (1 Of 2)

G00359698

Courtesy of GENERAL MOTORS CORP.

Fig 6: Steering Column & Wheel (2 Of 2)

G00359699

Courtesy of GENERAL MOTORS CORP.

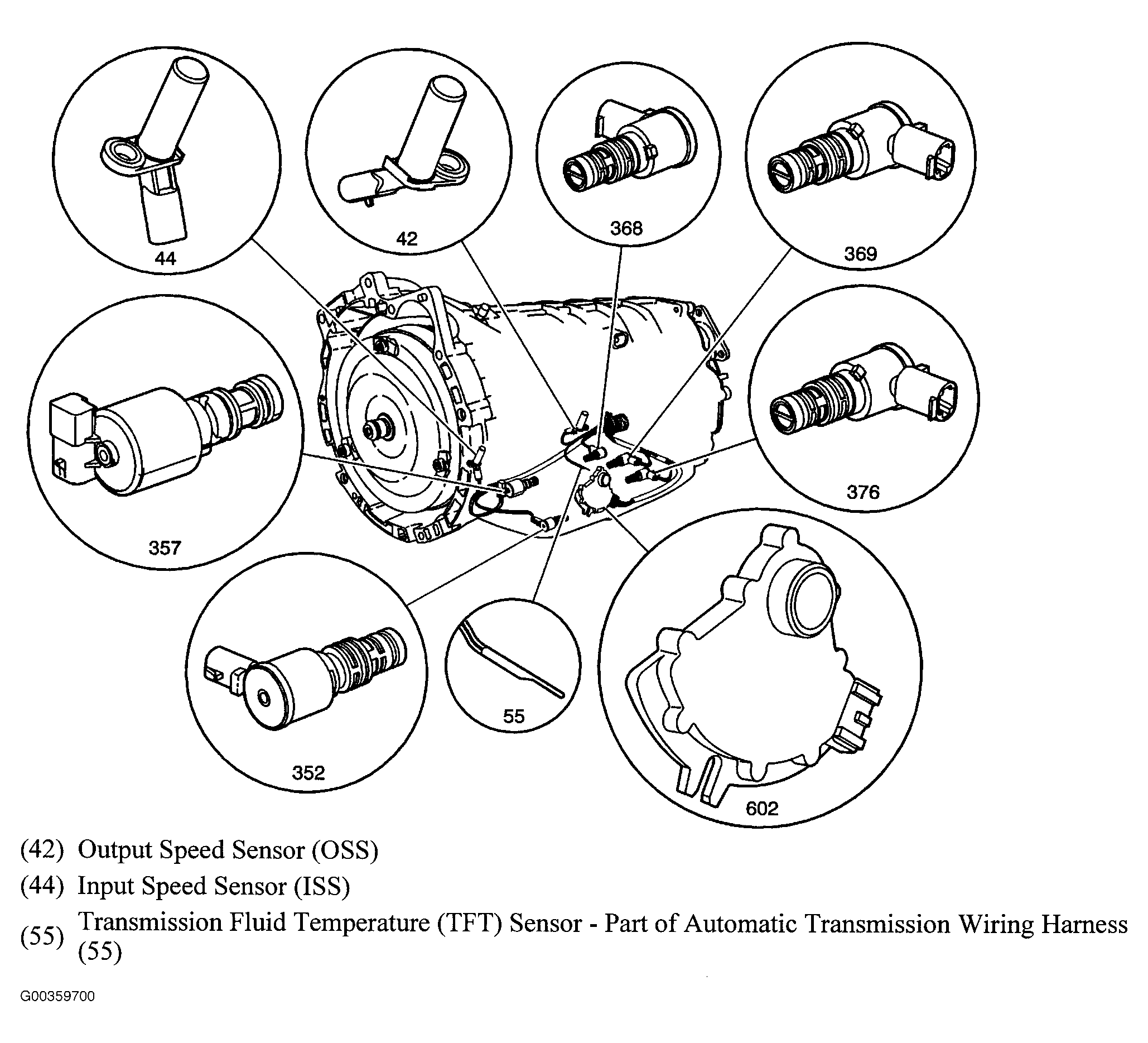

Fig 7: Automatic Transmission Electronic Component Locations (1 Of 2)

G00359700

Courtesy of GENERAL MOTORS CORP.

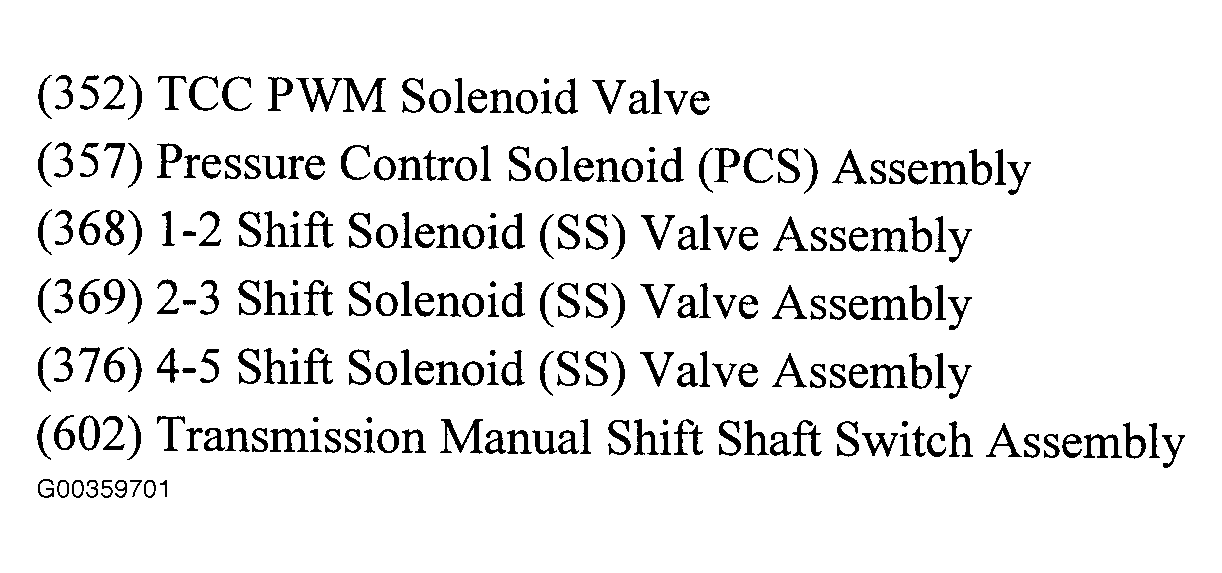

Fig 8: Automatic Transmission Electronic Component Locations (2 Of 2)

G00359701

Courtesy of GENERAL MOTORS CORP.

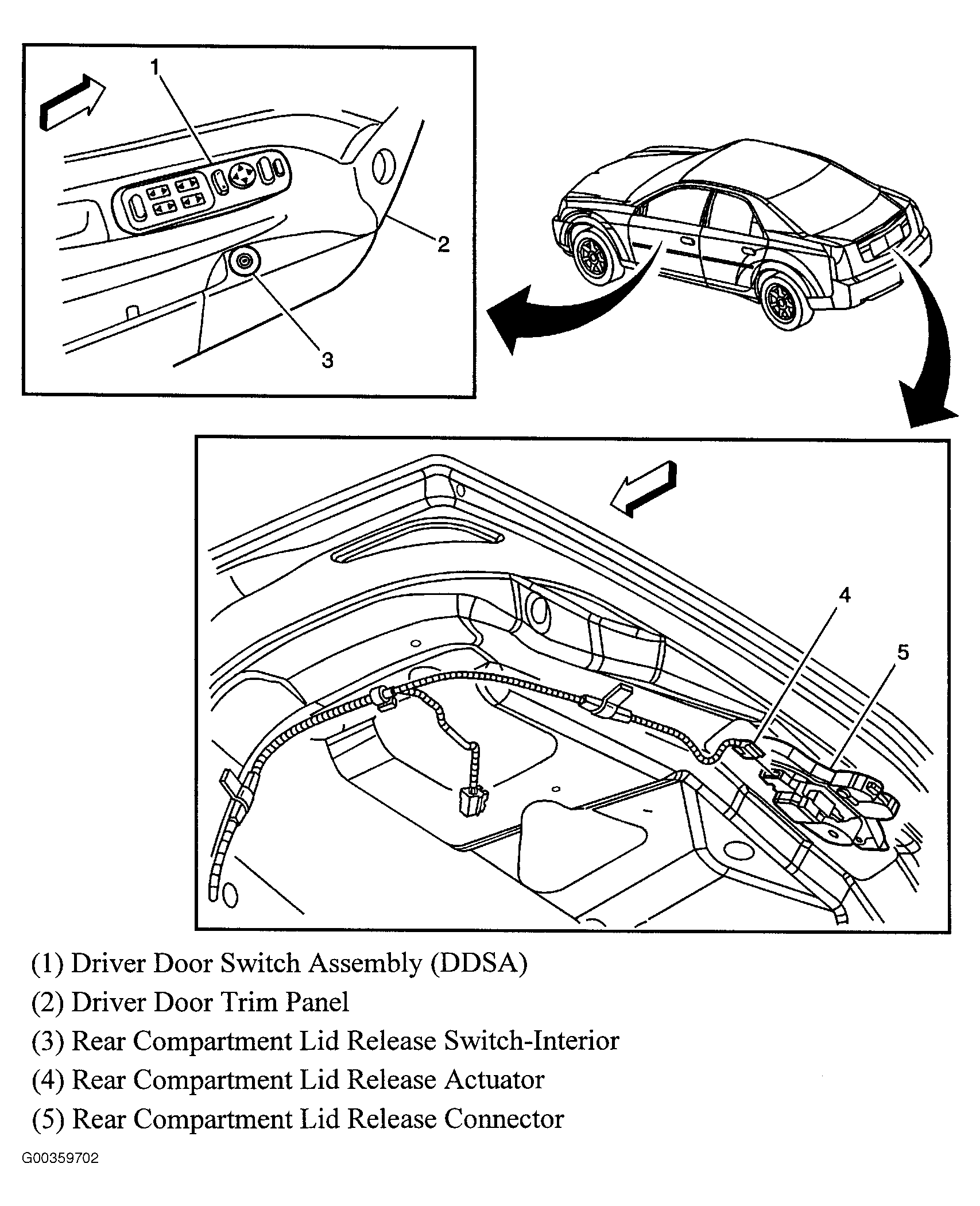

Fig 9: Rear Compartment Lid

G00359702

Courtesy of GENERAL MOTORS CORP.

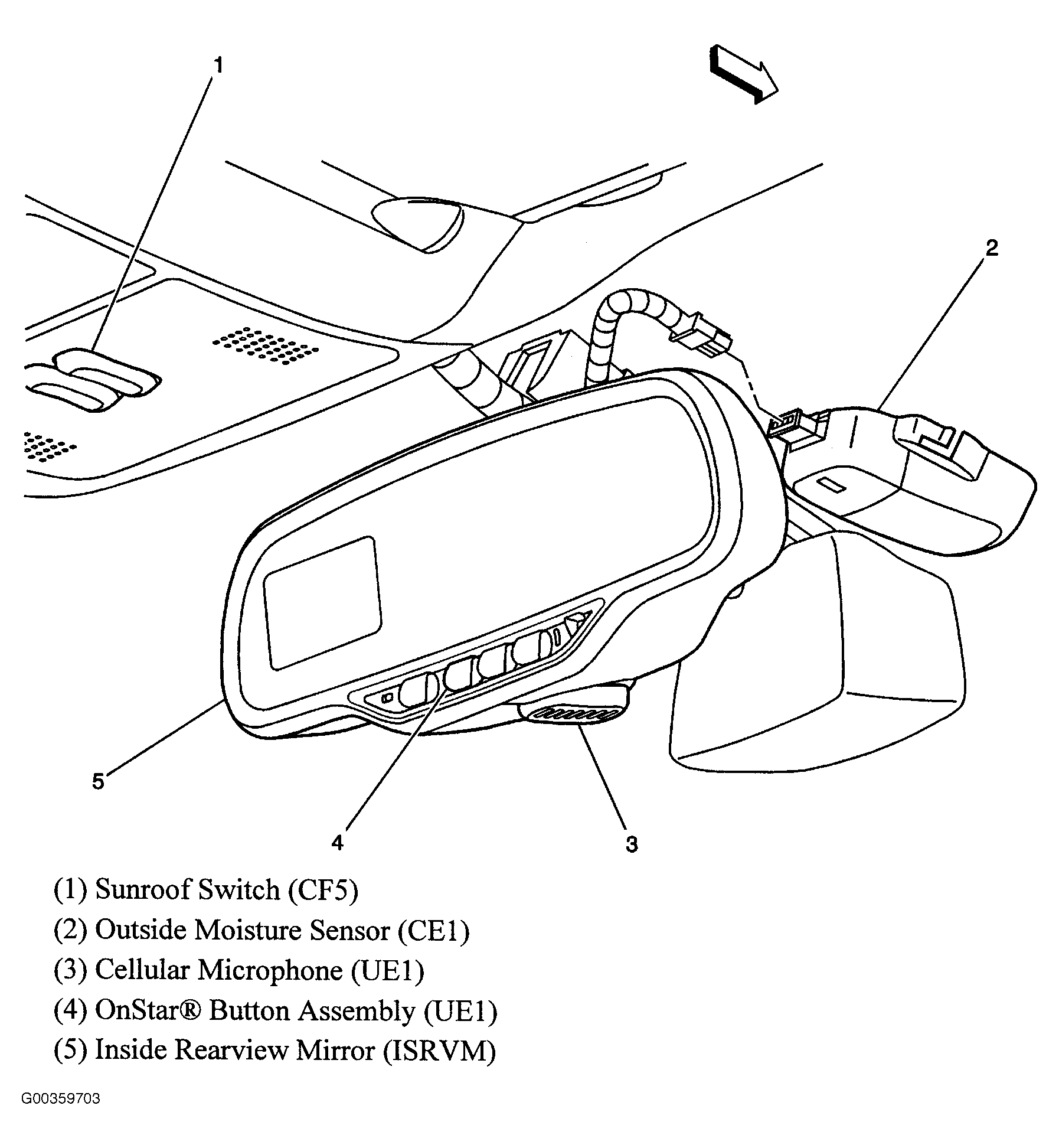

Fig 10: Top Of Windshield

G00359703

Courtesy of GENERAL MOTORS CORP.

Fig 11: Right Rear Side Of Luggage Compartment

G00359704

Courtesy of GENERAL MOTORS CORP.

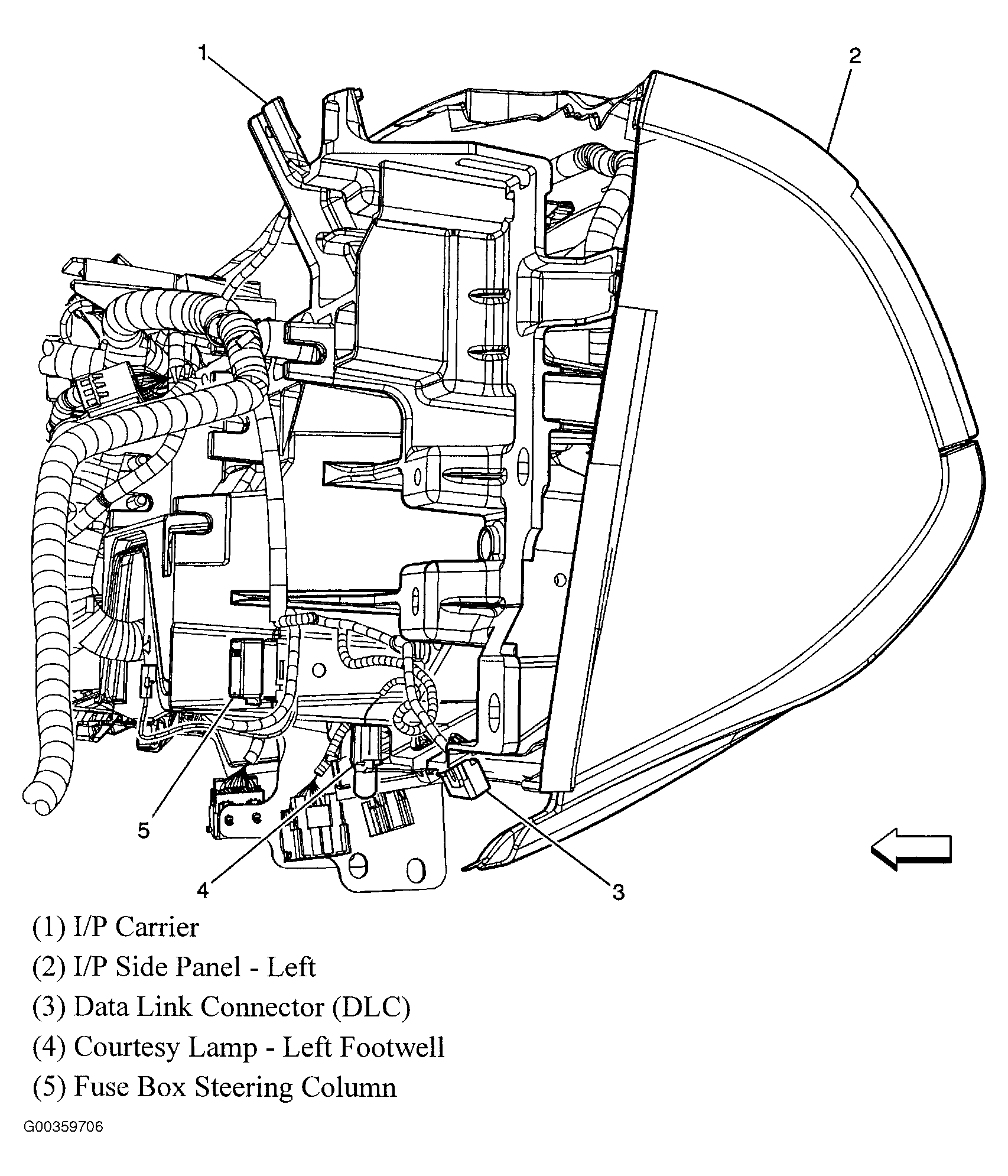

Fig 12: Left Side Of Dash

G00359706

Courtesy of GENERAL MOTORS CORP.

Fig 13: Dash

G00359707

Courtesy of GENERAL MOTORS CORP.

Fig 14: Under Rear Window Shelf

G00359708

Courtesy of GENERAL MOTORS CORP.

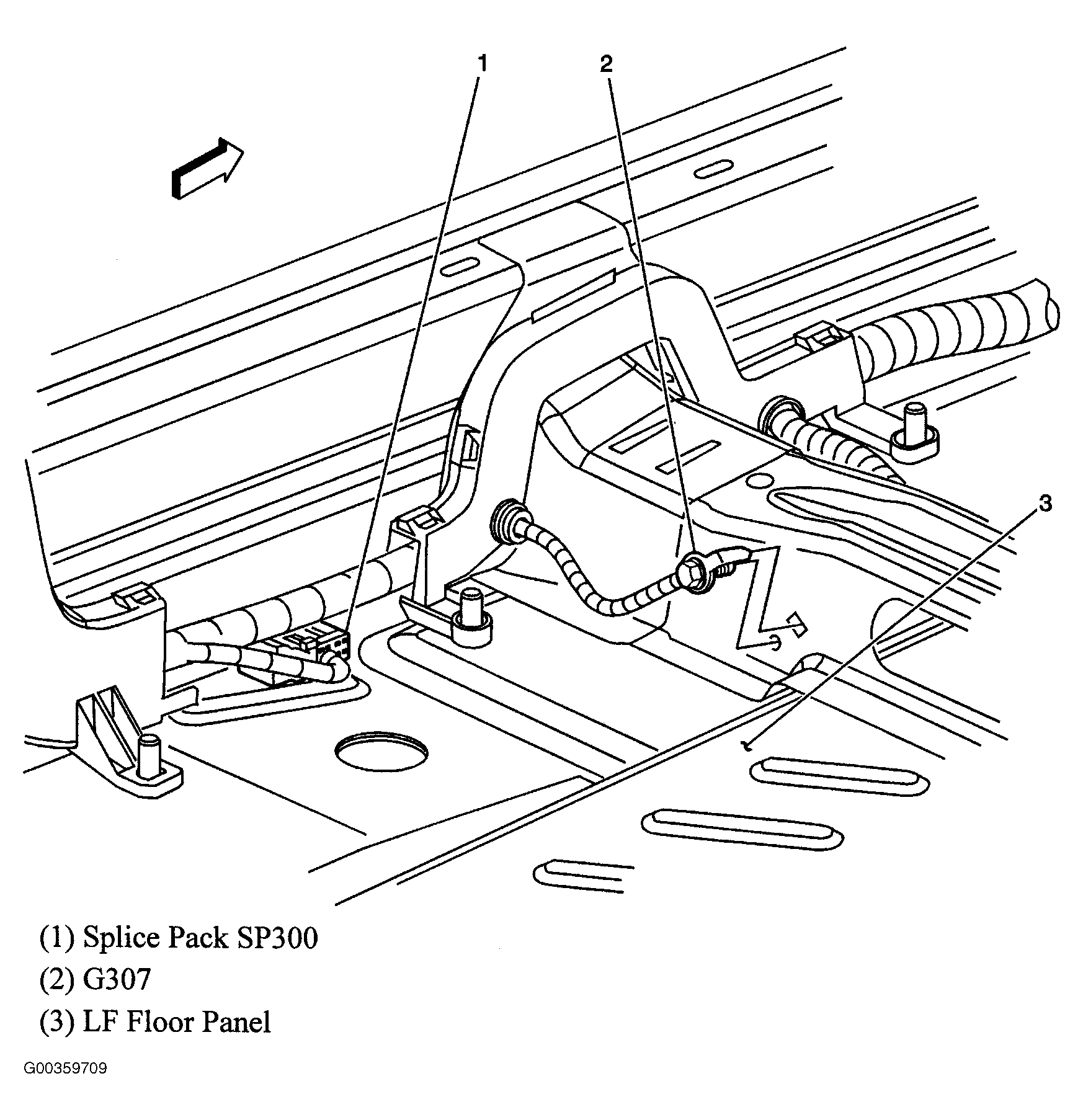

Fig 15: Left Frame Rail

G00359709

Courtesy of GENERAL MOTORS CORP.

Fig 16: Front Of Engine Compartment

G00359710

Courtesy of GENERAL MOTORS CORP.

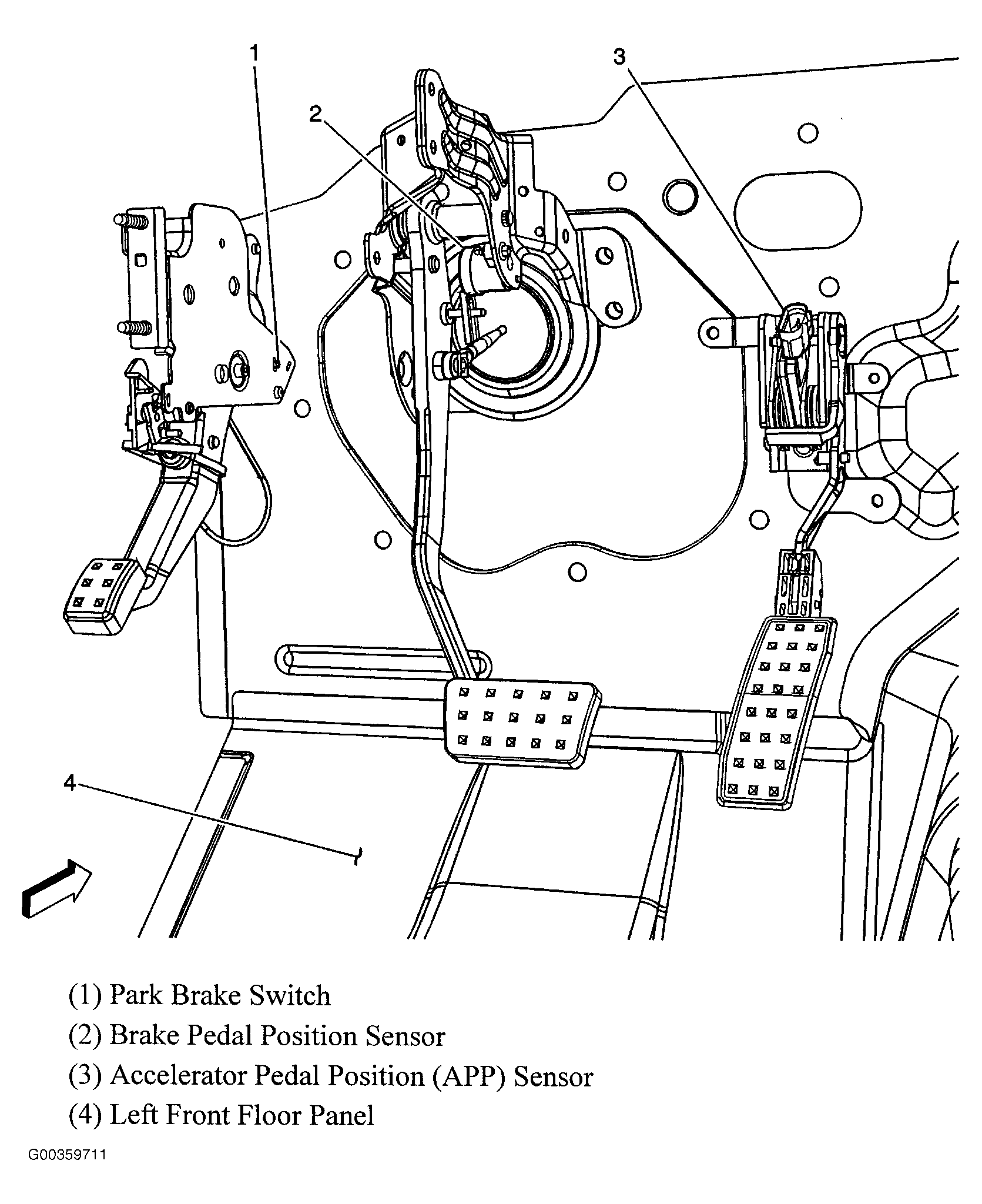

Fig 17: Left Front Footwell

G00359711

Courtesy of GENERAL MOTORS CORP.

Fig 18: Driver Door

G00359712

Courtesy of GENERAL MOTORS CORP.

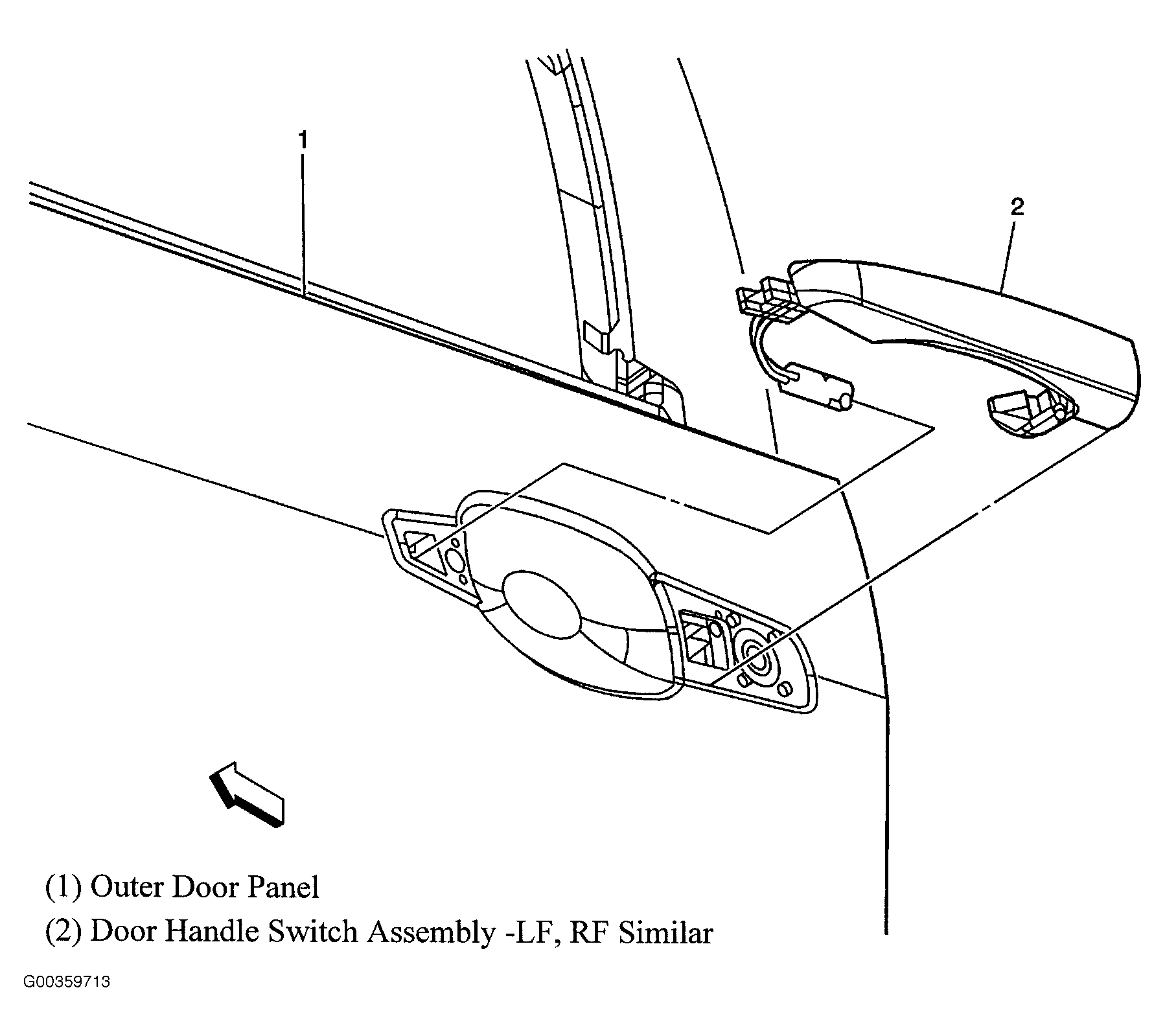

Fig 19: Door Handle Switch Assembly

G00359713

Courtesy of GENERAL MOTORS CORP.

Fig 20: Front Passenger Door

G00359714

Courtesy of GENERAL MOTORS CORP.

Fig 21: Left Rear Door

G00359715

Courtesy of GENERAL MOTORS CORP.

Fig 22: Right Rear Door

G00359716

Courtesy of GENERAL MOTORS CORP.

Fig 23: Right Side Of Rear Compartment

G00359717

Courtesy of GENERAL MOTORS CORP.

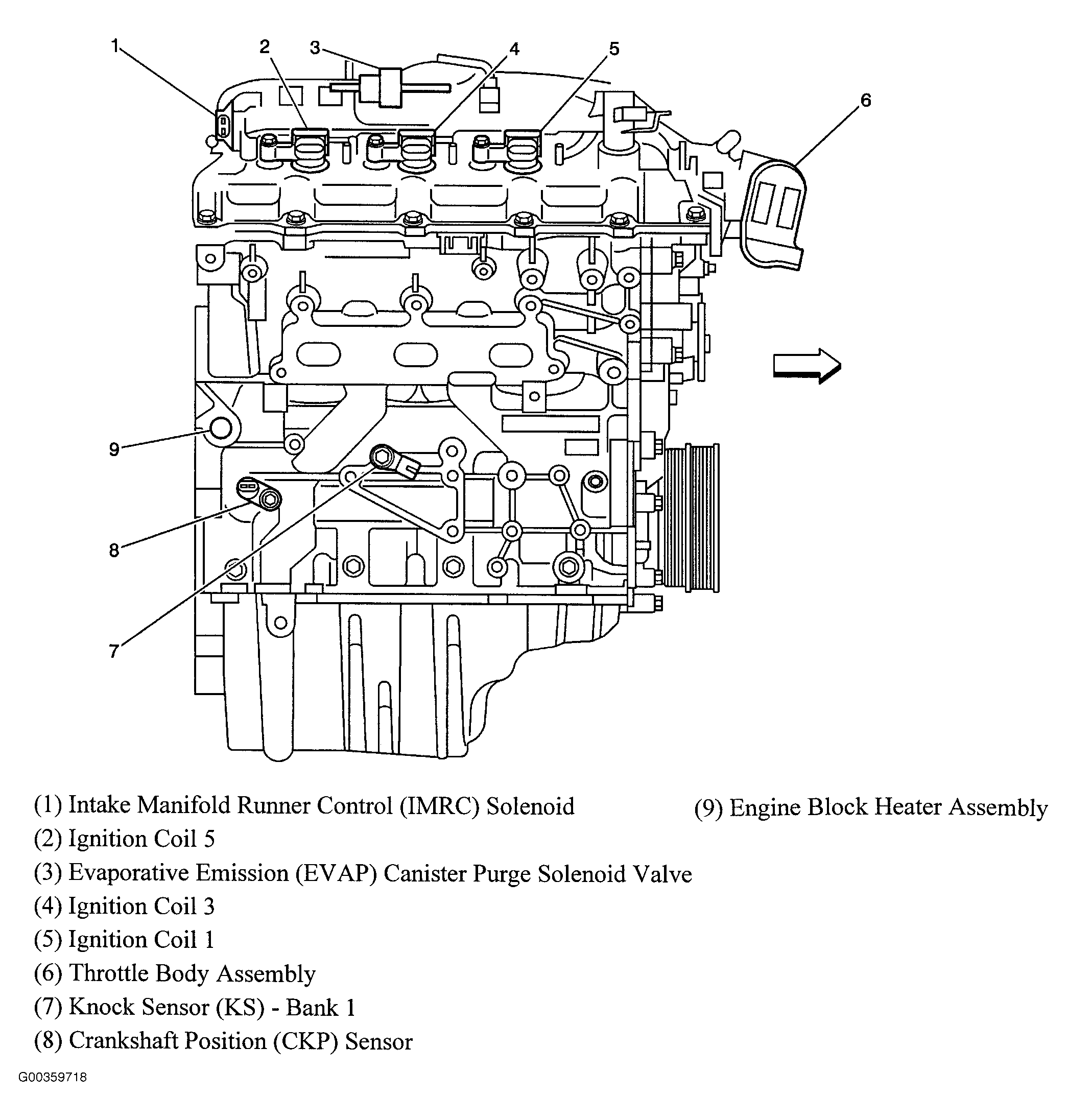

Fig 24: Left Side Of Engine (3.6L VIN 7)

G00359718

Courtesy of GENERAL MOTORS CORP.

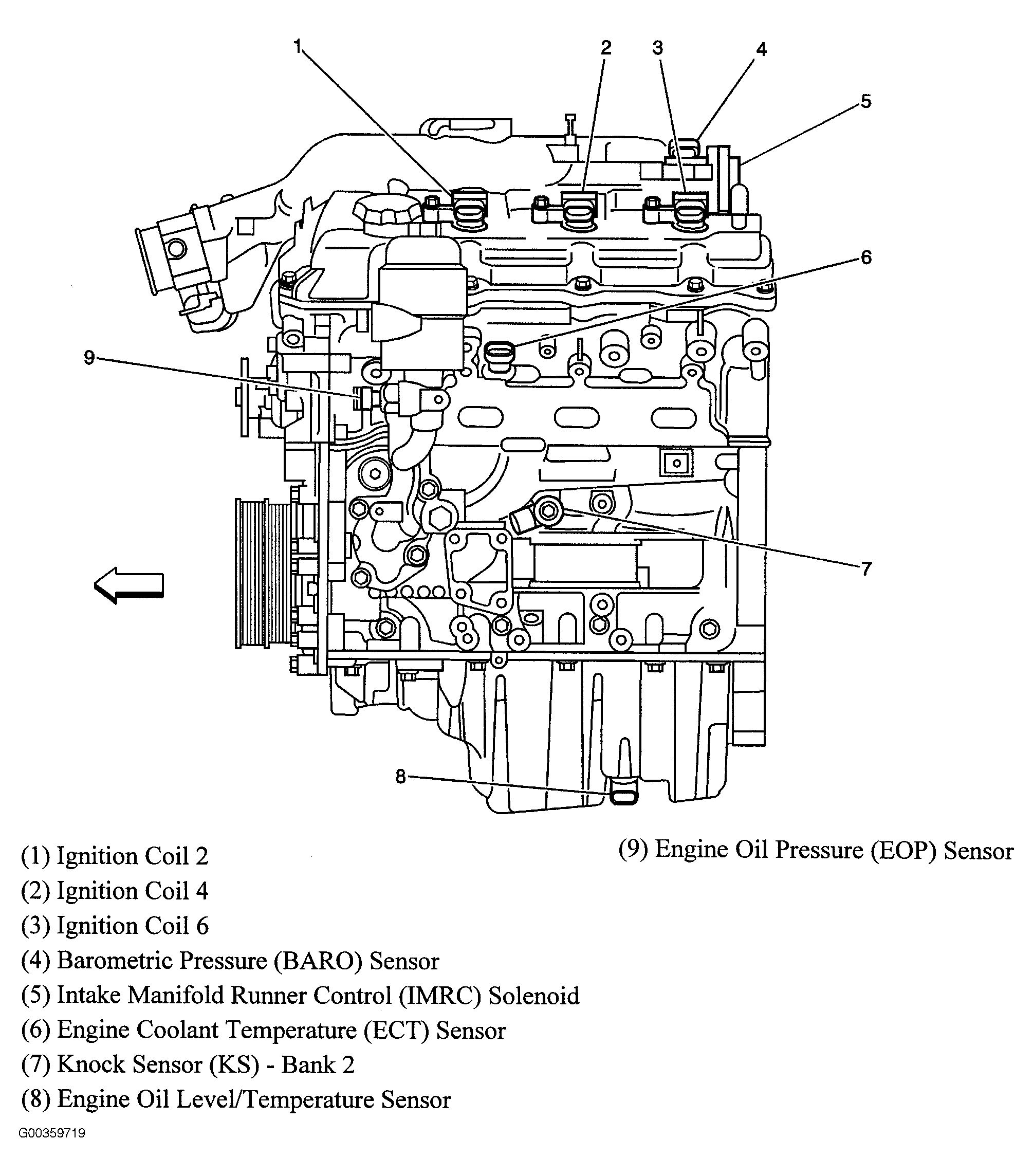

Fig 25: Right Side Of Engine (3.6L VIN 7)

G00359719

Courtesy of GENERAL MOTORS CORP.

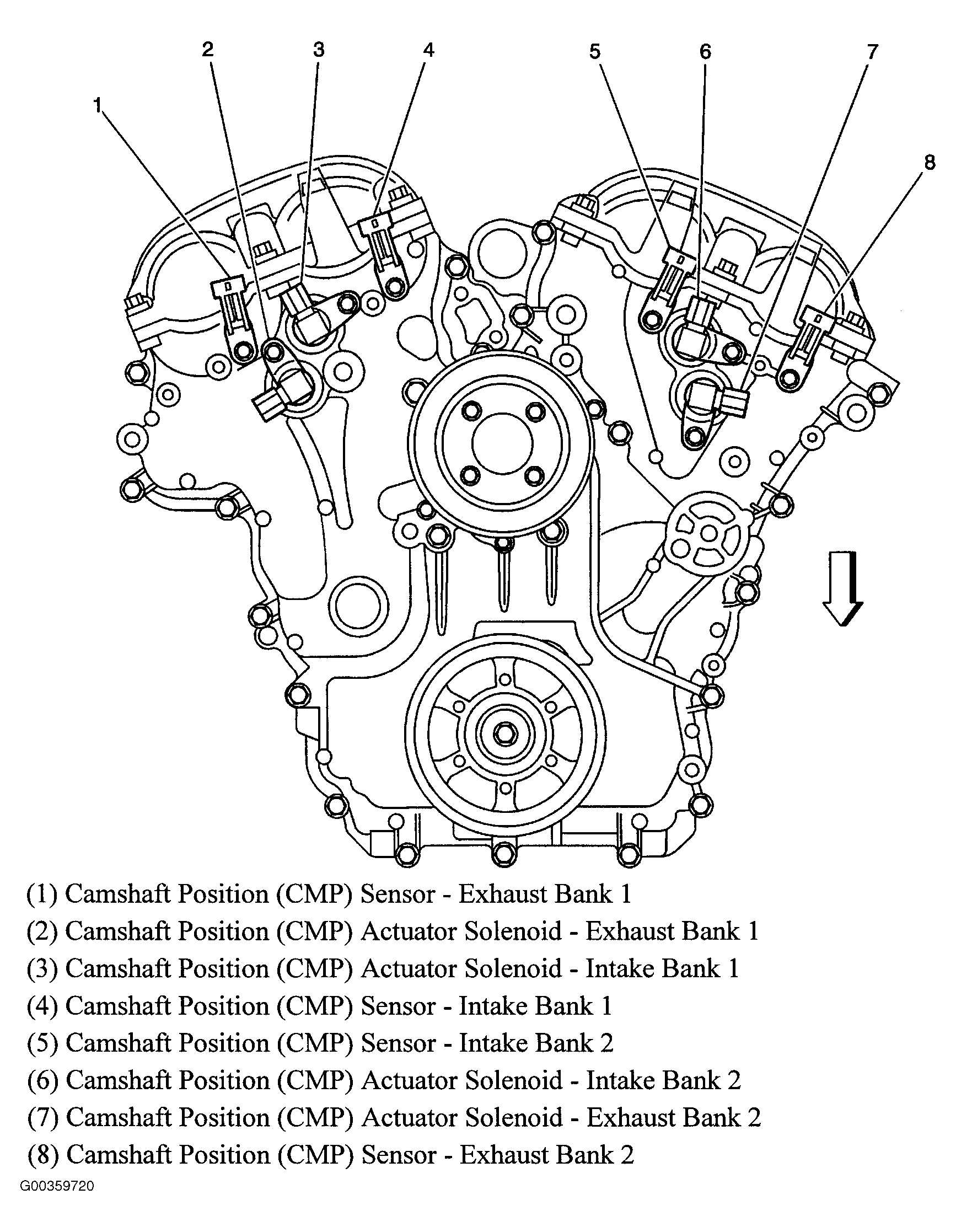

Fig 26: Front Of Engine (3.6L VIN 7)

G00359720

Courtesy of GENERAL MOTORS CORP.

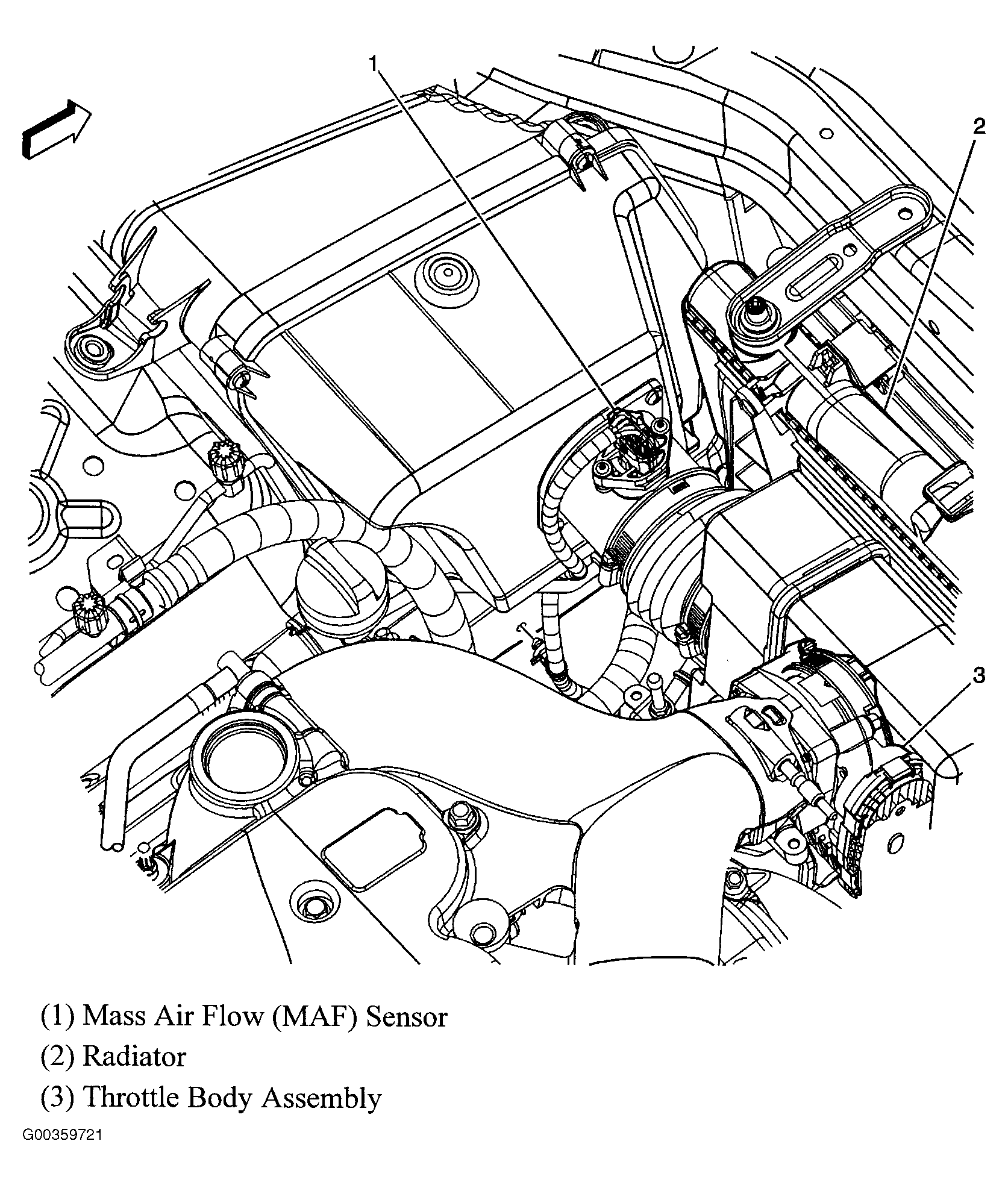

Fig 27: Left Front Of Engine Compartment (3.6L VIN 7)

G00359721

Courtesy of GENERAL MOTORS CORP.

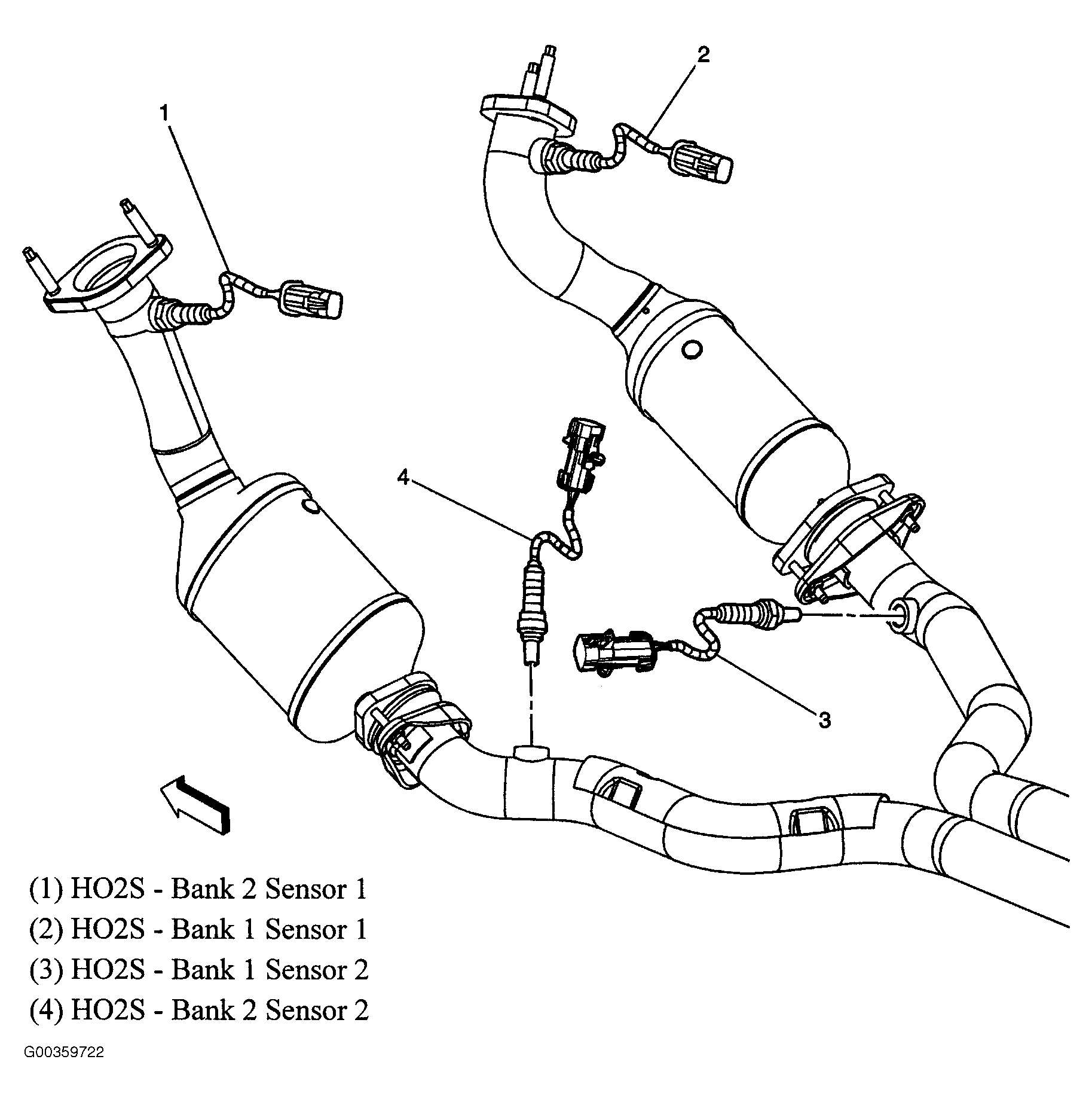

Fig 28: Exhaust System

G00359722

Courtesy of GENERAL MOTORS CORP.

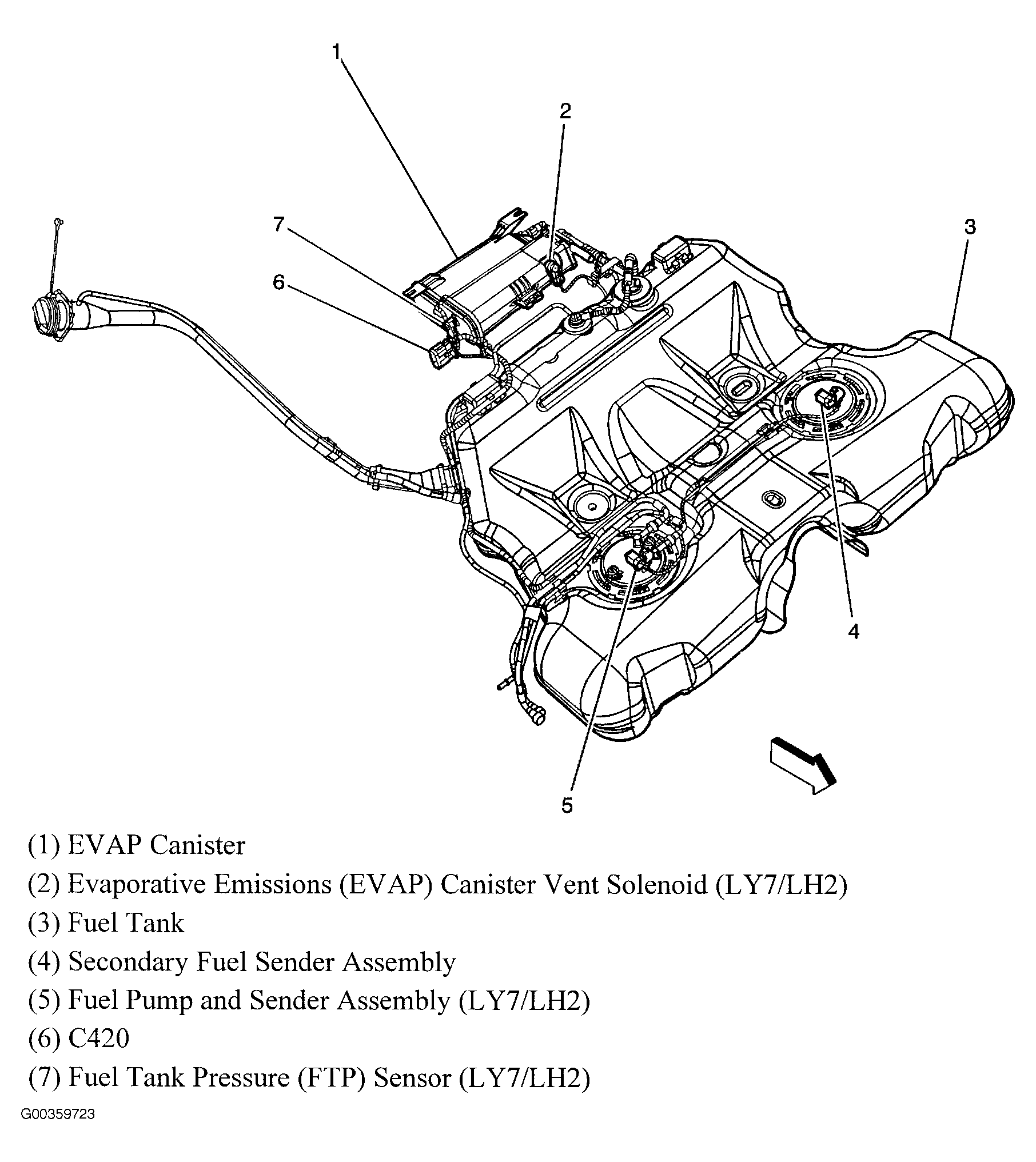

Fig 29: Fuel Tank

G00359723

Courtesy of GENERAL MOTORS CORP.

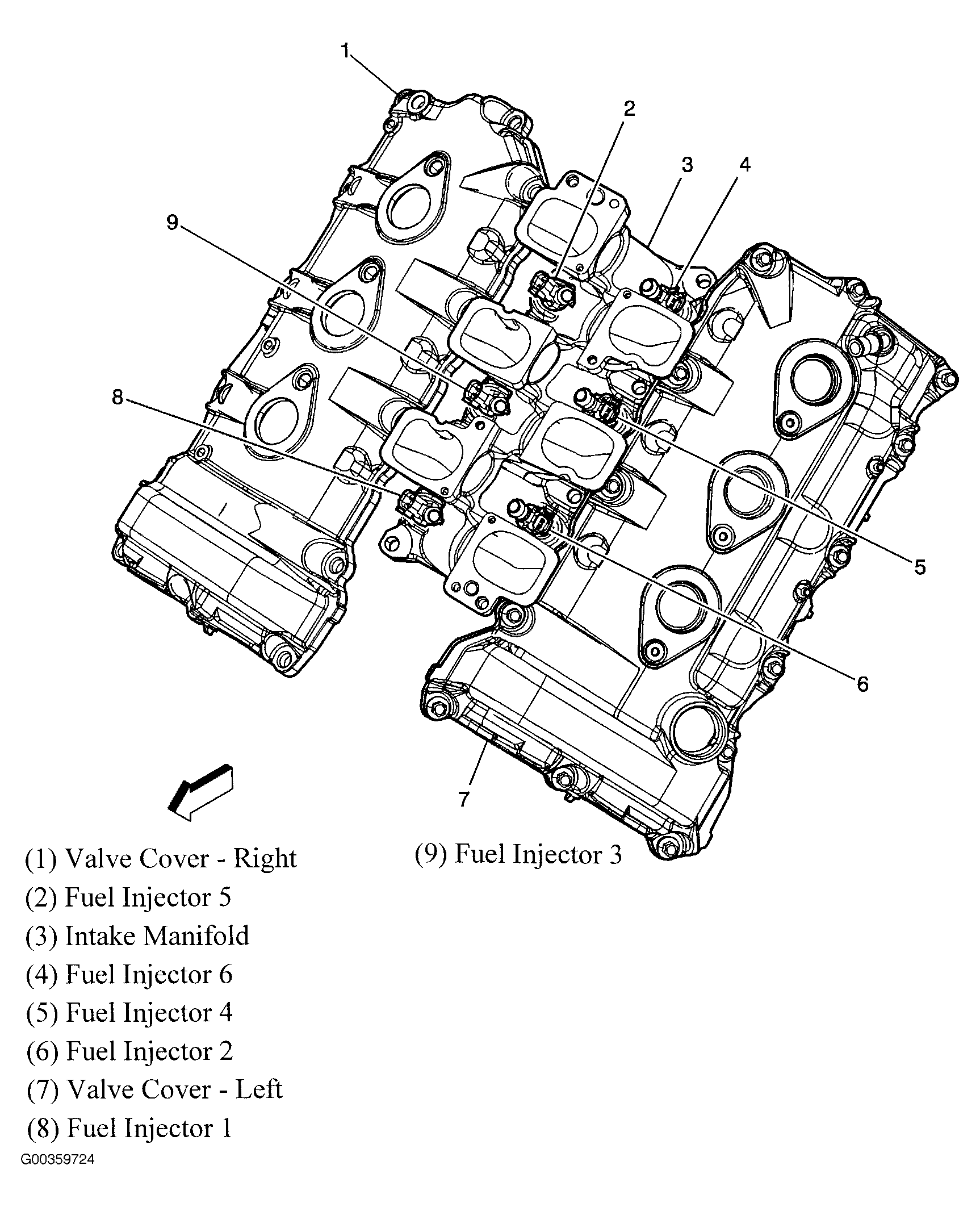

Fig 30: Top Of Engine (3.6L VIN 7)

G00359724

Courtesy of GENERAL MOTORS CORP.

Fig 31: Top Right Side Of Engine (3.6L VIN 7)

G00359725

Courtesy of GENERAL MOTORS CORP.

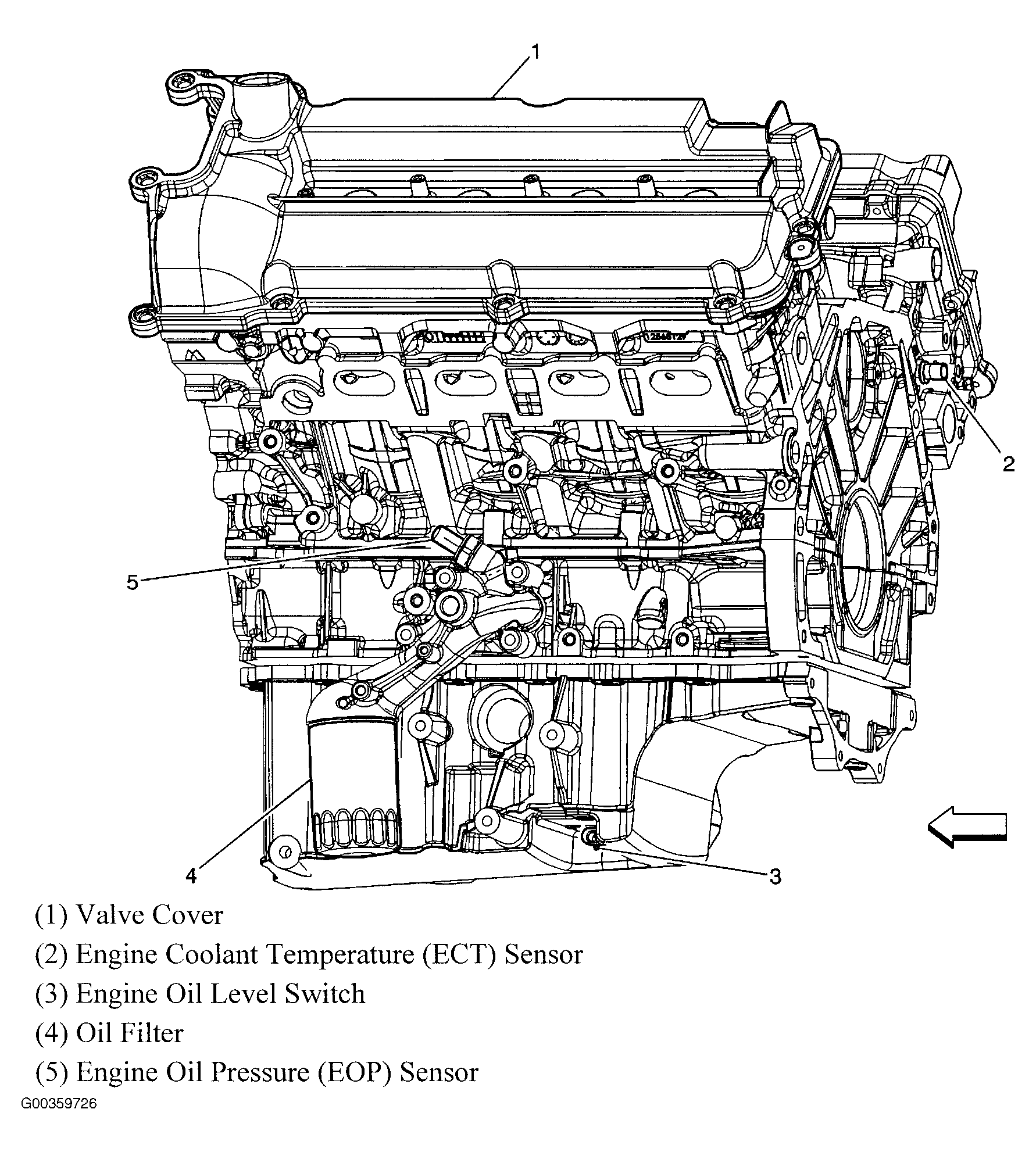

Fig 32: Left Side Of Engine (4.6L VIN A)

G00359726

Courtesy of GENERAL MOTORS CORP.

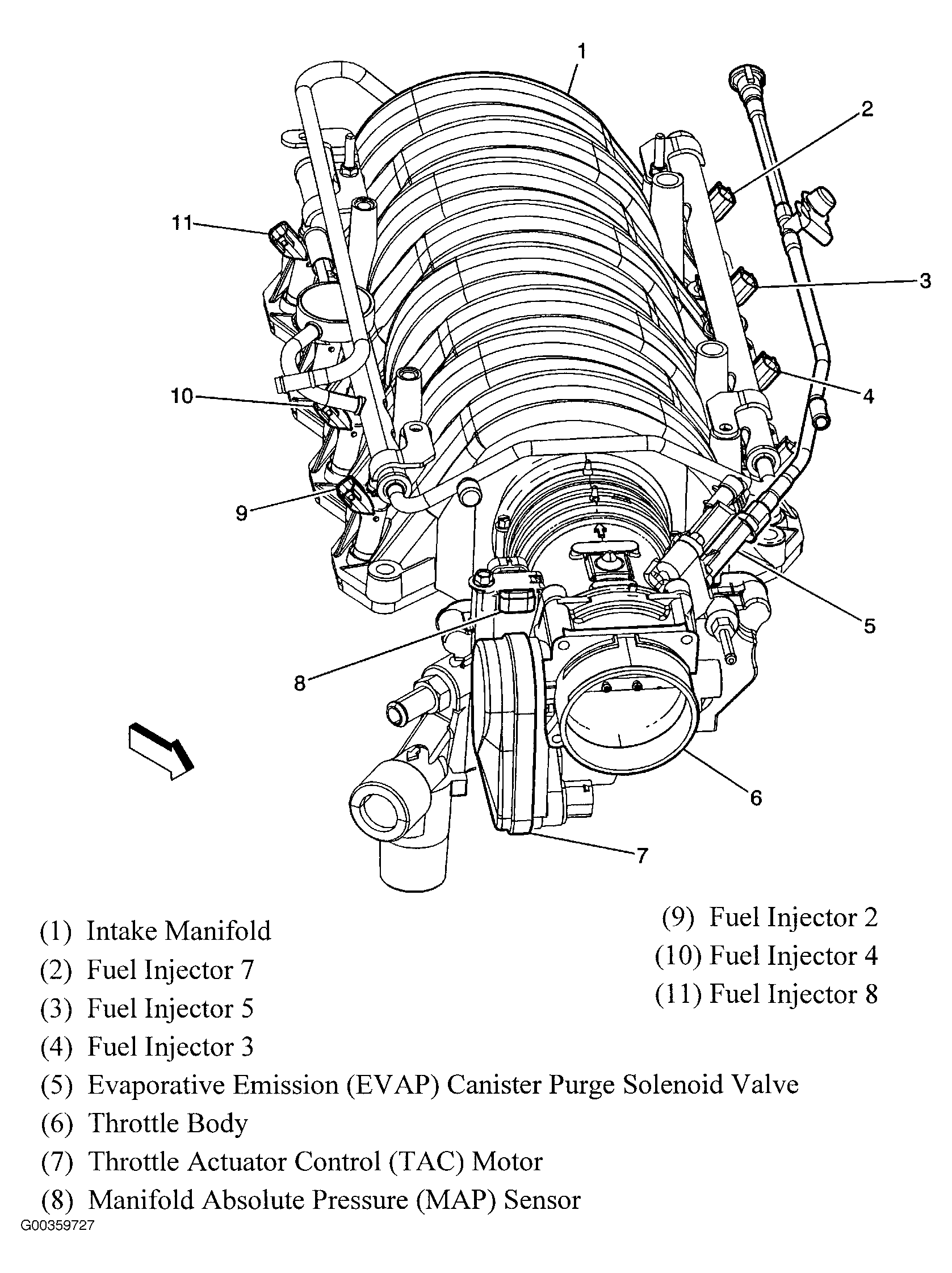

Fig 33: Top Of Engine (4.6L VIN A)

G00359727

Courtesy of GENERAL MOTORS CORP.

Fig 34: Top Of Engine (4.6L VIN A) (1 Of 2)

G00359728

Courtesy of GENERAL MOTORS CORP.

Fig 35: Top Of Engine (4.6L VIN A) (2 Of 2)

G00359729

Courtesy of GENERAL MOTORS CORP.

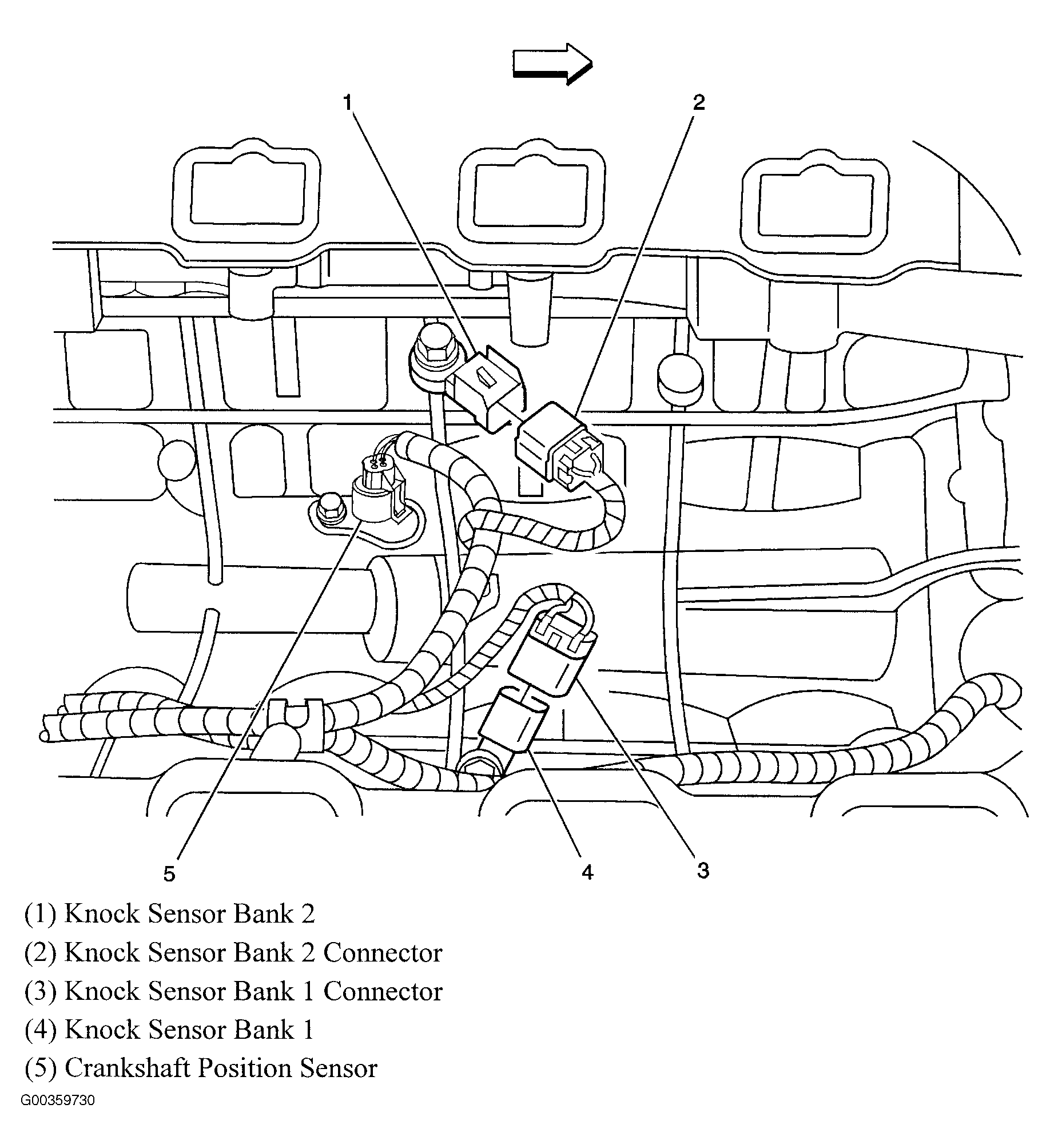

Fig 36: Top Center Of Engine

G00359730

Courtesy of GENERAL MOTORS CORP.

Fig 37: Engine Control Module (4.6L VIN A)

G00359731

Courtesy of GENERAL MOTORS CORP.

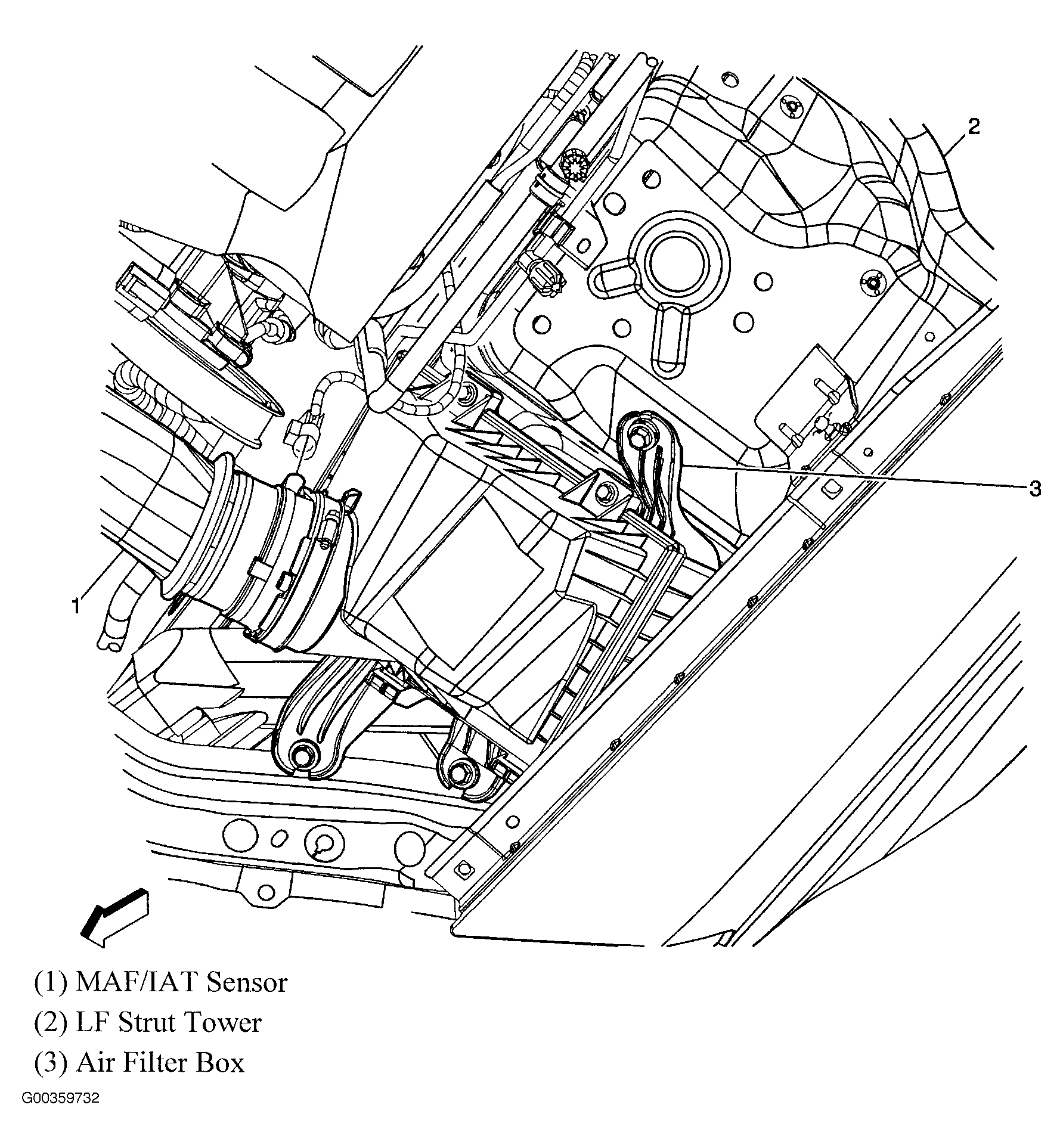

Fig 38: Left Front Of Engine Compartment

G00359732

Courtesy of GENERAL MOTORS CORP.

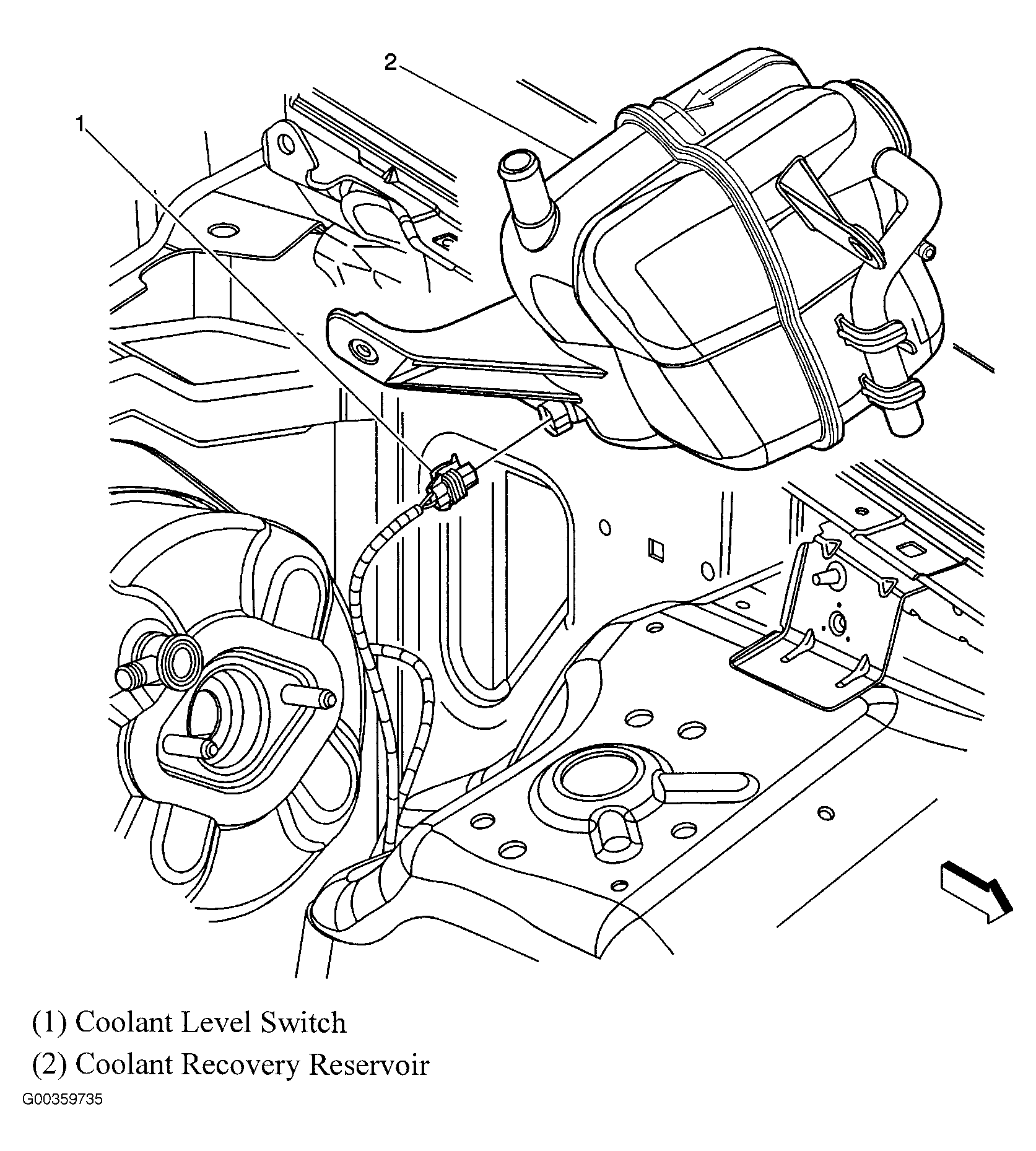

Fig 39: Left Front Of Engine Compartment

G00359735

Courtesy of GENERAL MOTORS CORP.

Fig 40: Right Front Of Engine Compartment

G00359736

Courtesy of GENERAL MOTORS CORP.

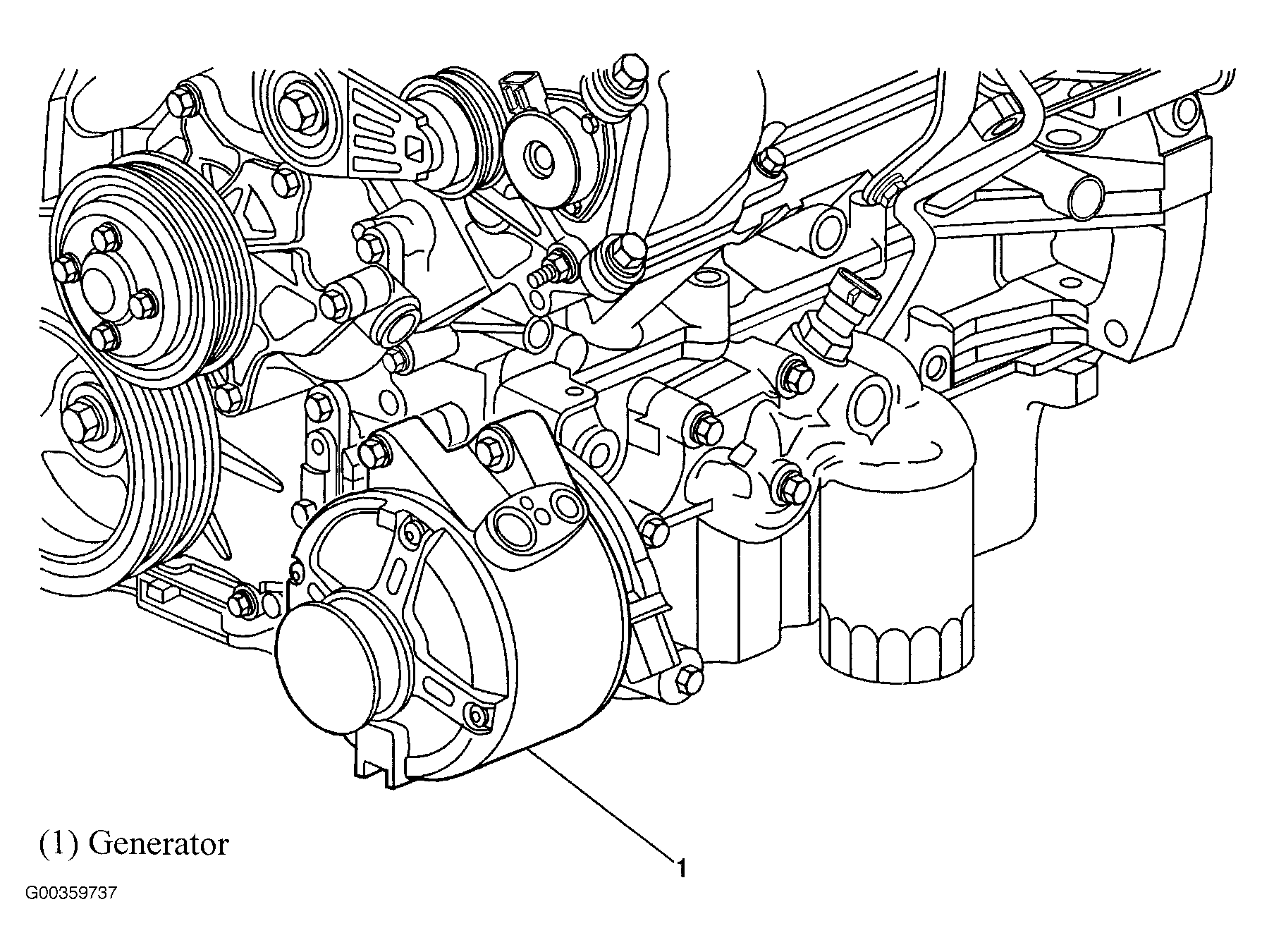

Fig 41: Lower Left Front Of Engine (4.6L VIN A)

G00359737

Courtesy of GENERAL MOTORS CORP.

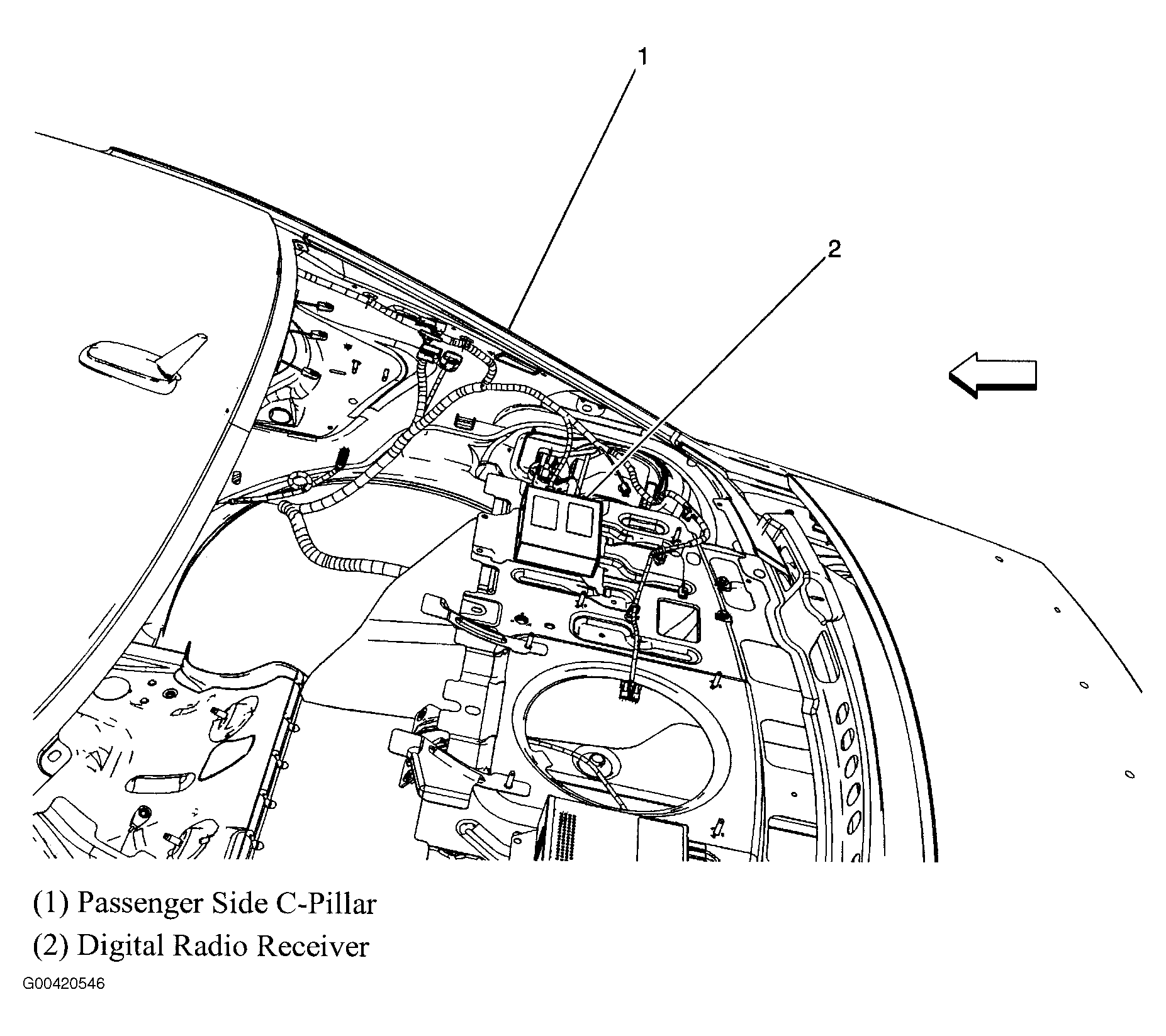

Fig 42: Right Rear Of Passenger Compartment

G00420546

Courtesy of GENERAL MOTORS CORP.

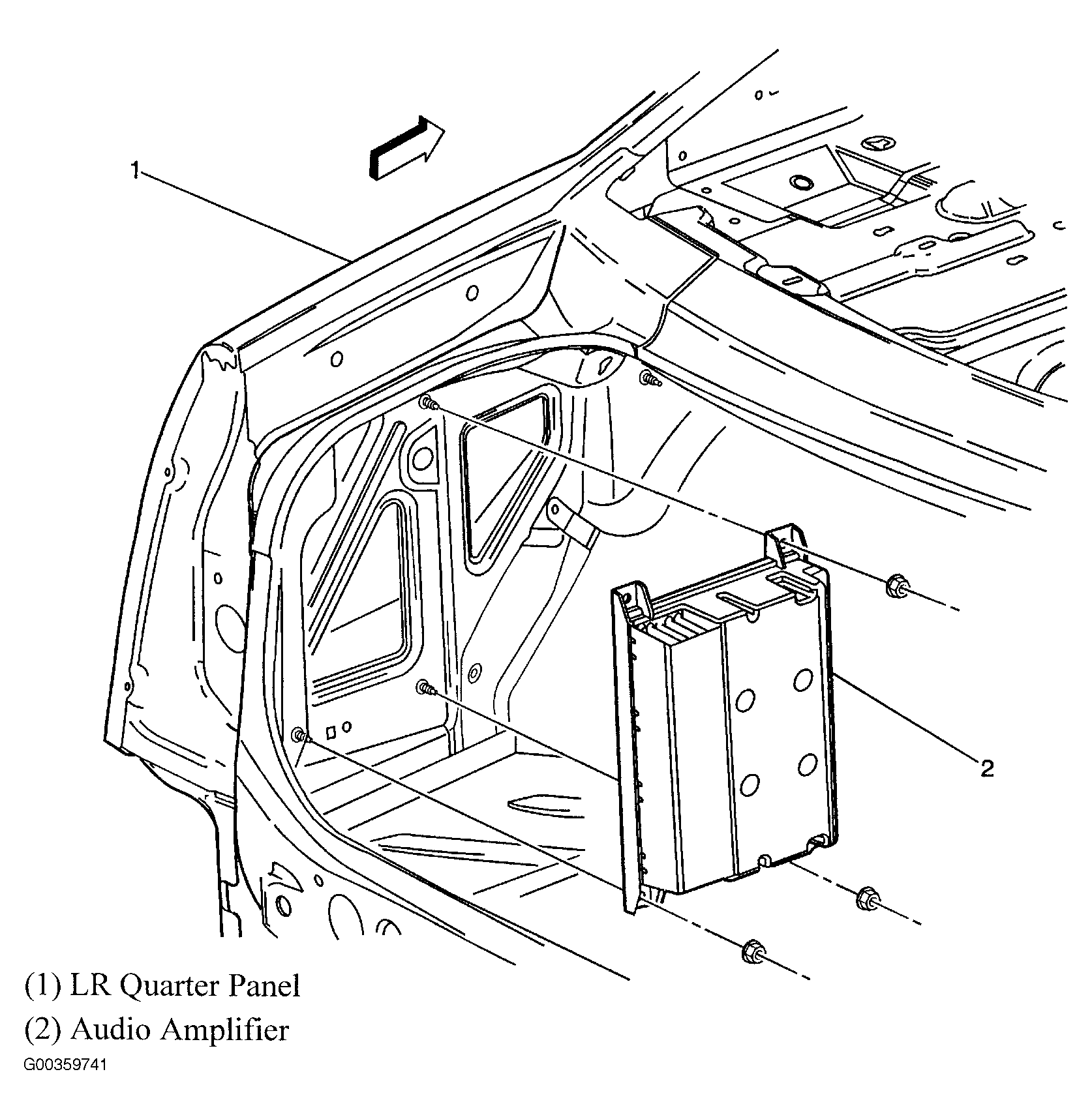

Fig 43: Left Side Of Luggage Compartment

G00359741

Courtesy of GENERAL MOTORS CORP.

Fig 44: Top Of Rear Window

G00359742

Courtesy of GENERAL MOTORS CORP.

Fig 45: Headliner

G00359744

Courtesy of GENERAL MOTORS CORP.

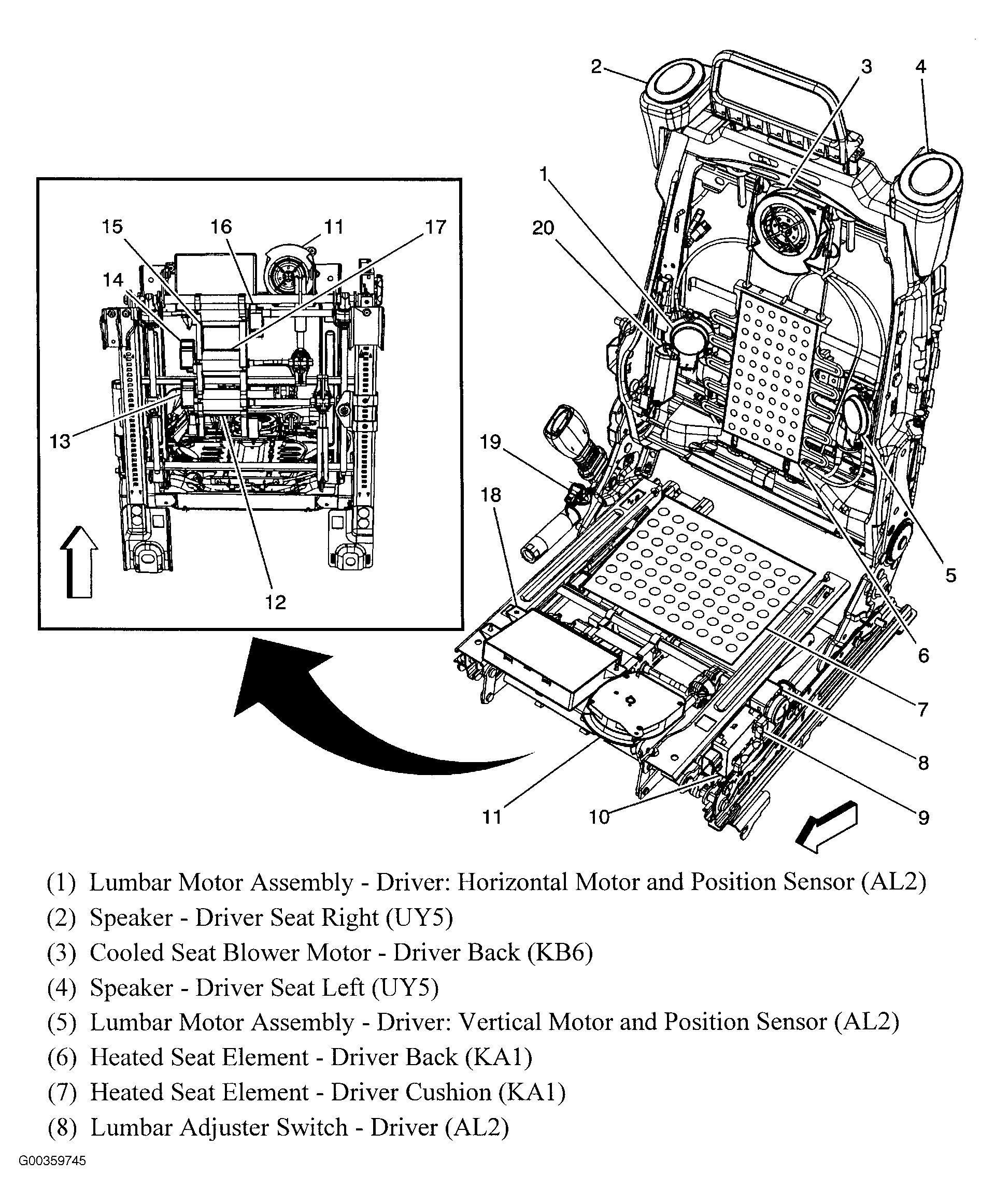

Fig 46: Driver Seat (1 Of 2)

G00359745

Courtesy of GENERAL MOTORS CORP.

Fig 47: Driver Seat (2 Of 2)

G00359746

Courtesy of GENERAL MOTORS CORP.

Fig 48: Front Passenger Seat (1 Of 2)

G00359747

Courtesy of GENERAL MOTORS CORP.

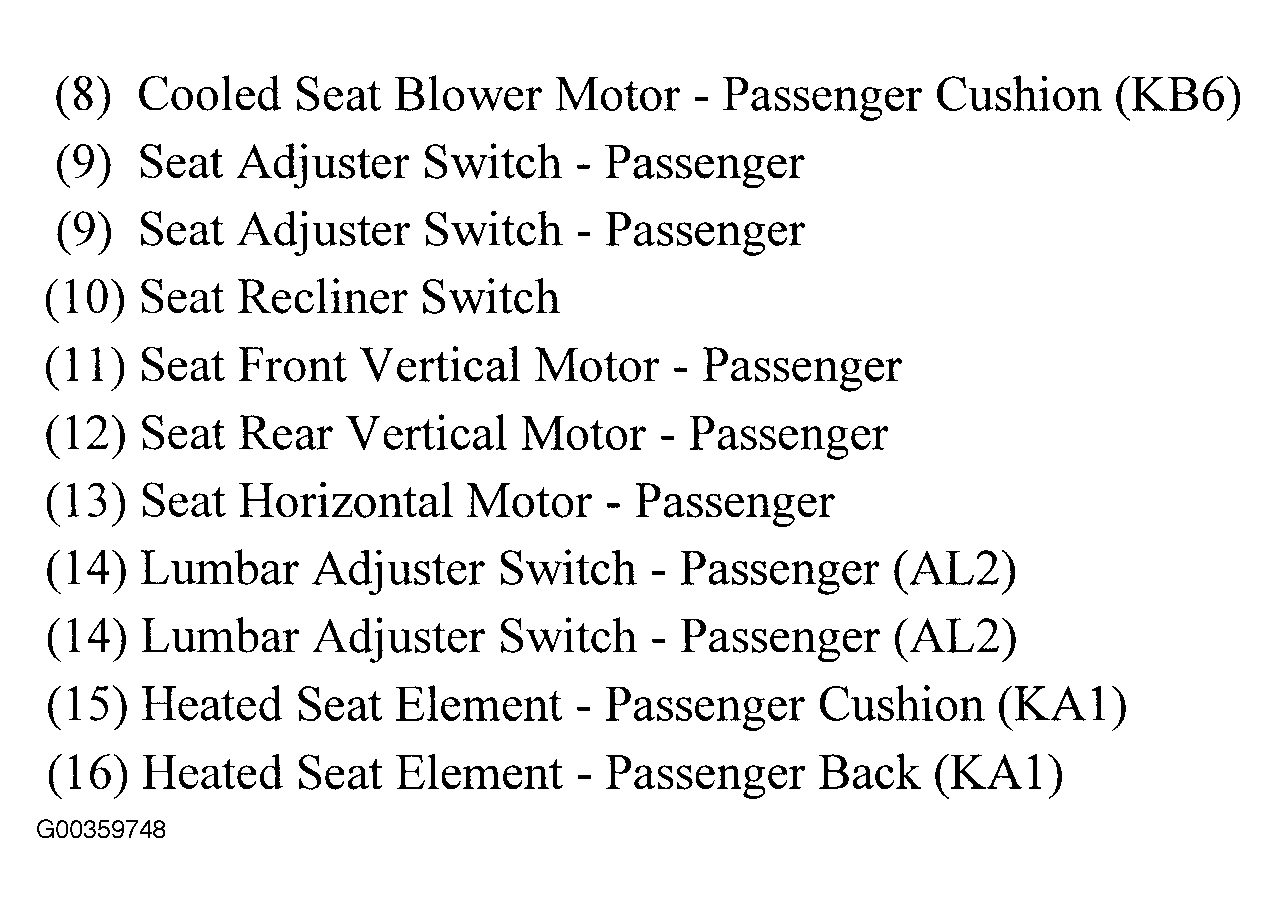

Fig 49: Front Passenger Seat (2 Of 2)

G00359748

Courtesy of GENERAL MOTORS CORP.

Fig 50: Dash & Front Of Vehicle

G00359751

Courtesy of GENERAL MOTORS CORP.

Fig 51: HVAC Assembly (1 Of 2)

G00359752

Courtesy of GENERAL MOTORS CORP.

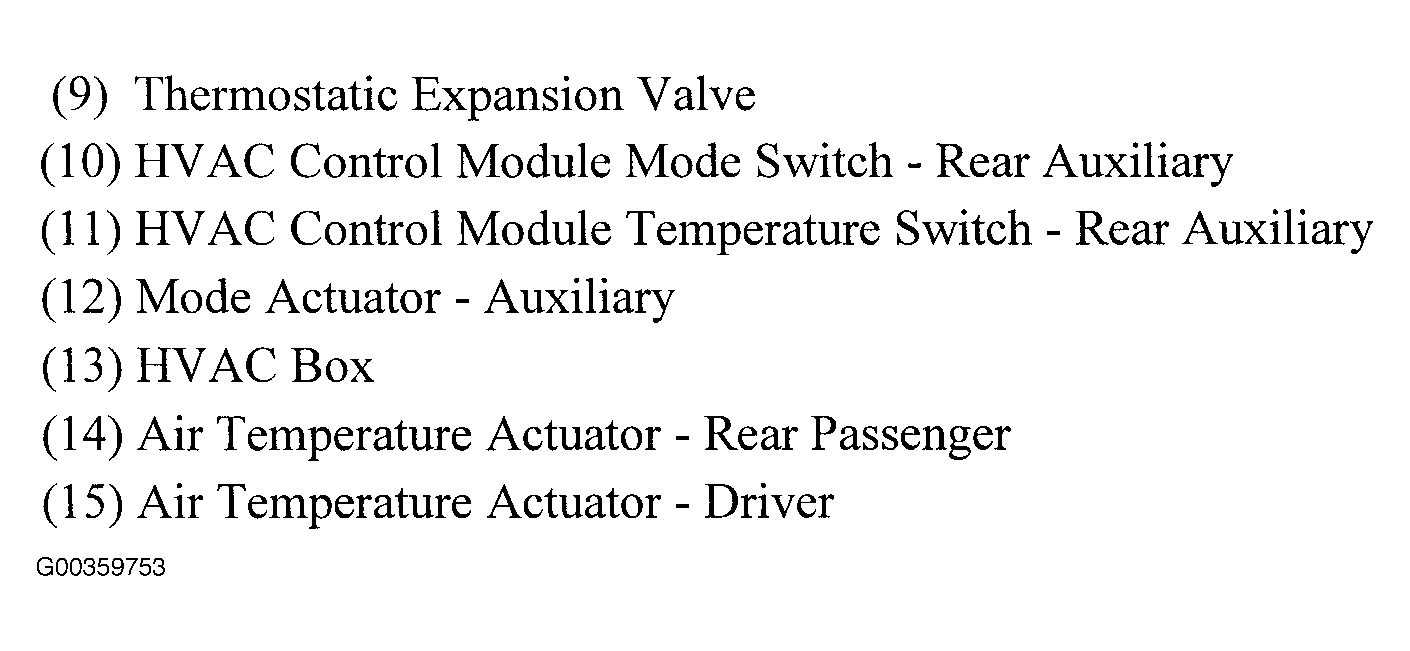

Fig 52: HVAC Assembly (2 Of 2)

G00359753

Courtesy of GENERAL MOTORS CORP.

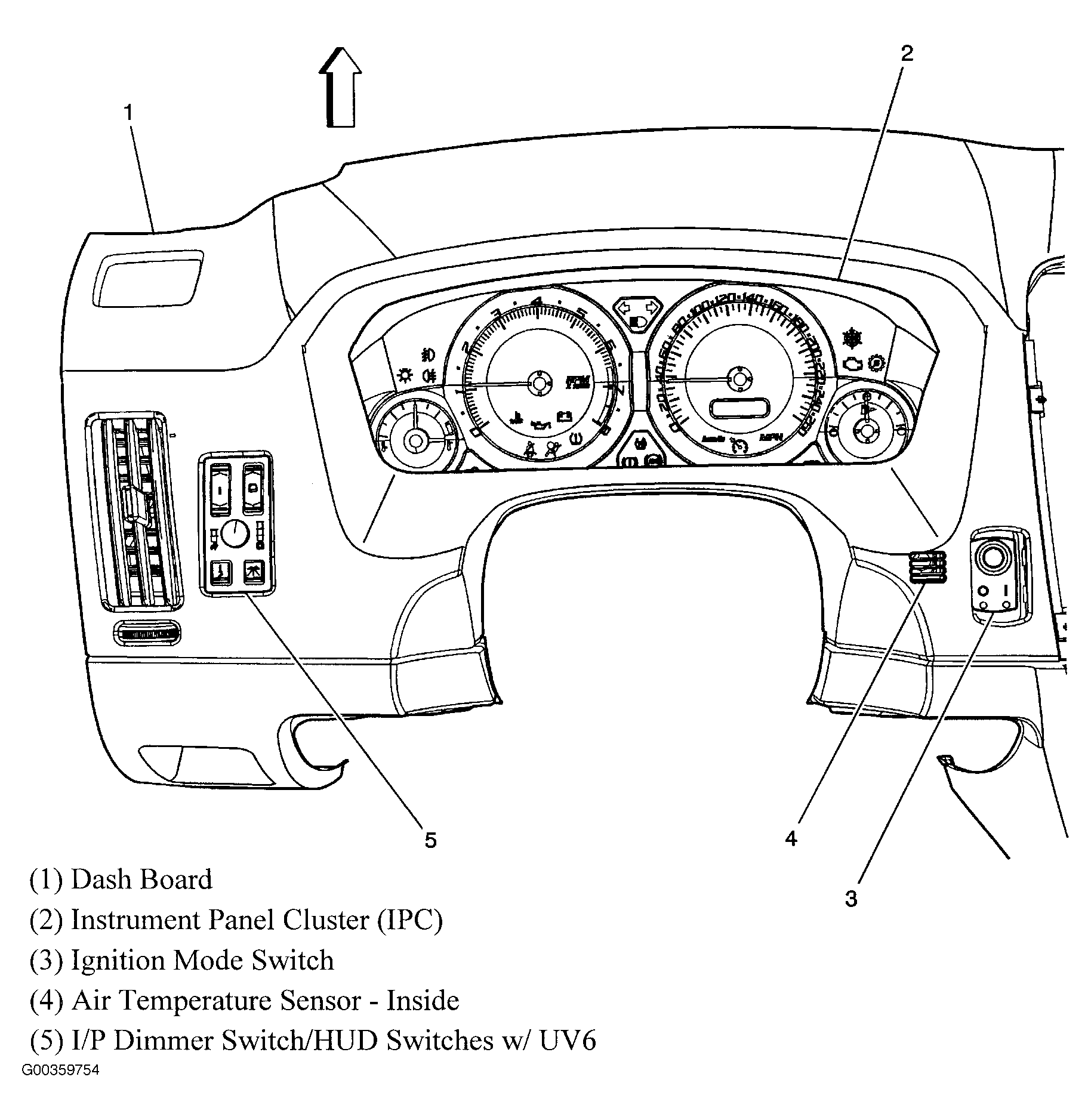

Fig 53: Left Side Of Dash

G00359754

Courtesy of GENERAL MOTORS CORP.

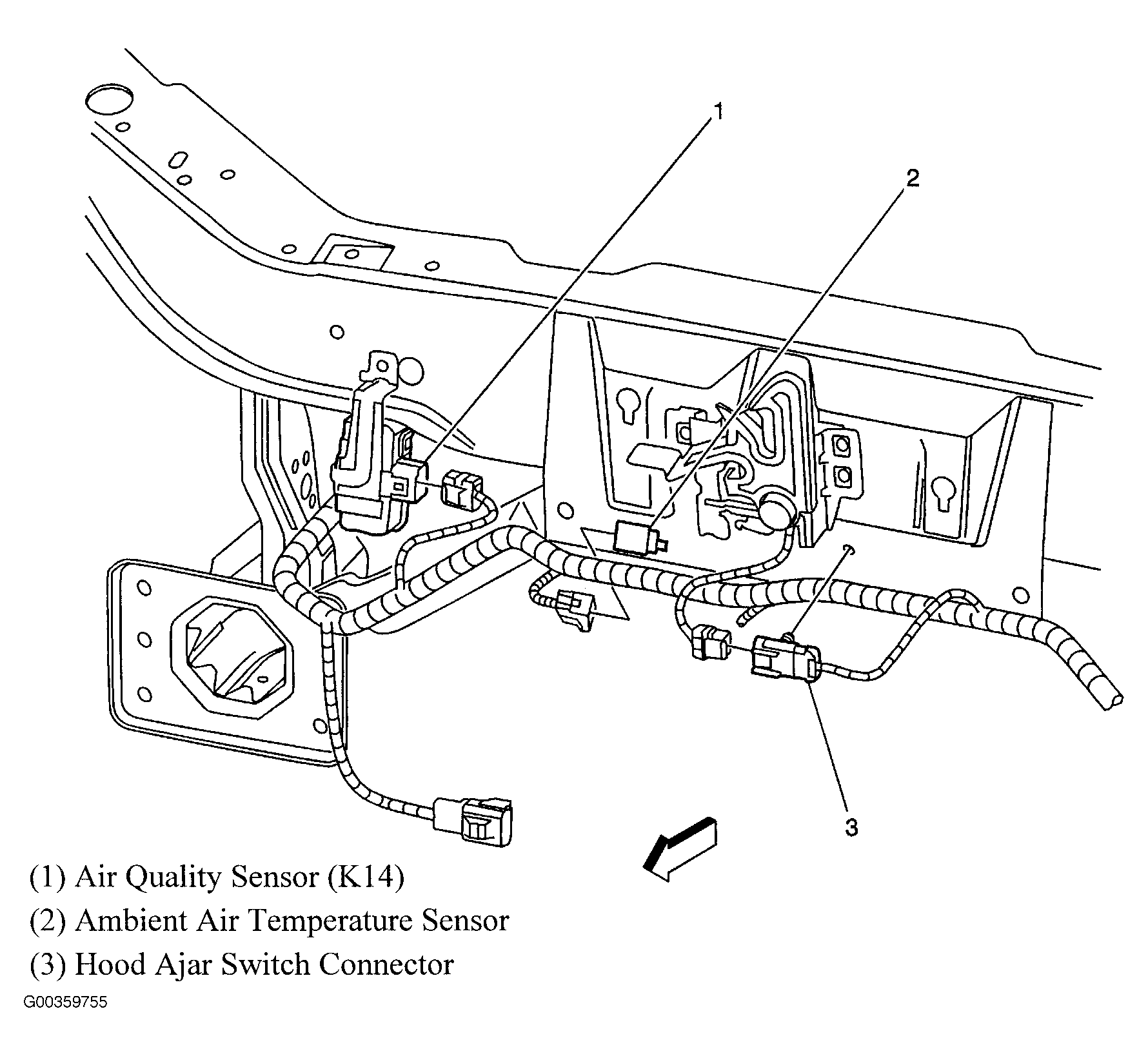

Fig 54: Center Of Core Support

G00359755

Courtesy of GENERAL MOTORS CORP.

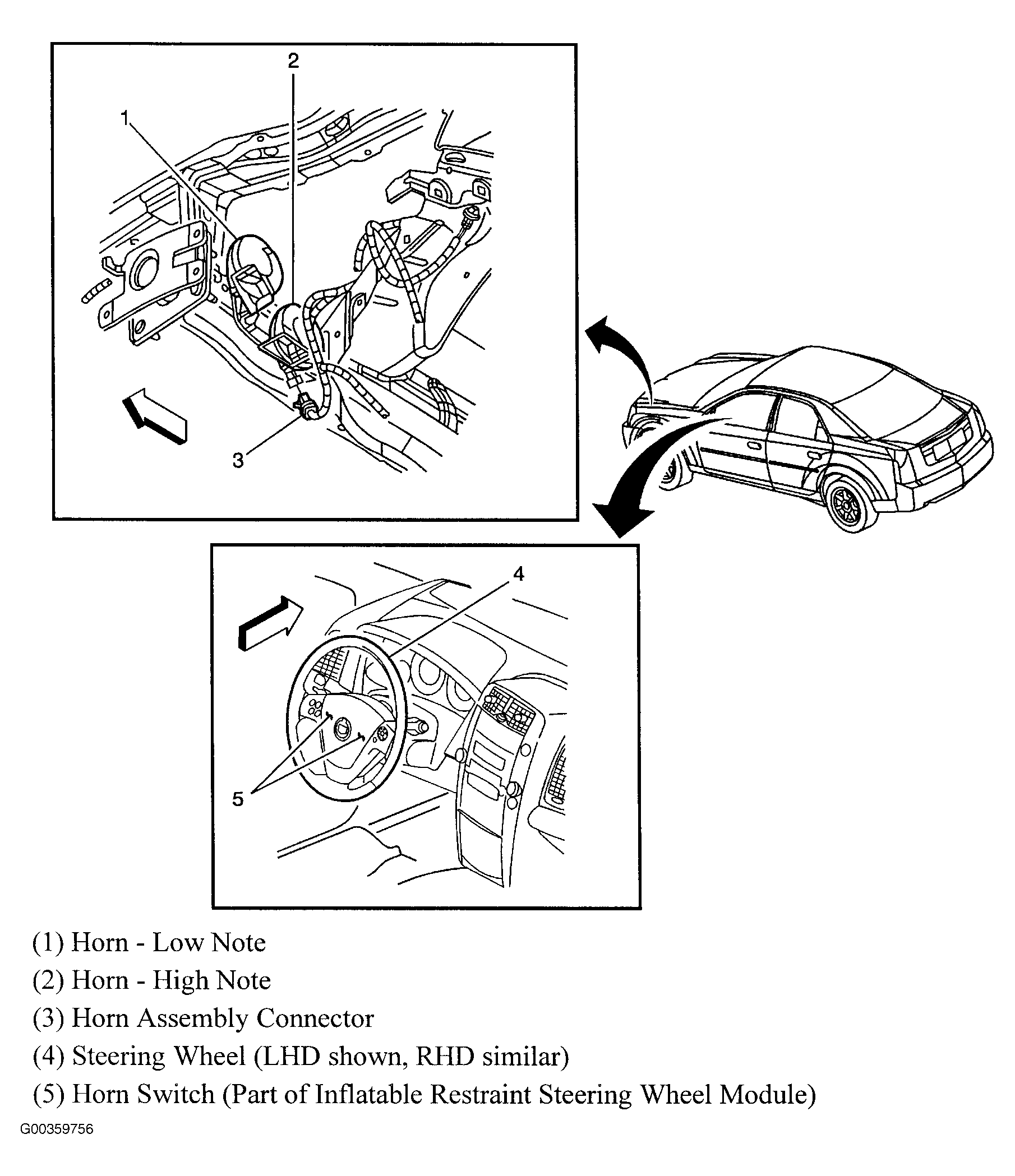

Fig 55: Horn Subsystem Components

G00359756

Courtesy of GENERAL MOTORS CORP.

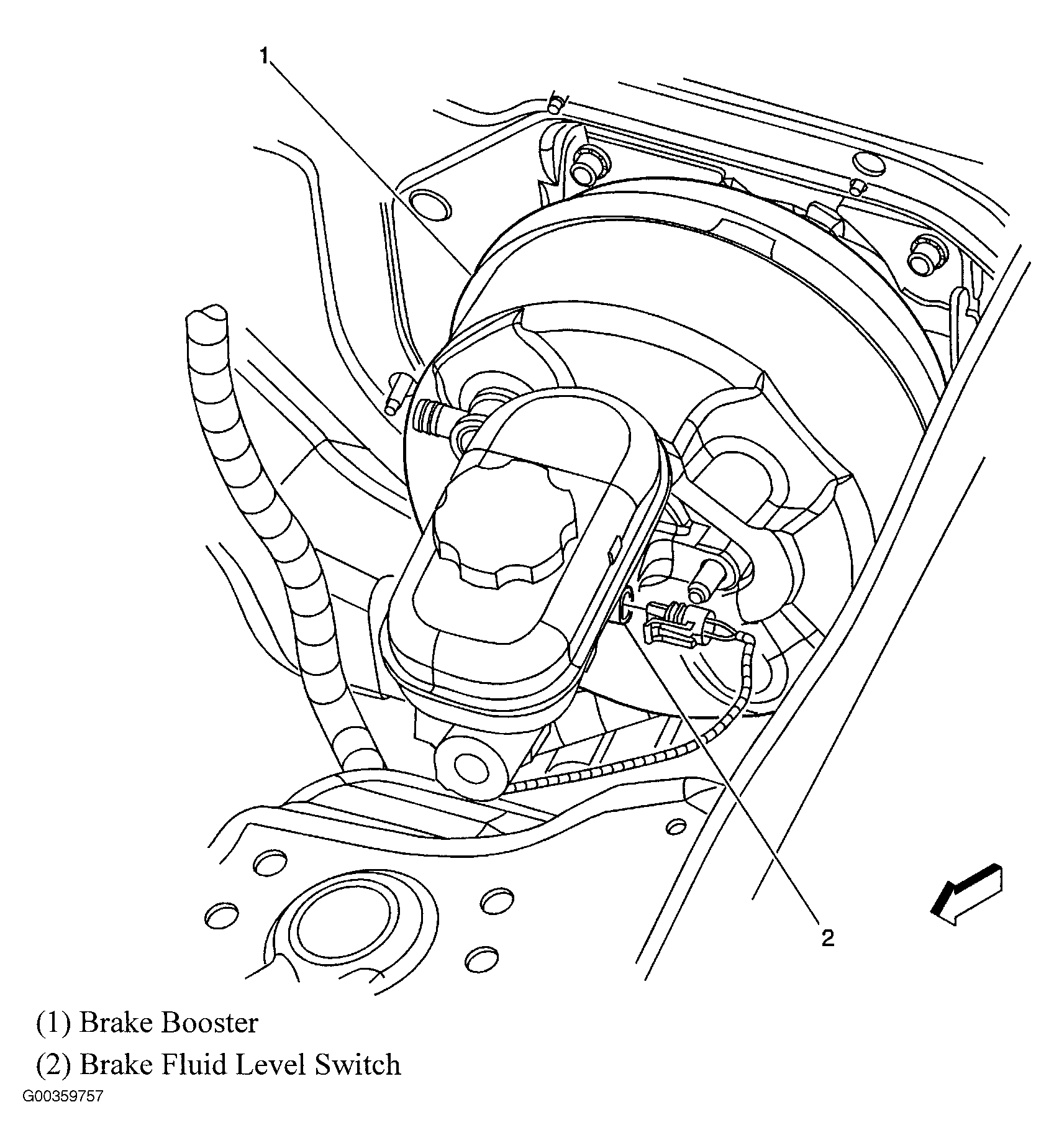

Fig 56: Right Rear Of Engine Compartment

G00359757

Courtesy of GENERAL MOTORS CORP.

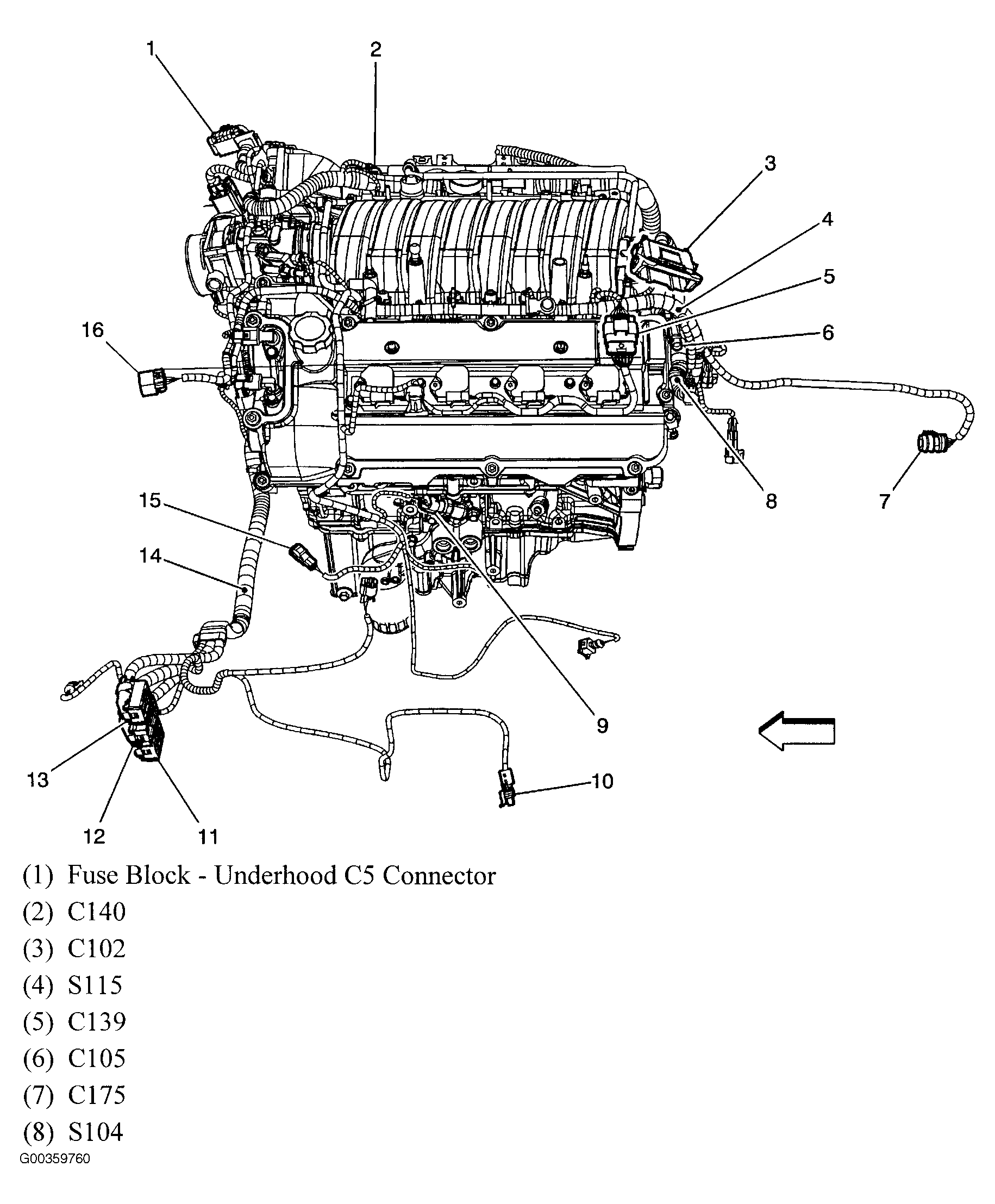

Fig 57: Left Side Of Engine (4.6L VIN A) (1 Of 2)

G00359760

Courtesy of GENERAL MOTORS CORP.

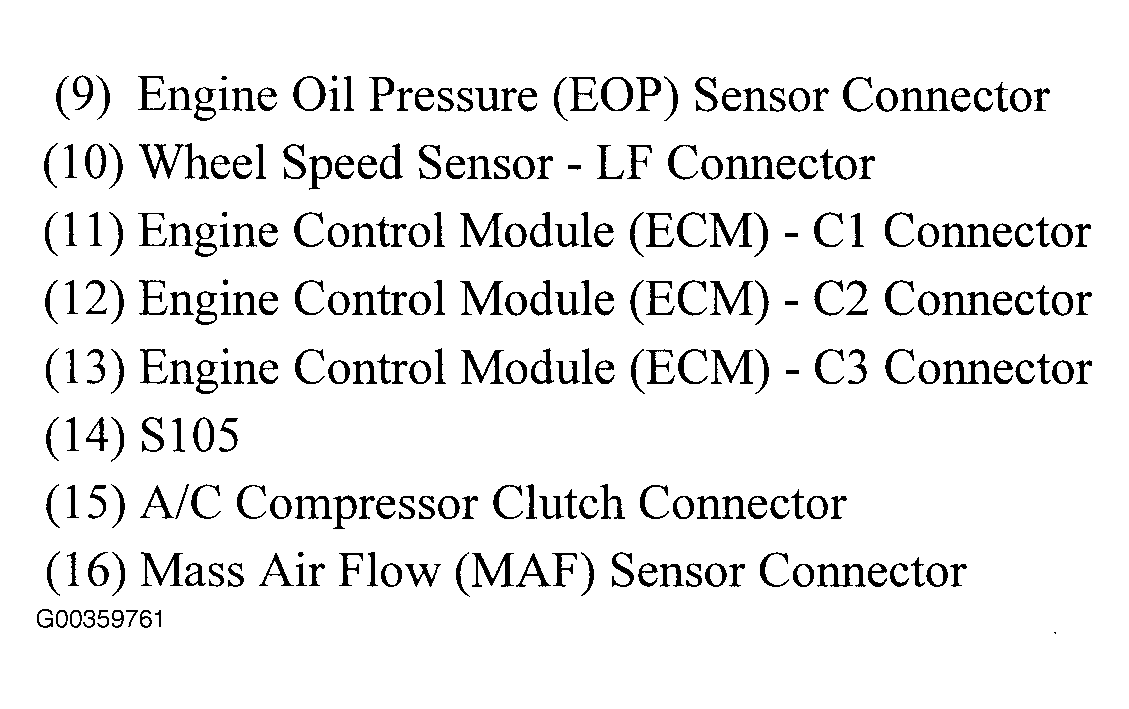

Fig 58: Left Side Of Engine (4.6L VIN A) (2 Of 2)

G00359761

Courtesy of GENERAL MOTORS CORP.

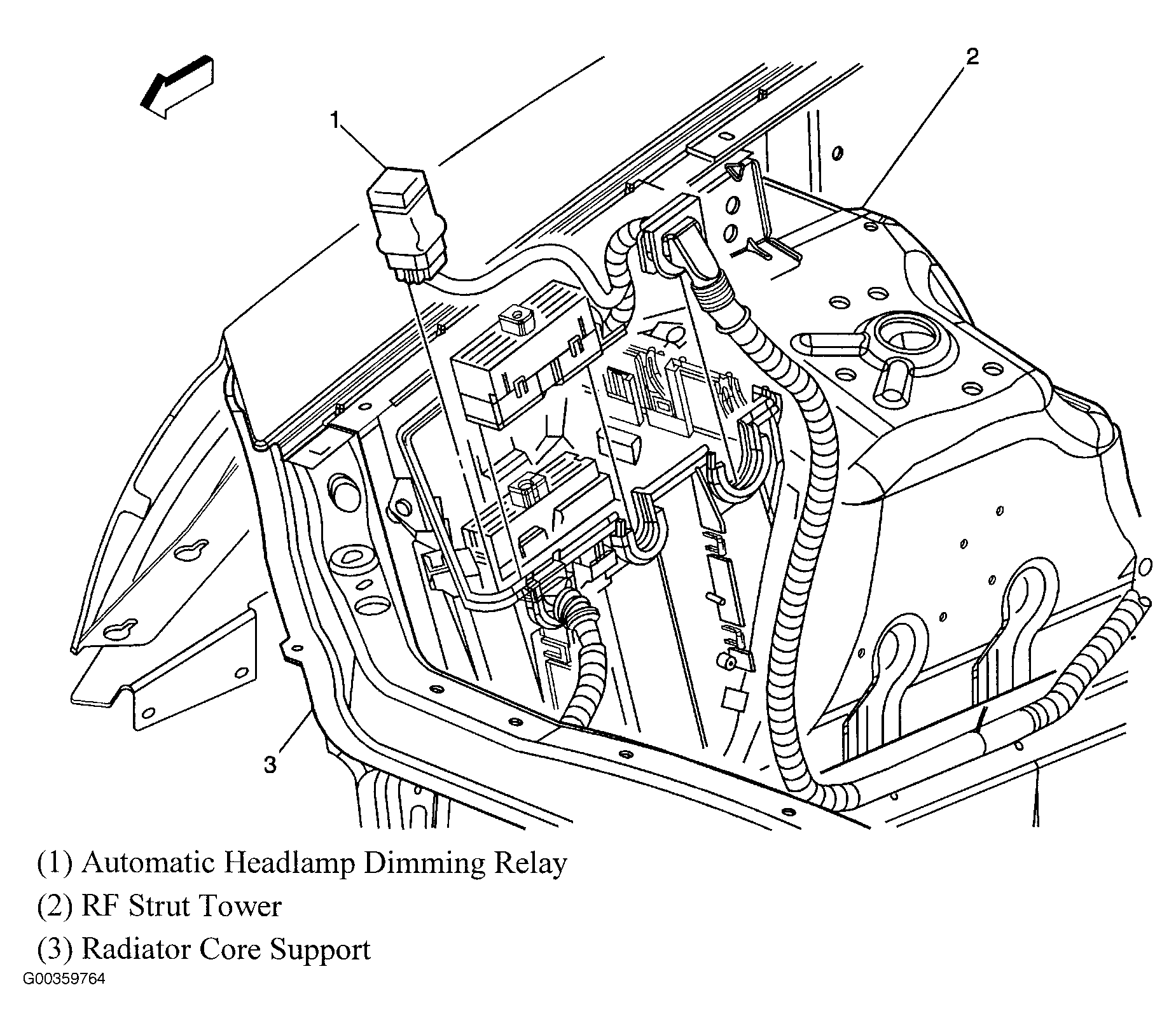

Fig 59: Right Front Side Of Engine Compartment

G00359764

Courtesy of GENERAL MOTORS CORP.

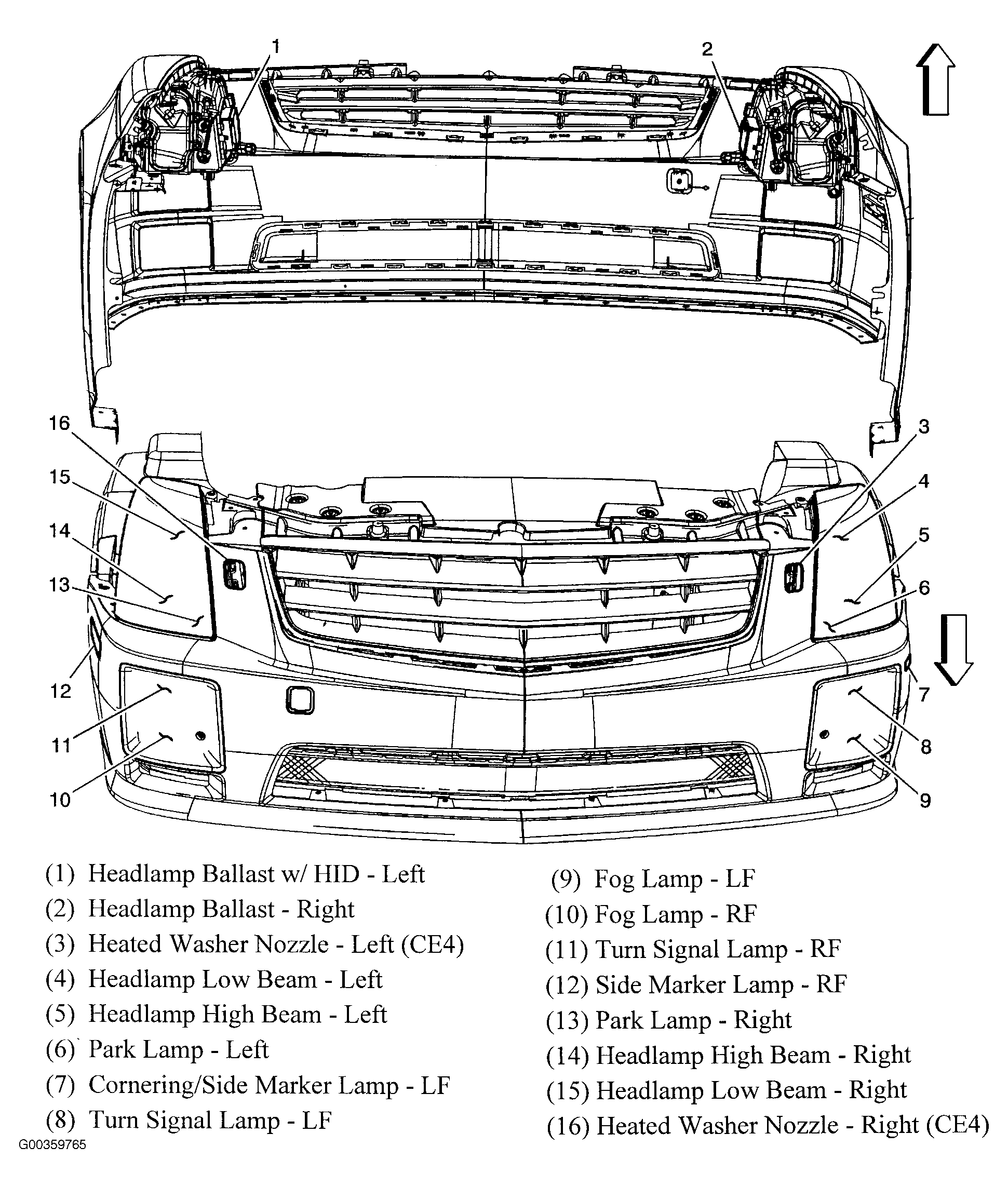

Fig 60: Front Lights

G00359765

Courtesy of GENERAL MOTORS CORP.

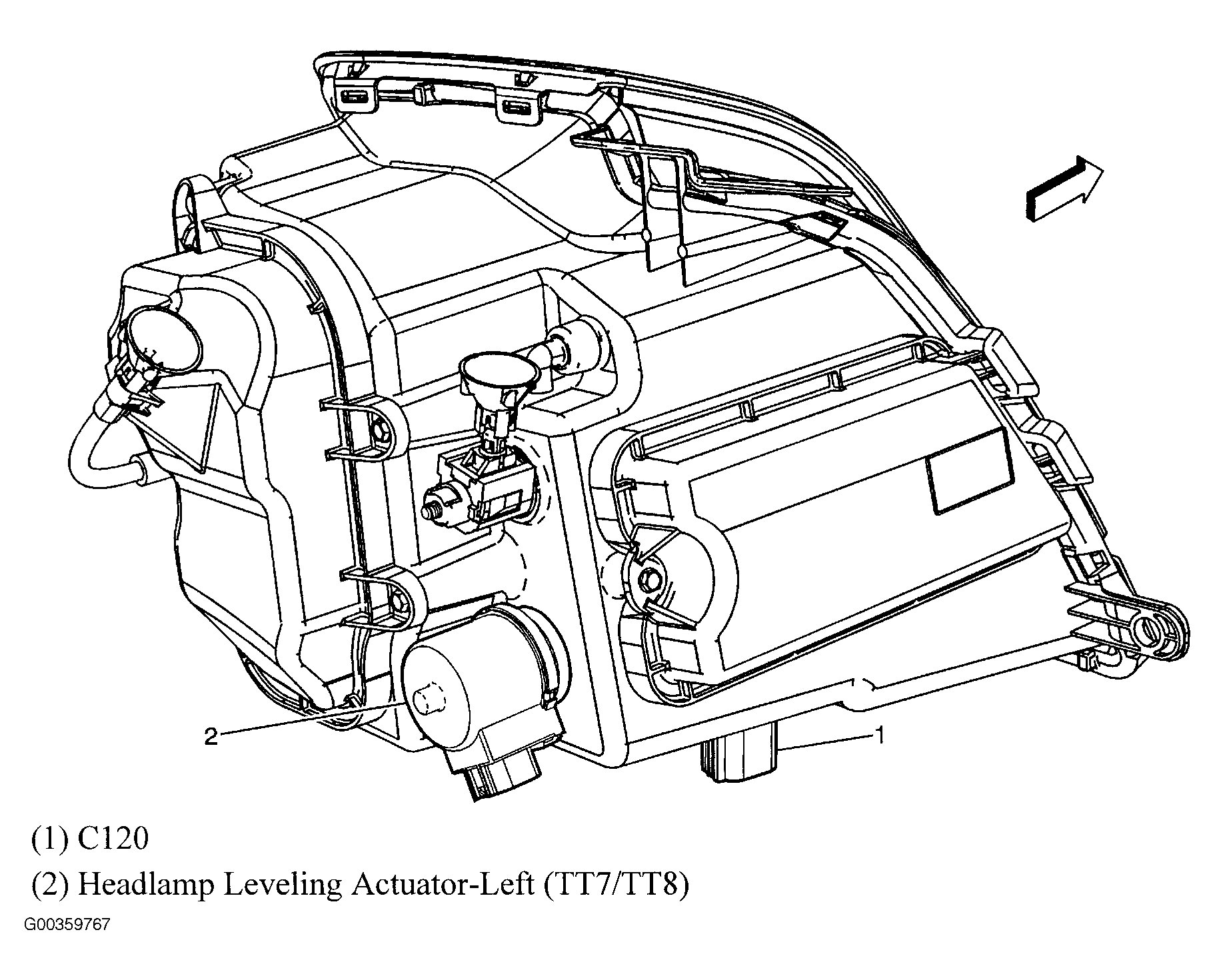

Fig 61: Left Headlamp Assembly

G00359767

Courtesy of GENERAL MOTORS CORP.

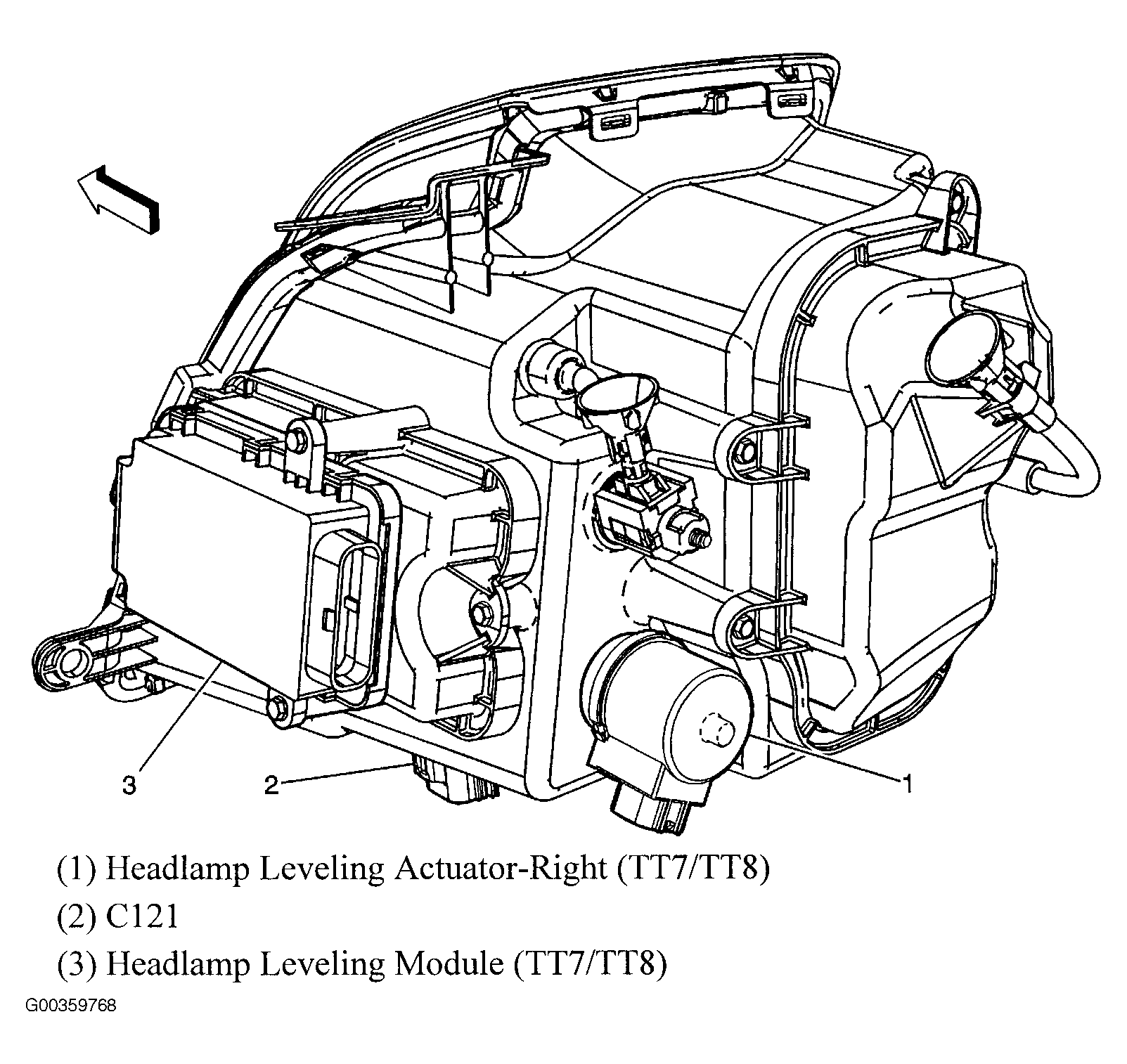

Fig 62: Right Headlamp Assembly

G00359768

Courtesy of GENERAL MOTORS CORP.

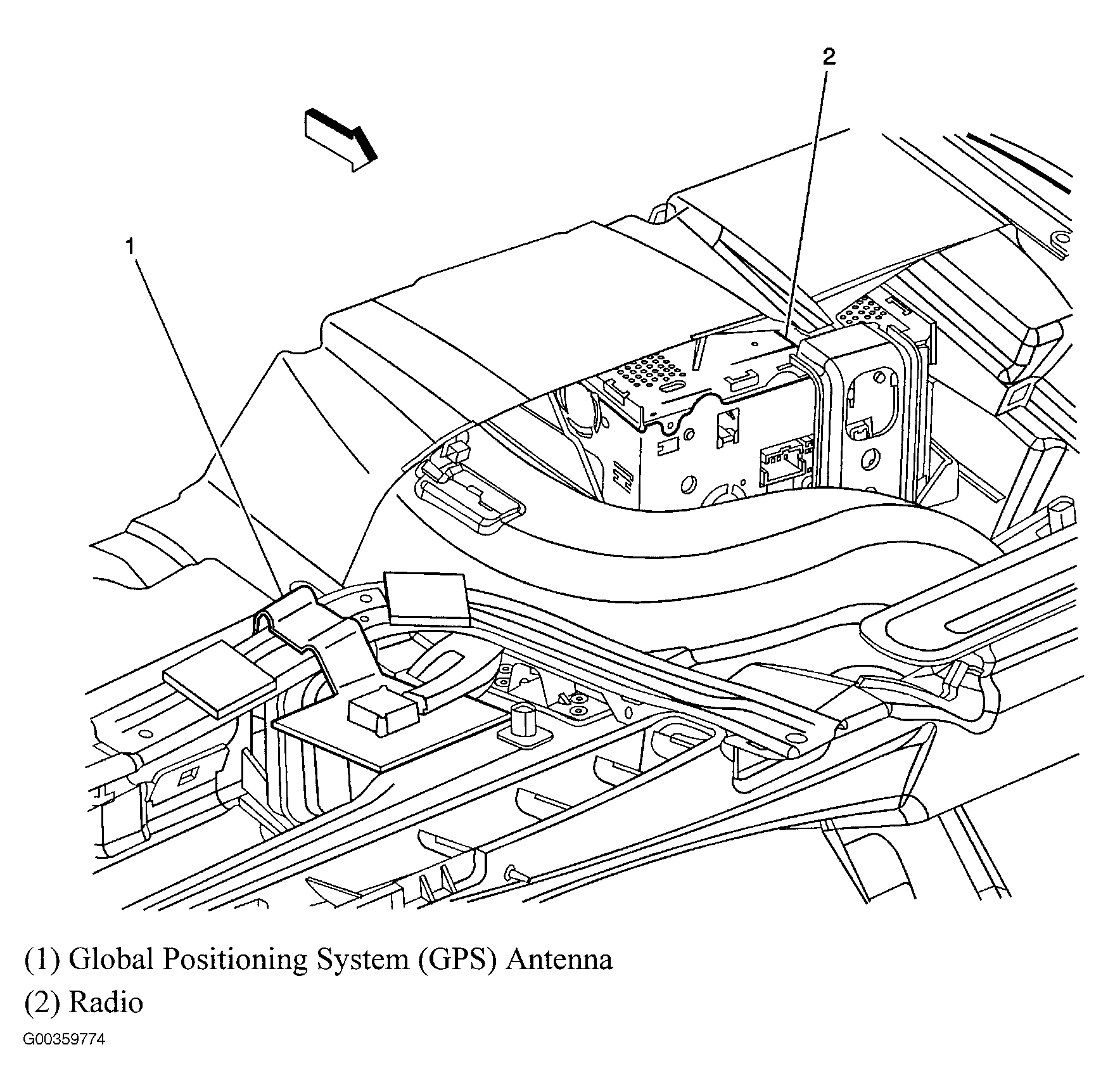

Fig 63: Center Of Dash

G00359774

Courtesy of GENERAL MOTORS CORP.

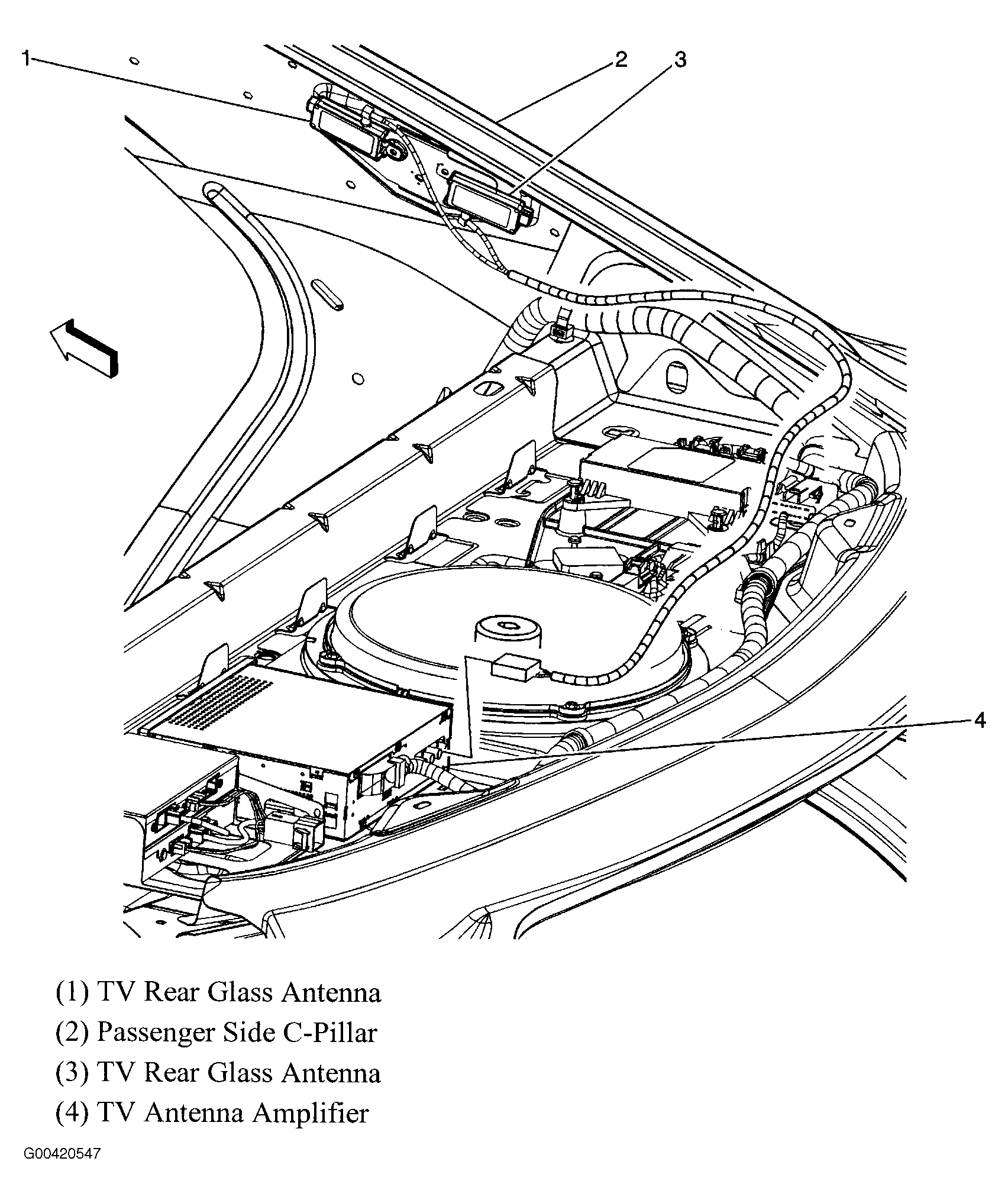

Fig 64: Right Rear Of Passenger Compartment

G00420547

Courtesy of GENERAL MOTORS CORP.

Fig 65: Rear Fascia

G00359779

Courtesy of GENERAL MOTORS CORP.

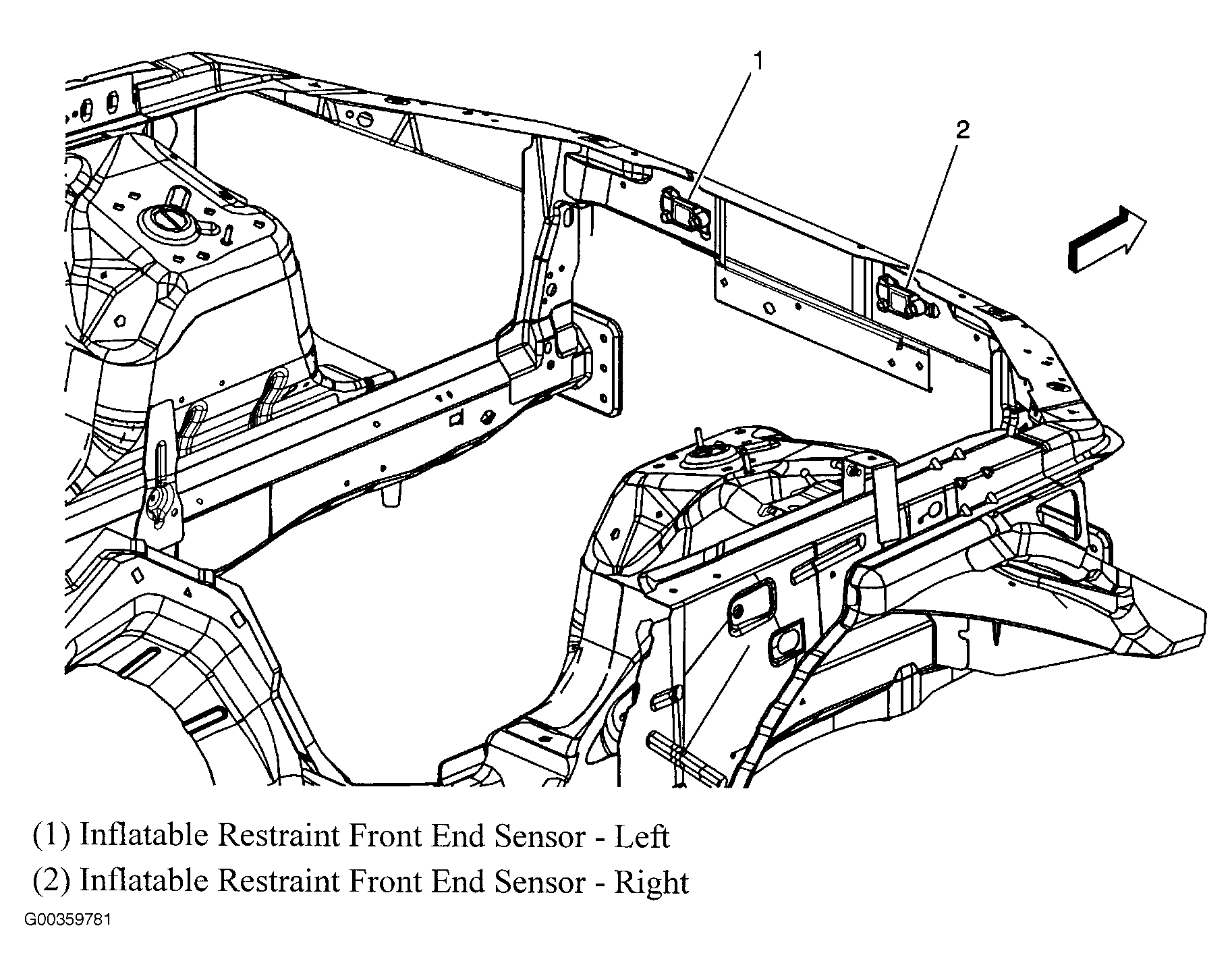

Fig 66: Front End Fascia

G00359781

Courtesy of GENERAL MOTORS CORP.

Fig 67: Center Console

G00359782

Courtesy of GENERAL MOTORS CORP.

Fig 68: Front Interior Of Vehicle

G00359783

Courtesy of GENERAL MOTORS CORP.

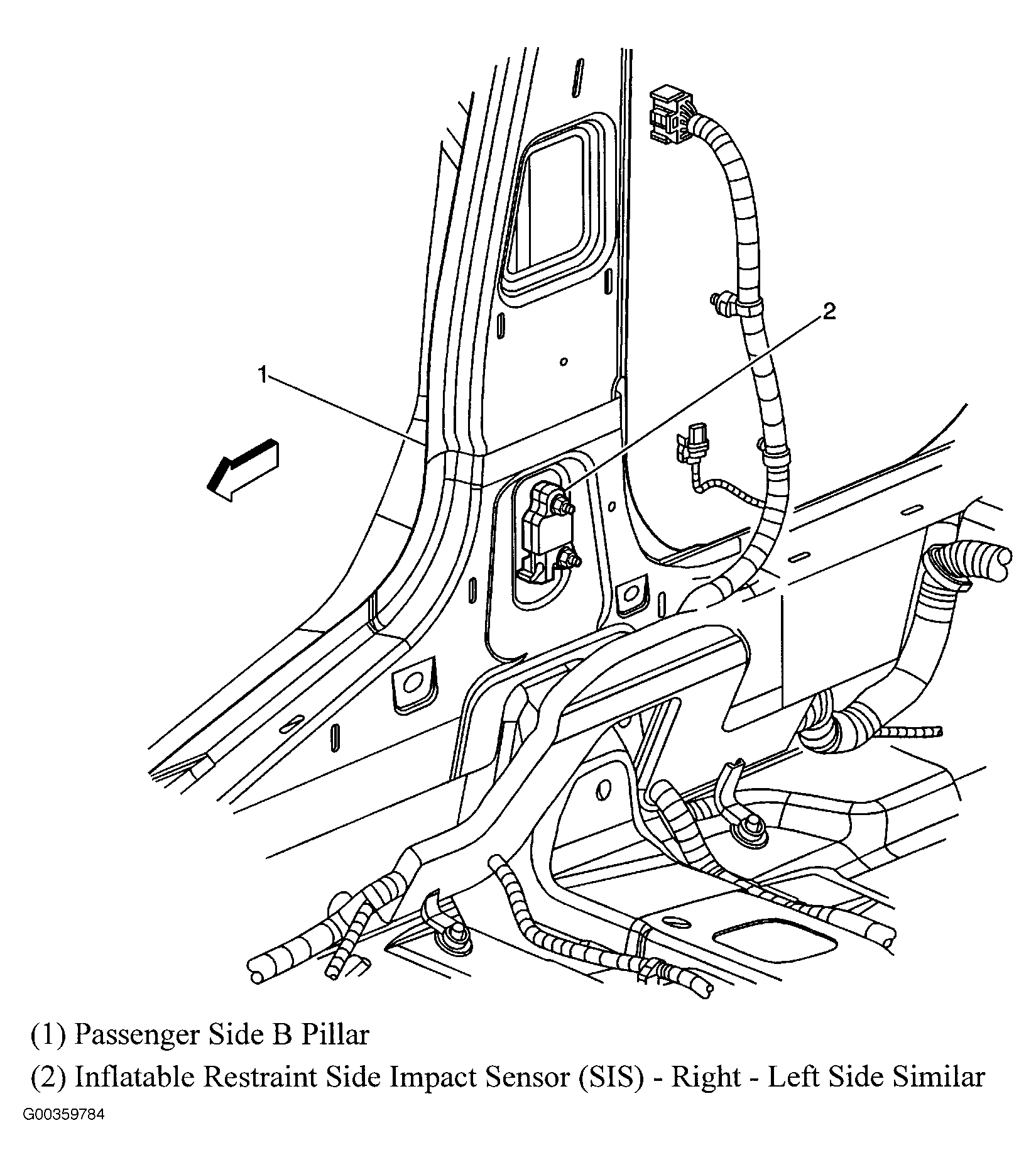

Fig 69: Right "B" Pillar

G00359784

Courtesy of GENERAL MOTORS CORP.

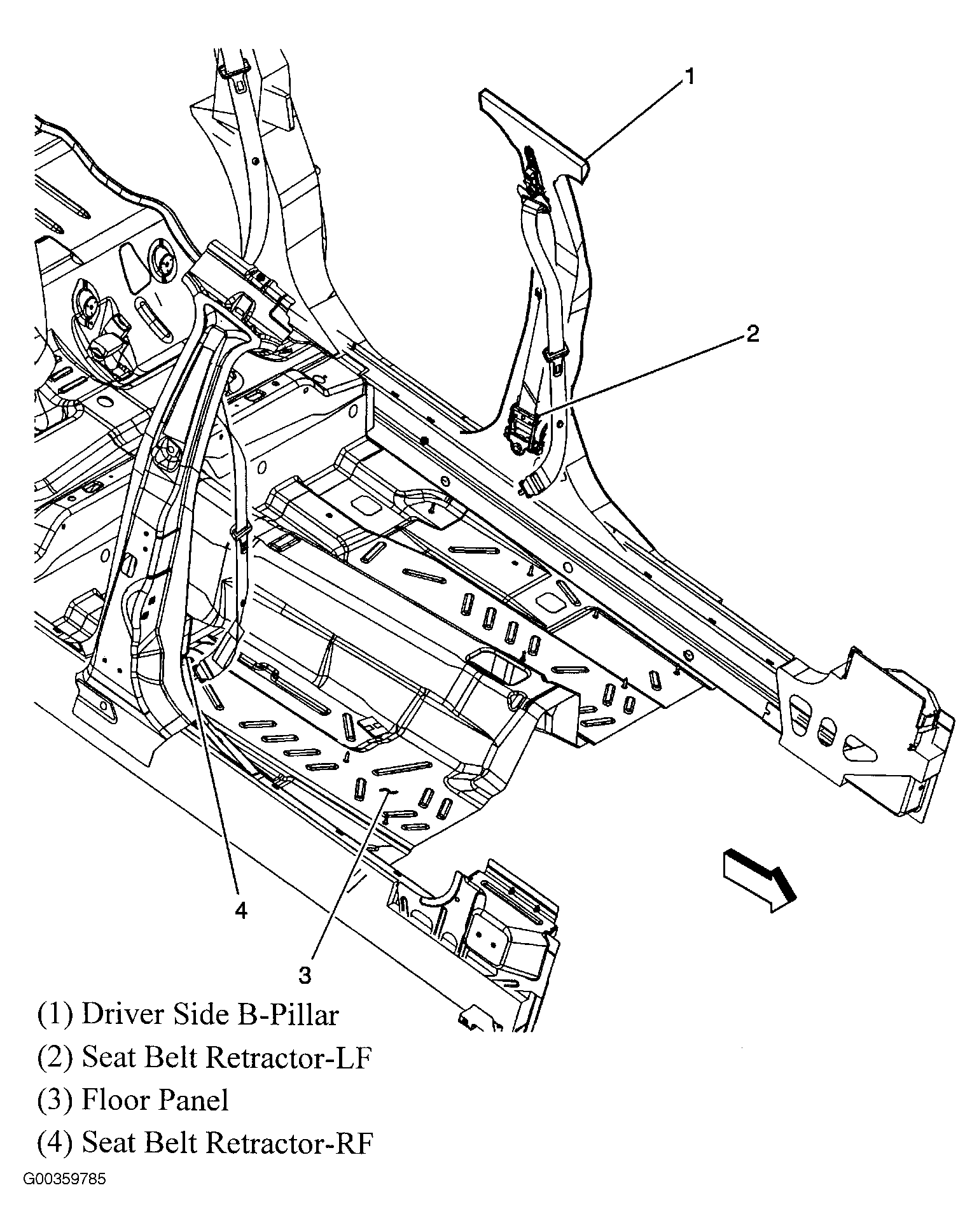

Fig 70: Front Floor Panel

G00359785

Courtesy of GENERAL MOTORS CORP.

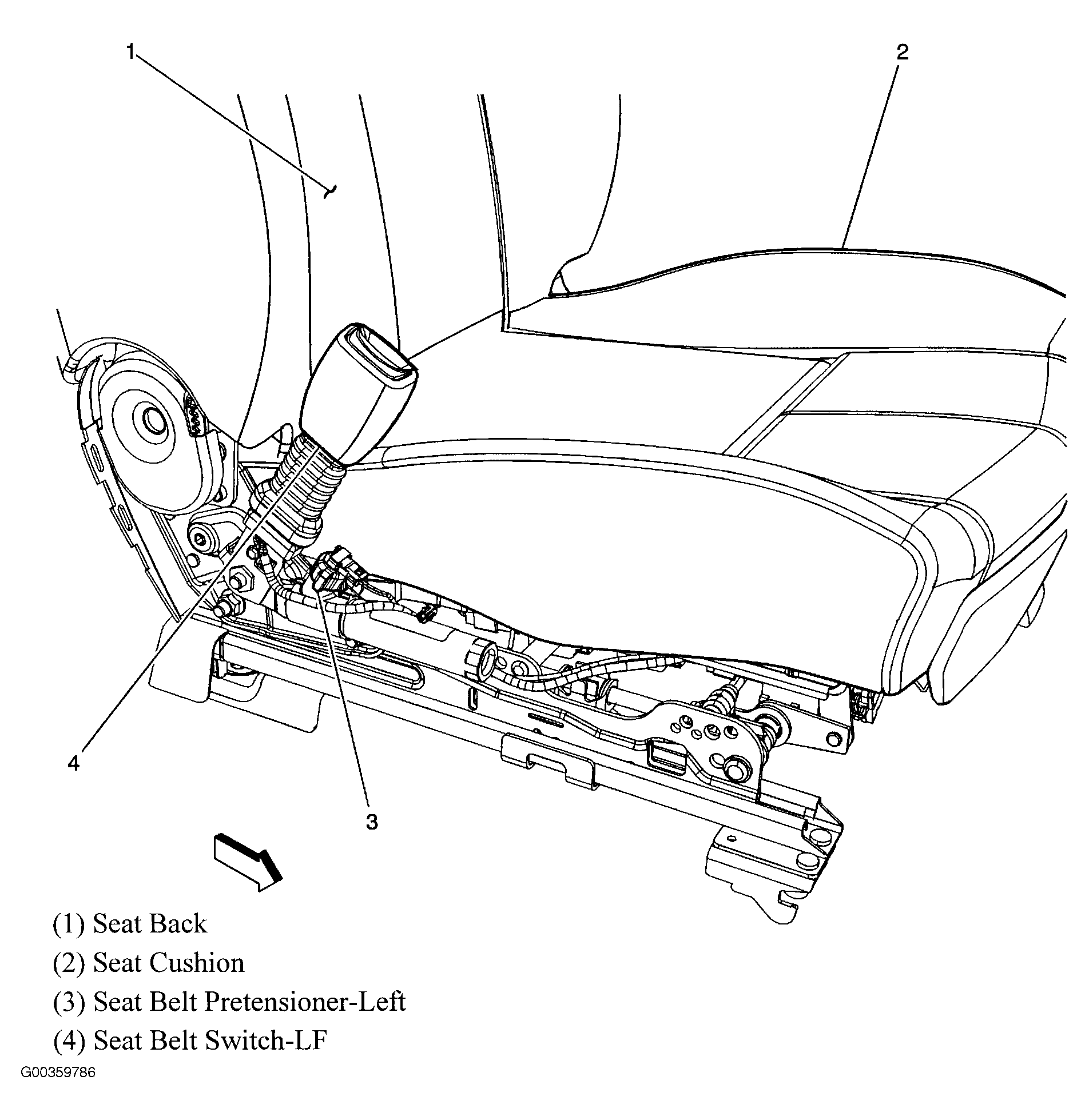

Fig 71: Driver Seat

G00359786

Courtesy of GENERAL MOTORS CORP.

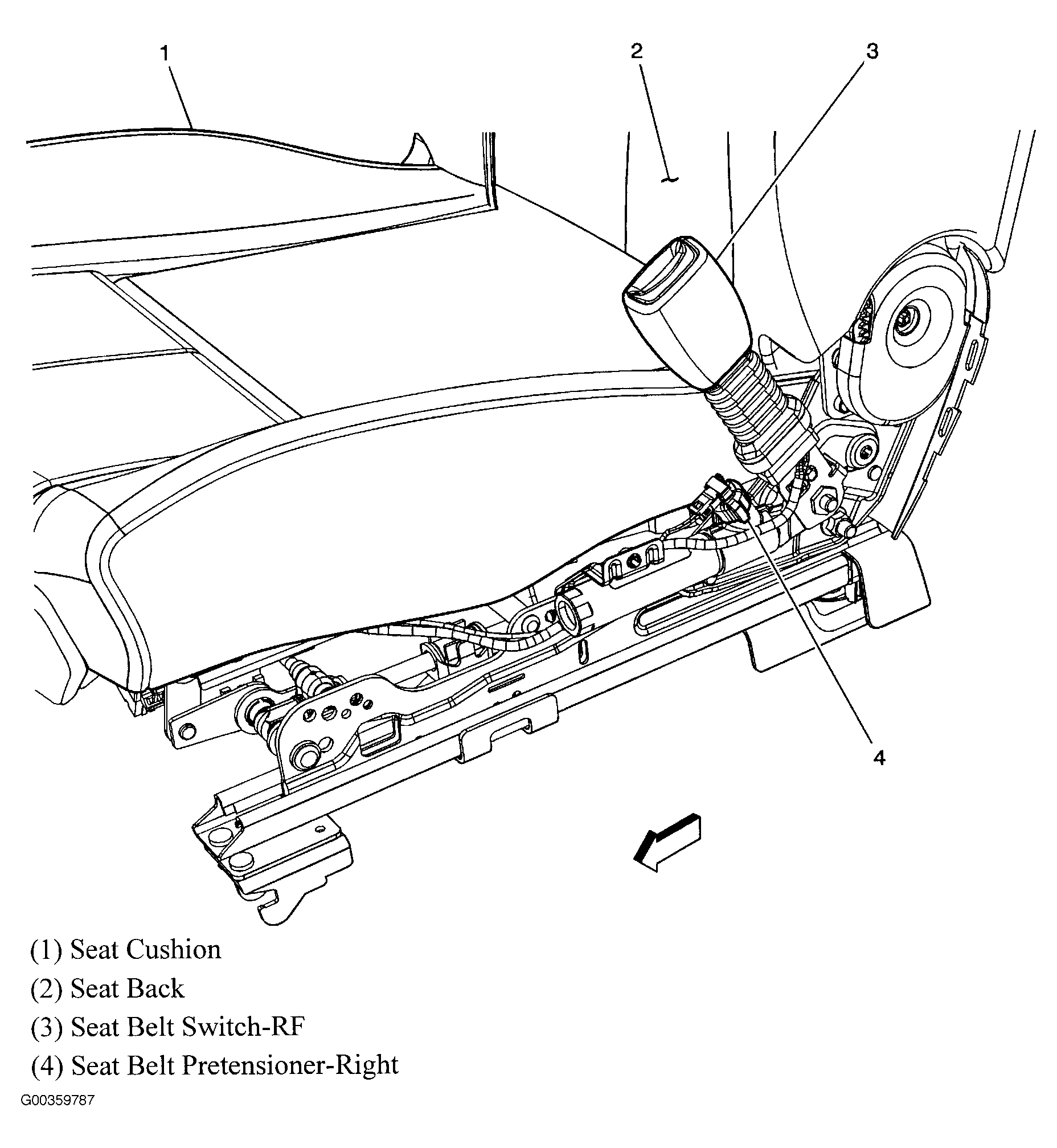

Fig 72: Front Passenger Seat

G00359787

Courtesy of GENERAL MOTORS CORP.

Fig 73: Rear Seats

G00359789

Courtesy of GENERAL MOTORS CORP.

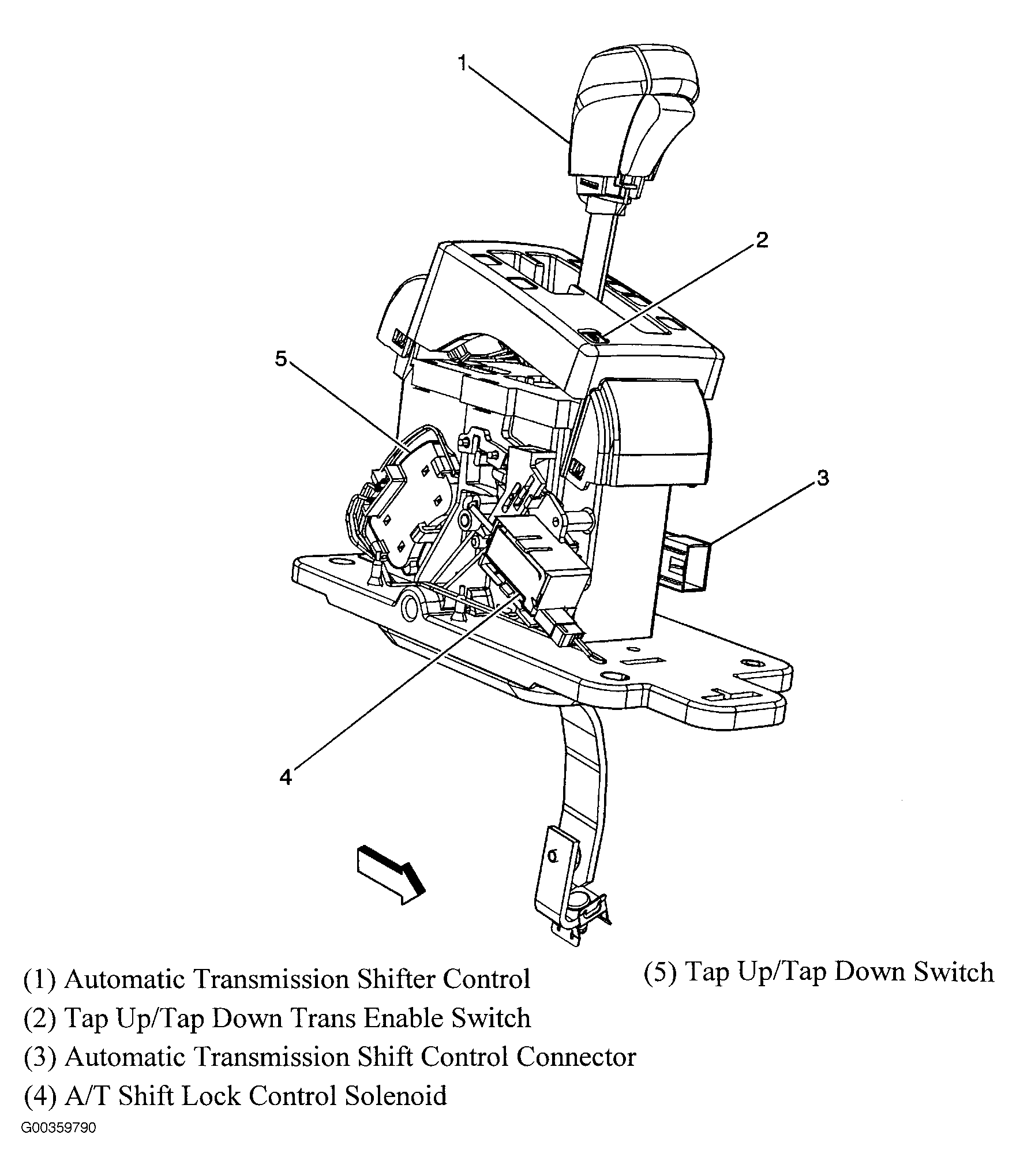

Fig 74: Shift Lever

G00359790

Courtesy of GENERAL MOTORS CORP.

Fig 75: Steering Wheel

G00420549

Courtesy of GENERAL MOTORS CORP.

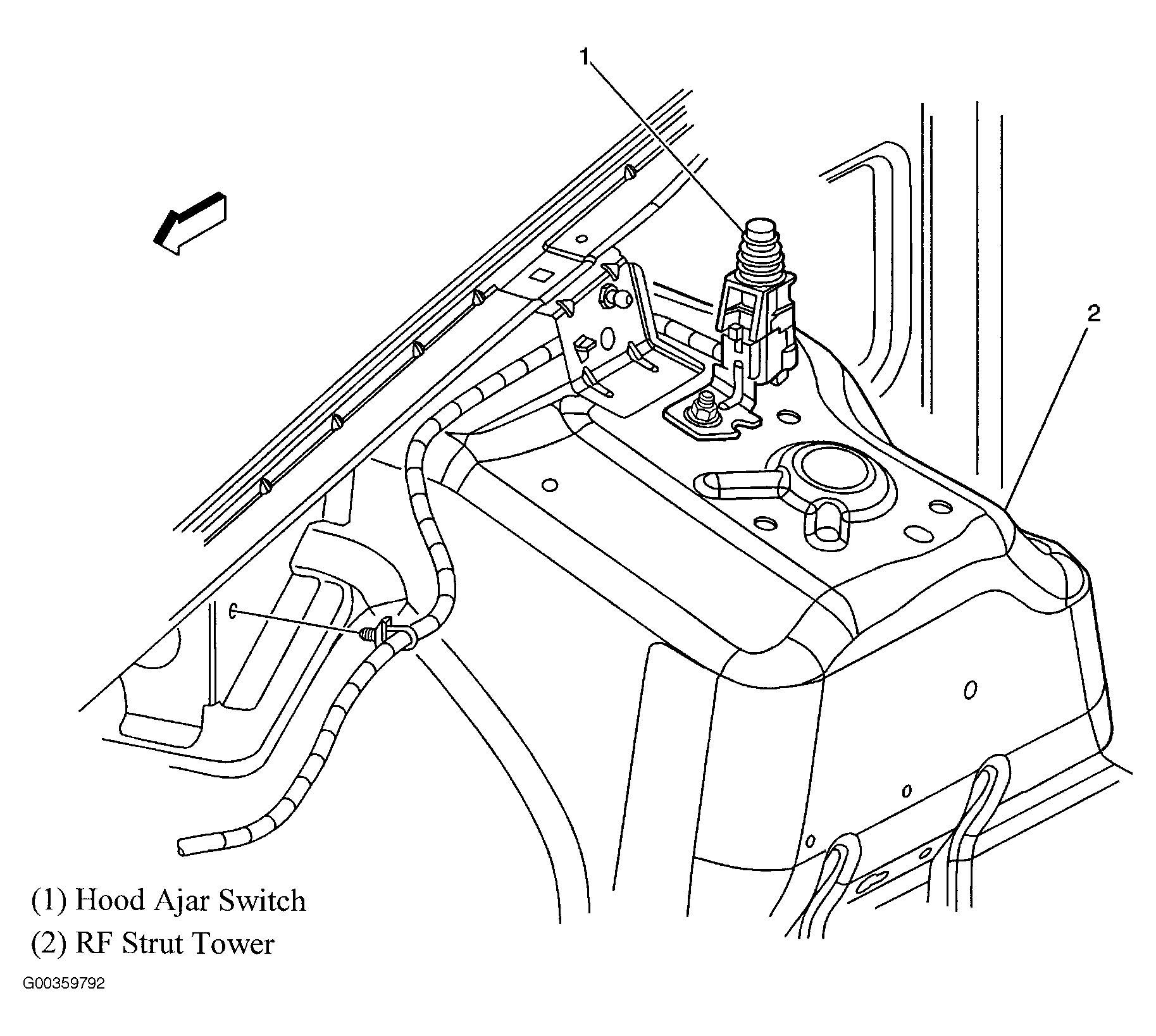

Fig 76: Right Front Side Of Engine Compartment

G00359792

Courtesy of GENERAL MOTORS CORP.

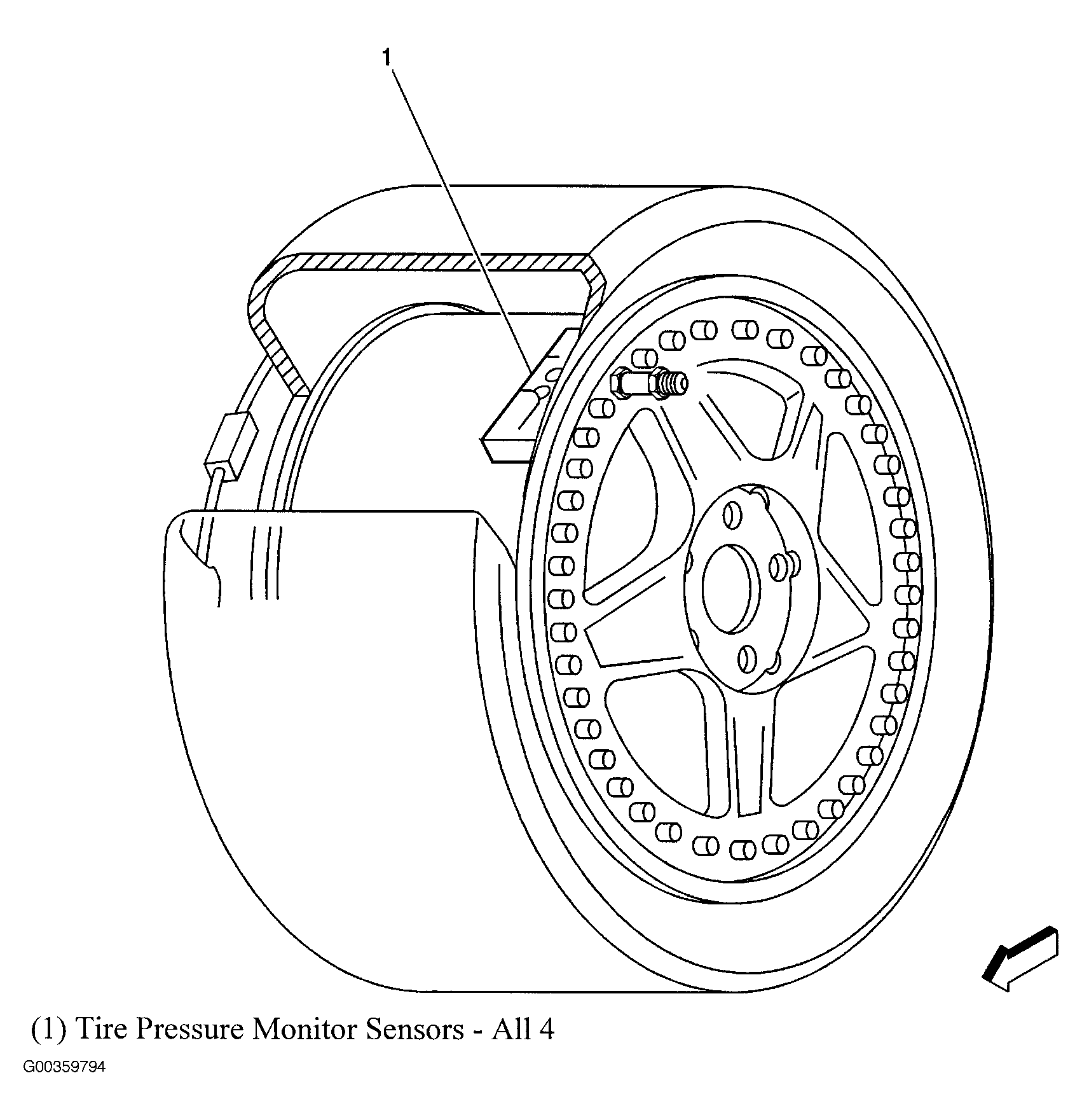

Fig 77: Wheel

G00359794

Courtesy of GENERAL MOTORS CORP.

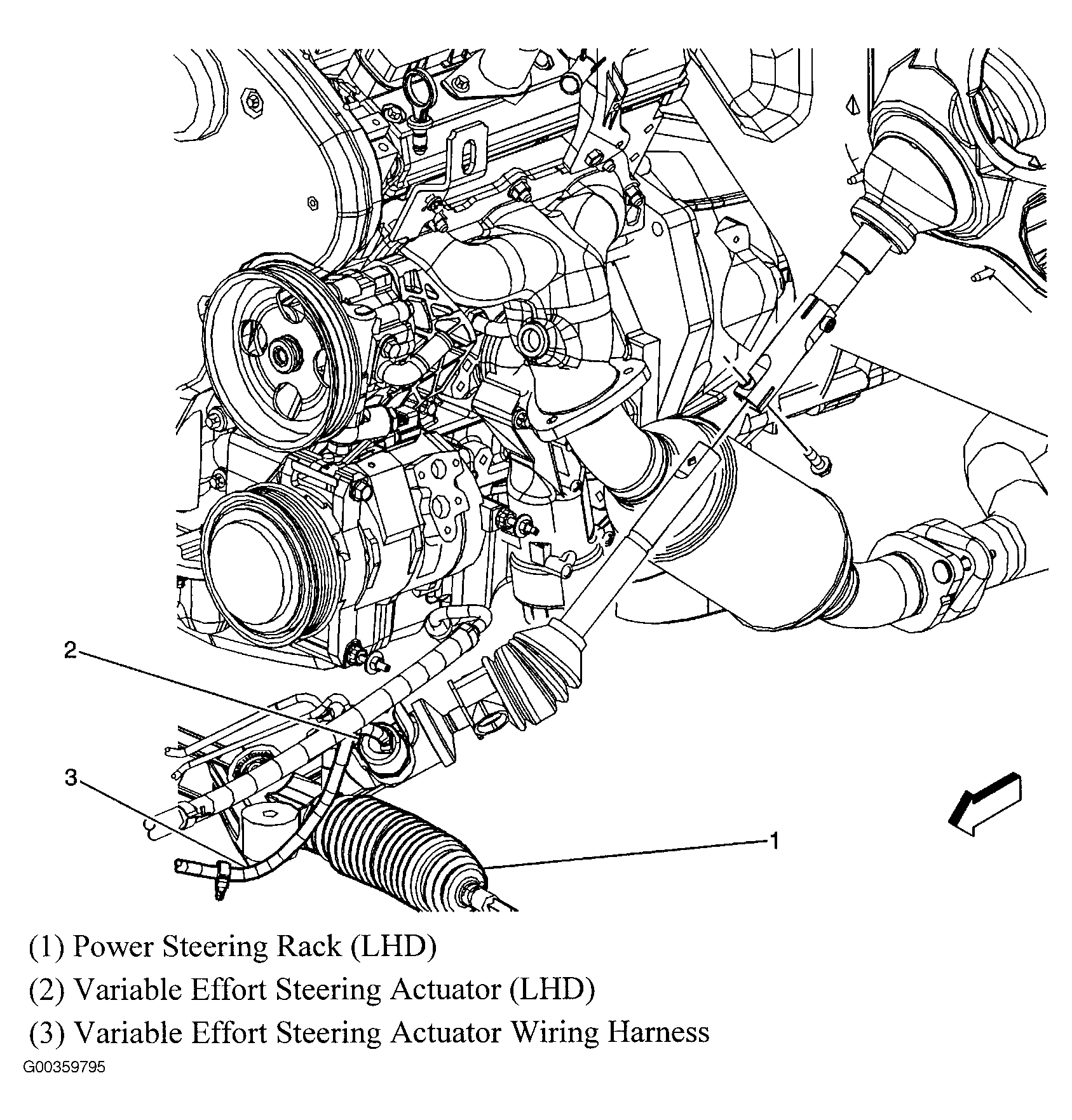

Fig 78: Lower Left Side Of Engine

G00359795

Courtesy of GENERAL MOTORS CORP.

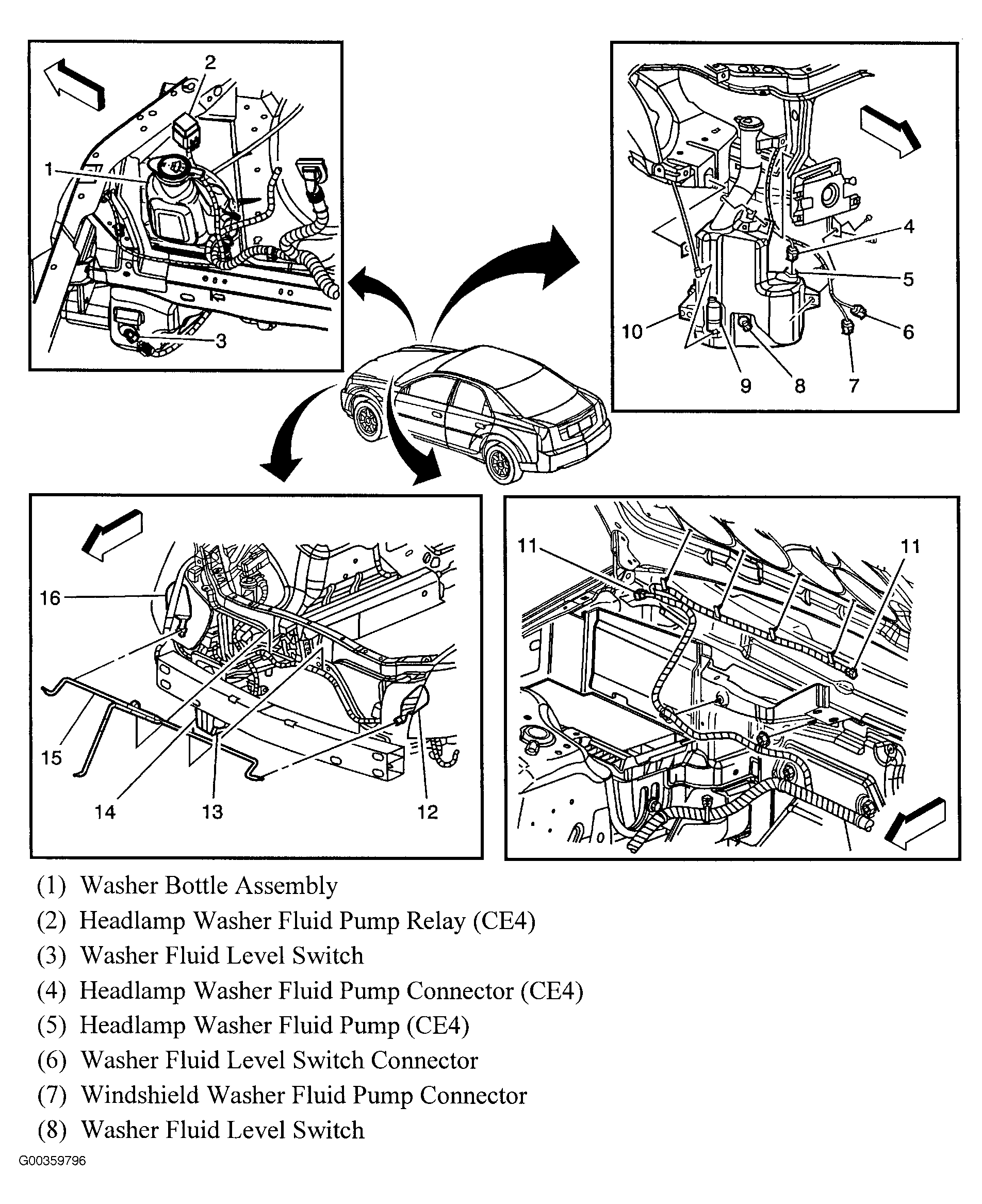

Fig 79: Washer Fluid Subsystem Components (1 Of 2)

G00359796

Courtesy of GENERAL MOTORS CORP.

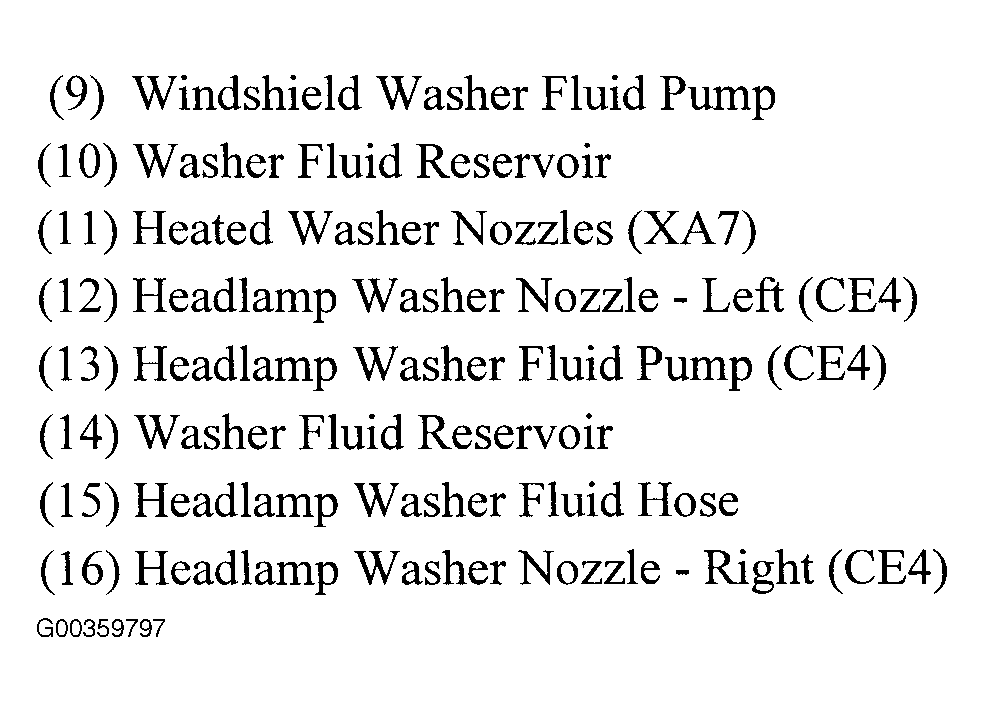

Fig 80: Washer Fluid Subsystem Components (2 Of 2)

G00359797

Courtesy of GENERAL MOTORS CORP.

Fig 81: Left Rear Side Of Engine Compartment

G00359798

Courtesy of GENERAL MOTORS CORP.

Fig 82: Under Rear Seats

G00359799

Courtesy of GENERAL MOTORS CORP.

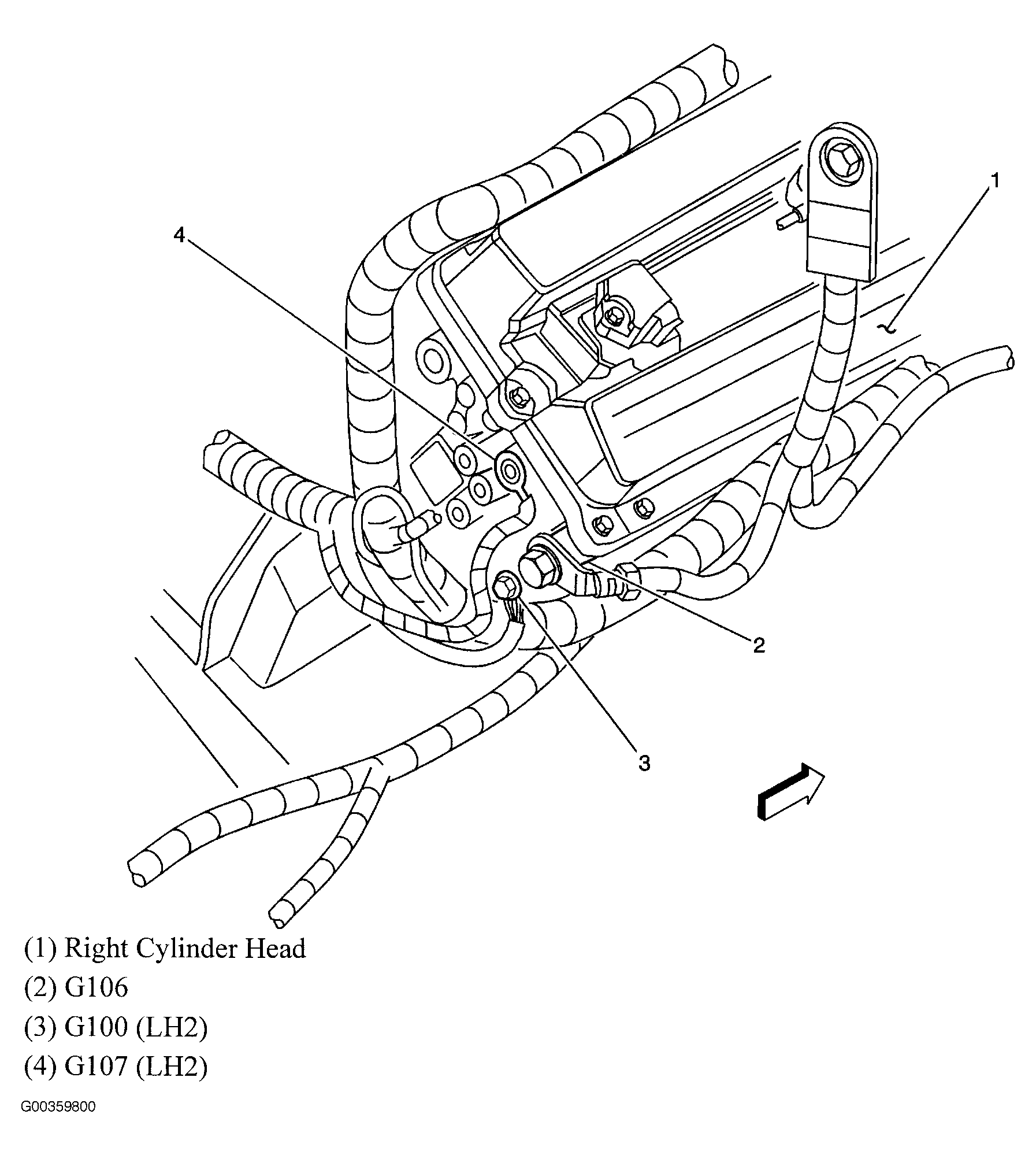

Fig 83: Top Right Rear Of Engine

G00359800

Courtesy of GENERAL MOTORS CORP.

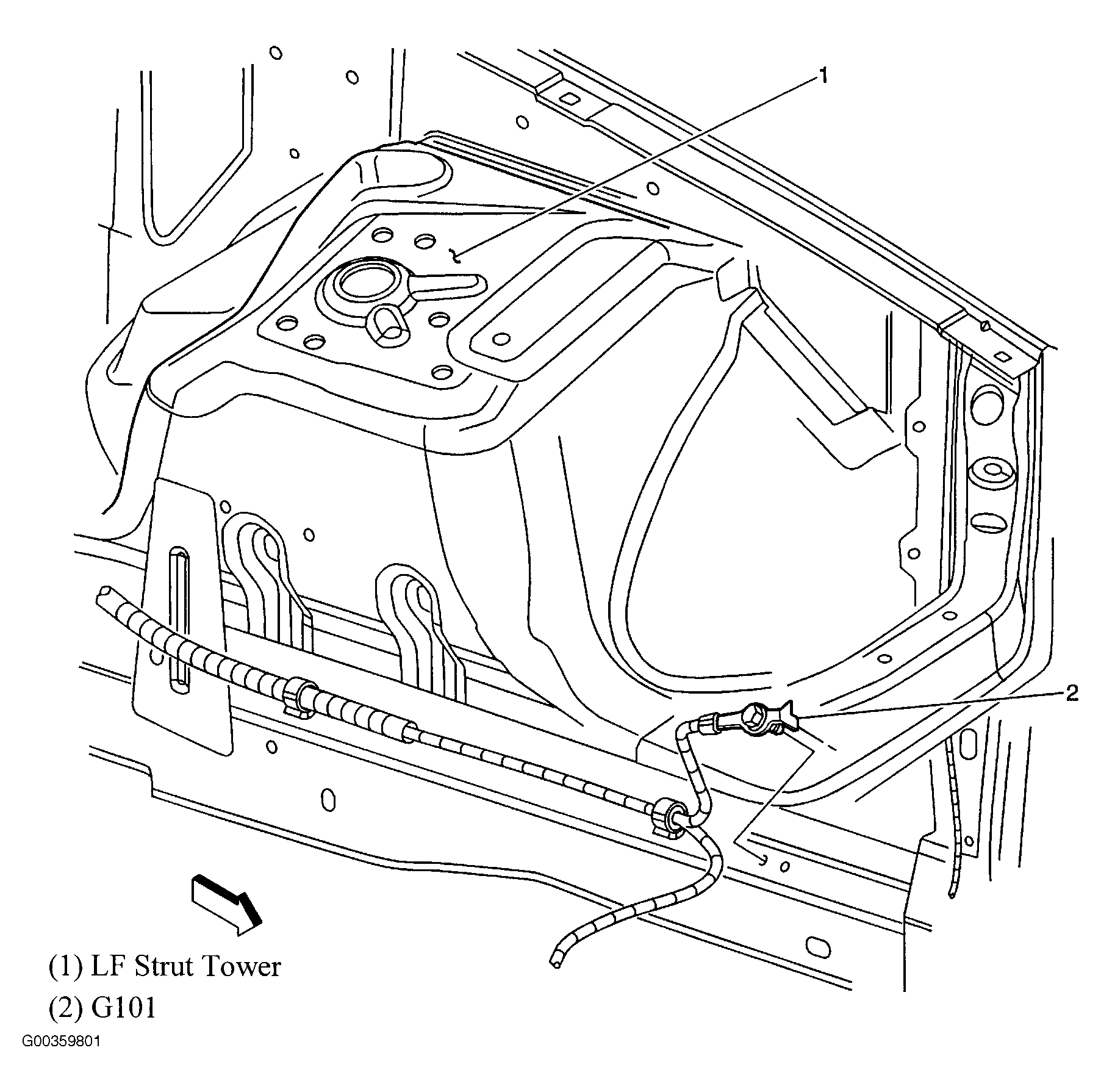

Fig 84: Left Side Of Engine Compartment

G00359801

Courtesy of GENERAL MOTORS CORP.

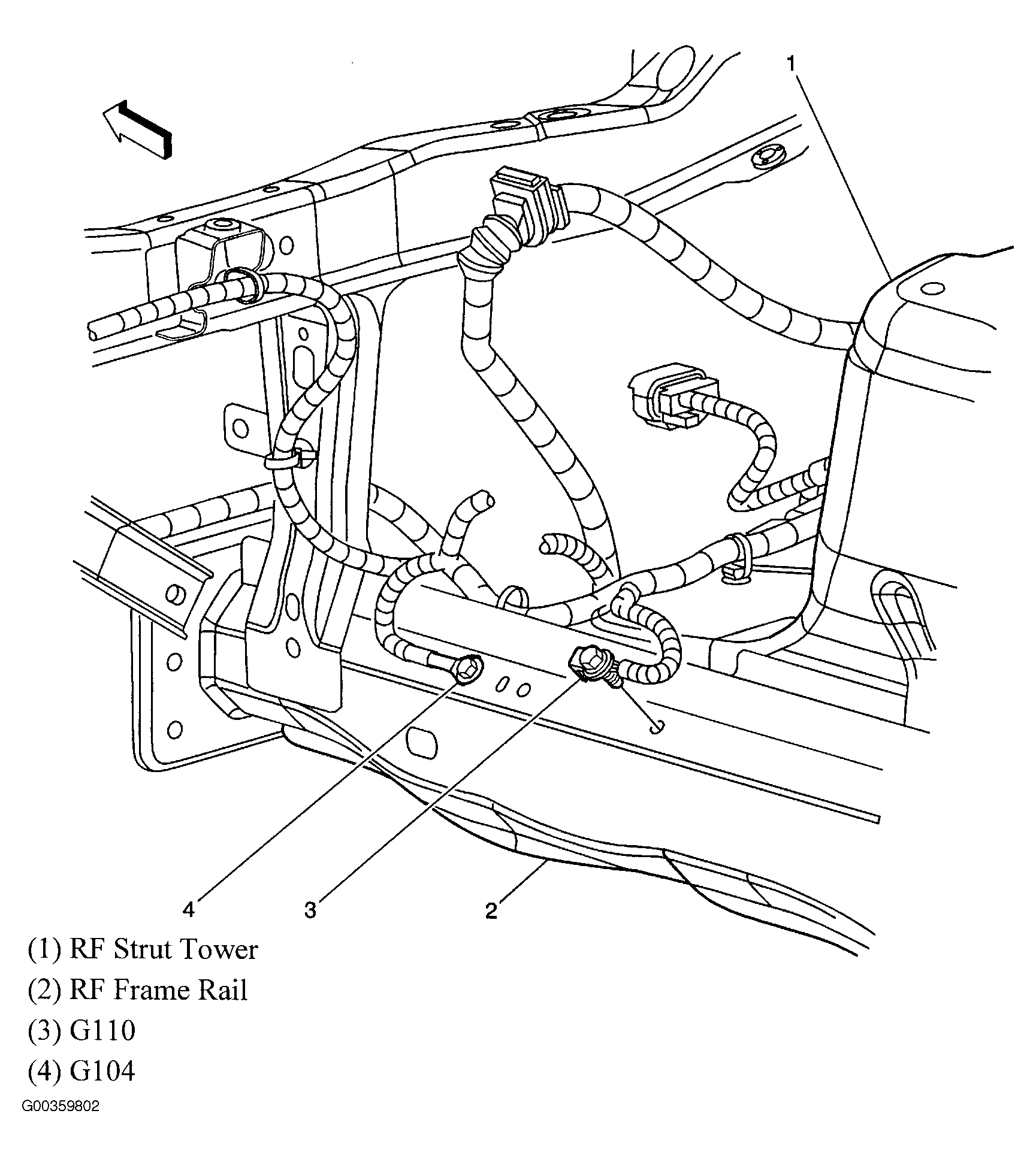

Fig 85: Right Front Frame Rail

G00359802

Courtesy of GENERAL MOTORS CORP.

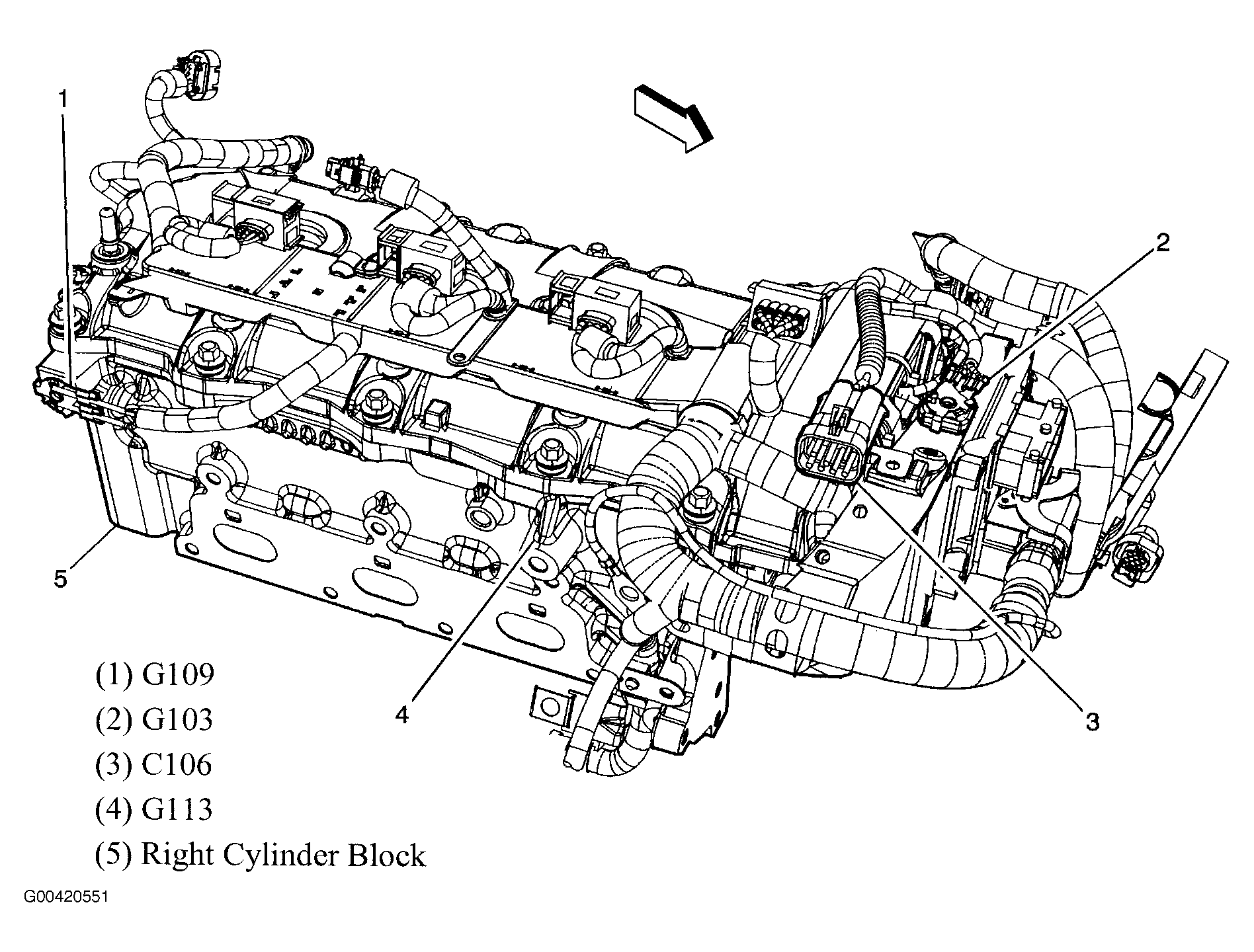

Fig 86: Right Side Of Engine (3.6L VIN 7)

G00420551

Courtesy of GENERAL MOTORS CORP.

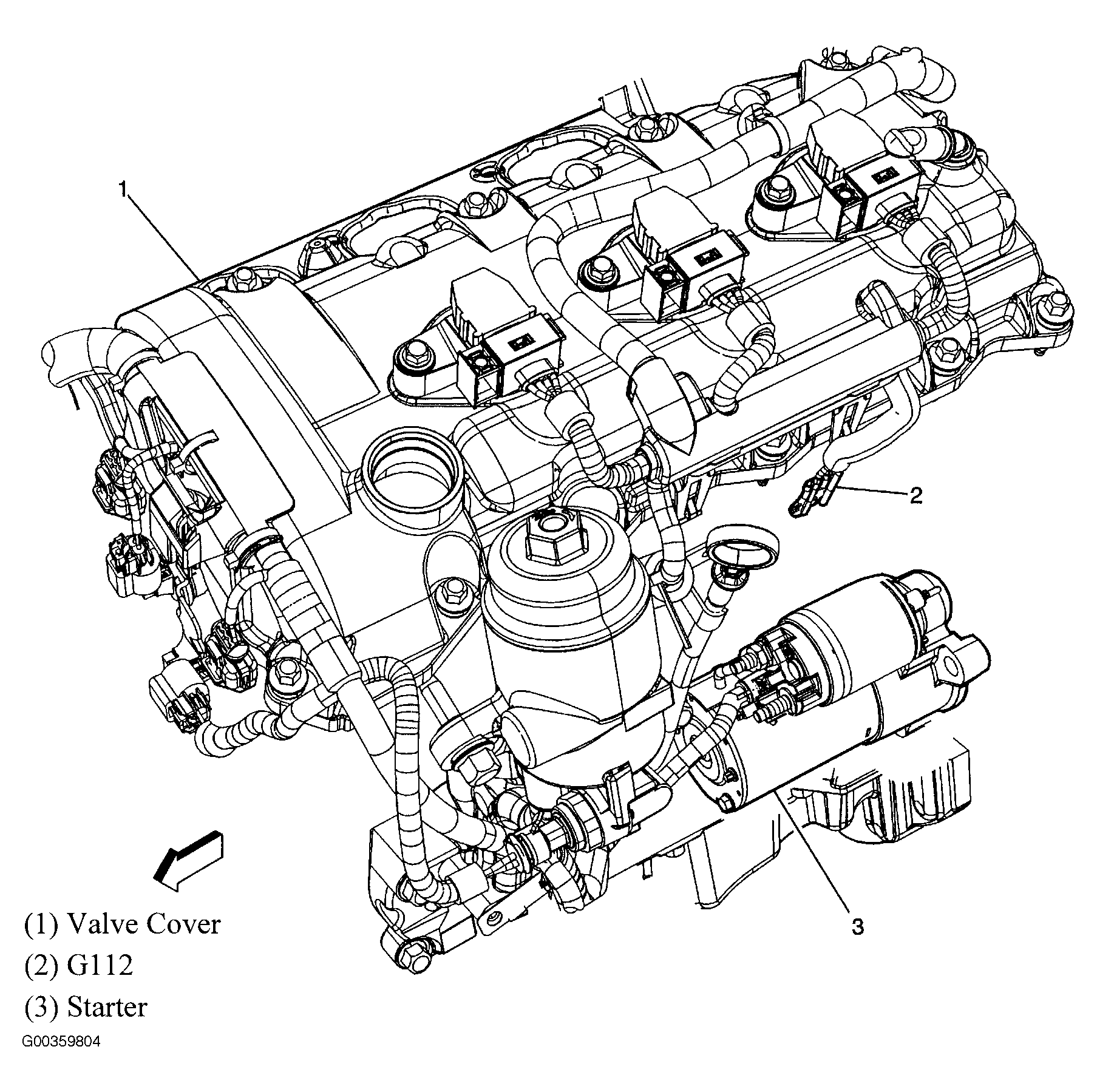

Fig 87: Top Of Engine (3.6L VIN 7)

G00359804

Courtesy of GENERAL MOTORS CORP.

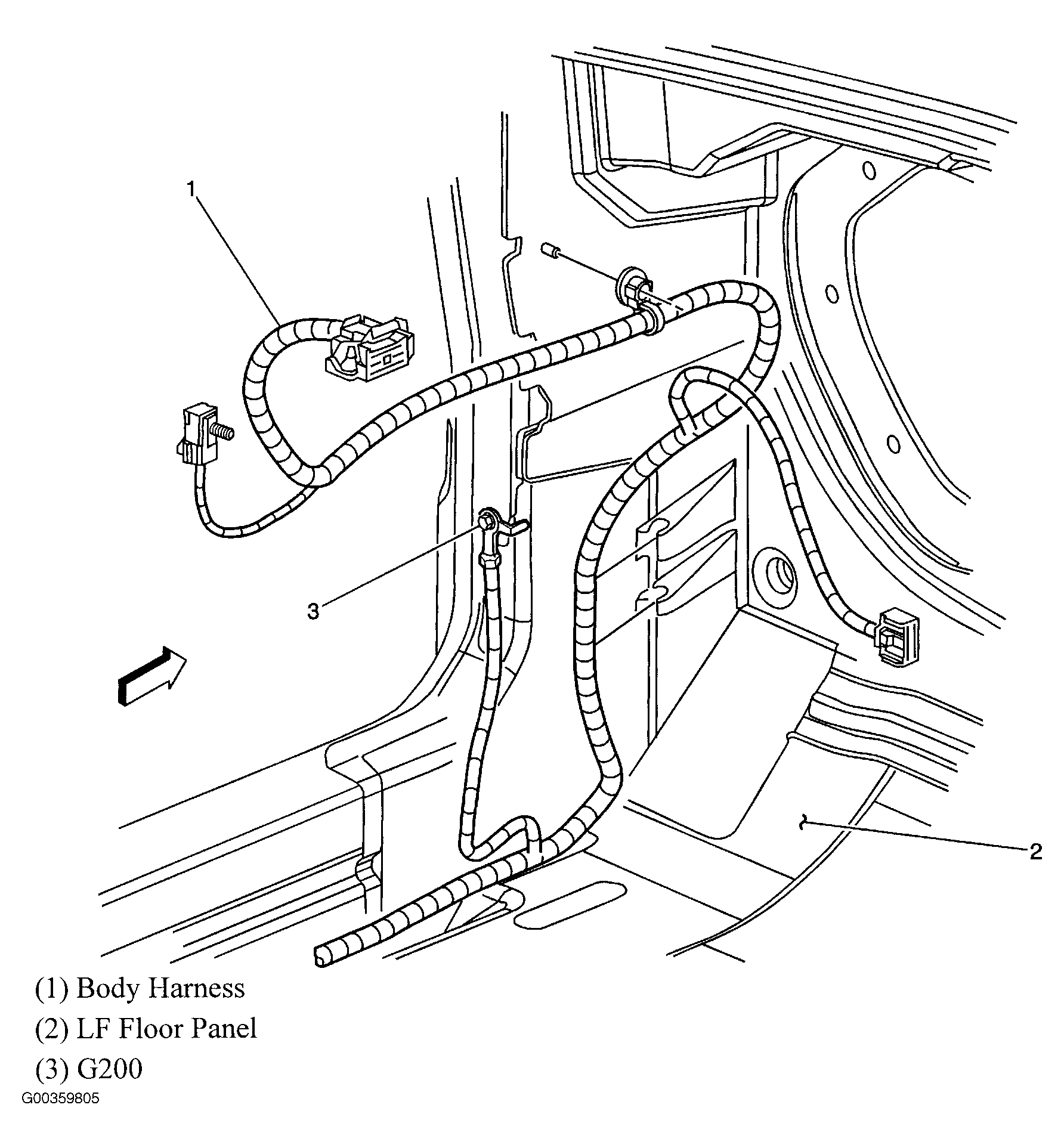

Fig 88: Left Kick Panel

G00359805

Courtesy of GENERAL MOTORS CORP.

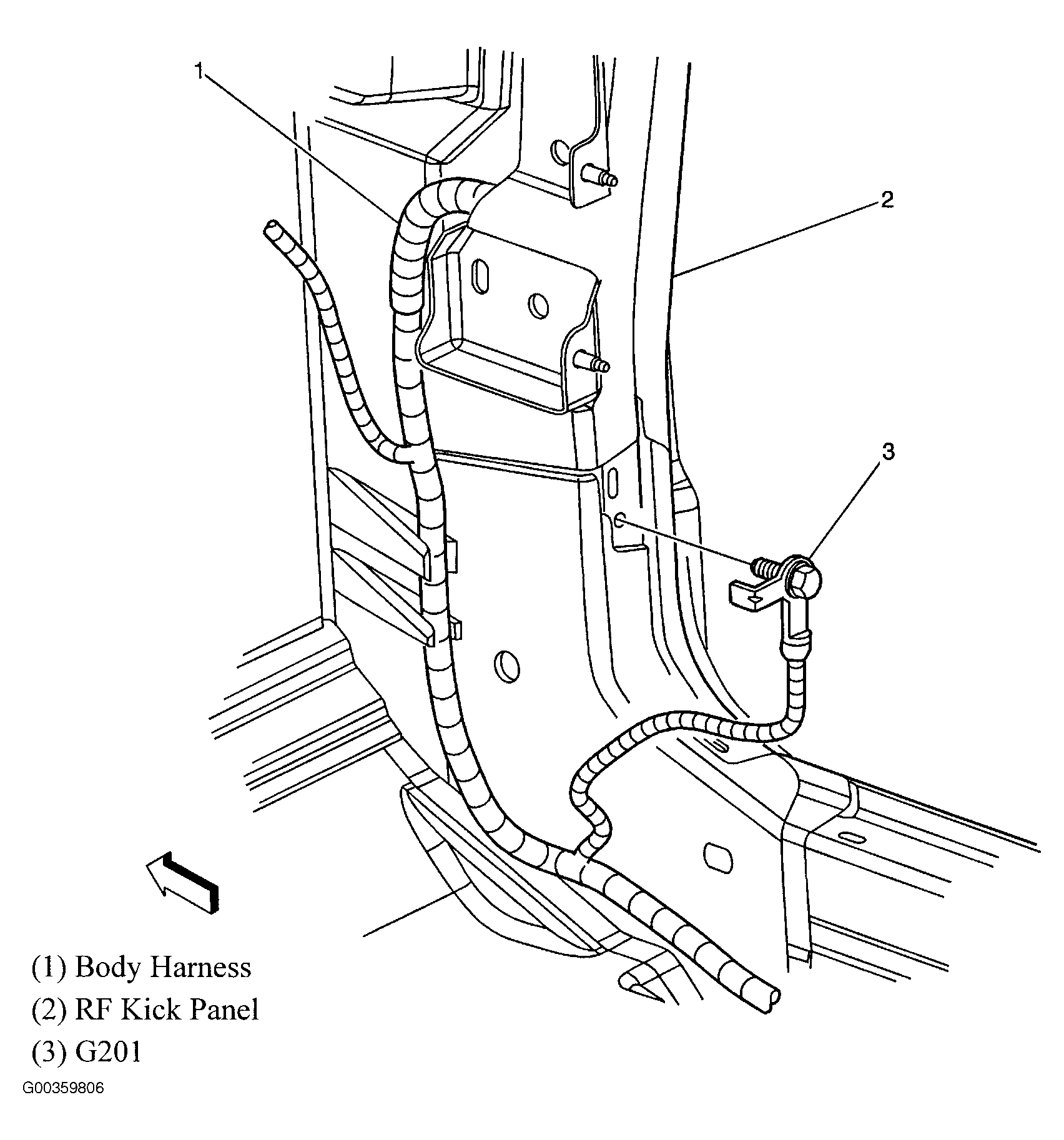

Fig 89: Right Kick Panel

G00359806

Courtesy of GENERAL MOTORS CORP.

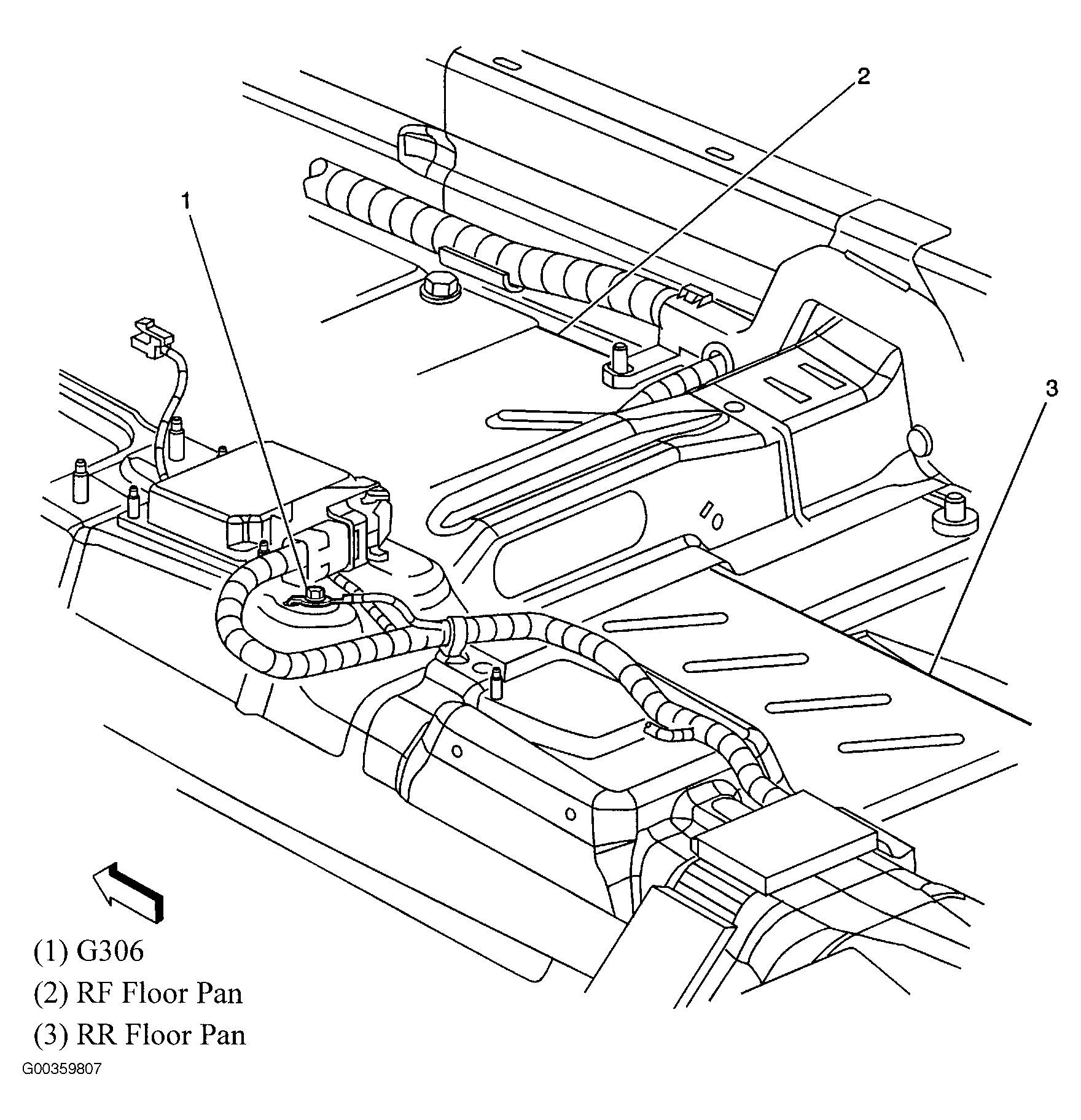

Fig 90: Center Console

G00359807

Courtesy of GENERAL MOTORS CORP.

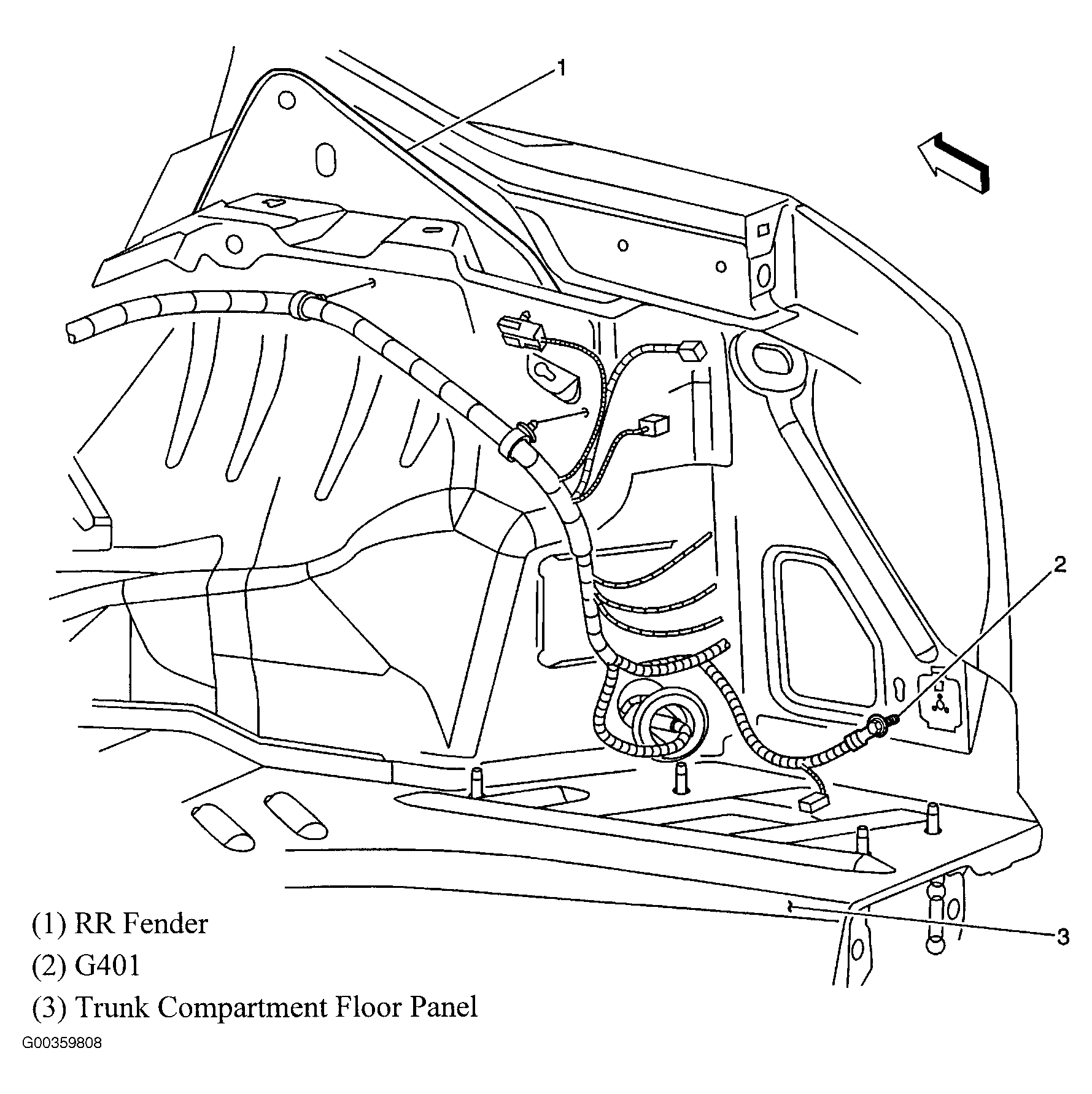

Fig 91: Right Side Of Rear Compartment

G00359808

Courtesy of GENERAL MOTORS CORP.

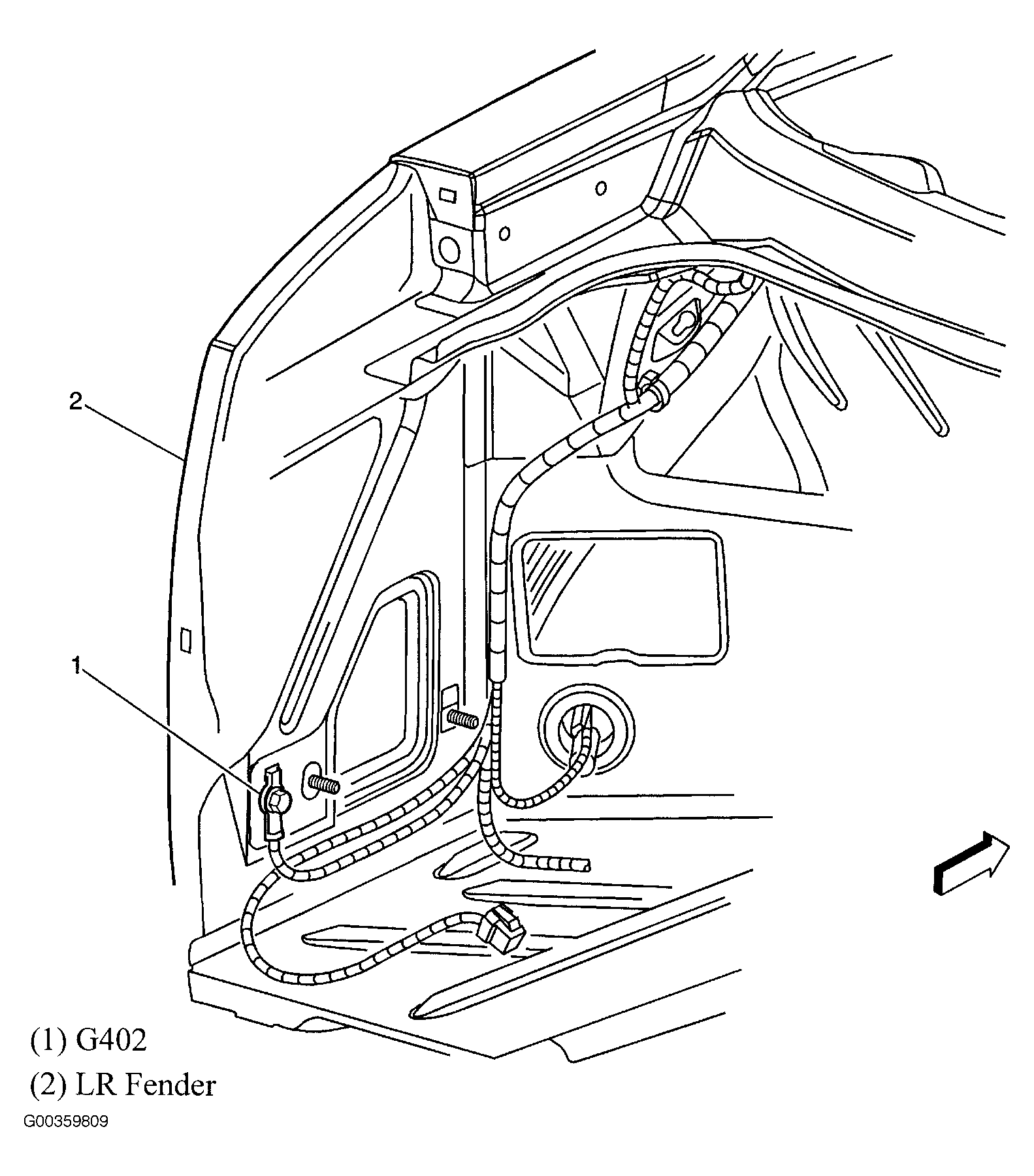

Fig 92: Left Side Of Rear Compartment

G00359809

Courtesy of GENERAL MOTORS CORP.

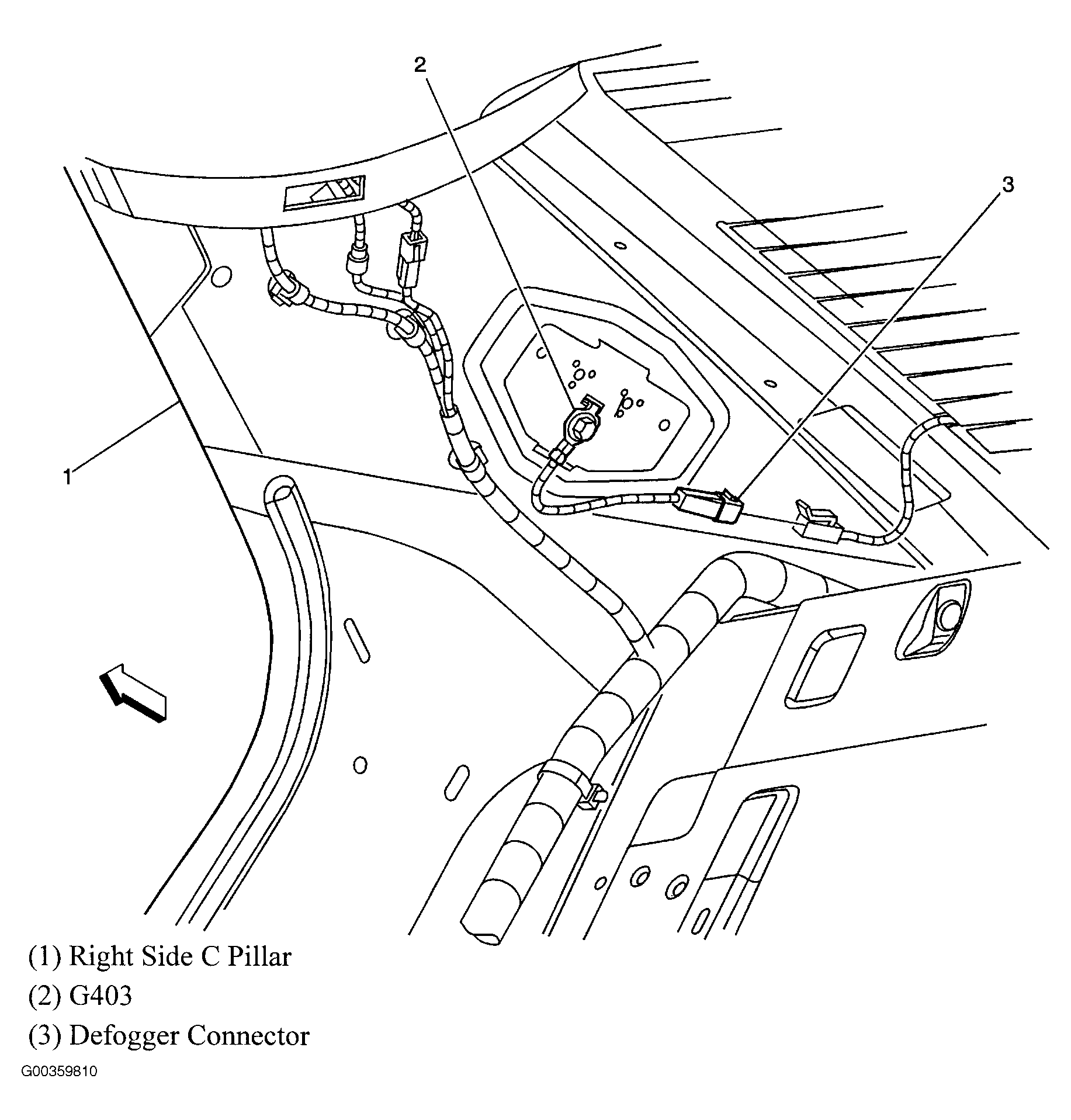

Fig 93: Right "C" Pillar

G00359810

Courtesy of GENERAL MOTORS CORP.

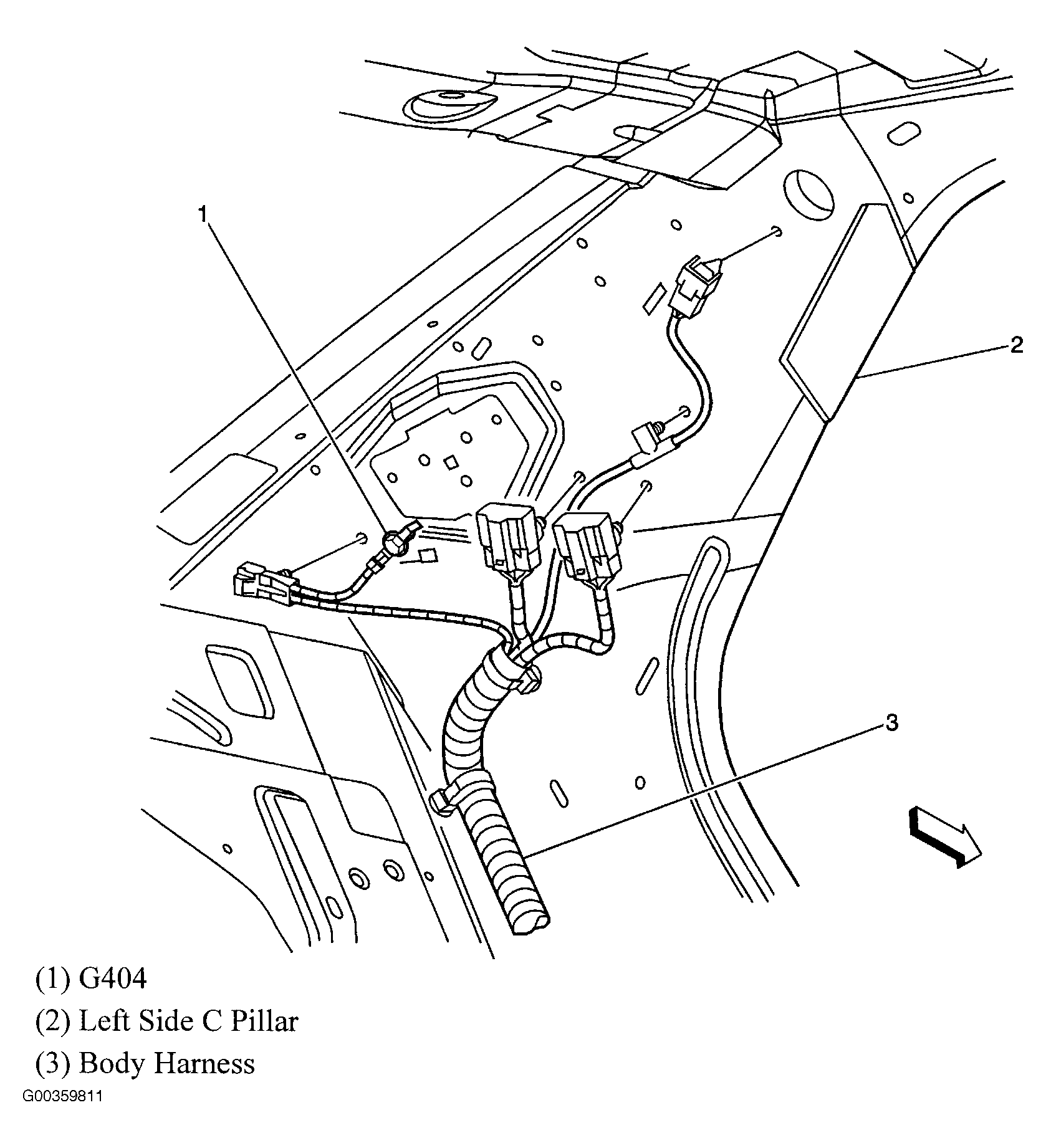

Fig 94: Left "C" Pillar

G00359811

Courtesy of GENERAL MOTORS CORP.

Fig 95: Front Bumper (1 Of 2)

G00359815

Courtesy of GENERAL MOTORS CORP.

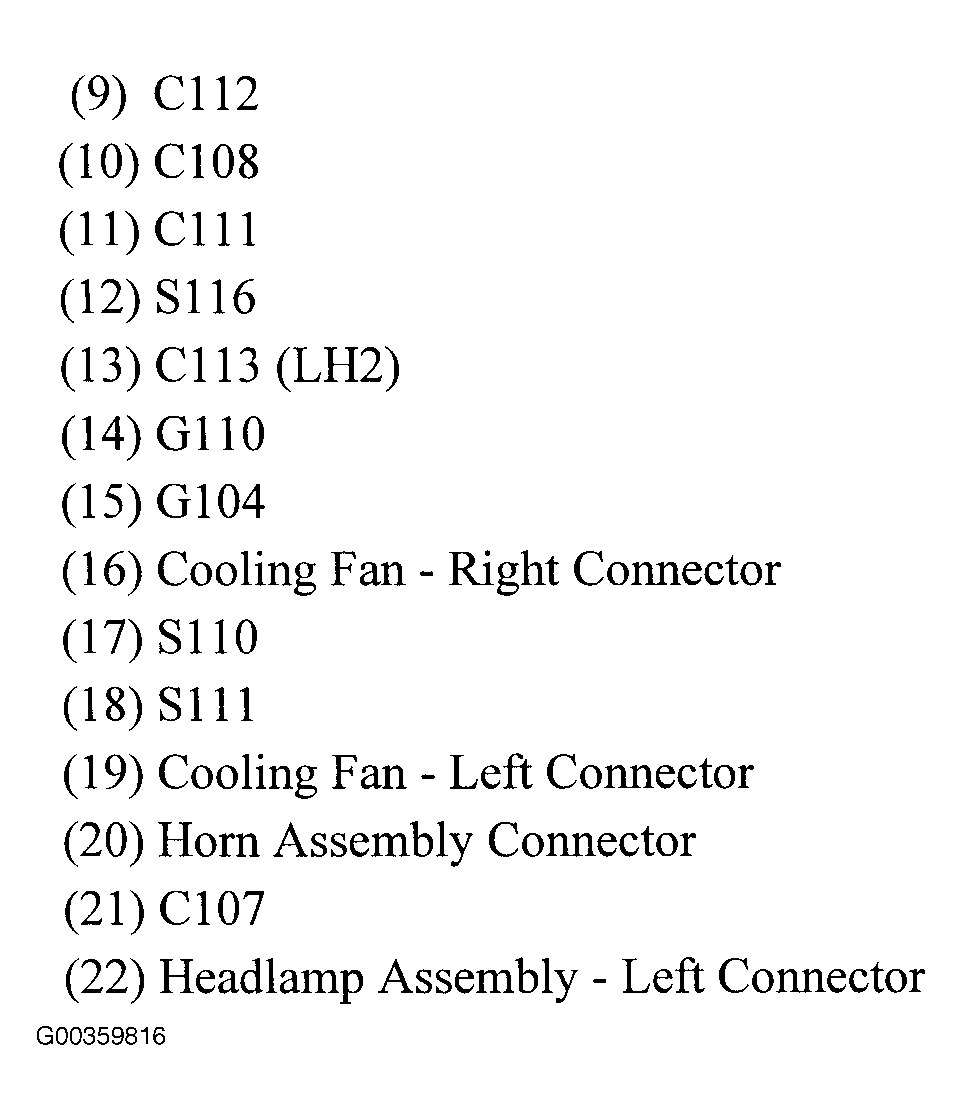

Fig 96: Front Bumper (2 Of 2)

G00359816

Courtesy of GENERAL MOTORS CORP.

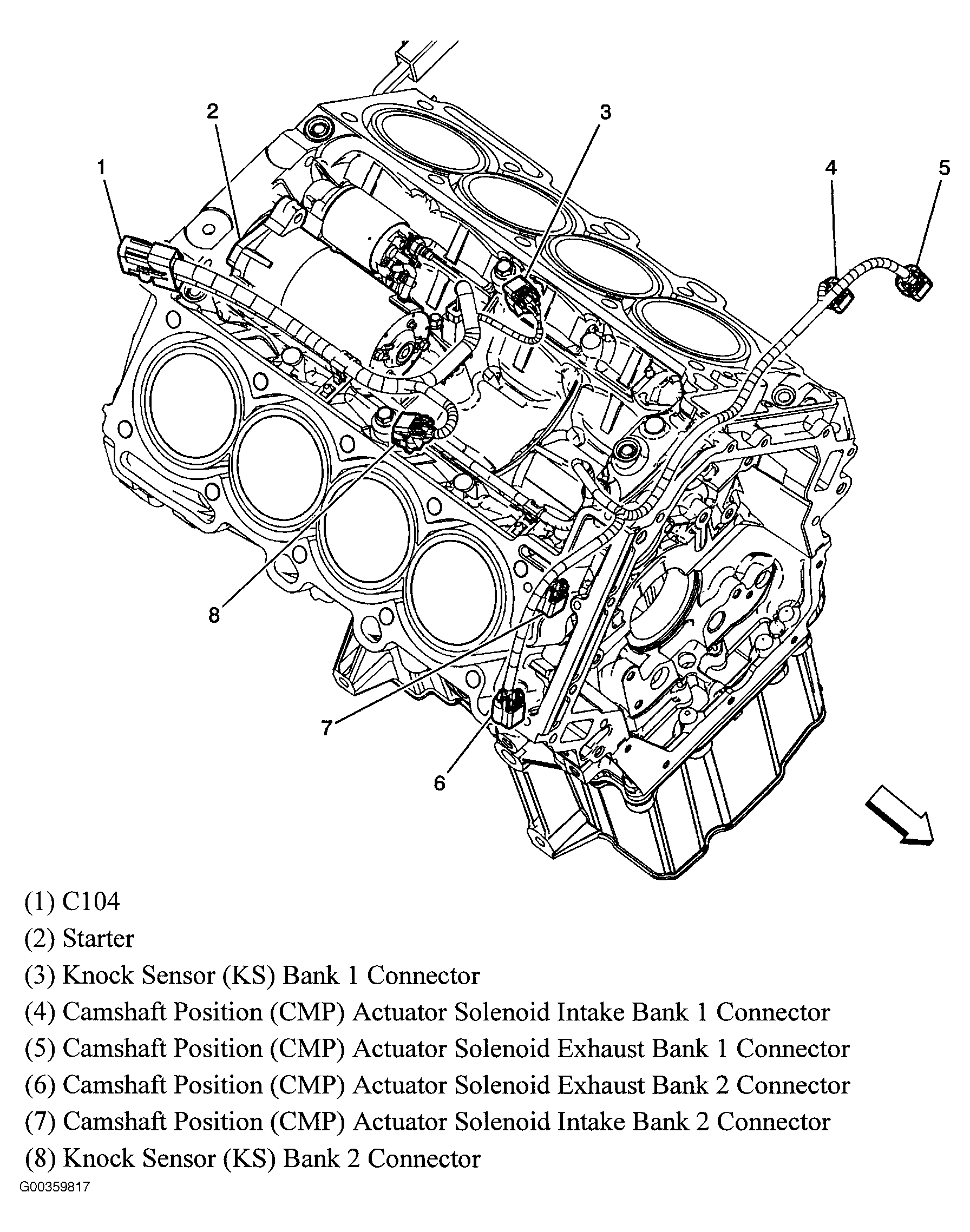

Fig 97: Top Of Engine (4.6L VIN A)

G00359817

Courtesy of GENERAL MOTORS CORP.

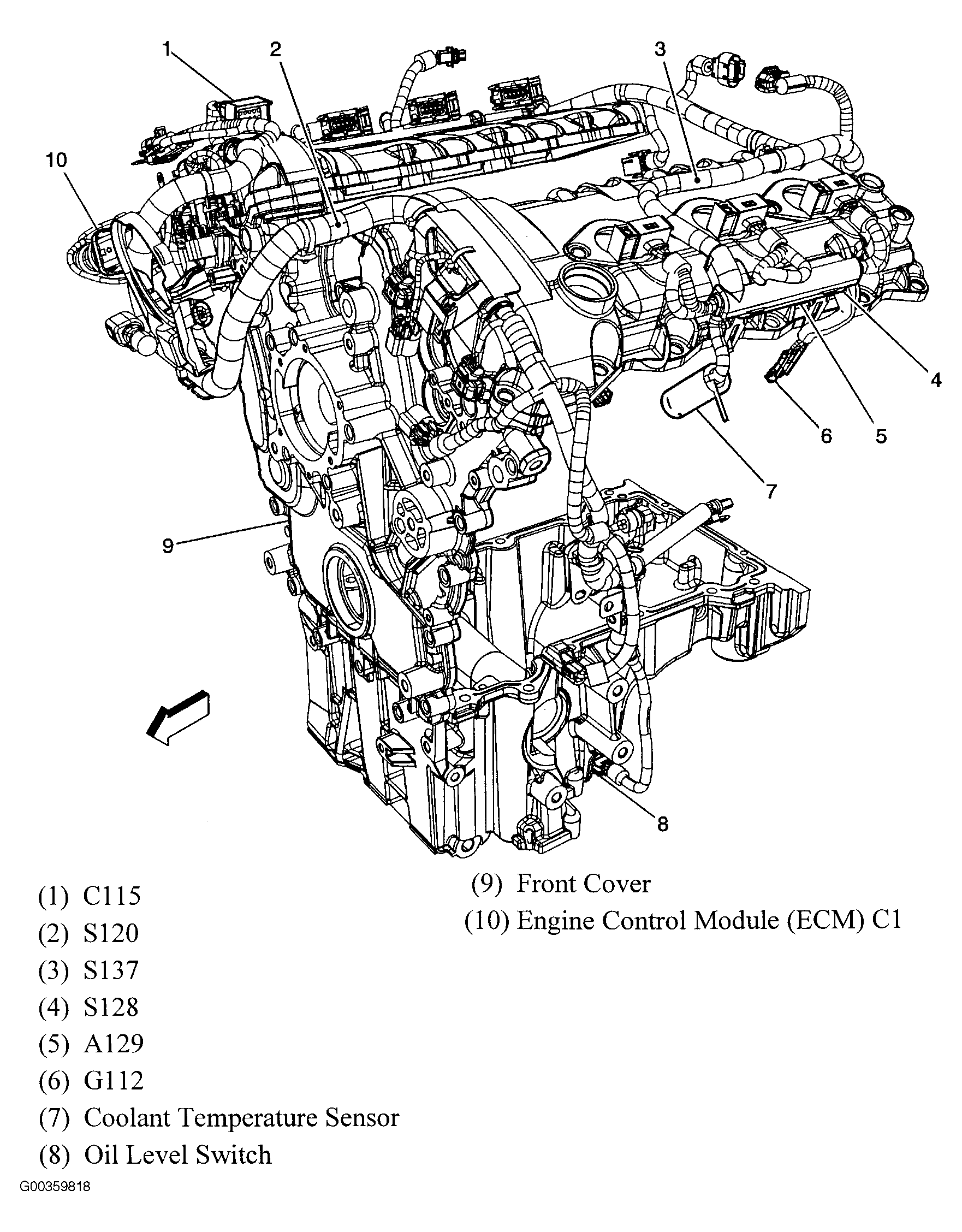

Fig 98: Left Side Of Engine (3.6L VIN 7)

G00359818

Courtesy of GENERAL MOTORS CORP.

Fig 99: Right Side Of Engine (4.6L VIN A) (1 Of 2)

G00359819

Courtesy of GENERAL MOTORS CORP.

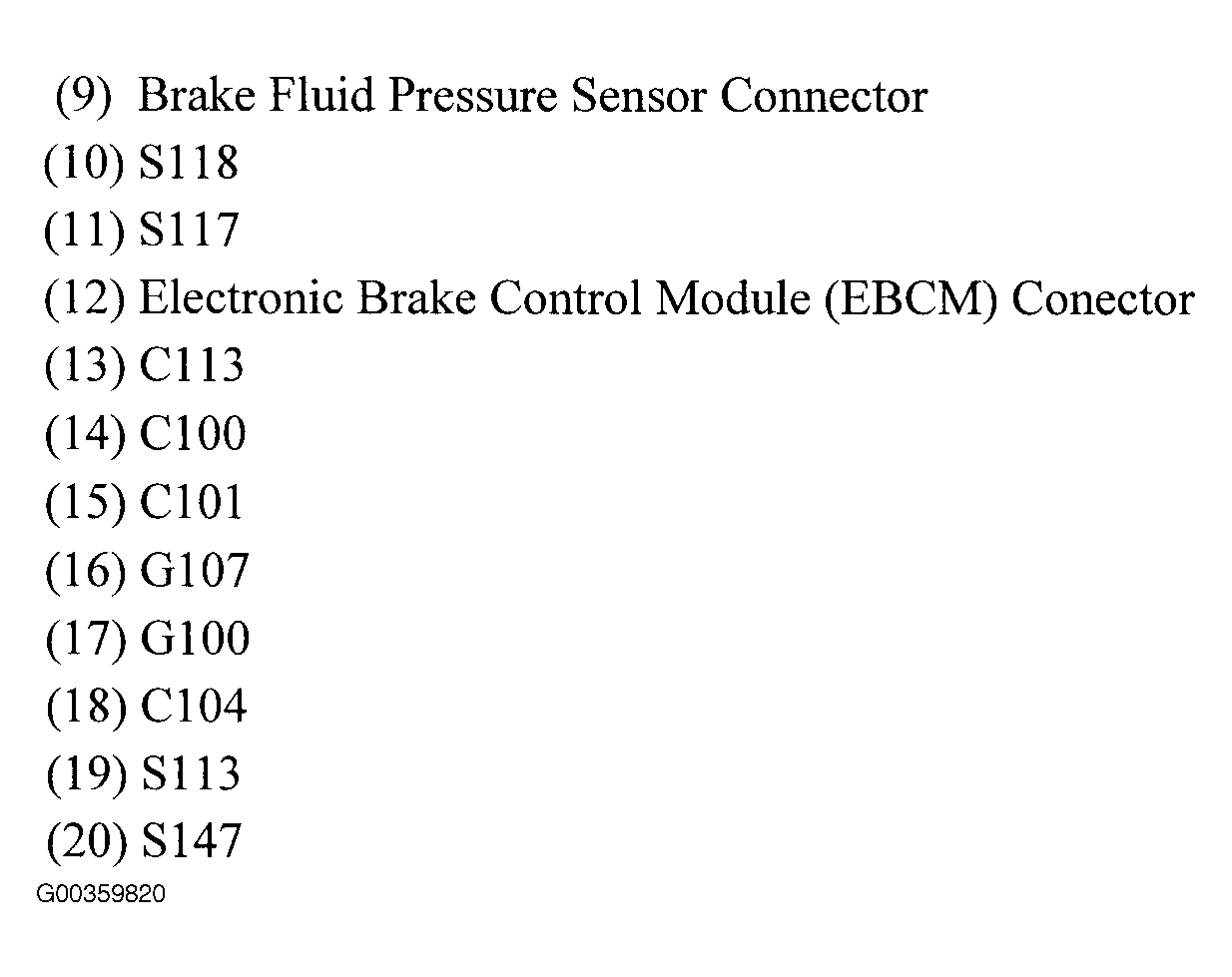

Fig 100: Right Side Of Engine (4.6L VIN A) (2 Of 2)

G00359820

Courtesy of GENERAL MOTORS CORP.

Fig 101: Dash

G00359822

Courtesy of GENERAL MOTORS CORP.

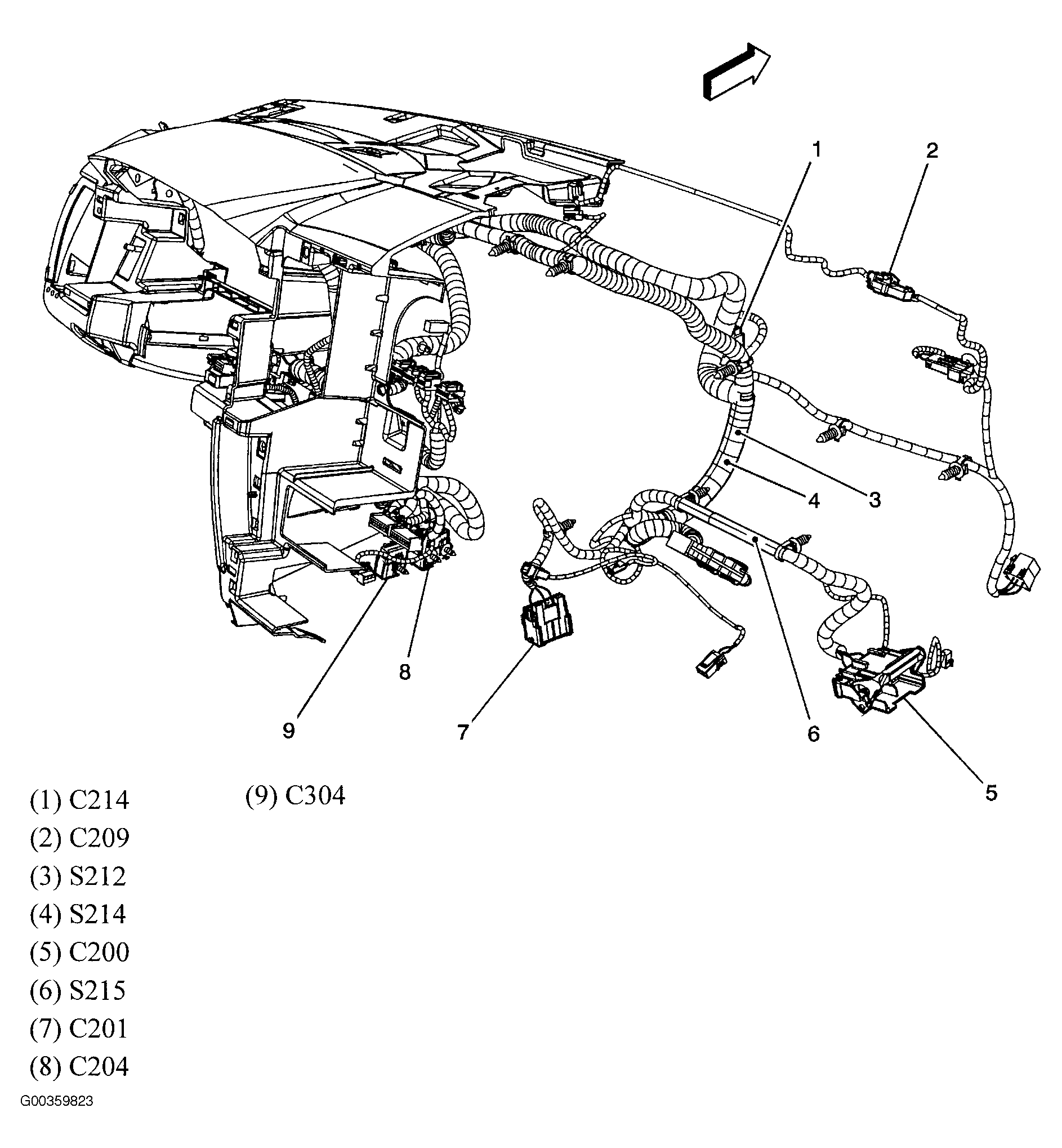

Fig 102: Dash

G00359823

Courtesy of GENERAL MOTORS CORP.

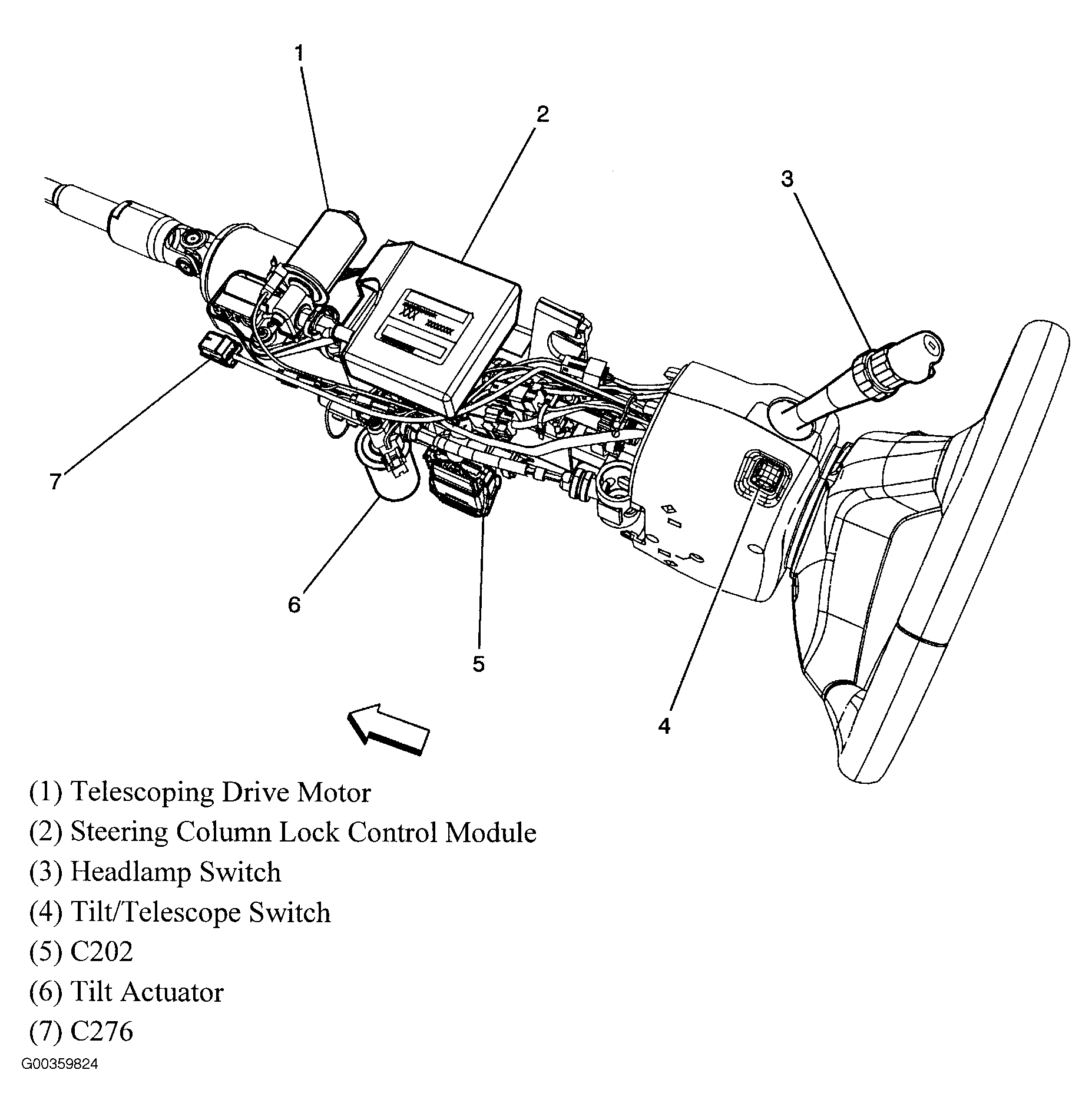

Fig 103: Steering Column

G00359824

Courtesy of GENERAL MOTORS CORP.

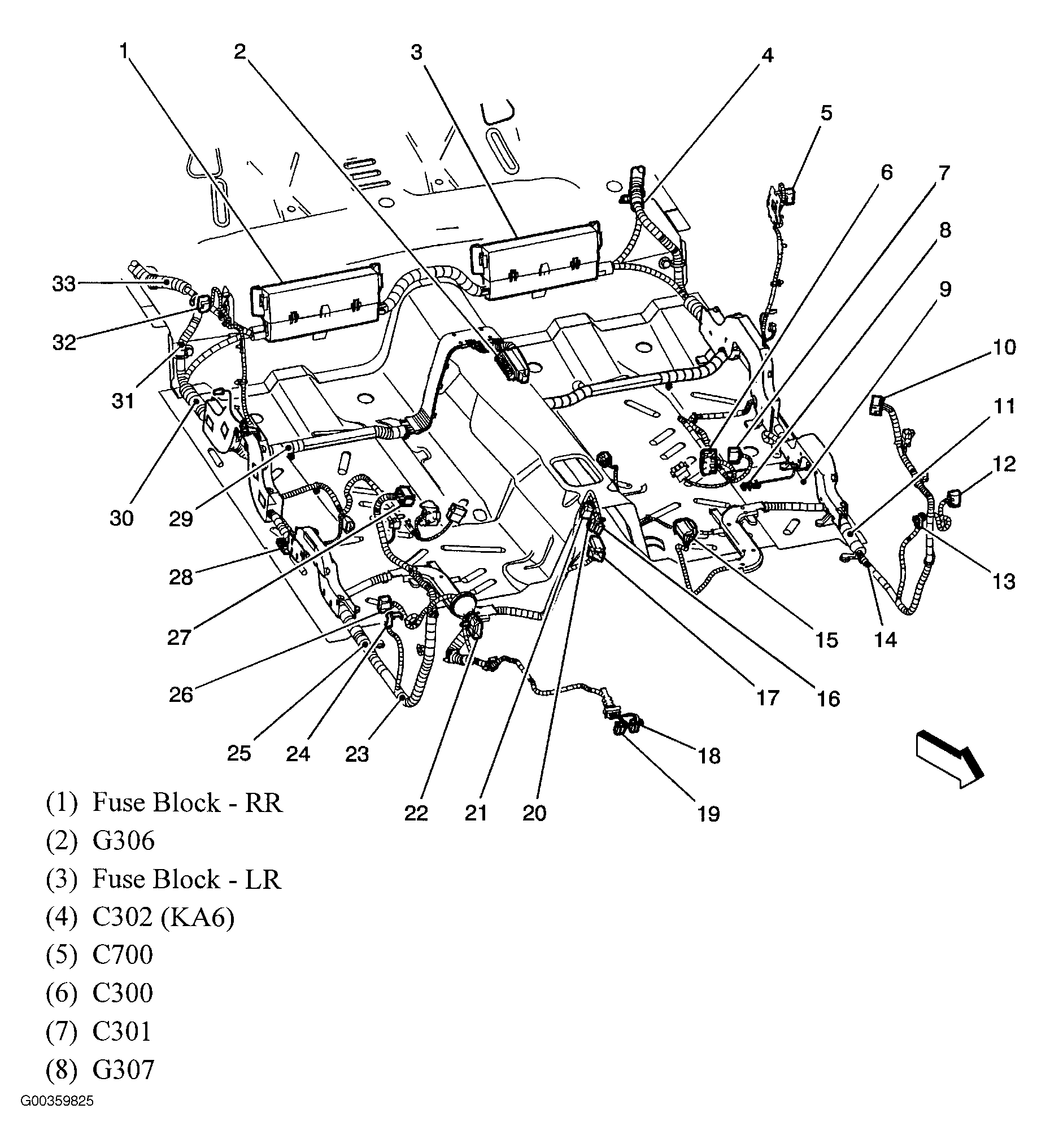

Fig 104: Front Door (1 Of 2)

G00359825

Courtesy of GENERAL MOTORS CORP.

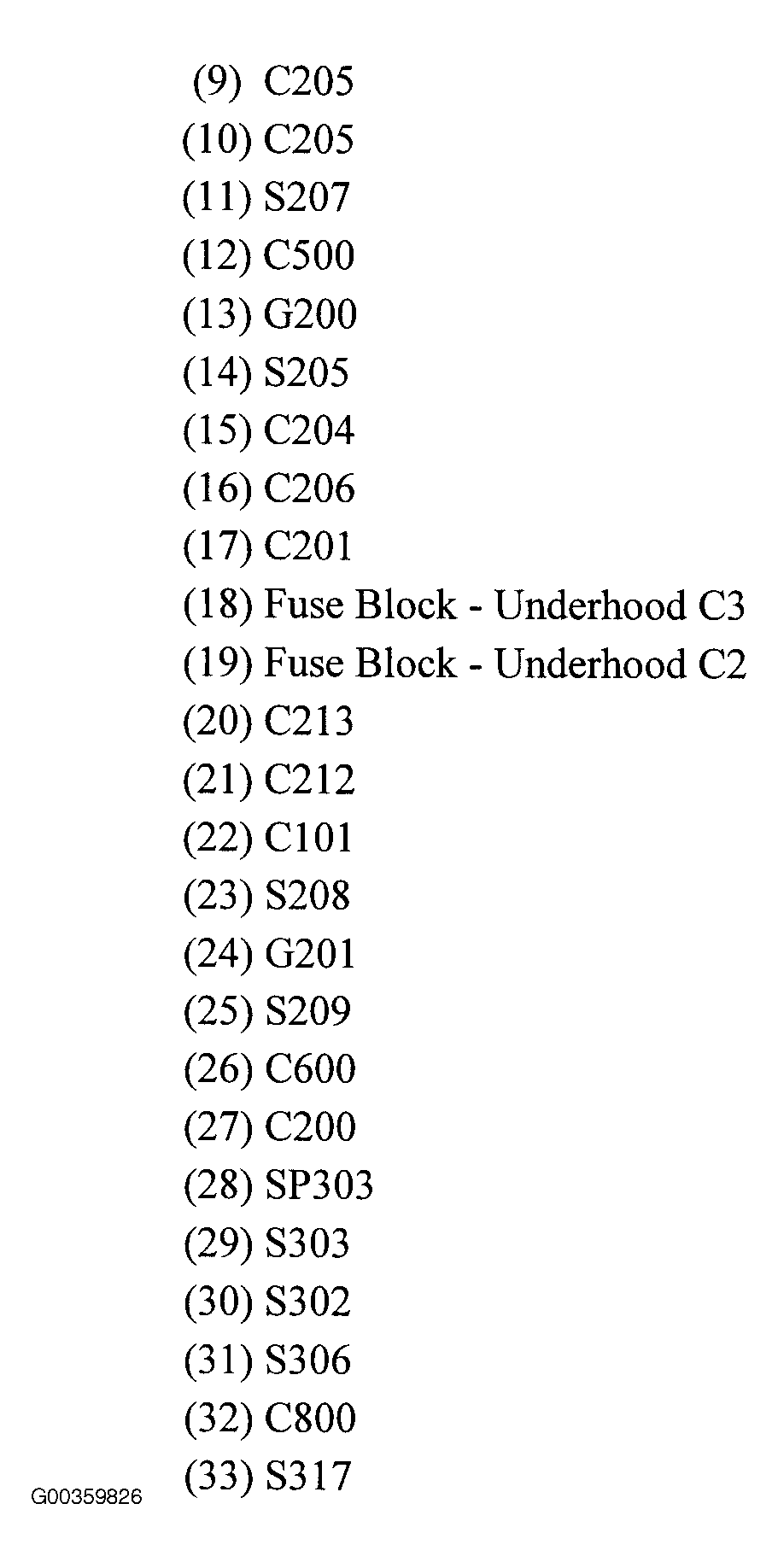

Fig 105: Front Door (2 Of 2)

G00359826

Courtesy of GENERAL MOTORS CORP.

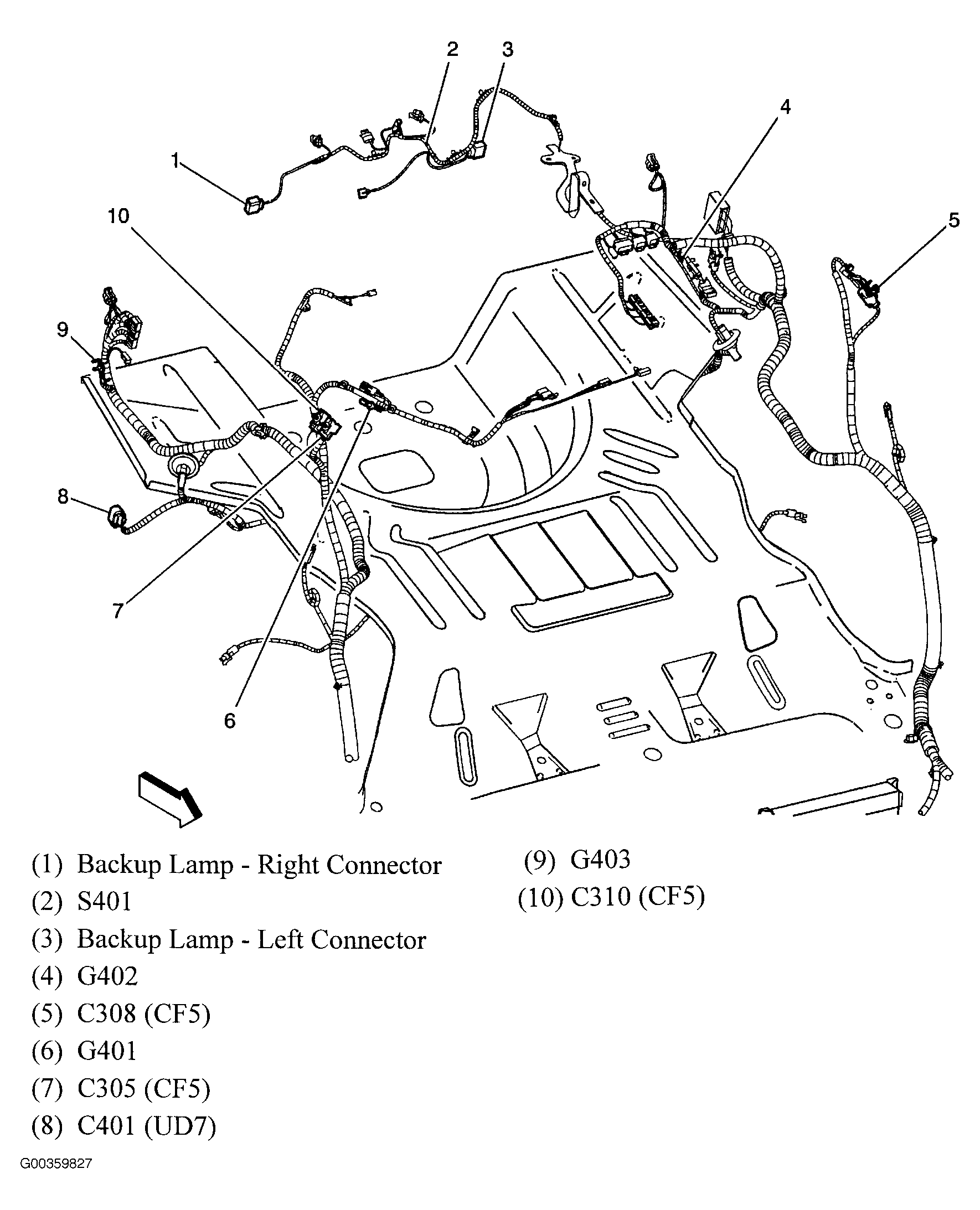

Fig 106: Rear Floor

G00359827

Courtesy of GENERAL MOTORS CORP.

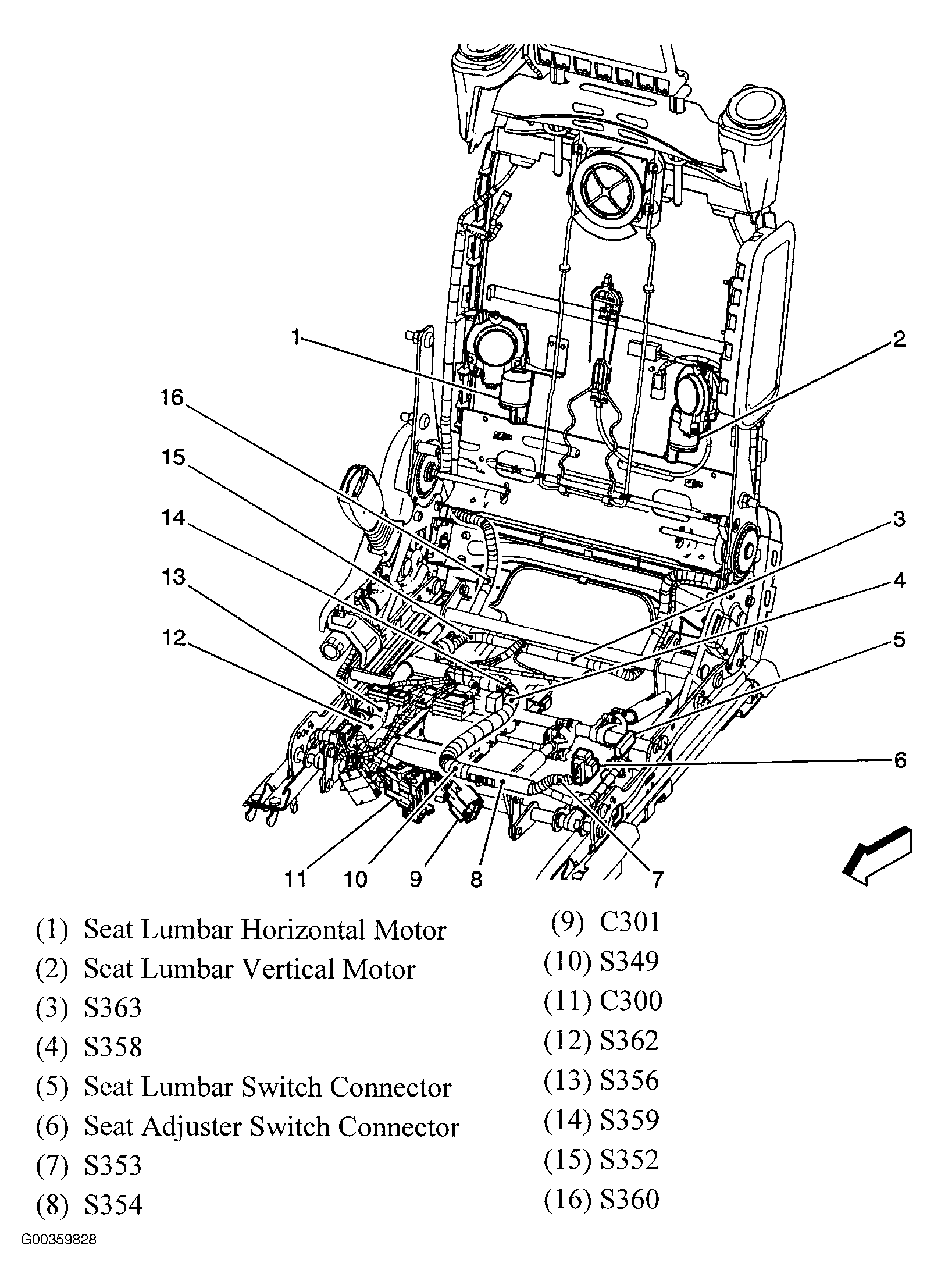

Fig 107: Driver Seat

G00359828

Courtesy of GENERAL MOTORS CORP.

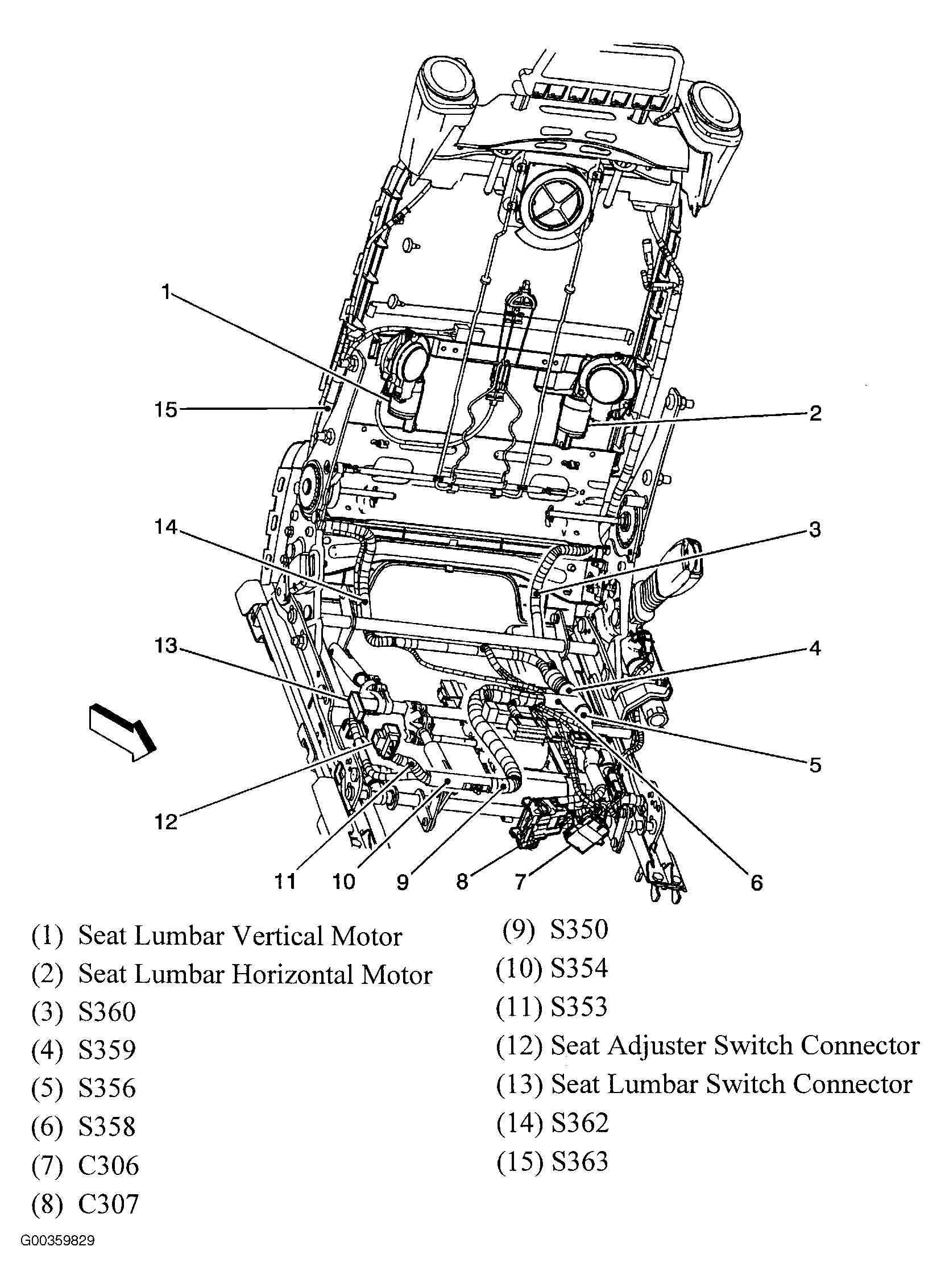

Fig 108: Passenger Seat

G00359829

Courtesy of GENERAL MOTORS CORP.

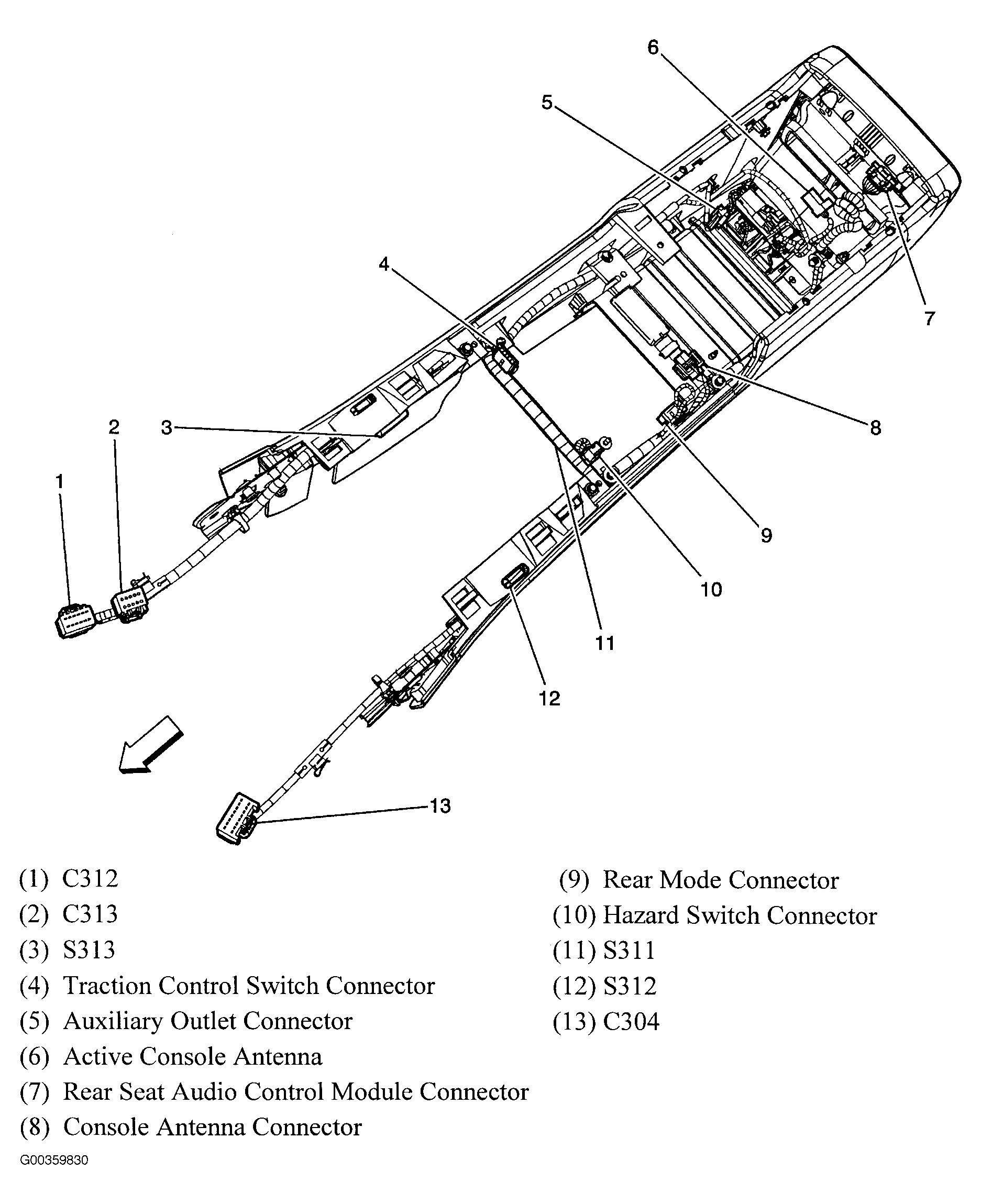

Fig 109: Console

G00359830

Courtesy of GENERAL MOTORS CORP.

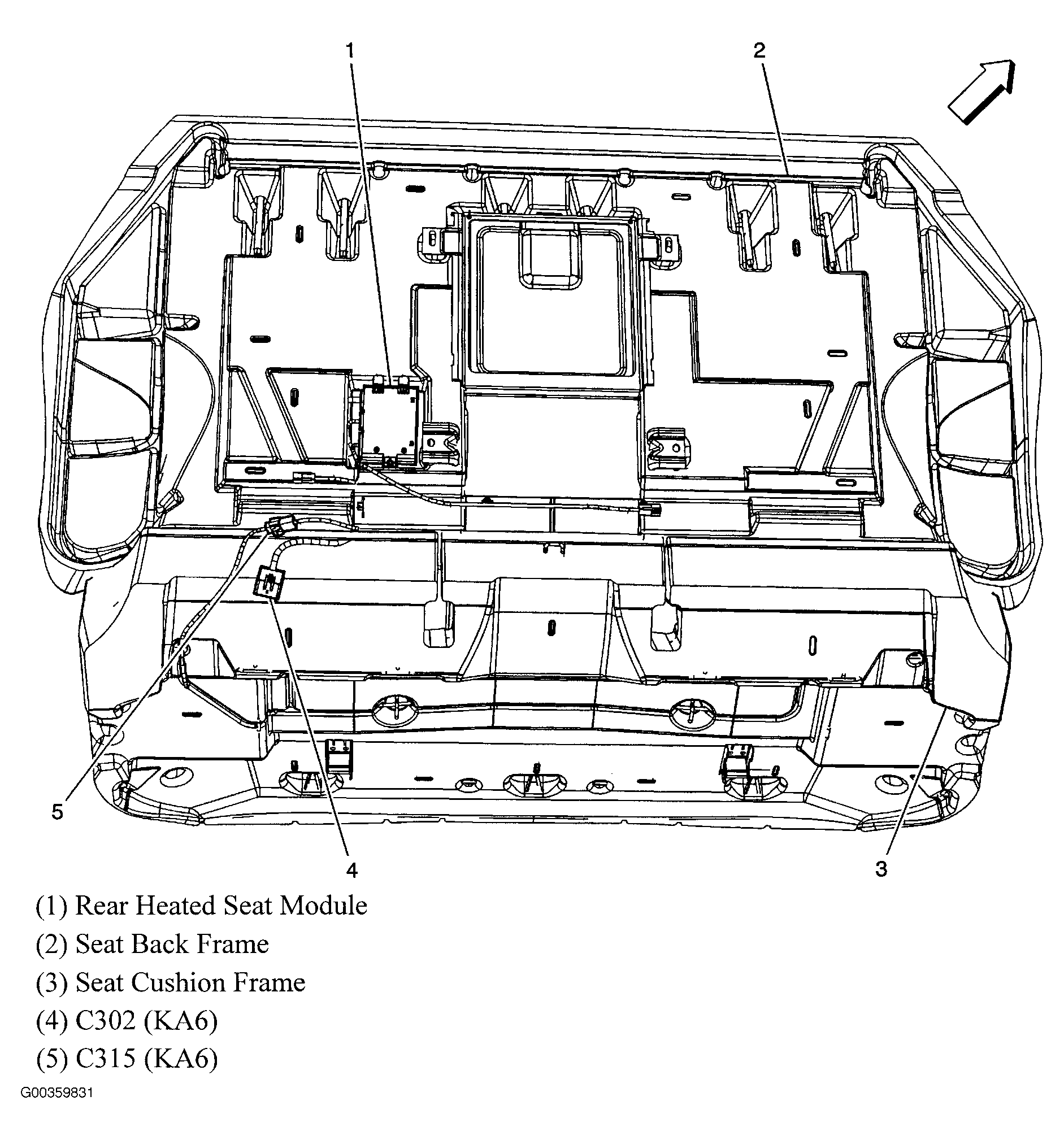

Fig 110: Behind Rear Seats

G00359831

Courtesy of GENERAL MOTORS CORP.

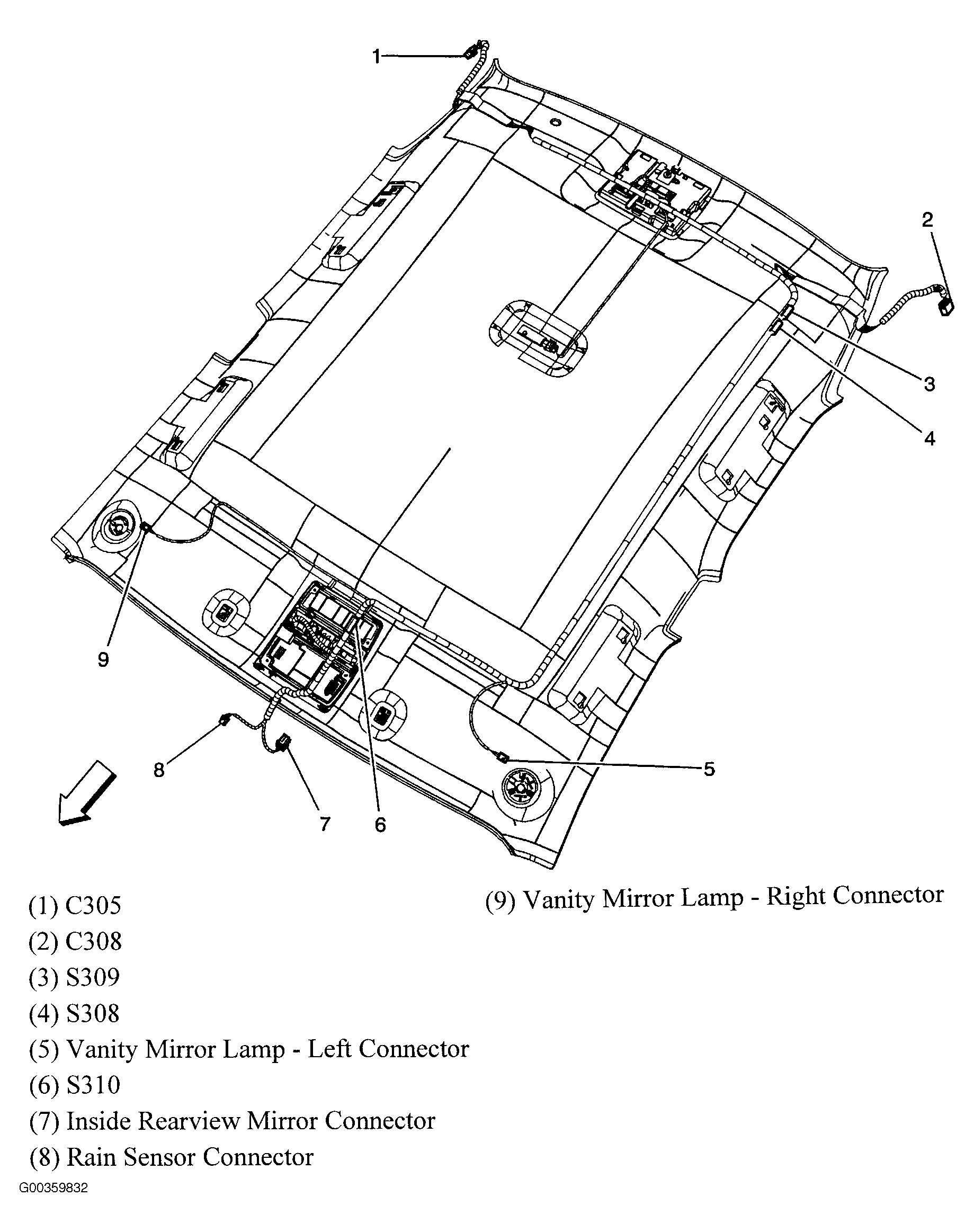

Fig 111: Headliner (W/O Sunroof)

G00359832

Courtesy of GENERAL MOTORS CORP.

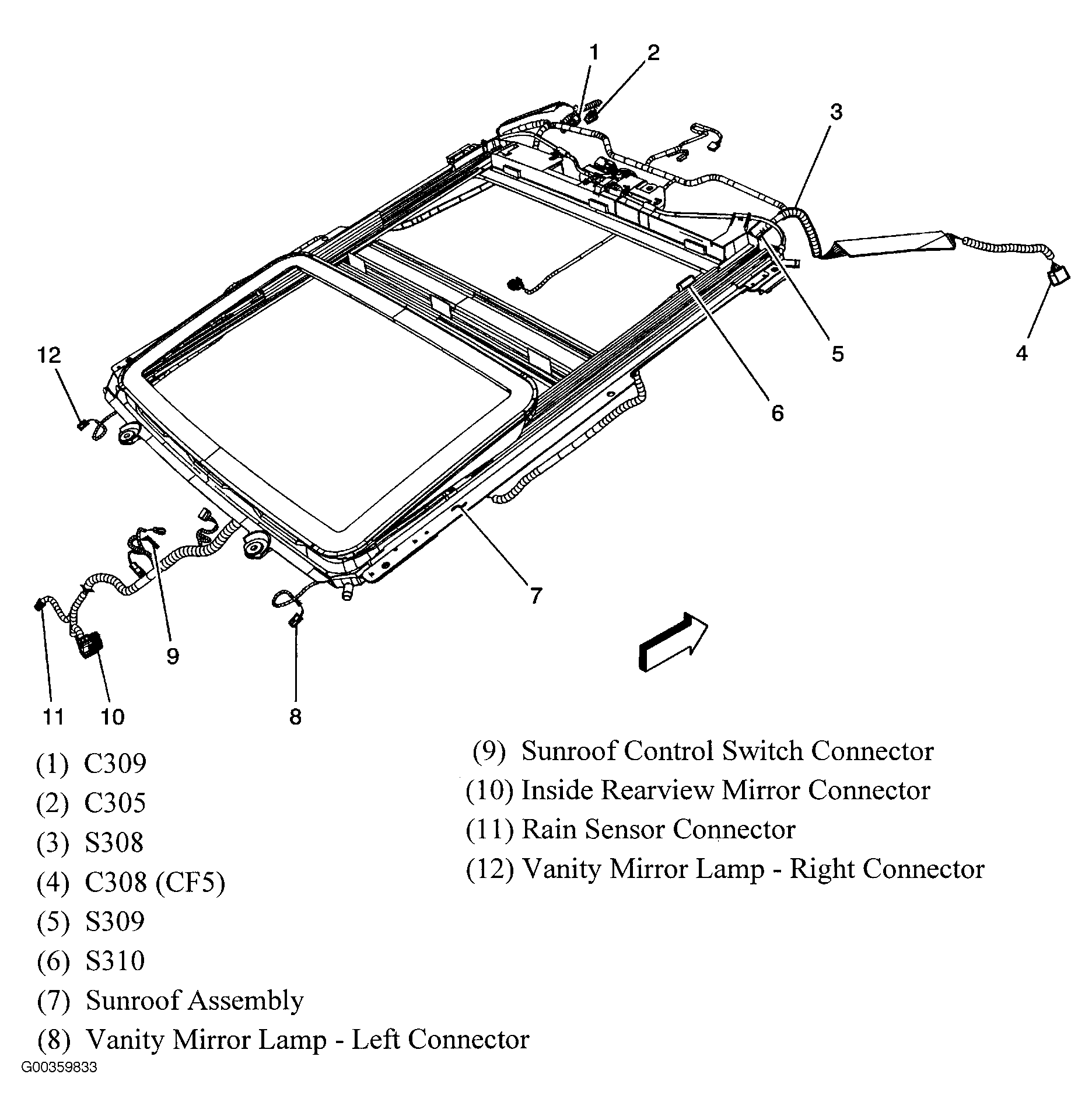

Fig 112: Headliner Harness (W/ Sunroof)

G00359833

Courtesy of GENERAL MOTORS CORP.

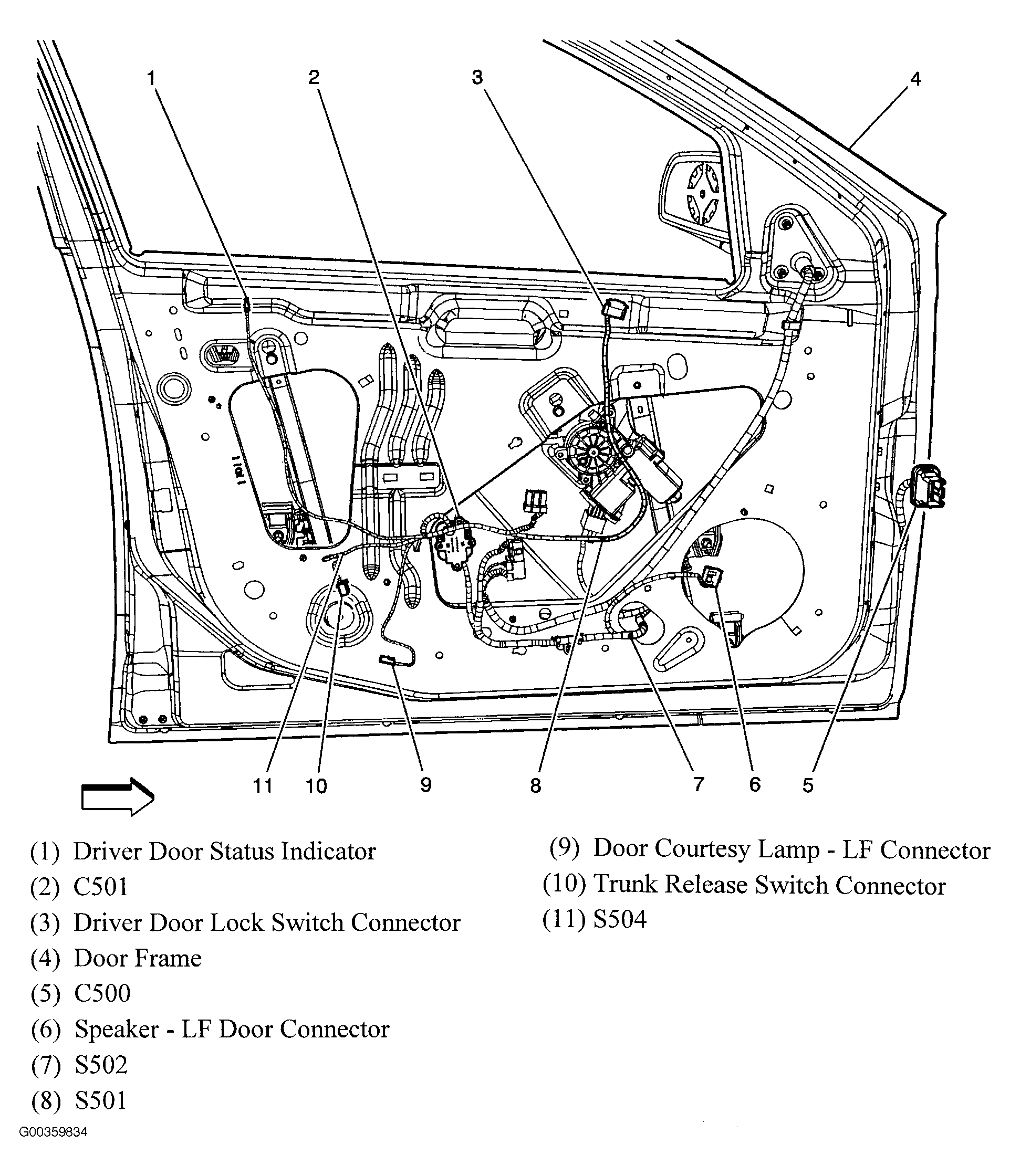

Fig 113: Left Front Door

G00359834

Courtesy of GENERAL MOTORS CORP.

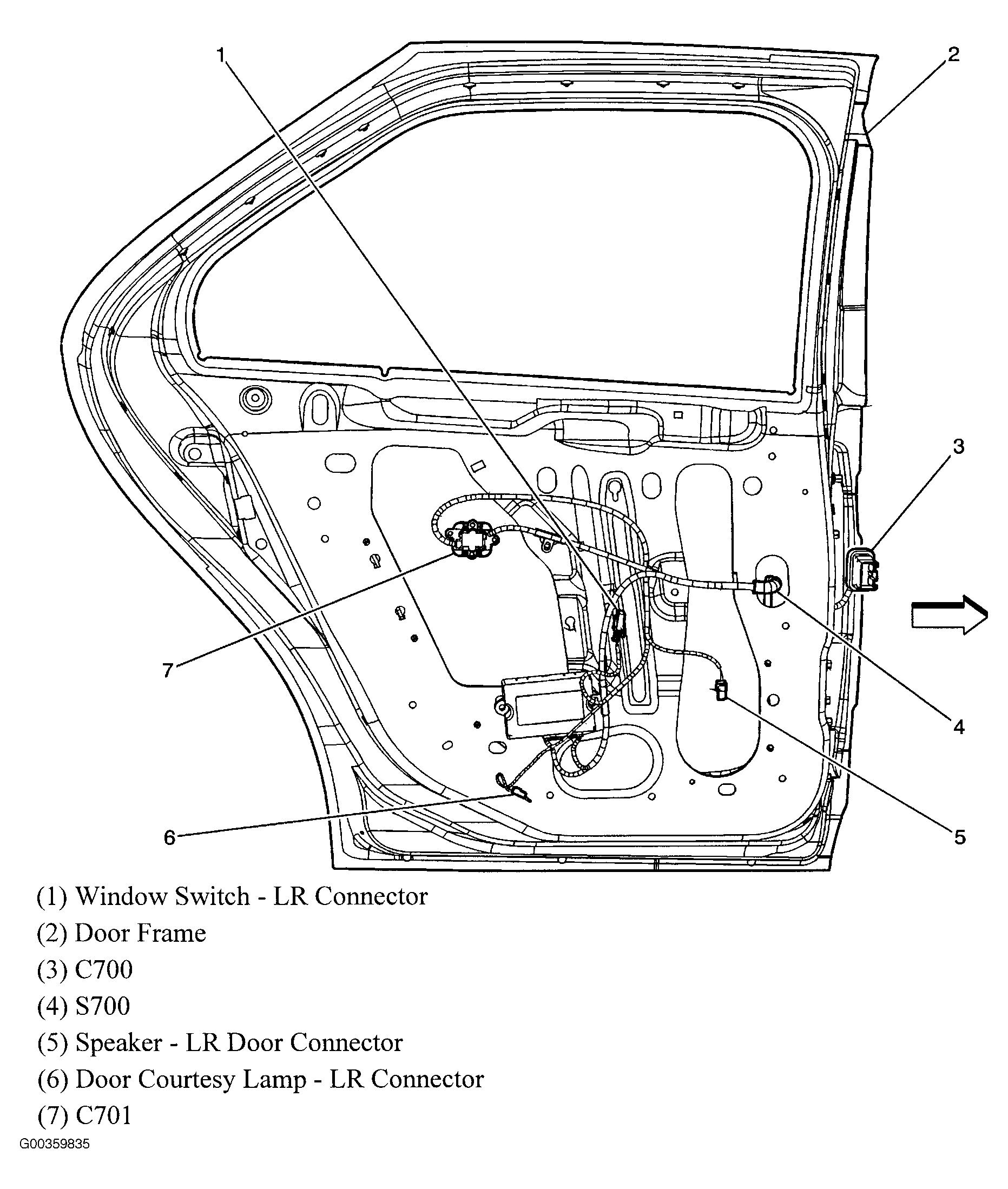

Fig 114: Left Rear Door

G00359835

Courtesy of GENERAL MOTORS CORP.

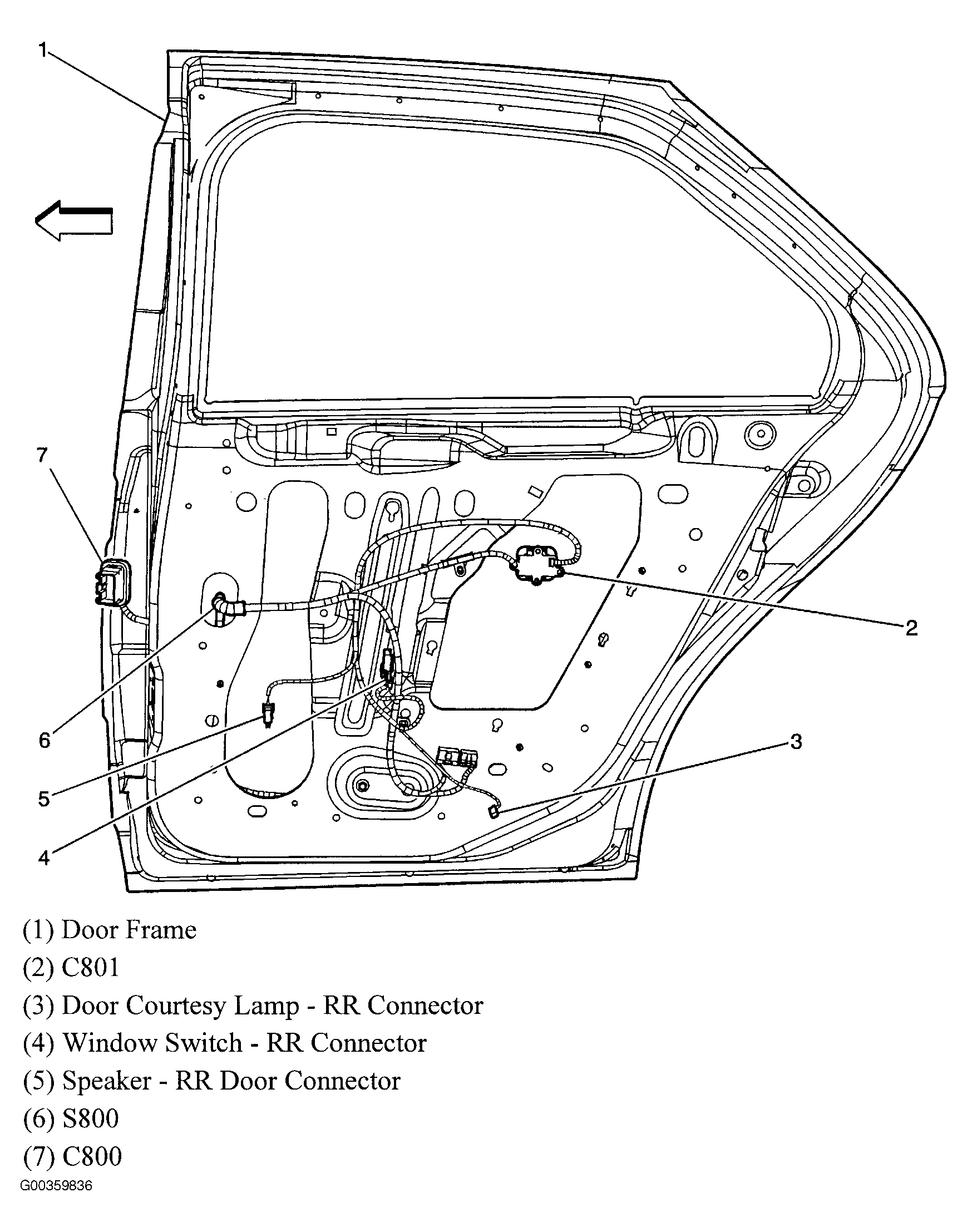

Fig 115: Right Rear Door

G00359836

Courtesy of GENERAL MOTORS CORP.

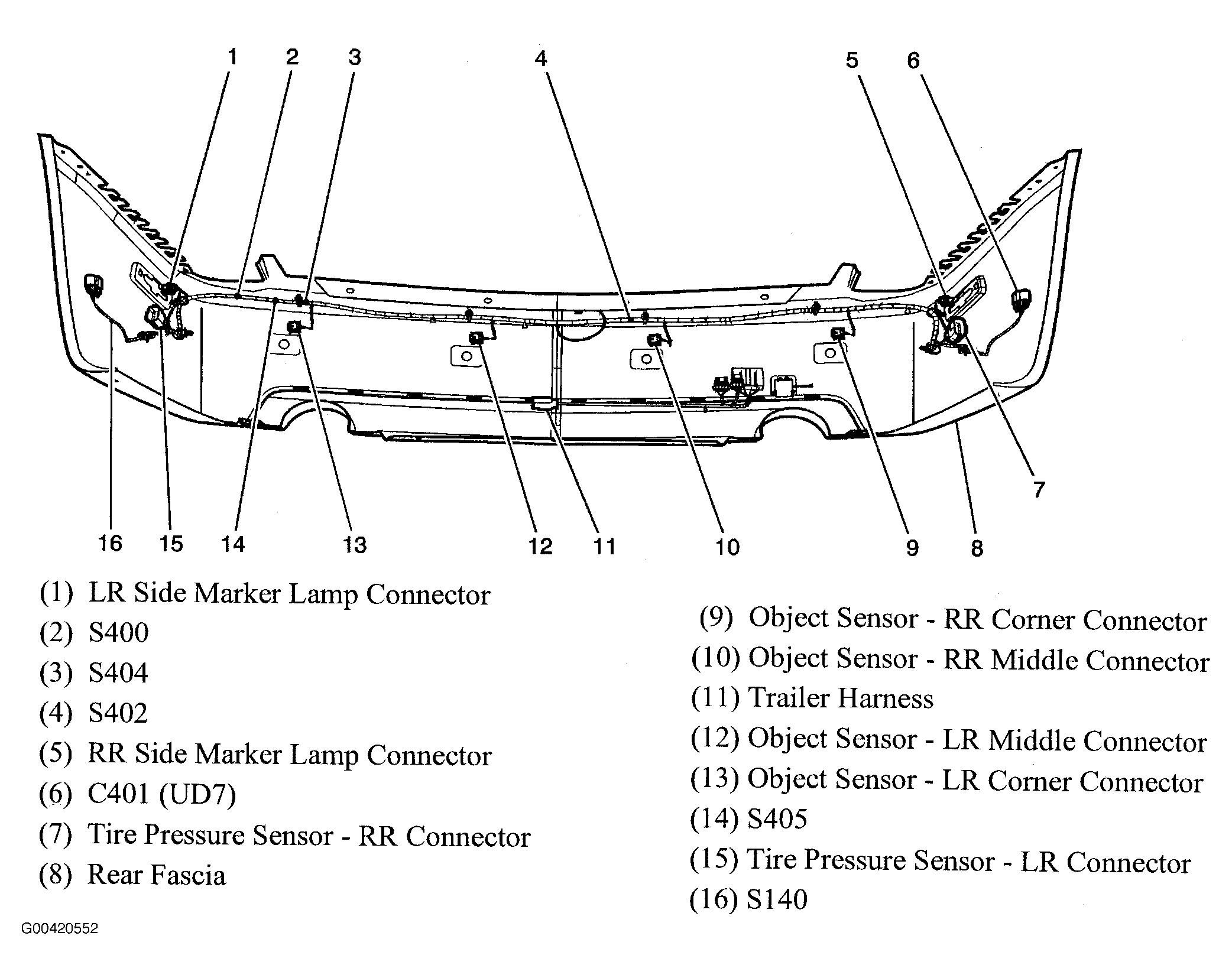

Fig 116: Rear Bumper

G00420552

Courtesy of GENERAL MOTORS CORP.

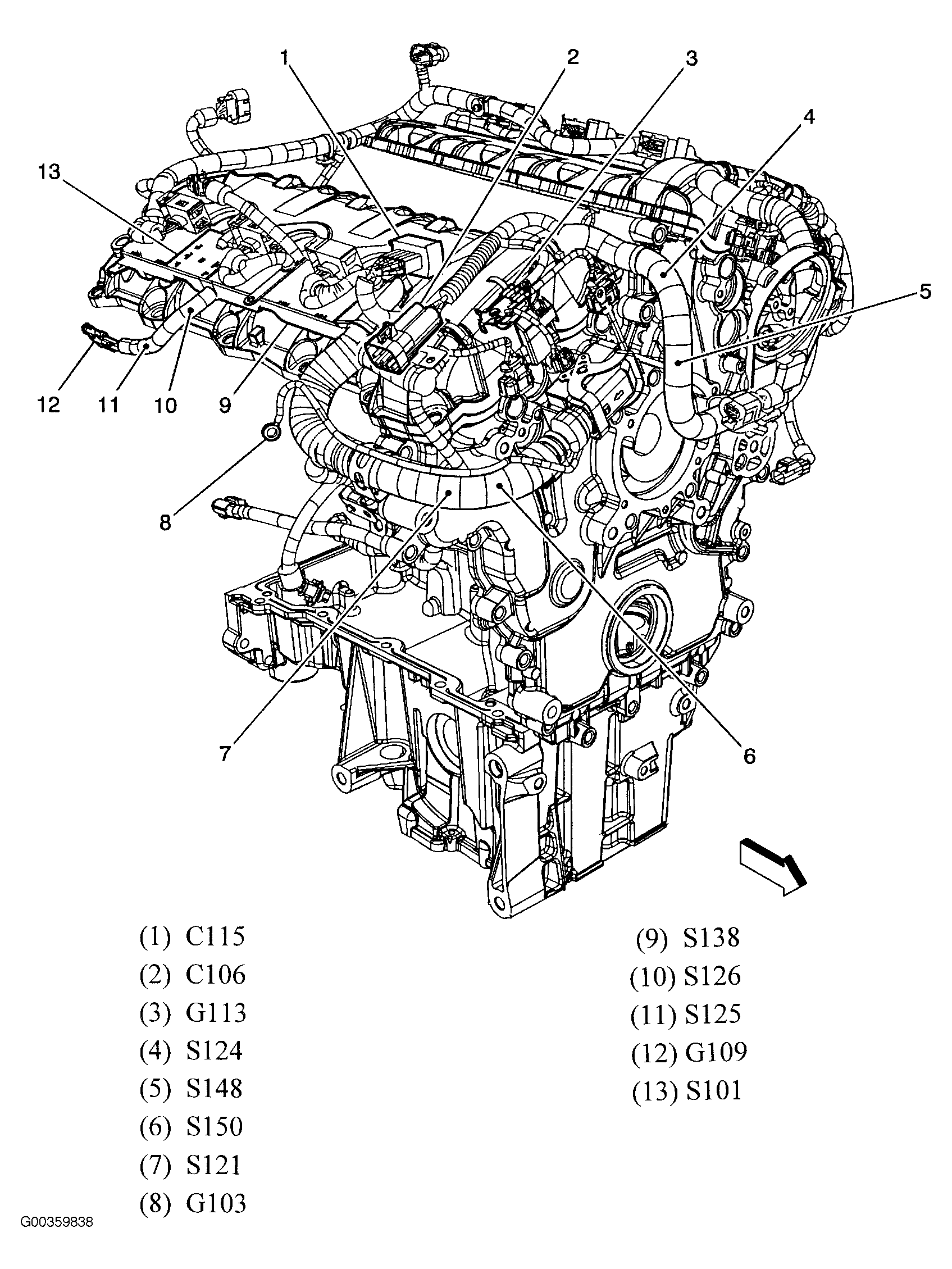

Fig 117: Right Side Of Engine (3.6L VIN 7)

G00359838

Courtesy of GENERAL MOTORS CORP.

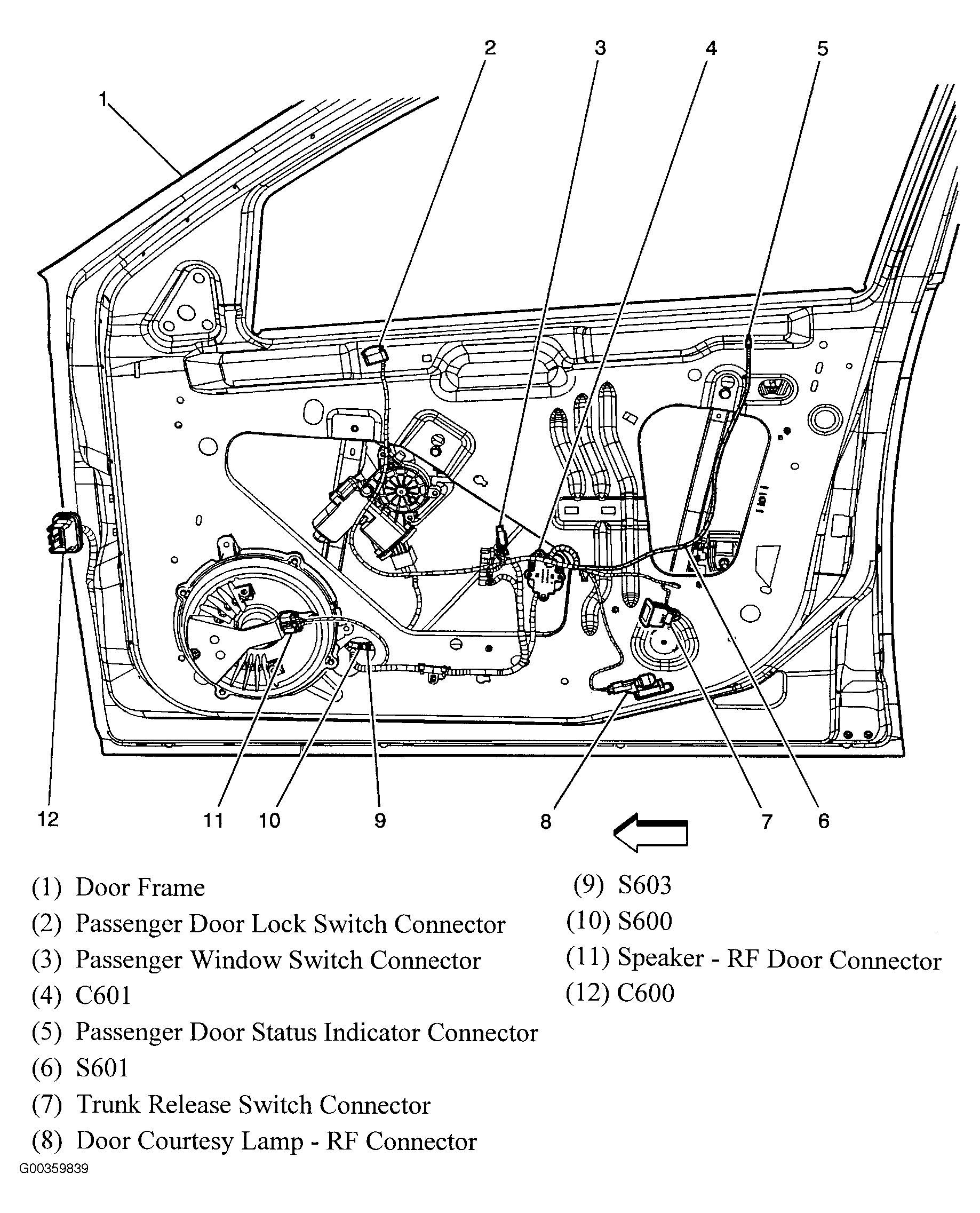

Fig 118: Right Rear Door

G00359839

Courtesy of GENERAL MOTORS CORP.

Fig 119: Front Passenger's Seat

G00420548

Courtesy of GENERAL MOTORS CORP.

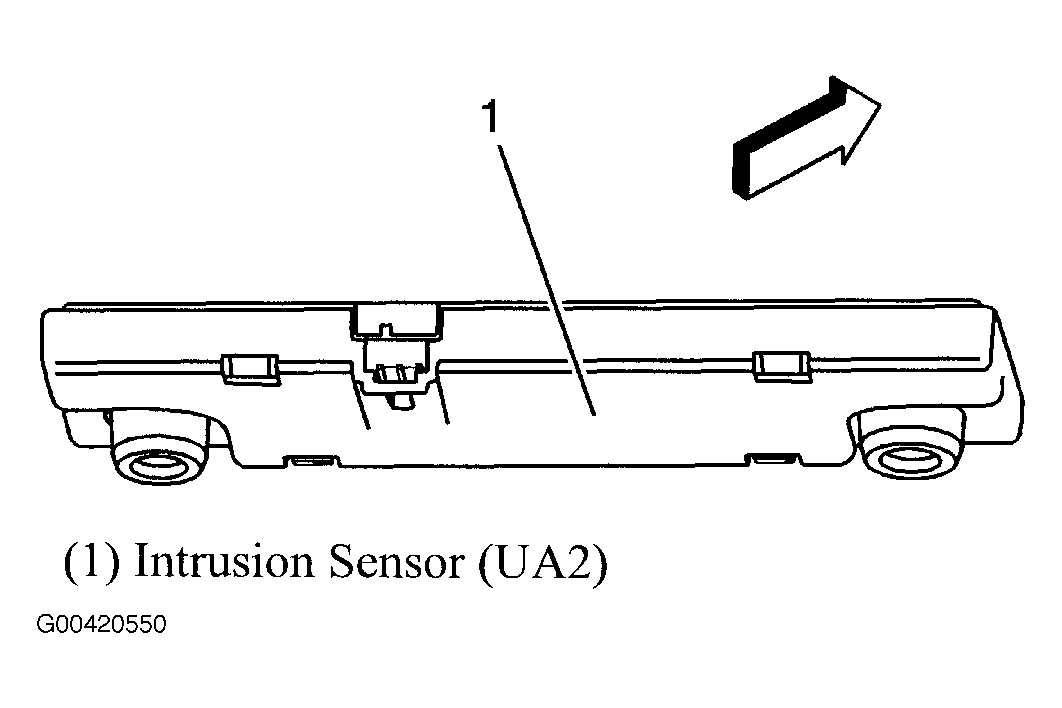

Fig 120: Overhead Console

G00420550

Courtesy of GENERAL MOTORS CORP.

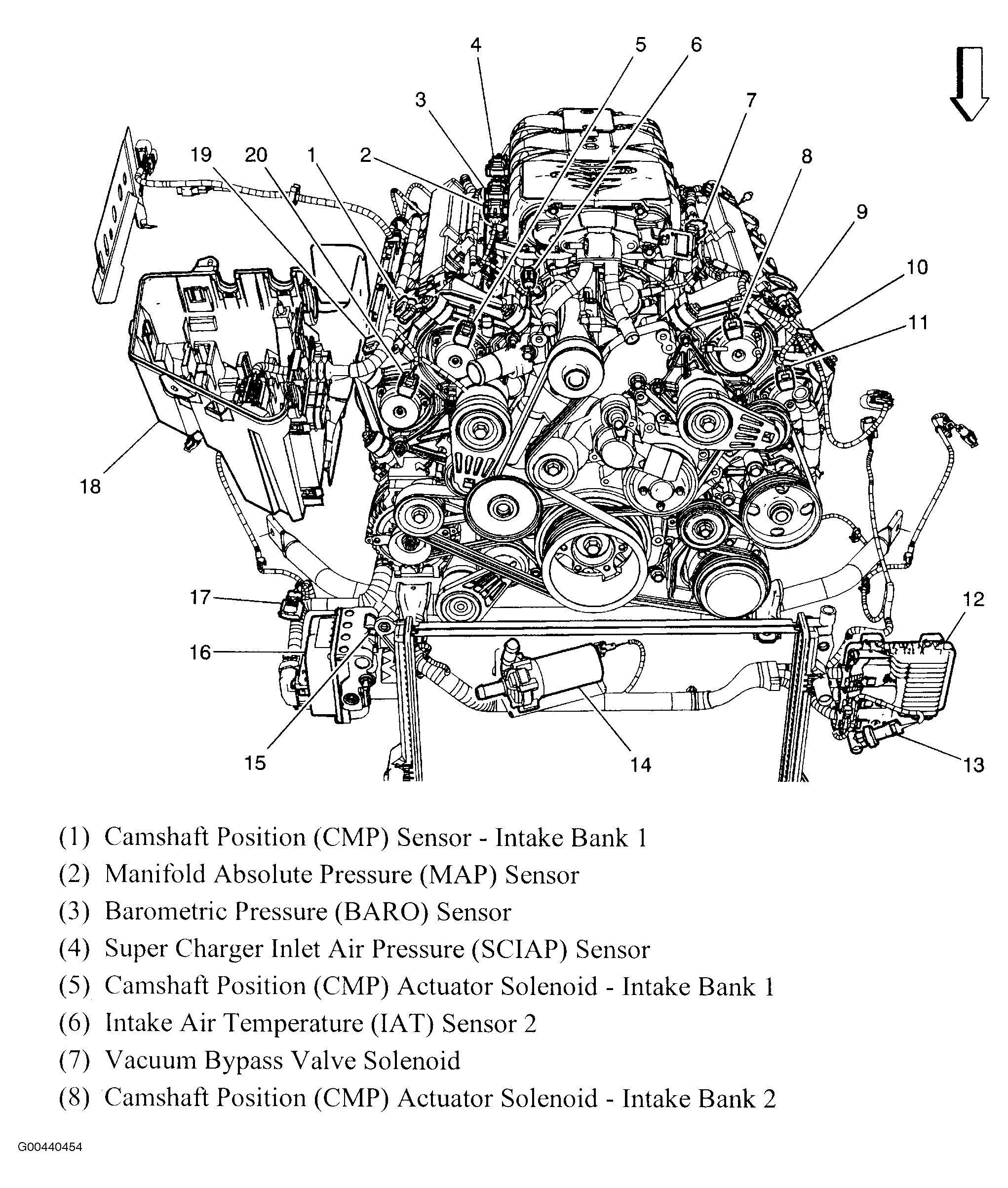

Fig 121: Front/Top Of Engine (4.4L VIN D) (1 Of 2)

G00440454

Courtesy of GENERAL MOTORS CORP.

Fig 122: Front/Top Of Engine (4.4L VIN D) (2 Of 2)

G00440455

Courtesy of GENERAL MOTORS CORP.

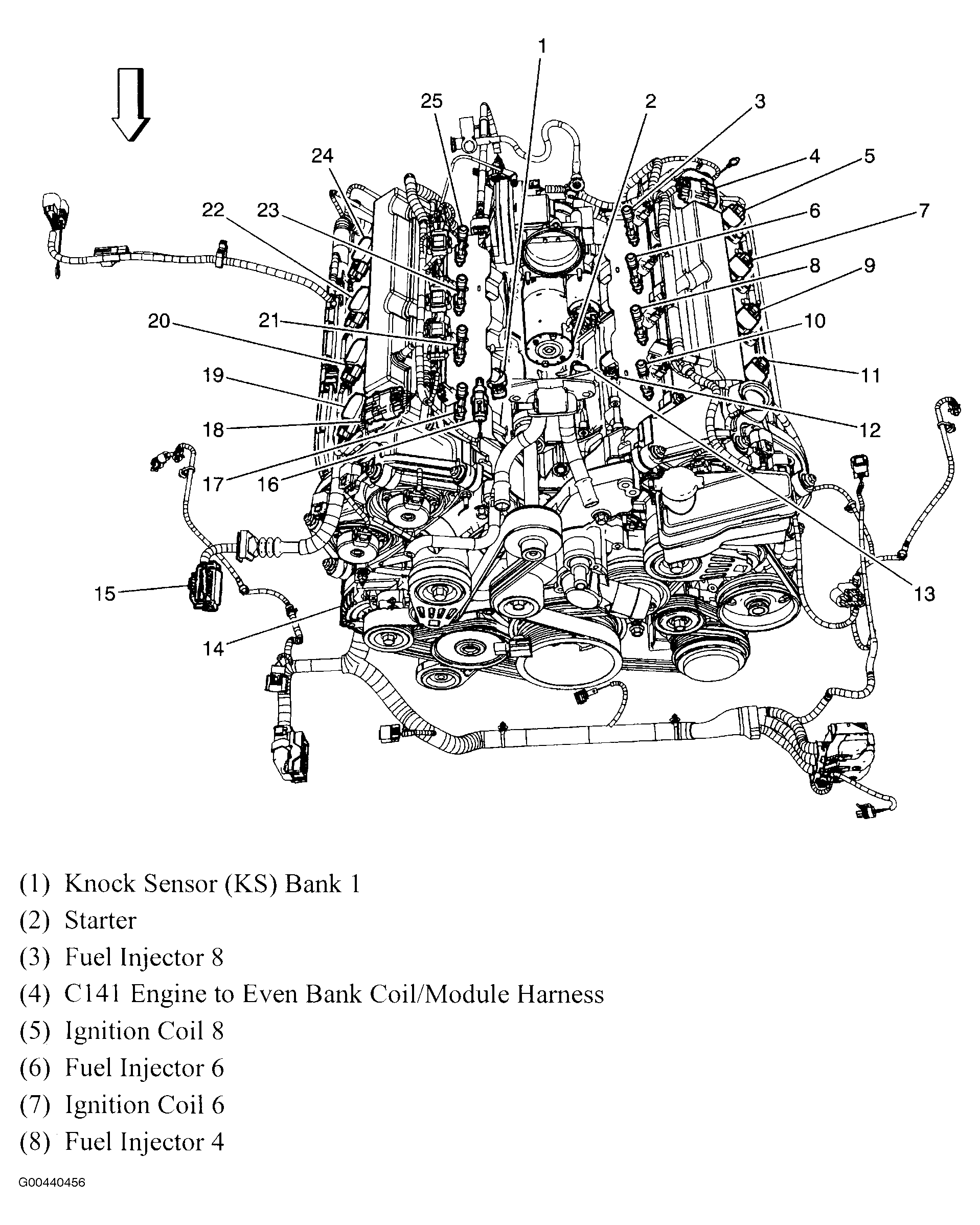

Fig 123: Top Of Engine (4.4L VIN D) (1 Of 2)

G00440456

Courtesy of GENERAL MOTORS CORP.

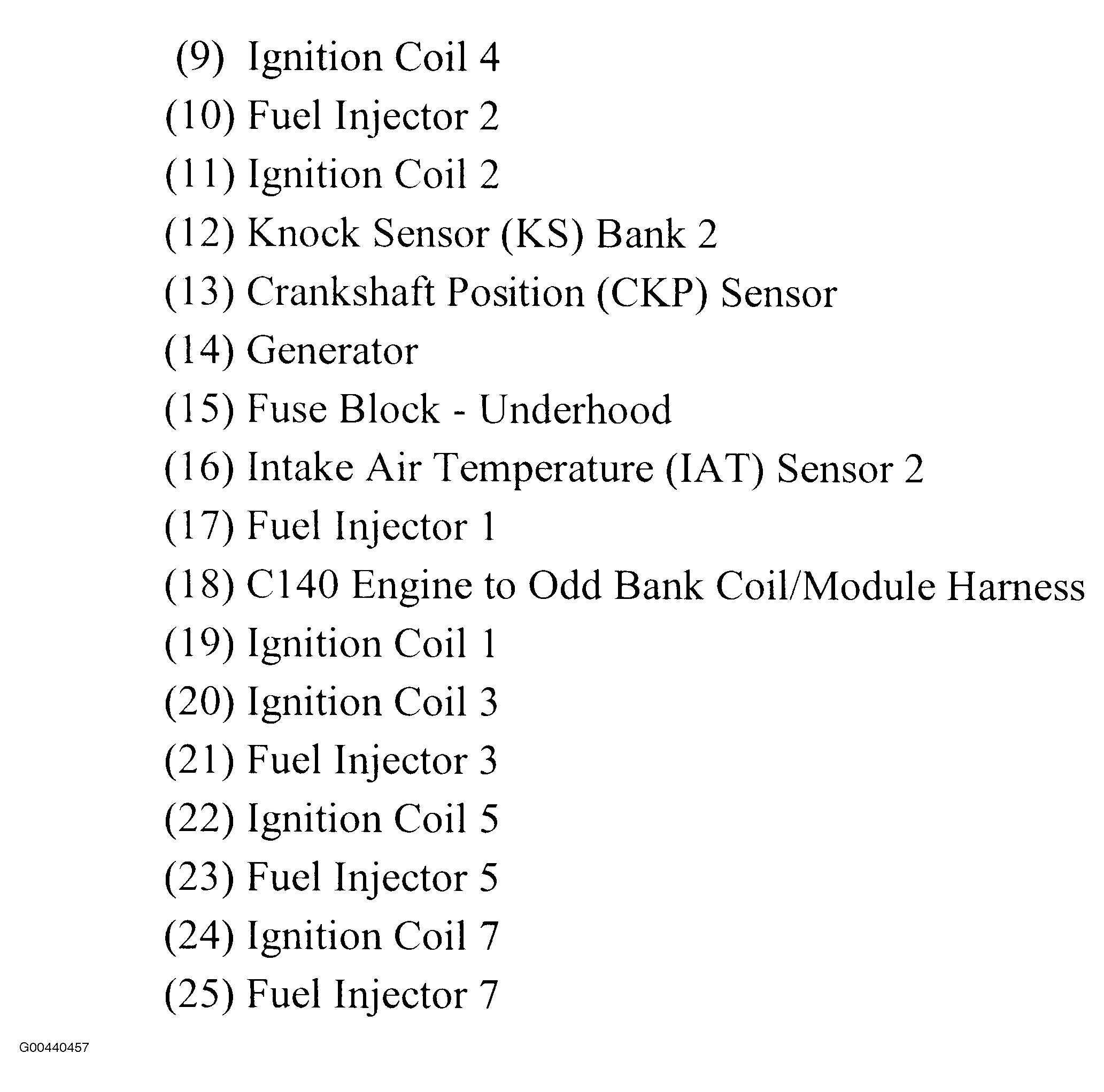

Fig 124: Top Of Engine (4.4L VIN D) (2 Of 2)

G00440457

Courtesy of GENERAL MOTORS CORP.

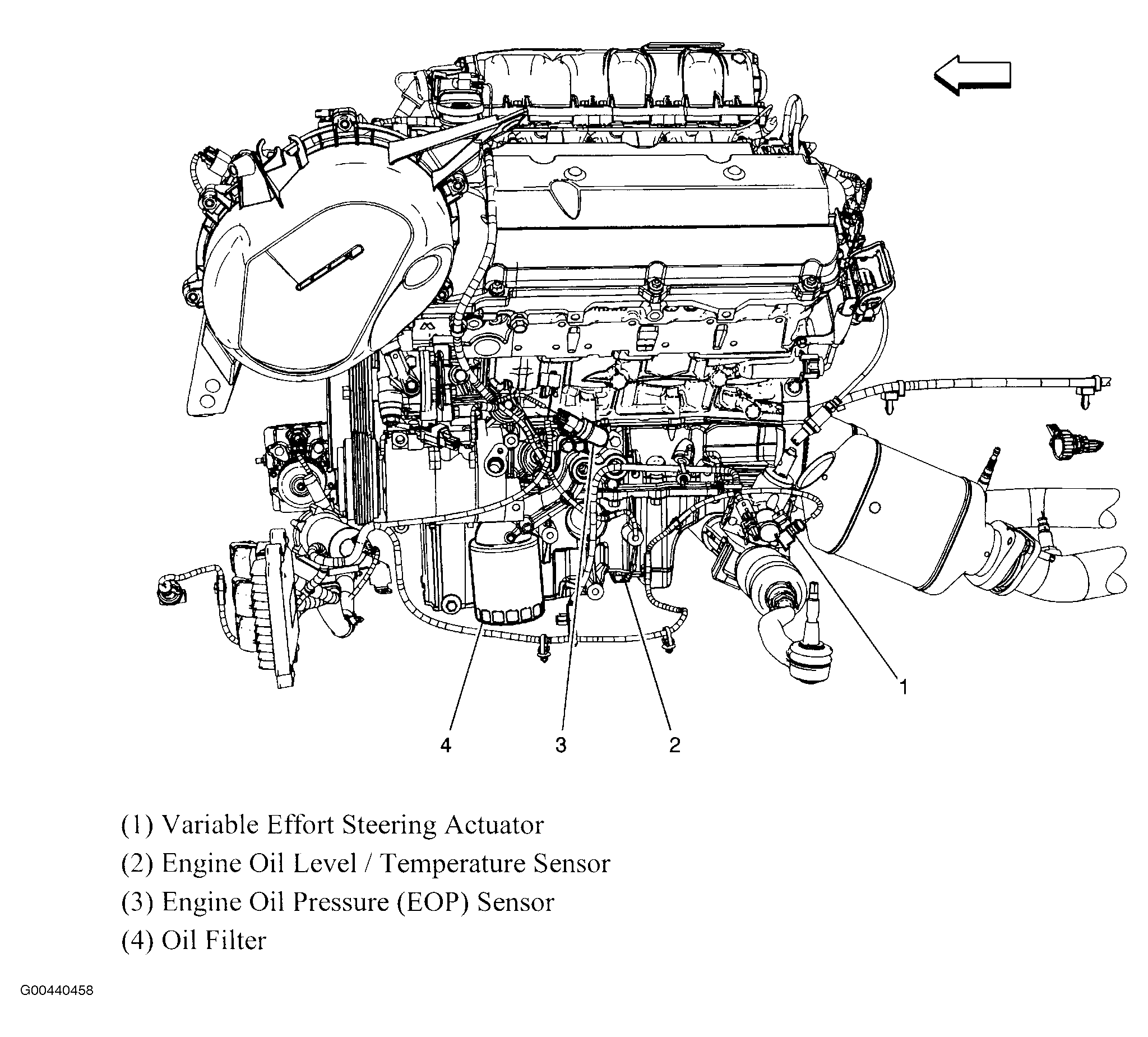

Fig 125: Left Side Of Engine (4.4L VIN D)

G00440458

Courtesy of GENERAL MOTORS CORP.

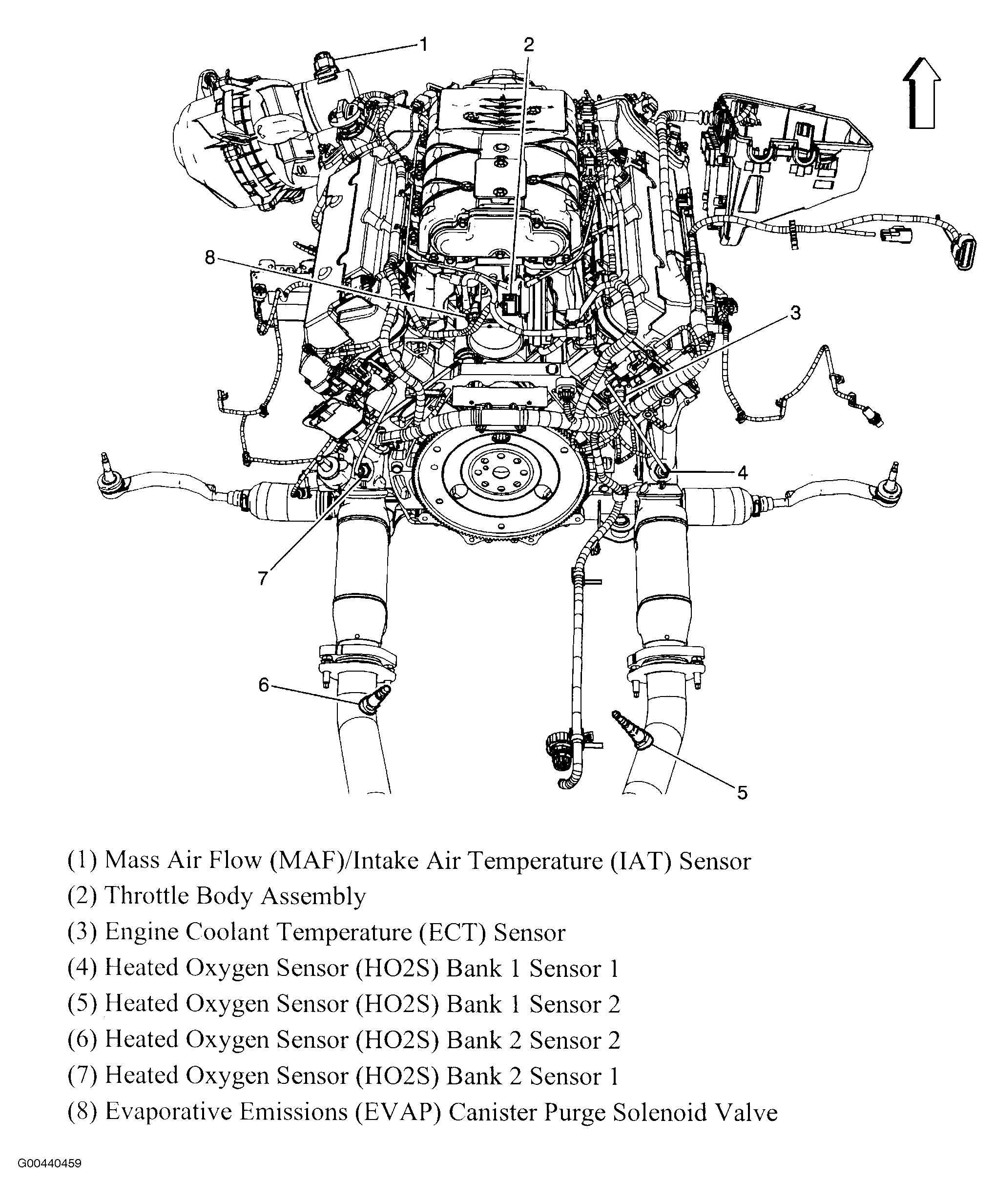

Fig 126: Top/Rear Of Engine (4.4L VIN D)

G00440459

Courtesy of GENERAL MOTORS CORP.
