Remote Function Schematics

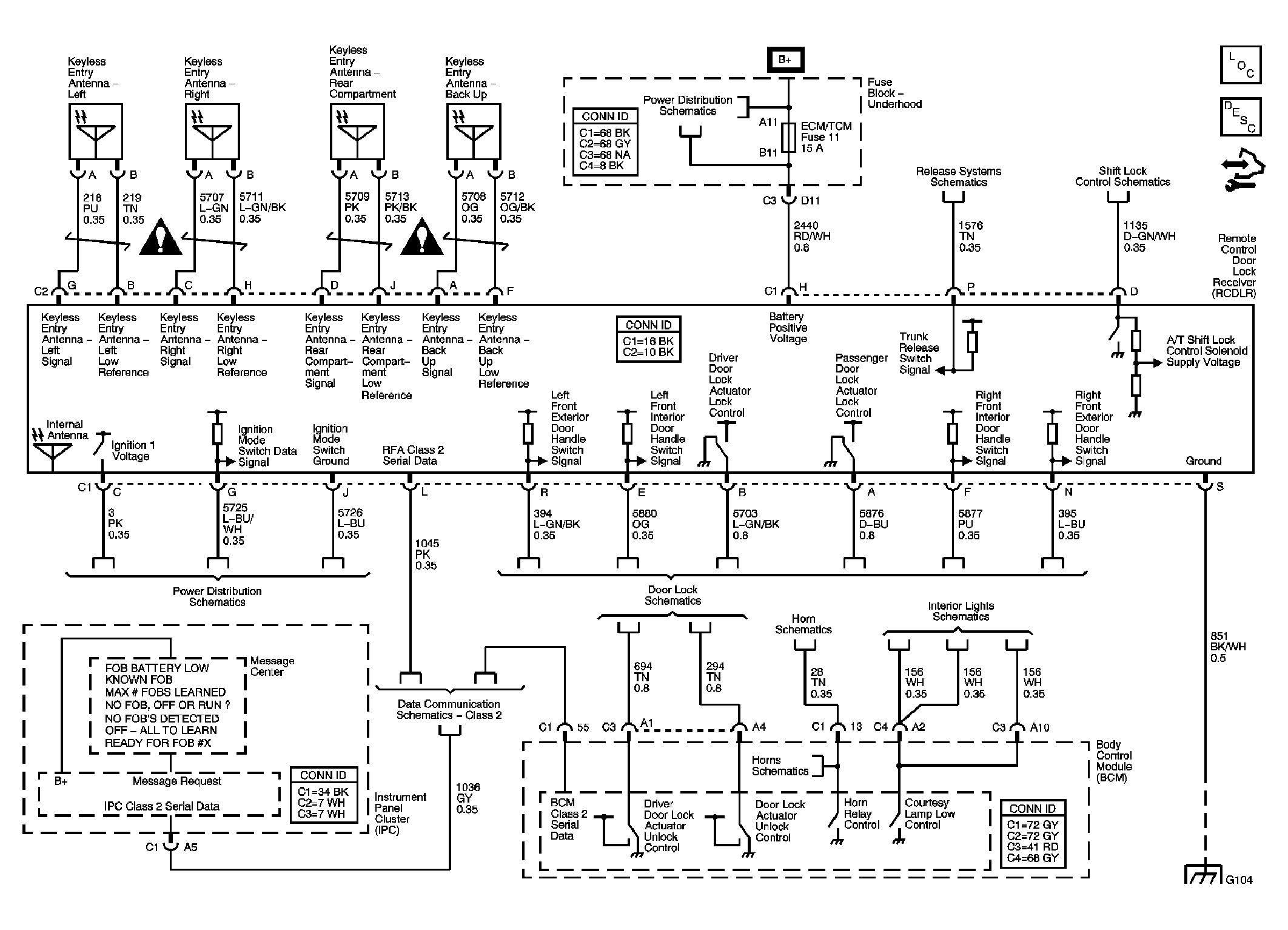

Fig 1: Keyless Entry Schematic

GM1757390

Courtesy of GENERAL MOTORS CORP.

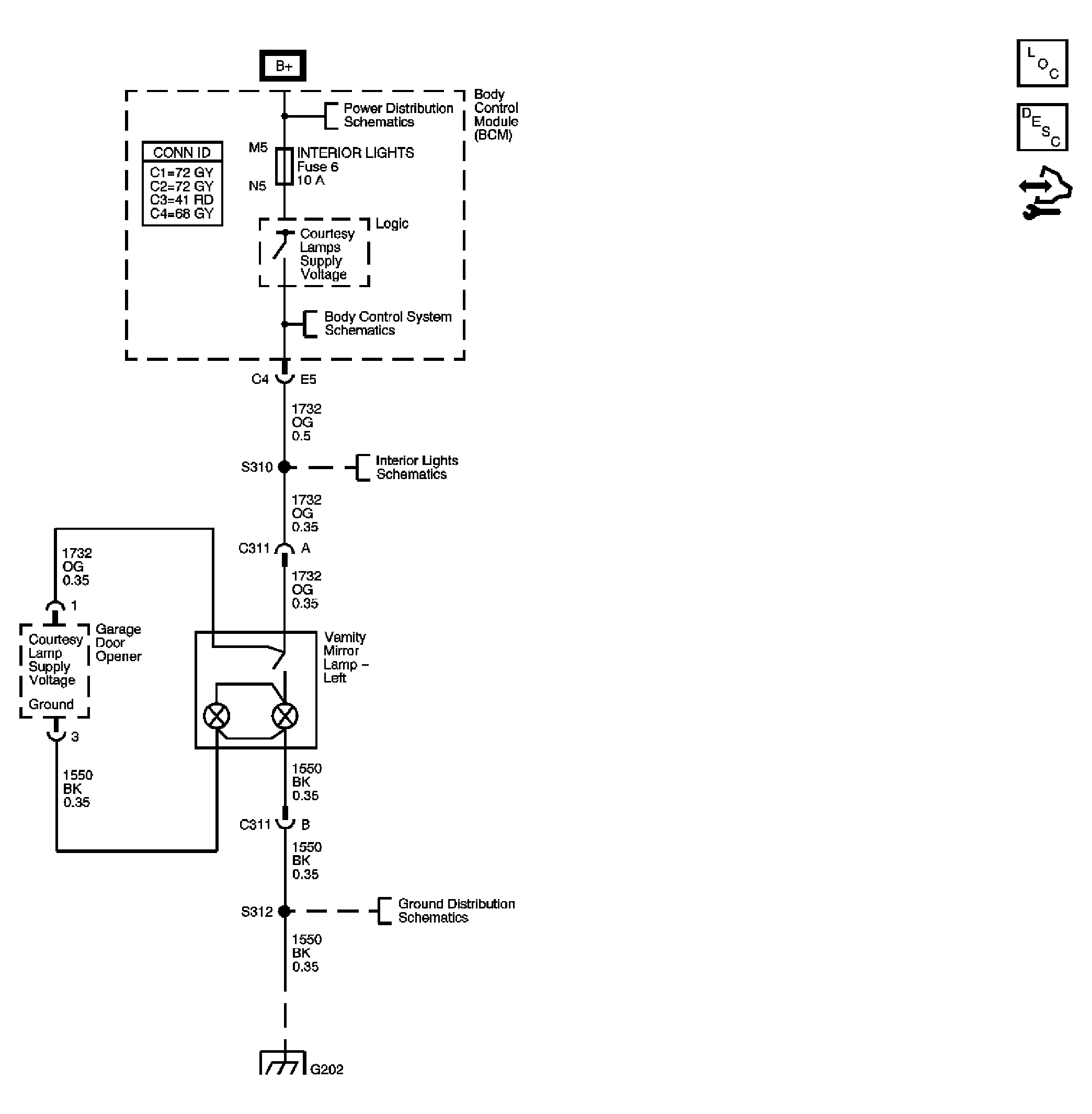

Fig 2: Garage Door Opener Schematic

GM1757394

Courtesy of GENERAL MOTORS CORP.
