Mirror Component Views

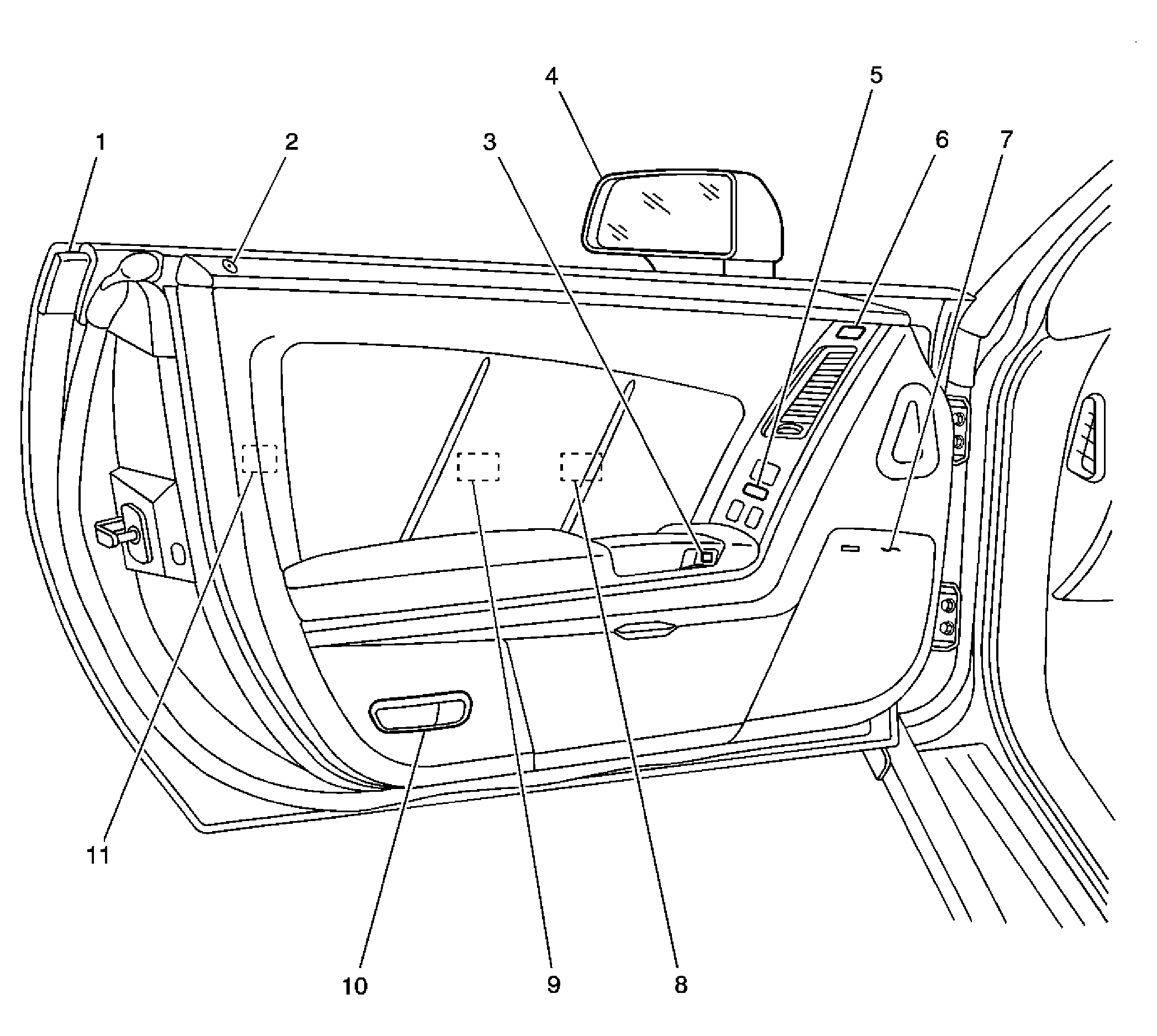

Fig 1: Driver Door Component View

GM1258720

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Handle Switch - Driver Exterior
2	Door Lock Indicator - Driver
3	Door Handle Switch - Driver Interior
4	Outside Rearview Mirror - Driver
5	Driver Door Switch Assembly (DDSA)
6	Door Lock Switch - Driver
7	Speaker - Left Front Door Subwoofer
8	Driver Door Module (DDM)
9	Window Motor - Driver
10	Courtesy Lamp - Left Door
11	Inflatable Restraint Side Impact Sensor (SIS) - Left

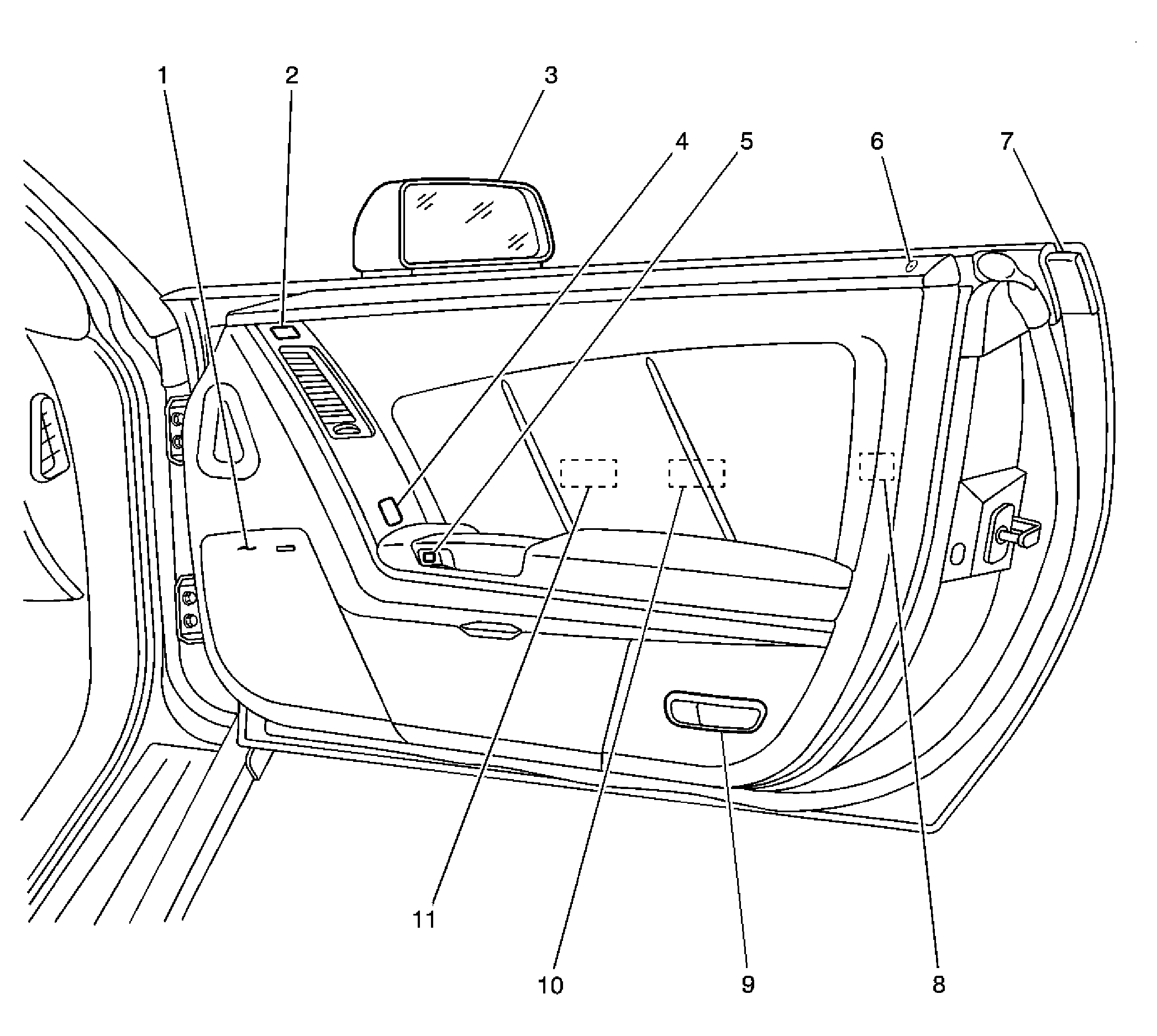

Fig 2: Passenger Door Component View

GM1258719

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Speaker - Right Front Door Subwoofer
2	Door Lock Switch - Front Passenger
3	Outside Rearview Mirror - Front Passenger
4	Window Switch - Front Passenger
5	Door Handle Switch - Front Passenger
6	Door Lock Indicator - Front Passenger
7	Door Handle Switch - Passenger Exterior
8	Inflatable Restraint Side Impact Sensor (SIS) - Right
9	Courtesy Lamp - Right Door
10	Window Motor - Front Passenger
11	Front Passenger Door Module (FPDM)

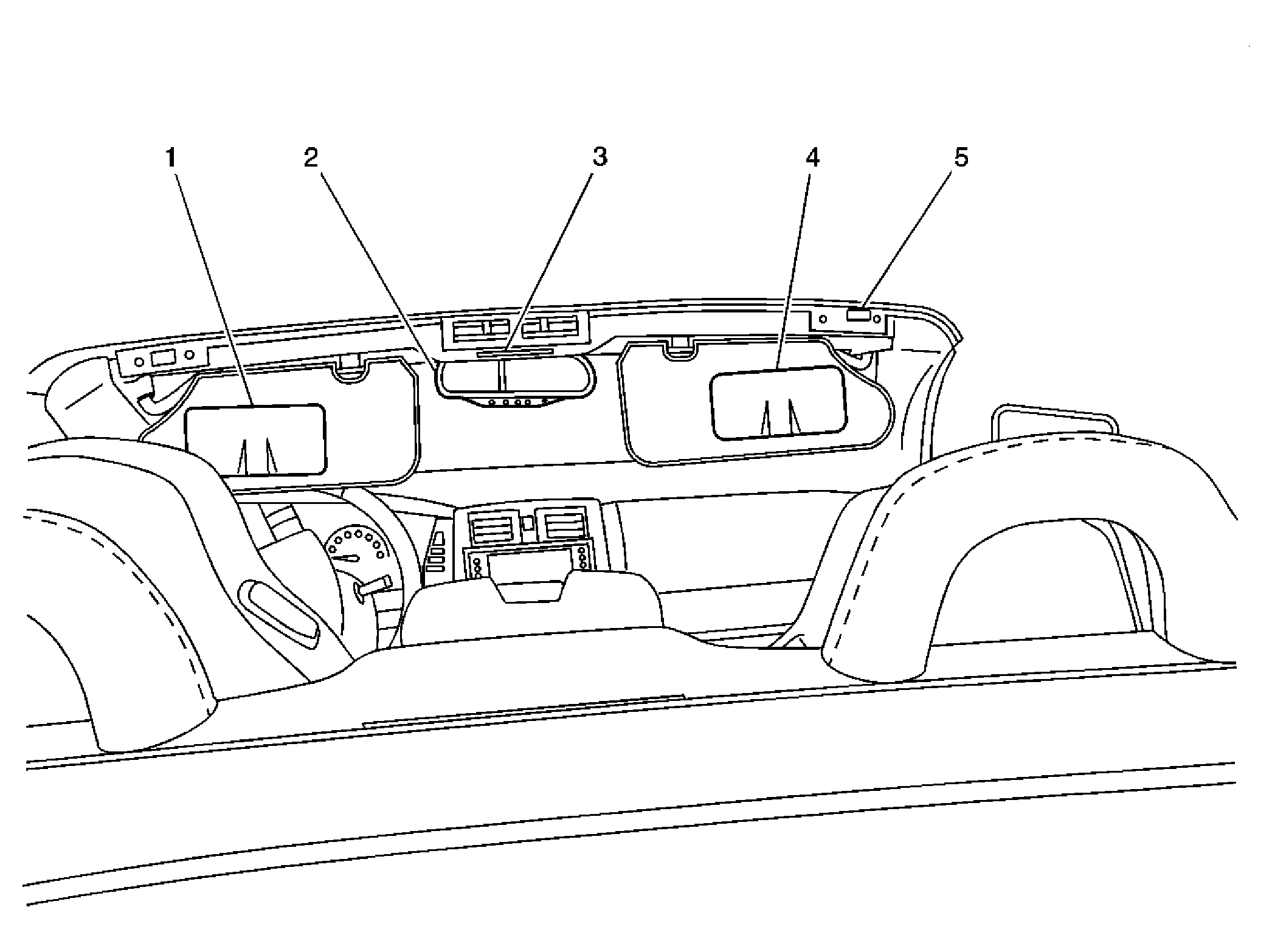

Fig 3: Locating Upper Center of the Windshield Components

GM1258724

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Vanity Mirror Lamp - Left
2	Inside Rearview Mirror
3	Cellular Microphone
4	Vanity Mirror Lamp - Right
5	Folding Top Closed Switch
