Data Communication Schematics

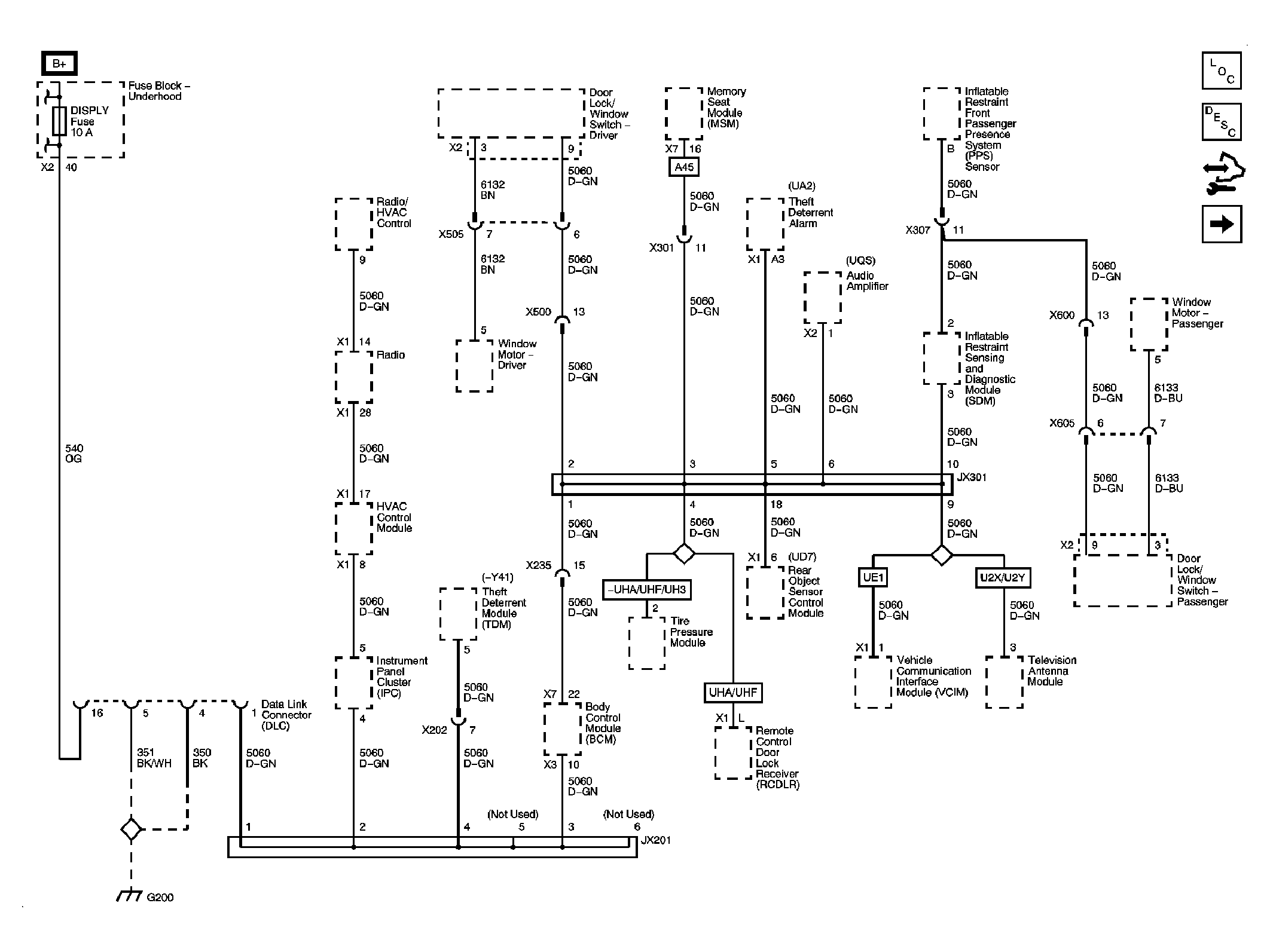

Fig 1: Low Speed GMLAN

GM2080710

Courtesy of GENERAL MOTORS CORP.

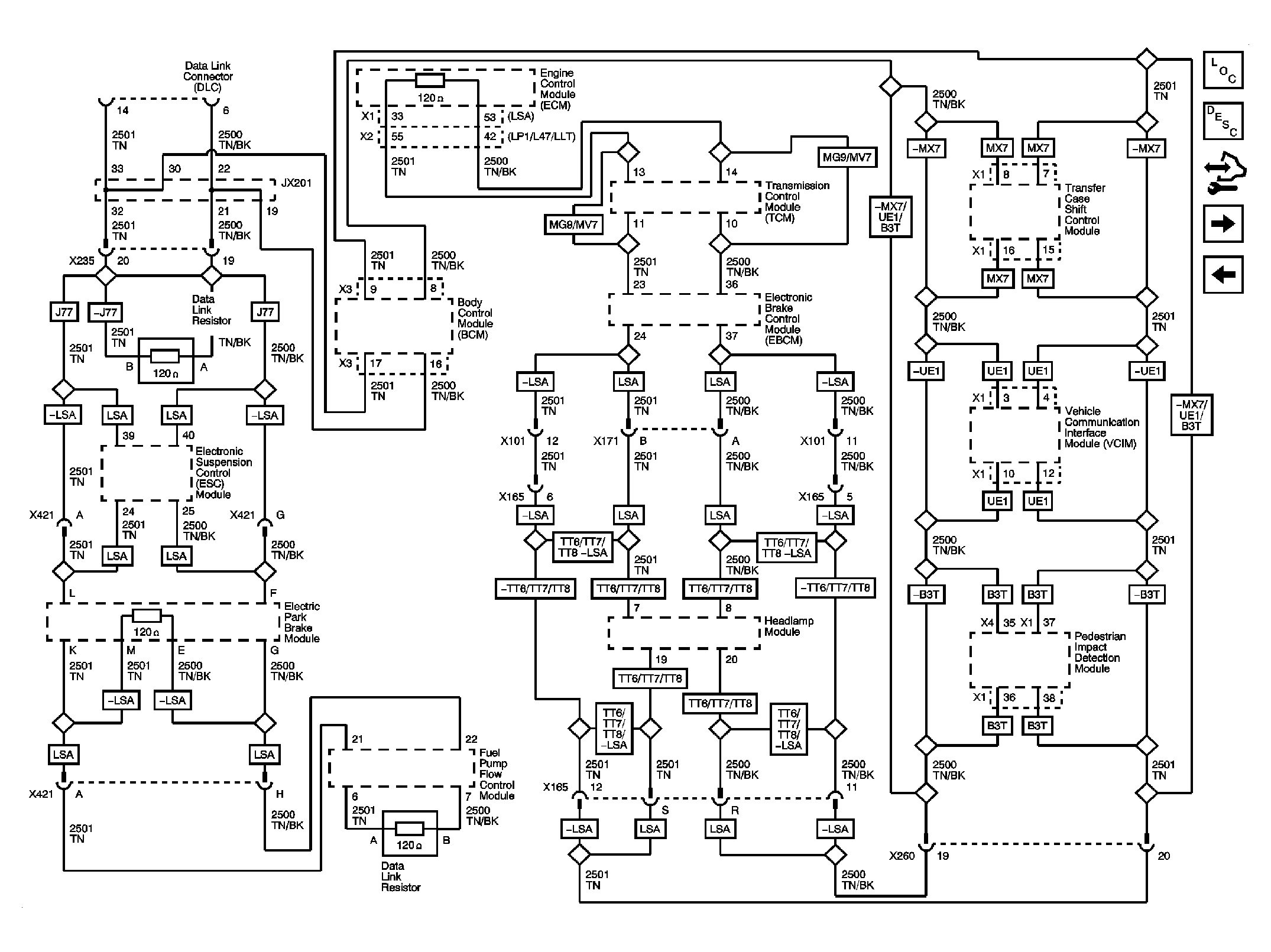

Fig 2: High Speed GMLAN

GM2080713

Courtesy of GENERAL MOTORS CORP.

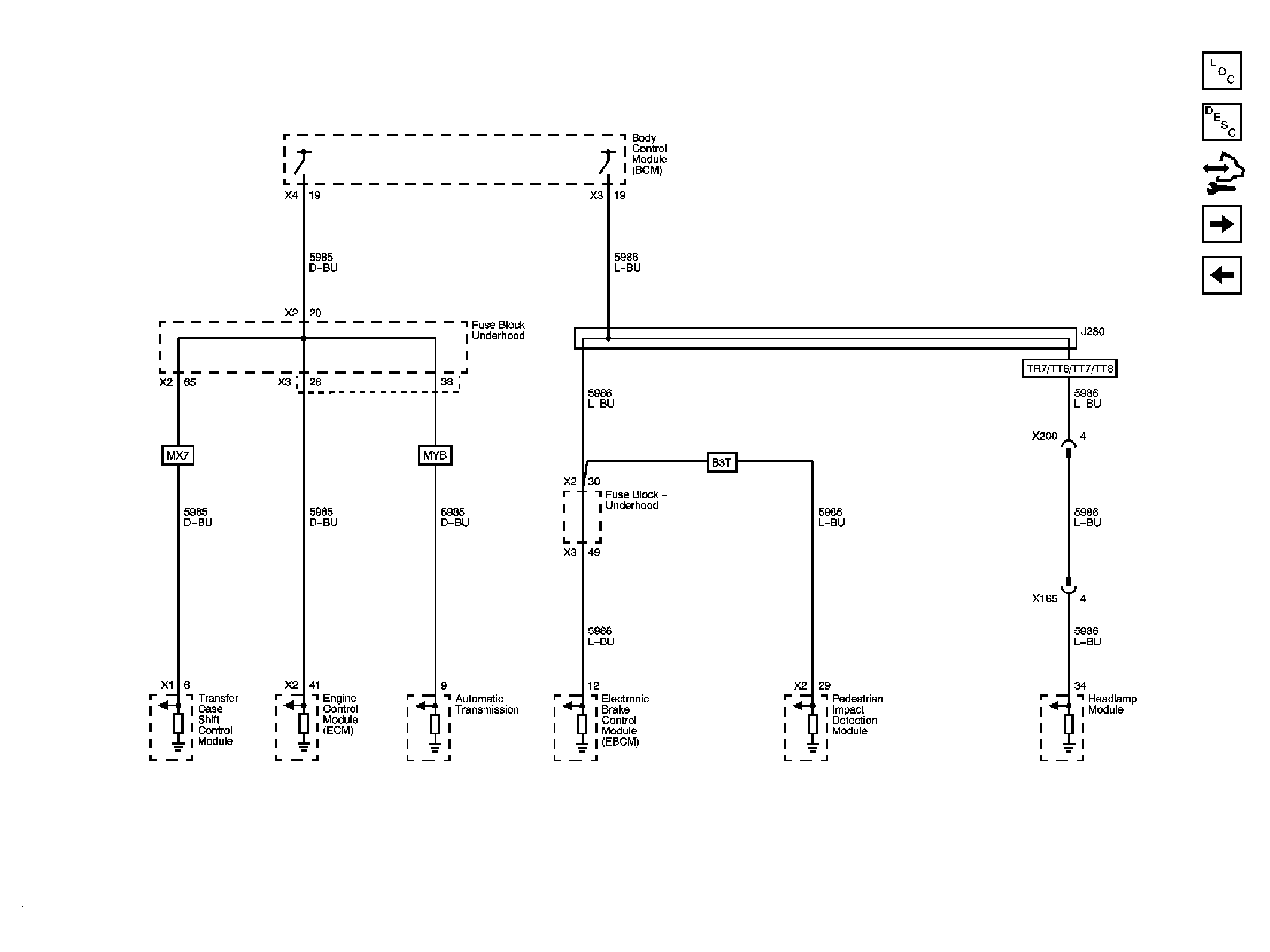

Fig 3: Communications Enable

GM2080716

Courtesy of GENERAL MOTORS CORP.
