Body Control System Schematics

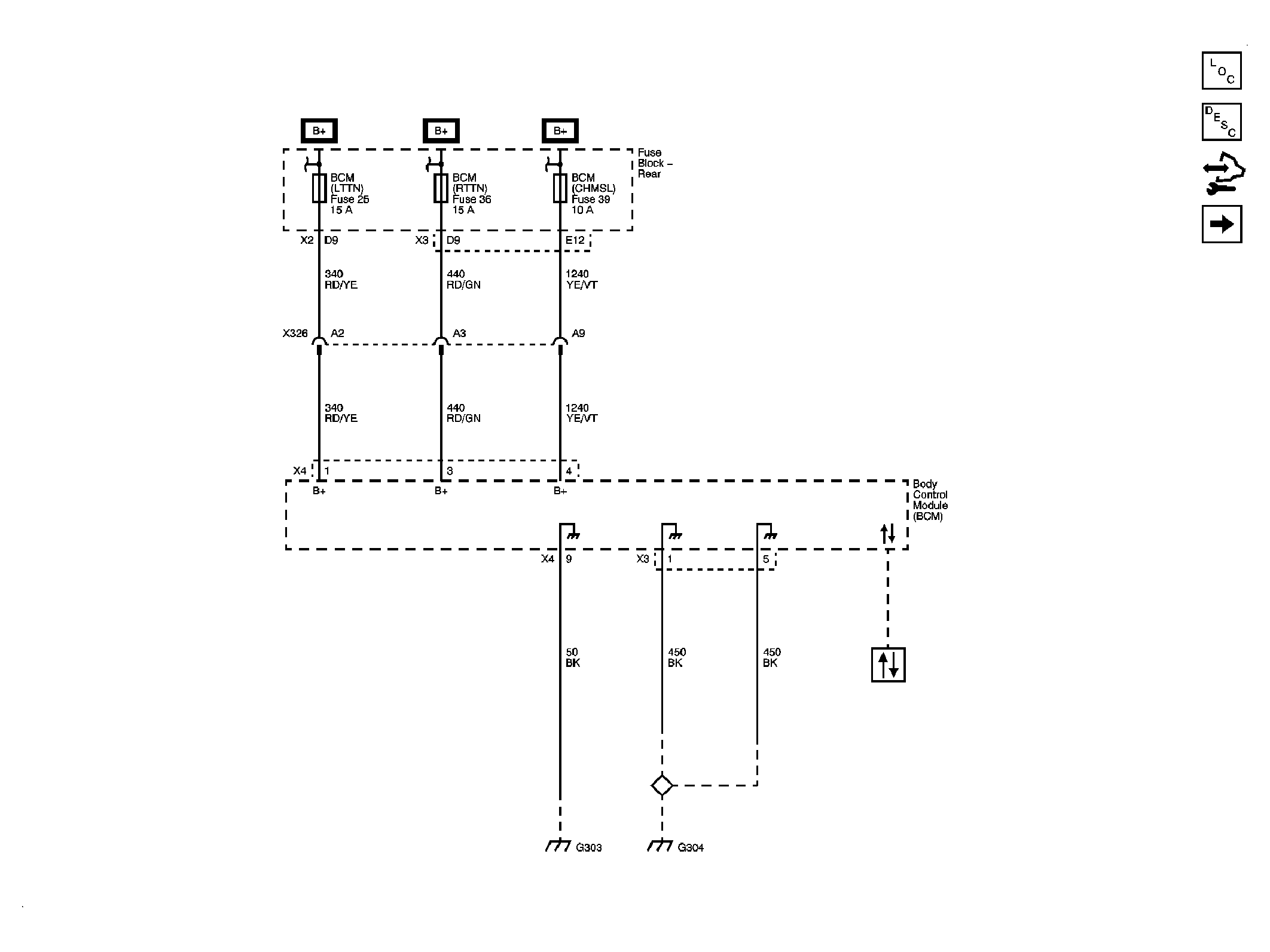

Fig 1: BCM Power, Ground and DLC
GM2082353Courtesy of GENERAL MOTORS CORP.

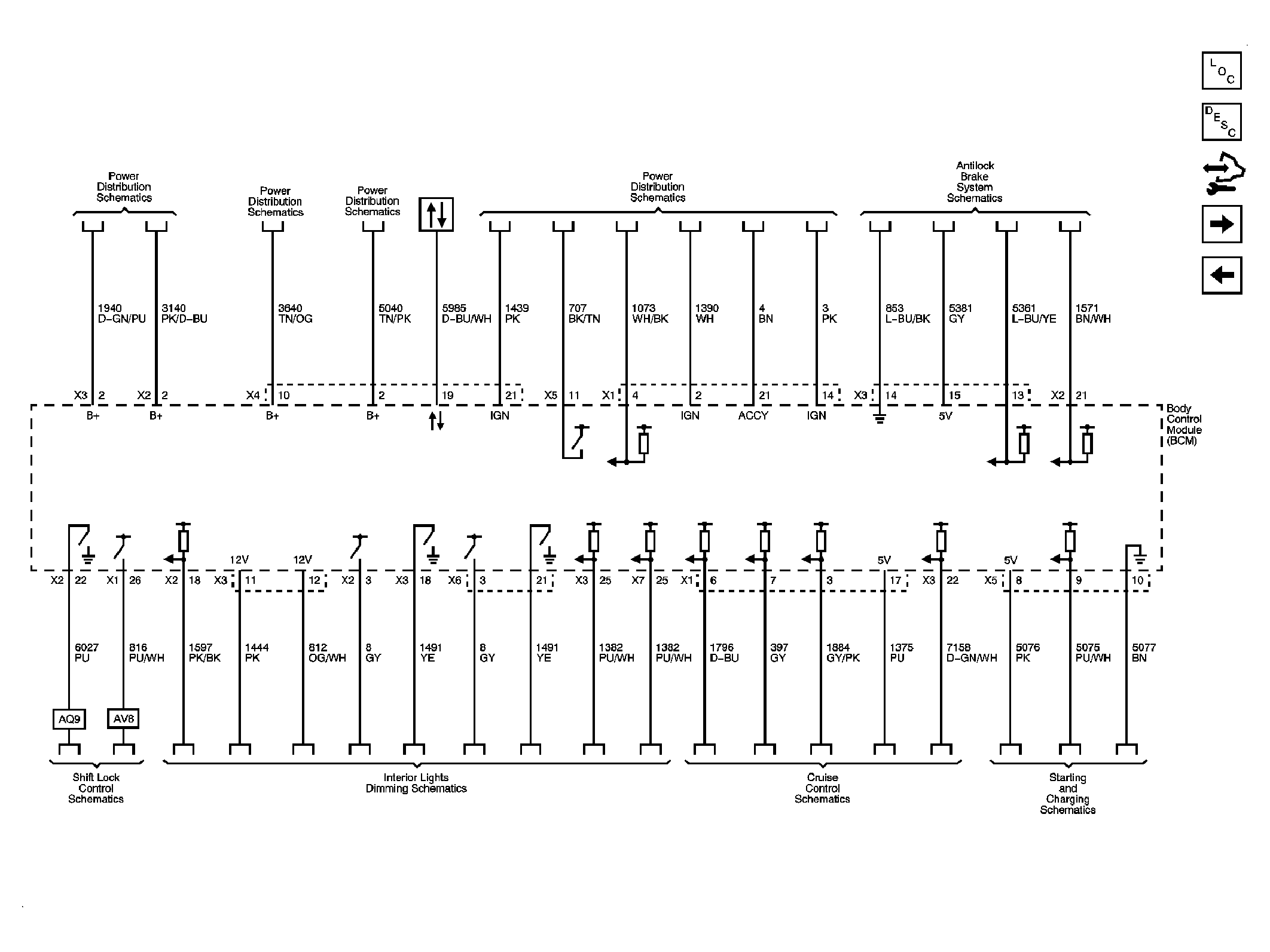

Fig 2: BCM Inputs and Outputs 1 of 4
GM2082354Courtesy of GENERAL MOTORS CORP.

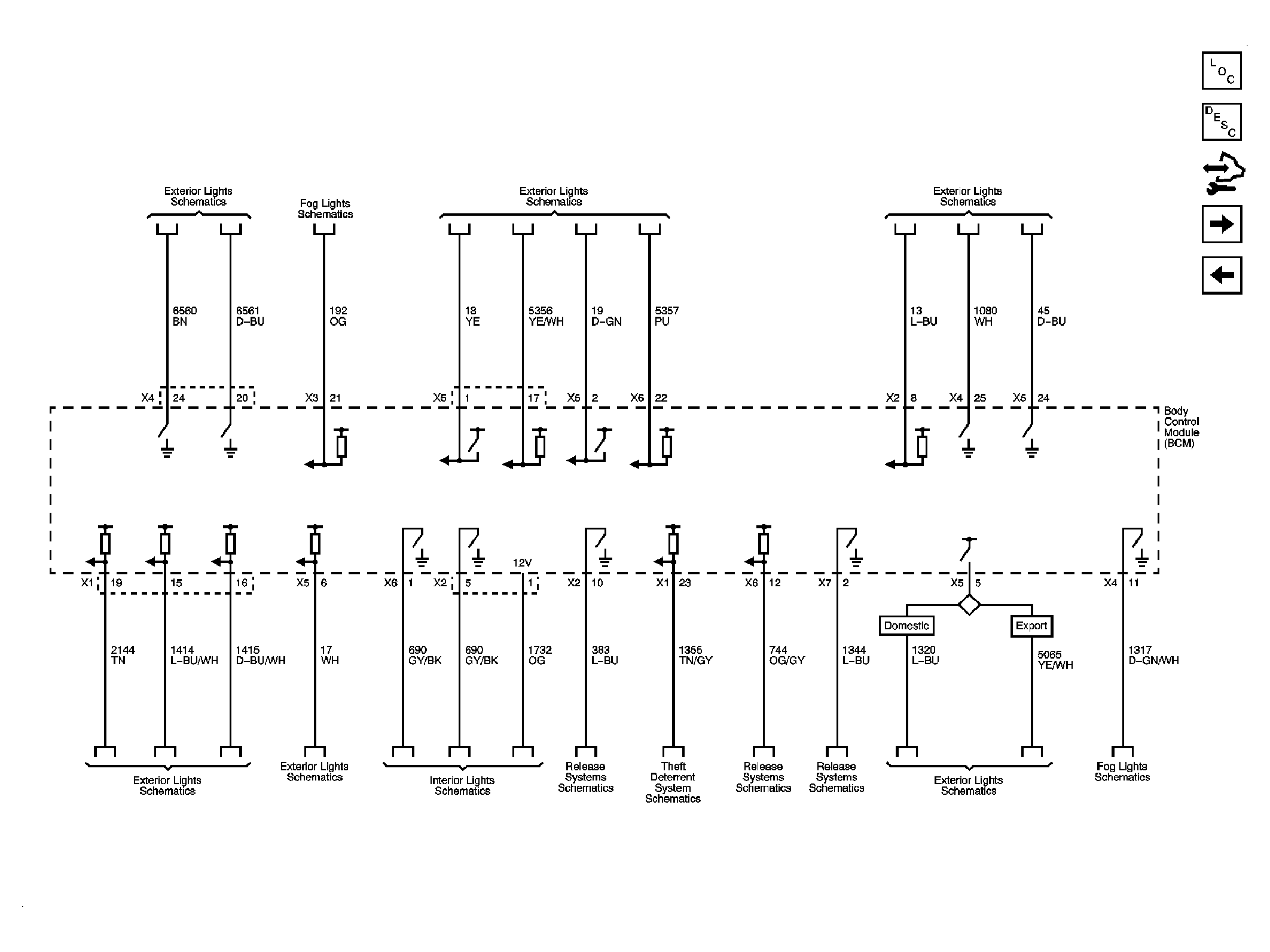

Fig 3: BCM Inputs and Outputs 2 of 4
GM2082355Courtesy of GENERAL MOTORS CORP.

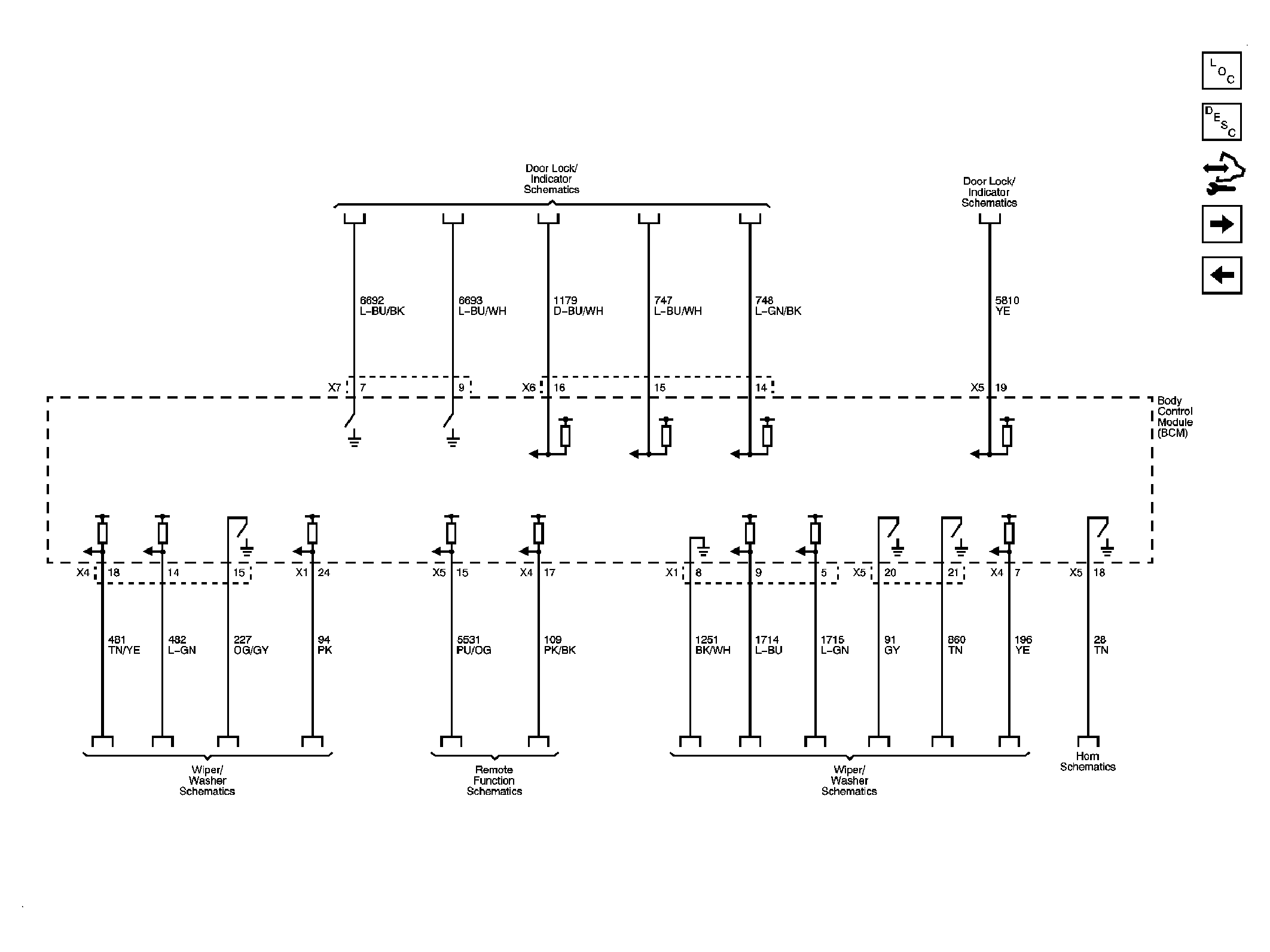

Fig 4: BCM Inputs and Outputs 3 of 4
GM2082356Courtesy of GENERAL MOTORS CORP.

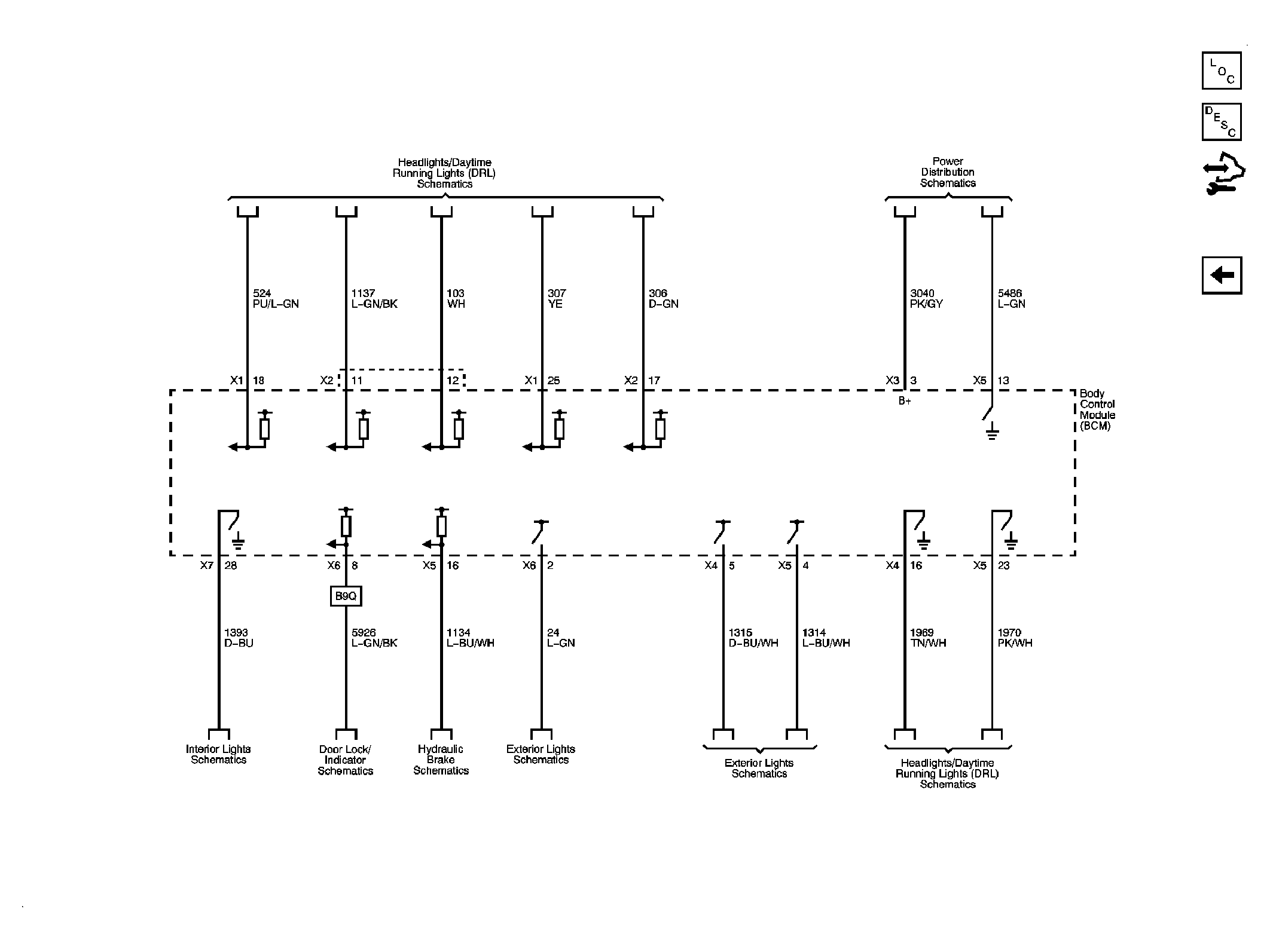

Fig 5: BCM Inputs and Outputs 4 of 4
GM2082357Courtesy of GENERAL MOTORS CORP.
