Data Communication Schematics

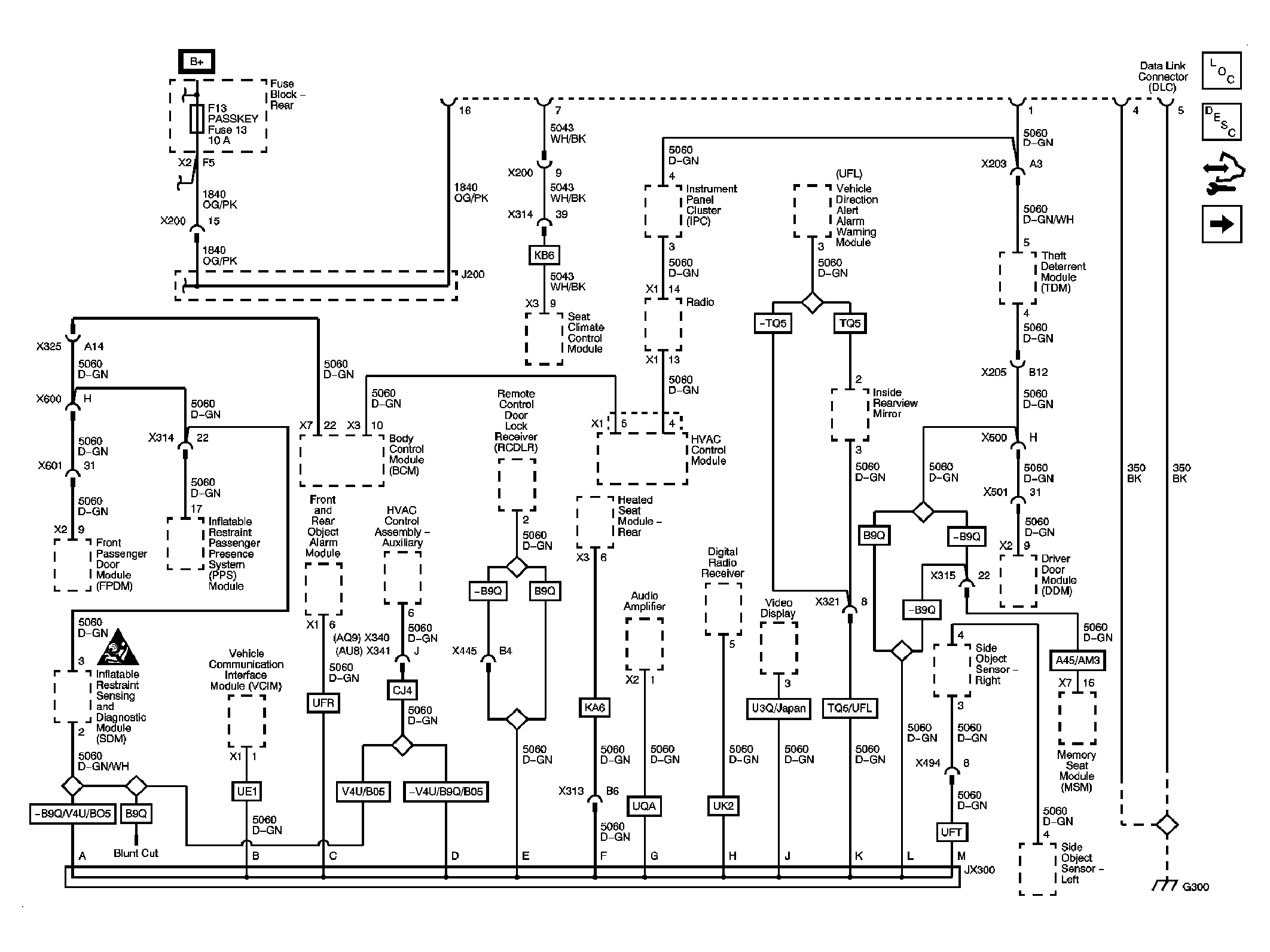

Fig 1: Power, Ground and Low Speed GMLAN
GM2082349Courtesy of GENERAL MOTORS CORP.

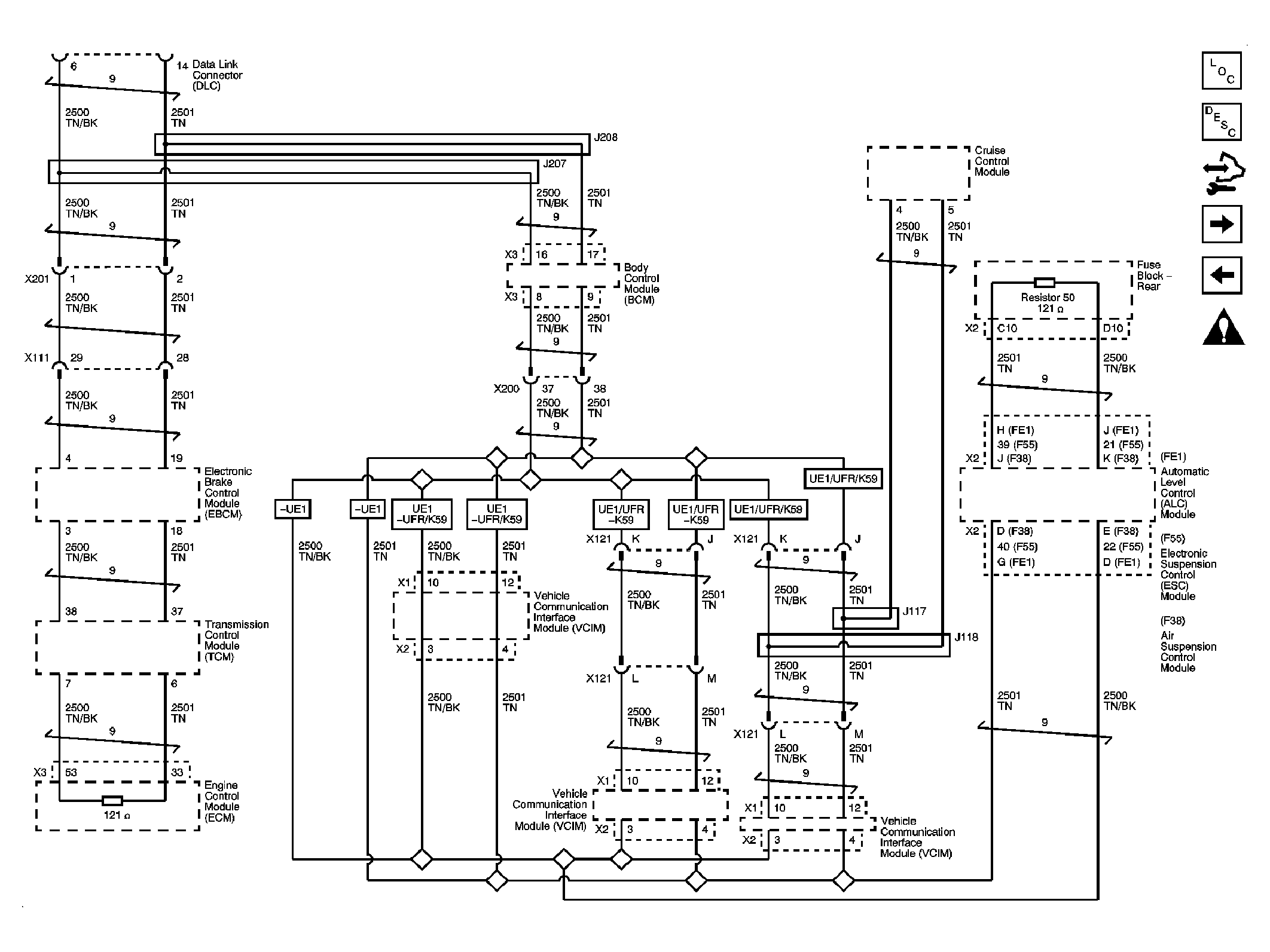

Fig 2: High Speed Serial Data
GM2082350Courtesy of GENERAL MOTORS CORP.

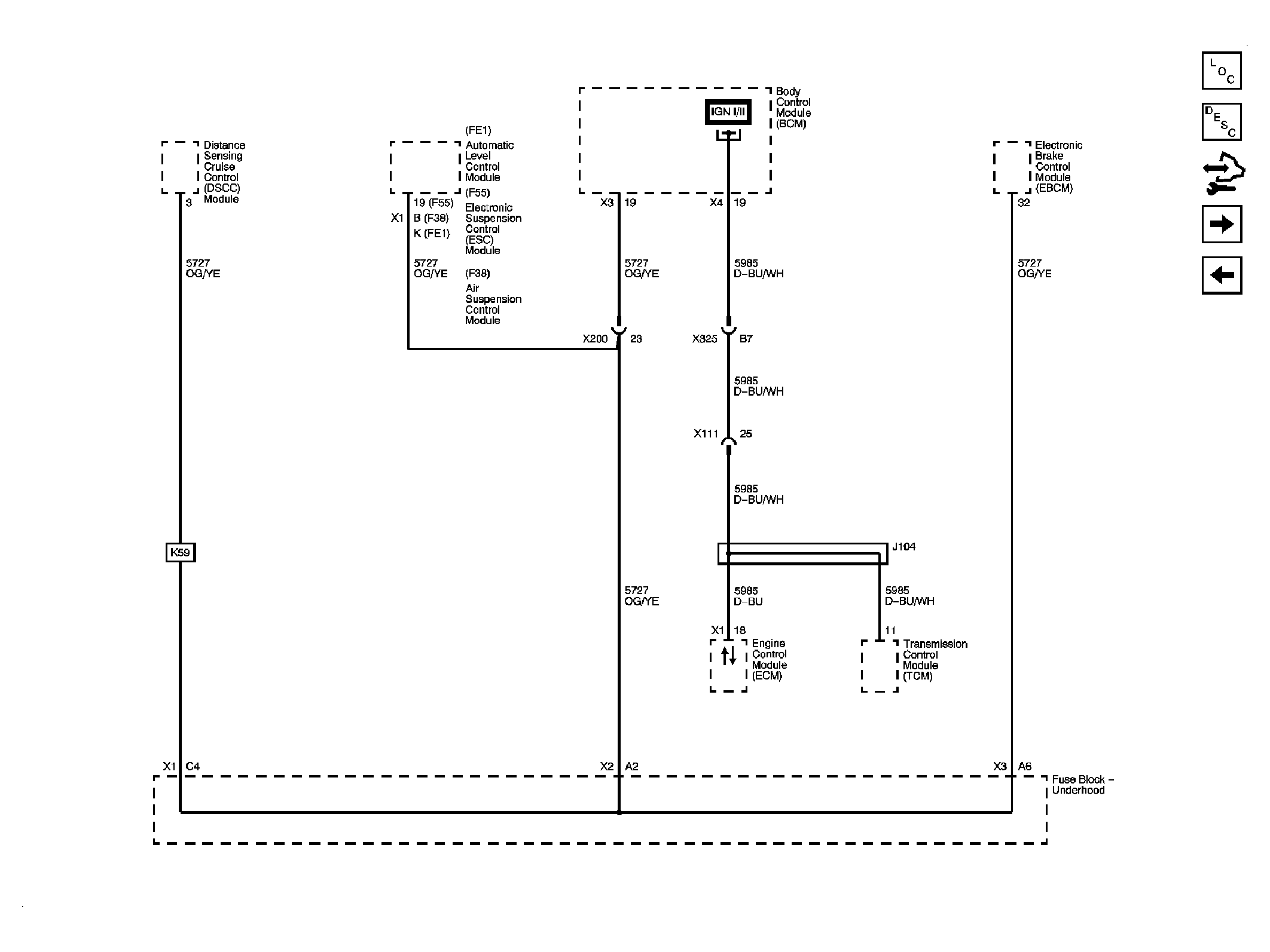

Fig 3: High Speed Serial Data, Wake Up
GM2082351Courtesy of GENERAL MOTORS CORP.

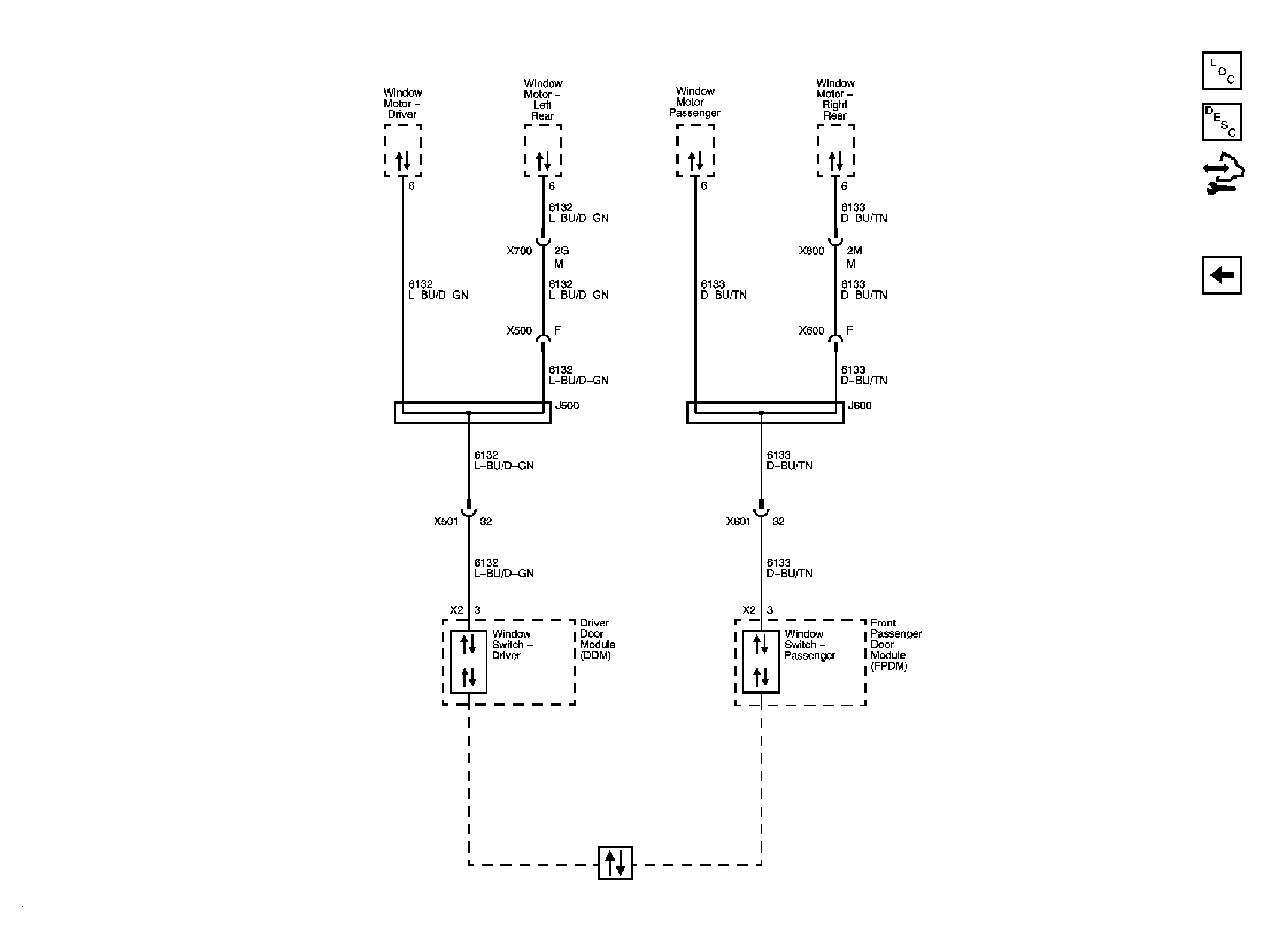

Fig 4: Local Interconnect Network (LIN)
GM2082352Courtesy of GENERAL MOTORS CORP.
