Body Control System Schematics

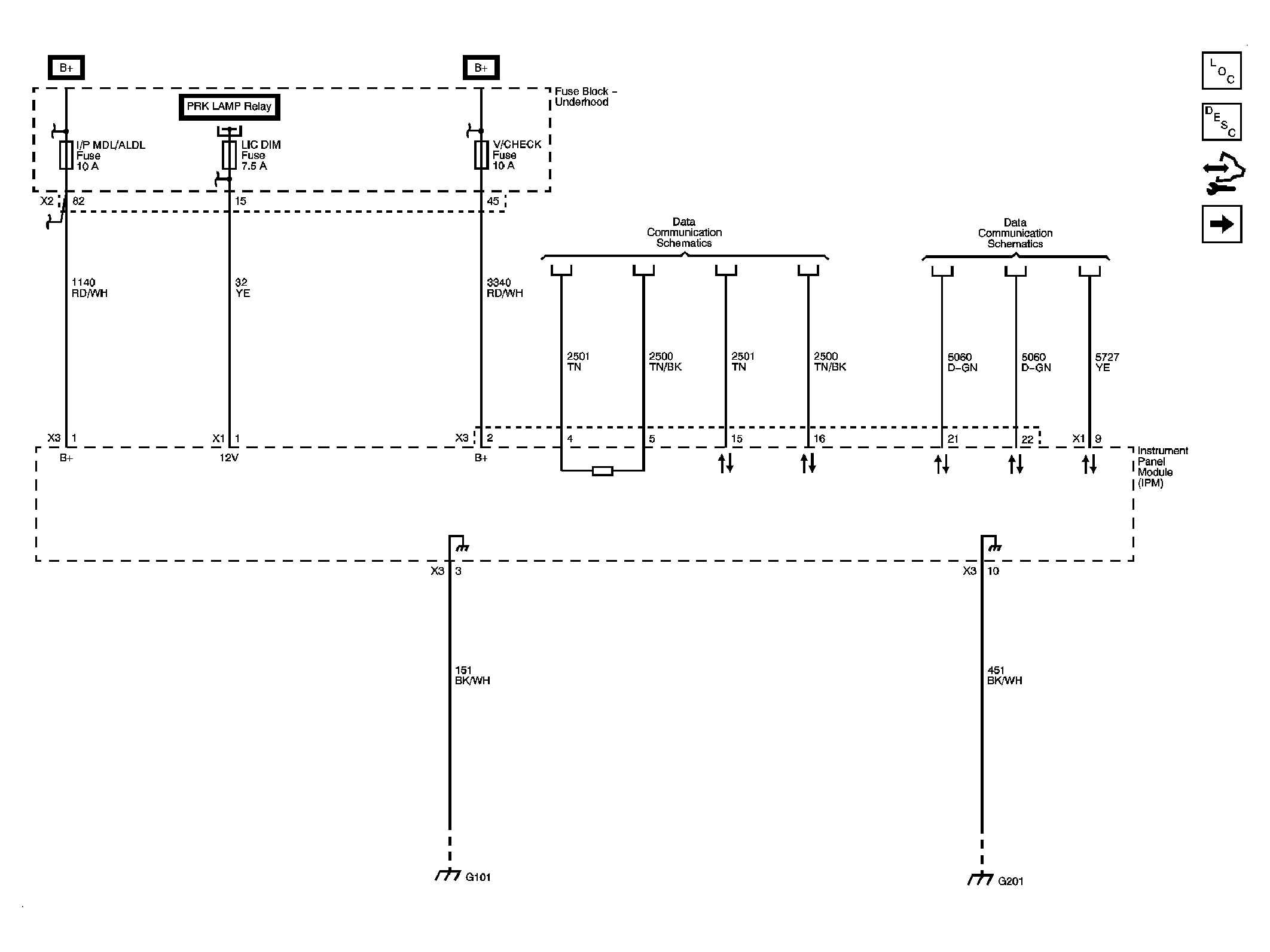

Fig 1: IPM Power, Grounds and DLC
GM2063577Courtesy of GENERAL MOTORS CORP.

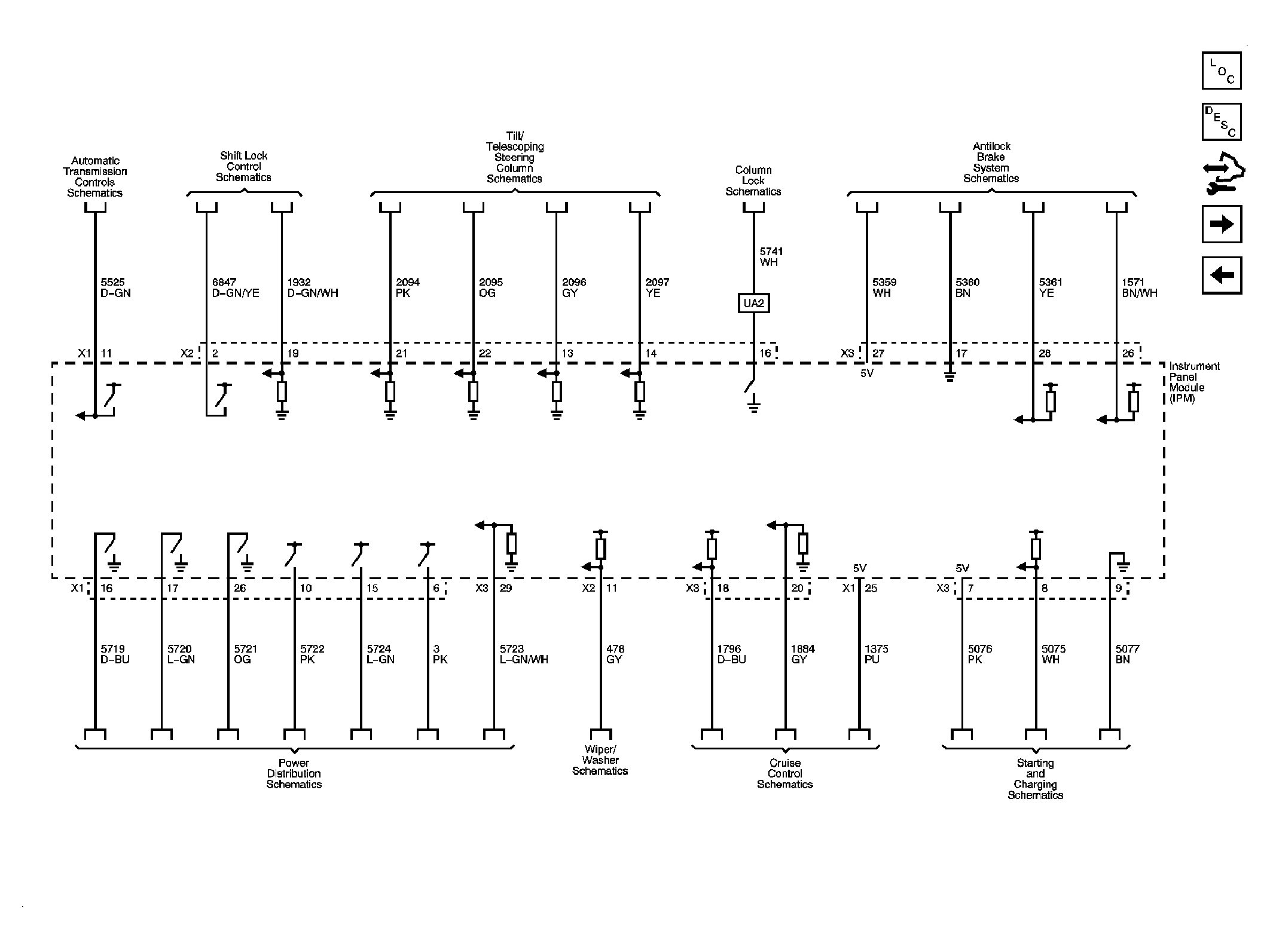

Fig 2: IPM Inputs and Outputs 1 of 3
GM2063583Courtesy of GENERAL MOTORS CORP.

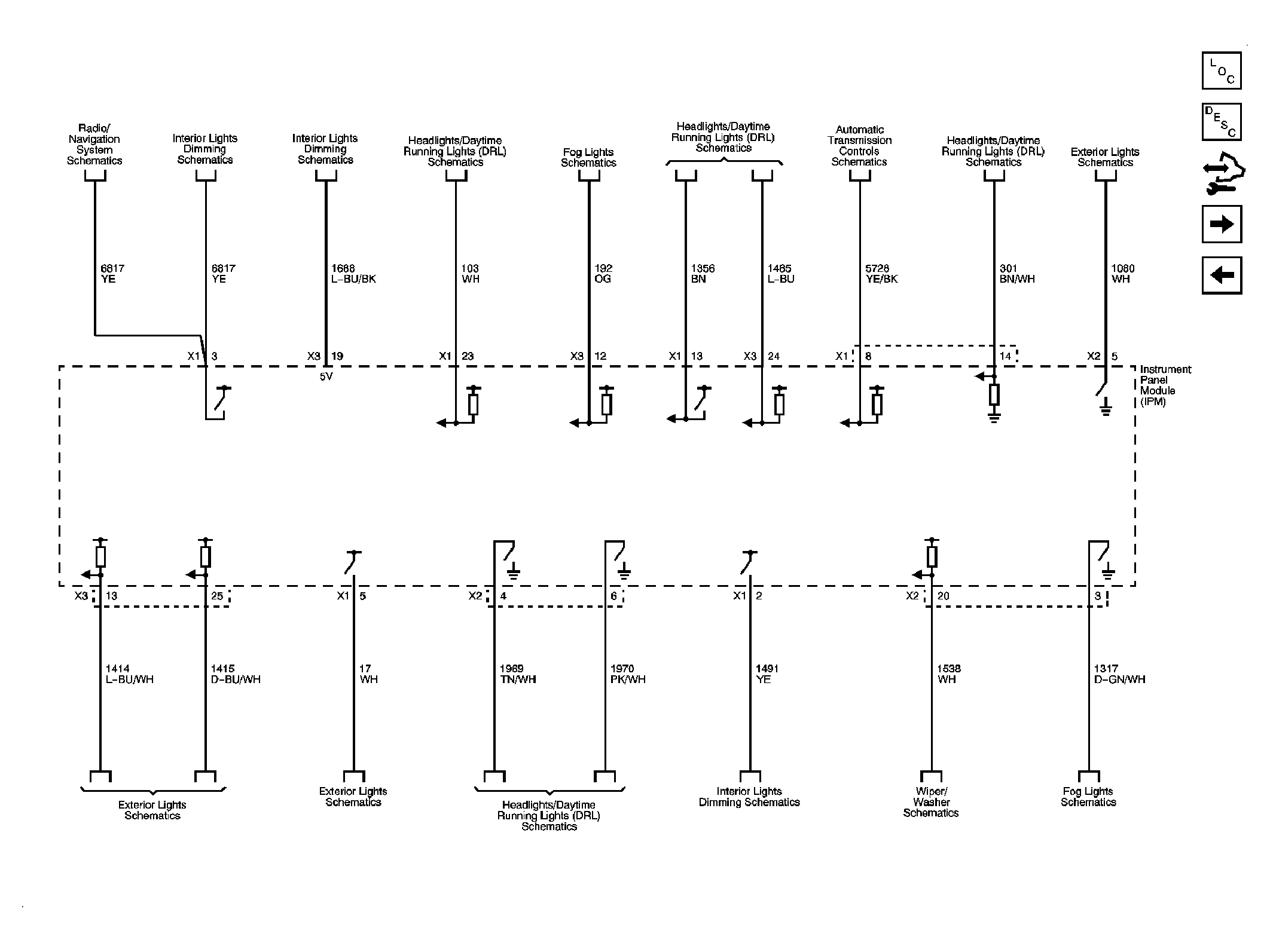

Fig 3: IPM Inputs and Outputs 2 of 3
GM2063588Courtesy of GENERAL MOTORS CORP.

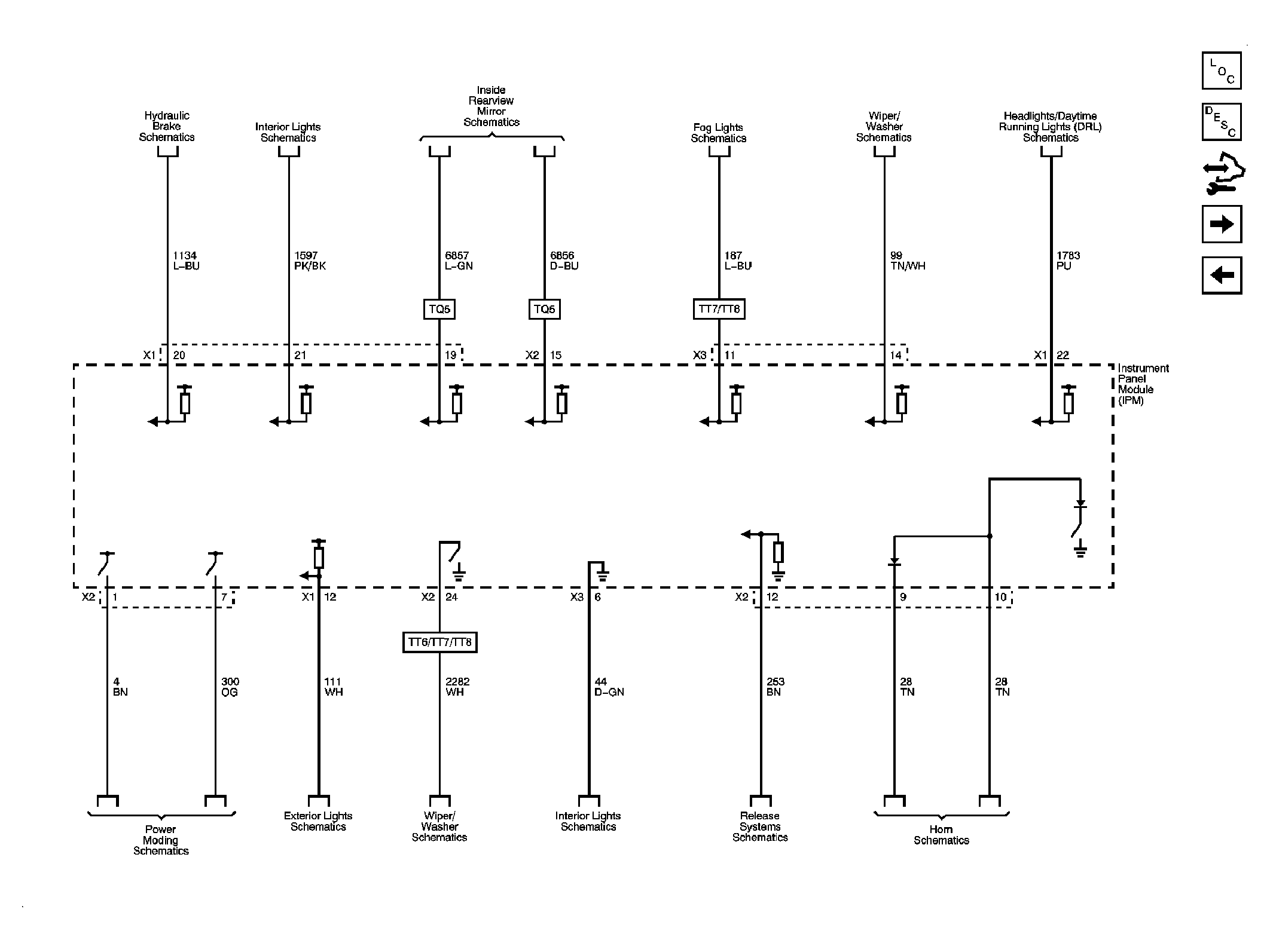

Fig 4: IPM Inputs and Outputs 3 of 3
GM2063591Courtesy of GENERAL MOTORS CORP.

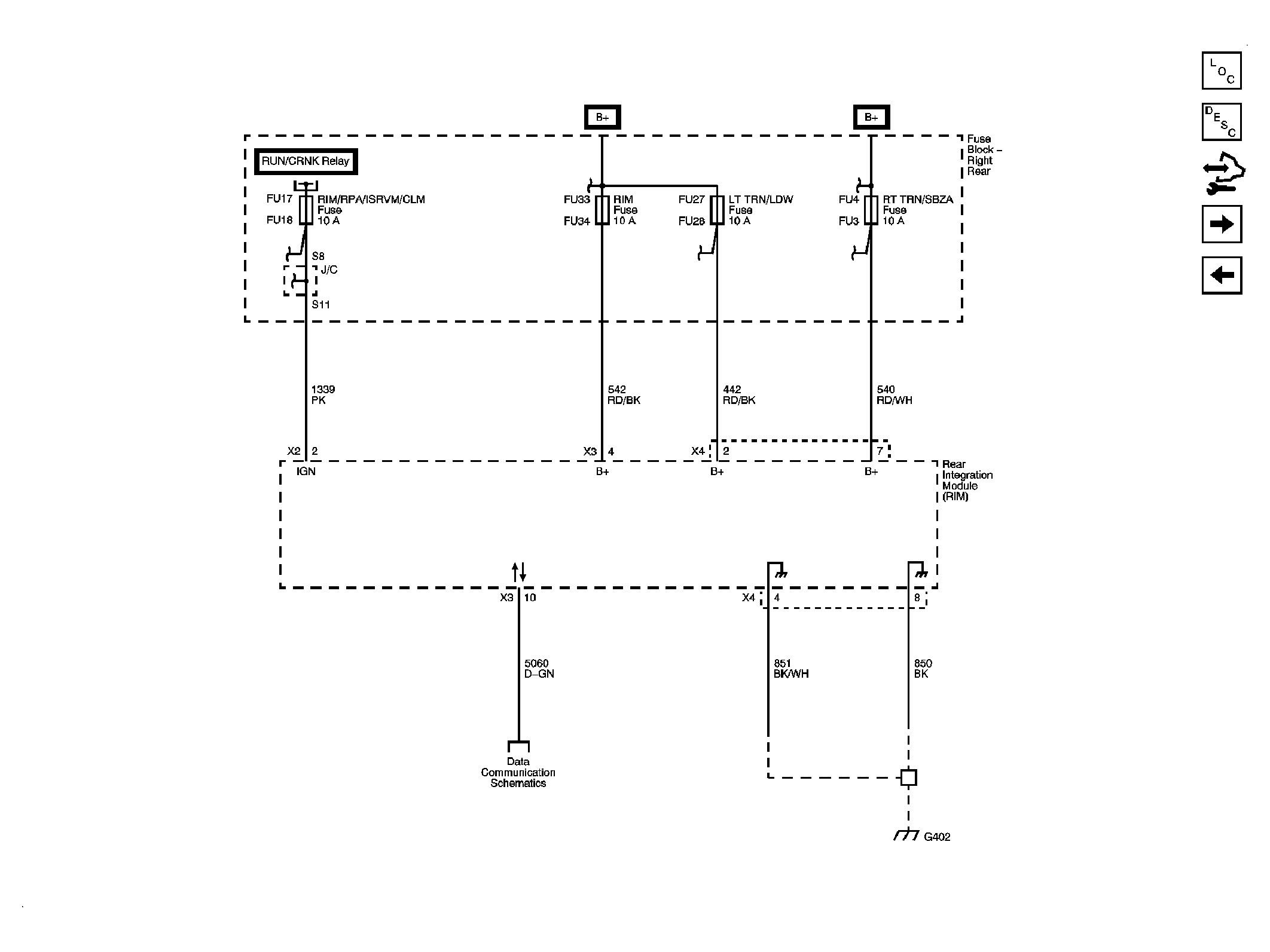

Fig 5: RIM Power, Grounds and DLC
GM2063596Courtesy of GENERAL MOTORS CORP.

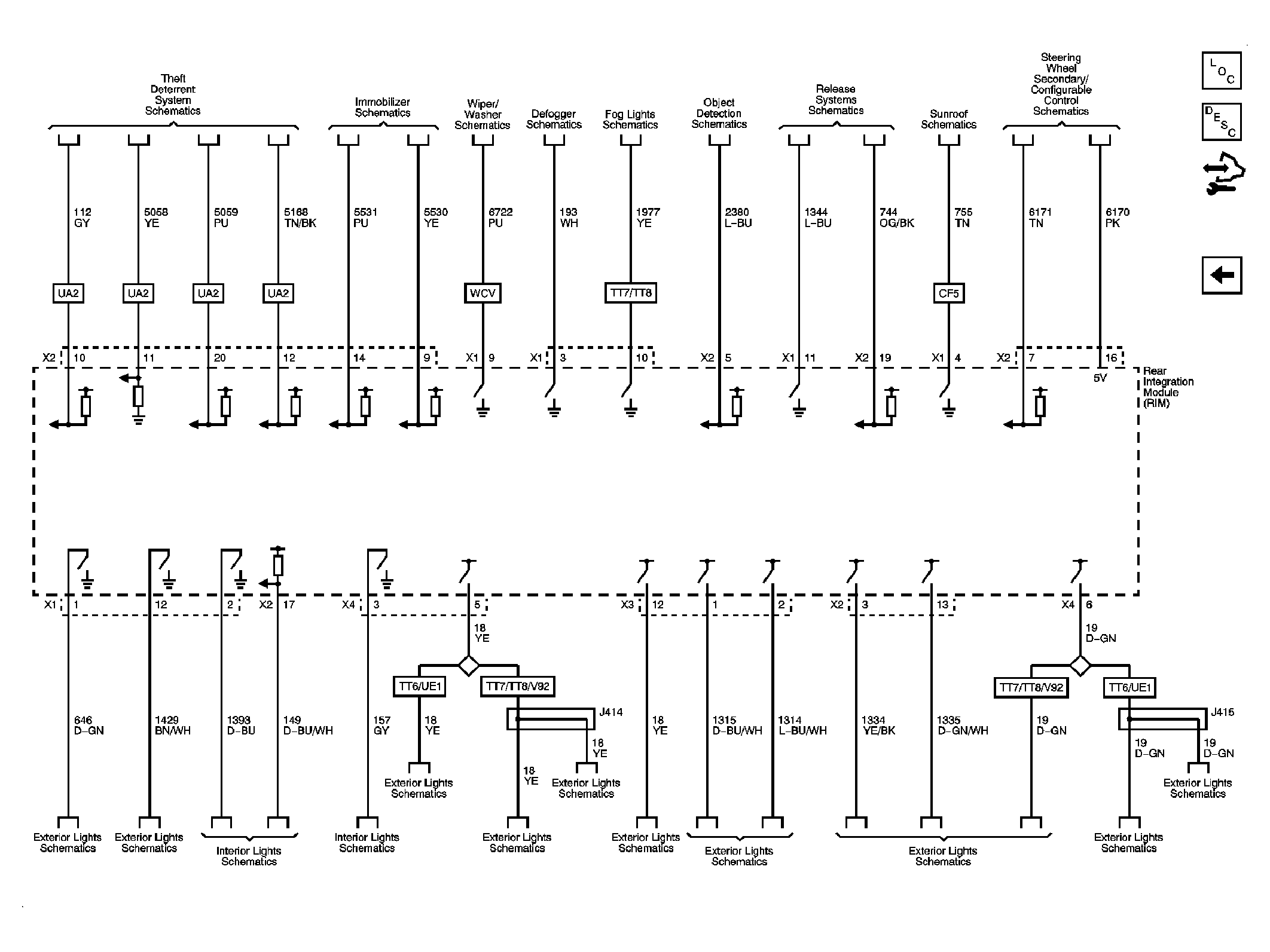

Fig 6: RIM Inputs and Outputs
GM2063599Courtesy of GENERAL MOTORS CORP.
