Installation Procedure

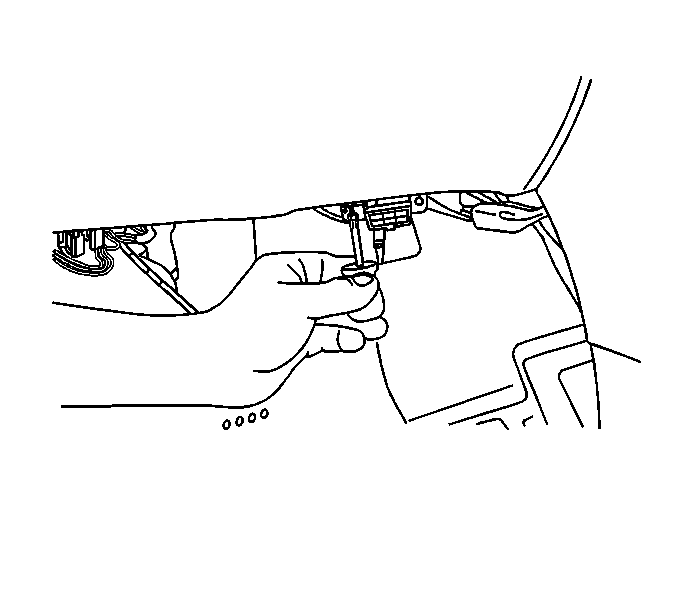

    Fig 1: Removing/Installing DLC & Screws
    GM652086Courtesy of GENERAL MOTORS CORP.
  1. Position the data link connector to the instrument panel.
    2. CAUTION: Refer to Fastener Caution .
  2. Install the screws to the data link connector and tighten to 2 N.m (18 lb in).
