Data Communication Schematics

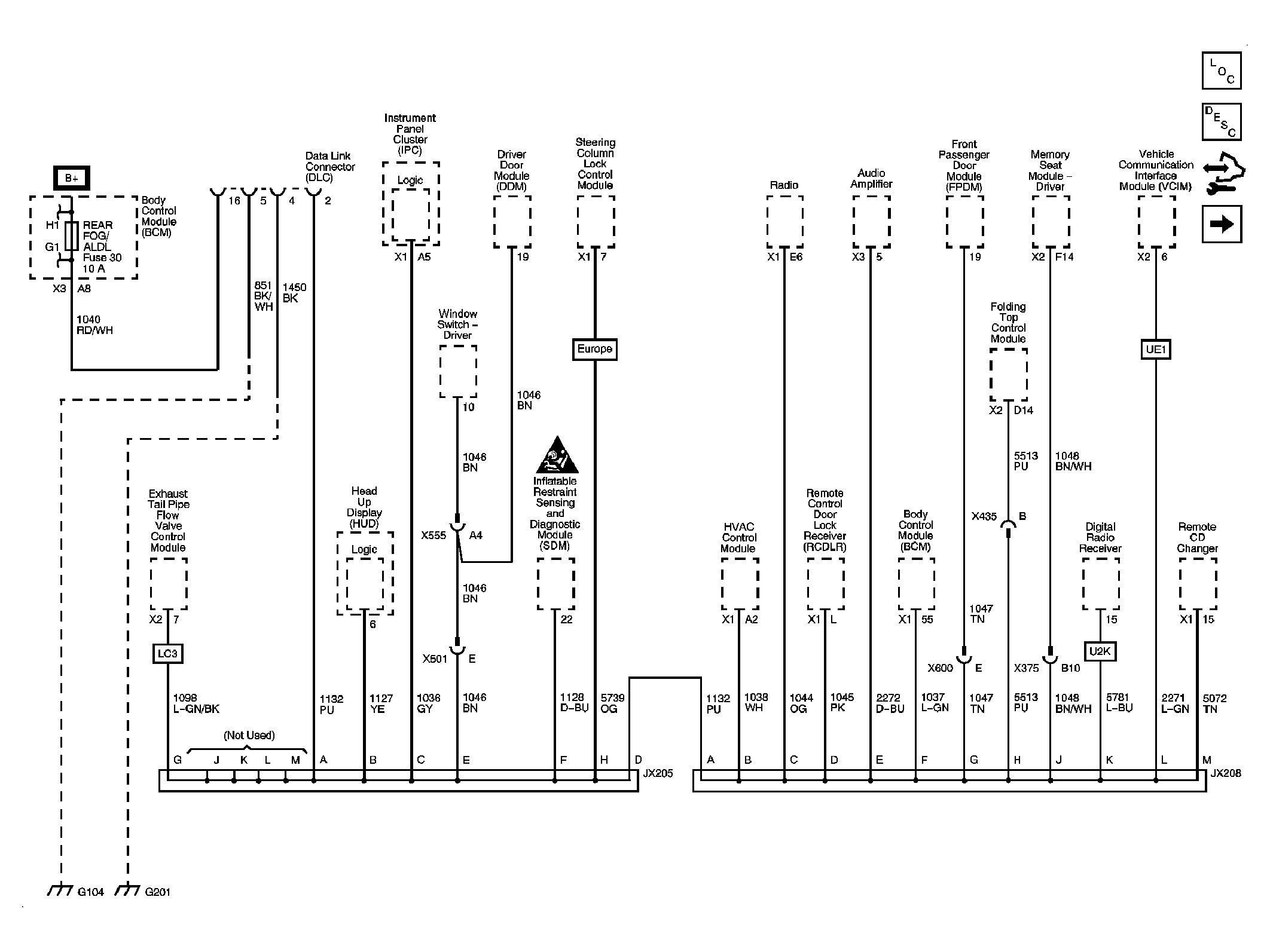

Fig 1: Power, Ground, & Class 2

GM2075595

Courtesy of GENERAL MOTORS CORP.

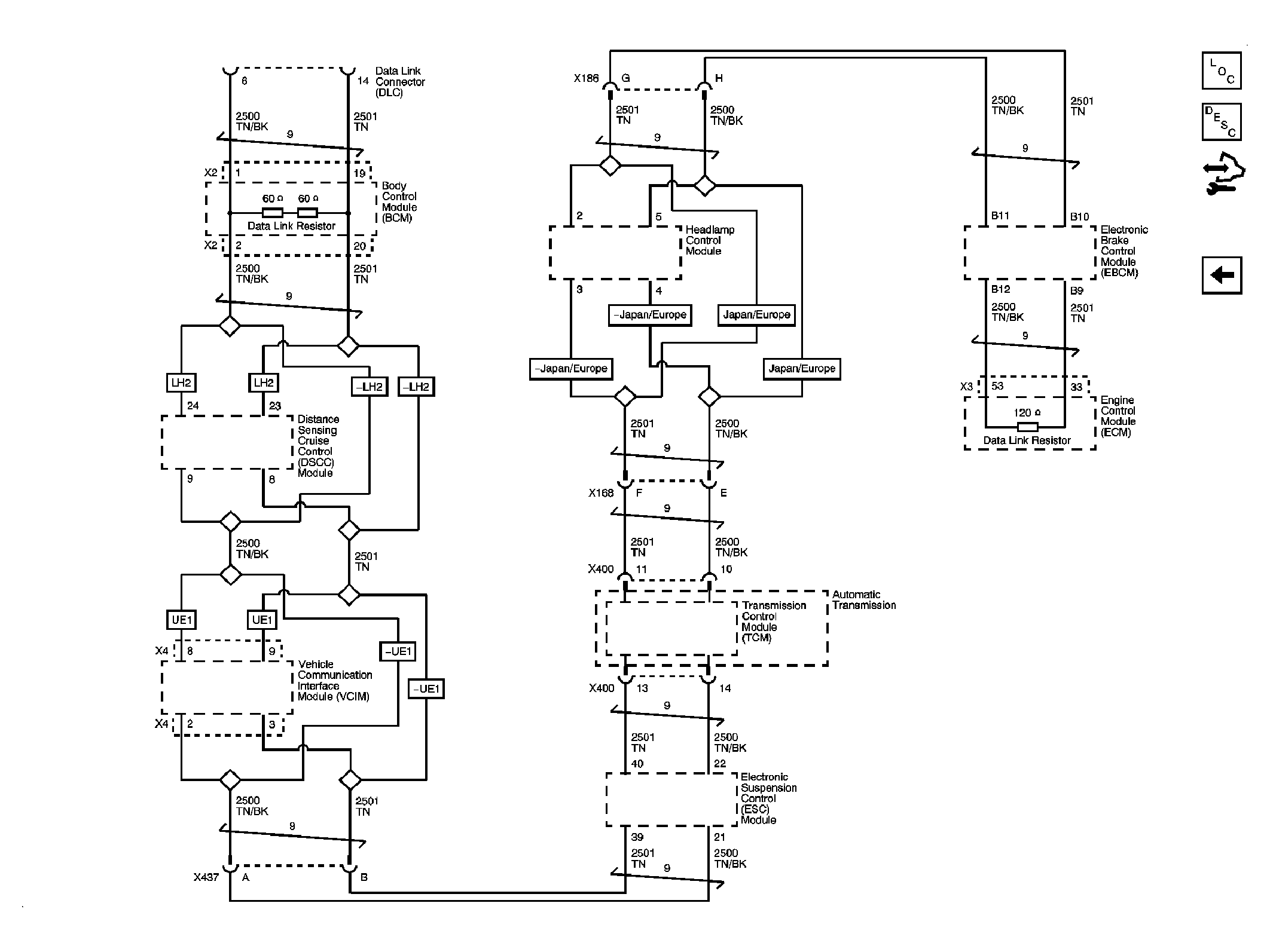

Fig 2: GMLAN

GM2075599

Courtesy of GENERAL MOTORS CORP.
