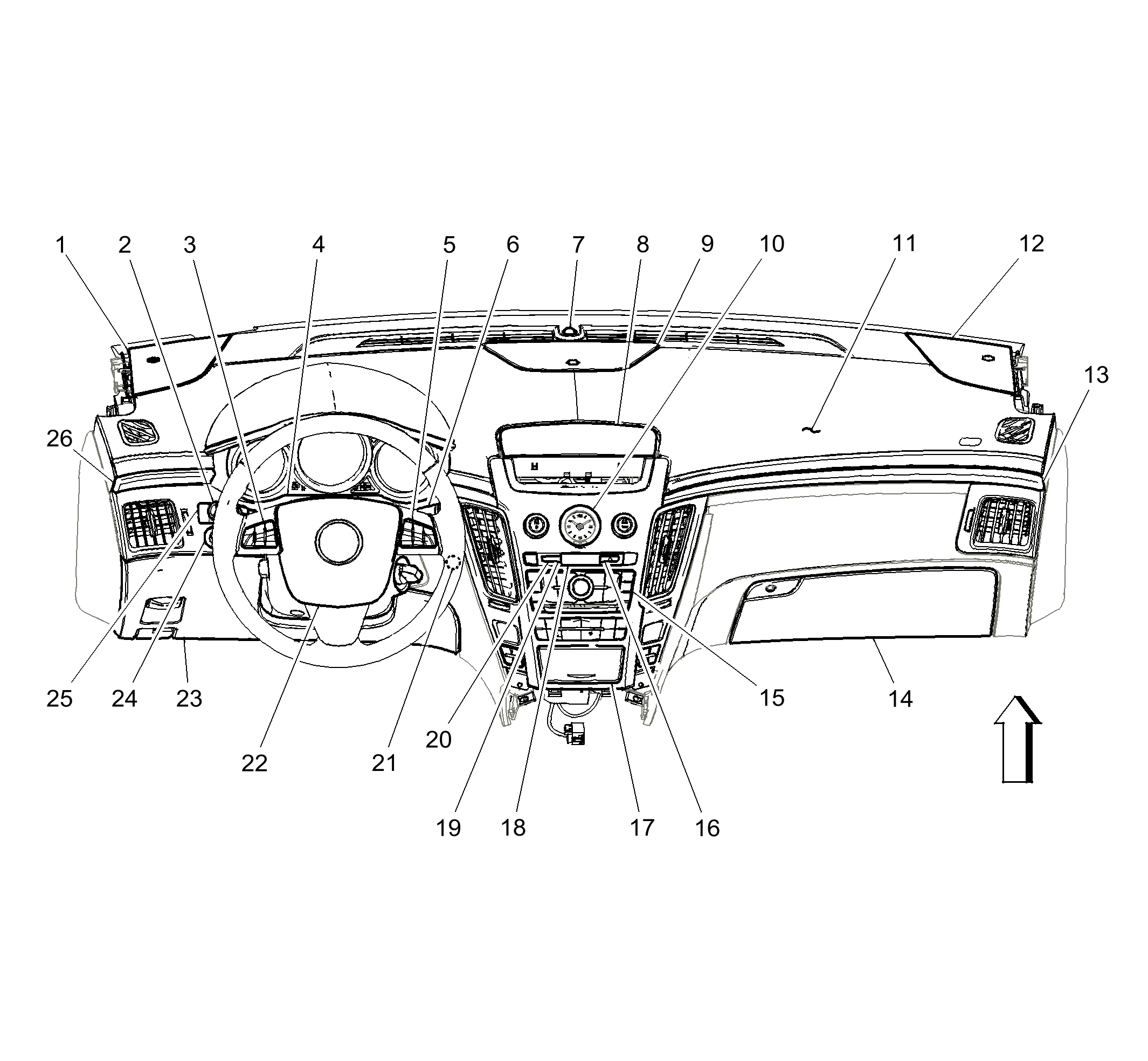

Instrument Panel/Center Console Component Views
| Callout | Component Name |
|---|---|
| 1 | Speaker - Left Front |
| 2 | Turn Signal/Multifunction Switch |
| 3 | Steering Wheel Control Switch - Left |
| 4 | Instrument Panel Cluster (IPC) |
| 5 | Steering Wheel Control Switch - Right |
| 6 | Windshield Wiper/Washer Switch |
| 7 | Sunload Sensor |
| 8 | Radio/HVAC Display screen (UAV) |
| 9 | Speaker - Center I/P |
| 10 | Analog Clock |
| 11 | Inflatable Restraint I/P Module |
| 12 | Speaker - Right Front |
| 13 | Accent Lamp - Right I/P (TSQ) |
| 14 | I/P Compartment Lamp |
| 15 | Day/Night Display Switch (UAV) |
| 16 | Radio/Navigation Unit Control Panel |
| 17 | Heated Seat/Temperature Control Switch - Front Passenger Seat |
| 18 | Hazard Switch |
| 19 | Accessory Power Outlet - Center Console |
| 20 | HVAC Control |
| 21 | Inflatable Restraint Front Passenger Air Bag On/Off Indicator |
| 22 | Traction Control Switch (without F55) or Electronic Suspension Control Switch (F55) |
| 23 | Heated Seat/Temperature Control Switch - Driver |
| 24 | Navigation/Radio Screen Up/Screen Down Switch |
| 25 | Air Temperature Sensor - Inside |
| 26 | Ignition Key Cylinder |
| 27 | Inflatable Restraint Steering Wheel Module |
| 28 | Data Link Connector (DLC) |
| 29 | I/P Dimmer Switch |
| 30 | Driver Information Center (DIC) Switch |
| 31 | Accent Lamp - Left I/P (TSQ) |

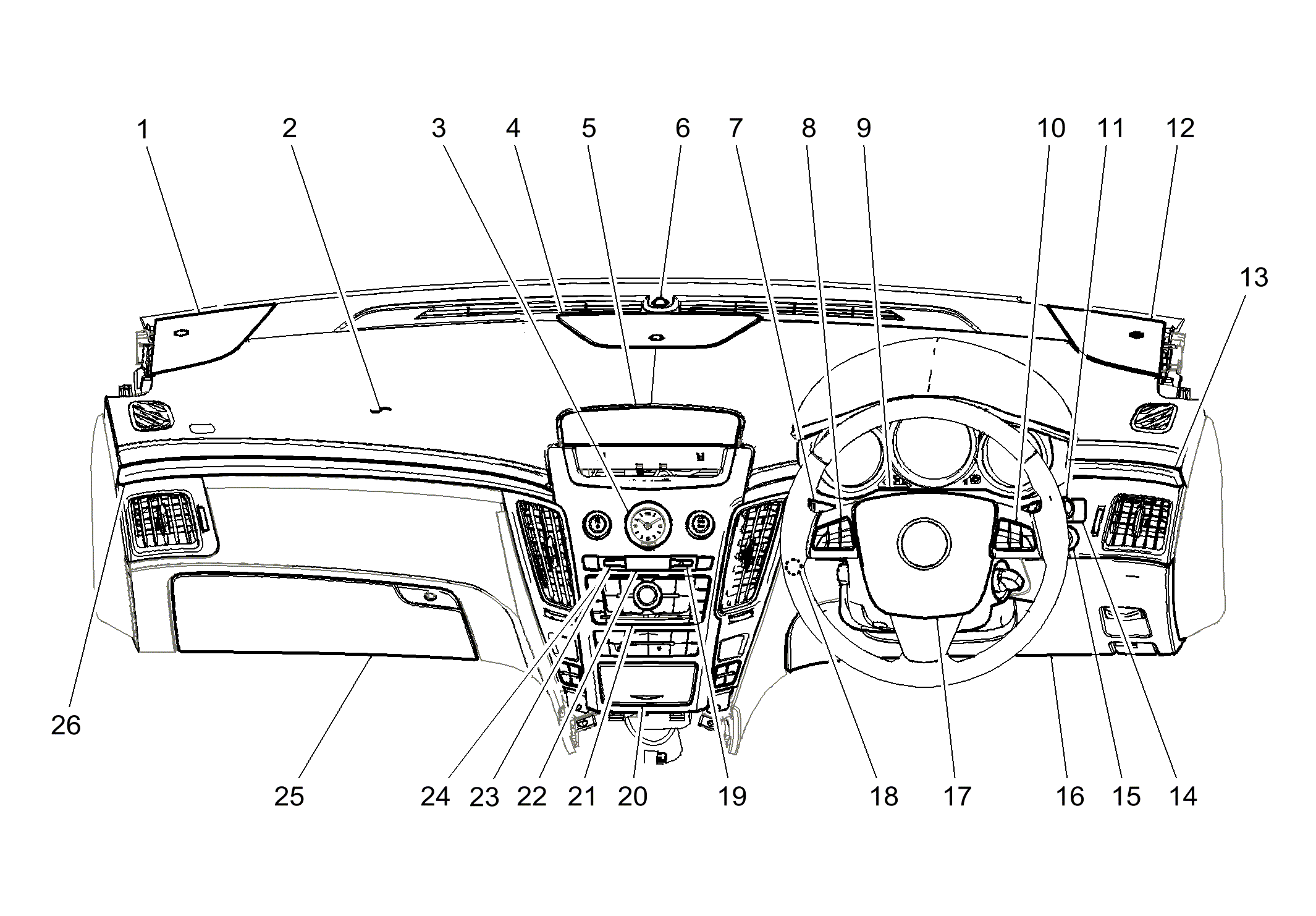

| Callout | Component Name |
|---|---|
| 1 | Speaker - Right Front |
| 2 | Inflatable Restraint I/P Module |
| 3 | Analog Clock |
| 4 | Speaker - Center I/P |
| 5 | Radio/HVAC Display screen (UAV) |
| 6 | Sunload Sensor |
| 7 | Windshield Wiper/Washer Switch |
| 8 | Steering Wheel Control Switch - Right |
| 9 | Instrument Panel Cluster (IPC) |
| 10 | Steering Wheel Control Switch - Left |
| 11 | Turn Signal/Multifunction Switch |
| 12 | Speaker - Left Front |
| 13 | Accent Lamp - Left I/P (TSQ) |
| 14 | Driver Information Center (DIC) Switch |
| 15 | I/P Dimmer Switch |
| 16 | Data Link Connector (DLC) |
| 17 | Inflatable Restraint Steering Wheel Module |
| 18 | Ignition Key Cylinder |
| 19 | Air Temperature Sensor - Inside |
| 20 | Navigation/Radio Screen Up/Screen Down Switch |
| 21 | Heated Seat/Temperature Control Switch - Driver |
| 22 | Traction Control Switch (without F55) or Electronic Suspension Control Switch (F55) |
| 23 | Inflatable Restraint Front Passenger Air Bag On/Off Indicator |
| 24 | HVAC Control |
| 25 | Accessory Power Outlet - Center Console |
| 26 | Hazard Switch |
| 27 | Heated Seat/Temperature Control Switch - Front Passenger Seat |
| 28 | Radio/Navigation Unit Control Panel |
| 29 | Day/Night Display Switch (UAV) |
| 30 | I/P Compartment Lamp |
| 31 | Accent Lamp - Right I/P (TSQ) |

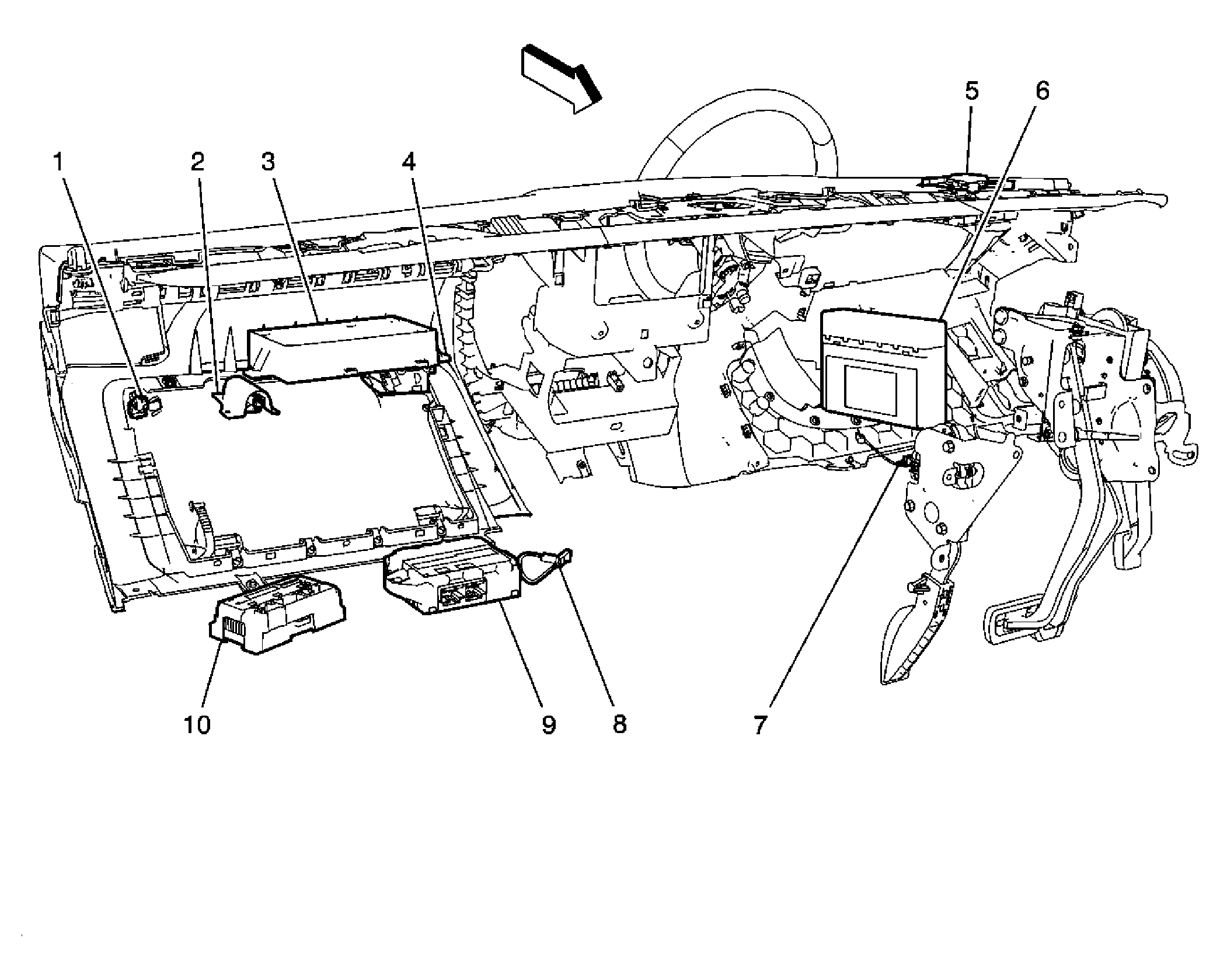

| Callout | Component Name |
|---|---|
| 1 | I/P Compartment Lamp Switch |
| 2 | I/P Compartment Lamp |
| 3 | Vehicle Communication Interface Module (VCIM) (UE1) |
| 4 | Rear Compartment Lid Latch |
| 5 | Navigation Antenna (UAV/WXS) |
| 6 | Body Control Module (BCM) |
| 7 | I/P Courtesy Lamp - Left |
| 8 | I/P Courtesy Lamp - Right |
| 9 | HVAC Control Module |
| 10 | Transfer Case Shift Control Module (MX7) |

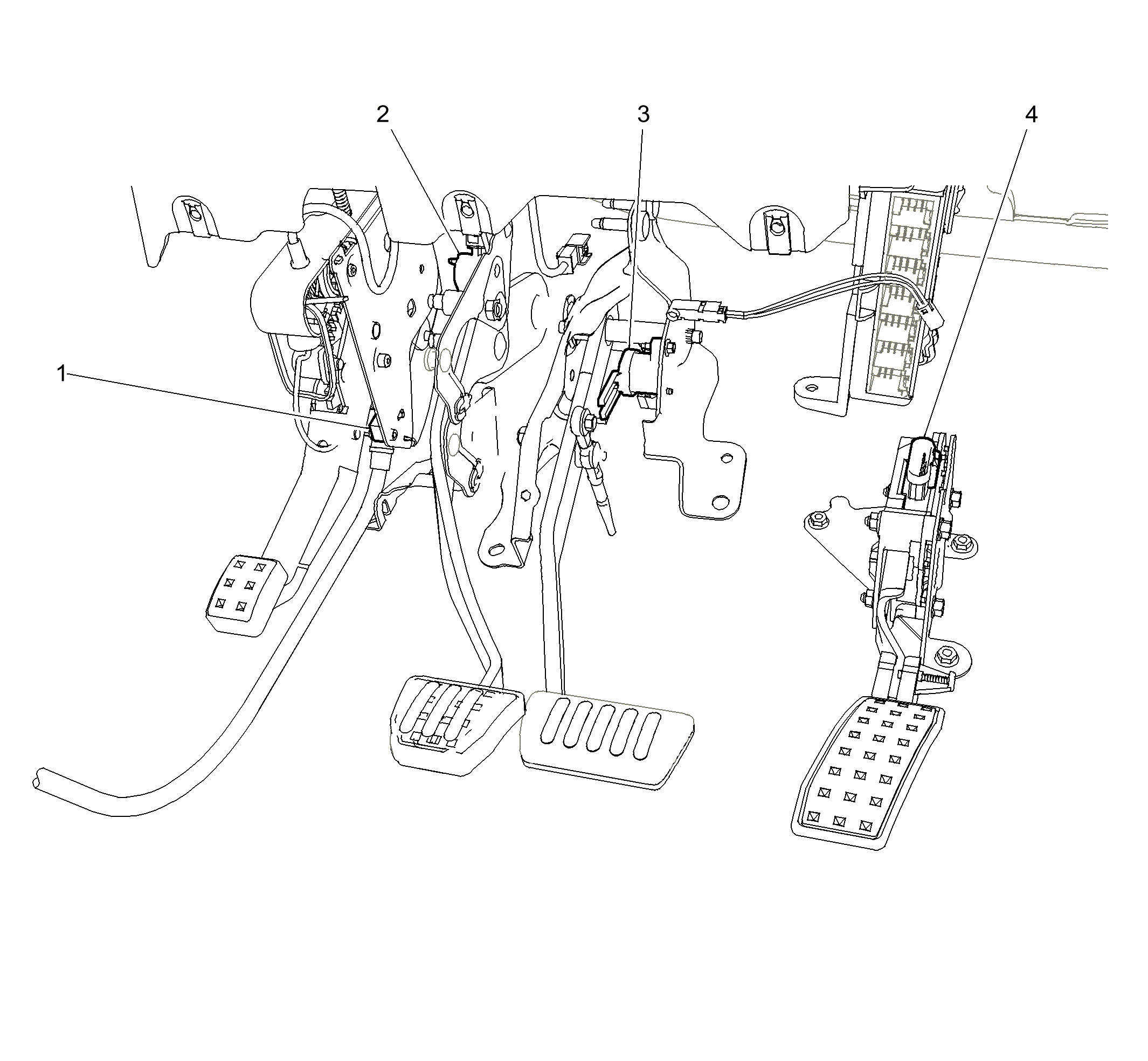

| Callout | Component Name |
|---|---|
| 1 | Park Brake Switch (except J77) |
| 2 | Clutch Pedal Position (CPP) Sensor (MV7 or MG9) |
| 3 | Brake Pedal Position (BPP) Sensor |
| 4 | Accelerator Pedal Position (APP) Sensor |

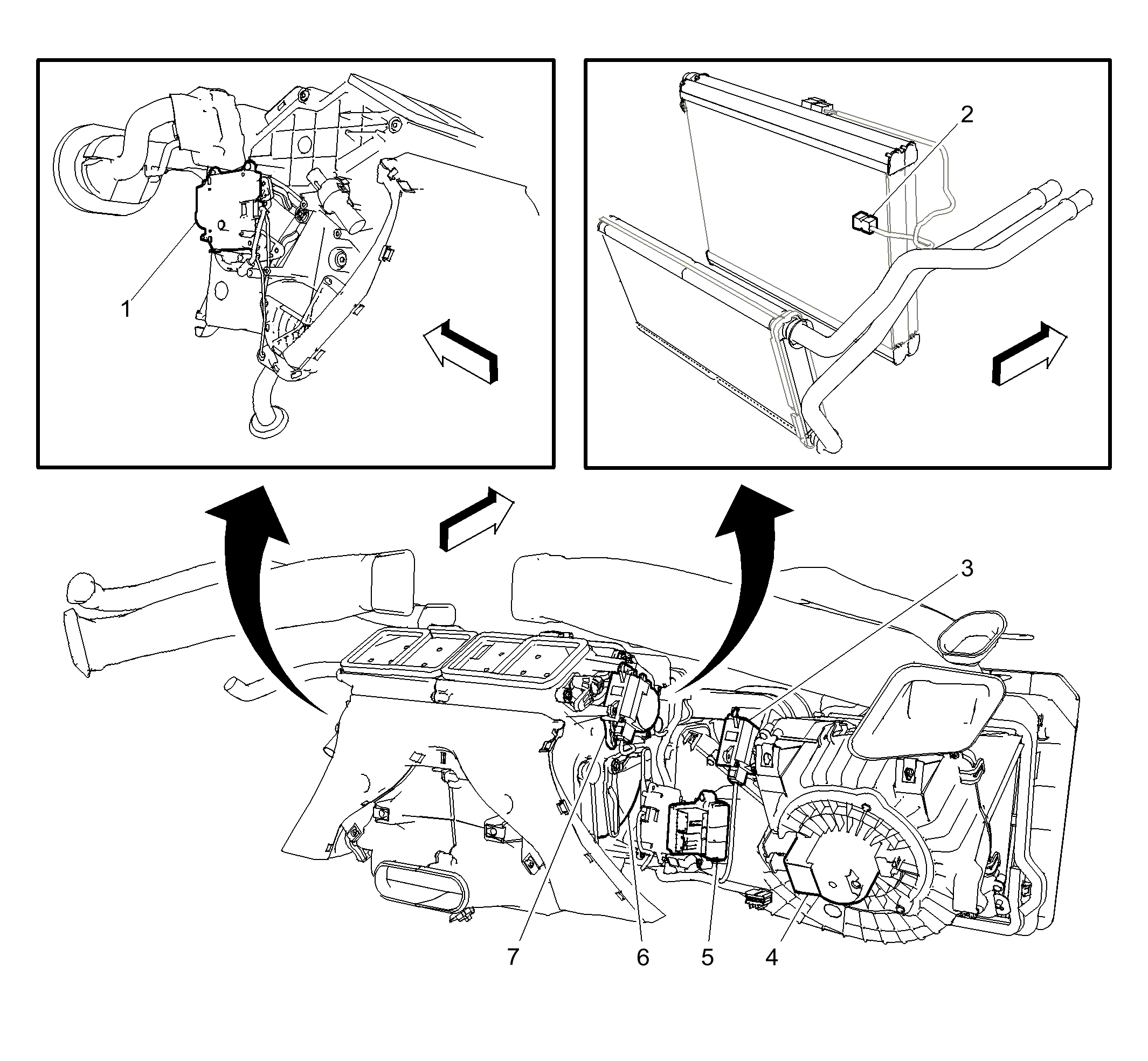

| Callout | Component Name |
|---|---|
| 1 | Air Temperature Actuator - Left |
| 2 | Evaporator Temperature Sensor |
| 3 | Recirculation Actuator |
| 4 | Blower Motor |
| 5 | Blower Motor Control Module |
| 6 | Air Temperature Actuator - Right |
| 7 | Mode Actuator |

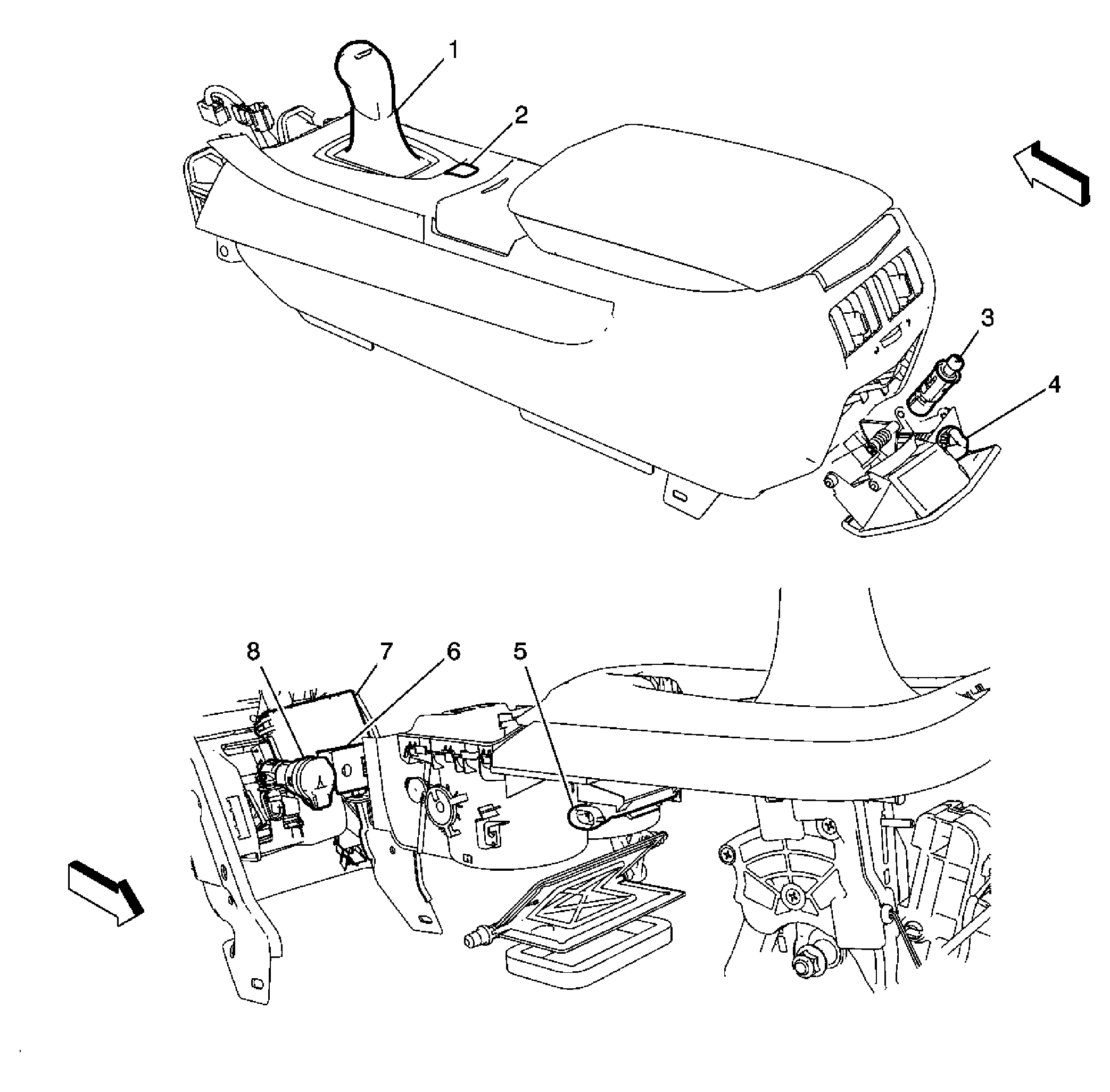

| Callout | Component Name |
|---|---|
| 1 | Automatic Transmission Shift Lever (MYA or MYB or MYD) |
| 2 | Electronic Park Brake Switch (J77) |
| 3 | Cigar Lighter (DT4) |
| 4 | Accessory Power Outlet - Rear (without DT4) |
| 5 | Keyless Entry Antenna - Center Console Passive (UHA or UHF) |
| 6 | Auxiliary Audio Jack (UQA or U2S or UAV or U2X or U2Y) |
| 7 | Keyless Entry Antenna - Center Console Active (UHA or UHF) |
| 8 | Accessory Power Outlet - Center Console Compartment |

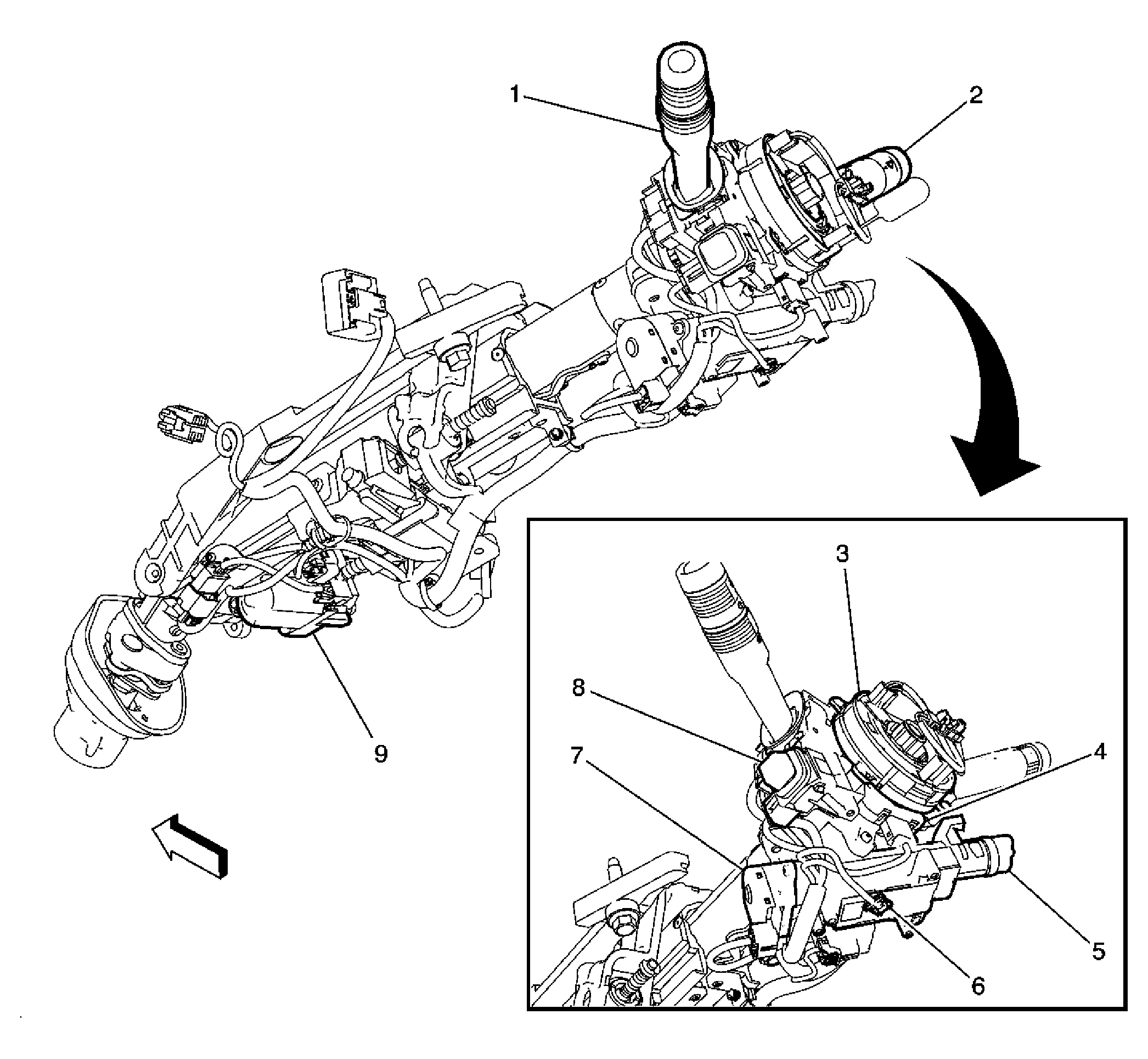

| Callout | Component Name |
|---|---|
| 1 | Steering Column Tilt Motor (A45 and N38) |
| 2 | Steering Column Telescope Motor (A45 and N38) |
| 3 | Turn Signal/Multifunction Switch |
| 4 | Windshield Wiper/Washer Switch |
| 5 | Inflatable Restraint Steering Wheel Module Coil |
| 6 | Ignition Key Cylinder |
| 7 | Steering Wheel Position Sensor |
| 8 | Ignition Lock Cylinder Control Actuator |
| 9 | Ignition Switch |
| 10 | Steering Wheel/Column Tilt/Telescope Switch (N38) |
| 11 | Variable Effort Steering Actuator (MX7) |
