NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.
Fig 1: Vehicle Overview (Cellular Communications Components)
Courtesy of GENERAL MOTORS CORP.
Fig 2: Vehicle Overview (Seat Belt Components)
Courtesy of GENERAL MOTORS CORP.
Fig 3: Manual Transmission
Courtesy of GENERAL MOTORS CORP.
Fig 4: Automatic Transmission
Courtesy of GENERAL MOTORS CORP.
Fig 5: Front Of Engine (3.6L SFI)
Courtesy of GENERAL MOTORS CORP.
Fig 6: Top Of Engine (3.6L SFI)
Courtesy of GENERAL MOTORS CORP.
Fig 7: View Of HO2S - Bank 1, Sensor 1
Courtesy of GENERAL MOTORS CORP.
Fig 8: View Of HO2S - Bank 1, Sensor 2
Courtesy of GENERAL MOTORS CORP.
Fig 9: View Of HO2S - Bank 2, Sensor 1
Courtesy of GENERAL MOTORS CORP.
Fig 10: View Of HO2S - Bank 2 Sensor 2
Courtesy of GENERAL MOTORS CORP.
Fig 11: Cooling Fans
Courtesy of GENERAL MOTORS CORP.
Fig 12: Steering Column Assembly
Courtesy of GENERAL MOTORS CORP.
Fig 13: Lower Left Side Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 14: Left Kick Panel
Courtesy of GENERAL MOTORS CORP.
Fig 15: Left Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 16: Under Center Console
Courtesy of GENERAL MOTORS CORP.
Fig 17: Vehicle Overview (HVAC Components)
Courtesy of GENERAL MOTORS CORP.
Fig 18: Luggage Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 19: Steering Column
Courtesy of GENERAL MOTORS CORP.
Fig 20: Vehicle Overview (Grounds)
Courtesy of GENERAL MOTORS CORP.
Fig 21: Engine (V6)
Courtesy of GENERAL MOTORS CORP.
Fig 22: Passenger Compartment Grounds
Courtesy of GENERAL MOTORS CORP.
Fig 23: Under Left Rear Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 24: Lower Left Side Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 25: Right Kick Panel
Courtesy of GENERAL MOTORS CORP.
Fig 26: Vehicle Body
Courtesy of GENERAL MOTORS CORP.
Fig 27: Vehicle Body
Courtesy of GENERAL MOTORS CORP.
Fig 28: Luggage Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 29: Right Front Side Of Transmission
Courtesy of GENERAL MOTORS CORP.
Fig 30: Front Passenger Seat (Driver Similar)
Courtesy of GENERAL MOTORS CORP.
Fig 31: Windshield Washer System Components
Courtesy of GENERAL MOTORS CORP.
Fig 32: Lower Left Side Of Engine (V6)
Courtesy of GENERAL MOTORS CORP.
Fig 33: Digital Radio Subsystem Components
Courtesy of GENERAL MOTORS CORP.
Fig 34: Fuel Tank
Courtesy of GENERAL MOTORS CORP.
Fig 35: Transmission
Courtesy of GENERAL MOTORS CORP.
Fig 36: Right Rear Of Transmission
Courtesy of GENERAL MOTORS CORP.
Fig 37: Shift Lock Control Components
Courtesy of GENERAL MOTORS CORP.
Fig 38: Floor Console
Courtesy of GENERAL MOTORS CORP.
Fig 39: Under Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 40: EBCM & Wheel Speed Sensors
Courtesy of GENERAL MOTORS CORP.
Fig 41: Body Control System
Courtesy of GENERAL MOTORS CORP.
Fig 42: Dash
Courtesy of GENERAL MOTORS CORP.
Fig 43: Door Control Module Components
Courtesy of GENERAL MOTORS CORP.
Fig 44: Top Of Engine (V6)
Courtesy of GENERAL MOTORS CORP.
Fig 45: Engine (V6)
Courtesy of GENERAL MOTORS CORP.
Fig 46: Front Seats
Courtesy of GENERAL MOTORS CORP.
Fig 47: Left Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 48: Vehicle Overview (SIR Modules) (Sedan) (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 49: Vehicle Overview (SIR Modules) (Sedan) (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 50: Under Driver's Seat
Courtesy of GENERAL MOTORS CORP.
Fig 51: Sunroof (Sedan)
Courtesy of GENERAL MOTORS CORP.
Fig 52: Dash
Courtesy of GENERAL MOTORS CORP.
Fig 53: Right Rear Door (Left Rear Similar)
Courtesy of GENERAL MOTORS CORP.

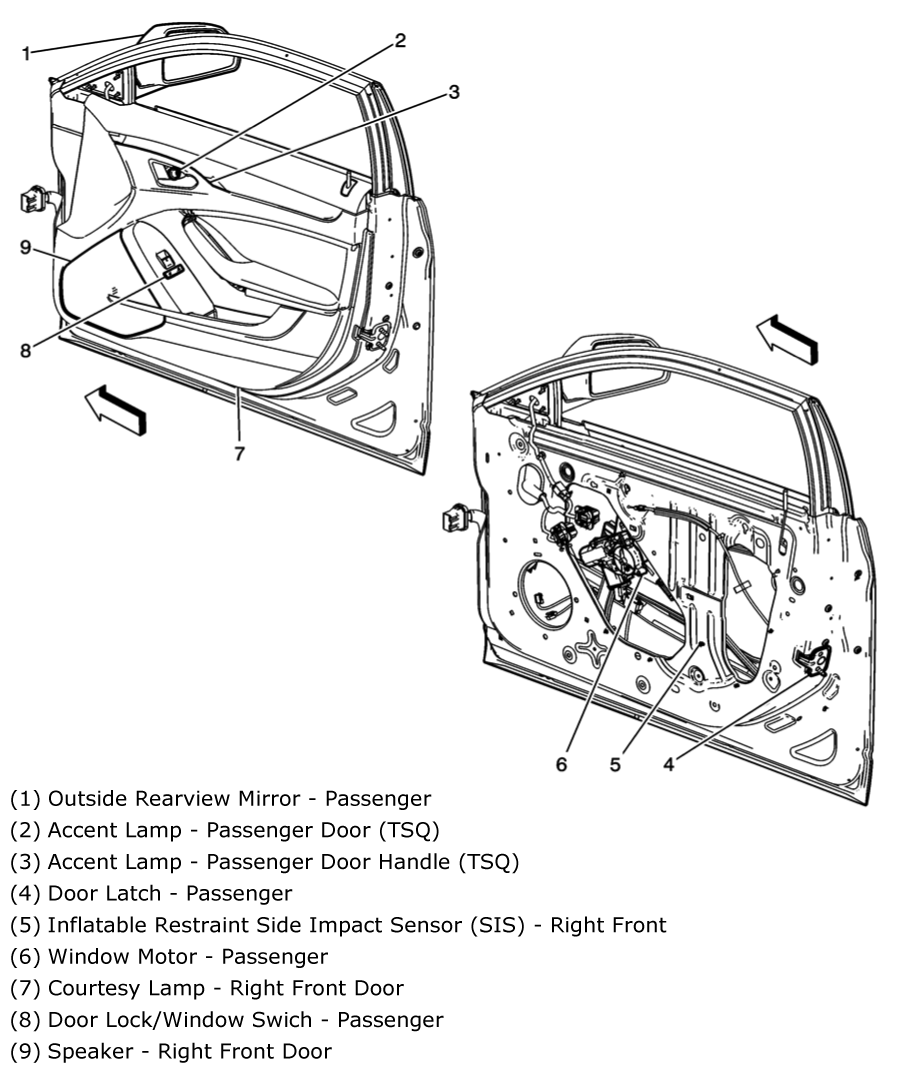

Fig 54: Passenger Front Door
Courtesy of GENERAL MOTORS CORP.
Fig 55: Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 56: Rear Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 57: Under Rear Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 58: Rear Shelf & Roof
Courtesy of GENERAL MOTORS CORP.
Fig 59: Floor Console
Courtesy of GENERAL MOTORS CORP.
Fig 60: Left Side Of Luggage Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 61: Right Side Of Luggage Compartment (Sedan V8)
Courtesy of GENERAL MOTORS CORP.
Fig 62: Rear Fascia (Sedan)
Courtesy of GENERAL MOTORS CORP.
Fig 63: Left Side Of Engine (V6)
Courtesy of GENERAL MOTORS CORP.
Fig 64: Right Side Of Engine (V6)
Courtesy of GENERAL MOTORS CORP.

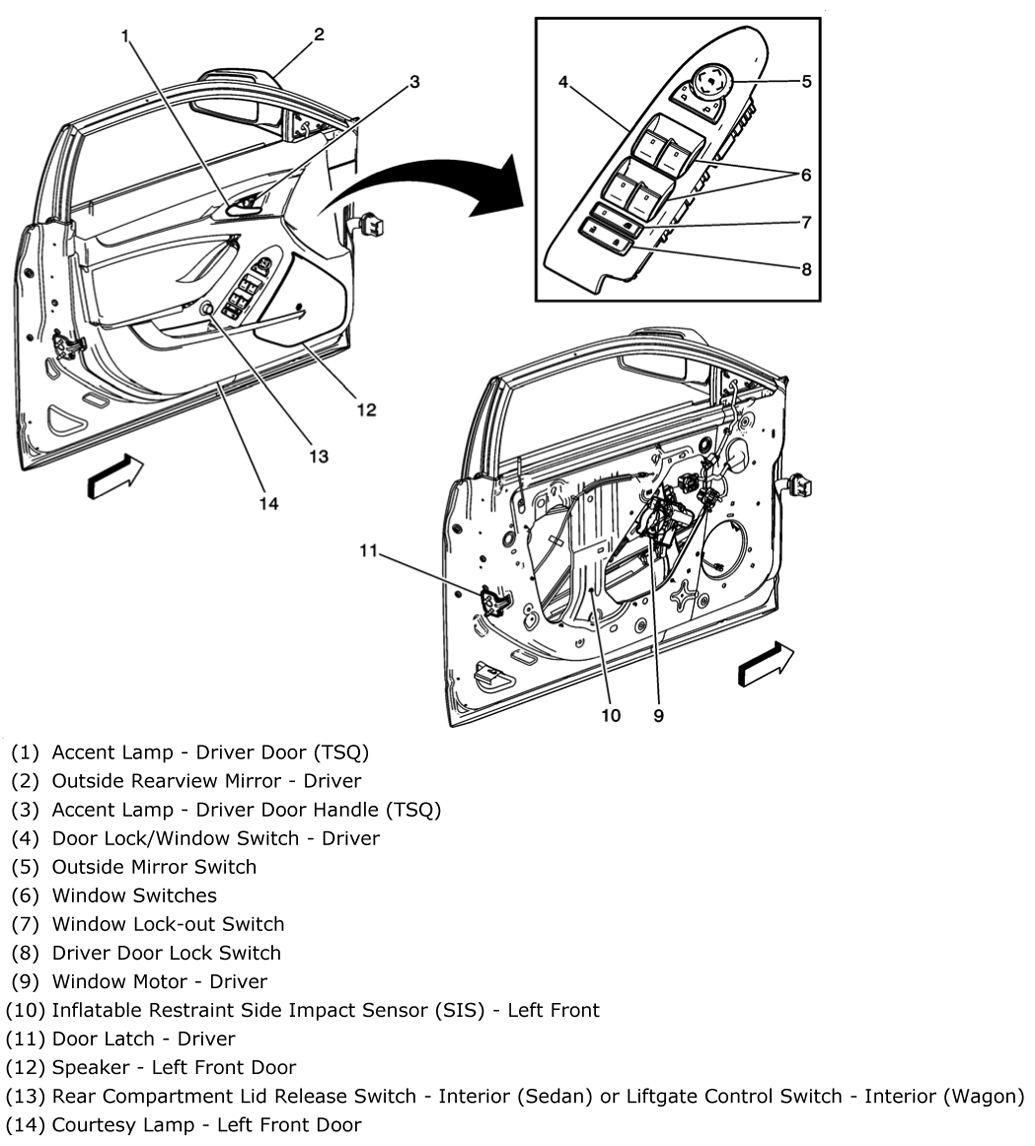

Fig 65: Driver's Door
Courtesy of GENERAL MOTORS CORP.

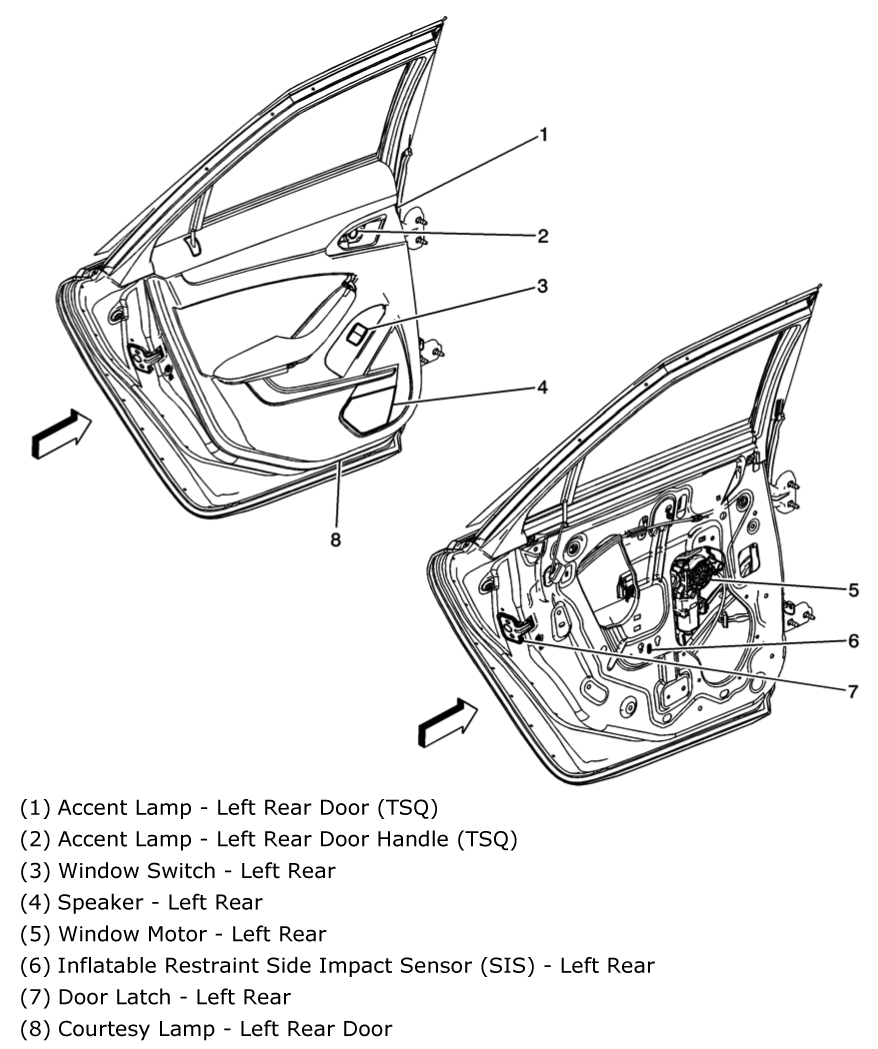

Fig 66: Left Rear Door (Right Similar)
Courtesy of GENERAL MOTORS CORP.

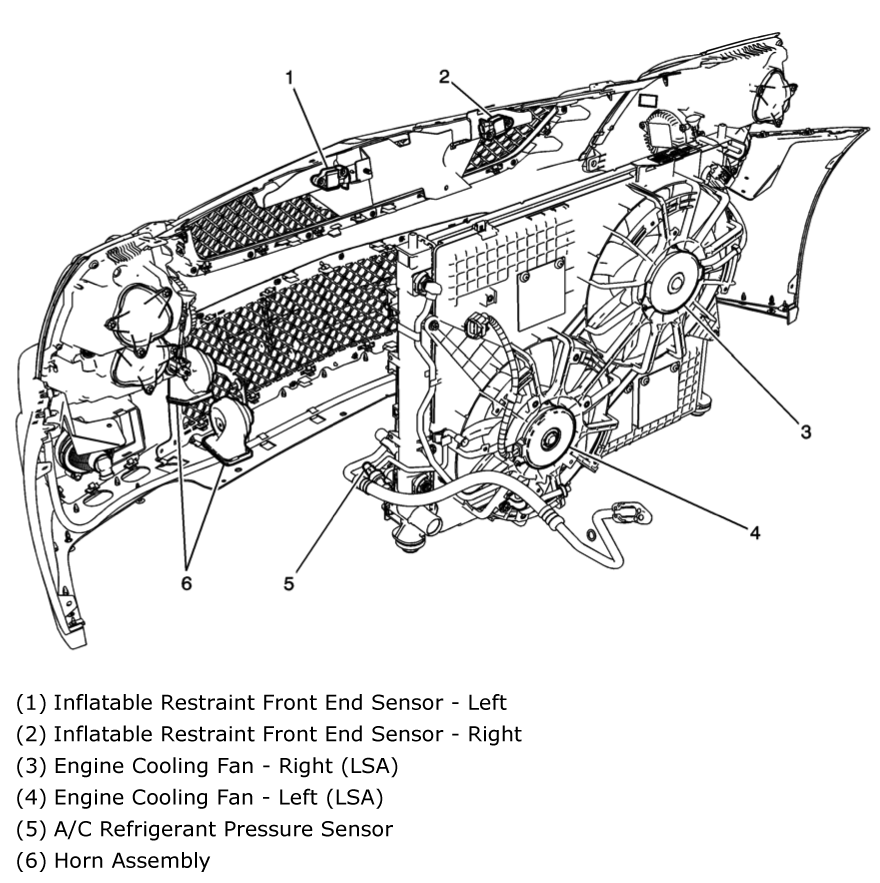

Fig 67: Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 68: Front Fascia
Courtesy of GENERAL MOTORS CORP.
Fig 69: Right Side Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 70: Right Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 71: Top Of Engine (V6)
Courtesy of GENERAL MOTORS CORP.
Fig 72: Top Of Engine (V6)
Courtesy of GENERAL MOTORS CORP.
Fig 73: Right Side Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 74: Vehicle Overview
Courtesy of GENERAL MOTORS CORP.
Fig 75: Behind Dash
Courtesy of GENERAL MOTORS CORP.
Fig 76: Behind Dash
Courtesy of GENERAL MOTORS CORP.
Fig 77: Under Floor Console
Courtesy of GENERAL MOTORS CORP.
Fig 78: Floor Console
Courtesy of GENERAL MOTORS CORP.
Fig 79: Steering Column
Courtesy of GENERAL MOTORS CORP.
Fig 80: Driver Side Floor
Courtesy of GENERAL MOTORS CORP.
Fig 81: Left Rear Floor & Underbody
Courtesy of GENERAL MOTORS CORP.
Fig 82: Right Front Floor
Courtesy of GENERAL MOTORS CORP.
Fig 83: Right Rear Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 84: Left "B" & "C" Pillars
Courtesy of GENERAL MOTORS CORP.
Fig 85: Right Side Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 86: Headliner
Courtesy of GENERAL MOTORS CORP.
Fig 87: Front Seats
Courtesy of GENERAL MOTORS CORP.
Fig 88: Left Front/Rear Doors
Courtesy of GENERAL MOTORS CORP.
Fig 89: Right Front/Rear Doors
Courtesy of GENERAL MOTORS CORP.
Fig 90: Rear Fascia
Courtesy of GENERAL MOTORS CORP.
Fig 91: Underhood Fuse Block (Sedan V6)
Courtesy of GENERAL MOTORS CORP.

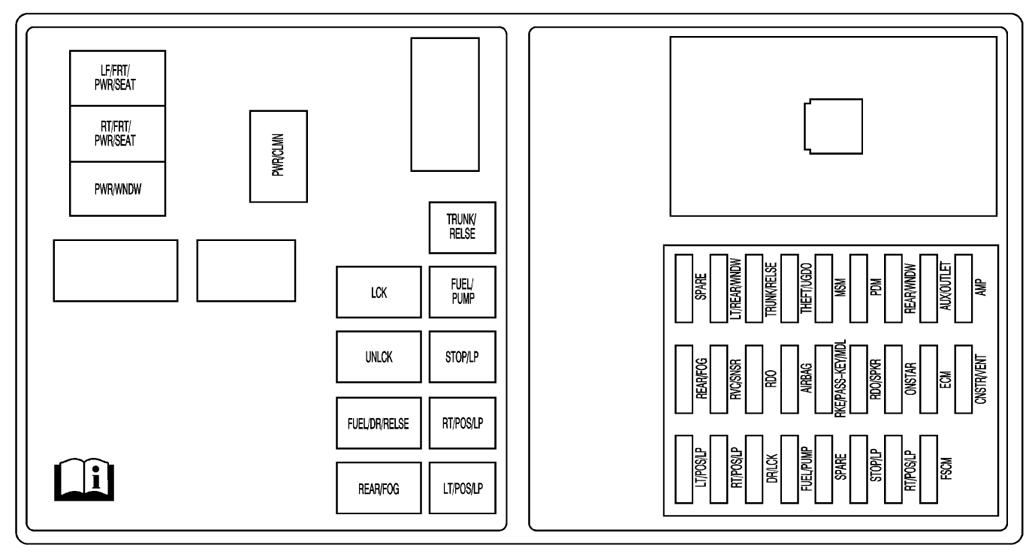

Fig 92: Rear Fuse Block (V6)
Courtesy of GENERAL MOTORS CORP.
Fig 93: Rear Fuse Block (V8)
Courtesy of GENERAL MOTORS CORP.
Fig 94: Right Side Of Engine (V8)
Courtesy of GENERAL MOTORS CORP.

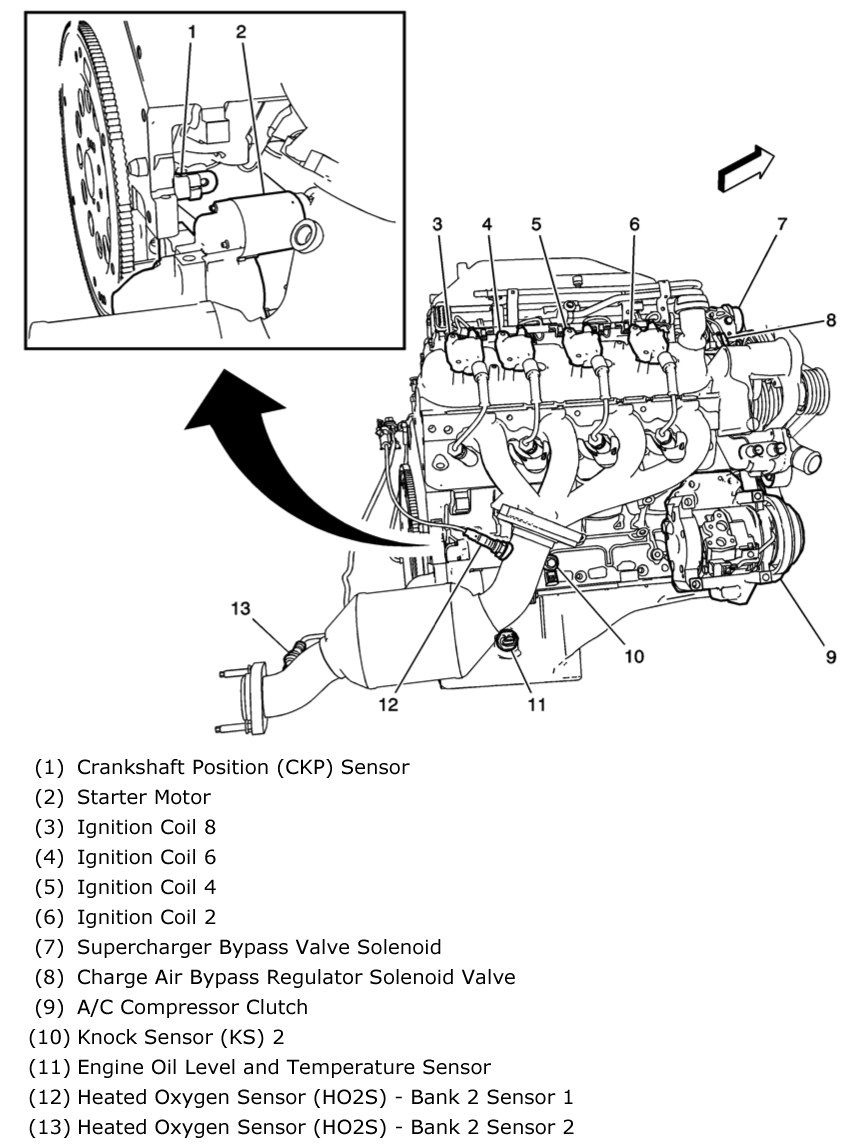

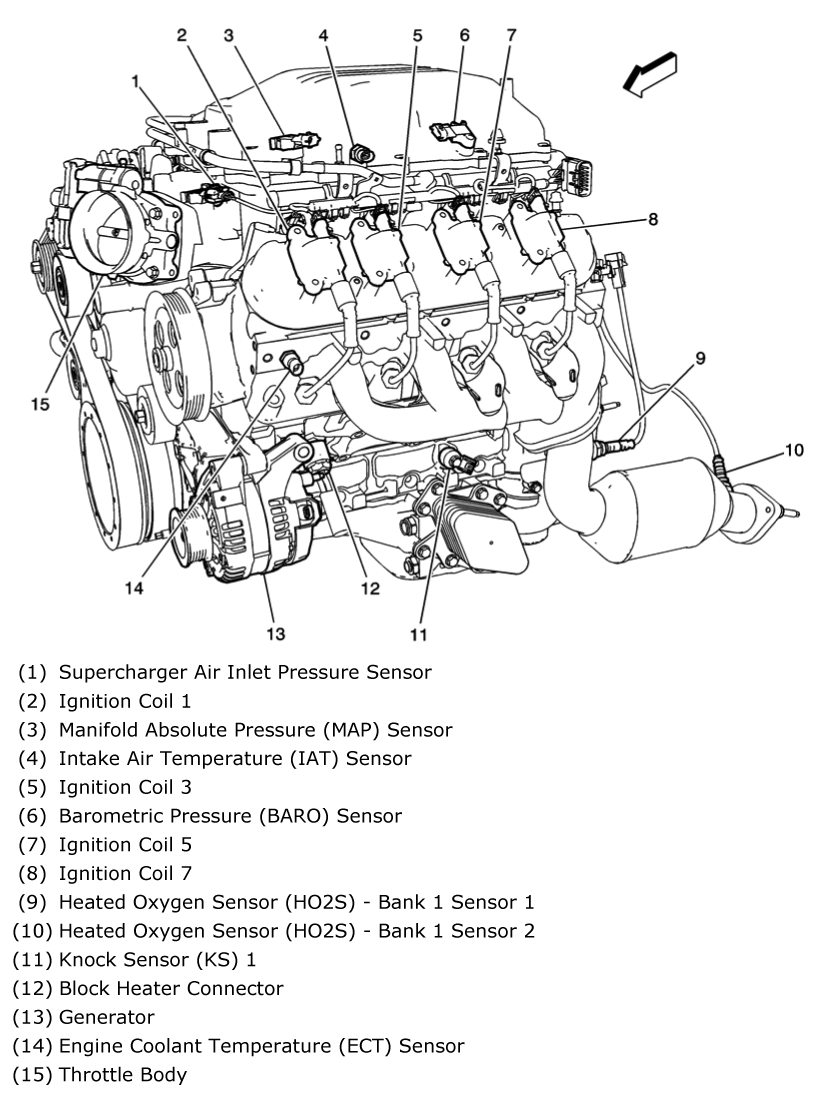

Fig 95: Left Side Of Engine (V8)
Courtesy of GENERAL MOTORS CORP.

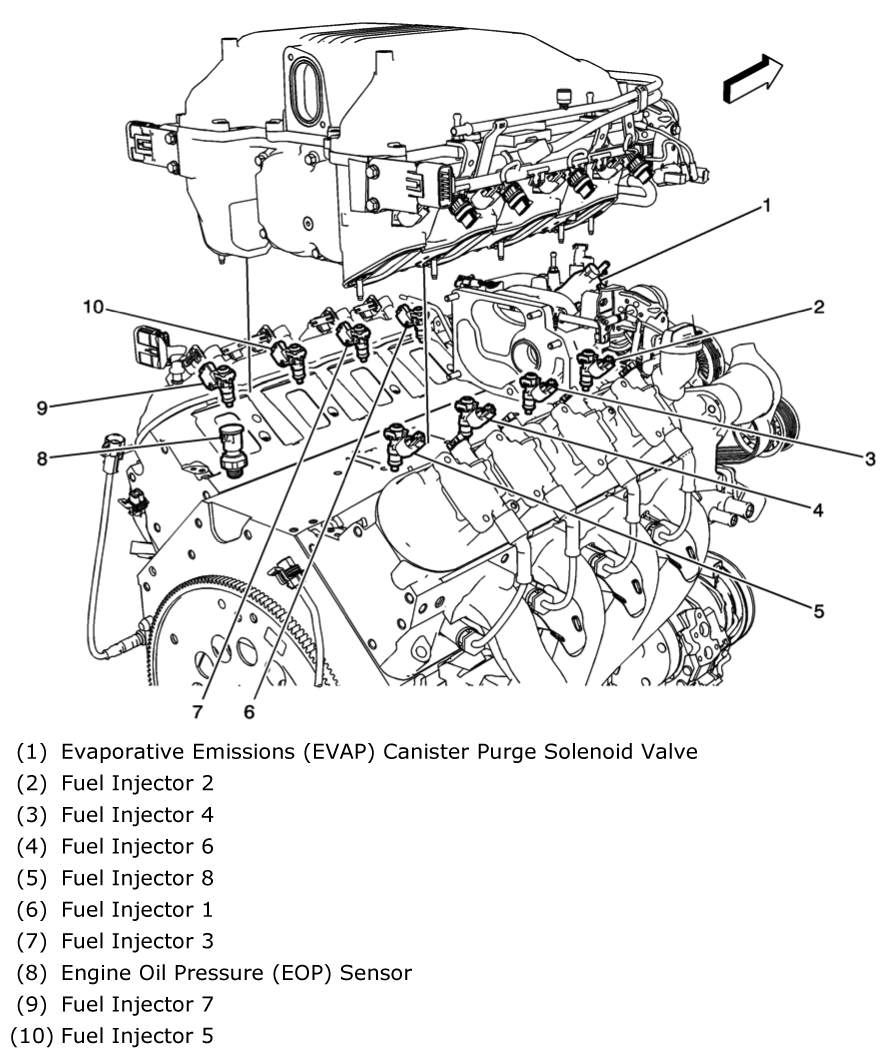

Fig 96: Top Of Engine (V8)
Courtesy of GENERAL MOTORS CORP.

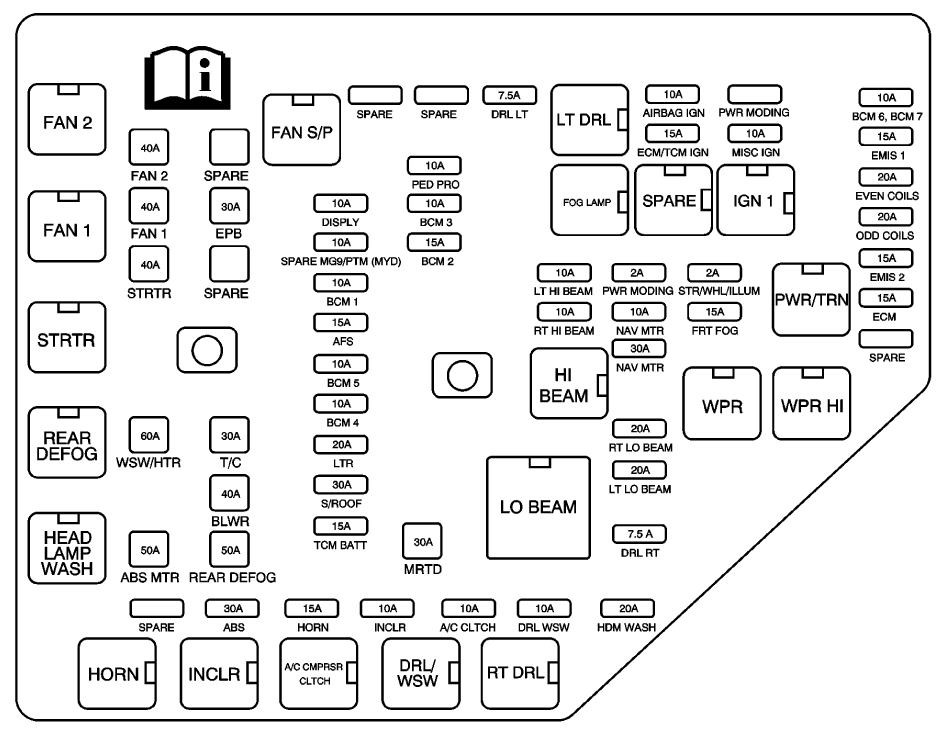

Fig 97: Underhood Fuse Block (Sedan V8)
Courtesy of GENERAL MOTORS CORP.
Fig 98: Front Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 99: Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 100: Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 101: Right Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 102: Left Side Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 103: Rear Of Instrument Panel
Courtesy of GENERAL MOTORS CORP.

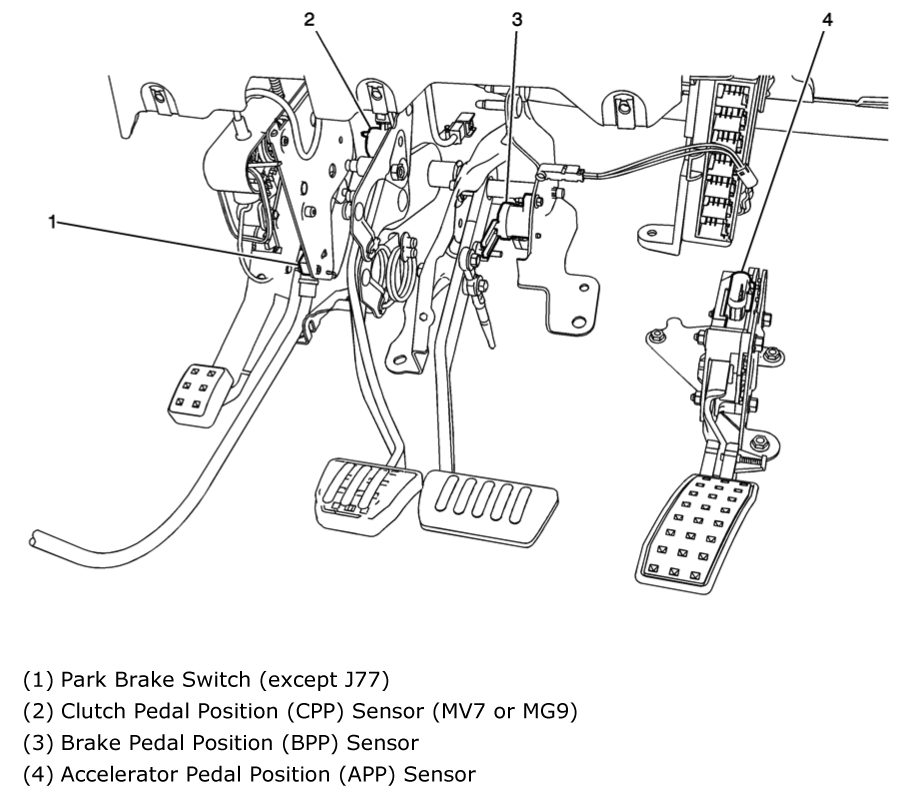

Fig 104: Under Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 105: HVAC Module
Courtesy of GENERAL MOTORS CORP.
Fig 106: Passenger's Door
Courtesy of GENERAL MOTORS CORP.
Fig 107: Front Seats
Courtesy of GENERAL MOTORS CORP.

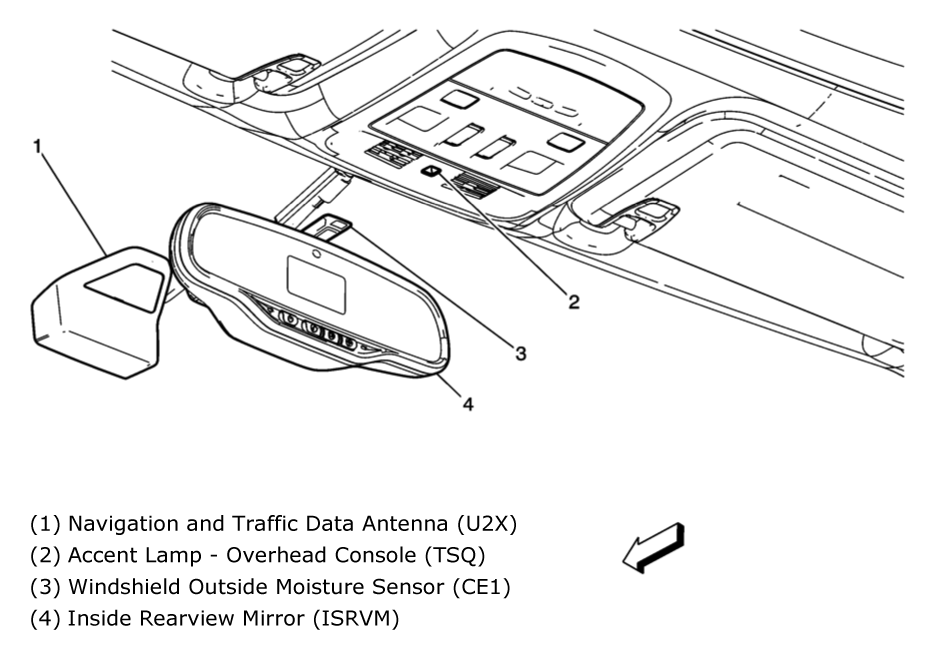

Fig 108: Top Center Of Windshield
Courtesy of GENERAL MOTORS CORP.
Fig 109: Roof (Wagon)
Courtesy of GENERAL MOTORS CORP.
Fig 110: Left Side Of Luggage Compartment (Sedan)
Courtesy of GENERAL MOTORS CORP.
Fig 111: Rear Of Vehicle (Wagon)
Courtesy of GENERAL MOTORS CORP.
Fig 112: Luggage Compartment (Wagon)
Courtesy of GENERAL MOTORS CORP.
Fig 113: Luggage Compartment (Wagon)
Courtesy of GENERAL MOTORS CORP.
Fig 114: Liftgate
Courtesy of GENERAL MOTORS CORP.

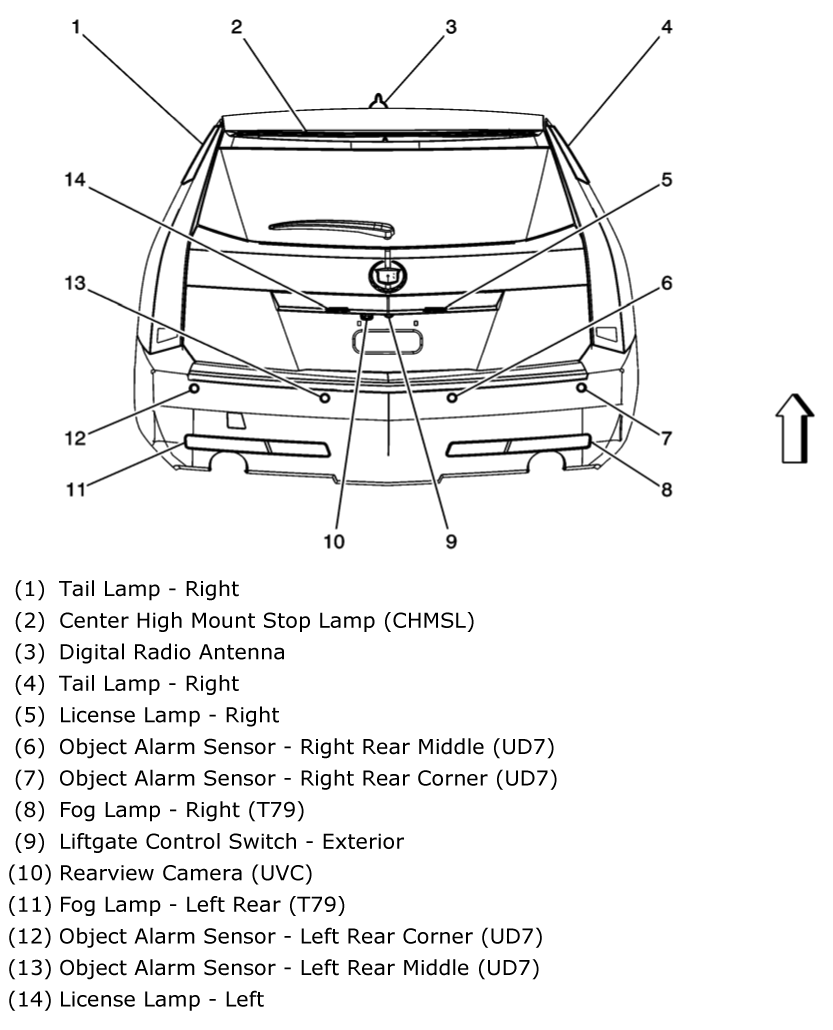

Fig 115: Rear Of Vehicle (Wagon)
Courtesy of GENERAL MOTORS CORP.

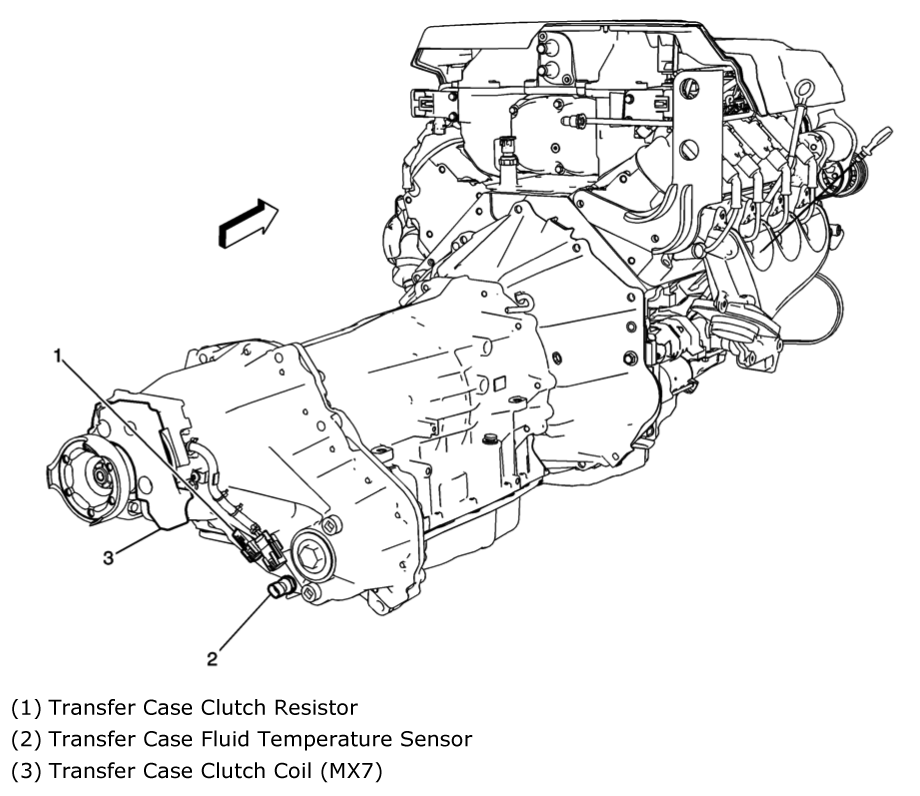

Fig 116: Transmission (All Wheel Drive)
Courtesy of GENERAL MOTORS CORP.

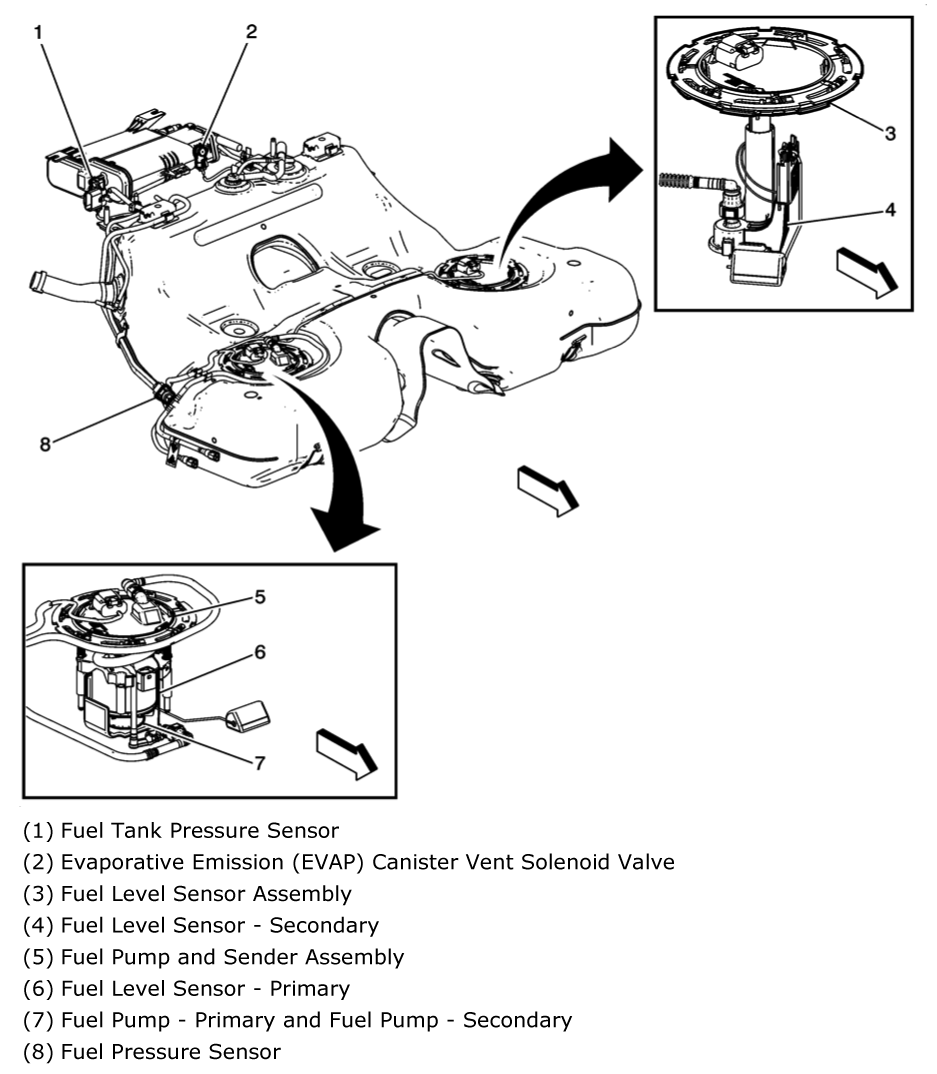

Fig 117: Fuel Tank (V8)
Courtesy of GENERAL MOTORS CORP.

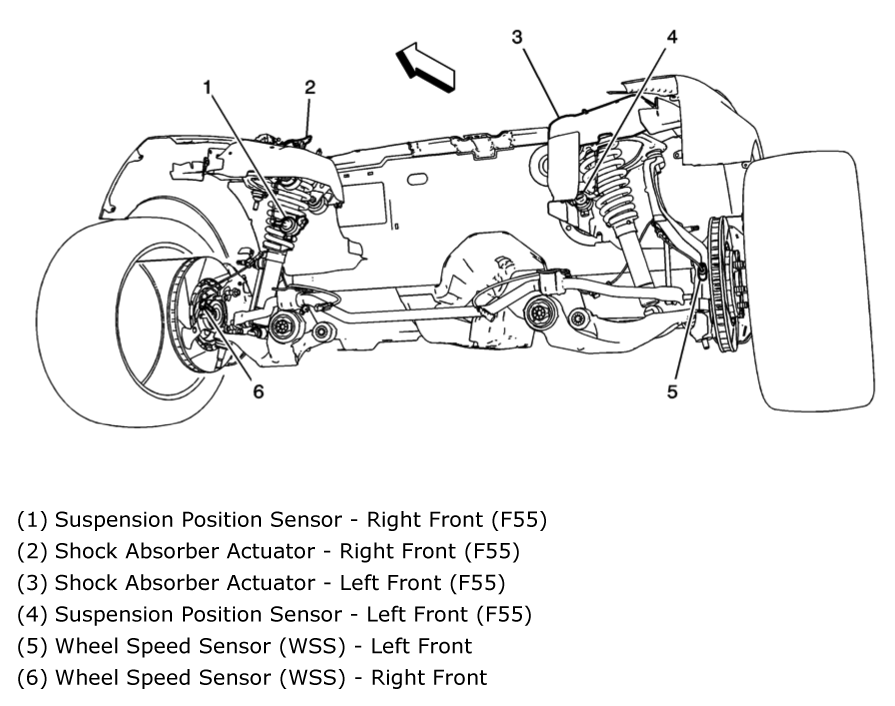

Fig 118: Front Axle
Courtesy of GENERAL MOTORS CORP.

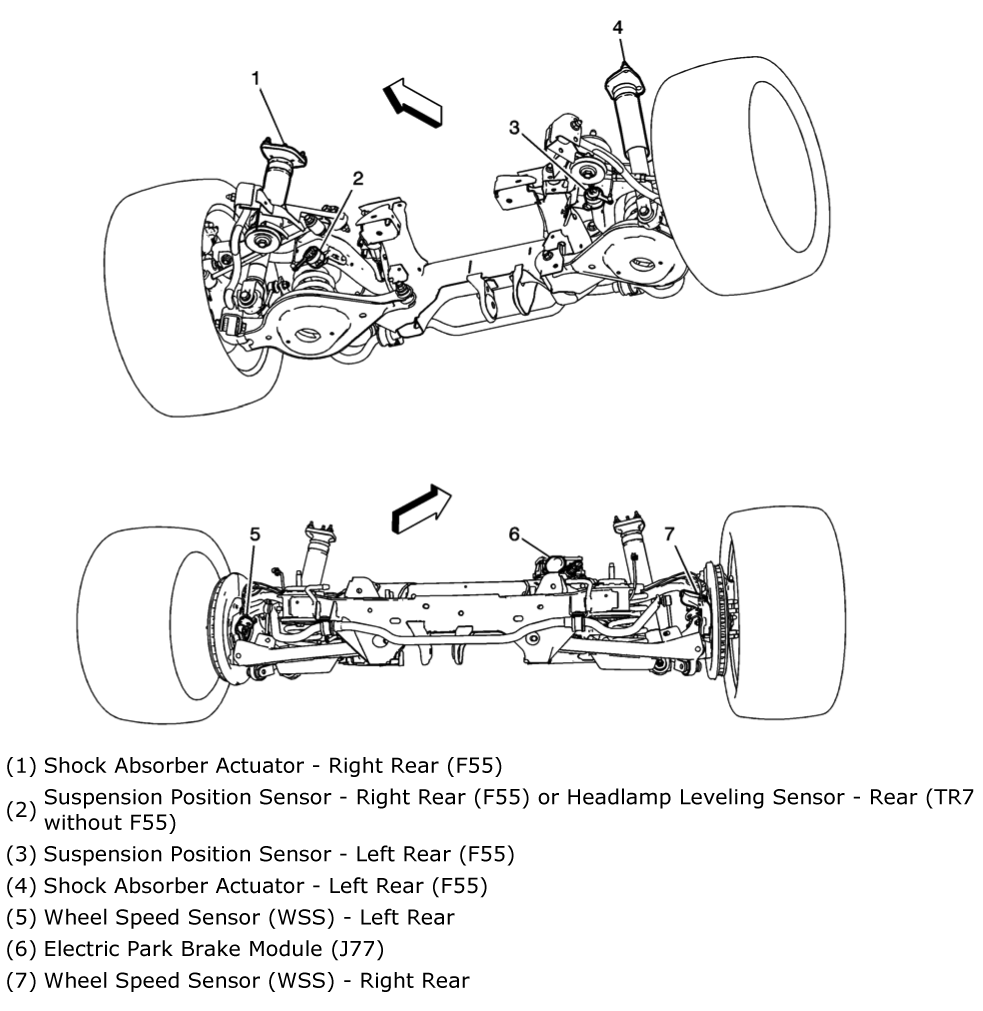

Fig 119: Rear Axle
Courtesy of GENERAL MOTORS CORP.
