Data Communication Schematics

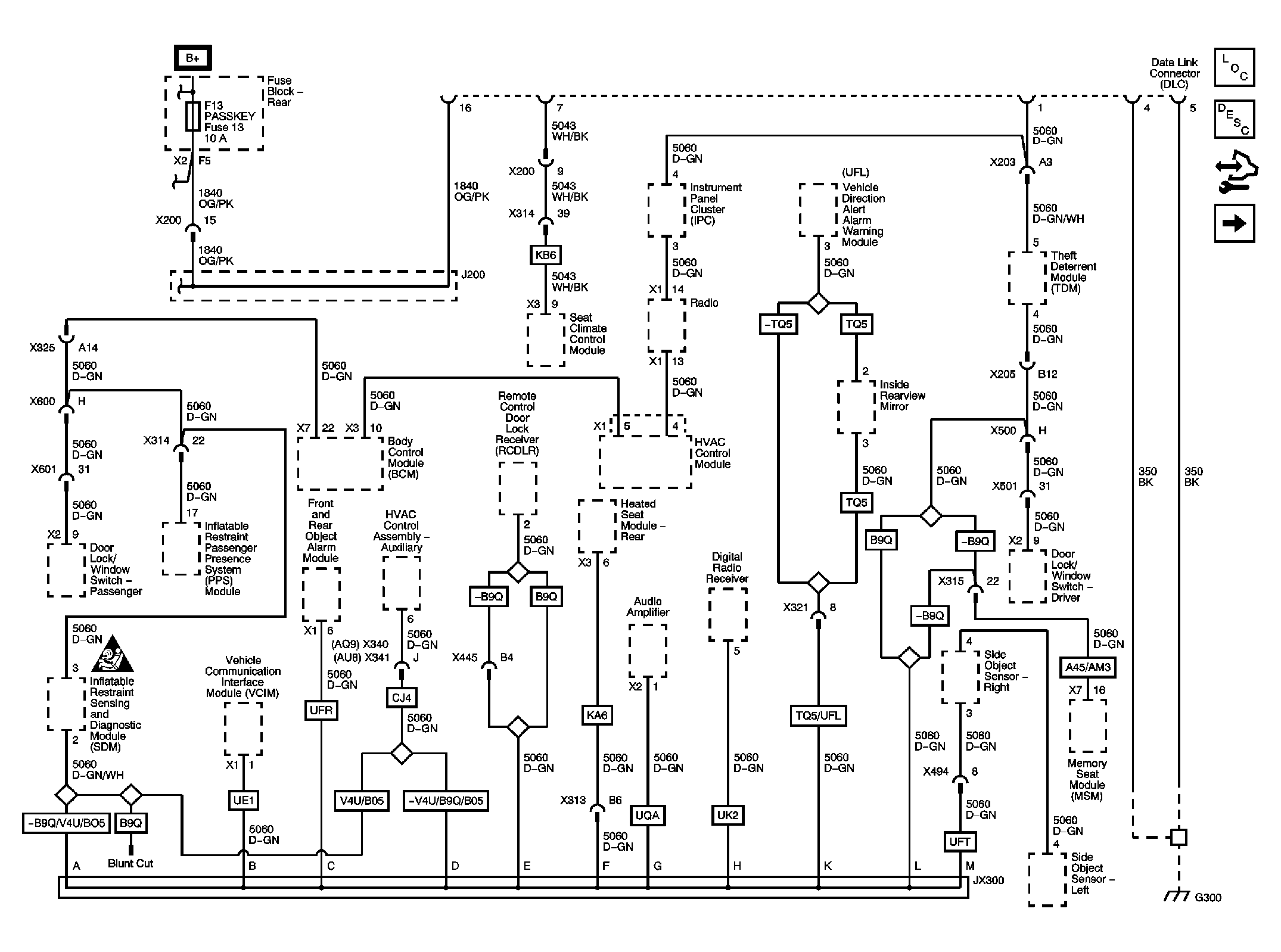

Fig 1: Power, Ground and Low Speed GMLAN
GM2227734Courtesy of GENERAL MOTORS CORP.

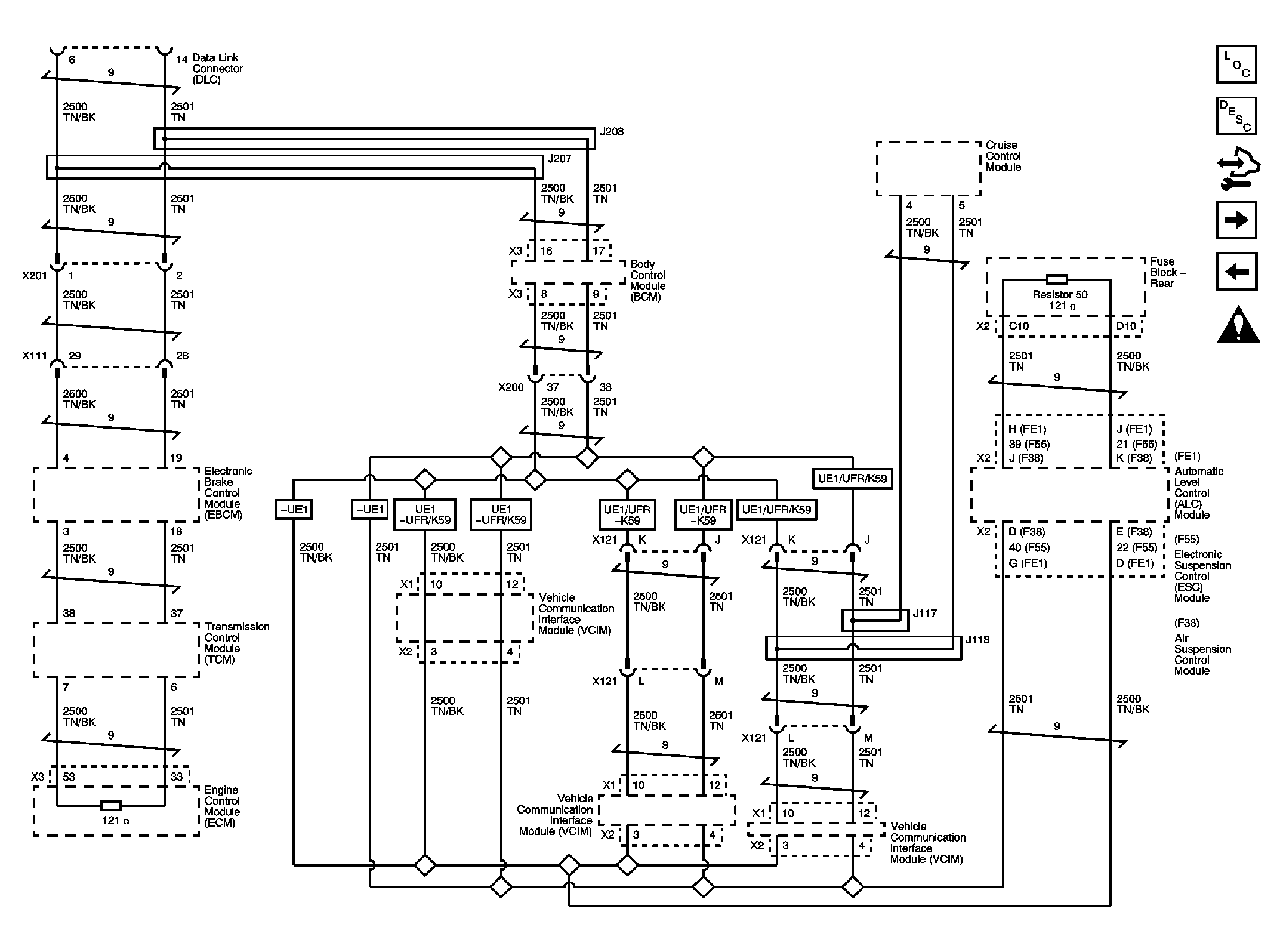

Fig 2: High Speed Serial Data
GM2227735Courtesy of GENERAL MOTORS CORP.

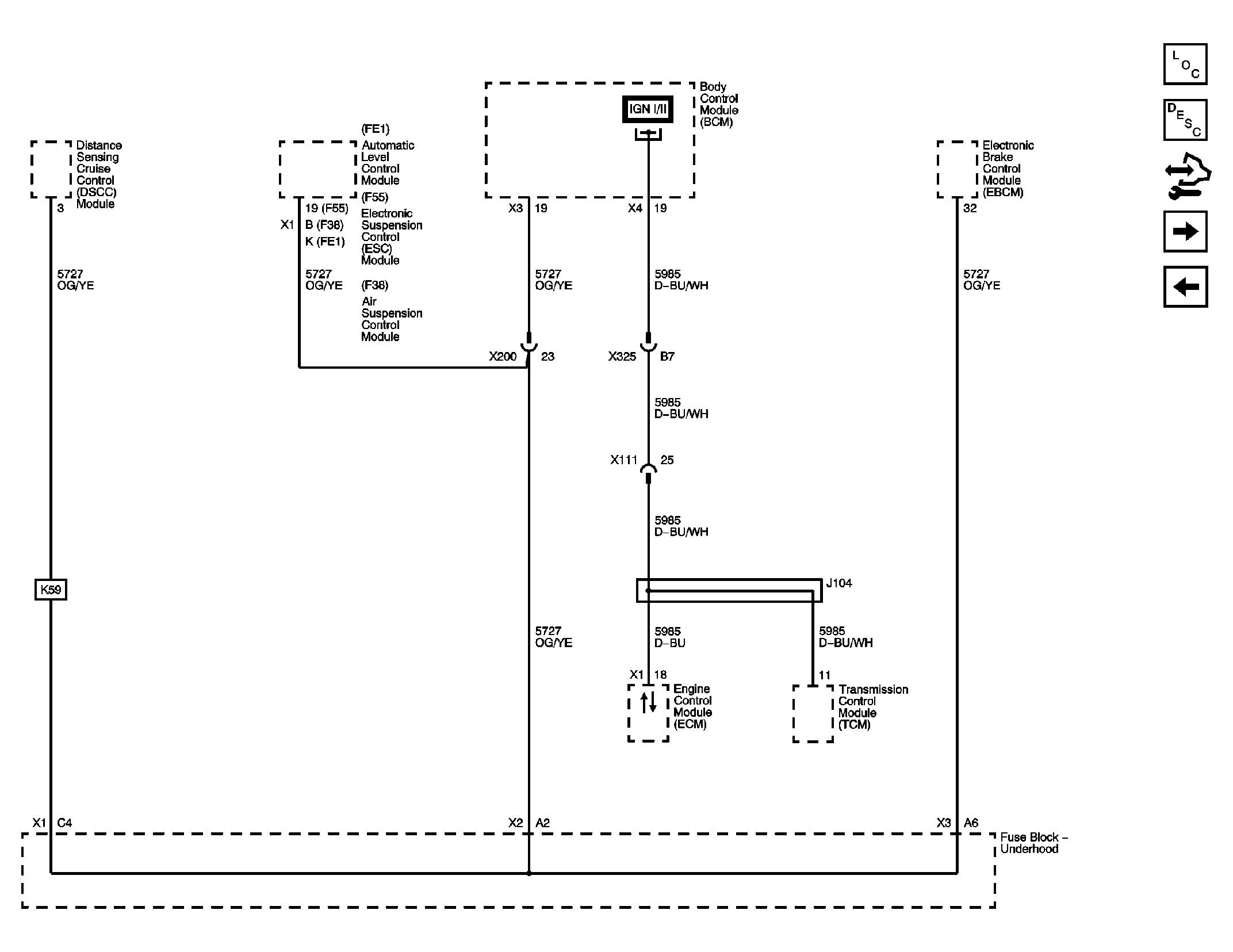

Fig 3: High Speed Serial Data, Wake up
GM2227738Courtesy of GENERAL MOTORS CORP.
Fig 4: Local Interconnect Network Bus
GM2227740Courtesy of GENERAL MOTORS CORP.
