Body Control System Schematics

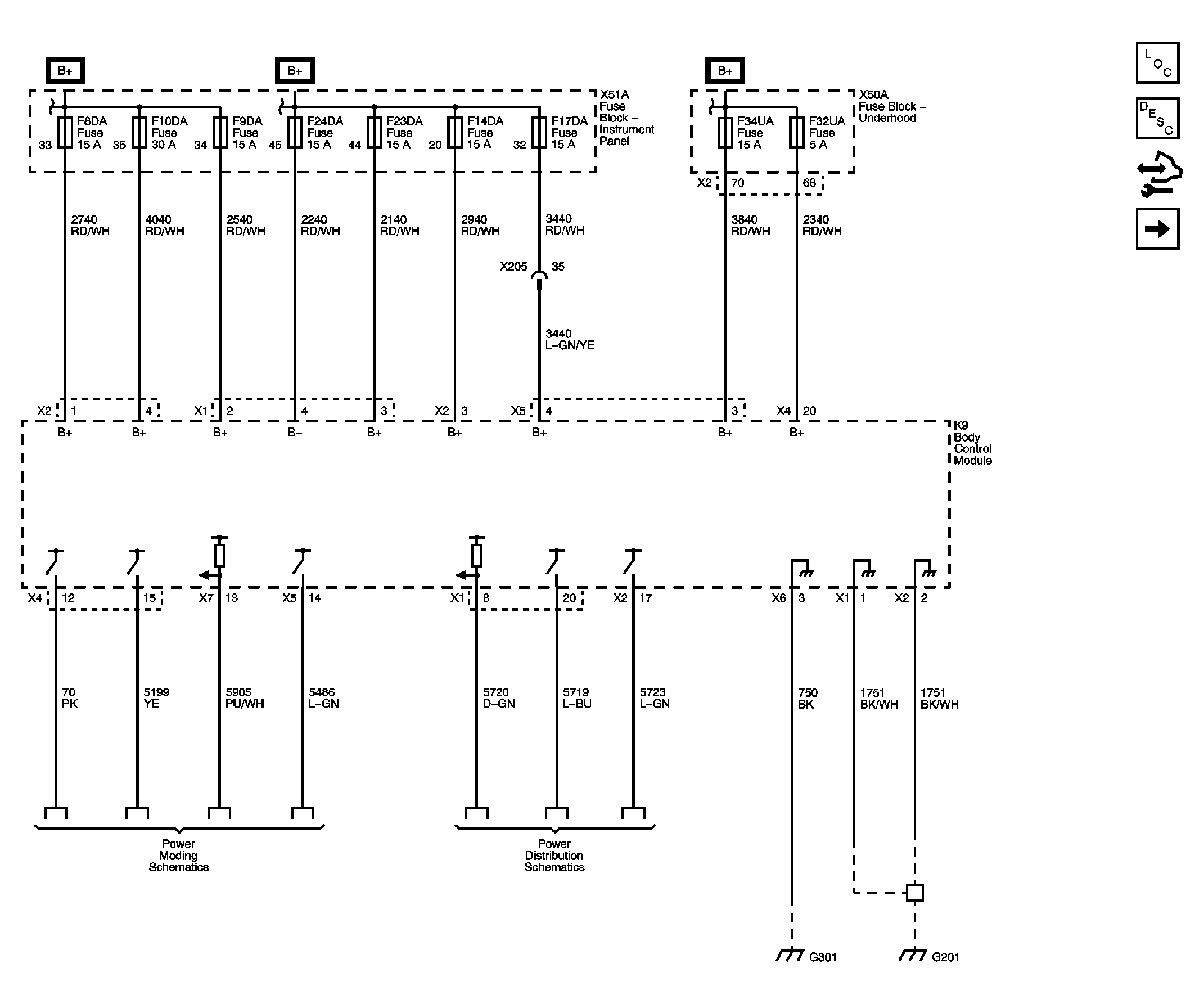

Fig 1: Power & Ground Circuit Schematic
GM2264586Courtesy of GENERAL MOTORS CORP.

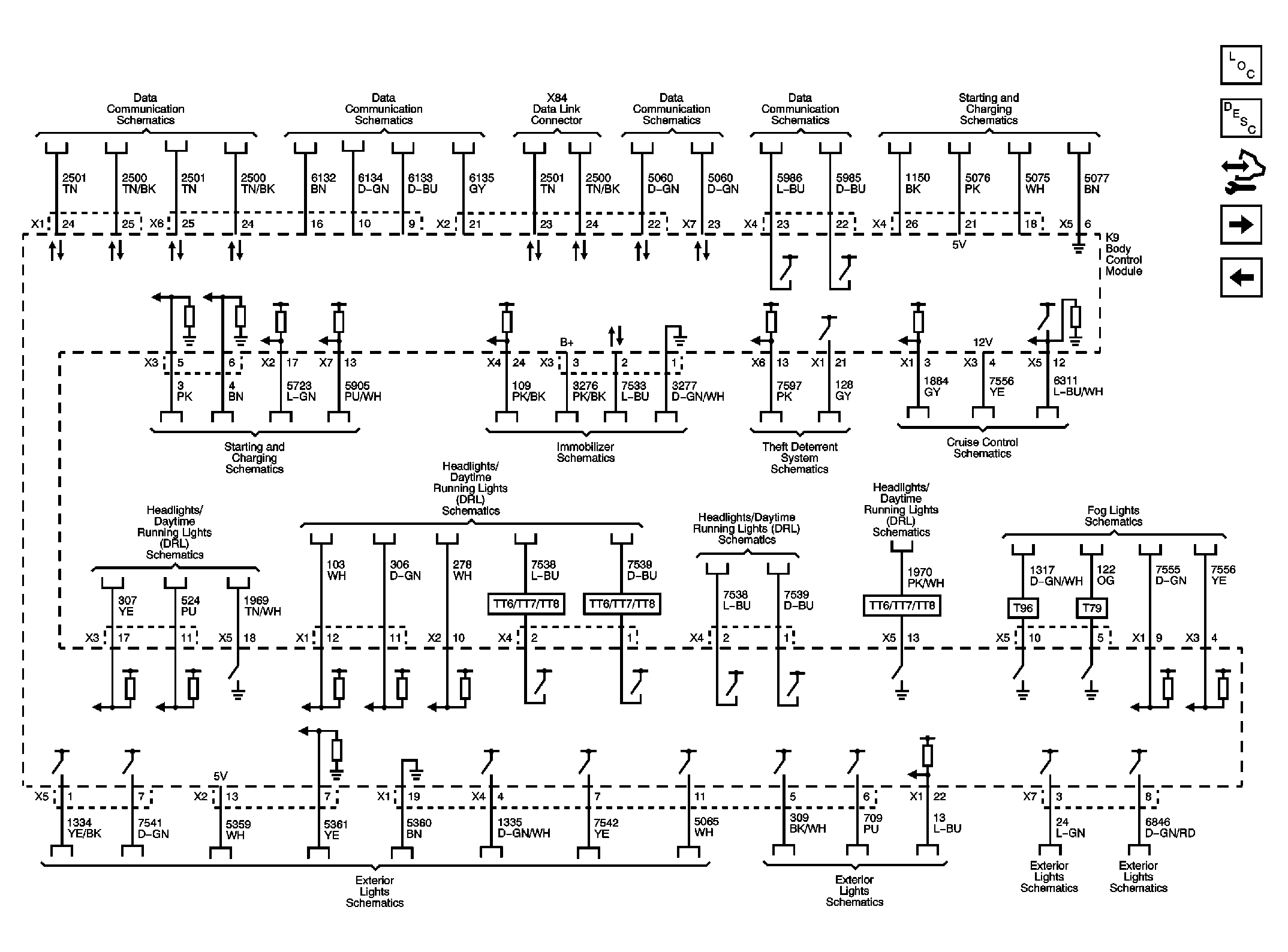

Fig 2: Subsystem References Circuit Schematic (1 Of 3)
GM2281296Courtesy of GENERAL MOTORS CORP.

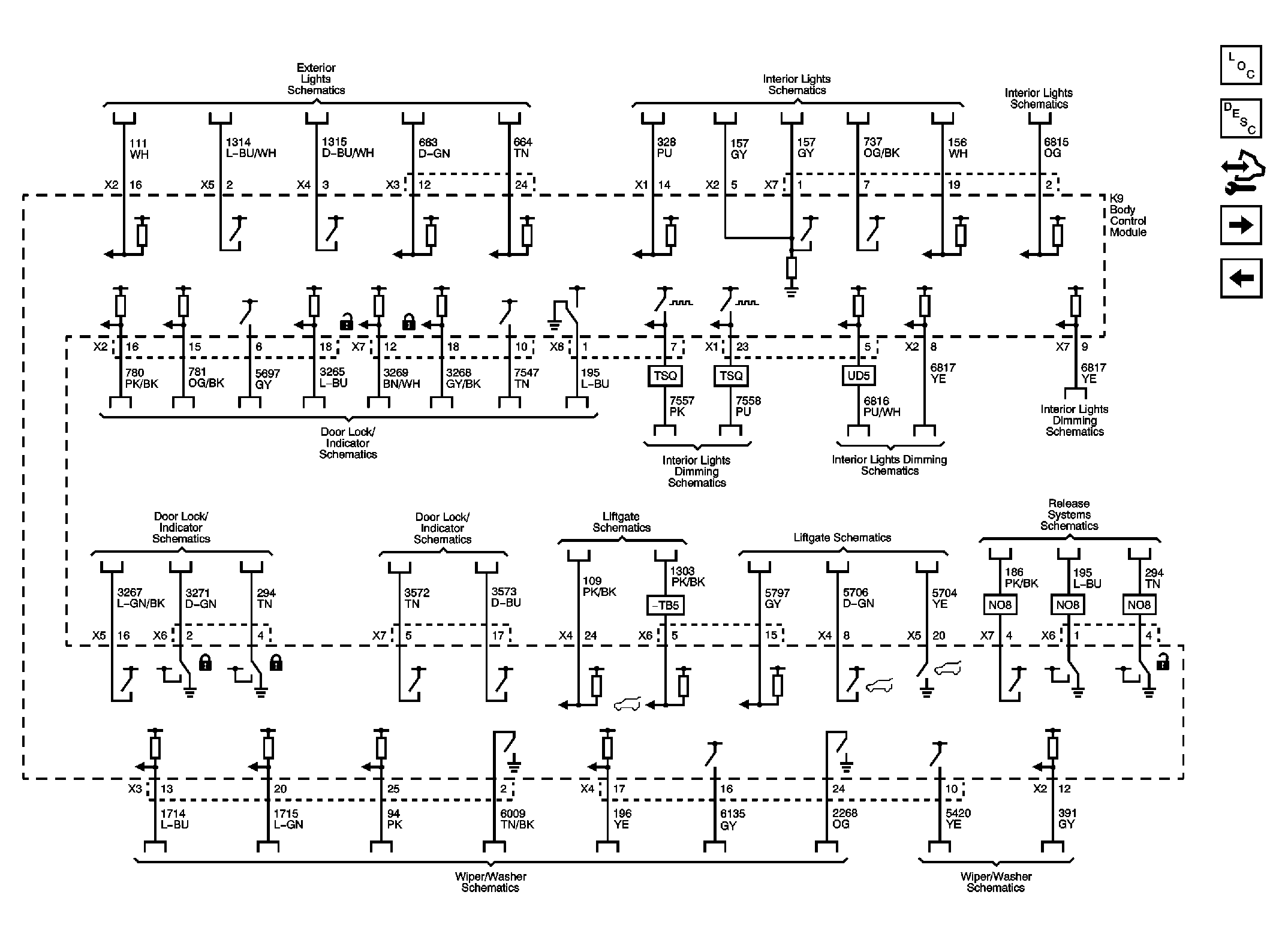

Fig 3: Subsystem References Circuit Schematic (2 Of 3)
GM2283780Courtesy of GENERAL MOTORS CORP.

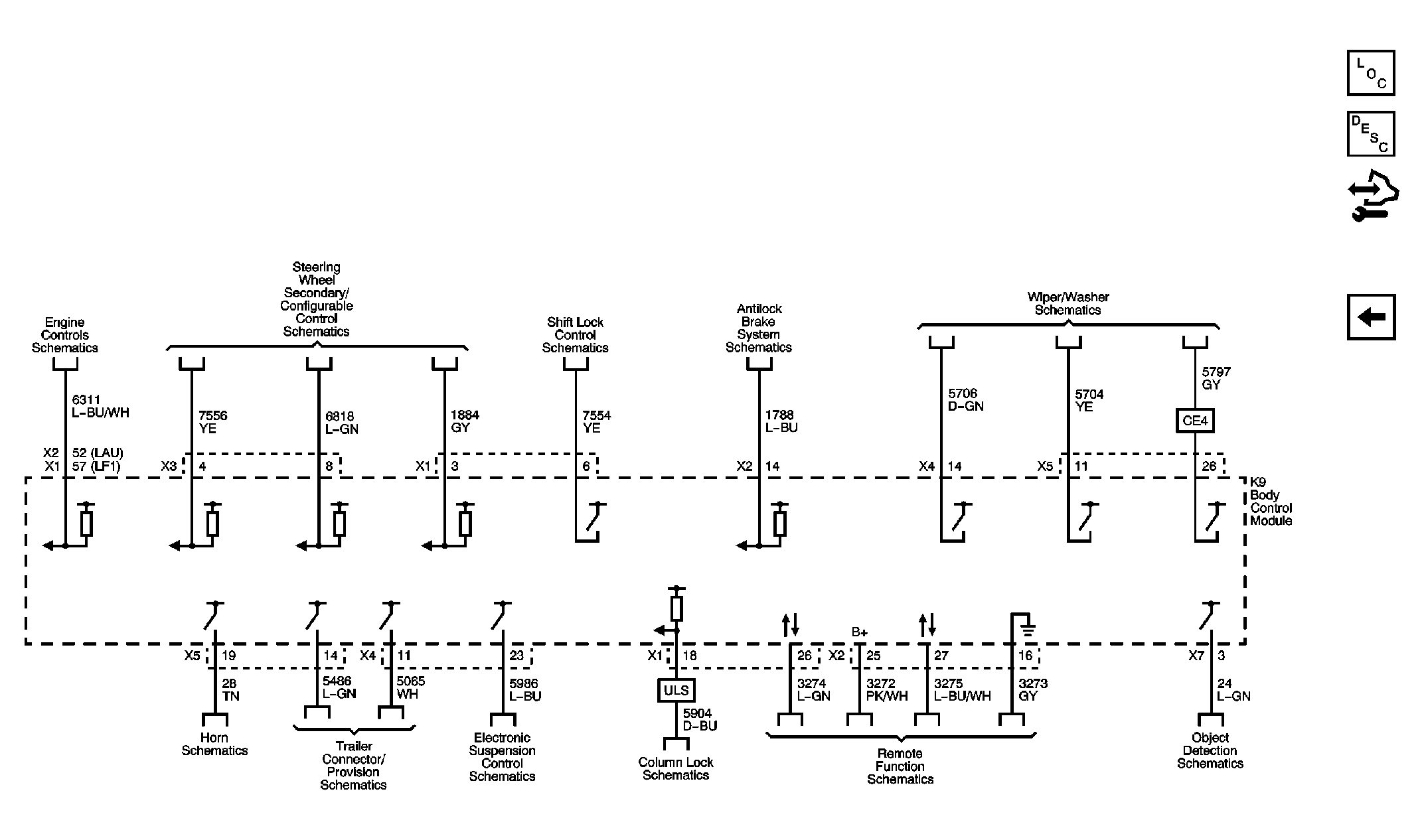

Fig 4: Subsystem References Circuit Schematic (3 Of 3)
GM2283787Courtesy of GENERAL MOTORS CORP.
