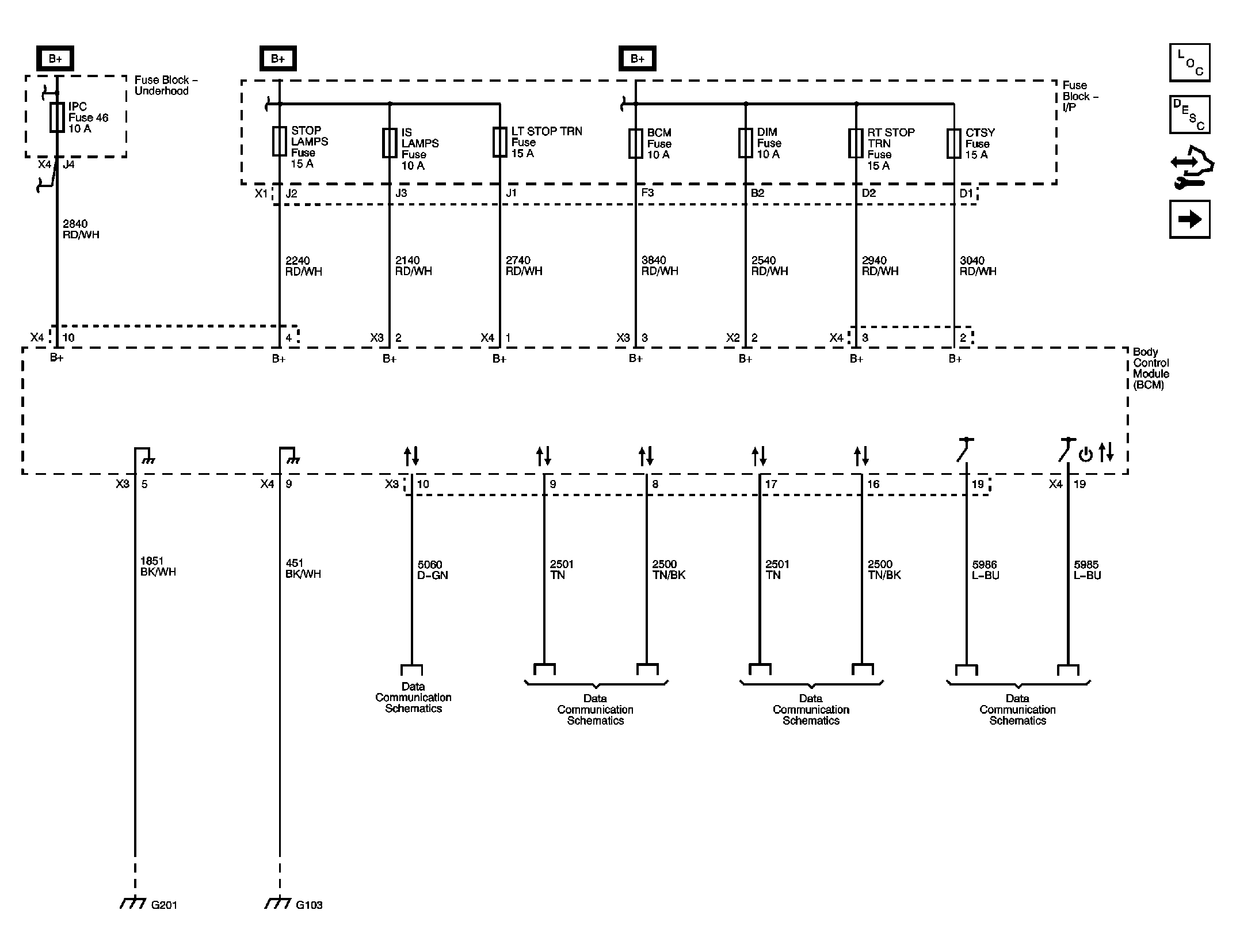

Home >> Cadillac >> 2011 >> Escalade Base, RWD >> Repair and Diagnosis >> Engine Performance >> System >> Data Communications System >> Wiring Schematics >> Body Control System Schematics >> Module Power, Ground, and Serial Data
