Power Moding and Interior Light References
Power Moding and Interior Light References

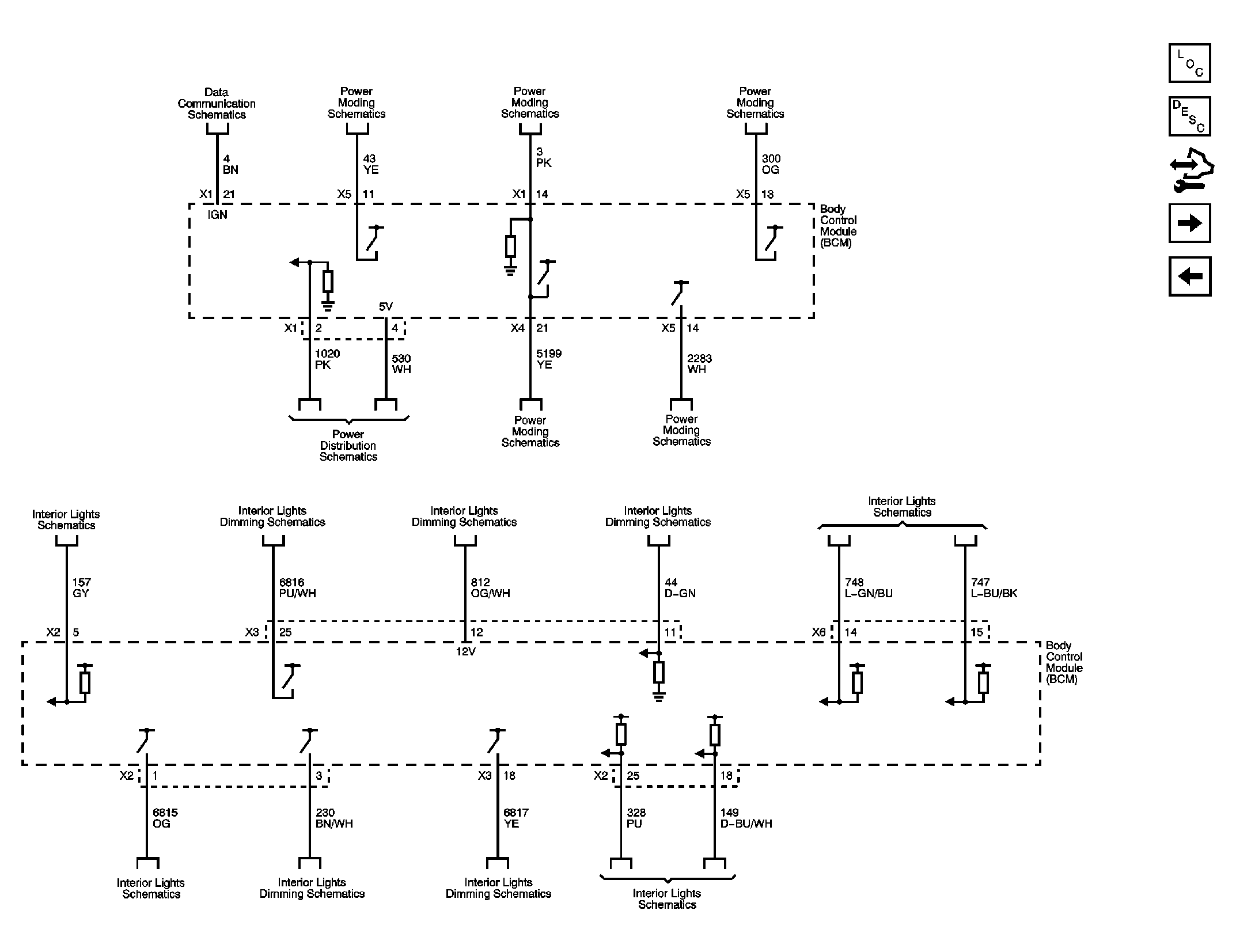

Fig 1: Power Moding and Interior Light References Wiring Schematic
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
