Linear Interconnect Network (LIN) Bus

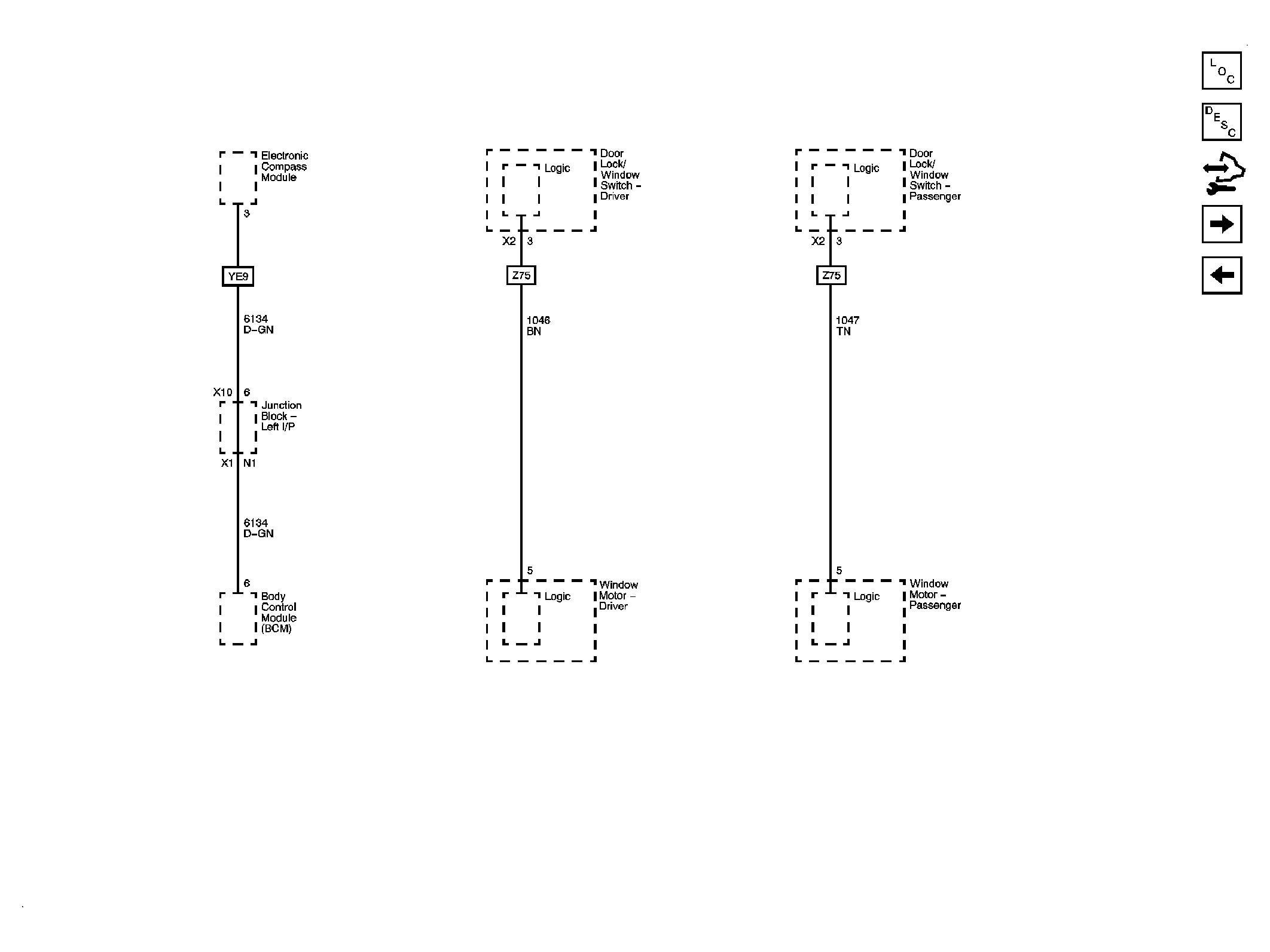

Fig 1: Linear Interconnect Network (LIN) Bus Wiring Schematic

GM2398338

Courtesy of GENERAL MOTORS CORP.
