Data Communication Wiring Schematics

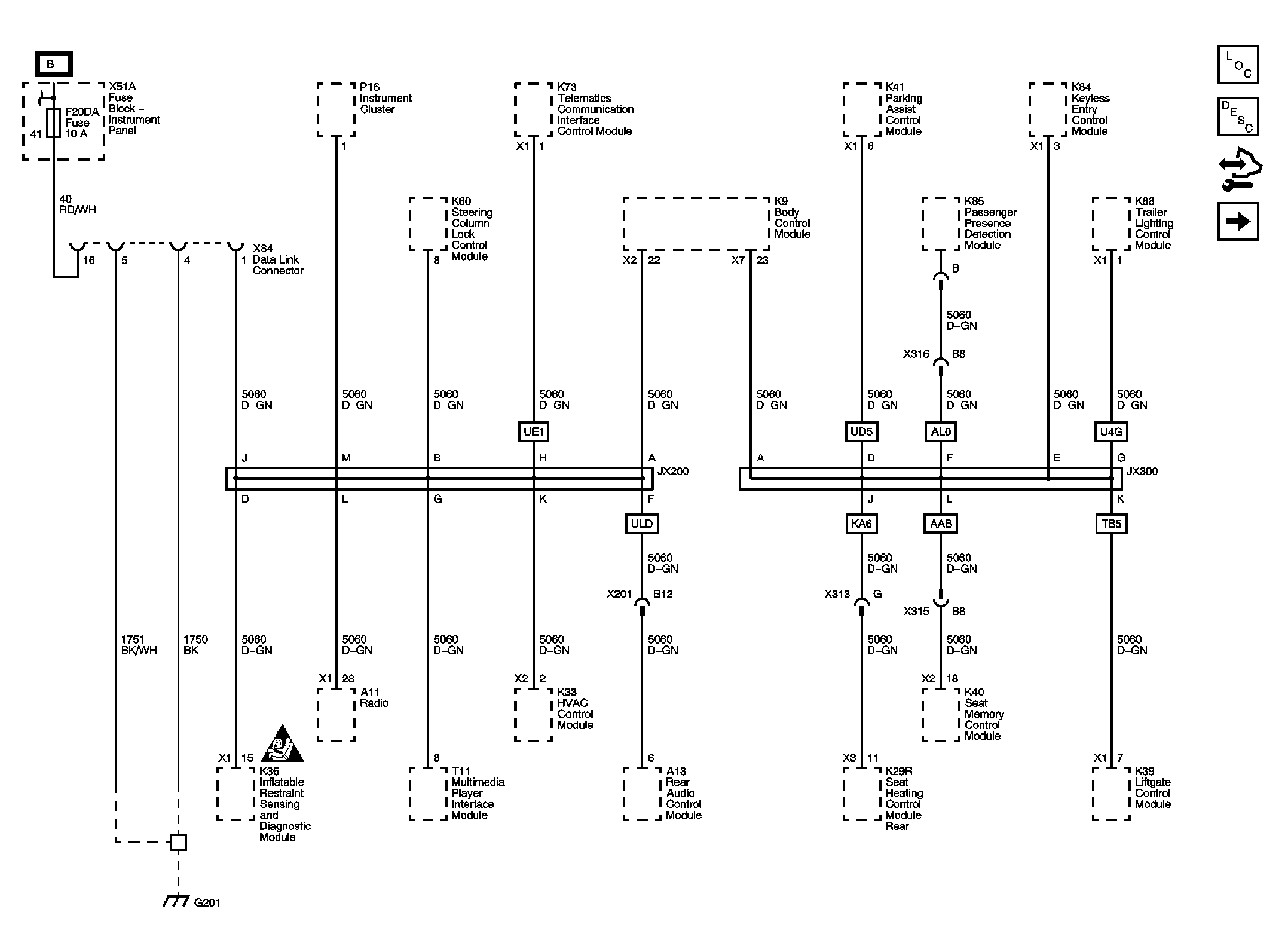

Fig 1: Low Speed GMLAN Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

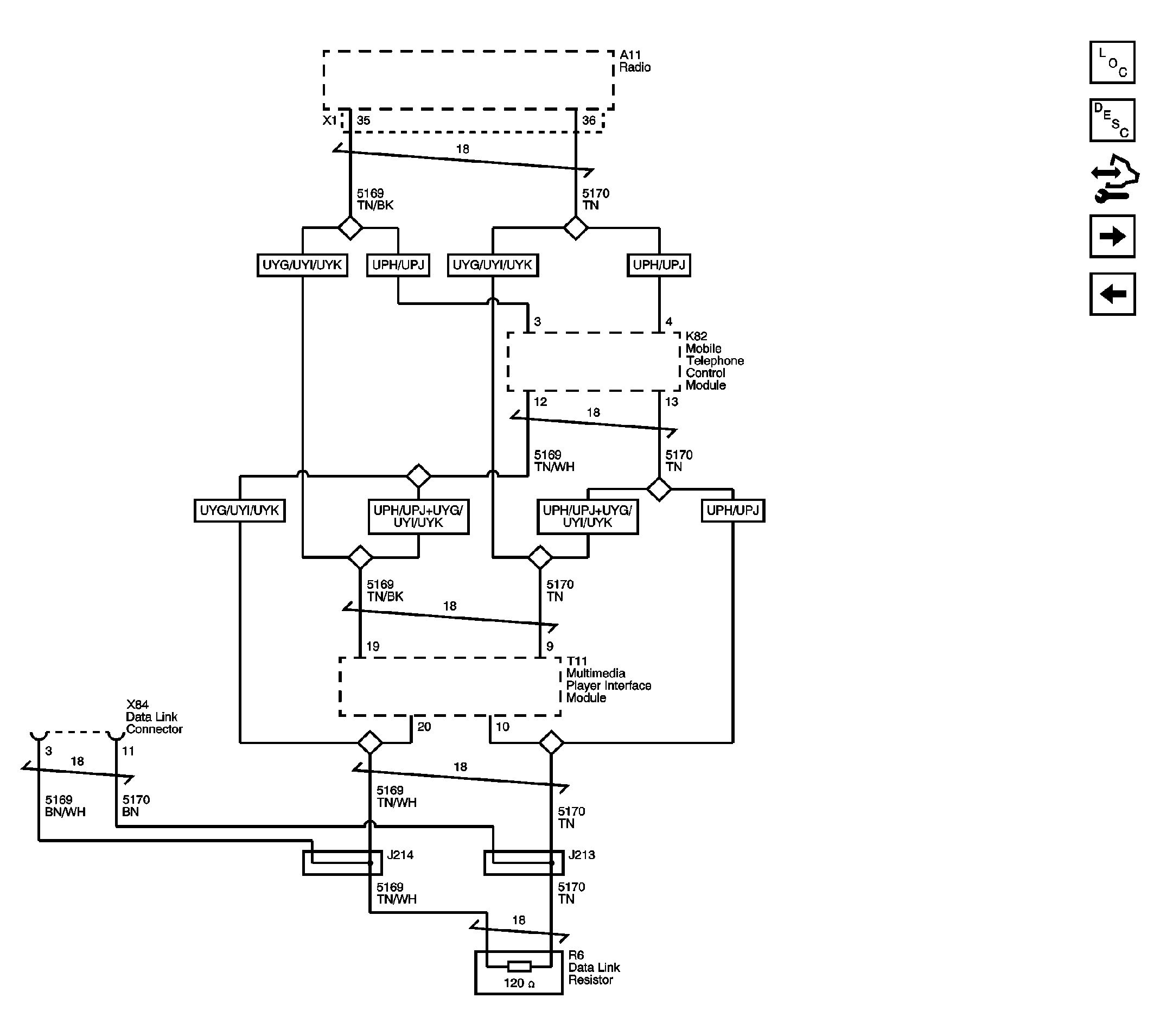

Fig 2: Mid Speed GMLAN Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

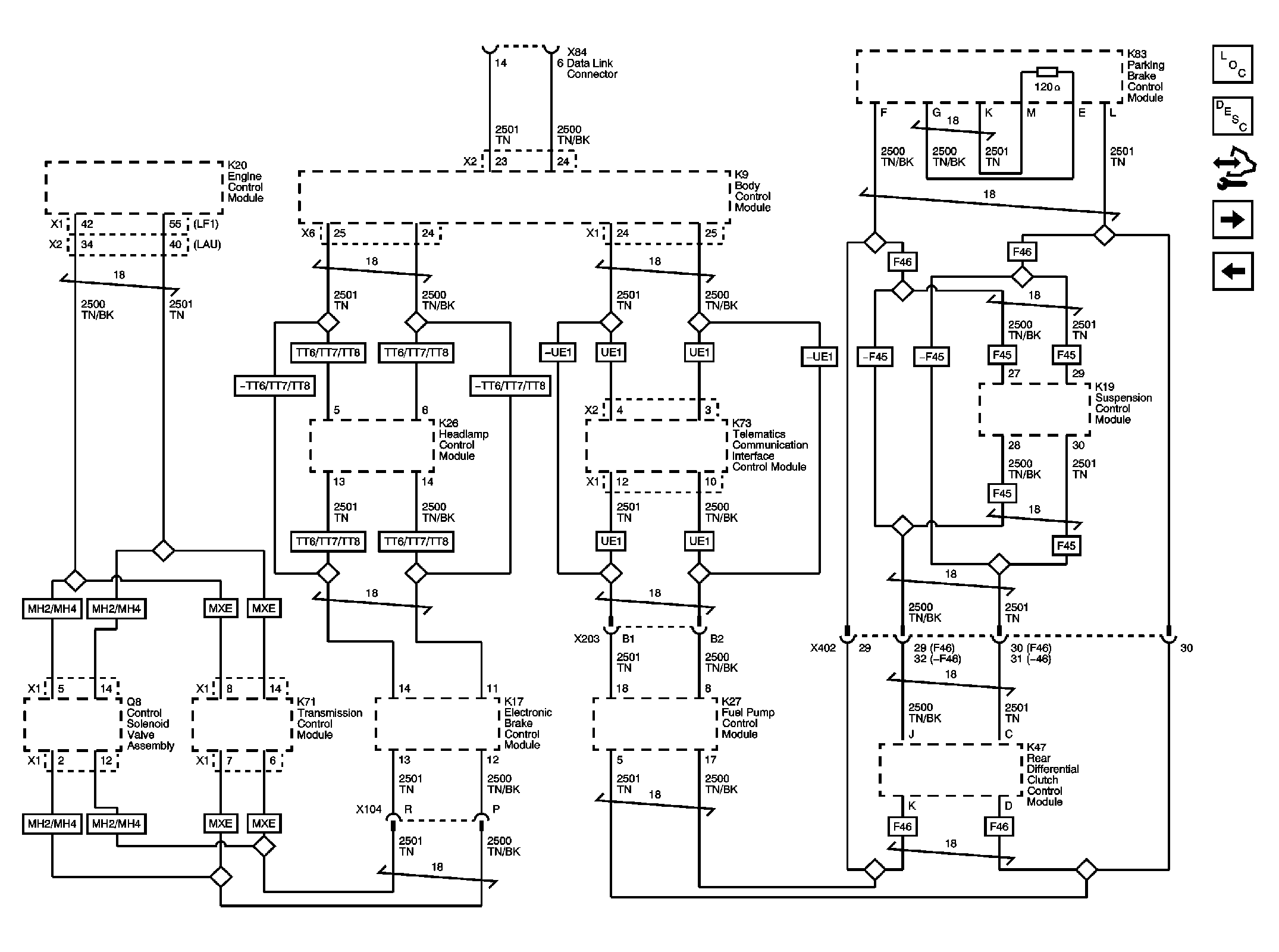

Fig 3: High Speed GMLAN Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 4: Local Interconnect Network Bus Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

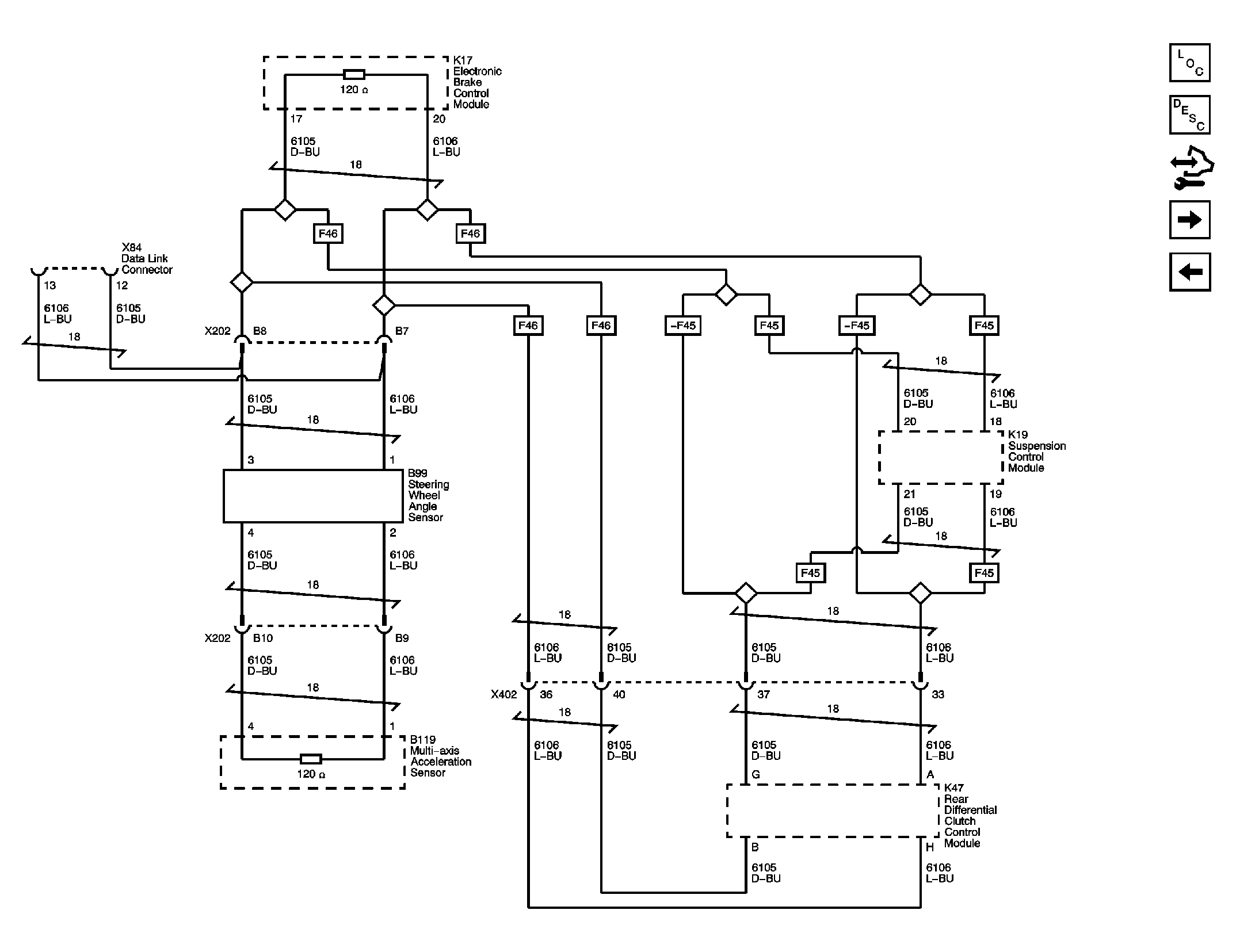

Fig 5: Chassis Expansion Bus Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

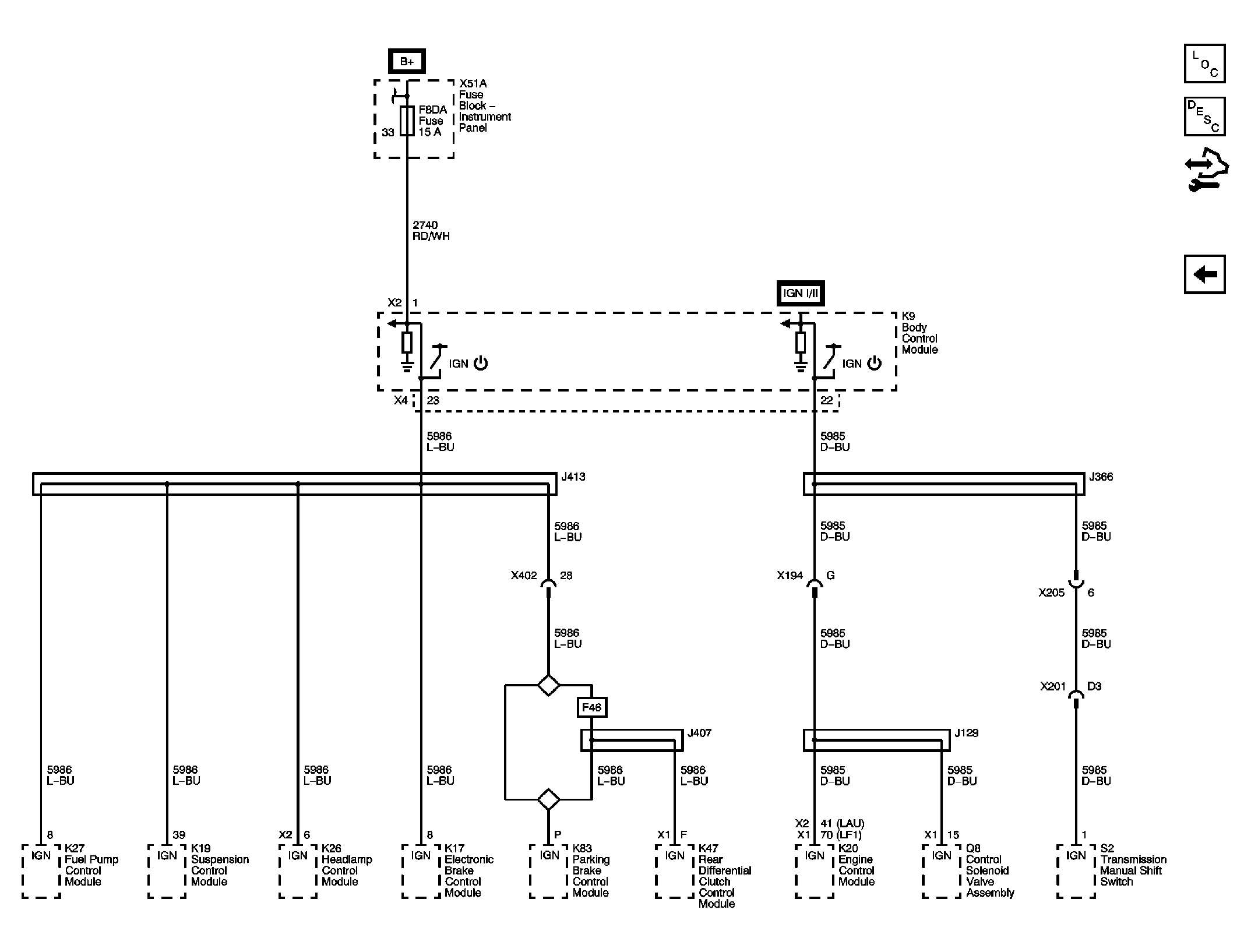

Fig 6: Communication & Enable Wake-up Circuits Wiring Schematic

Courtesy of GENERAL MOTORS CORP.
