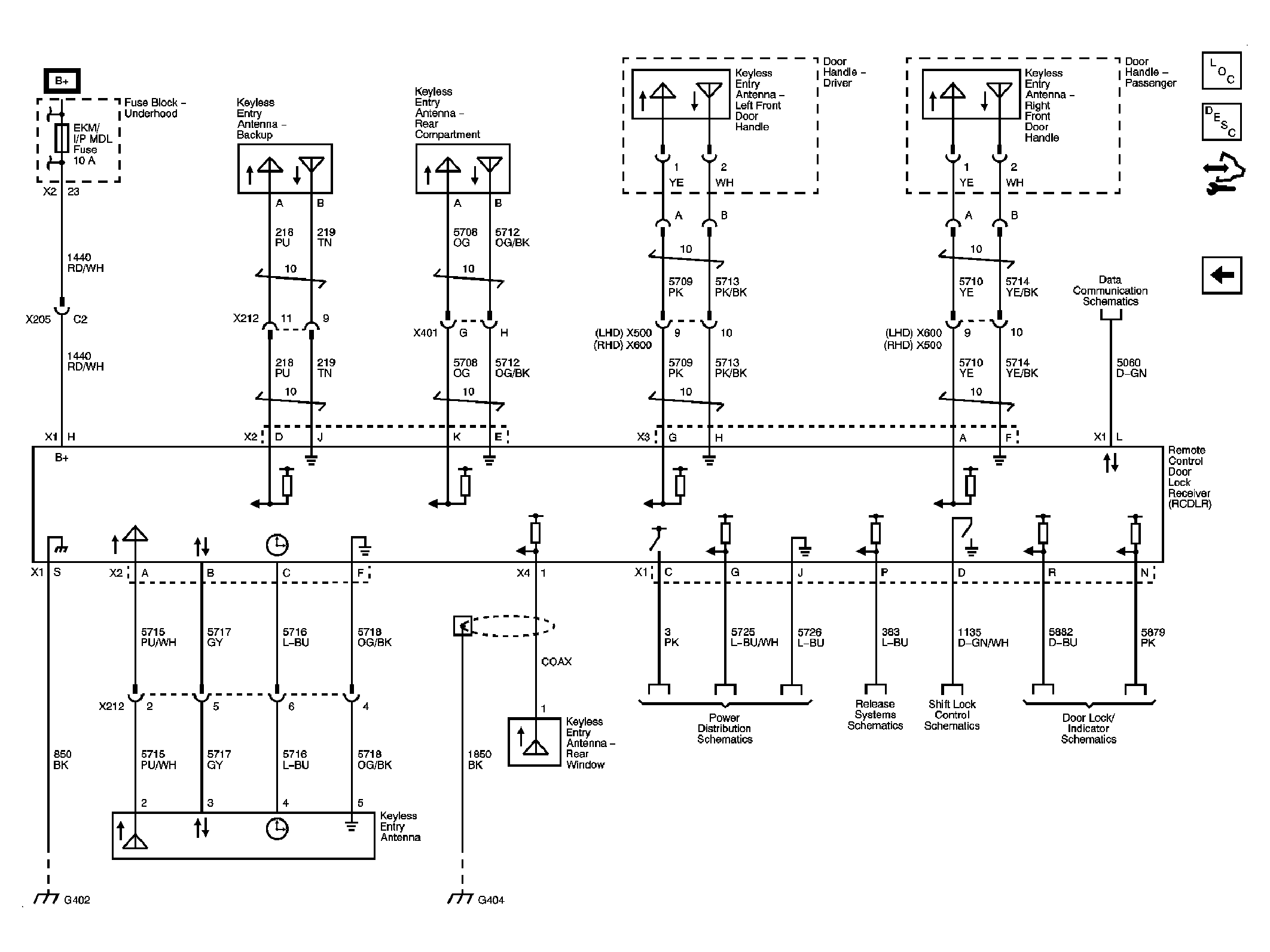

Home >> Cadillac >> 2011 >> STS AWD >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Keyless Entry System And Remote Functions >> Wiring Diagrams >> Remote Function Wiring Schematics >> Keyless Entry
