Installation Procedure

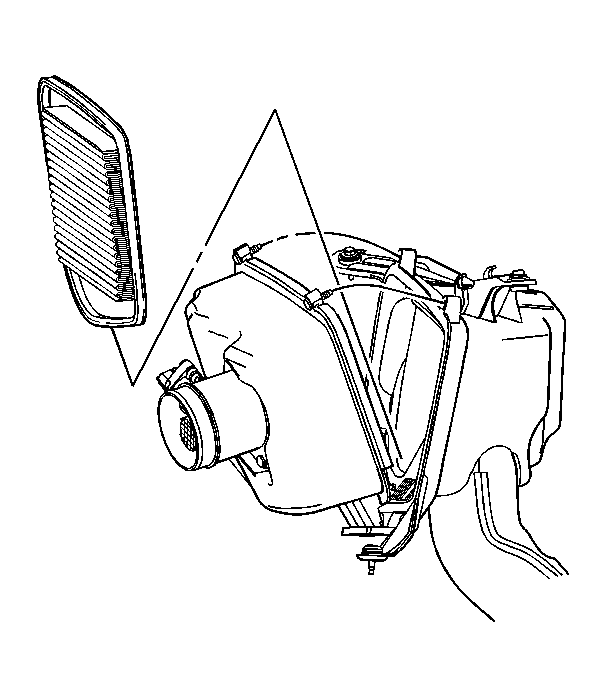

    Fig 1: View Of Air Cleaner Element
    GM1201265Courtesy of GENERAL MOTORS COMPANY
  1. Install the air cleaner element and close the air cleaner cover.
  2. Ensure the air cleaner assembly cover tabs are properly aligned to the air cleaner housing.
    3. CAUTION:

    Refer to Fastener Caution .

  3. Install the air cleaner cover screws and tighten to 8 N.m (71 lb in).
