Inside Rearview Mirror Replacement

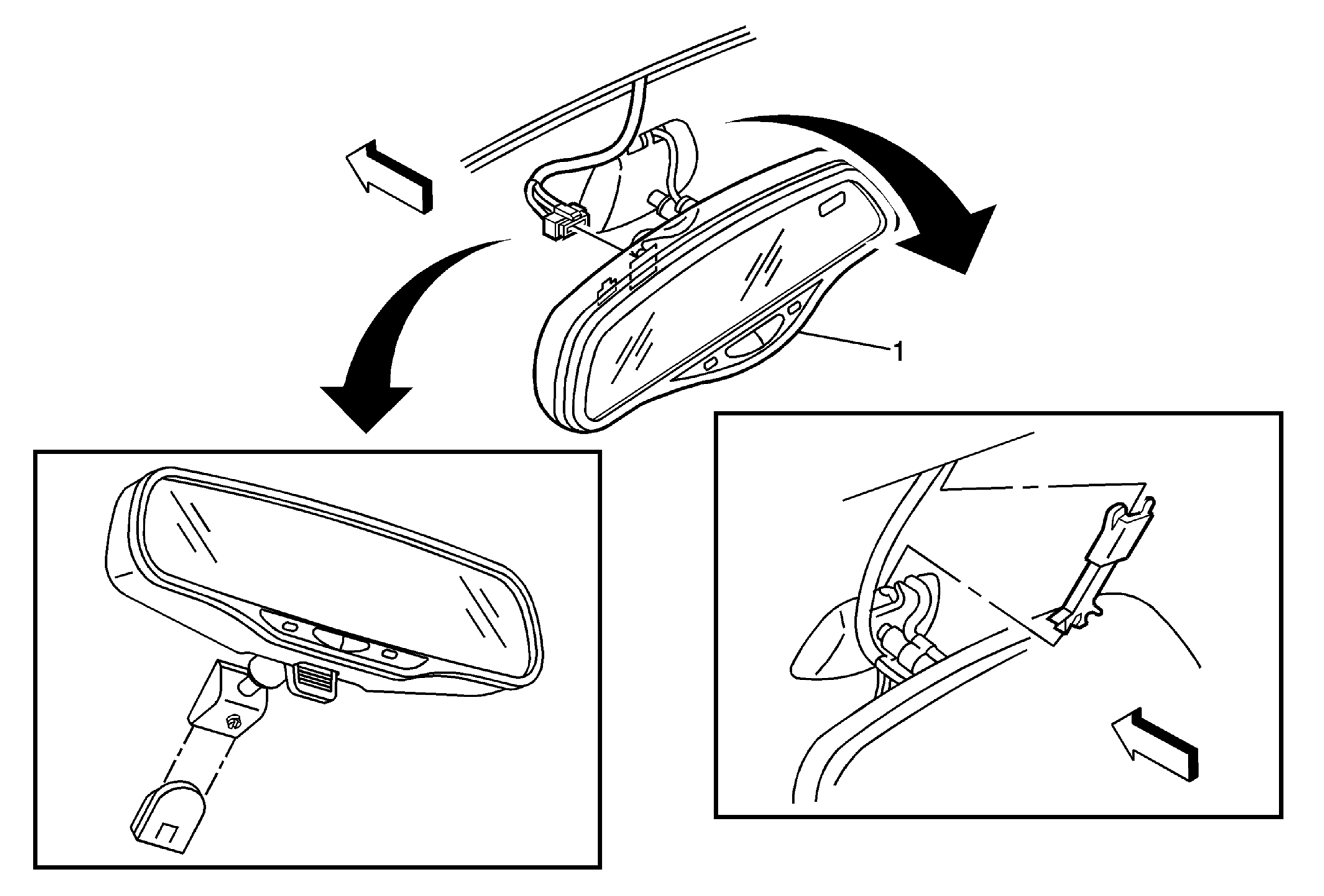

Fig 1: Identifying Inside Rearview Mirror

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Inside Rearview Mirror CAUTION: Refer to Fastener Caution . Procedure Remove the inside rearview mirror cover, if equipped. Disconnect the electrical connector, if equipped. Adjust the mirror to the full upward position. Loosen the set screw located at the base of the mirror. Slide the mirror upward off of the rearview mirror button. Refer to Control Module References for programming and setup information. Tighten 1.8 N.m (16 lb in)

Callout

Component Name

Inside Rearview Mirror

CAUTION:

Procedure

Tighten
1.8 N.m (16 lb in)
