GMLAN (Can)

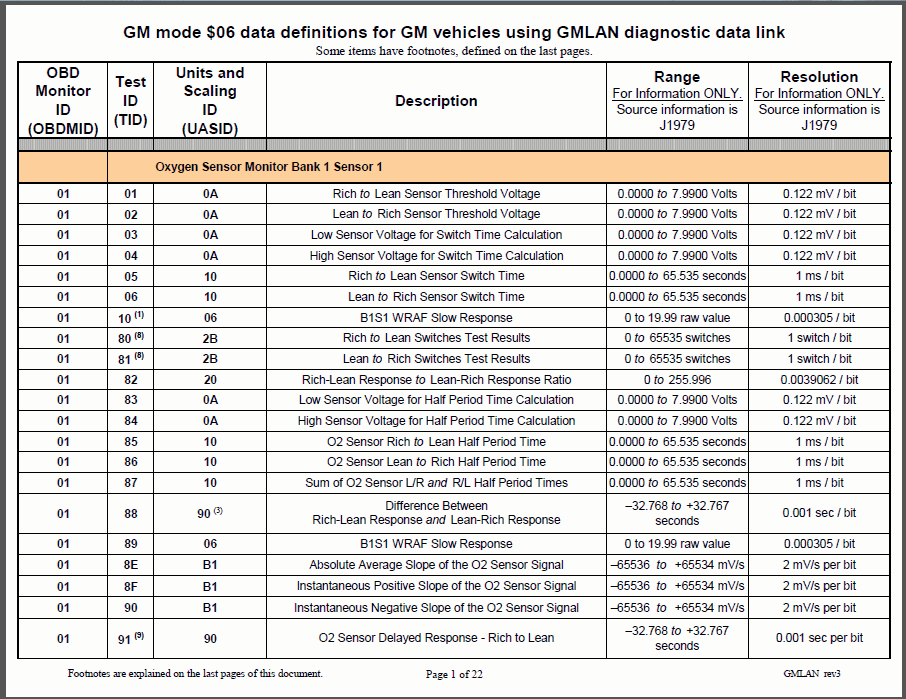

Fig 1: Mode $06 Data Definitions Using GMLAN Diagnostic Data Link (1 Of 18)

G00517101

Courtesy of GENERAL MOTORS CORP.

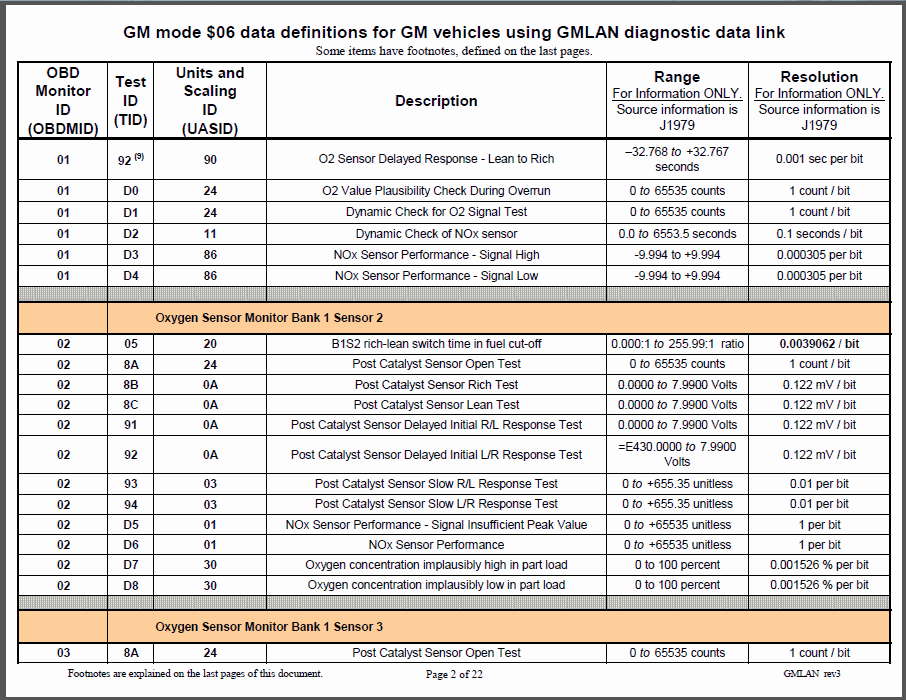

Fig 2: Mode $06 Data Definitions Using GMLAN Diagnostic Data Link (2 Of 18)

G00517102

Courtesy of GENERAL MOTORS CORP.

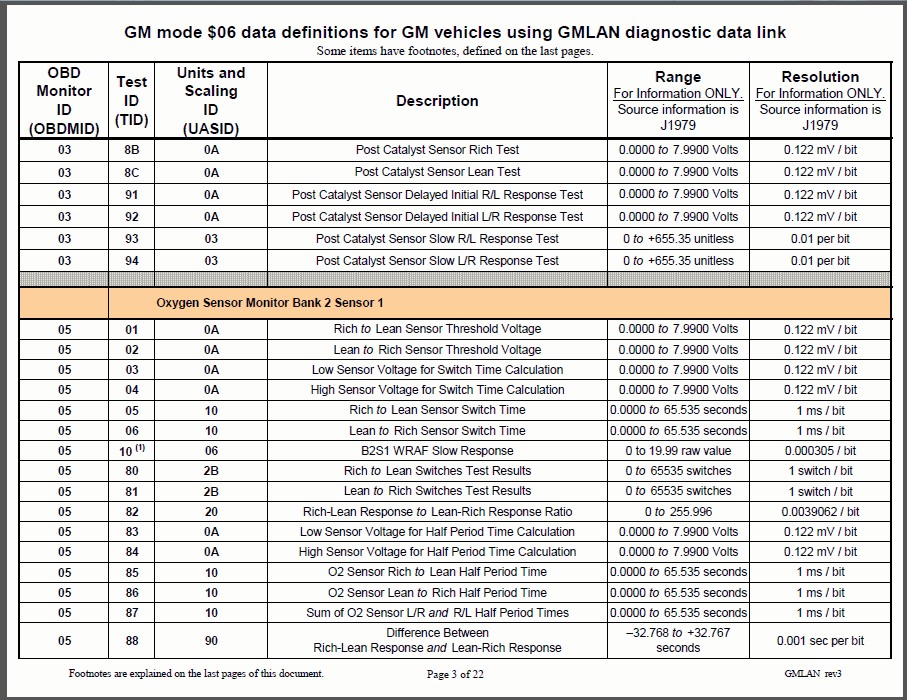

Fig 3: Mode $06 Data Definitions Using GMLAN Diagnostic Data Link (3 Of 18)

G00517103

Courtesy of GENERAL MOTORS CORP.

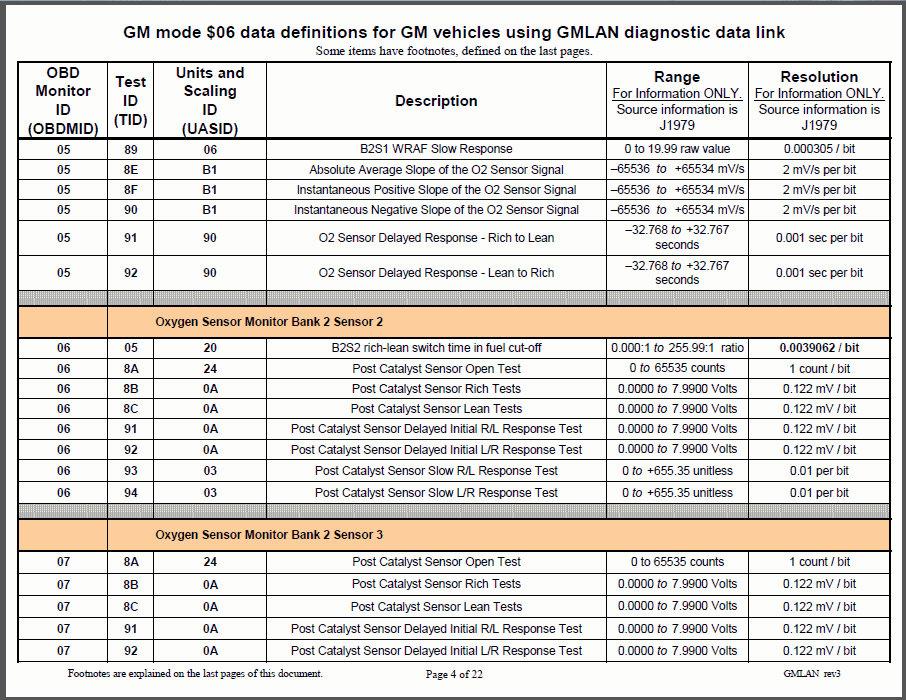

Fig 4: Mode $06 Data Definitions Using GMLAN Diagnostic Data Link (4 Of 18)

G00517104

Courtesy of GENERAL MOTORS CORP.

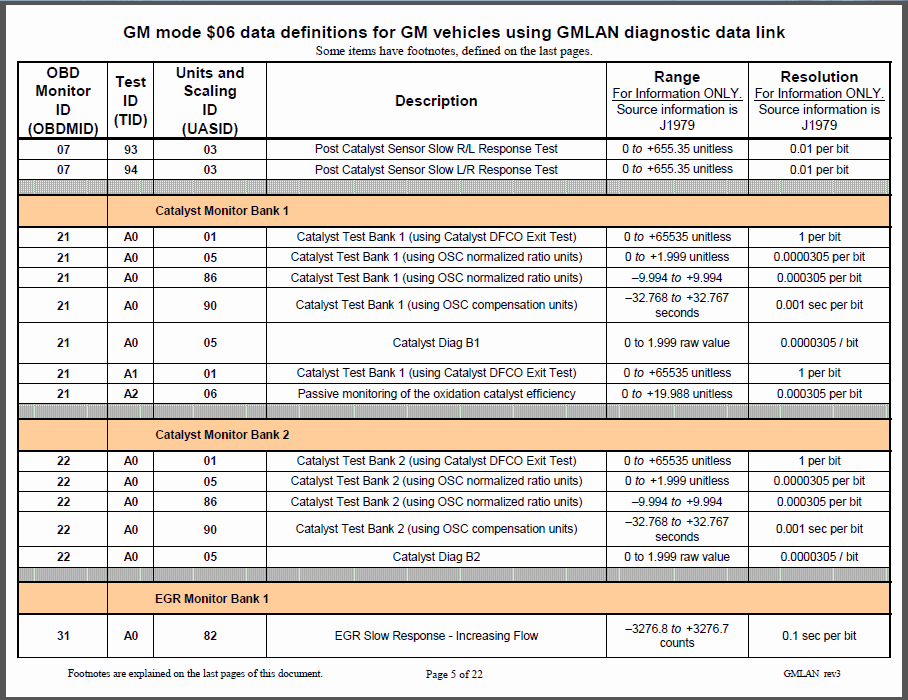

Fig 5: Mode $06 Data Definitions Using GMLAN Diagnostic Data Link (5 Of 18)

G00517105

Courtesy of GENERAL MOTORS CORP.

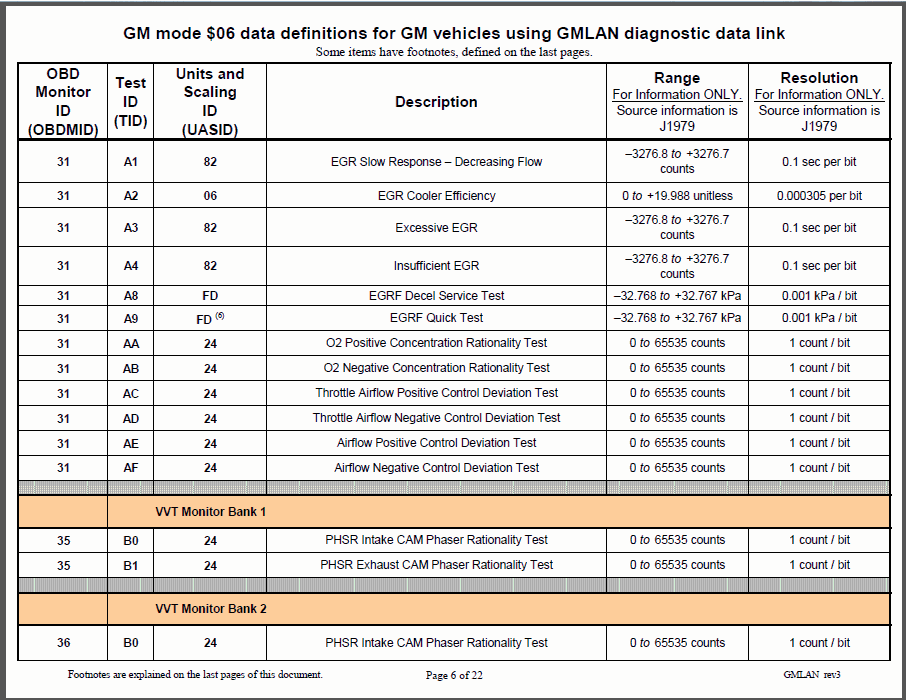

Fig 6: Mode $06 Data Definitions Using GMLAN Diagnostic Data Link (6 Of 18)

G00517106

Courtesy of GENERAL MOTORS CORP.

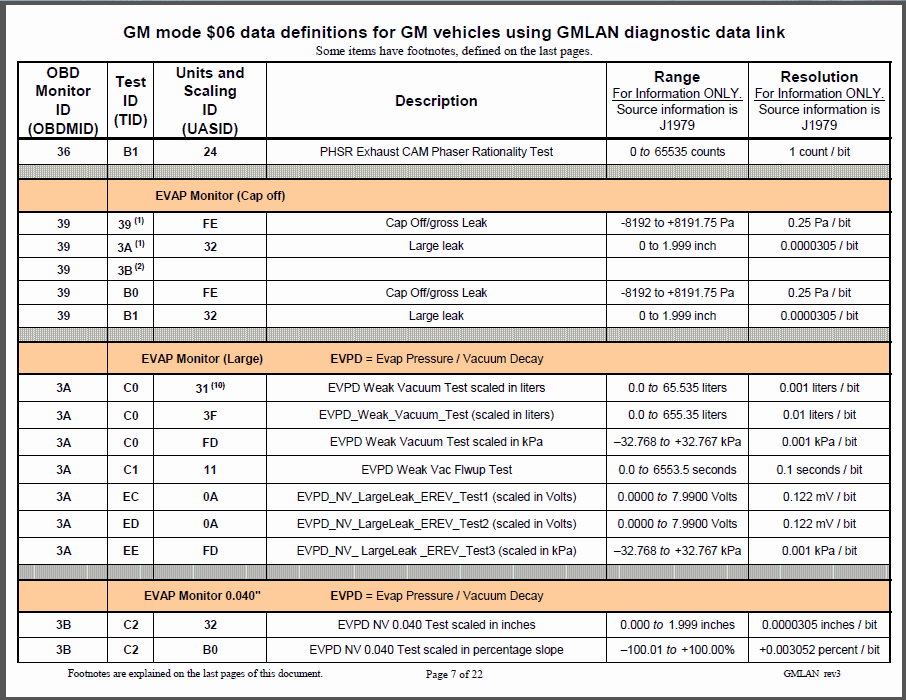

Fig 7: Mode $06 Data Definitions Using GMLAN Diagnostic Data Link (7 Of 18)

G00517107

Courtesy of GENERAL MOTORS CORP.

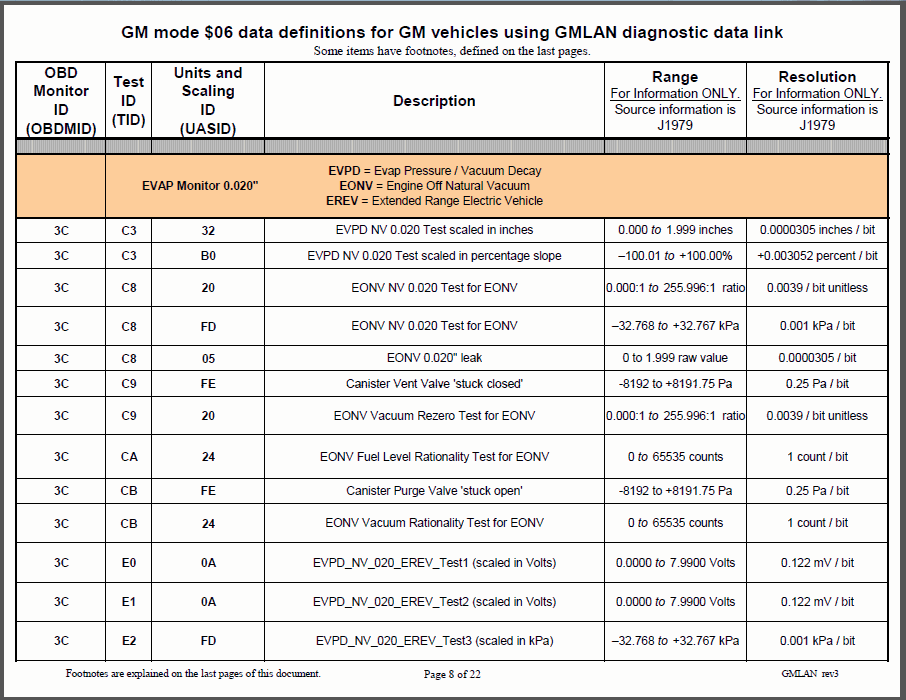

Fig 8: Mode $06 Data Definitions Using GMLAN Diagnostic Data Link (8 Of 18)

G00517108

Courtesy of GENERAL MOTORS CORP.

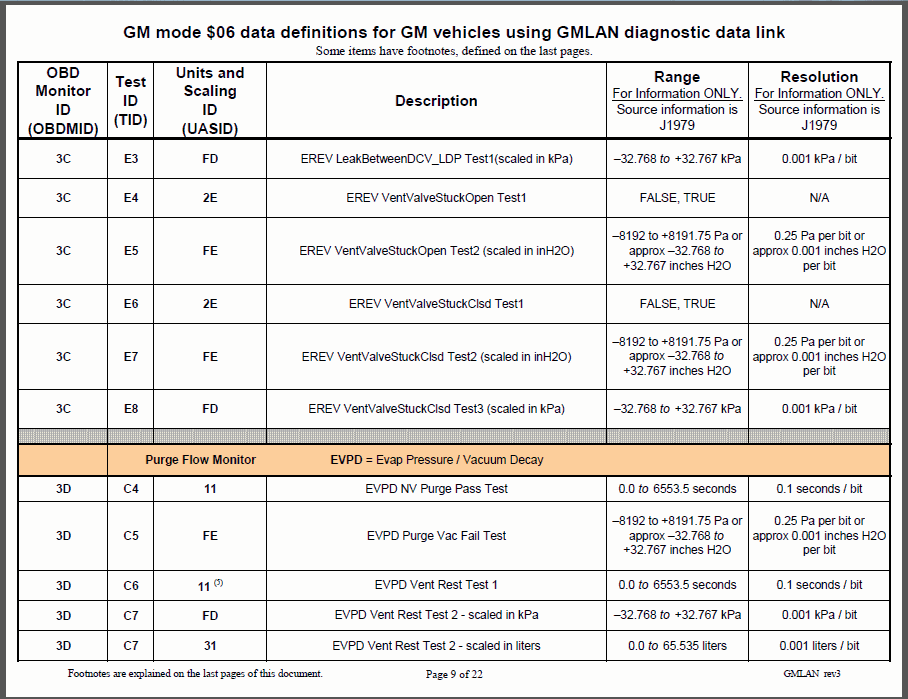

Fig 9: Mode $06 Data Definitions Using GMLAN Diagnostic Data Link (9 Of 18)

G00517109

Courtesy of GENERAL MOTORS CORP.

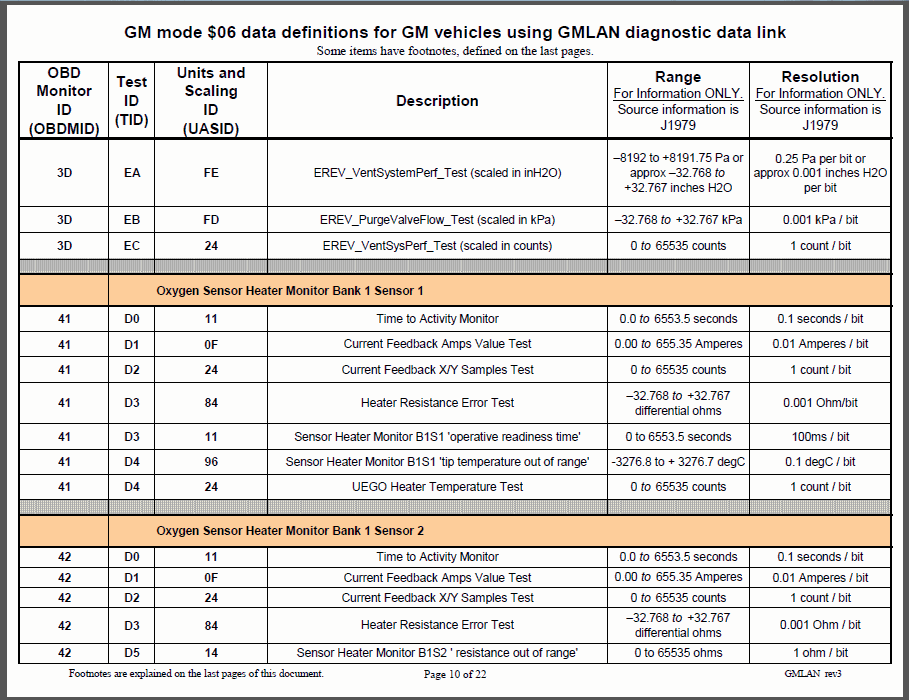

Fig 10: Mode $06 Data Definitions Using GMLAN Diagnostic Data Link (10 Of 18)

G00517110

Courtesy of GENERAL MOTORS CORP.

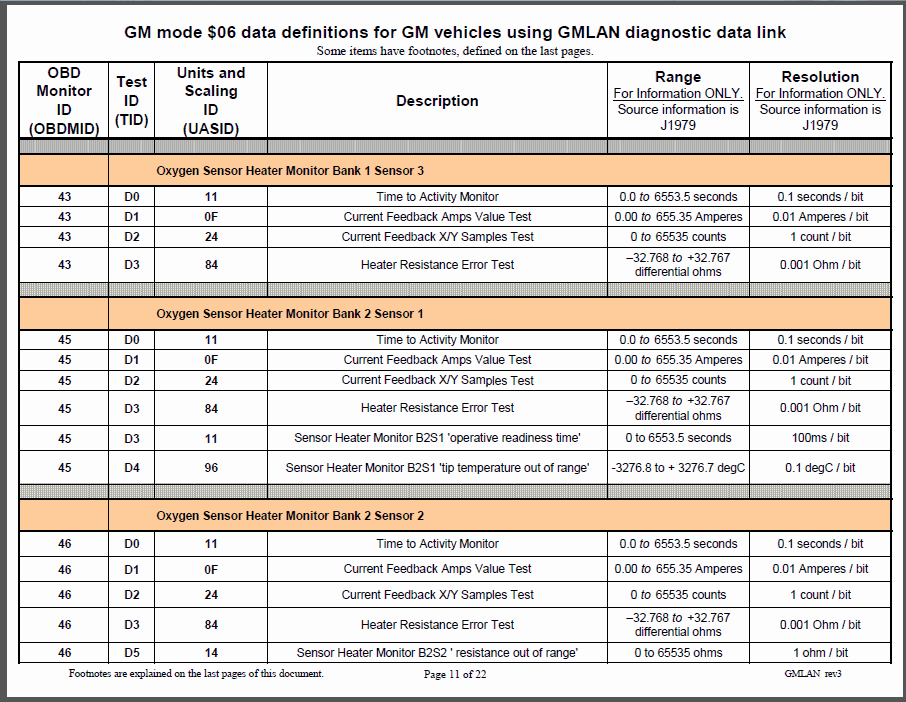

Fig 11: Mode $06 Data Definitions Using GMLAN Diagnostic Data Link (11 Of 18)

G00517111

Courtesy of GENERAL MOTORS CORP.

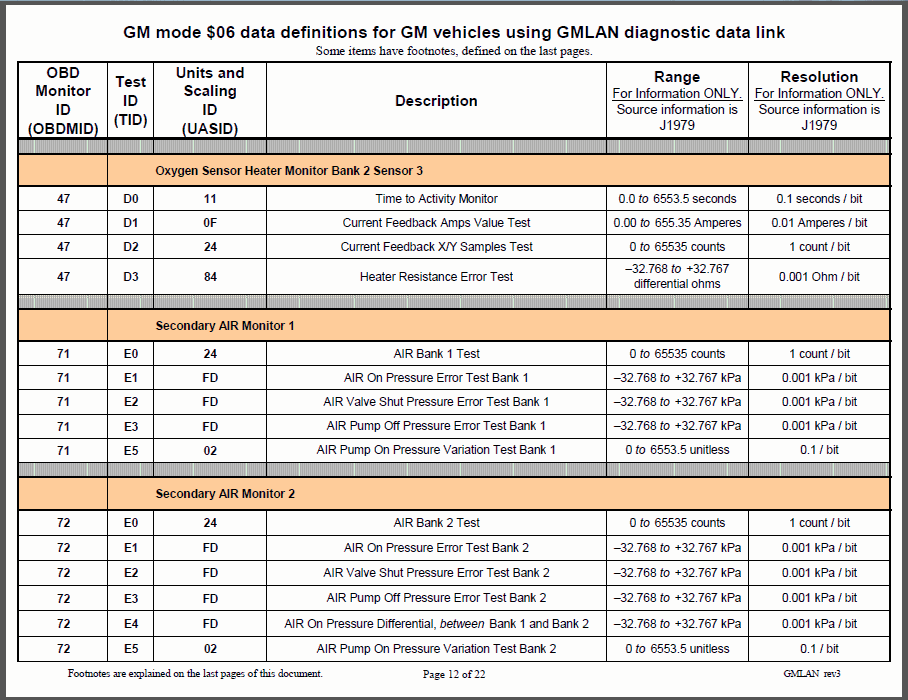

Fig 12: Mode $06 Data Definitions Using GMLAN Diagnostic Data Link (12 Of 18)

G00517112

Courtesy of GENERAL MOTORS CORP.

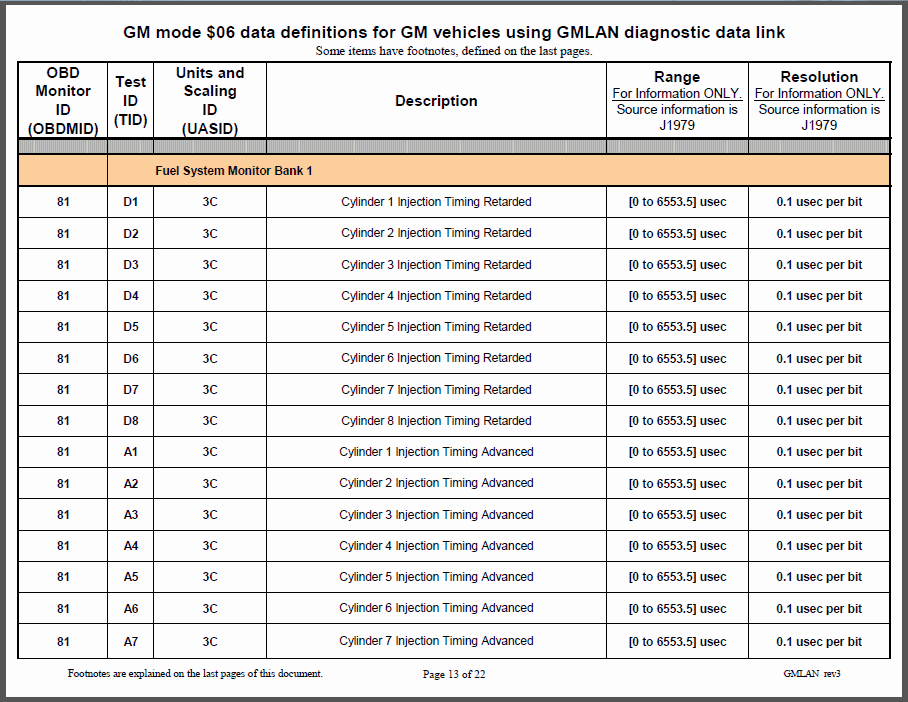

Fig 13: Mode $06 Data Definitions Using GMLAN Diagnostic Data Link (13 Of 18)

G00517113

Courtesy of GENERAL MOTORS CORP.

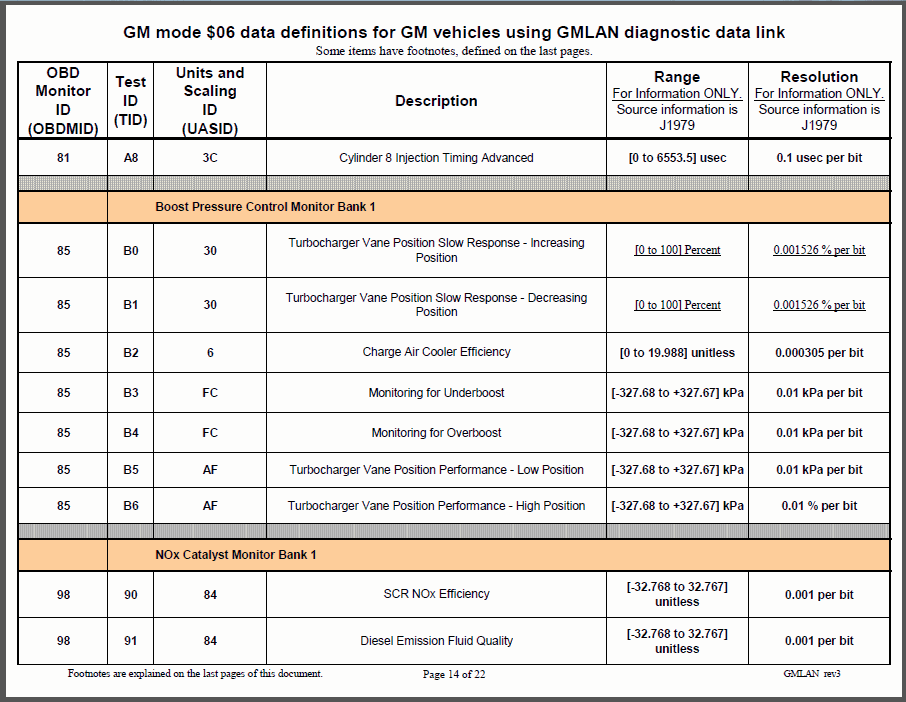

Fig 14: Mode $06 Data Definitions Using GMLAN Diagnostic Data Link (14 Of 18)

G00517114

Courtesy of GENERAL MOTORS CORP.

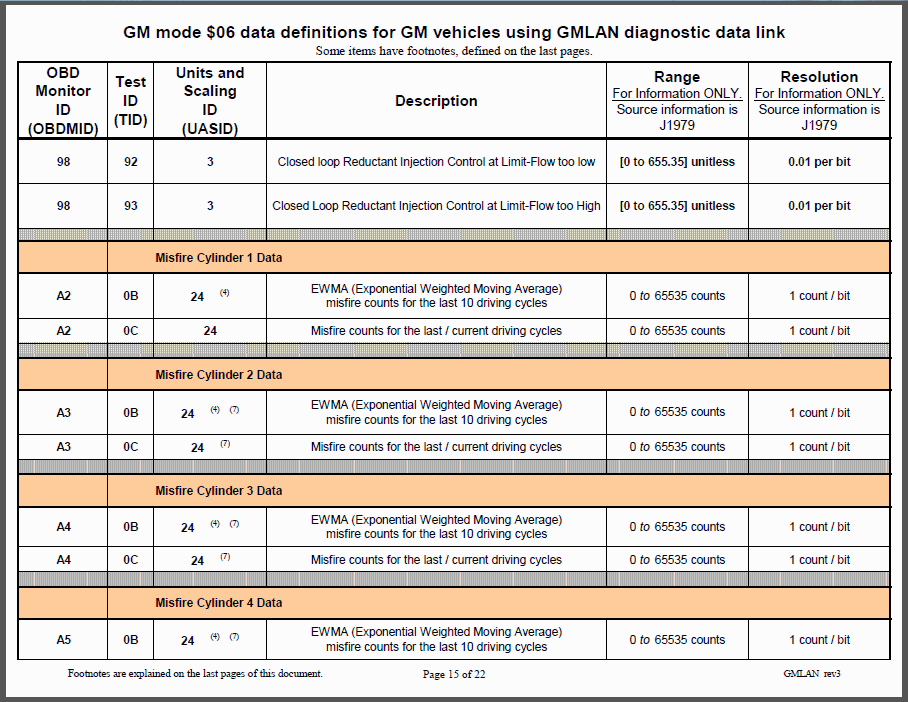

Fig 15: Mode $06 Data Definitions Using GMLAN Diagnostic Data Link (15 Of 18)

G00517115

Courtesy of GENERAL MOTORS CORP.

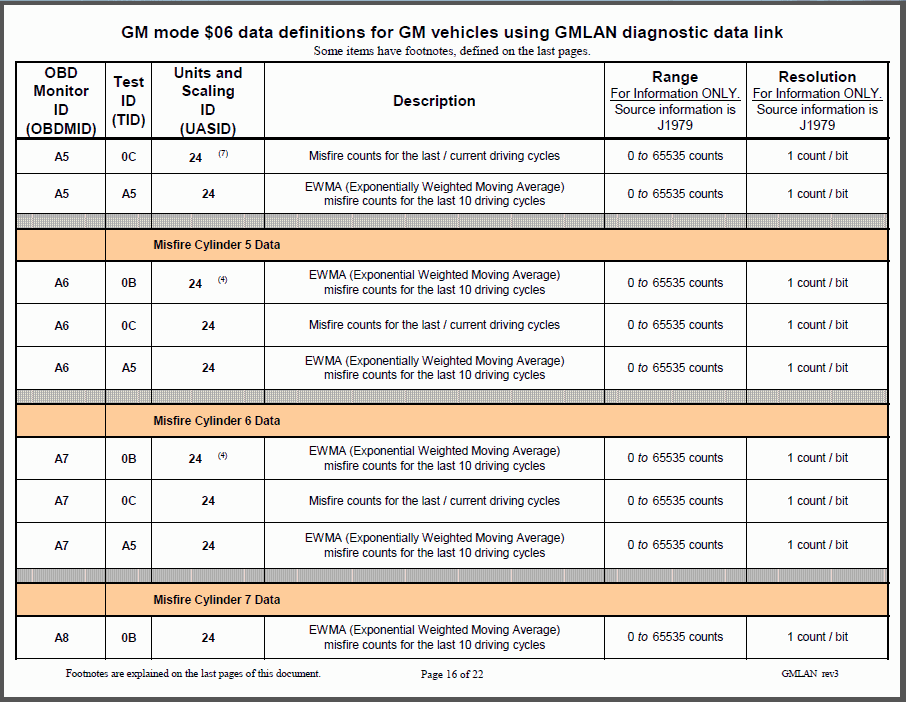

Fig 16: Mode $06 Data Definitions Using GMLAN Diagnostic Data Link (16 Of 18)

G00517116

Courtesy of GENERAL MOTORS CORP.

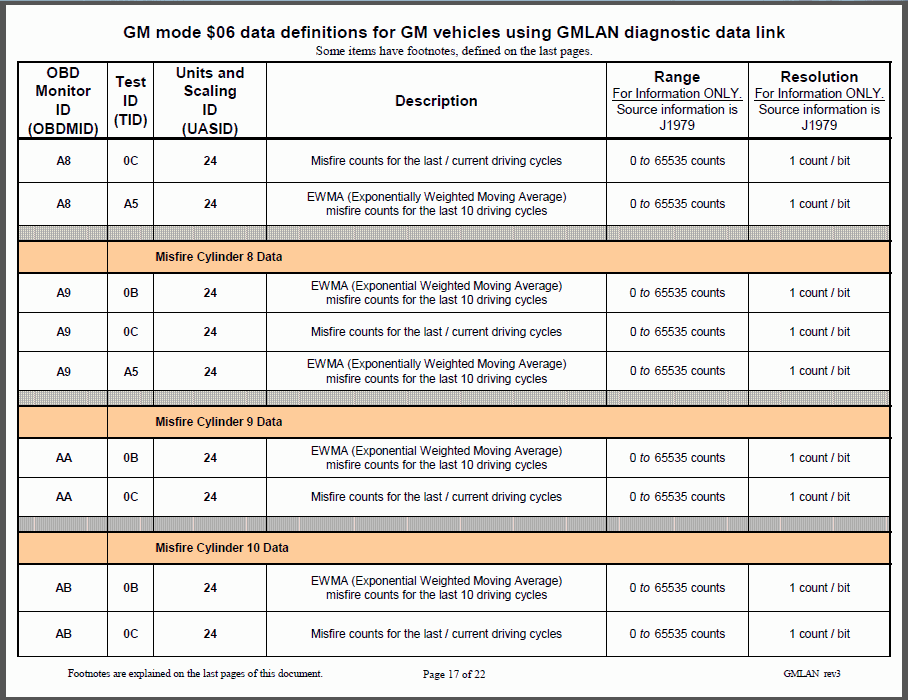

Fig 17: Mode $06 Data Definitions Using GMLAN Diagnostic Data Link (17 Of 18)

G00517117

Courtesy of GENERAL MOTORS CORP.

Fig 18: Mode $06 Data Definitions Using GMLAN Diagnostic Data Link (18 Of 18)

G00517118

Courtesy of GENERAL MOTORS CORP.

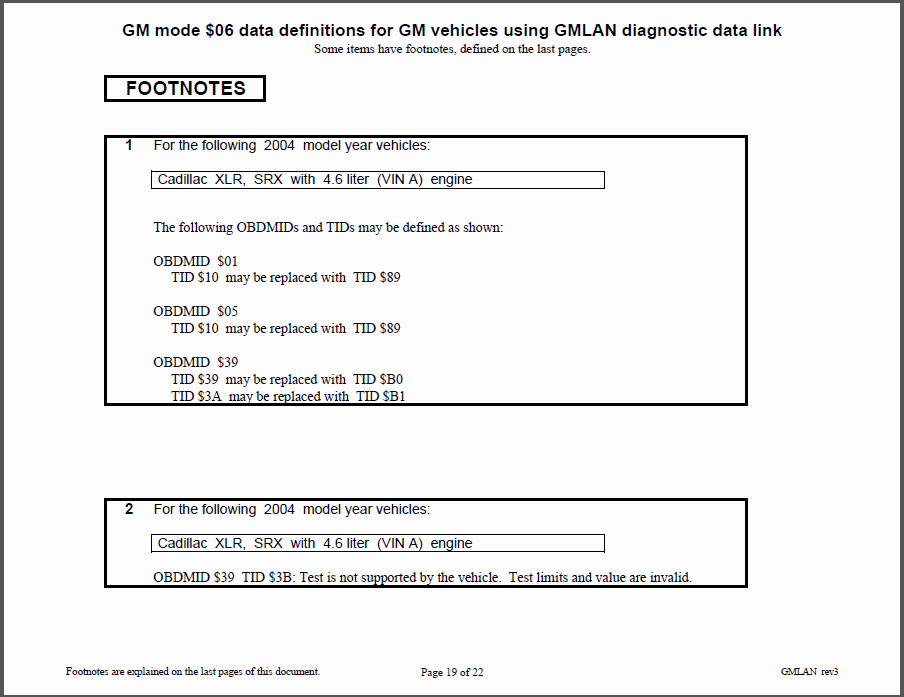

Fig 19: GMLAN Footnotes 1 & 2

G00517119

Courtesy of GENERAL MOTORS CORP.

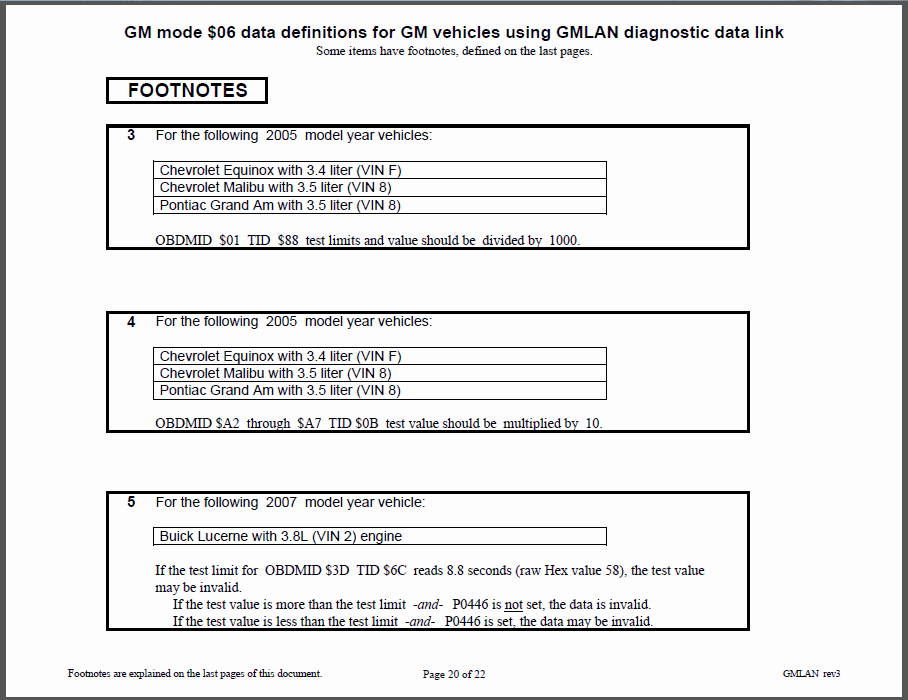

Fig 20: GMLAN Footnotes 3-5

G00517120

Courtesy of GENERAL MOTORS CORP.

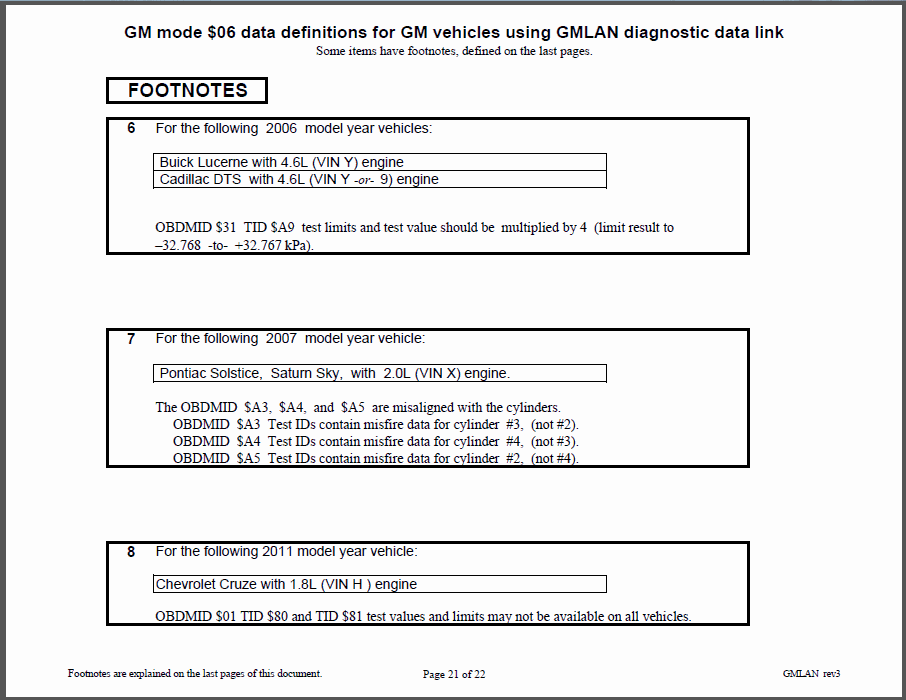

Fig 21: GMLAN Footnotes 6-8

G00517121

Courtesy of GENERAL MOTORS CORP.

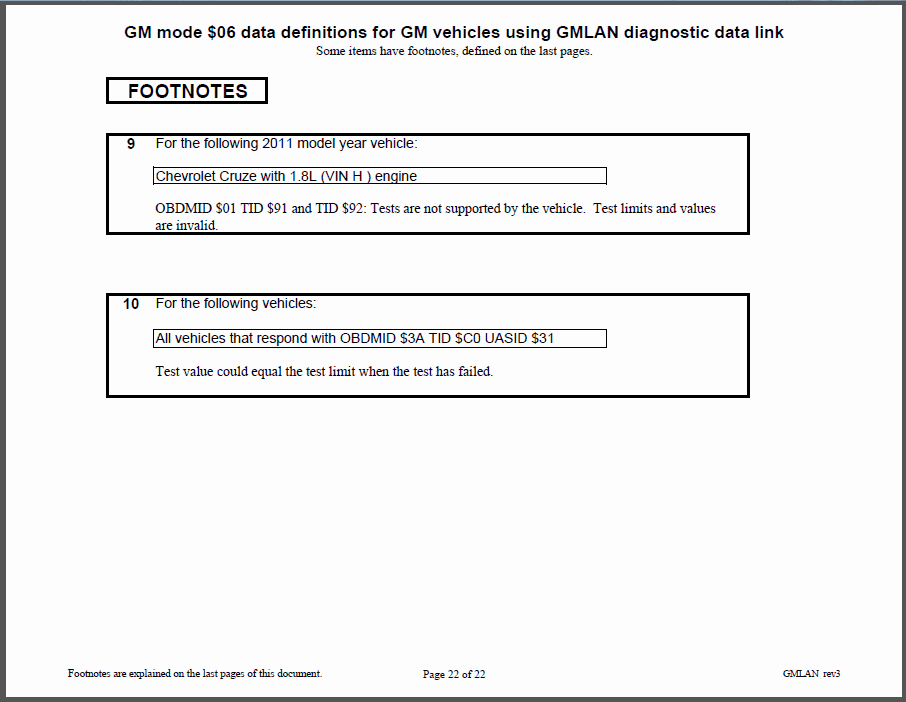

Fig 22: GMLAN Footnotes 9 & 10

G00517122

Courtesy of GENERAL MOTORS CORP.
