Inflatable Restraint Instrument Panel Module Indicator Replacement

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

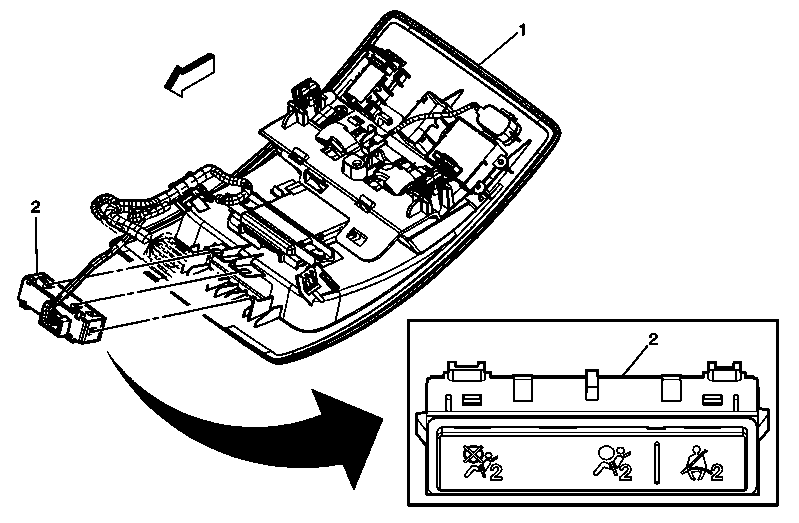

Fig 1: Inflatable Restraint Instrument Panel Module Indicator

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Overhead Console Assembly Refer to Roof Console Replacement .
2	Inflatable Restraint Instrument Panel Module indicator Assembly Disconnect electrical connector. Tabs on overhead console must be fully engaged with snap tab ramps on display to be fully secured.
