Air Cleaner Element Replacement

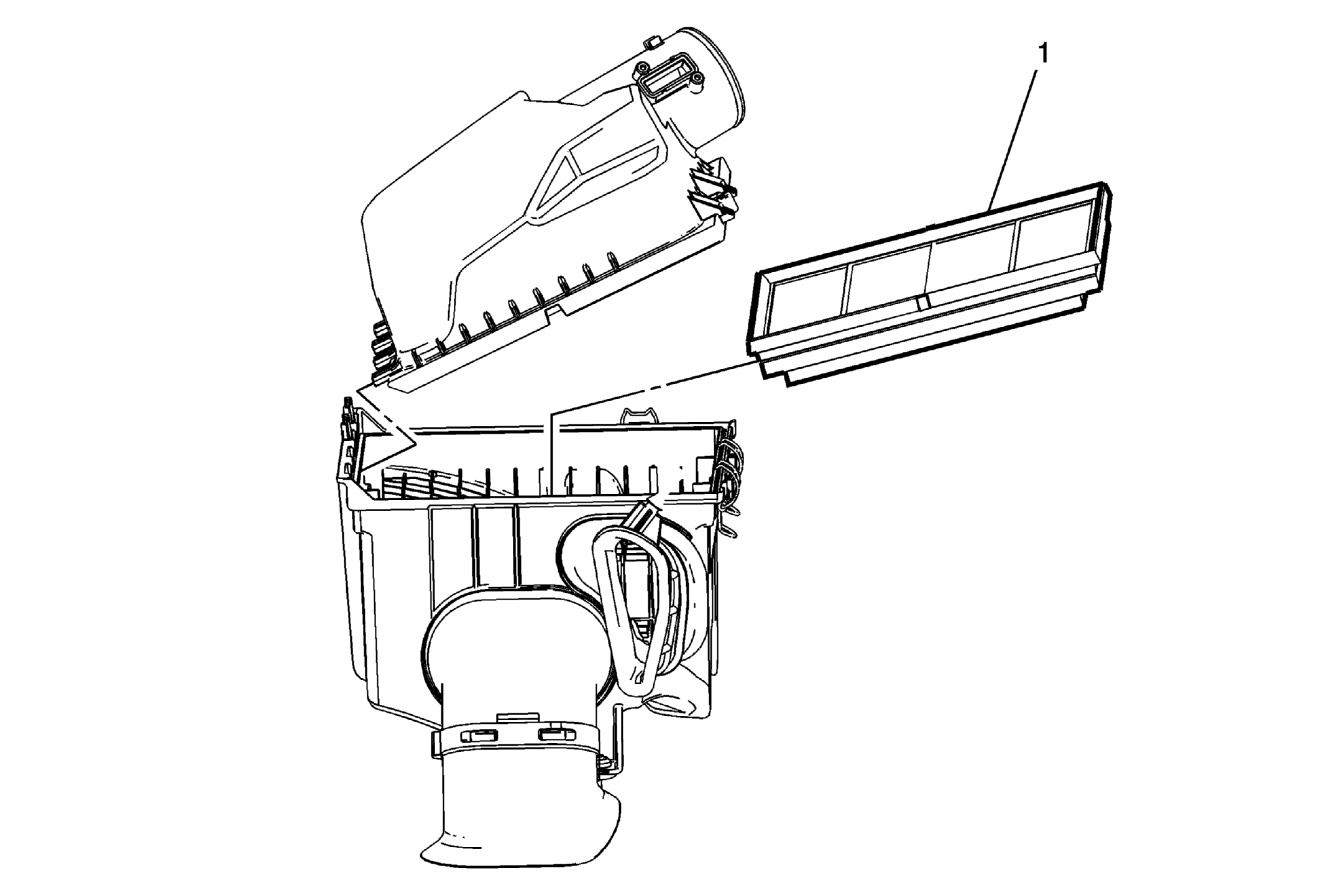

Fig 1: Air Cleaner Element

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Disconnect the air cleaner outlet duct from the air cleaner. Refer to Air Cleaner Outlet Duct Replacement .
1	Air Cleaner Element Procedure Disconnect the mass airflow sensor electrical connector. Release the air cleaner retaining clips.

Callout

Component Name

Preliminary Procedure
Disconnect the air cleaner outlet duct from the air cleaner. Refer to Air Cleaner Outlet Duct Replacement .

Air Cleaner Element

Procedure
