Installation Procedure

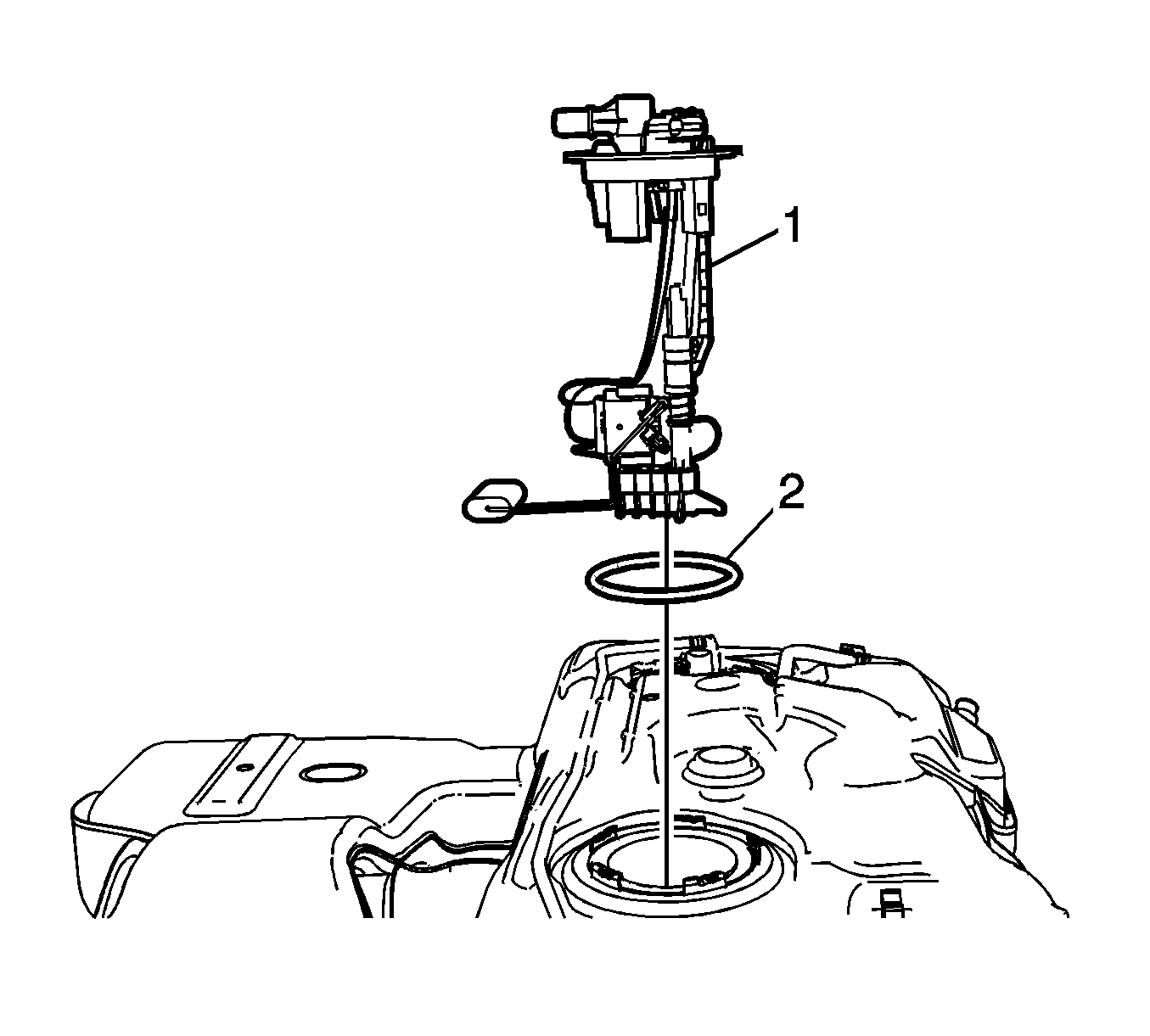

    Fig 1: Identifying Secondary Fuel Tank Module & O-Ring
    GM2232942Courtesy of GENERAL MOTORS COMPANY
  1. Install a NEW O-ring (2) and the primary fuel tank module (1).

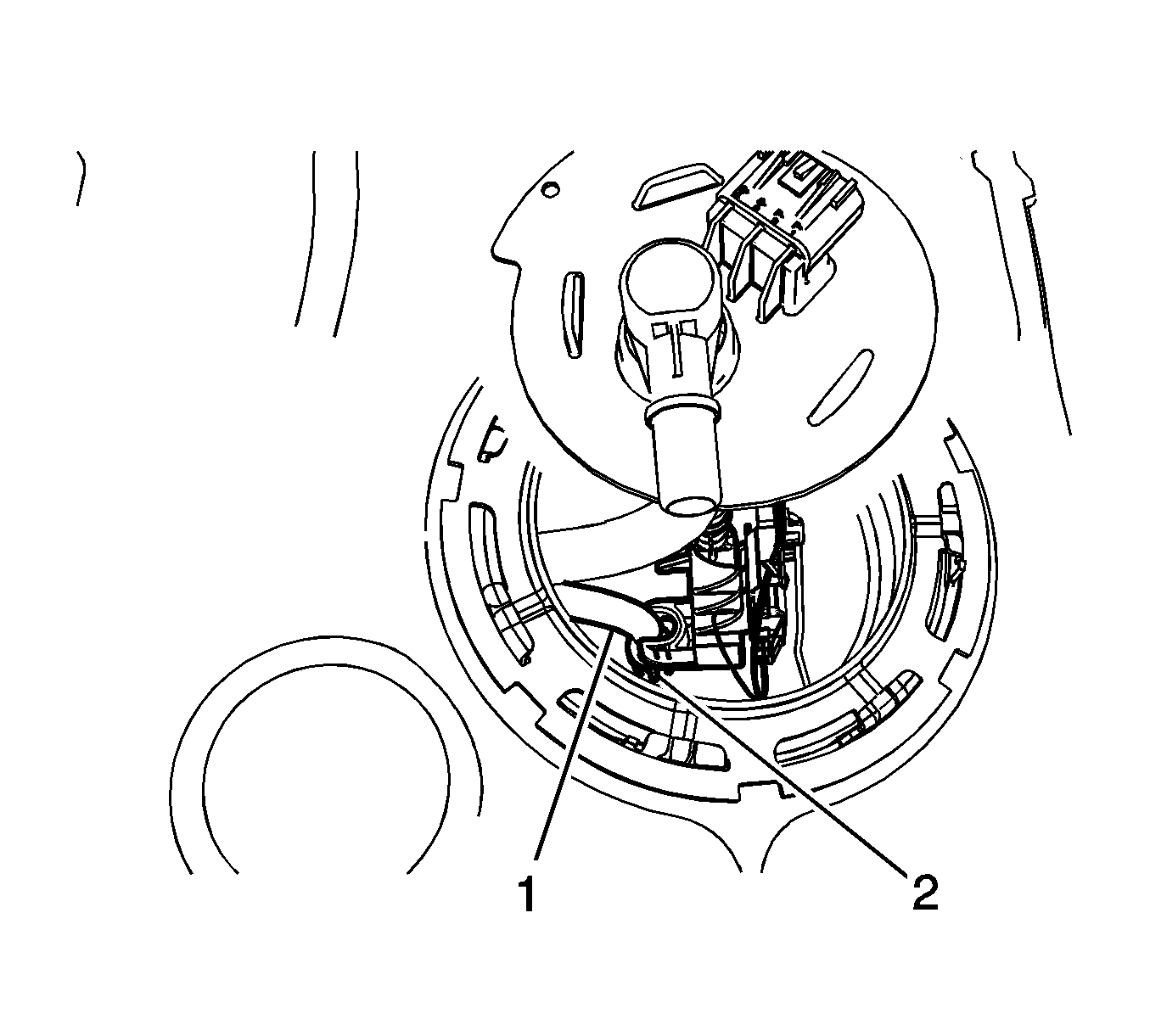

    2. Fig 2: Identifying Secondary Fuel Pump Module & Crossover Tube
    GM2232798Courtesy of GENERAL MOTORS COMPANY
  2. Partially install the secondary fuel pump module and connect the crossover tube (1).

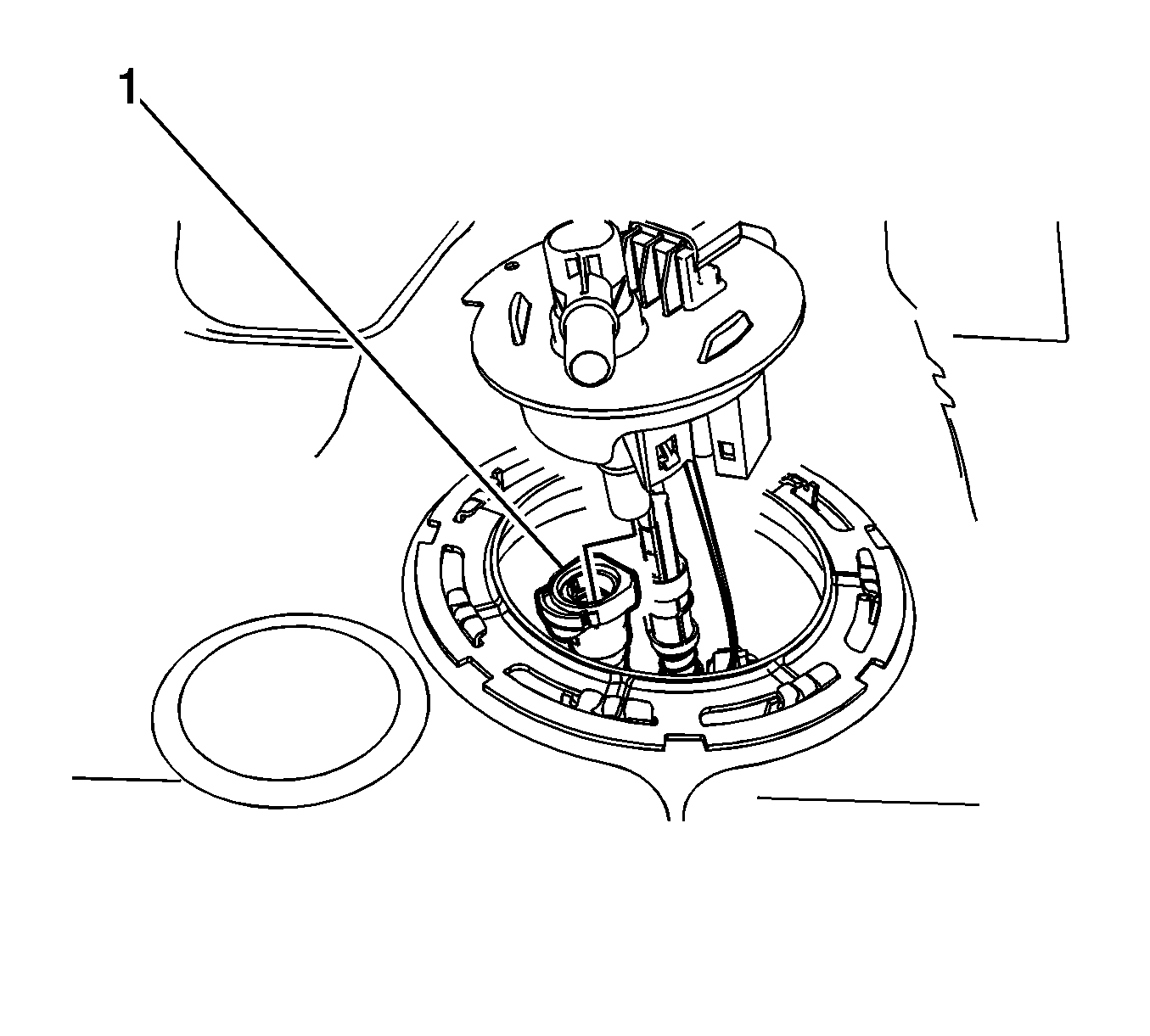

    3. Fig 3: View Of Evaporative Emission Line
    GM2232933Courtesy of GENERAL MOTORS COMPANY
  3. Connect the evaporative emission line (1). Refer to Plastic Collar Quick Connect Fitting Service .

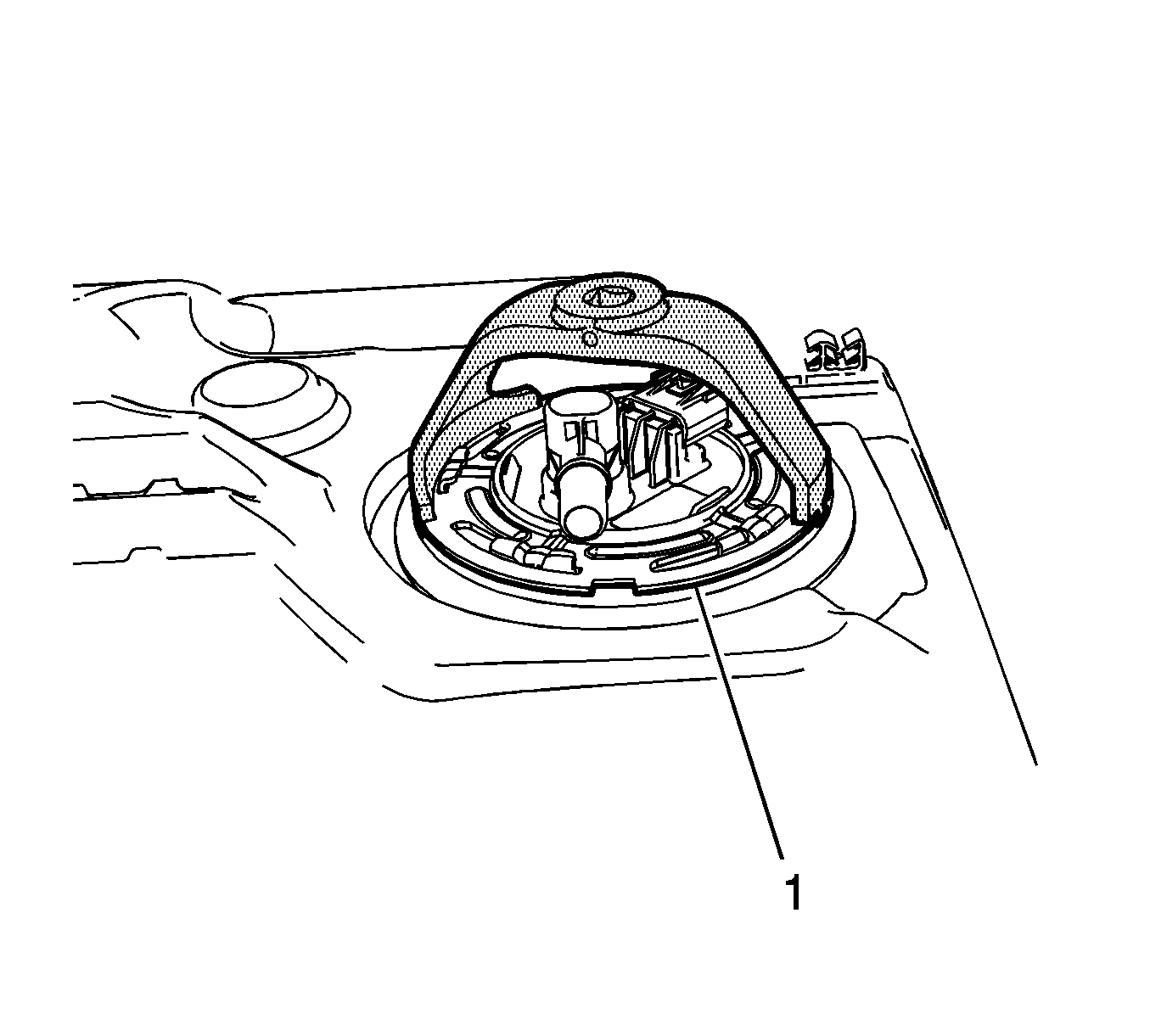

    4. Fig 4: Fuel Tank Sender Wrench & Cam Lock Ring
    GM2232738Courtesy of GENERAL MOTORS COMPANY
  4. Using the CH 48482  wrench , install the cam lock ring (1) by turning clockwise.

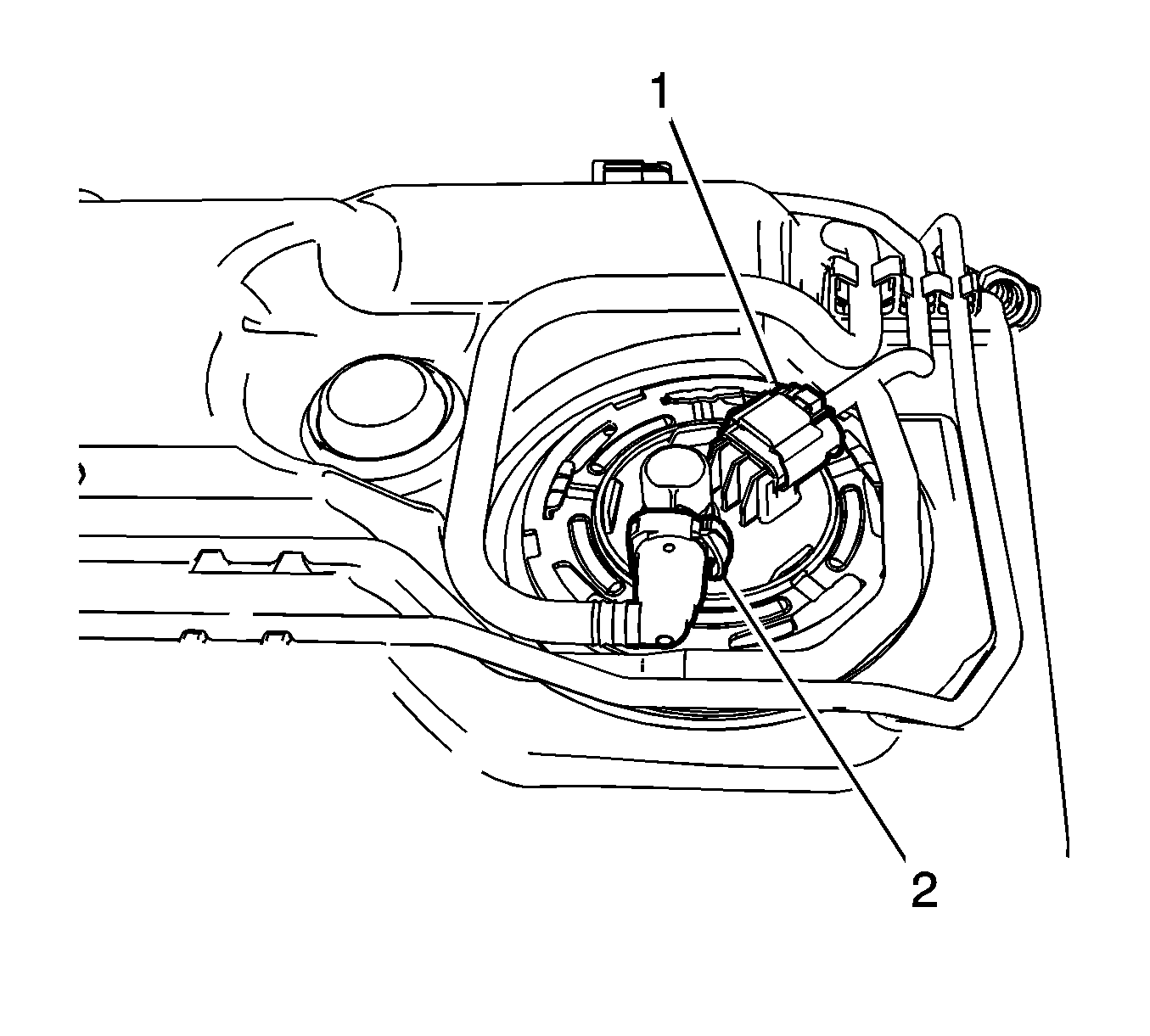

    5. Fig 5: Locating Fuel Tank Module Electrical Connector
    GM2232930Courtesy of GENERAL MOTORS COMPANY
  5. Connect the electrical connector (1).
  6. Connect the evaporative emission line (2). Refer to Plastic Collar Quick Connect Fitting Service .
  7. Install the fuel tank. Refer to Fuel Tank Replacement .
