Wireless Charging System Module Replacement

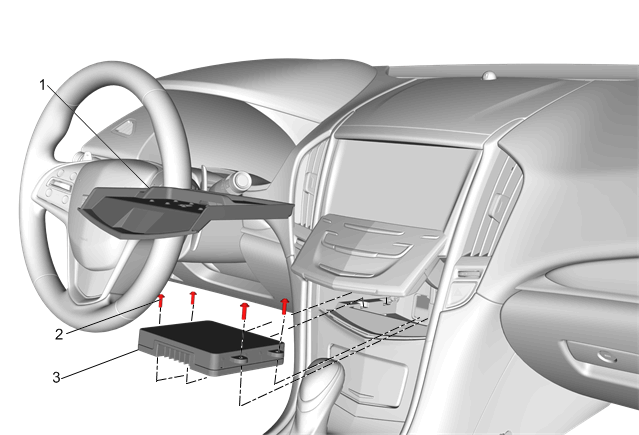

Fig 1: Wireless Charging System Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Roll open the switch panel assembly to gain access to the charging rubber mat.
1	Charging System Wireless Module Rubber Mat
2	Charging System Wireless Module Fastener (Qty 4) CAUTION: Refer to Fastener Caution . Tighten  1 N.m (8.9 lb in)
3	Charging System Wireless Module Procedure  Disconnect the electrical connector.
