Vehicle Dynamic Sensor Replacement

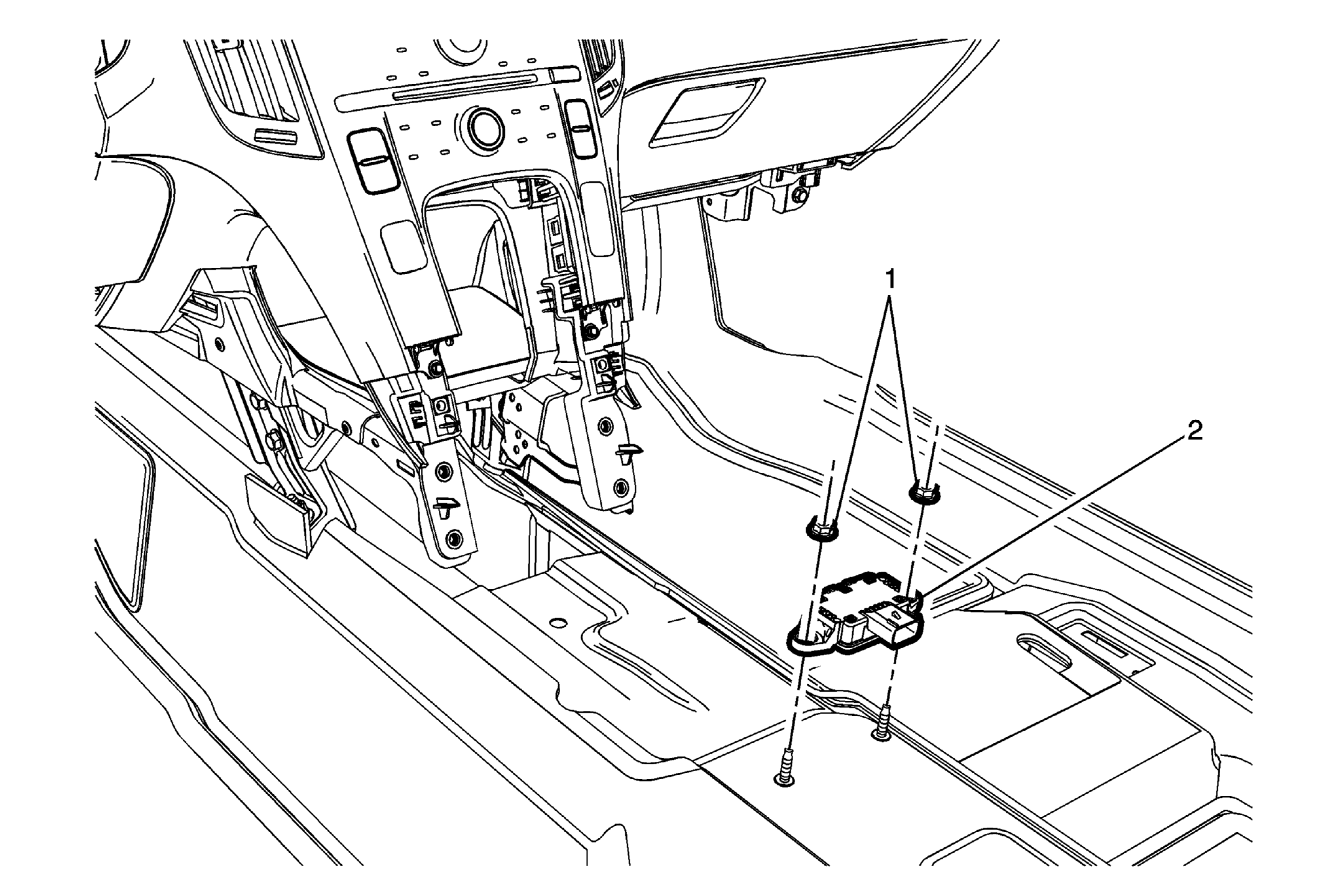

Fig 1: Vehicle Yaw Sensor with Vehicle Lateral And Longitudinal Accelerometer

GM2397123

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedures

Turn the ignition OFF.
Remove the front floor console compartment. Refer to Front Floor Console Compartment Replacement

1

Vehicle Dynamic Sensor Nut

CAUTION:

Refer to Fastener Caution .

Tighten
9 N.m (80 lb in)

2

Vehicle Dynamic Sensor

Procedure

Disconnect the electrical connector.
After the installation is complete, configure the dynamic sensor. Refer to Control Module References .
Perform the Vehicle Yaw Sensor Learn .
