Instrument Panel Multifunction Switch Replacement

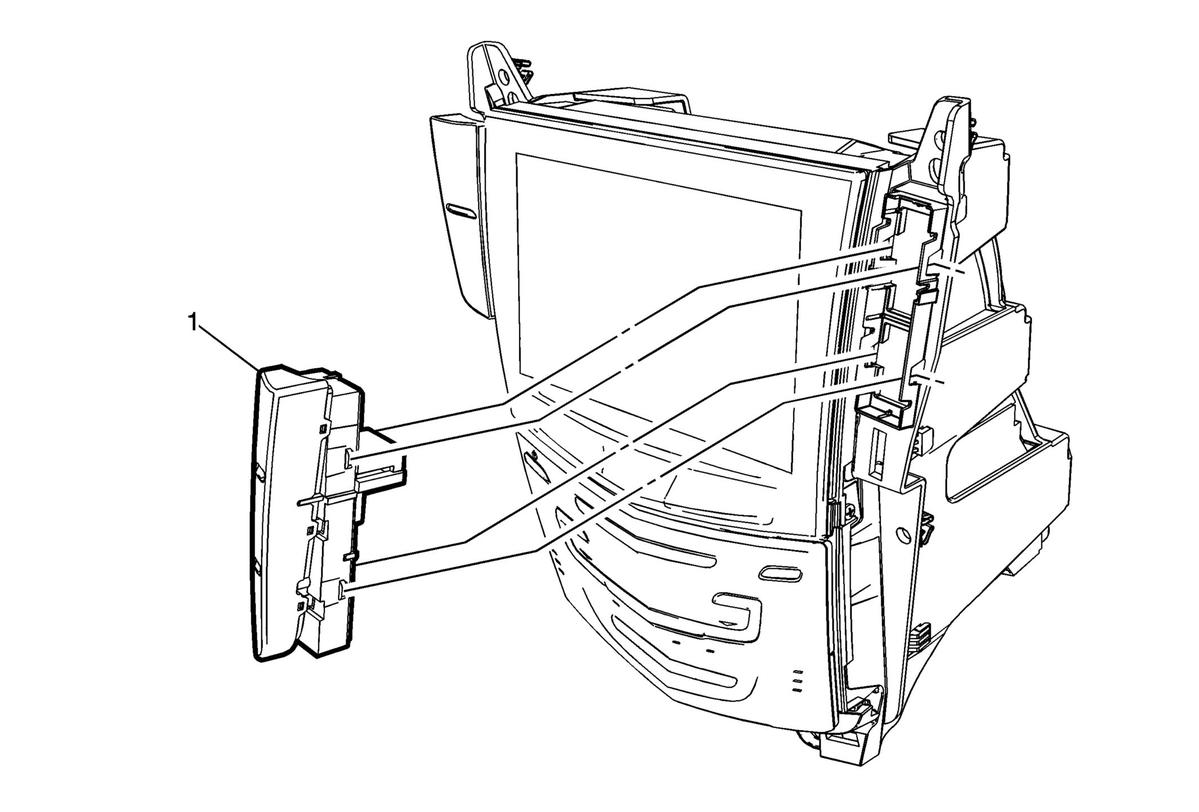

Fig 1: Instrument Panel Multifunction Switch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the instrument panel lower center trim plate applique. Refer to Instrument Panel Lower Center Trim Plate Applique Replacement .
1	Instrument Panel Multifunction Switch Procedure  Using the appropriate tool, depress the tabs on switch to remove from the bracket.
