Electronic Compass Module Replacement

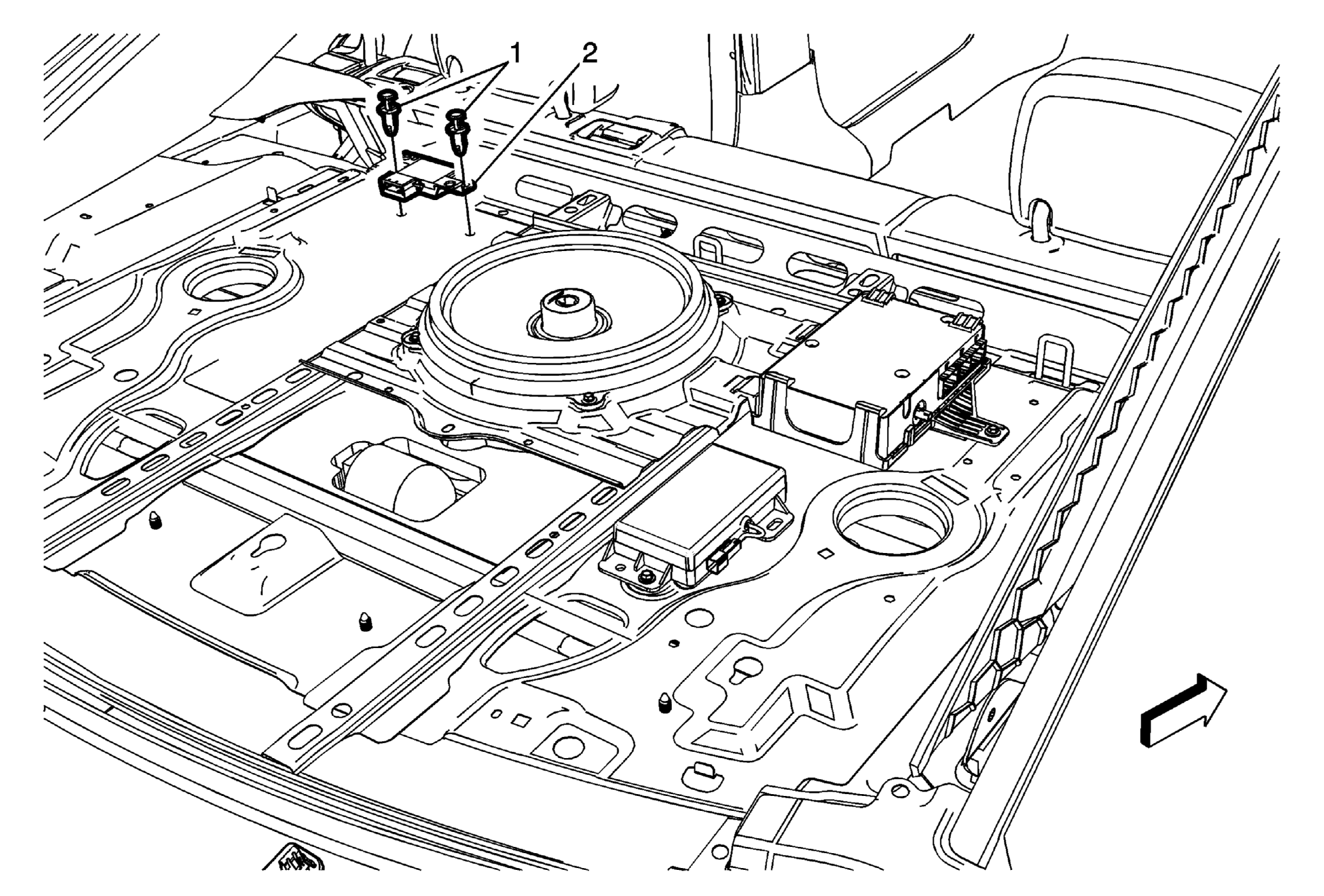

Fig 1: Electronic Compass Module
GM2756771Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the rear window panel trim. Refer to Rear Window Panel Trim Replacement (Without DB3)Rear Window Panel Trim Replacement (With DB3) .
1 Electronic Compass Module Fastener (Qty: 2)
CAUTION:

Refer to Fastener Caution .
2 Electronic Compass Module

Procedure

  1. Disconnect the electrical connector.
  2. For programming and set up, refer to Control Module References .
