Installation Procedure

Electronic Brake Booster Control Module (1)» Install

Fig 1: Electronic Brake Booster Control Module
Courtesy of GENERAL MOTORS COMPANY
Electronic Brake Booster Control Module Bolt (1)» Install and tighten [2x] 22 N.m (16 lb ft)

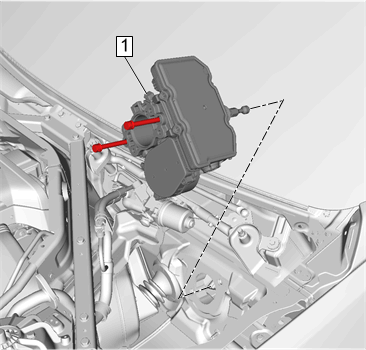

Fig 2: Electronic Brake Booster Control Module Bolts
Courtesy of GENERAL MOTORS COMPANY

CAUTION: Refer to Fastener Caution .

NOTE: Support the electronic brake booster control module while tightening the bolts.
Connect the electronic brake booster control module electrical connectors.
Brake Pedal Retainer (1)» Install NEW

Fig 3: Brake Pedal Retainer
Courtesy of GENERAL MOTORS COMPANY
Brake Pedal (2)» Secure
Brake Master Cylinder (1)» Install - Master Cylinder Replacement (With HP9)

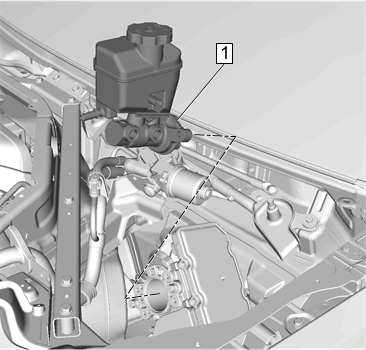

Fig 4: Brake Master Cylinder
Courtesy of GENERAL MOTORS COMPANY
Install the electronic brake booster control module fuse to the engine compartment fuse block.
Bleed the hydraulic brake system. Refer to Hydraulic Brake System Bleeding (Manual)Hydraulic Brake System Bleeding (Pressure)
Program and calibrate the electronic brake booster control module. Refer to Control Module References
