Installation Procedure

  1. Align the accessory power receptacle (1) to the slots in the opening.

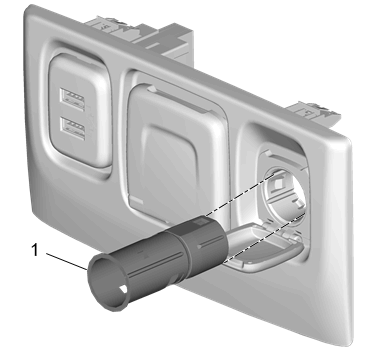

    Fig 1: Accessory Power Receptacle
    GM4255927Courtesy of GENERAL MOTORS COMPANY
  2. Install the retainer by pressing into place fully seated.
  3. Align the tabs on the receptacle to the slots in the retainer. Install the receptacle (1) by pressing into place until fully seated.
  4. Connect all electrical connectors.
  5. USB Receptacle Bezel (1)» Install

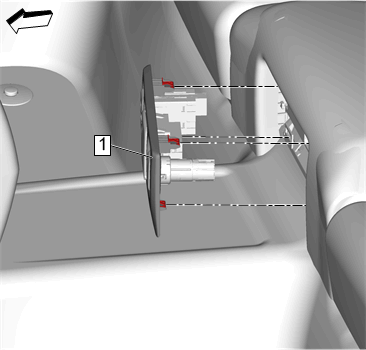

    Fig 2: USB Receptacle Bezel
    GM4809216Courtesy of GENERAL MOTORS COMPANY
