Transfer Case Components (F46)

Transfer Case Components (F46)

Items
1. B109 Transfer Case Fluid Temperature Sensor (F46) B109 Transfer Case Fluid Temperature Sensor ((LGW/LGX)+F46)
2. A16 Transfer Case Motor (F46) A16 Transfer Case Motor (F46)

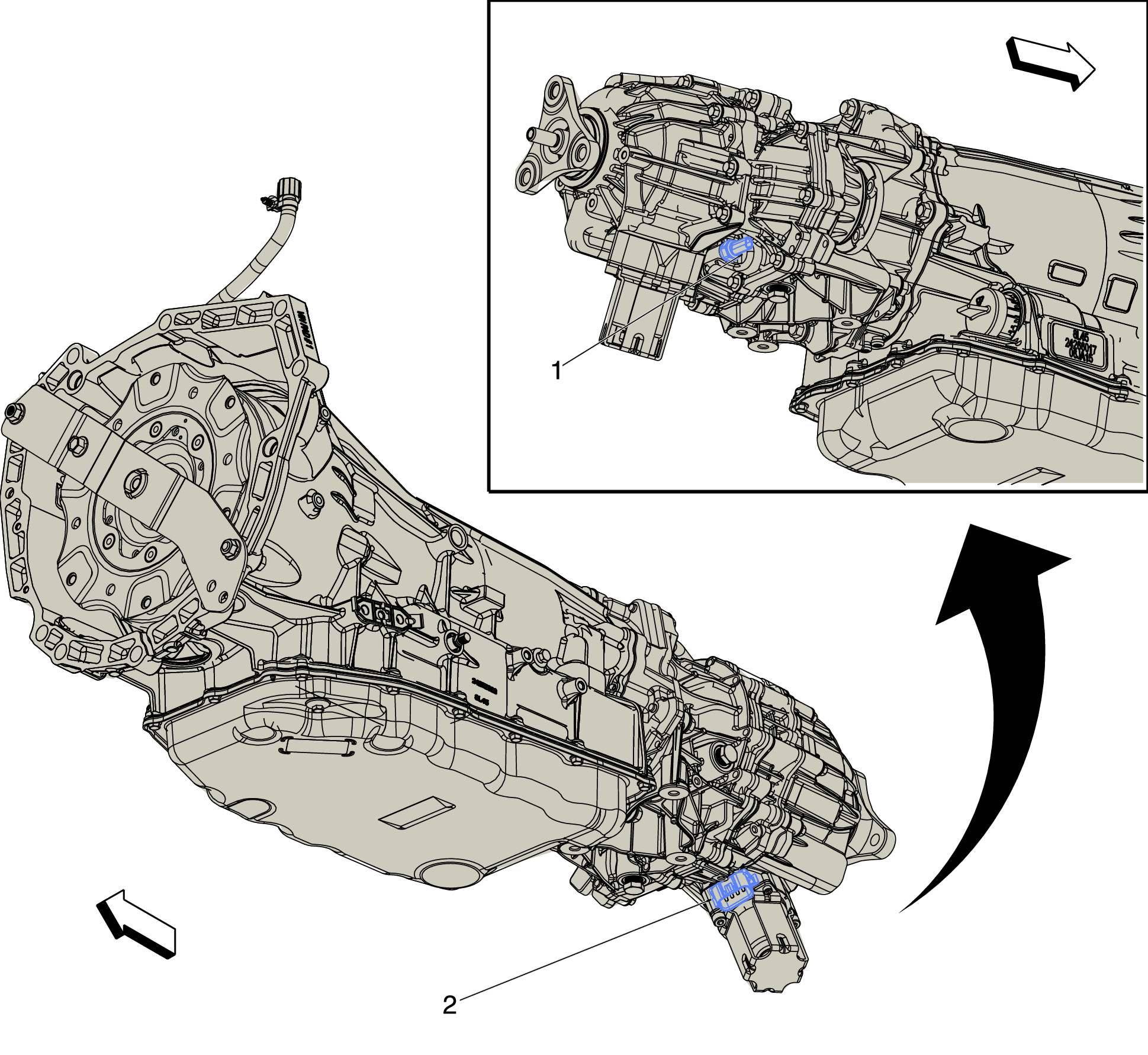

Fig 1: Transfer Case Components (F46)
GM4223659Courtesy of GENERAL MOTORS COMPANY
