Engine Oil Pressure Sensor Replacement

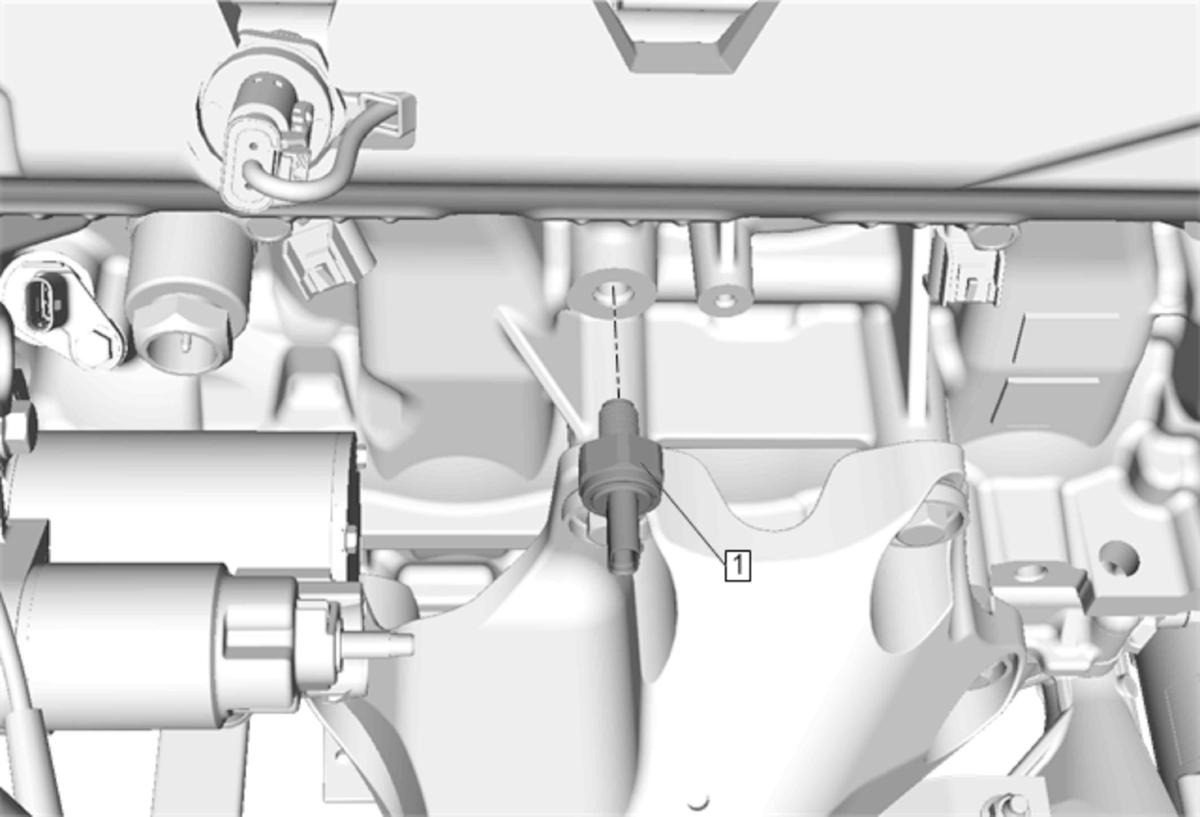

Fig 1: Engine Oil Pressure Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Engine Oil Pressure Sensor
Preliminary Procedure  Intake Manifold Replacement (Except Hybrid)Intake Manifold Replacement (Hybrid)
1	Engine Oil Pressure Sensor CAUTION: Refer to Component Fastener Tightening Caution . Procedure  Disconnect the oil pressure sensor electrical connector. Tighten  35 N.m (26 lb ft)
