CT6 Plug-In
>>
Repair and Diagnosis
>>
Engine Performance
>>
Mode 6 - Gm
>>
GMLAN (Can)
GMLAN (Can)

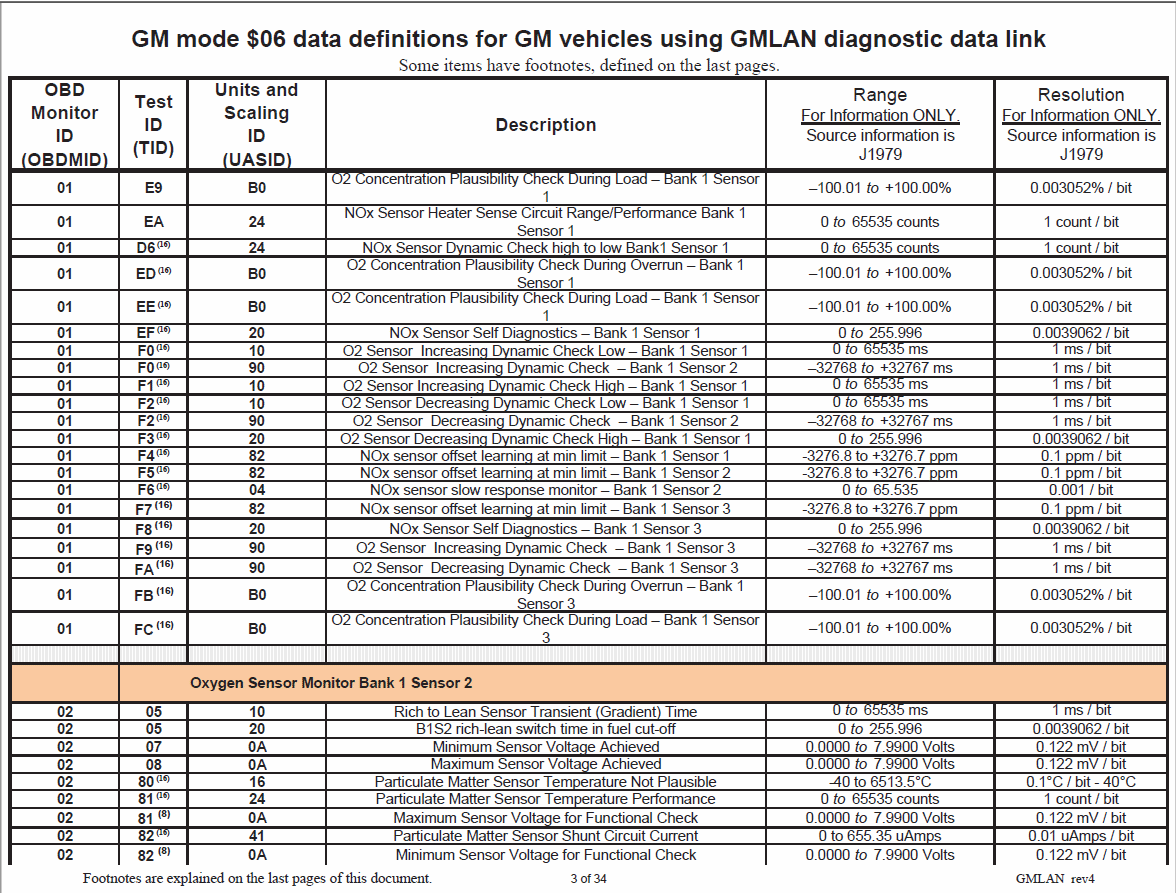

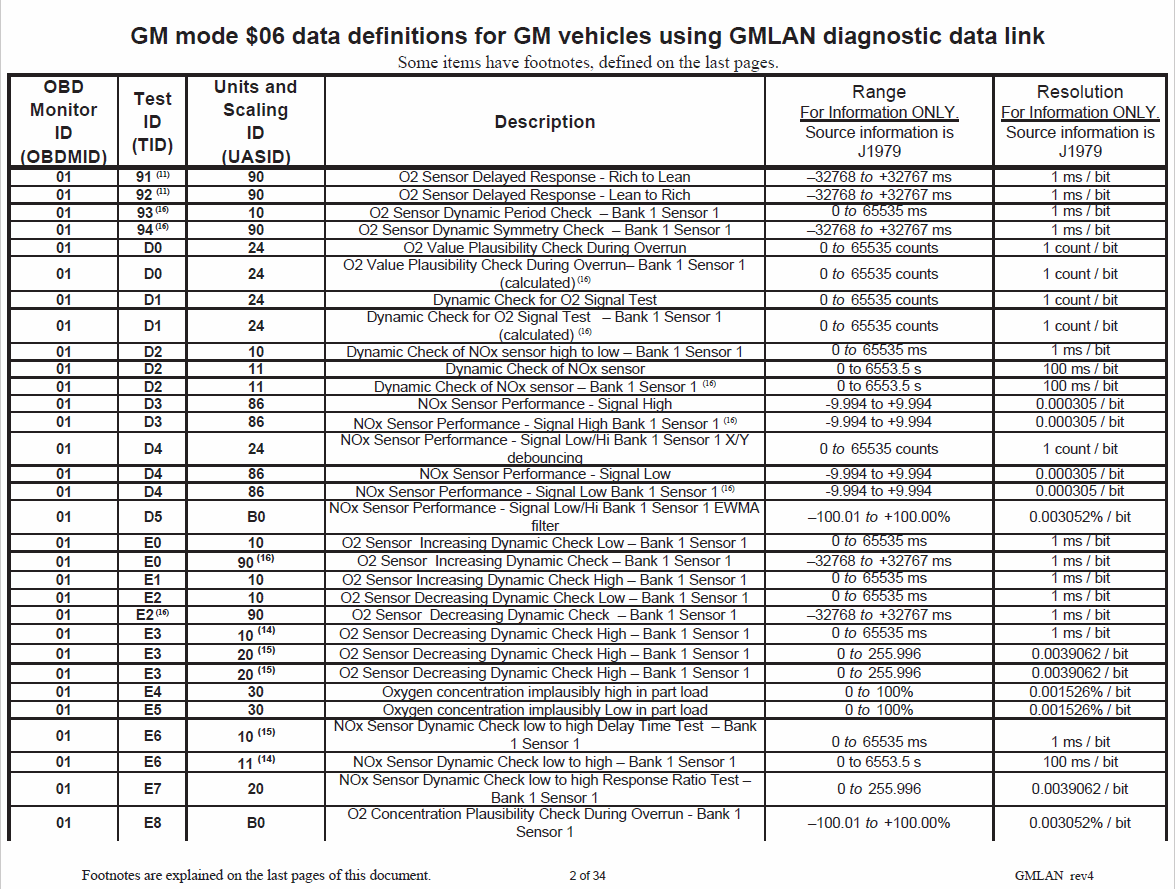

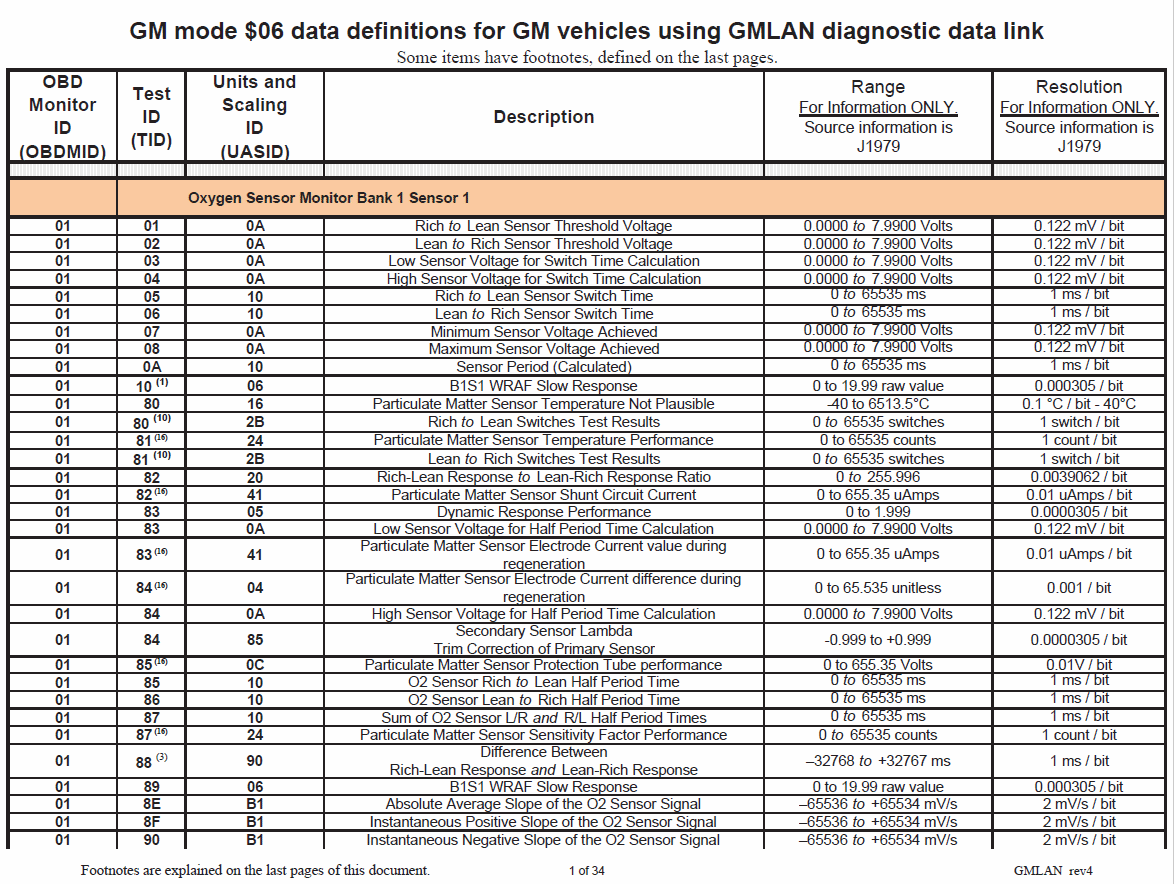

Fig 1: Mode $06 Data Definitions - Monitor ID 01 (1 Of 28)
Courtesy of GENERAL MOTORS CORP.
Fig 2: Mode $06 Data Definitions - Monitor ID 01 (2 Of 28)
Courtesy of GENERAL MOTORS CORP.
Fig 3: Mode $06 Data Definitions - Monitor ID 01-02 (3 Of 28)
Courtesy of GENERAL MOTORS CORP.

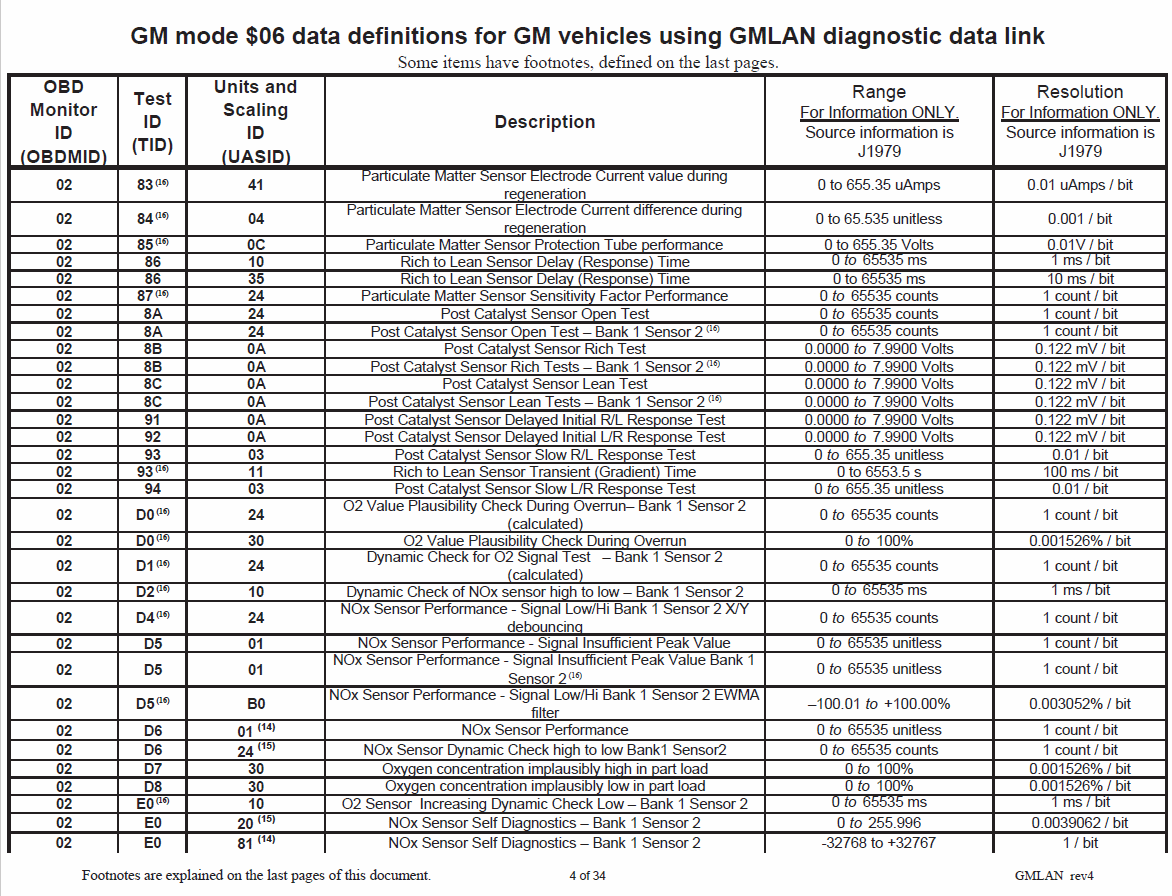

Fig 4: Mode $06 Data Definitions - Monitor ID 02 (4 Of 28)
Courtesy of GENERAL MOTORS CORP.

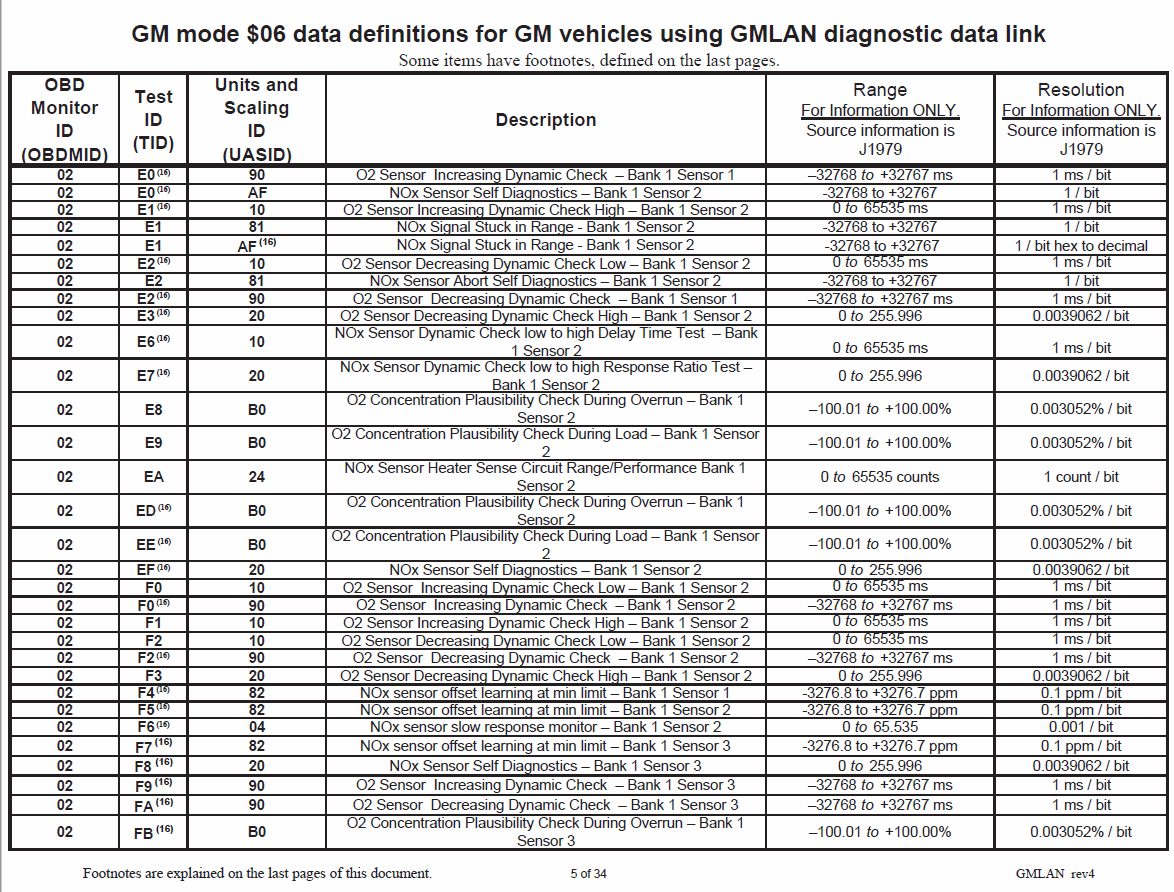

Fig 5: Mode $06 Data Definitions - Monitor ID 02 (5 Of 28)
Courtesy of GENERAL MOTORS CORP.

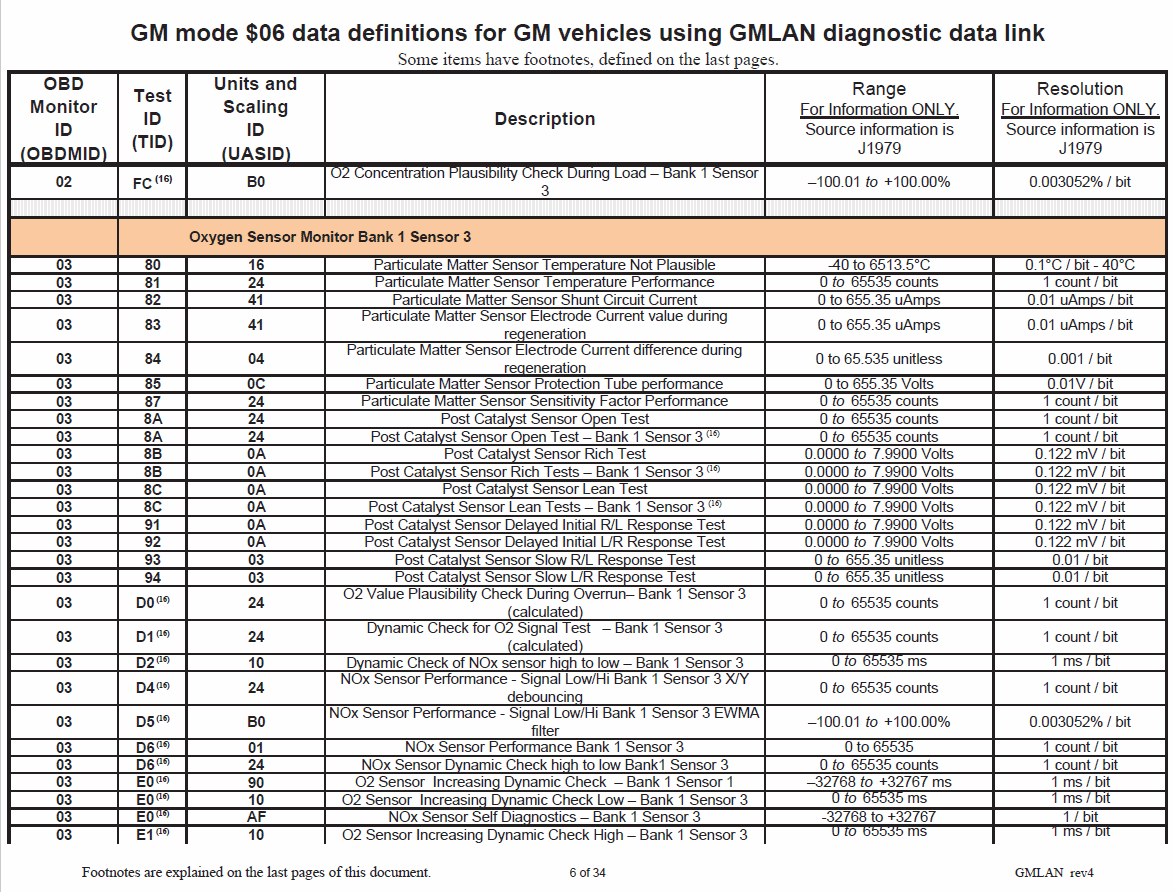

Fig 6: Mode $06 Data Definitions - Monitor ID 02-03 (6 Of 28)
Courtesy of GENERAL MOTORS CORP.

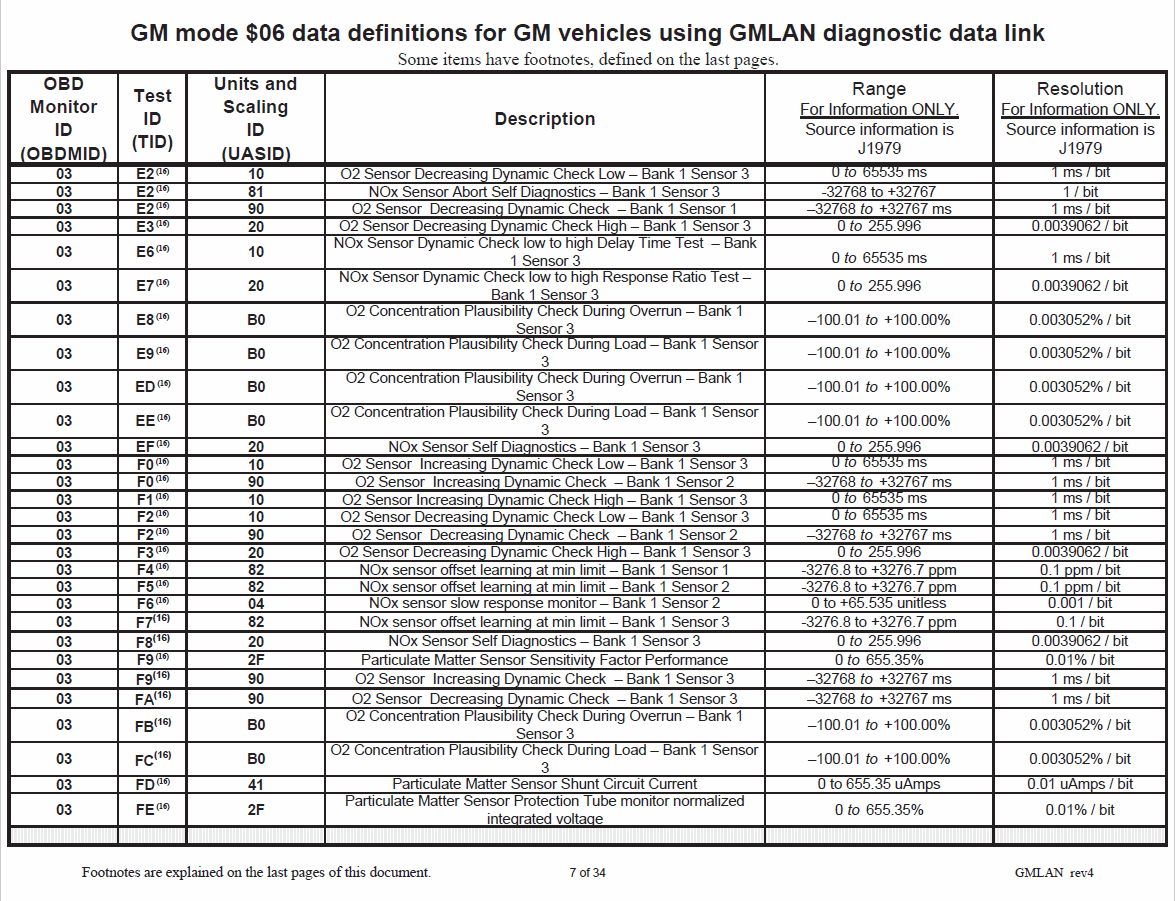

Fig 7: Mode $06 Data Definitions - Monitor ID 03 (7 Of 28)
Courtesy of GENERAL MOTORS CORP.

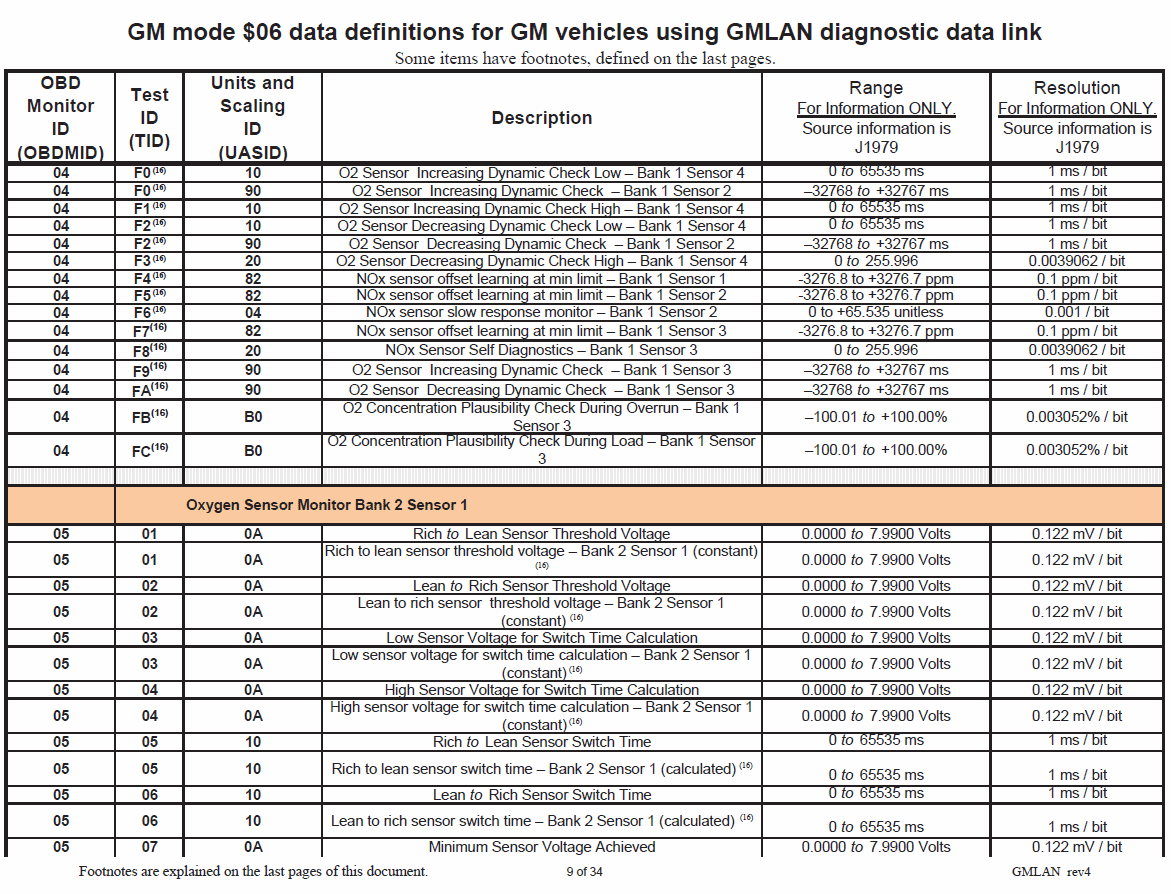

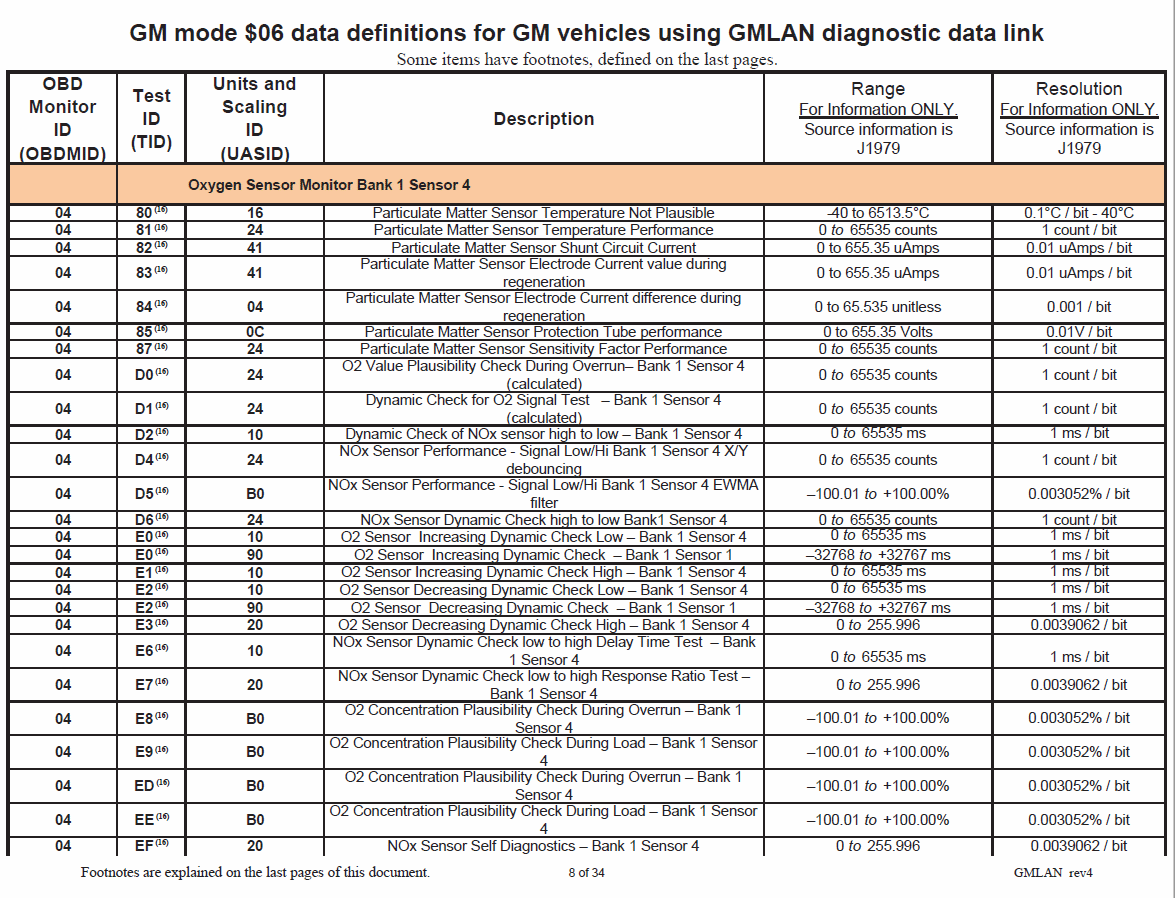

Fig 8: Mode $06 Data Definitions - Monitor ID 04 (8 Of 28)
Courtesy of GENERAL MOTORS CORP.
Fig 9: Mode $06 Data Definitions - Monitor ID 04-05 (9 Of 28)
Courtesy of GENERAL MOTORS CORP.

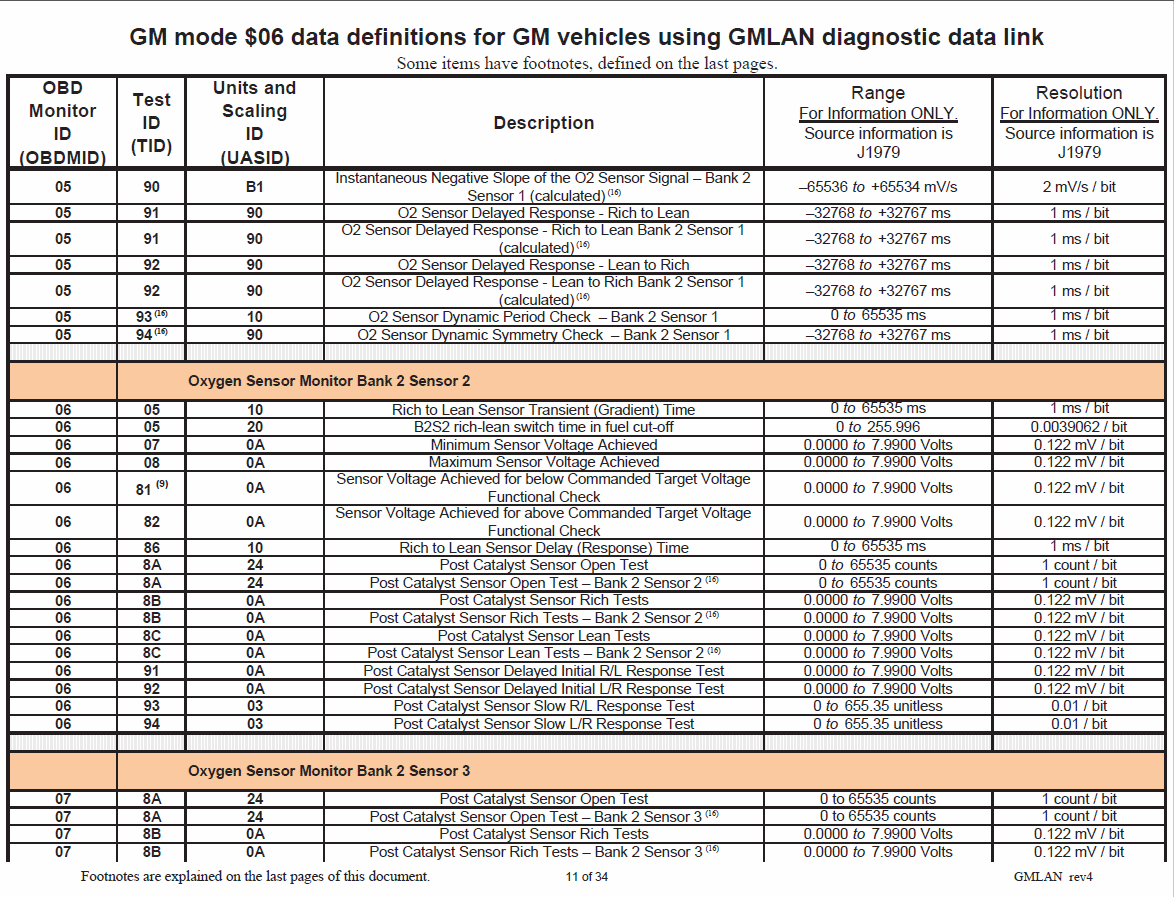

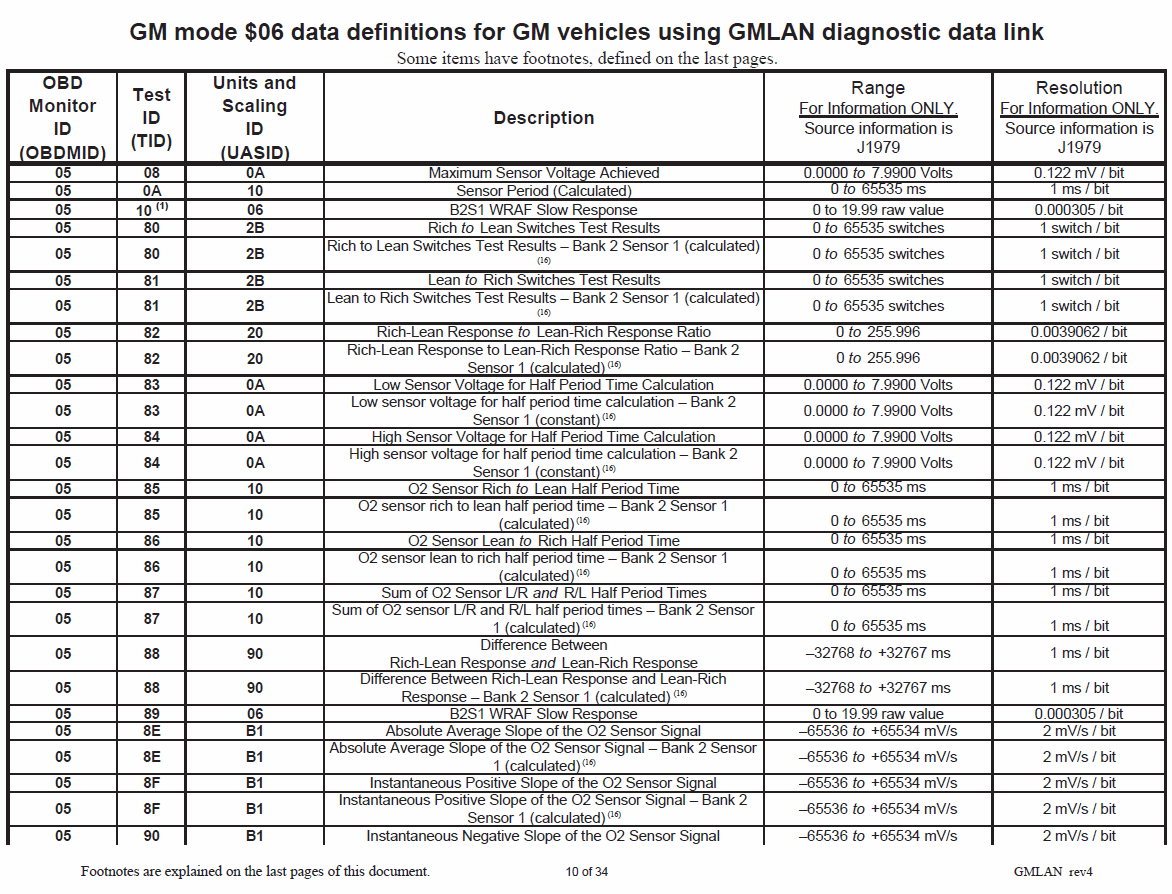

Fig 10: Mode $06 Data Definitions - Monitor ID 05 (10 Of 28)
Courtesy of GENERAL MOTORS CORP.
Fig 11: Mode $06 Data Definitions - Monitor ID 05-07 (11 Of 28)
Courtesy of GENERAL MOTORS CORP.
Fig 12: Mode $06 Data Definitions - Monitor ID 07-31 (12 Of 28)
Courtesy of GENERAL MOTORS CORP.

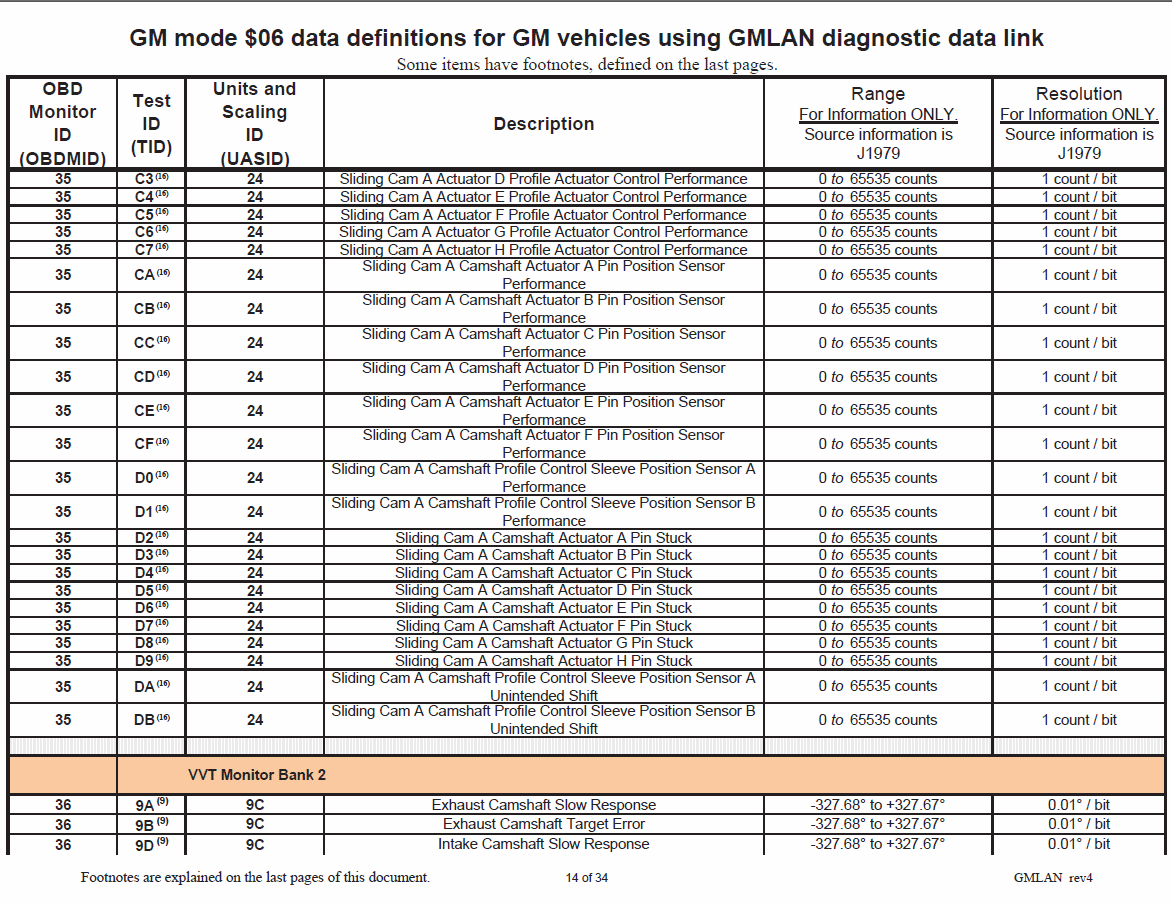

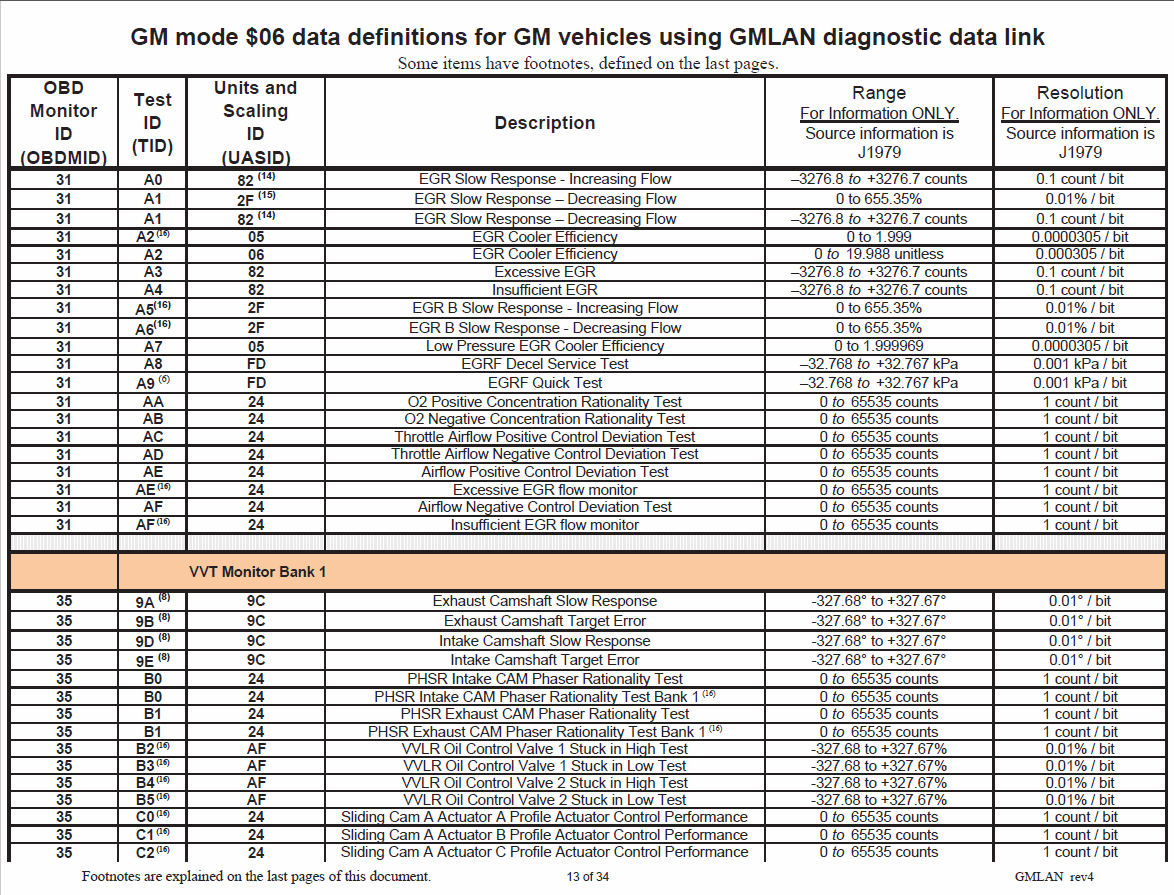

Fig 13: Mode $06 Data Definitions - Monitor ID 31-35 (13 Of 28)
Courtesy of GENERAL MOTORS CORP.
Fig 14: Mode $06 Data Definitions - Monitor ID 35-36 (14 Of 28)
Courtesy of GENERAL MOTORS CORP.

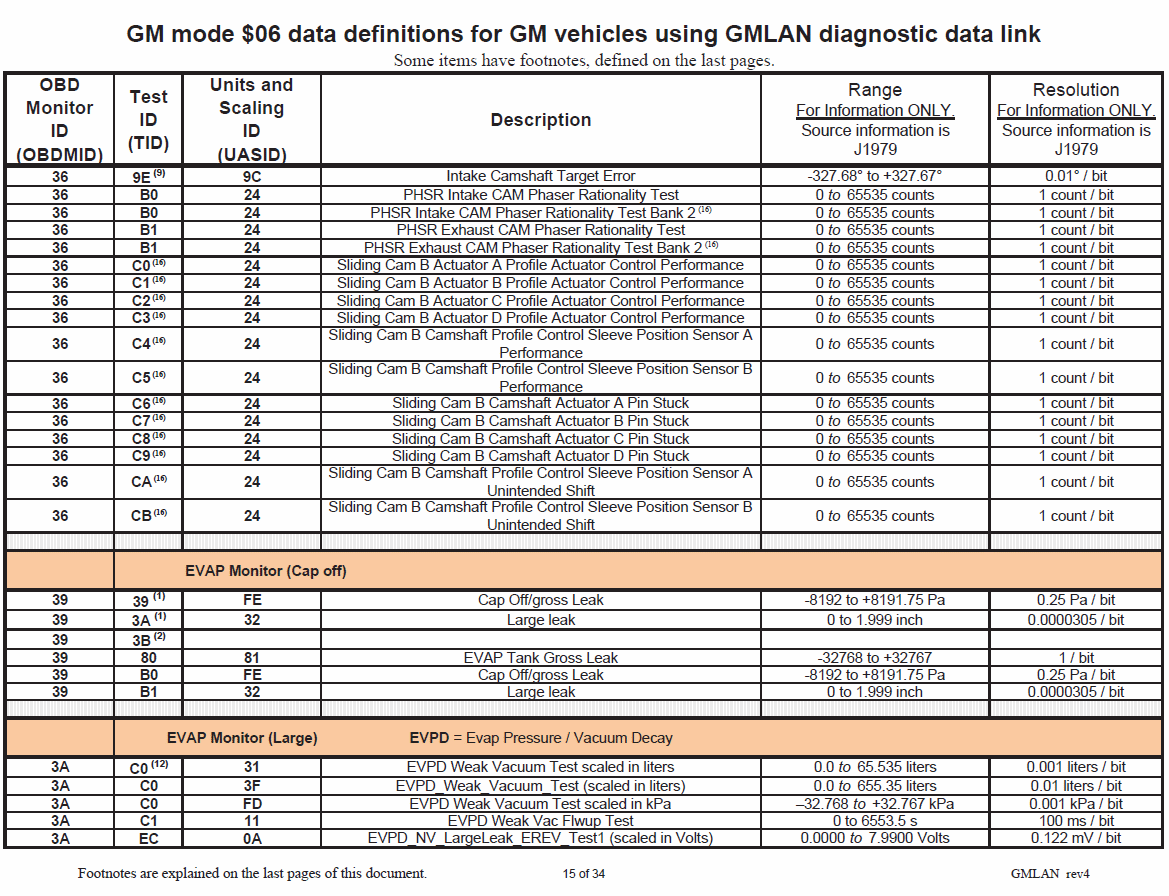

Fig 15: Mode $06 Data Definitions - Monitor ID 36-3A (15 Of 28)
Courtesy of GENERAL MOTORS CORP.

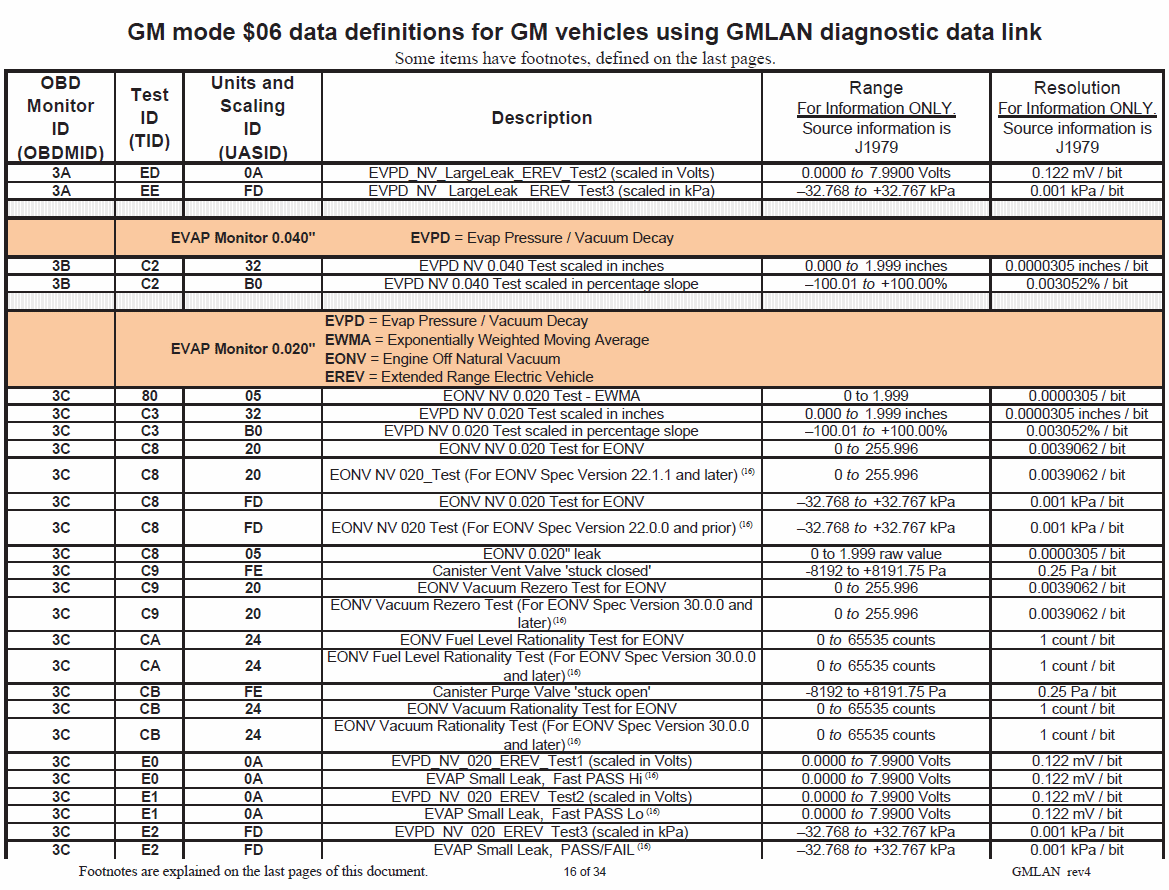

Fig 16: Mode $06 Data Definitions - Monitor ID 3A-3C (16 Of 28)
Courtesy of GENERAL MOTORS CORP.

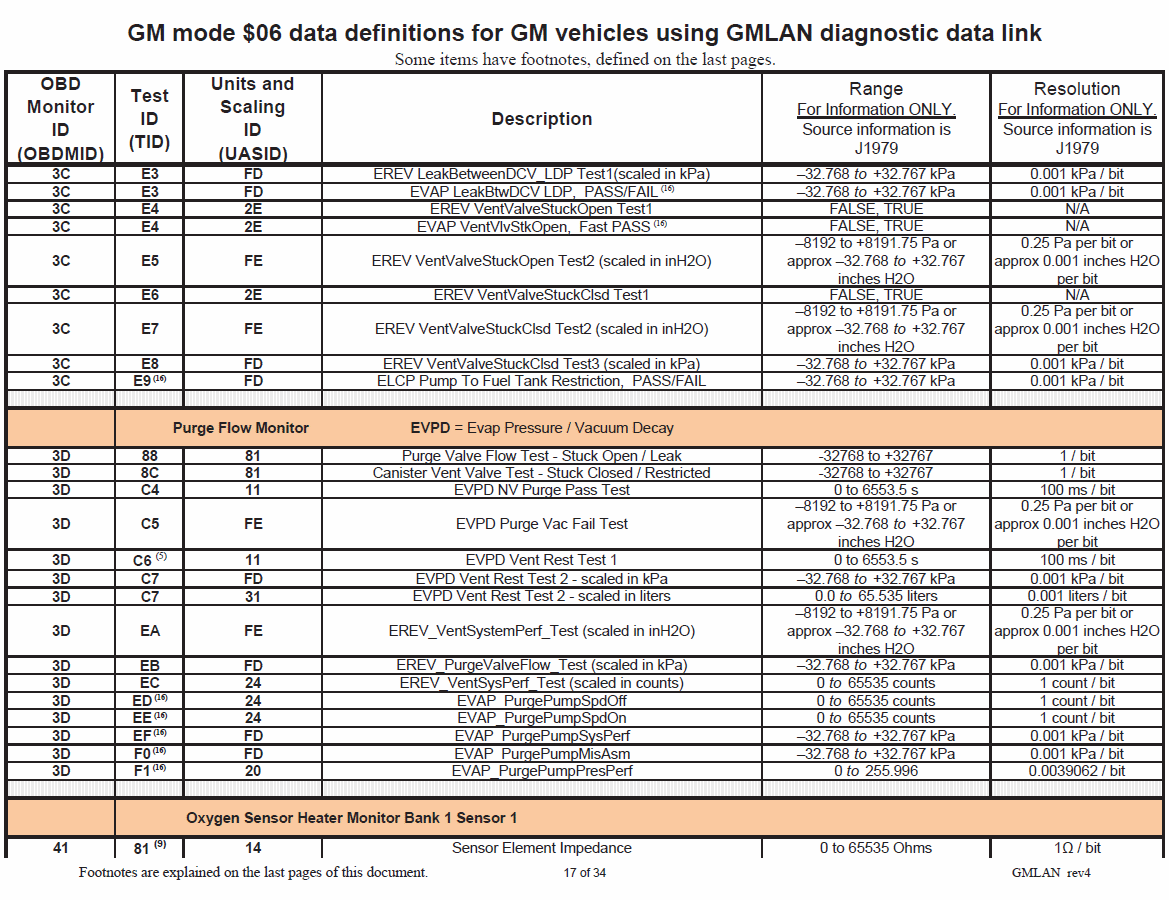

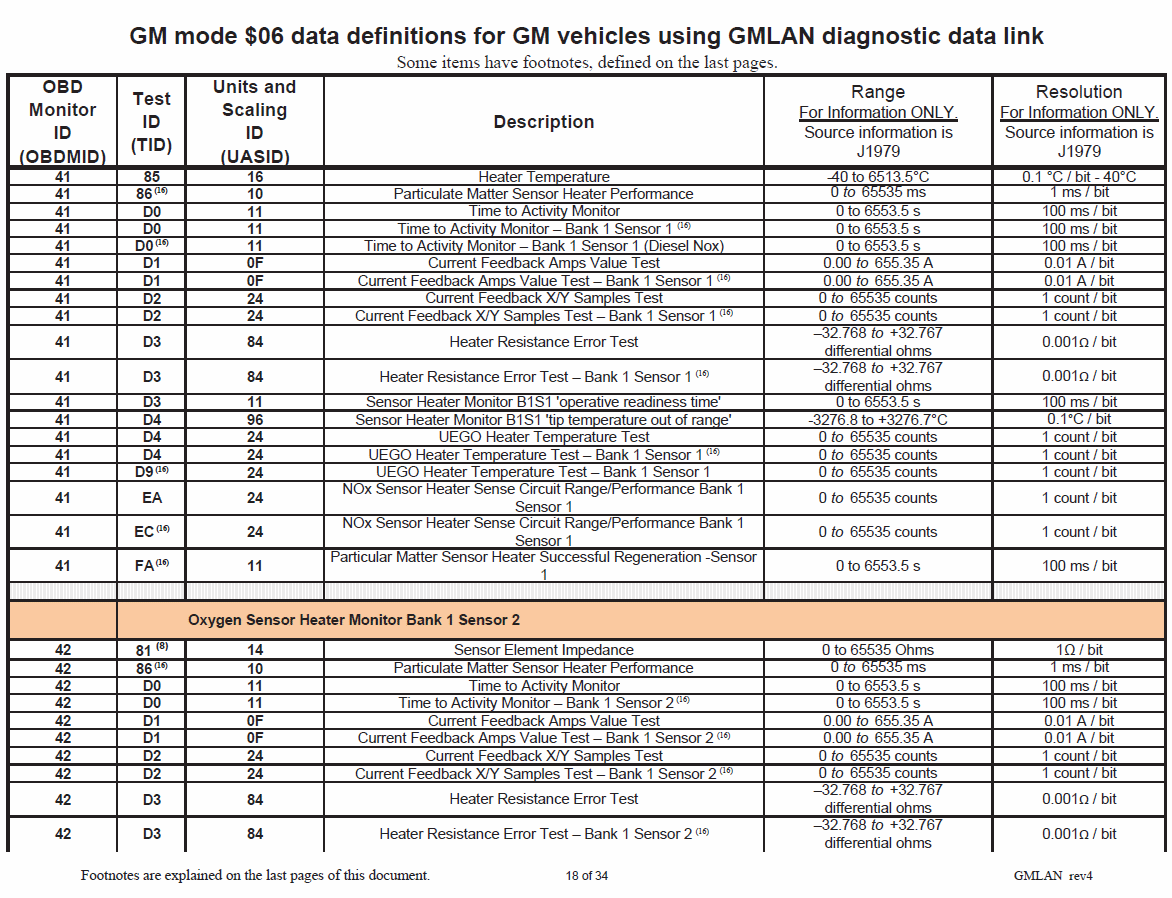

Fig 17: Mode $06 Data Definitions - Monitor ID 3C-41 (17 Of 28)
Courtesy of GENERAL MOTORS CORP.
Fig 18: Mode $06 Data Definitions - Monitor ID 41-42 (18 Of 28)
Courtesy of GENERAL MOTORS CORP.

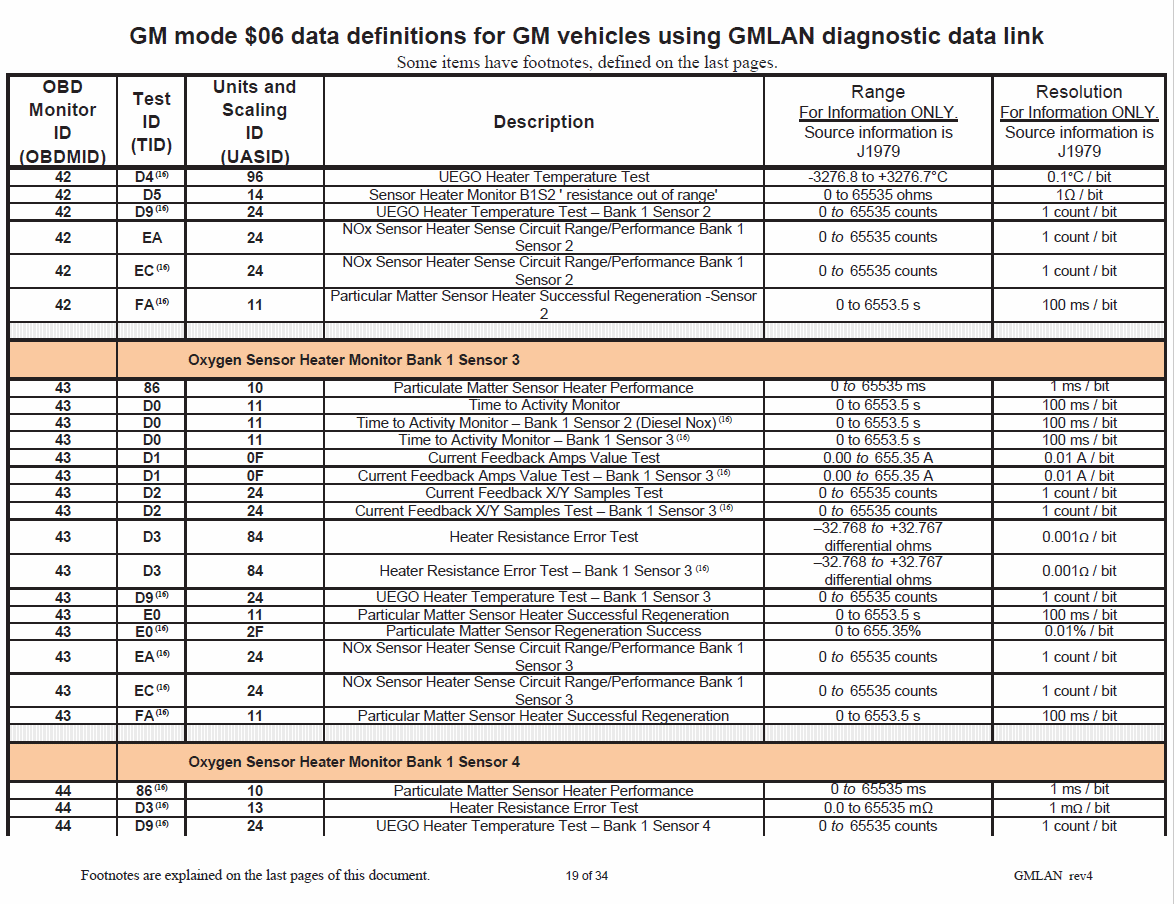

Fig 19: Mode $06 Data Definitions - Monitor ID 42-44 (19 Of 28)
Courtesy of GENERAL MOTORS CORP.

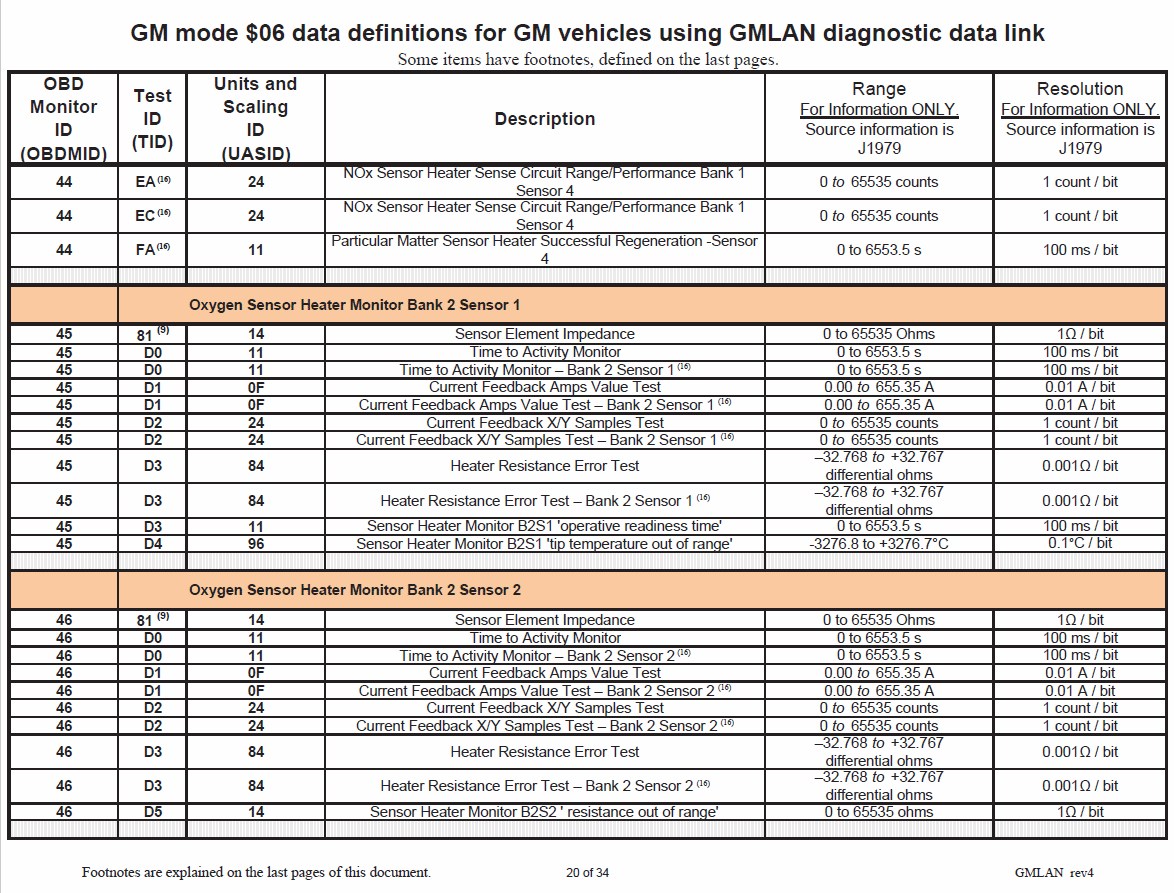

Fig 20: Mode $06 Data Definitions - Monitor ID 44-46 (20 Of 28)
Courtesy of GENERAL MOTORS CORP.

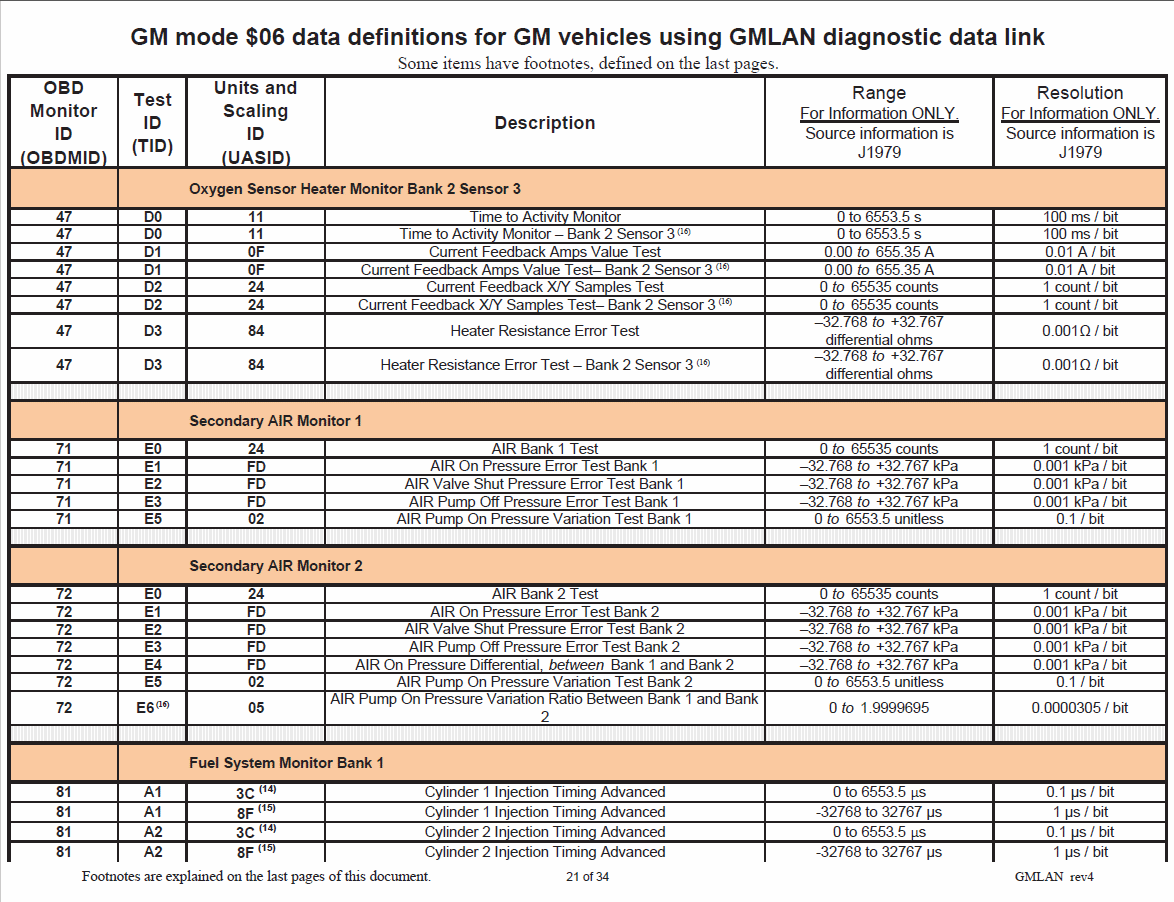

Fig 21: Mode $06 Data Definitions - Monitor ID 47-81 (21 Of 28)
Courtesy of GENERAL MOTORS CORP.

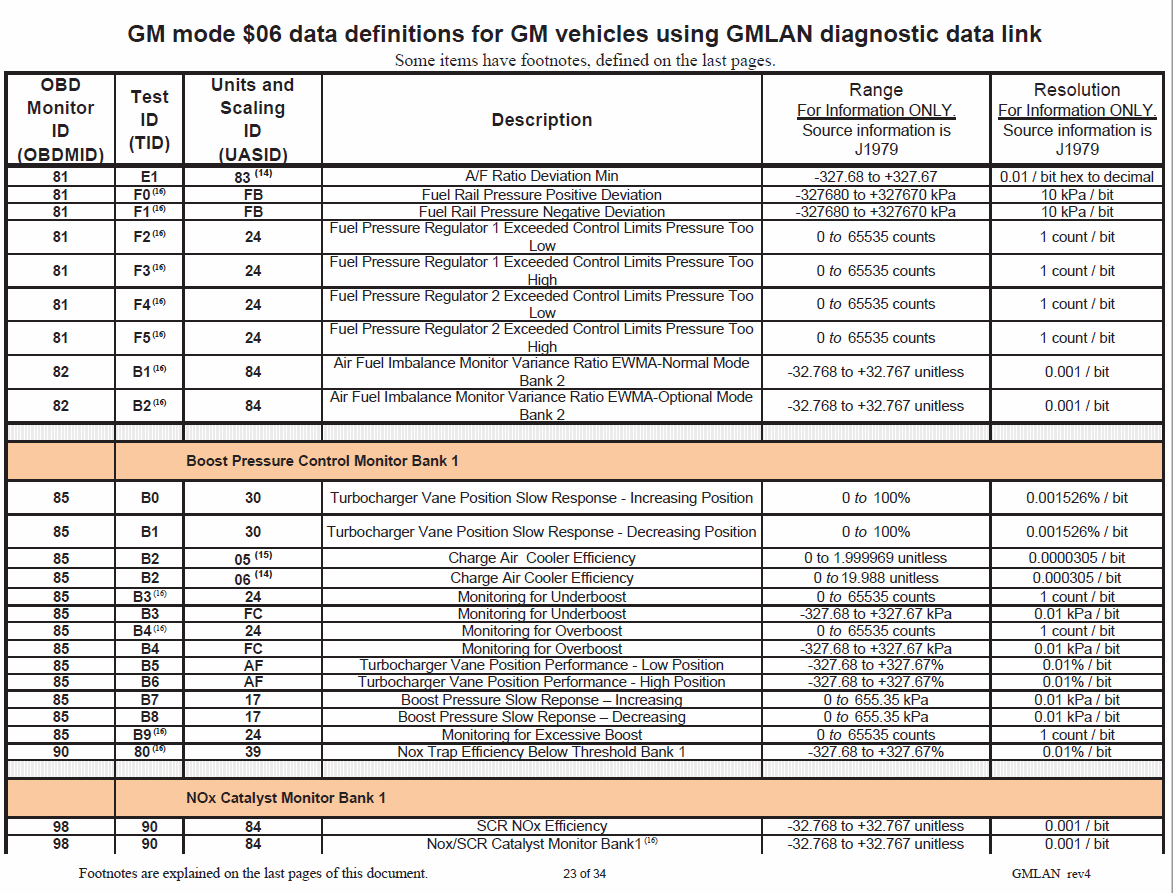

Fig 22: Mode $06 Data Definitions - Monitor ID 81 (22 Of 28)
Courtesy of GENERAL MOTORS CORP.

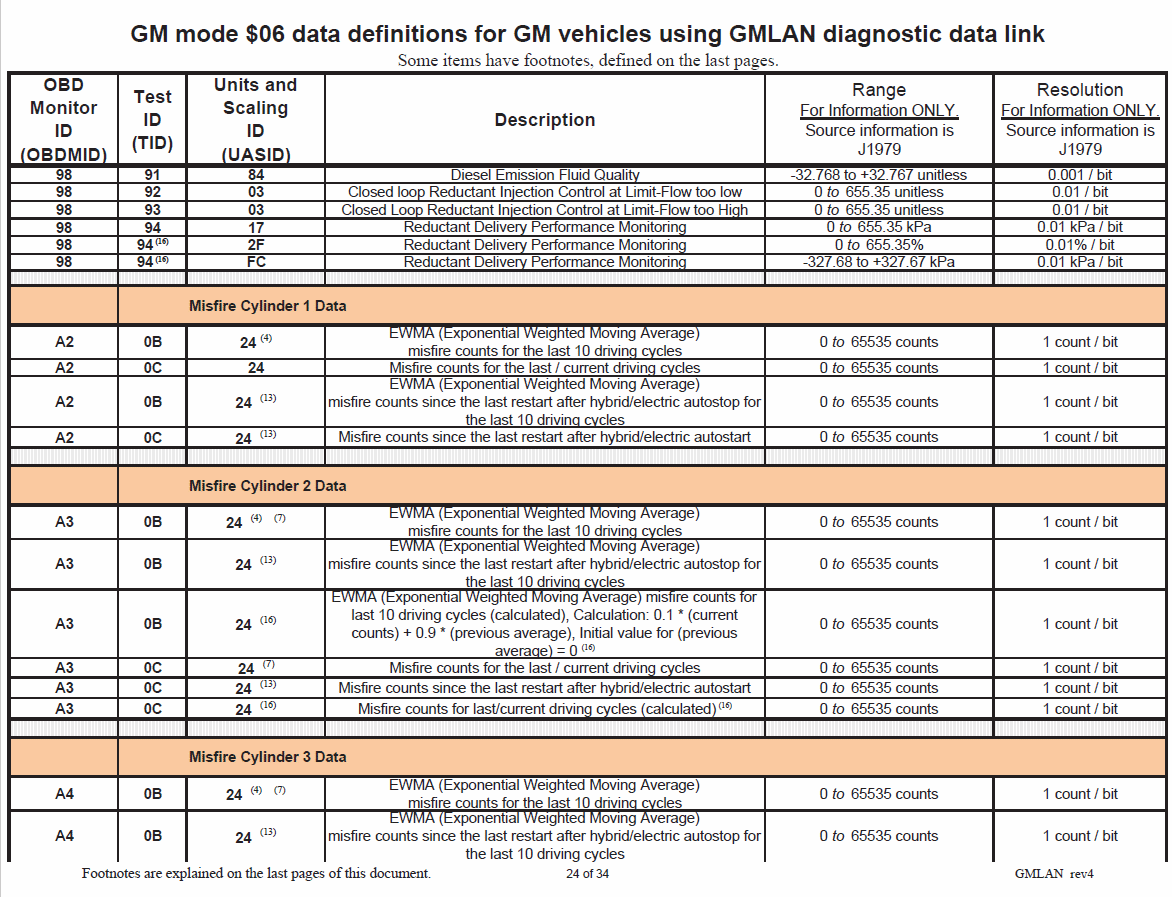

Fig 23: Mode $06 Data Definitions - Monitor ID 81-98 (23 Of 28)
Courtesy of GENERAL MOTORS CORP.

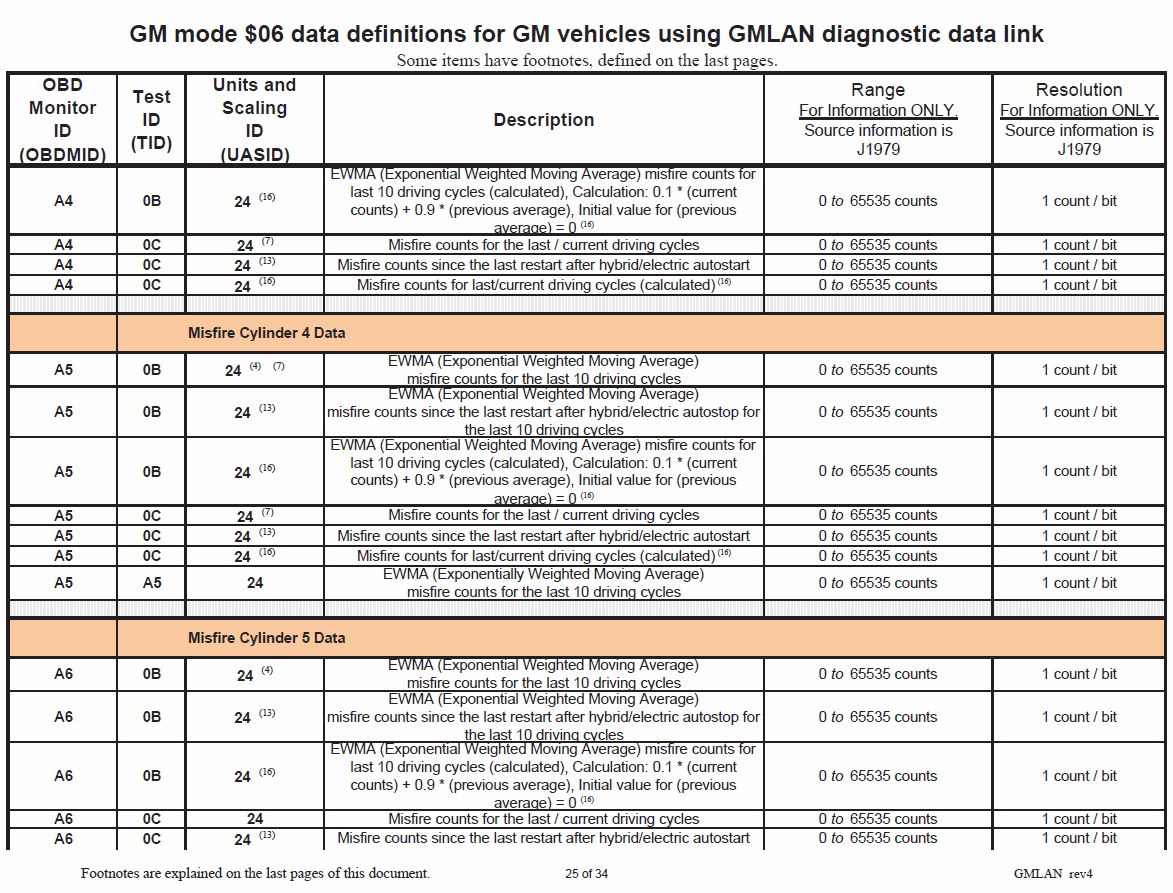

Fig 24: Mode $06 Data Definitions - Monitor ID 98-A4 (24 Of 28)
Courtesy of GENERAL MOTORS CORP.
Fig 25: Mode $06 Data Definitions - Monitor ID A4-A6 (25 Of 28)
Courtesy of GENERAL MOTORS CORP.

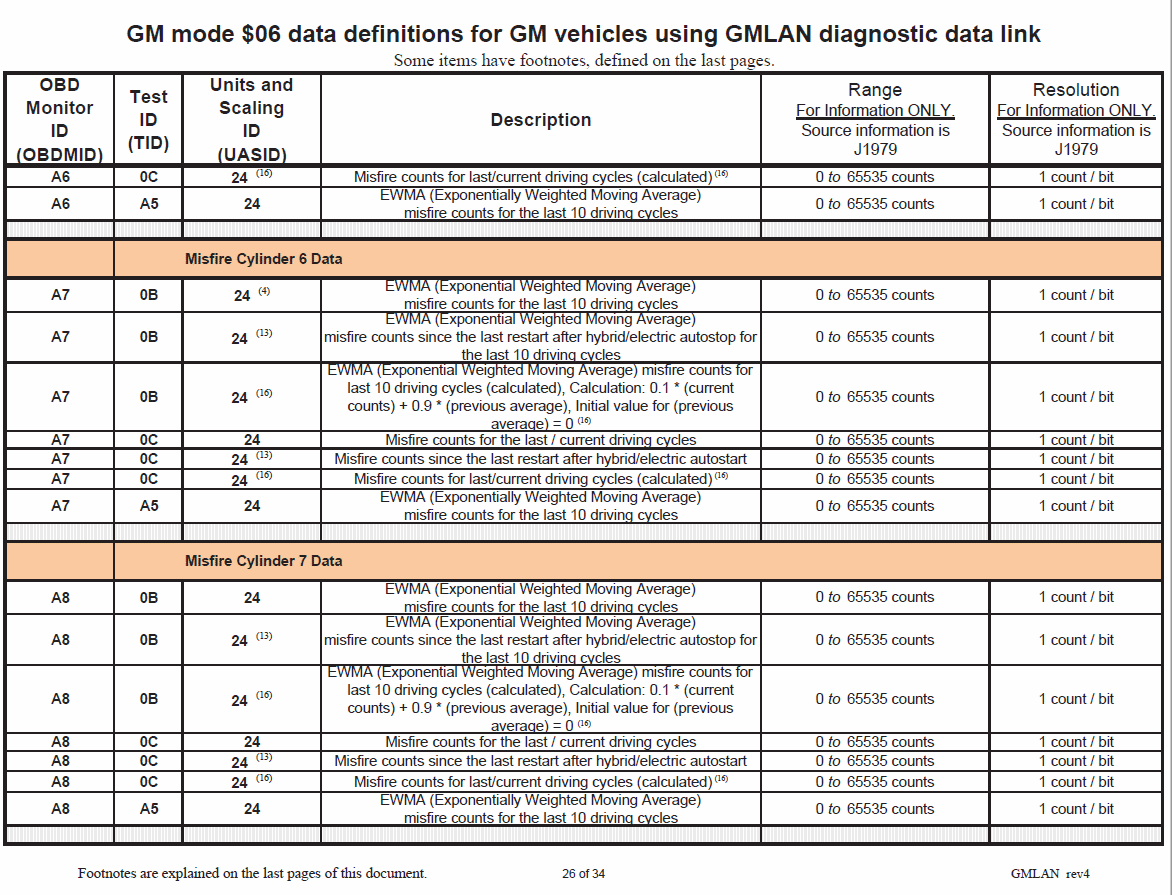

Fig 26: Mode $06 Data Definitions - Monitor ID A6-A8 (26 Of 28)
Courtesy of GENERAL MOTORS CORP.

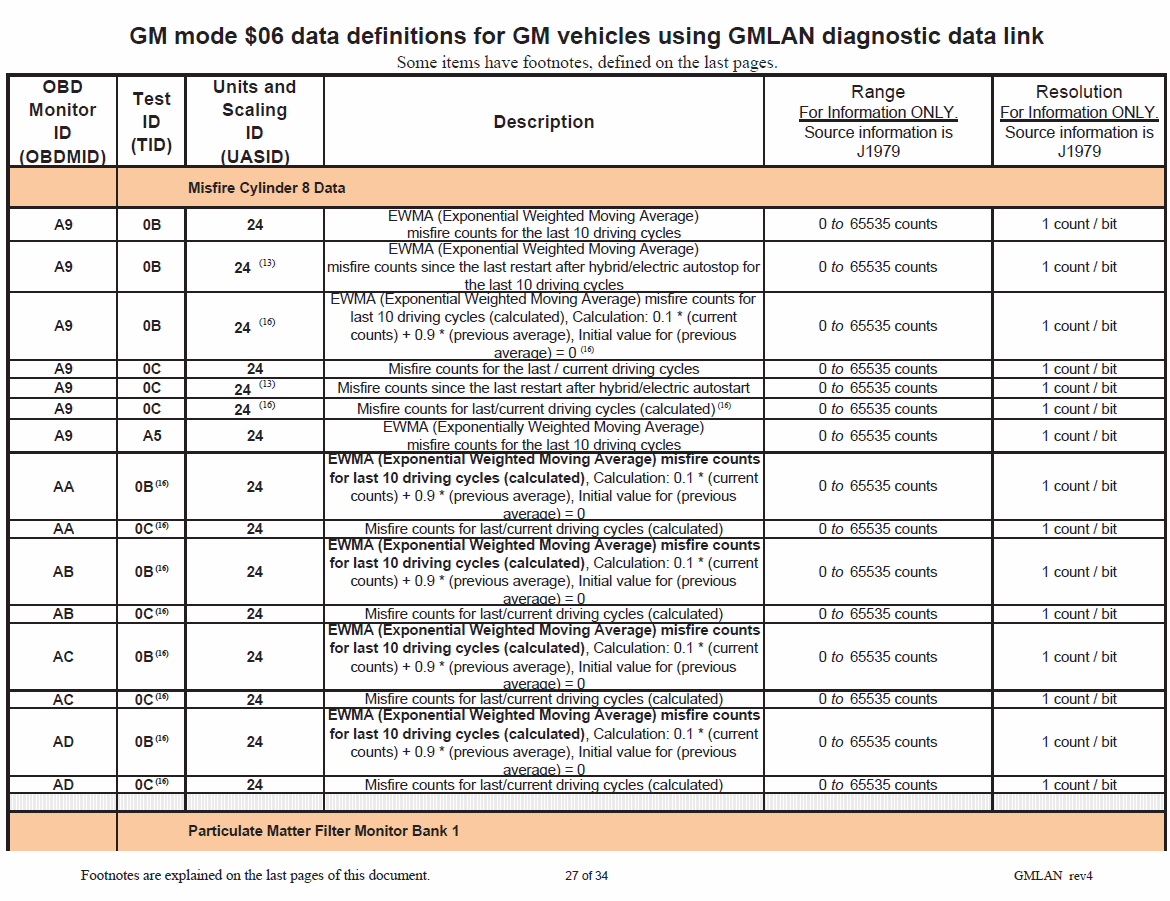

Fig 27: Mode $06 Data Definitions - Monitor ID A9-AD (27 Of 28)
Courtesy of GENERAL MOTORS CORP.

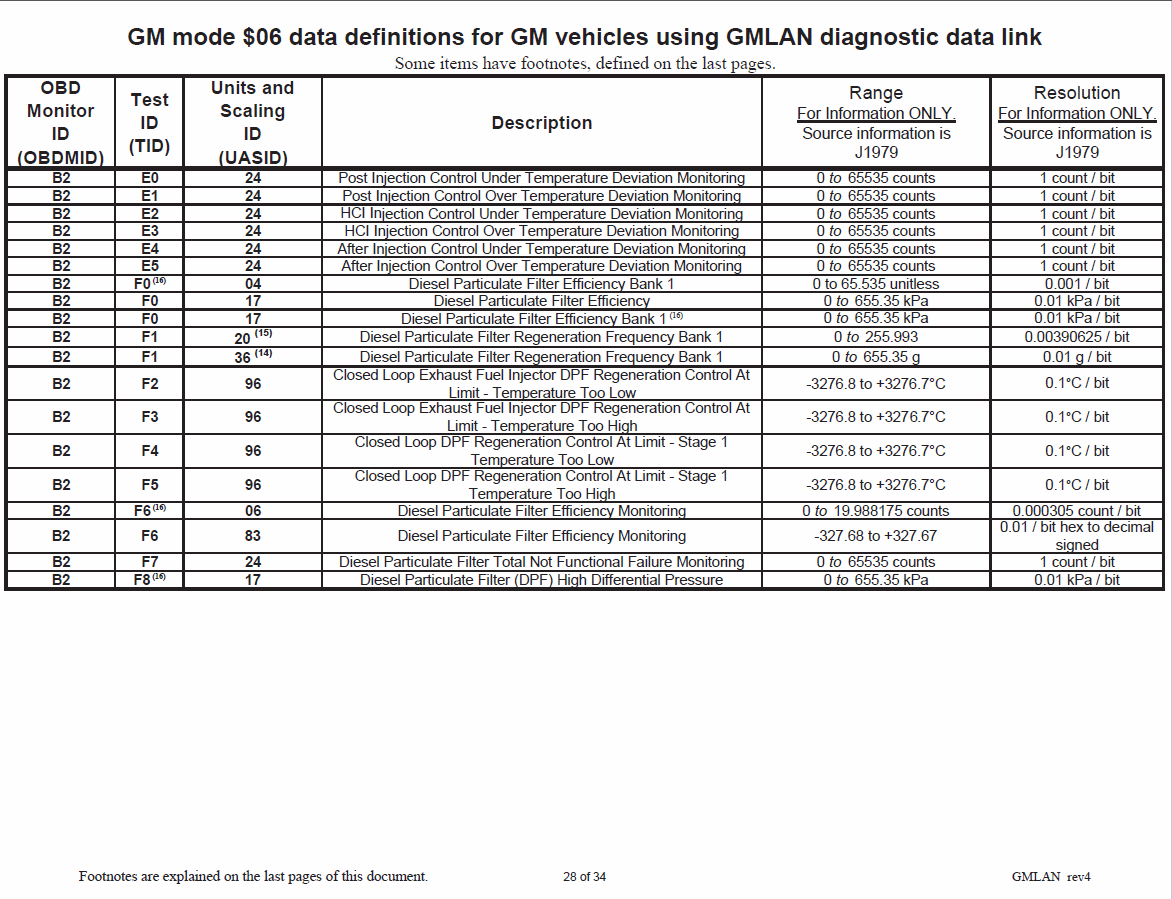

Fig 28: Mode $06 Data Definitions - Monitor ID B2 (28 Of 28)
Courtesy of GENERAL MOTORS CORP.

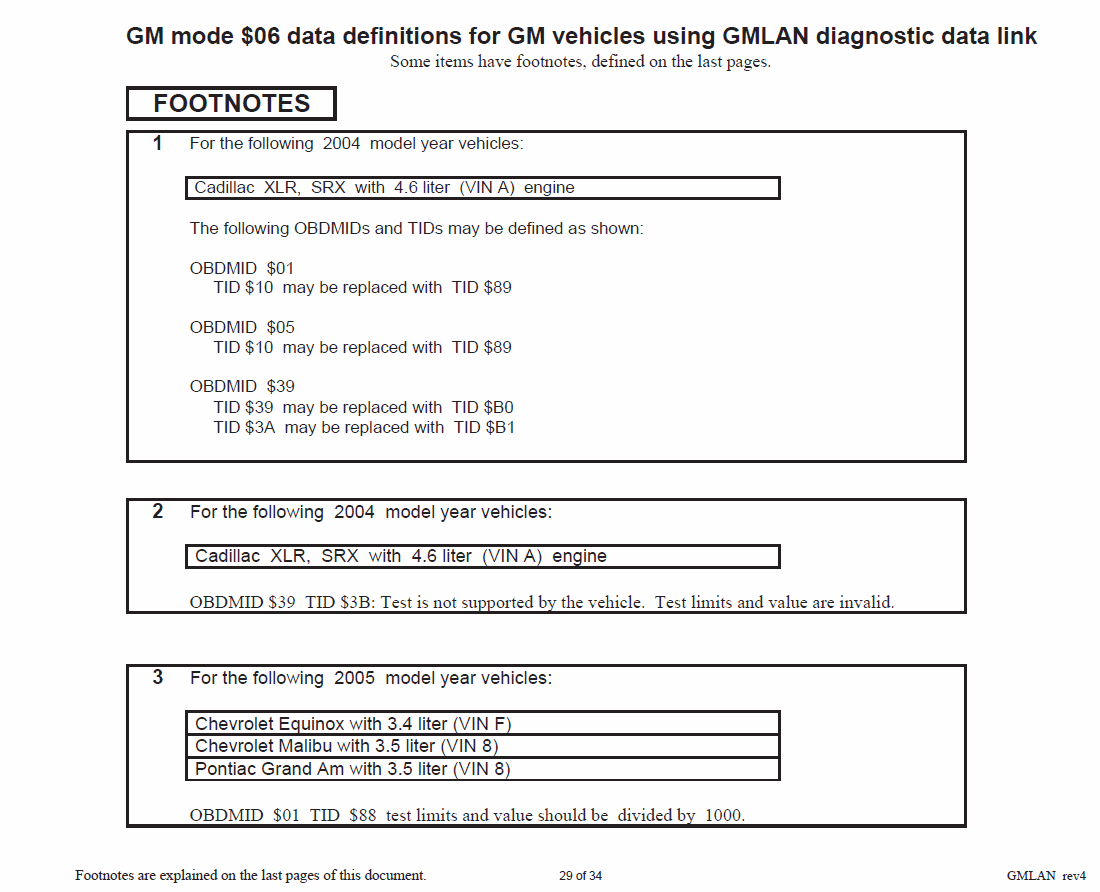

Fig 29: GMLAN Footnotes 1, 2 & 3
Courtesy of GENERAL MOTORS CORP.

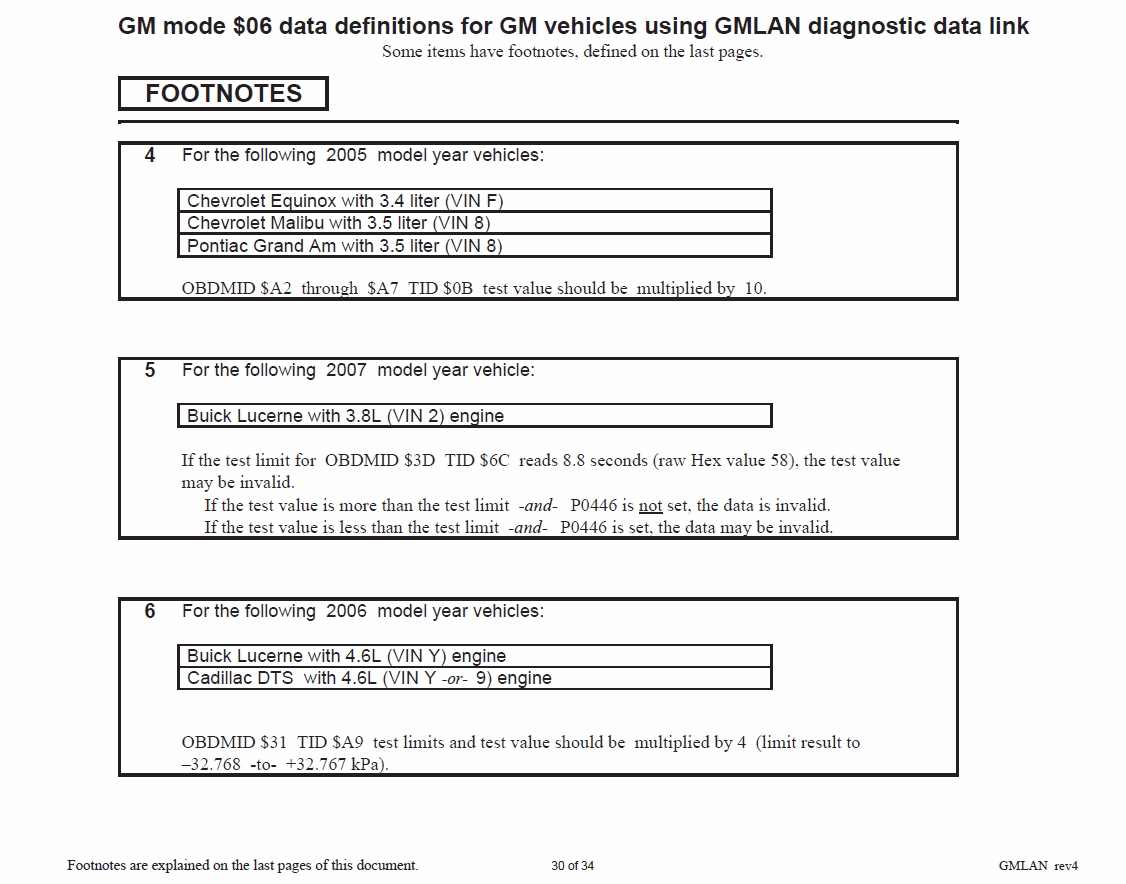

Fig 30: GMLAN Footnotes 4, 5 & 6
Courtesy of GENERAL MOTORS CORP.

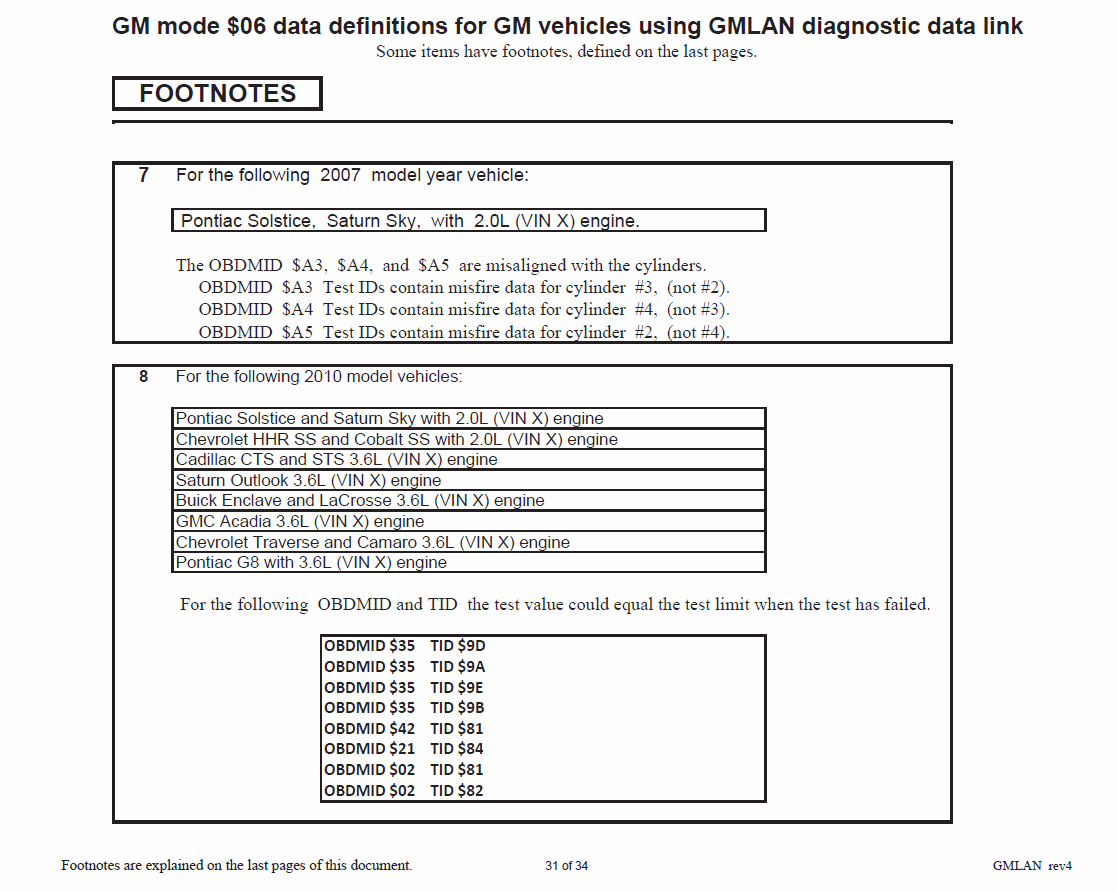

Fig 31: GMLAN Footnotes 7 & 8
Courtesy of GENERAL MOTORS CORP.

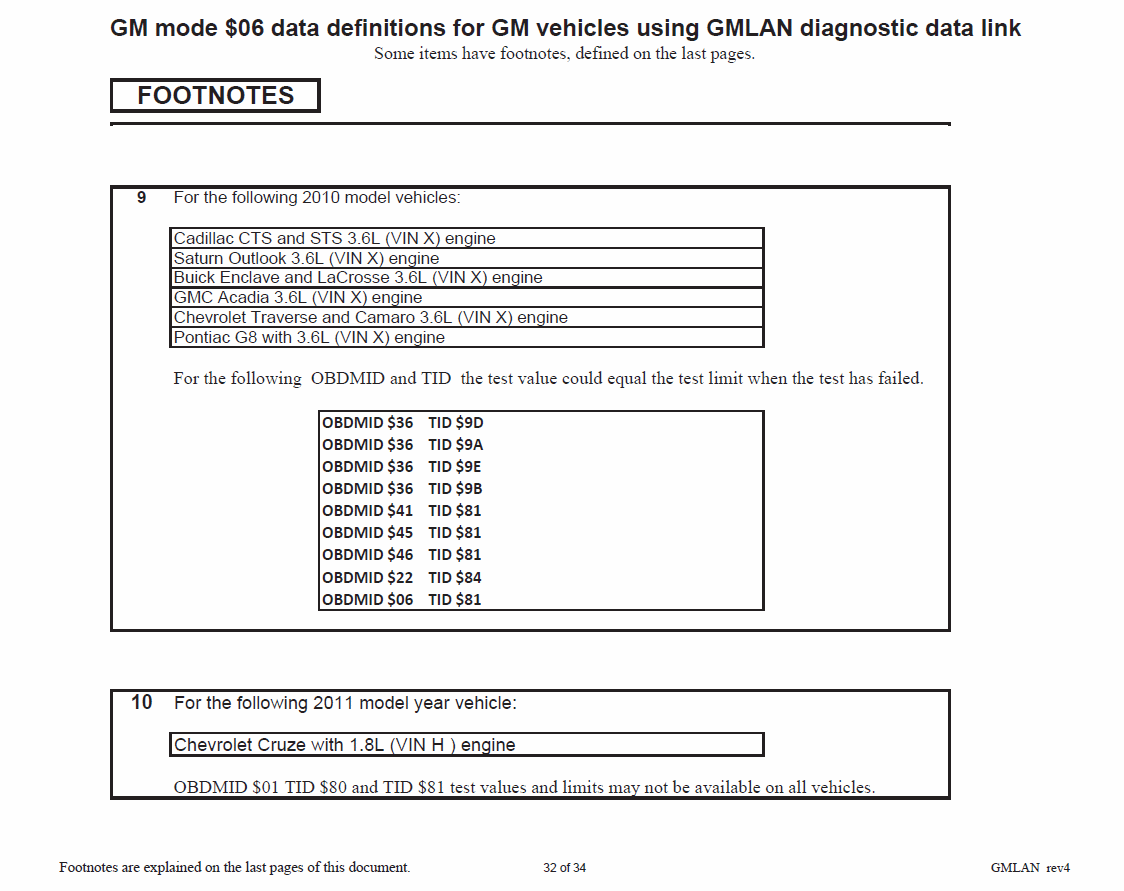

Fig 32: GMLAN Footnotes 9 & 10
Courtesy of GENERAL MOTORS CORP.

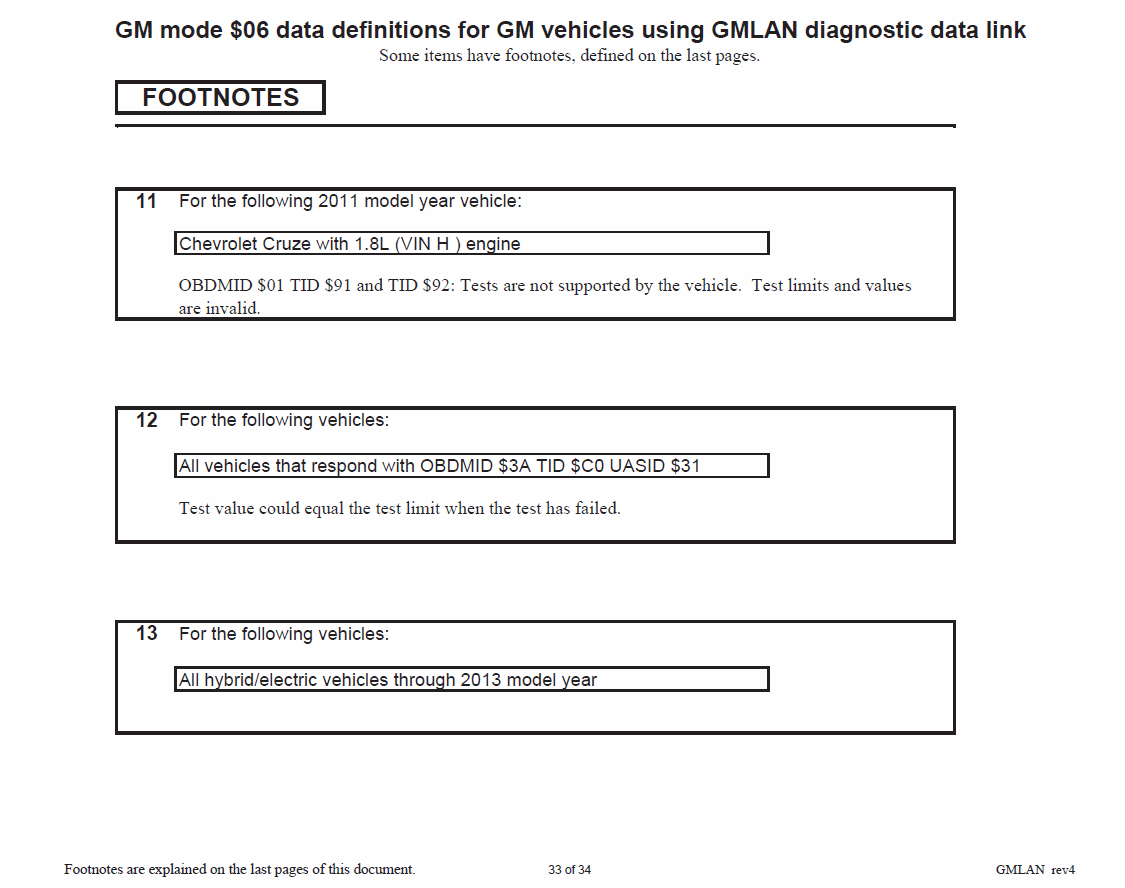

Fig 33: GMLAN Footnotes 11, 12 & 13
Courtesy of GENERAL MOTORS CORP.

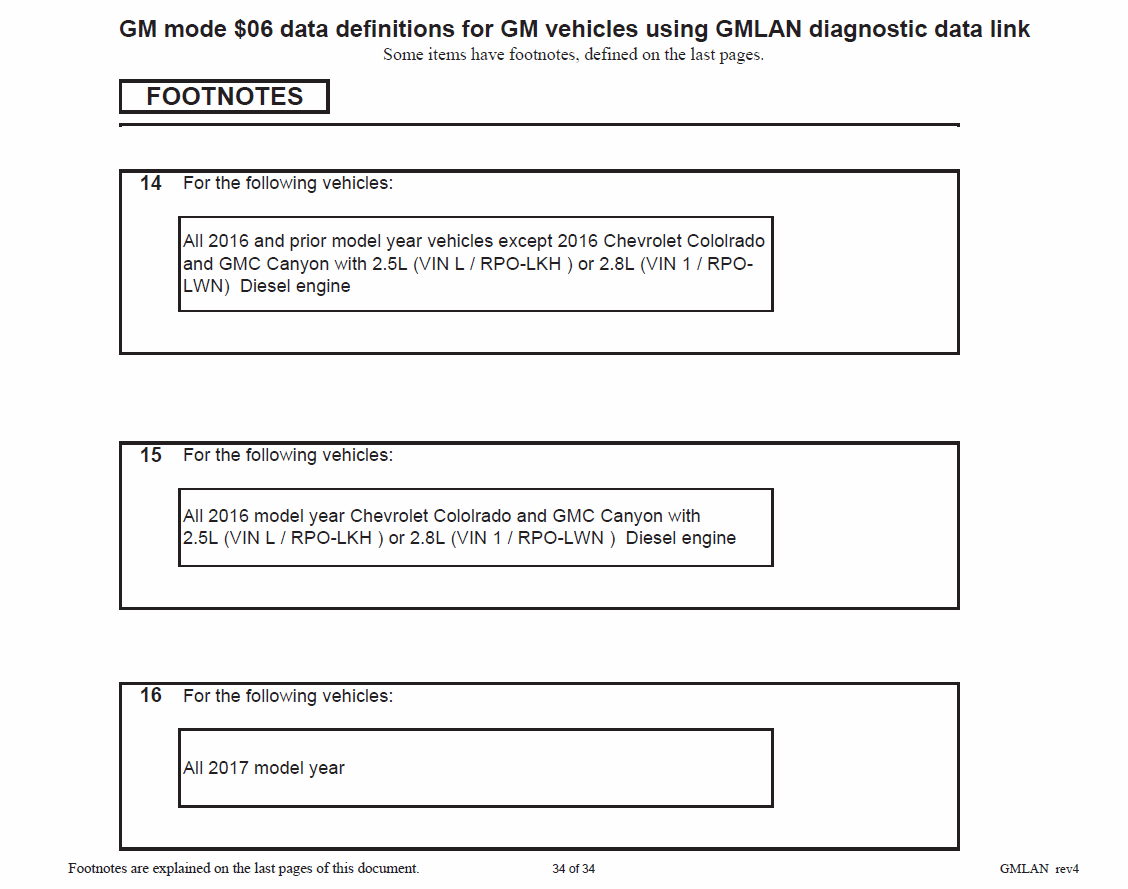

Fig 34: GMLAN Footnotes 14, 15 & 16
Courtesy of GENERAL MOTORS CORP.
