Wheel Alignment - Steering Wheel Angle and/or Front Toe Adjustment
- Ensure that the steering wheel is set in a straight ahead position.

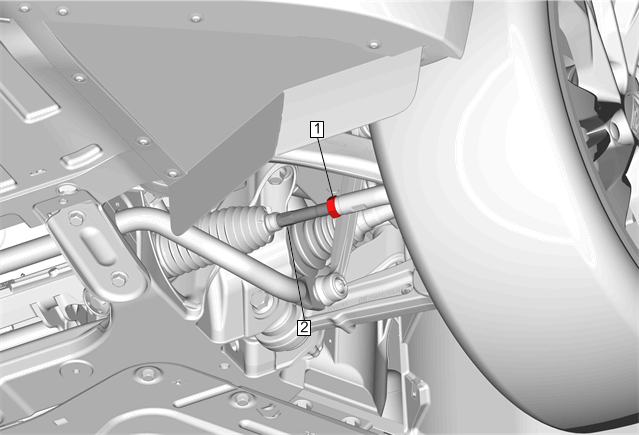

Courtesy of GENERAL MOTORS COMPANY
- Loosen the steering linkage inner tie rod nut (1).
- Adjust the toe to specification by turning the steering linkage inner tie rod (2). Refer to Wheel Alignment Specifications
- Tighten the steering linkage inner tie rod nut (1) to 75 N.m (55 lb ft).
- The steering angle sensor must be re-centered. Refer to Steering Wheel Angle Sensor Centering
