Installation Procedure

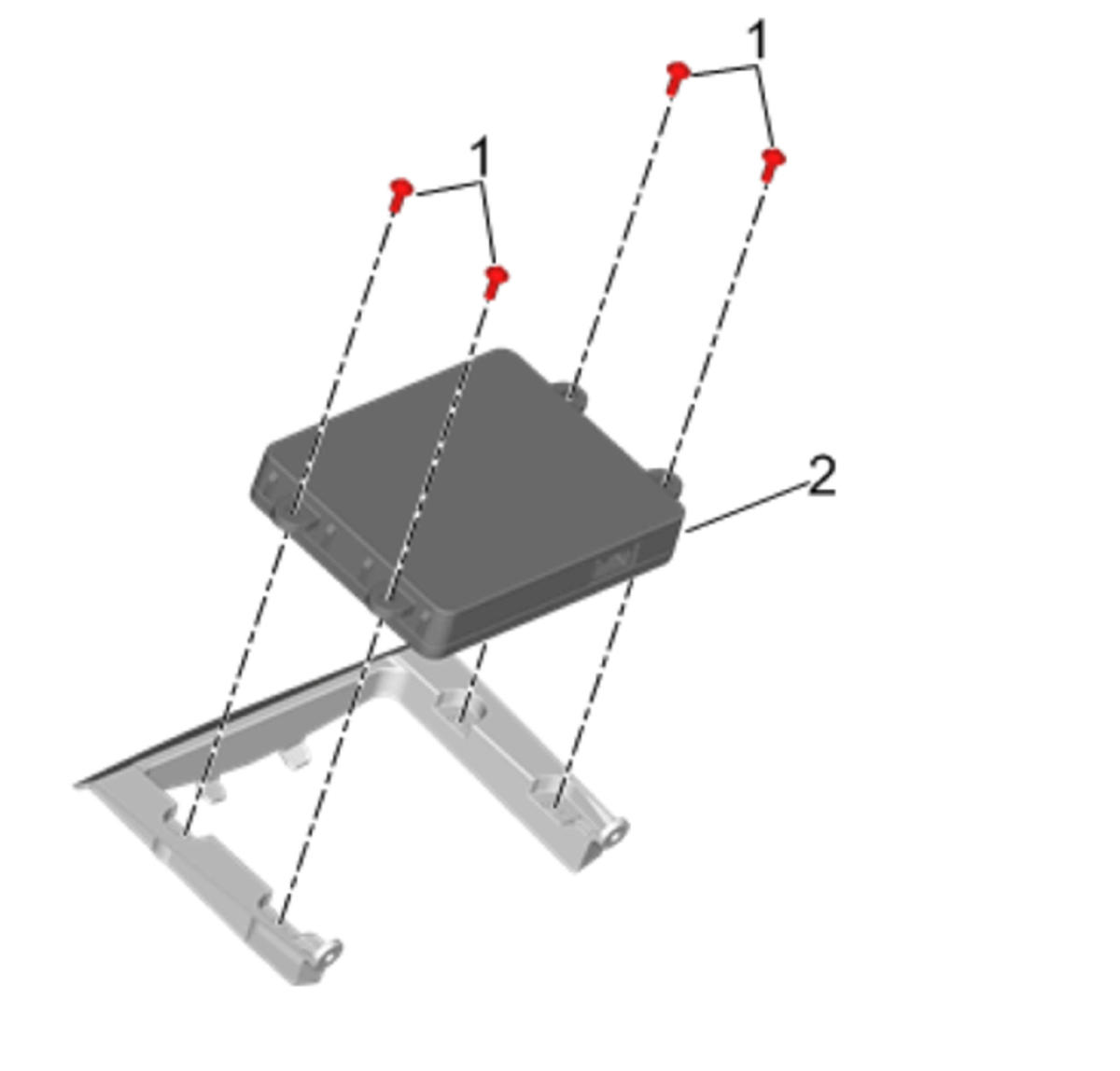

    Fig 1: Wireless Charging System Module And Bracket Bolt
    GM4789534Courtesy of GENERAL MOTORS COMPANY
  1. Install Wireless Charging System Module (2)
    2. CAUTION:

    Fastener Caution

  2. Install Wireless Charging System Module Bracket Bolt (1) (Qty: 4) and tighten to 1 N.m (9 lb in)
  3. Connect the electrical connector.

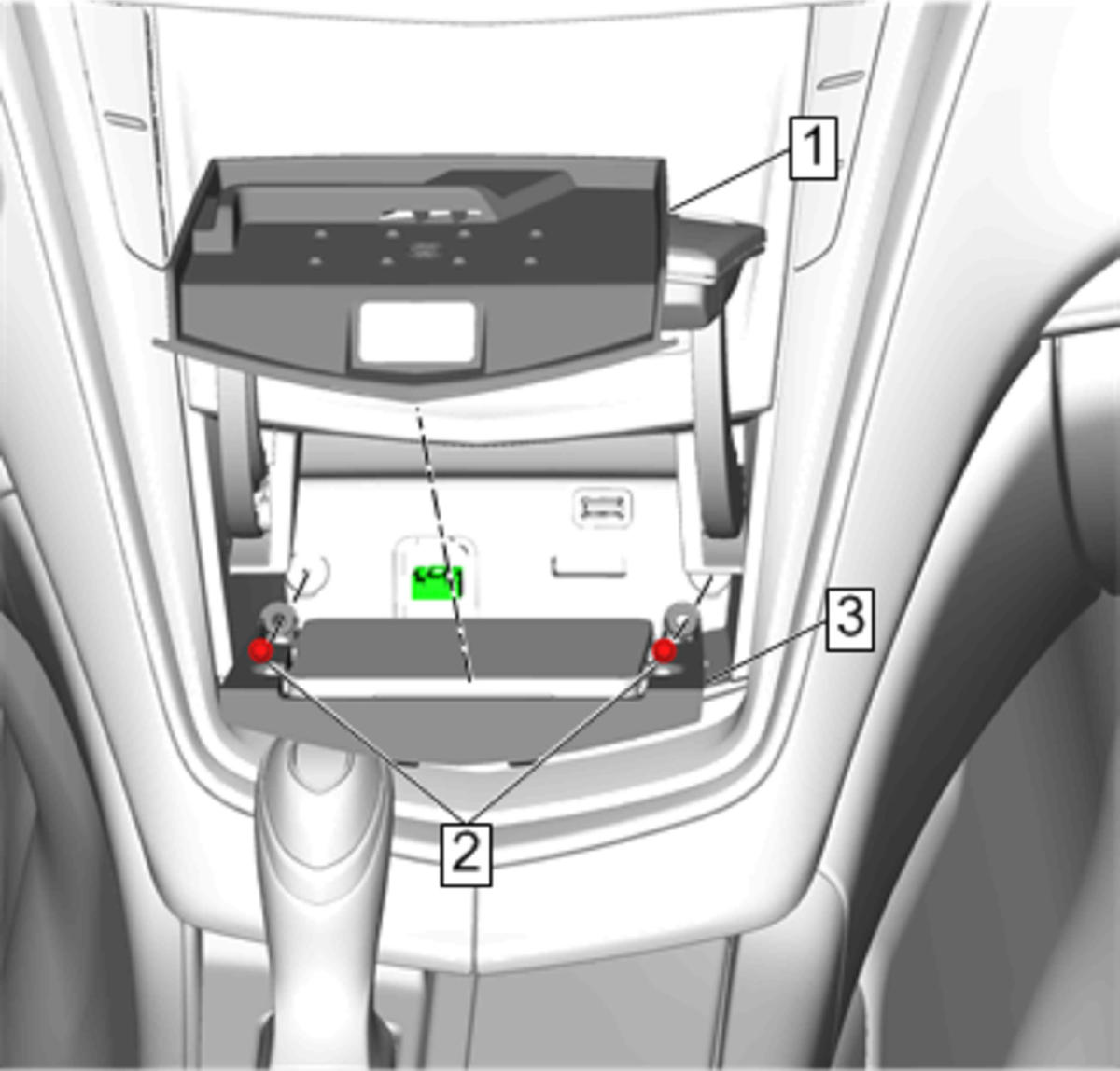

    4. Fig 2: Instrument Panel Center Compartment Liner And Wireless Charging System Module Bracket Bolt
    GM4789530Courtesy of GENERAL MOTORS COMPANY
  4. Install Wireless Charging System Module Bracket (3)
  5. Install Wireless Charging System Module Bracket Bolt (2) (Qty: 2) and tighten to 1 N.m (9 lb in)
  6. Install Instrument Panel Center Compartment Liner (1)
