Installation Procedure

  1. Install Windshield Adhesive Installation of Windshields

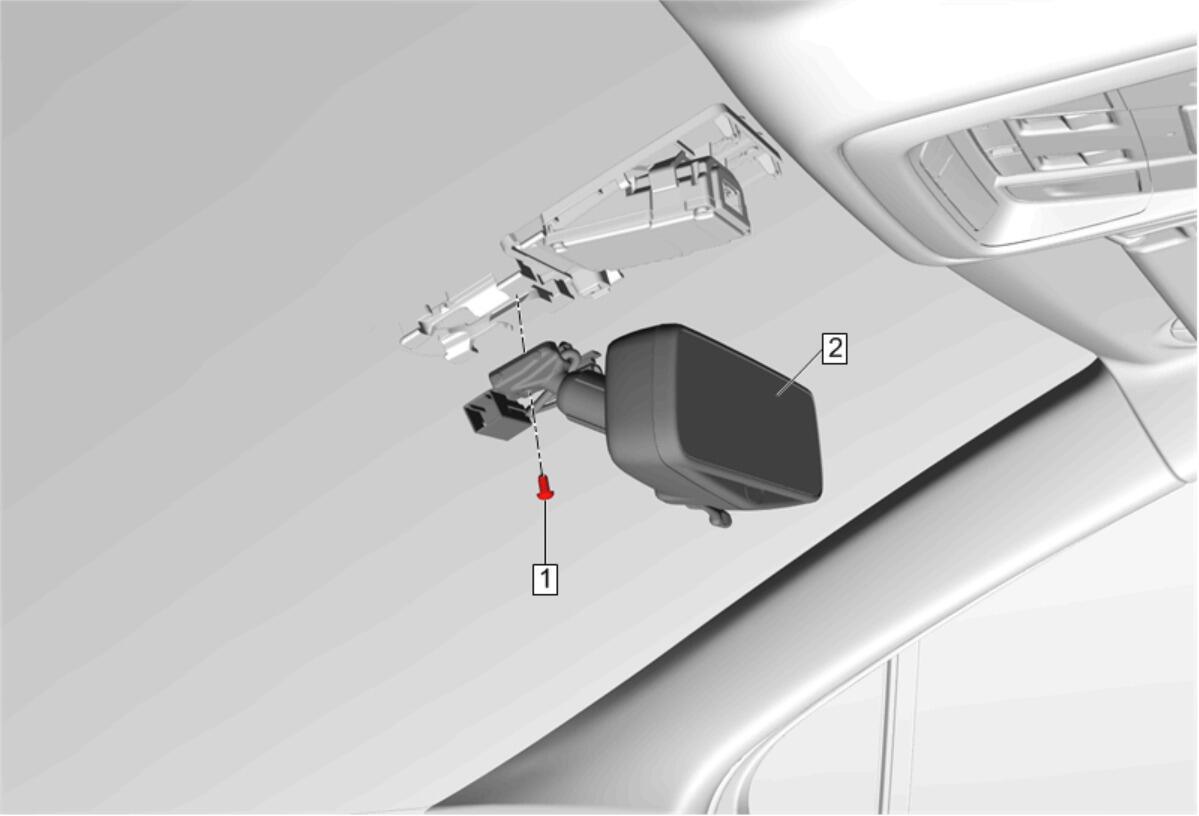

    2. Fig 1: Inside Rearview Mirror
    GM4292136Courtesy of GENERAL MOTORS COMPANY
  2. Install Inside Rearview Mirror (2)Inside Rearview Mirror Replacement

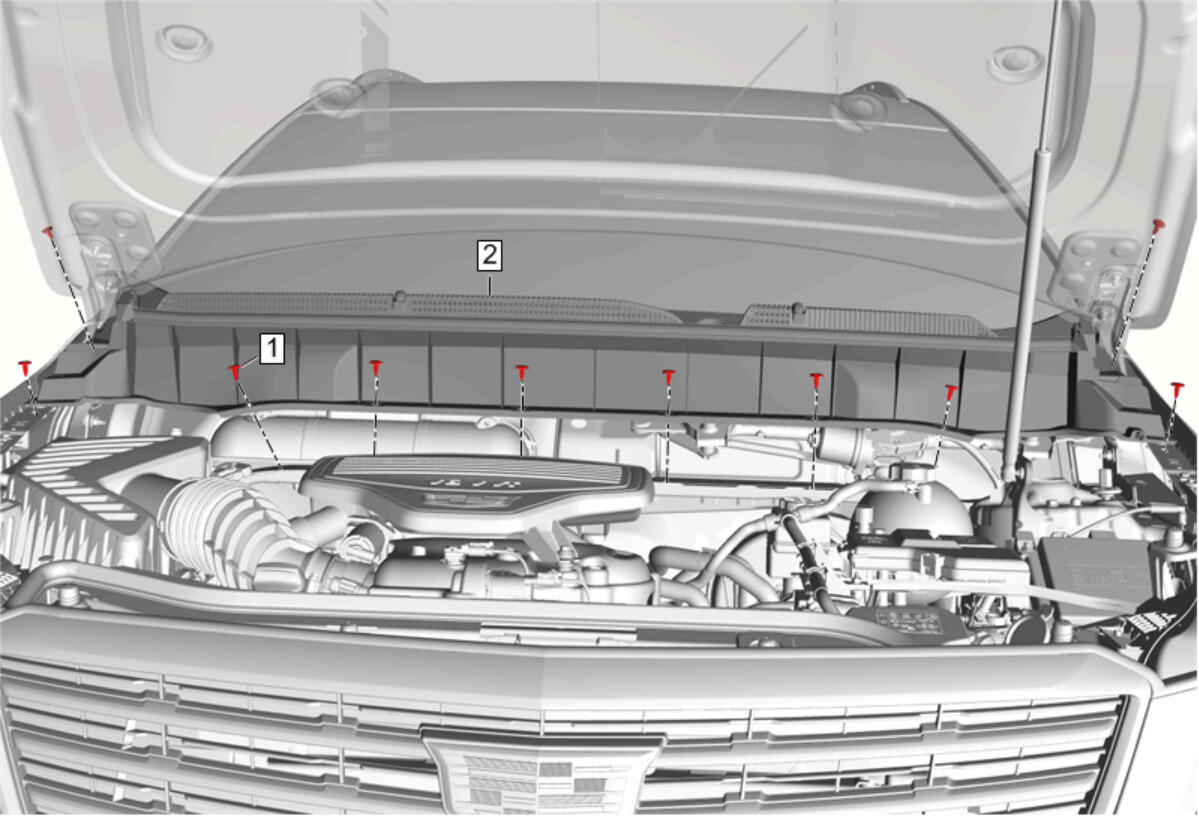

    3. Fig 2: Air Inlet Grille Panel
    GM4281893Courtesy of GENERAL MOTORS COMPANY
  3. Install Air Inlet Grille Panel (2)Air Inlet Grille Panel Replacement

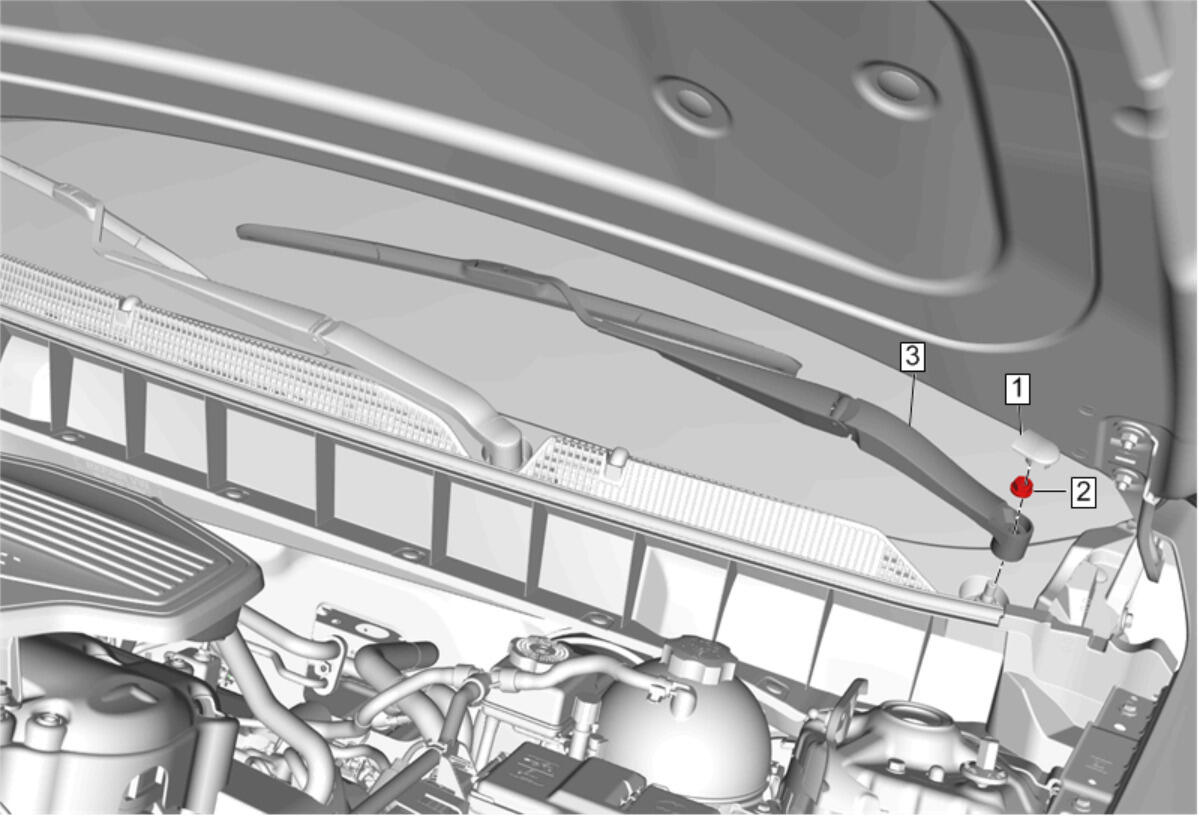

    4. Fig 3: Windshield Wiper Arm
    GM4281780Courtesy of GENERAL MOTORS COMPANY
  4. Install Windshield Wiper Arm (3)Windshield Wiper Arm Replacement
  5. Close the hood.
  6. Remove the double layer of masking tape around the perimeter of the painted surfaces.
