Installation Procedure

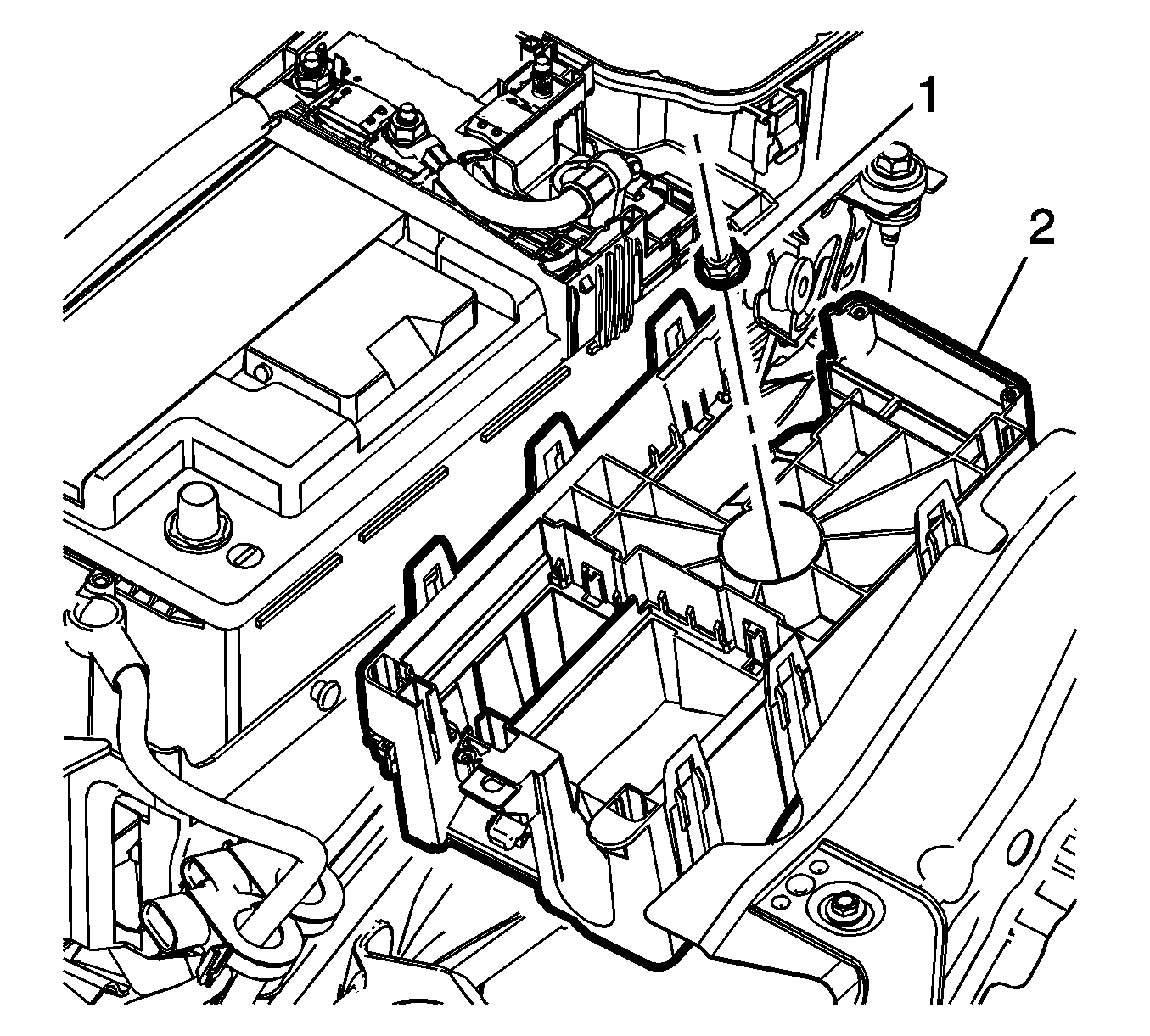

    Fig 1: Junction Block Base & Nut
    GM2575375Courtesy of GENERAL MOTORS COMPANY
  1. Position the junction block base (2) to the inner wheelhouse stud.
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the junction block base nut (1) and tighten to 22 N.m (16 lb ft).

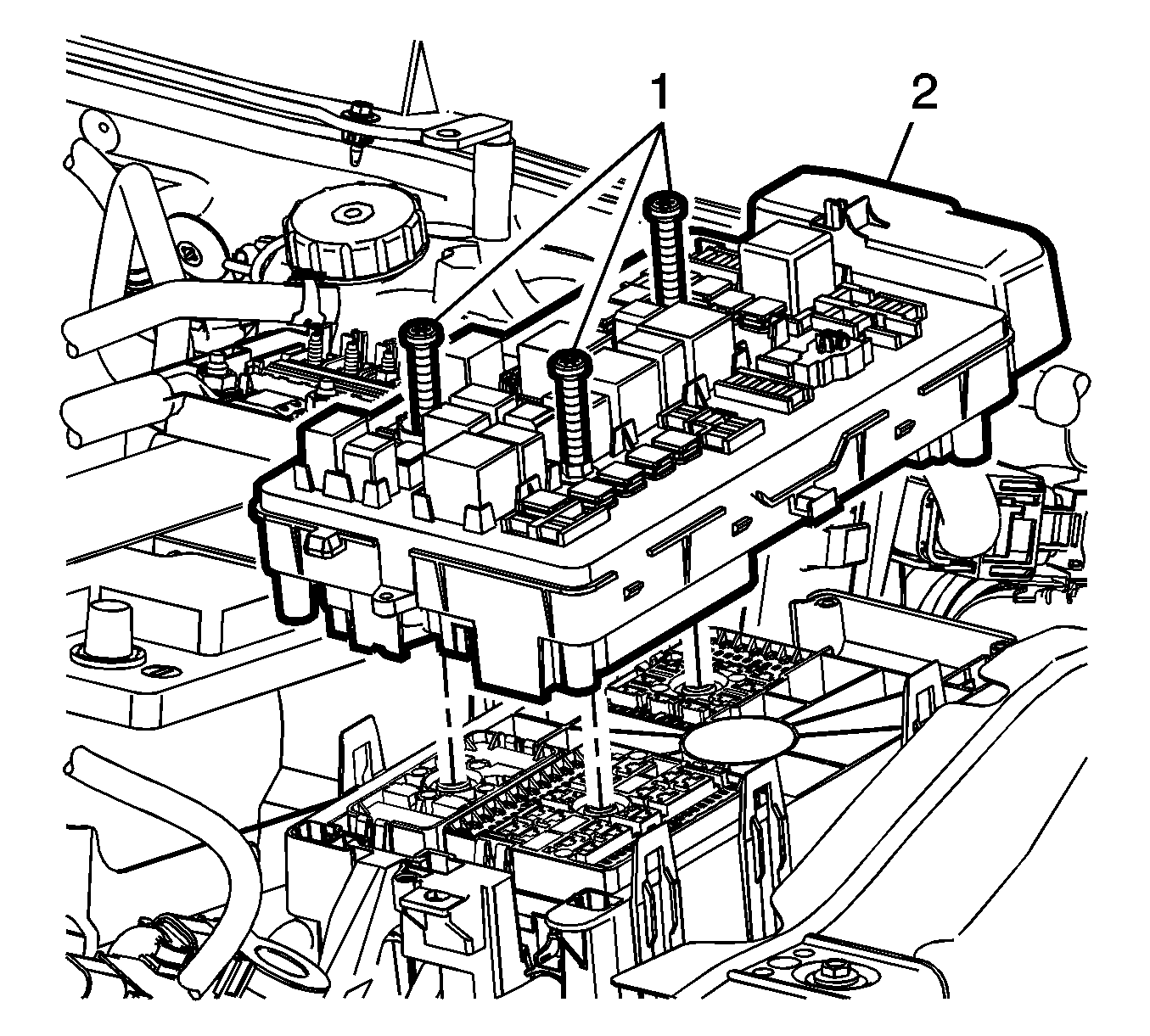

    3. Fig 2: Junction Block & Bolts
    GM2575374Courtesy of GENERAL MOTORS COMPANY
  3. Install the junction block to the base.
  4. Install the junction block bolts (1) and tighten to 7.2 N.m (64 lb in).

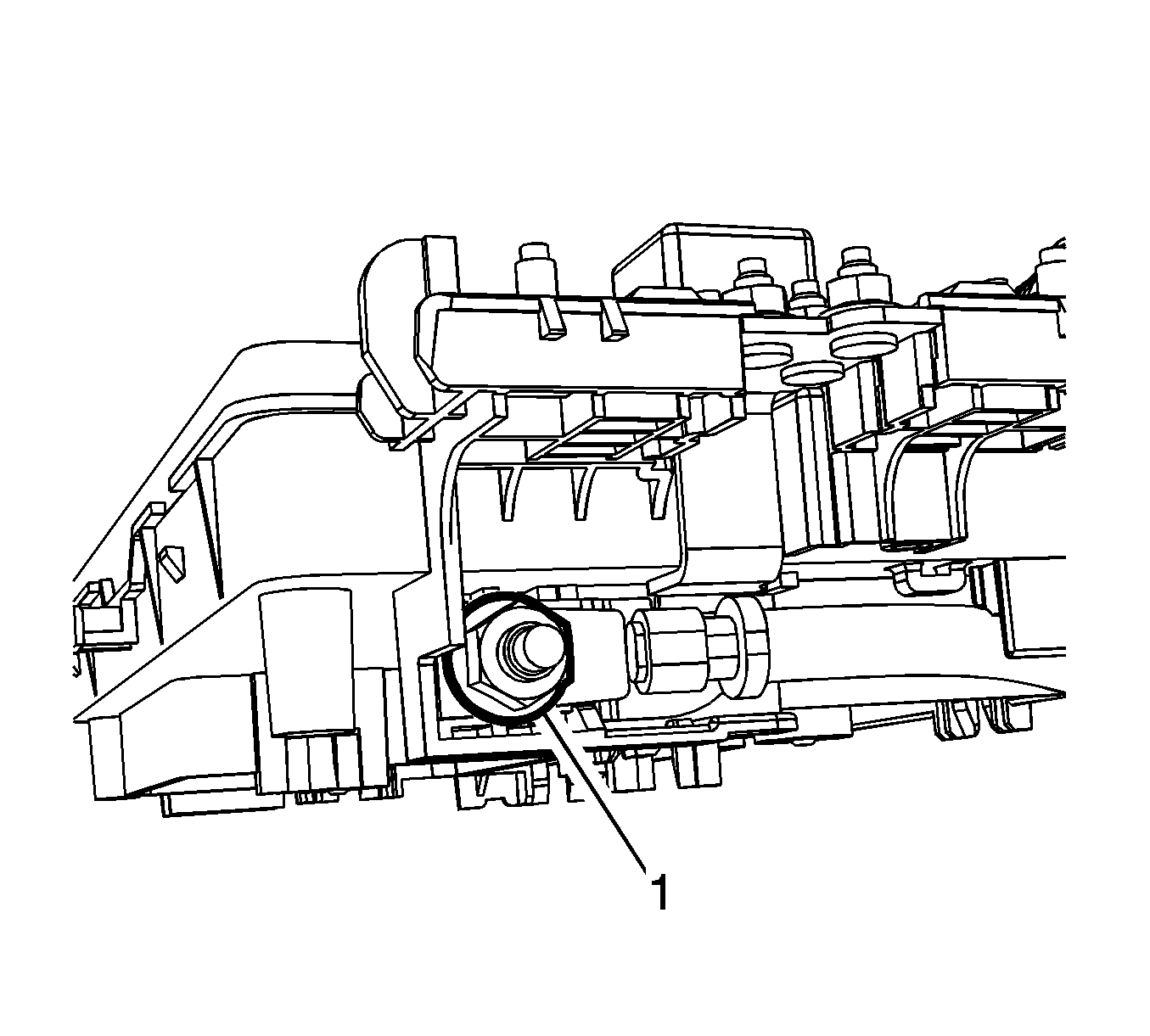

    5. Fig 3: Positive Battery Cable
    GM2636297Courtesy of GENERAL MOTORS COMPANY
  5. Position the positive battery cable to the junction block.
  6. Install the positive battery cable nut (1) and tighten to 12 N.m (106 lb in).

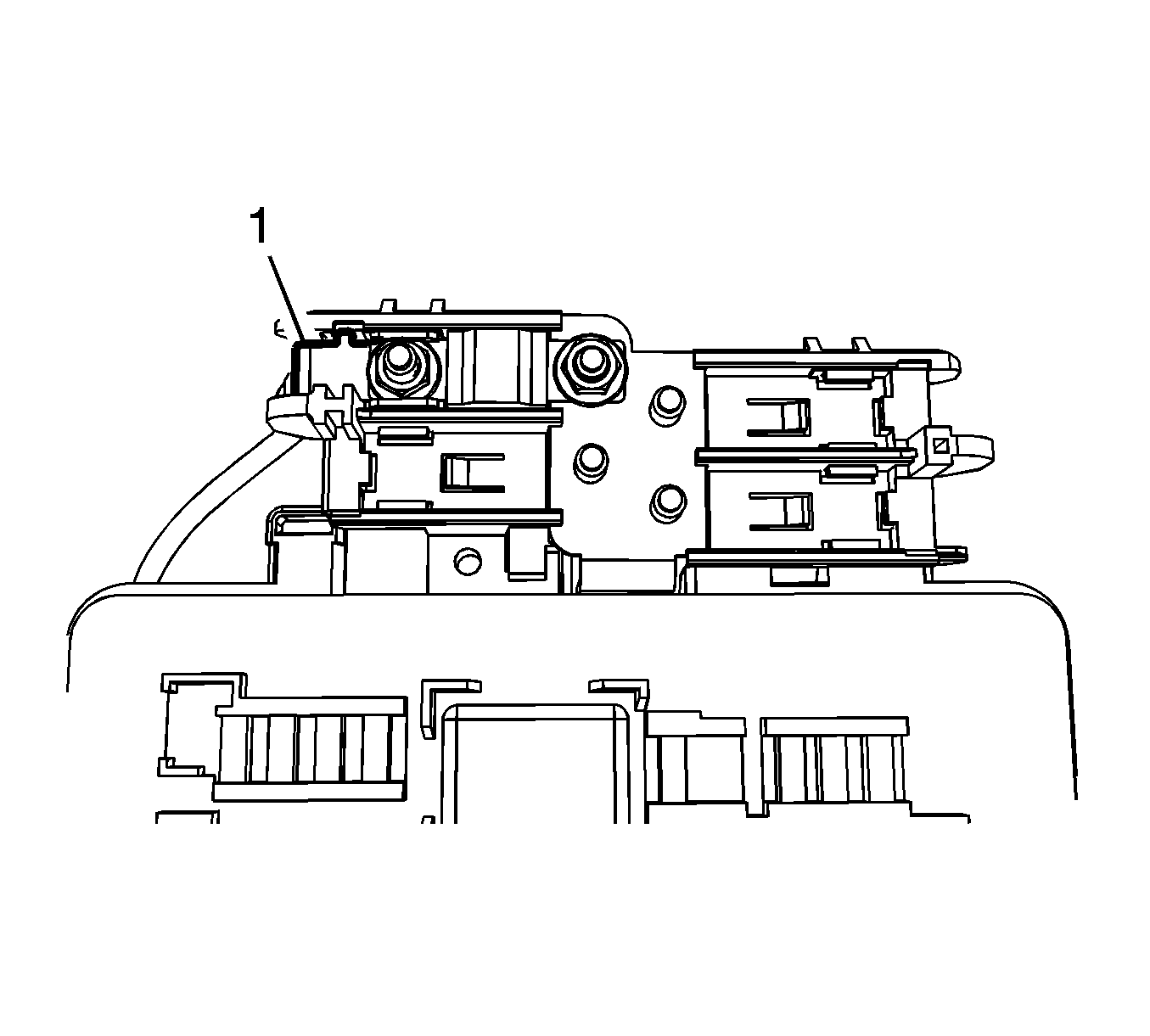

    7. Fig 4: Electrical Steering Wiring Harness
    GM2636230Courtesy of GENERAL MOTORS COMPANY
  7. Install the electrical steering wiring harness (1).

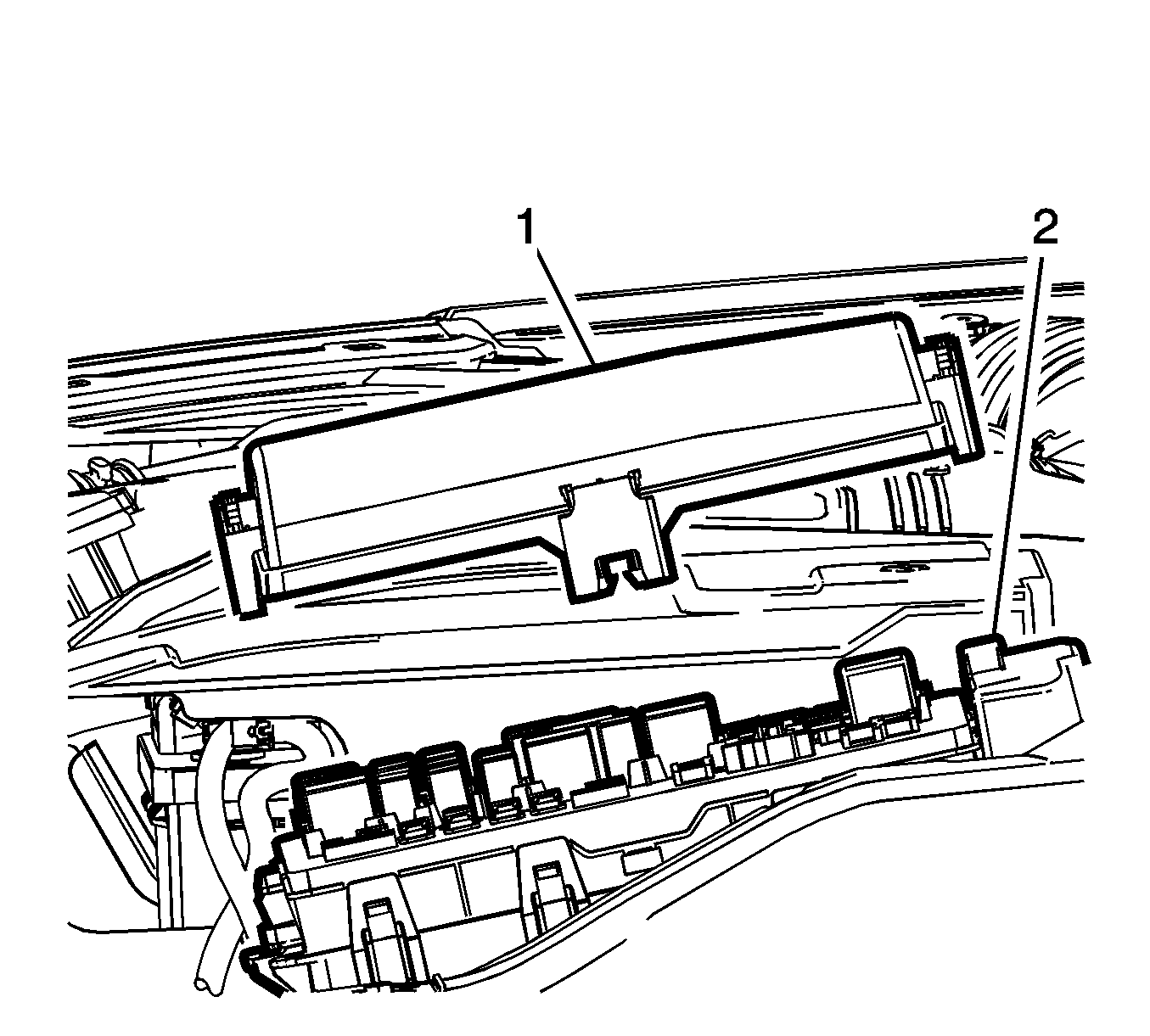

    8. Fig 5: Fuse Block & Cover
    GM2575371Courtesy of GENERAL MOTORS COMPANY
  8. Install both front compartment fuse block covers (1, 2).
  9. Connect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
