Body Control Module Bracket Replacement

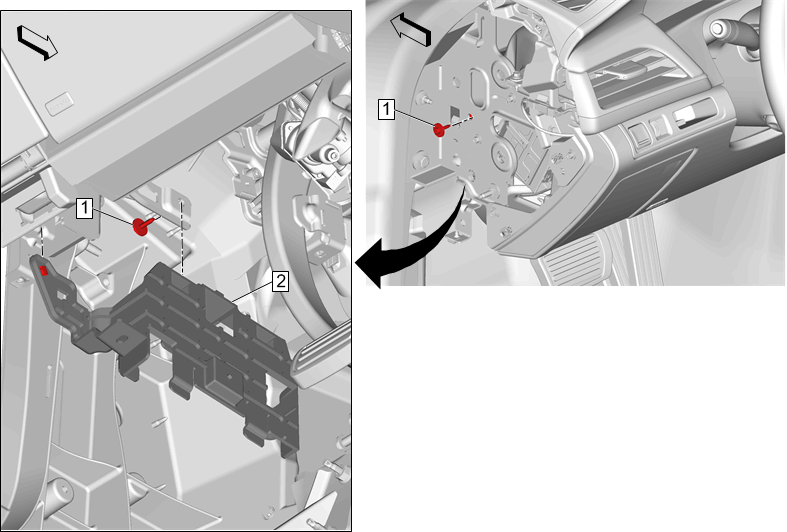

GM4234856Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Instrument Panel Lower Trim Panel Insulator Replacement - Left Side
  2. Instrument Panel Outer Trim Cover Replacement
1 Body Control Module Bracket Bolt [2x]
CAUTION:

Fastener Caution


2.5 N.m (22 lb in)
2 Body Control Module Bracket

Procedure

  1. Disconnect the electrical connectors.
  2. Transfer components as necessary.
