Front Side Door Window Control Switch Replacement

Callout	Component Name
Preliminary Procedure Front Side Door Armrest Switch Mount Plate Replacement (Drivers Side)

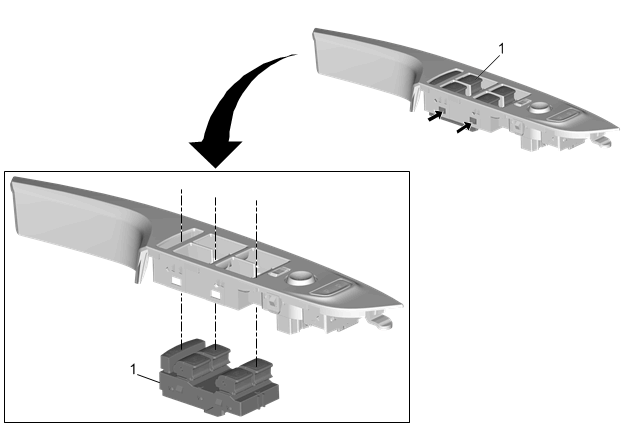

1	Front Side Door Window Control Switch Procedure Release the switch assembly from the switch mount plate by depressing the tabs along each side of the switch. Control Module References for programming and setup information, if required.

Callout

Component Name

Front Side Door Window Control Switch

Procedure

Release the switch assembly from the switch mount plate by depressing the tabs along each side of the switch.
Control Module References for programming and setup information, if required.
